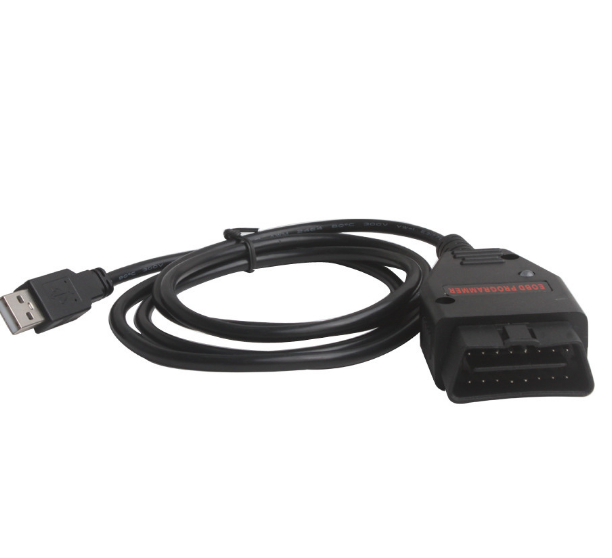

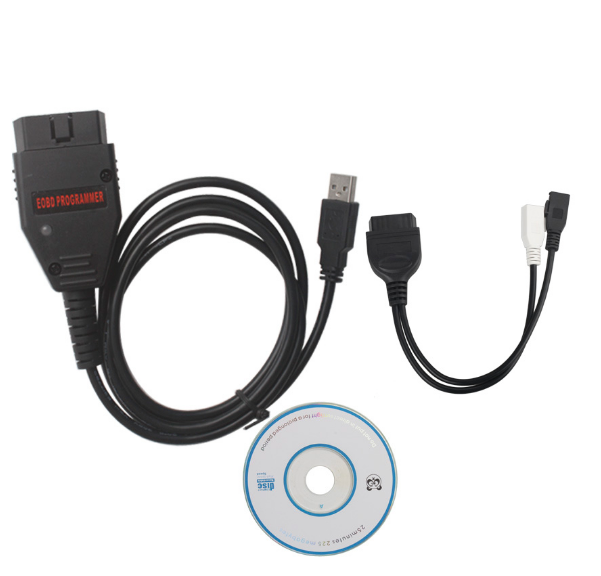

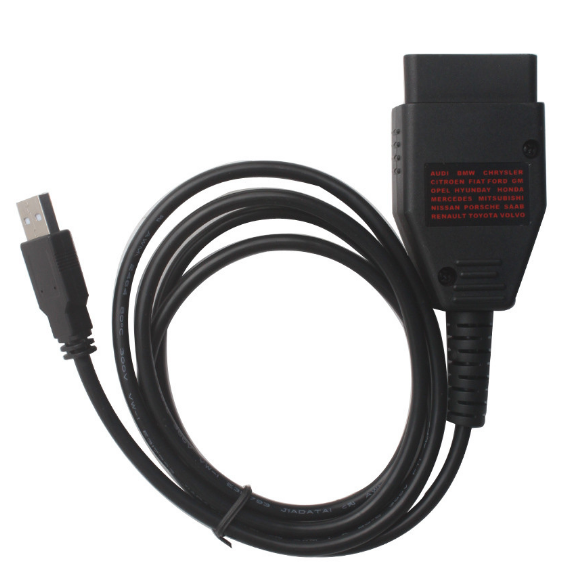

    Galletto 1260 ECU Flasher

    Now update to 1260 version .

    This version can achieve to read and write flash/eprom dumps of the most recent ECUs.
    It is very easy to use. No need to dismantle the ECU. You need only a PC with the USB interface.


    EOBD2 FLASHER 1260 is an easy hardware for auto chip tunning.
    Working on EDC16,EDC15, MEx.x ,DELCO and many more engine4s ecu. It is compatible with the newest modern diesel TDi, HDi, JTD, and petrol cars.

    Supports more cars than any other obd2, eobd tuning tools

    Compatible with:
    AUDI VW SEAT SKODA
    VW BOSCH_EDC15V 29F400BT R/W A3 1.9 TDI 90CV
    Rotating Pump A3 1.9 TDI 110CV
    A4 1.9 TDI 90CV
    A4 1.9 TDI 110CV
    A6 1.9 TDI 110CV
    Bora 1.9 TDI
    Golf 4 1.9 TDI
    New Beeatle 1.9 TDI
    Passat 1.9 TDI
    Sharan 1.9 TDI
    Skoda Fabia 1.9 TDI
    Skoda Octavia 1.9 TDI
    Skoda Superb 2.5 TDI V6


    VW BOSCH_EDC15V 29F400BT R/W A2 1.4 TDI 75CV
    Polo 1.4 TDI 75CV


    AUDI BOSCH_EDC15P 29F400BT R/W A2 1.4 TDI 80CV
    A3 1.9 TDI 101CV
    A3 1.9 TDI 130CV
    A4 1.9 TDI 101CV
    A4 1.9 TDI 115CV
    A4 1.9 TDI 130CV
    A6 1.9 TDI 101CV
    A6 1.9 TDI 130CV
    Bora 1.9 PD
    Golf 4 1.9 PD
    Lupo 1.2 / 1.4 PD
    New Beeatle 1.9 PD
    Passat 1.9 PD
    Polo 1.4 / 1.9 PD
    Sharan 1.9 PD
    Skoda Fabia 1.9 PD
    Skoda Octavia 1.9 PD
    AUDI BOSCH_ME7.5.5/ ME7.1.5 29F400BT R/W A3 1.8 TURBO 20V 150CV
    29F800BT A3 1.8 TURBO 20V 180CV
    A3 S3 1.8 TURBO 20V 225CV
    A4 1.8 TURBO 20V 150CV
    A4 1.8 TURBO 20V 180CV
    A6 1.8 TURBO 20V 150CV
    A6 1.8 TURBO 20V 180CV
    TT 1.8 TURBO 20V 150CV
    TT 1.8 TURBO 20V 180CV
    TT 4X4 1.8 TURBO 20V 225CV
    Bora 1.8 Turbo
    Golf 4 1.8 Turbo
    New Beeatle 1.8 Turbo
    Passat 1.8 Turbo
    Sharan 1.8 Turbo
    Skoda Octavia 1.8 Turbo
    Skoda Superb 1.8 Turbo
    AUDI BOSCH_EDC15V P40 V6 2500 E3 29F400BT R/W A4 2.5 TDI V6 155/180CV
    A6 2.5 TDI V6 155/180CV
    A8 2.5 TDI V6 155/180CV

    Passat 2.5 V6 155CV

    AUDI BOSCH_EDC15V P40 V6 2500 E4 29F800BT R/W A4 2.5 TDI V6 155/180CV
    A6 2.5 TDI V6 155/180CV
    A8 2.5 TDI V6 155/180CV


    Passat 2.5 V6 155CV

    AUDI VW BOSCH_EDC16U1 29BL802CB R/W A3 2.0 TDI 140 CV
    A4 2.0 TDI 140 CV
    A6 2.0 TDI PD
    Caddy 1.9 TDI 105 CV
    Caddy 2.0 TDI
    Golf 5 2.0 TDI 140 CV
    Golf 5 1.9 TDI 105 CV
    Touran 1.9 / 2.0 TDI 105 CV
    Tuareg 2.5 TDI 185 CV
    Skoda Octavia 1.9/2.0 TDI PD
    VW BOSCH_EDC16U1.2.1E4 2 ECU 29BL802CB R/W Tuareg 5.0 V10 Read & Write 2 ECU
    AUDI VW BOSCH_EDC16U31 M58BW0160 R/W A3 2.0 TDI 140 CV
    A4 2.0 TDI 140 CV
    Golf 5 1.9 TDI 105 CV
    Golf 5 2.0 TDI 140 CV
    Tuareg 2.5 TDI 185 CV


    AUDI VW BOSCH_EDC16CP34 M58BW0160 R/W A4 3.0 TDI 217 CV
    A4 3.0 TDI 4X4 231 CV
    A6 2.7 TDI
    A6 3.0 TDI 4X4 231 CV
    A8 3.0 V6 TDI 215 CV E4
    Tuareg 3.0 TDI 217 CV
    AUDI BOSCH_ME7xx Boot Mode 29F400BB R/W TUTTE LE AUDI ME7 Boot Mode, pin 24 Flash to mass, see PDF in doc.
    AUDI BOSCH_ME7xx Boot Mode 29F800BB R/W TUTTE LE AUDI ME7 Boot Mode, pin 24 Flash to mass, see PDF in doc.


    BMW
    BMW 320D 136 CV BOSCH_EDC15 2 PLCC 29F010 R/W Serie 3 (E46) 2.0 D EDC15
    Serie 5 (E39) 2.0 D EDC15
    BMW 330D BOSCH_EDC15 29F400BT R/W Serie 3 (E46) 3.0 D DDE4.0
    Serie 5 (E39) 2.5 D DDE4.0
    Serie 5 (E39) 3.0 D DDE4.0
    Serie 7 (E38) 3.0 D DDE4.0
    Serie X5 (E53) 3.0 D DDE4.0
    BMW 330D BOSCH_EDC15 Complete 29F400BT R/W Serie 3 (E46) 3.0 D Only at the table
    Serie 5 (E39) 2.5 D Only on the table
    Serie 5 (E39) 3.0 D Only on the table
    Serie 7 (E38) 3.0 D Only on the table
    Serie X5 (E53) 3.0 D Only on the table
    BMW MS41 SIEMENS 29F200BB R/W Serie 3 (E36) 2.0 i MS41
    Serie 3 (E36) 2.5 i MS41
    Serie 3 (E36) 2.8 i MS41
    Serie 5 (E39) 2.0 i MS41
    Serie 5 (E39) 2.5 i MS41
    Serie 7 (E38) 2.8 i MS41
    Z3 Roadster 2.0 MS41
    Z3 Roadster 2.8 MS41


    BMW MS42 SIEMENS 29F400BB R/W Serie 3 (E36) 2.0i Ms42
    Serie 3 (E36) 2.3i Ms42
    Serie 3 (E36) 2.5i Ms42
    Serie 3 (E36) 2.8i Ms42
    Serie 3 (E36) 3.0i Ms42
    Serie 3 (E36) 3.2i Ms42
    Serie 5 (E39) 2.0i Ms42
    Serie 5 (E39) 2.5i Ms42
    Serie 5 (E39) 2.3i Ms42
    Serie 5 (E39) 2.8i Ms42
    Serie 5 (E39) 3.0i Ms42
    Serie 5 (E39) 3.2i Ms42


    BMW MS43 SIEMENS 29F400BB R/W Serie 3 (E46) 2.0i Ms43
    Serie 3 (E46) 2.3i Ms43
    Serie 3 (E46) 2.5i Ms43
    Serie 3 (E46) 2.8i Ms43
    Serie 3 (E46) 3.0i Ms43
    Serie 3 (E46) 3.2i Ms43
    Serie 5 (E39) 2.0i Ms43
    Serie 5 (E39) 2.3i Ms43
    Serie 5 (E39) 2.5i Ms43
    Serie 5 (E39) 2.8i Ms43
    Serie 5 (E39) 3.0i Ms43
    Serie 5 (E39) 3.2i Ms43


    BMW 318 IS 16V BOSCH M52 MICRO CC460 R/W Serie 3 (E36) 1.8 i ME5.2.1b
    Z3 Roadster 1.9 ME5.2.1b
    BMW 318 IS BOSCH BMS46 29F200BB R/W Serie 3 (E46) 1.9 BMS46
    Z3 Roadster 1.9 BMS46
    BMW M3 E36 MSS50 SIEMENS 2 28F200BXB R/W M3 3.2 E36 MSS50
    Z3 M 3.2 MSS50
    BMW M3 E46 MSS52 SIEMENS 2 29F200BB R/W M3 3.2 E46 MSS52/53
    M5 5.0 V8 MSS54
    Z8 5.0 V8
    BMW M3 E46 CSL MSS53 SIEMENS 2 29F400BB R/W M3 CSL (E46) 370CV MSS54
    BMW ME71 BOSCH MOTRONIC 29F400BB R/W Serie 5 (E39) 4.4 D ME7.1
    Serie 7 (E38) 4.4 D ME7.1
    Serie X5 (E53) 4.4 D ME7.1

    CHRYSLER
    CHRYSLER BOSCH_EDC15 C2 29F400BT R/W Grand Cherokee 2.7 CRD
    Jeep Cherokee 2.5 CRD
    Jeep Cherokee 2.8 CRD
    PT Cruiser 2.2 CRD
    Voyager 2.5 CR

    CITROEN
    CITROEN BOSCH_EDC15 C2 29F400BT R/W Berlingo 2.0 HDI
    C5 2.0 HDI
    C5 2.2 HDI
    C8 2.0 HDI
    C8 2.2 HDI
    Evasion 2.0 HDI
    Jumper 2.0 HDI
    Jumper 2.2 HDI
    Jumper 2.8 HDI
    Jumpy 2.0 HDI
    Picasso 2.0 HDI
    Synergie 2.0 HDI
    Xantia 2.0 HDI
    Xsara 2.0 HDI
    Xsara Picasso 2.0 HDI

    Phedra 2.0 JTD
    Phedra 2.2 JTD
    Ulysse 2.0 JTD 16V
    Ulysse 2.2 JTD 16V


    CITROEN BOSCH_EDC16 C2 29BL802CB R/W Berlingo 2.0 HDI
    C5 2.0 HDI
    C5 2.2 HDI
    C8 2.0 HDI
    Evasion 2.0 HDI
    Jumper 2.0 HDI
    Jumper 2.2 HDI
    Jumper 2.8 HDI
    Jumpy 2.0 HDI
    Picasso 2.0 HDI
    Synergie 2.0 HDI
    Xantia 2.0 HDI
    Xsara 2.0 HDI
    Xsara Picasso 2.0 HDI
    CITROEN BOSCH_EDC16+ C34 M58BW0160 R/W Berlingo 2.0 HDI
    C3 1.6 16V HDI
    C4 1.6 16V HDI
    C5 1.6 16V HDI
    C5 2.0 HDI
    C5 2.2 HDI
    C8 1.6 16V HDI
    C8 2.0 HDI
    Evasion 2.0 HDI
    Jumper 2.0 HDI
    Jumper 2.2 HDI
    Jumper 2.8 HDI
    Jumpy 2.0 HDI
    Picasso 2.0 HDI
    Synergie 2.0 HDI
    Xantia 2.0 HDI
    Xsara 2.0 HDI
    Xsara Picasso 2.0 HDI
    CITROEN BOSCH_ME744 29F400BB R/W C2 1.6 16V E3
    C3 1.6 16V E3
    C4 1.6 16V E3
    Saxo 1.6 16V E3
    CITROEN BOSCH_ME745 R/W C3 1.6 16V E4 1-8
    C4 1.6 16V E4
    CITROEN MARELLI IAW 48P 29F200BB W Saxo 1.6 16V E3 Only Write
    CITROEN MARELLI IAW 48P2 29F400BB R/W Saxo 1.6 16V E4
    CITROEN_SAGEM2000_14 29F200BB TSOP R/W C1 1.4 8V E3
    C2 1.4 8V E3
    C3 1.4 8V E3
    CITROEN SIEMENS SID 881/801 29F400BB R/W Berlingo 2.0 8V HDI 90CV E Read in Boot Mode, pin 28 Flash to mass
    2.0 90CV C5 2.0 8V HDI 90CV E4 Read in Boot Mode, pin 28 Flash to mass
    Picasso 2.0 8V HDI 90CV E4 Read in Boot Mode, pin 28 Flash to mass
    Xantia 2.0 8V HDI 90CV E4 Read in Boot Mode, pin 28 Flash to mass
    Xara 2.0 8V HDI 90CV E4 Read in Boot Mode, pin 28 Flash to mass
    CITROEN SIEMENS SID 804 29F400BB R/W C2 1,4 8V HDI 70CV E4 Read in Boot Mode, pin 28 Flash to mass
    1.4 70CV C3 1,4 8V HDI 70CV E4 Read in Boot Mode, pin 28 Flash to mass
    Saxo 1,4 8V HDI 70CV E4 Read in Boot Mode, pin 28 Flash to mass
    CITROEN SID 881/801//804/806 29F400BB R/W Berlingo 2.0 8V HDI 90CV E Boot Mode, pin 28 Flash to mass
    1.4 70 CV & 2.0 90CV Boot Mode C1 1,4 8V HDI 70CV E4 Boot Mode, pin 28 Flash to mass
    C2 1,4 8V HDI 70CV E4
    C3 1,4 8V HDI 70CV E4 Boot Mode, pin 28 Flash to mass
    C5 2.0 8V HDI 90CV E4 Boot Mode, pin 28 Flash to mass
    Picasso 2.0 8V HDI 90CV E4 Boot Mode, pin 28 Flash to mass
    Saxo 1,4 8V HDI 70CV E4 Boot Mode, pin 28 Flash to mass
    Xantia 2.0 8V HDI 90CV E4 Boot Mode, pin 28 Flash to mass
    Xara 2.0 8V HDI 90CV E4 Boot Mode, pin 28 Flash to mass

    FERRARI
    FERRARI M52 BOSCH MOTRONIC MICRO CC460 W 355 E 456 M5.2 CC460
    FERRARI 360 MODENA BOSCH ME7 IBRIDA R/W Modena 3.6 Bosch ME7.3H4 Boot Mode, pin 20 Flash to mass
    FERRARI 430 BOSCH ME7.3.2 29F800BB R/W 430 4.3 V8 Bosch ME7.3.2Read in Boot Mode, see PDF in doc.


    ALFA FIAT LANCIA
    Alfa Fiat Lancia BOSCH_EDC 15C E2 R/W Alfa 145 1.9 JTD EDC15C5
    Alfa 146 1.9 JTD EDC15C5
    Alfa 156 1.9 JTD EDC15C5
    Alfa 156 2.4 JTD EDC15C5
    Alfa 166 2.4 JTD EDC15C5
    Fiat Bravo/a 1.9 JTD EDC15C5
    Fiat Multipla 1.9 JTD EDC15C5
    Fiat Marea 1.9 JTD EDC15C5
    Fiat Marea 2.4 JTD EDC15C5
    Lancia K 2.4 JTD EDC15C5
    Lancia Lybra 1.9 JTD EDC15C5
    Lancia Lybra 2.4 JTD EDC15C5
    Lancia Z 2.0 JTD EDC15C5


    Alfa Fiat Lancia BOSCH_EDC 15C E3 29F400BT R/W Alfa 147 1.9 JTD 16V EDC15C7
    Alfa 147 1.9 JTD 8V EDC15C7
    Alfa 156 1.9 JTD EDC15C7
    Alfa 156 2.4 JTD EDC15C7
    Alfa 166 2.4 JTD EDC15C7
    Fiat Bravo/a 1.9 JTD EDC15C7
    Fiat Doblo 1.9 JTD EDC15C7
    Fiat Ducato 2.0 JTD EDC15C7
    Fiat Ducato 2.3 JTD EDC15C7
    Fiat Ducato 2.8 JTD EDC15C7
    Fiat Marea 1.9 JTD EDC15C7
    Fiat Marea 2.4 JTD EDC15C7
    Fiat Multipla 1.9 JTD EDC15C7
    Fiat Palio 1.9 JTD EDC15C7
    Fiat Scudo 2.0 JTD EDC15C7
    Fiat Stilo 1.9 JTD EDC15C7
    Lancia Lybra 1.9 JTD EDC15C7
    Lancia Lybra 2.4 JTD EDC15C7
    Lancia Thesis 2.4 JTD EDC15C7


    FIAT PUNTO BOSCH_EDC15 C6 29F400BT R/W Fiat Punto 1.9 JTD EDC15C6
    Fiat Punto 1.9 JTD EDC15C7


    FIAT BOSCH_EDC 16C8 IBRIDA R/W Alfa 147 1.9 16v MJ E4DC16C8
    Alfa 156 1.9 16v MJ E4DC16C8
    Alfa 156 2.4 16v MJ E4DC16C8
    Alfa 166 2.4 16v MJ E4DC16C8
    Fiat Stilo 1.9 16v MJ E4DC16C8


    FIAT BOSCH_EDC 16C9 29BL802CB R/W Alfa 147 1.9 16v MJ E4DC16C9
    Alfa 156 1.9 16v MJ E4DC16C9
    Alfa 156 2.4 16v MJ E4DC16C9
    Alfa 166 2.4 16v MJ E4DC16C9
    Fiat Stilo 1.9 16v MJ E4DC16C9
    Fiat Idea 1.9 16v MJ E4DC16C9


    FIAT BOSCH_EDC 16+ C39 M58BW0160 R/W Alfa 147 1.9 16v MJ E4DC16C8
    Alfa 156 1.9 16v MJ E4DC16C8
    Alfa 159 1.9 16v MJ E4DC16C8
    Alfa 156 2.4 16v MJ E4DC16C8
    Alfa 166 2.4 16v MJ E4DC16C8
    Alfa 159 2.4 16v MJ E4DC16C8
    Alfa 159 2.4 16v MJ E4DC16C8
    Fiat Croma 1.9 16V
    Fiat Croma 2.4 20V
    Idea 1.9 16v MJ EDC16 C39
    Fiat Stilo 1.9 16v MJ E4DC16C8


    FIAT 1300 Multiget IAW MJD6JFH MPC555 R/W Punto 1.3 MULTIGET
    Idea 1.3 MULTIGET
    Panda New 1.3 MULTIJET


    ALFA FIAT BOSCH M155 IBRIDA W Alfa 145 1.4 Bosch M1.5.5Only Write, pin 10 Conn. A to 12 volts, see PDF in doc.
    Alfa 145 1.6 Bosch M1.5.5 Only Write, pin 10 Conn. A to 12 volts, see PDF in doc.
    Alfa 146 1.4 Bosch M1.5.5 Only Write, pin 10 Conn. A to 12 volts, see PDF in doc.
    Alfa 146 1.6 Bosch M1.5.5 Only Write, pin 10 Conn. A to 12 volts, see PDF in doc.
    Alfa 146 1.8 Bosch M1.5.5 Only Write, pin 10 Conn. A to 12 volts, see PDF in doc.
    Alfa 146 2.0 Bosch M1.5.5 Only Write, pin 10 Conn. A to 12 volts, see PDF in doc.
    Alfa 156 1.6 Bosch M1.5.5 Only Write, pin 10 Conn. A to 12 volts, see PDF in doc.
    Alfa 156 1.8 Bosch M1.5.5 Only Write, pin 10 Conn. A to 12 volts, see PDF in doc.
    Alfa 156 2.0 Bosch M1.5.5 Only Write, pin 10 Conn. A to 12 volts, see PDF in doc.
    Alfa 166 2.0 Bosch M1.5.5 Only Write, pin 10 Conn. A to 12 volts, see PDF in doc.
    Alfa 166 2.0 Bosch M1.5.5 Only Write, pin 10 Conn. A to 12 volts, see PDF in doc.
    Alfa GTV 1.8 TS 16V M1.5.5 Only Write, pin 10 Conn. A to 12 volts, see PDF in doc.
    Alfa GTV 2.0 TS 16V M1.5.5 Only Write, pin 10 Conn. A to 12 volts, see PDF in doc.
    Alfa GTV 3.0 TS 16V M1.5.5 Only Write, pin 10 Conn. A to 12 volts, see PDF in doc.
    Alfa Spider 1.8 TS M1.5.5 Only Write, pin 10 Conn. A to 12 volts, see PDF in doc.
    Alfa Spider 2.0 TS 16V M1.5.5 Only Write, pin 10 Conn. A to 12 volts, see PDF in doc.
    Alfa Spider 3.0 TS 16V M1.5.5 Only Write, pin 10 Conn. A to 12 volts, see PDF in doc.
    Fiat Bravo/Brava 1.2 M1.5.5 Only Write, pin 10 Conn. A to 12 volts, see PDF in doc.


    FIAT MARELLI_IAW 4AF 59F IBRIDA R/W 500 1.0/1.1 E3 IAW 59F
    MICRO ST10F186 600 1.0/1.1 E3 IAW 59F
    Doblr 1.2 8v MPI E3 IAW 59F
    Panda 1.0/ 1.1 E3 IAW 59F
    Punto 1.2 8v MPI E3 IAW 59F


    FIAT MARELLI_IAW 49F /4EF IBRIDA R/W Bravo 1.6 16V IAE 49F
    Bravo 1.6 16V IAE 4EF
    Stilo 1.6 16V IAE 5NF
    Multipla 1.6 16V IAE 5NF


    ALFA BOSCH_ME2.1 IBRIDA W Alfa 156 2.0 ME2.1 Only Write
    Alfa 166 2.0 V6 Turbo ME2.1 Only Write
    Alfa 166 2.5 V6 24V ME2.1 Only Write
    Alfa 166 3.0 V6 24V ME2.1 Only Write
    Fiat Bravo/Brava 2.0 ME2.1 Only Write
    Fiat Bravo/Brava 2.0 20V ME2.1 Only Write
    Fiat Coupe 2.0 20V ME2.1 Only Write
    Fiat Marea 2.4 MDI 20V ME2.1 Only Write
    Lancia Lybra 2.0 i 20V ME2.1 Only Write


    ALFA BOSCH_M2.1 28F200BXB R/W Alfa 156 2.5 M2.1
    Alfa 166 2.0 V6 Turbo M2.1
    Alfa 166 2.5 V6 24V M2.1
    Alfa 166 3.0 V6 24V M2.1


    MARELLI_IAW 59F /5NF IBRIDA R/W Multipla 1.6 16V IAE 5NF Read in Boot Mode, see PDF in documents
    MICRO MOTOROLA New Panda 1.2 16V IAW 5NF Read in Boot Mode, see PDF in documents
    Panda 1.2 8V IAW 5NF Read in Boot Mode, see PDF in documents
    Punto 1.2 8V IAW 59F
    Stilo 1.6 16V IAW 5NF Read in Boot Mode, see PDF in documents


    FIAT BOSCH_ME73H4 EURO 4 IBRIDA R/W Fiat Punto 1.2 Bosch ME7.3.1Boot Mode, pin 20 to mass
    Boot Mode Fiat Stilo 2.4 Bosch ME7.3.1
    Lancia Y 1.2 Bosch ME7.3.1 Boot Mode, pin 20 to mass


    FIAT BOSCH_ME7.2.1EURO3 IBRIDA R/W Fiat Punto 1.2 ME7.2.1 Euro3 Boot Mode, pin 20 to mass
    Boot Mode Lancia Y 1.2 ME7.2.1 Euro3 Boot Mode, pin 20 to mass


    ALFA BOSCH_ME7.2.1EURO 3 IBRIDA R/W Alfa 156 2.0 ME2.1 Boot Mode, pin 20 to mass
    Boot Mode Alfa 166 2.5 V6 24V ME2.1 Boot Mode, pin 20 to mass
    Alfa GTV 3.0 V6 24V ME2.1 Boot Mode, pin 20 to mass
    Alfa Spider 3.0 V6 24V ME2.1 Boot Mode, pin 20 to mass
    Fiat Bravo/a 2.0 ME2.1 Boot Mode, pin 20 to mass
    Fiat Bravo/a 2.0 20V ME2.1 Boot Mode, pin 20 to mass
    Fiat Coupe 2.0 20V ME2.1 Boot Mode, pin 20 to mass
    Fiat Marea 2.4 MDI 20V ME2.1 Boot Mode, pin 20 to mass
    Lancia Lybra 2.0 i 20V ME2.1 Boot Mode, pin 20 to mass


    ALFA BOSCH_ME7.3.1HA EURO 4 IBRIDA R/W Alfa 147 1.6 Bosch ME7.3.1 Boot Mode, pin 20 to mass
    Boot Mode Alfa 147 2.0 TS Bosch ME7.3.1 Boot Mode, pin 20 to mass
    Alfa 156 1.6 Bosch ME7.3.1 Boot Mode, pin 20 to mass
    Alfa 156 1.8 Bosch ME7.3.1 Boot Mode, pin 20 to mass
    Alfa 156 2.0 Bosch ME7.3.1 Boot Mode, pin 20 to mass
    Alfa 166 2.0 Bosch ME7.3.1 Boot Mode, pin 20 to mass
    Alfa 166 2.5 Bosch ME7.3.1 Boot Mode, pin 20 to mass
    Alfa 166 3.0 Bosch ME7.3.1 Boot Mode, pin 20 to mass
    Alfa GTV 2.0 TS 16V ME7.3.1 Boot Mode, pin 20 to mass
    Alfa GTV 3.0 TS 16V ME7.3.1 Boot Mode, pin 20 to mass
    Alfa Spider 2.0 TS 16V ME7.3.1 Boot Mode, pin 20 to mass
    Alfa Spider 3.0 TS 16V ME7.3.1 Boot Mode, pin 20 to mass


    Lancia Lybra 2.0 ME7.3.1Boot Mode, pin 20 to mass
    Lancia Thesis 2.0 T ME7.3.1 Boot Mode, pin 20 to mass


    Fiat Doblr 1.3 16V ME7.3.1Boot Mode, pin 20 to mass
    Fiat Palio 1.0 16V ME7.3.1 Boot Mode, pin 20 to mass
    Fiat Palio 1.3 16V ME7.3.1 Boot Mode, pin 20 to mass


    CLONA E DECODE IAW 4AF/59F ST10F186 Boot Mode, see PDF in documents
    Boot Mode


    FORD
    FORD BOSCH EDC+16C34 M58BW0160 R/W Focus 16 HDI 110 CV E4

    HONDA
    HONDA BOSCH_EDC15 C7 29F400BT R/W Civic 1.7 Dti
    HONDA BOSCH_ME7.1.9 29F800BT R/W Jetz 1.4 16V Boot Mode, pin 24 Flash to mass
    HONDA BOSCH_EDC16 C31 29BL802CB R/W Accord 2.2 i-CDTi 29-6
    Civic 2.2 i-CTDi
    CR-V 2.2 i-CTDi
    FR-V 2.2 i-CTDi


    HYUNDAI
    HYUNDAI BOSCH_EDC15 C2 29F400BT R/W Accent 1.5 CRDI
    Elantra 2.0 CRDI
    Getz 2.0 CRDI
    Matrix 1.5 CRDI
    Santa Fe 2.0 CRDI
    Starex 2.5 CRDI
    Trajet 2.0 CRDI
    Tucson 2.0 CRDI


    HYUNDAI BOSCH_EDC16 C39 M58BW0160 R/W Hyndai Getz 1.5 CRDI
    Hyundai Tucson 2.0 CRDI

    HYUNDAI 2.9 DELPHI DDCR 29F200BB R/W Hyundai Terracan 2.9 DDCR

    IVECO
    IVECO BOSCH_EDC16 C8 29BL802CB R/W Daily 2.5, 2.8, 3.0 4CIL.
    IVECO BOSCH_EDC7 /C1 /C2 MPC555 R/W Tector 4/6 CIL. Remove 1 battery for communications (12 volt)
    IVECO BOSCH_MS6.3 29F200BT R/W Daily MS6.3 16-6
    29F400BT


    KIA
    KIA BOSCH_EDC15 C2 29F400BT R/W Carens 2.0 CRDi 16V
    Cerato 2.0 CRDi
    Sorento 2.5 CRDi
    Sportage 2.0 CRDI

    KIA DELPHI DDCR E3 29F200BB R/W Carnival 2.9 DDCR

    KIA BOSCH_EDC16+C39 M58BW0160 R/W Rio 1.5 CRDI
    Sportage 2.0 CRDI


    MAN
    MAN BOSCH_EDC7 C1/2/3MPC555 R/W Man TGA Remove 1 battery for communications (12 volt)
    MAN BOSCH_MS6.2 29F400BT R/W MS6.2 16-6
    MASERATI
    MASERATI MED71 BOSCH Motronic 29F800BB W Coupe V8 4200 MED71 Only write
    Coupe Race Gear Box V8 4200 Only write
    Spider V8 4200 MED71 Only write
    Spider Race Gear Box V8 4200 Only writ

    MERCEDES
    MERCEDES BOSCH_EDC15 C5 29F400BT R/W A-Klasse 1.6/1.7 CDI
    C-Klasse (W201) 2.0/2.2/3.0 CDI
    E-Klasse (W210) 2.0 CDI
    E-Klasse (W210) 2.2 CDI
    E-Klasse (W210) 3.2 CDI
    M-Klasse 3.2 CDI
    Sprinter 2.2 CDI
    V-Klasse 2.0 CDI
    V-Klasse 2.2 CDI
    Vaneo 1.7 CDI
    Vito 2.2 CDI


    MERCEDES BOSCH_EDC15 C6 29F400BT R/W A-Klasse 1.7 CDI
    C-Klasse (W201) 2.2 CDI
    C-Klasse (W201) 2.7 CDI
    C-Klasse (W203) 2.0 CDI
    C-Klasse (W203) 2.2 CDI
    C-Klasse (W203) 2.2 CDI
    C-Klasse (W203) 2.7 CDI
    C-Klasse (W203) 3.2 CDI
    CLK (W209) 2.7 CDI
    E-Klasse (W210) 2.0 CDI
    E-Klasse (W210) 2.2 CDI
    E-Klasse (W210) 2.7 CDI
    E-Klasse (W210) 3.2 CDI
    G-Klasse 2.7 CDI
    G-Klasse 4.0 CDI
    M-Klasse 2.7 CDI
    ML-Klasse 2.7 CDI
    ML-Klasse 4.0 CDI
    S-Klasse (280) 3.2 CDI
    S-Klasse (280) 4.0 CDI
    Sprinter 2.2 CDI
    Sprinter 2.7 CDI
    V-Klasse 2.0 CDI
    V-Klasse 2.2 CDI
    Vito 2.2 CDI


    MERCEDES BOSCH_EDC16 C2_4 29BL802CB R/W C-Klasse (W201) 2.2 CDI
    C-Klasse (W201) 2.7 CDI
    C-Klasse (W203) 2.0 CDI
    C-Klasse (W203) 2.2 CDI
    C-Klasse (W203) 2.2 CDI
    C-Klasse (W203) 2.7 CDI
    C-Klasse (W203) 3.2 CDI
    E-Klasse (W210/W211) 2.0 CDI
    E-Klasse (W210/W211) 2.2 CDI
    E-Klasse (W210) 2.7 CDI
    E-Klasse (W210) 3.2 CDI
    G-Klasse 2.7 CDI
    G-Klasse 4.0 CDI
    M-Klasse 2.7 CDI
    ML-Klasse 2.7 CDI
    ML-Klasse 4.0 CDI
    S-Klasse (280) 3.2 CDI
    S-Klasse (280) 4.0 CDI
    V-Klasse 2.0 CDI
    V-Klasse 2.2 CDI
    Vito 2.2 CDI


    MERCEDES BOSCH_EDC16 C2_7 29BL802CB R/W A-Klasse 1.8 CDI
    P231C54 A-Klasse 2.0 CDI
    C-Klasse (W201) 2.2 CDI
    C-Klasse (W201) 2.7 CDI
    C-Klasse (W203) 2.0 CDI
    C-Klasse (W203) 2.2 CDI
    C-Klasse (W203) 2.2 CDI
    C-Klasse (W203) 2.7 CDI
    C-Klasse (W203) 3.2 CDI
    CLK-Klasse (W208) 2.7 CDI
    E-Klasse (W210/W211) 2.0 CDI
    E-Klasse (W210/W211) 2.2 CDI
    E-Klasse (W210/W211) 2.7 CDI
    E-Klasse (W211) 2.8 CDI
    E-Klasse (W210) 3.2 CDI
    G-Klasse 2.7 CDI
    G-Klasse 4.0 CDI
    M-Klasse 2.7 CDI
    ML-Klasse 2.7 CDI
    ML-Klasse 4.0 CDI
    S-Klasse (280) 3.2 CDI
    S-Klasse (280) 4.0 CDI
    V-Klasse 2.0 CDI
    V-Klasse 2.2 CDI
    Vito 2.2 CDI
    Viano 2.2 CDI


    MERCEDES BOSCH_EDC16 C2_7 29BL802CB R/W A-Klasse 1.8 CDI
    P231C27 A-Klasse 2.0 CDI
    C-Klasse (W201) 2.2 CDI
    C-Klasse (W201) 2.7 CDI
    C-Klasse (W203) 2.0 CDI
    C-Klasse (W203) 2.2 CDI
    C-Klasse (W203) 2.2 CDI
    C-Klasse (W203) 2.7 CDI
    C-Klasse (W203) 3.2 CDI
    CLK-Klasse (W208) 2.7 CDI
    E-Klasse (W210/W211) 2.0 CDI
    E-Klasse (W210/W211) 2.2 CDI
    E-Klasse (W210/W211) 2.7 CDI
    E-Klasse (W211) 2.8 CDI
    E-Klasse (W210) 3.2 CDI
    G-Klasse 2.7 CDI
    G-Klasse 4.0 CDI
    M-Klasse 2.7 CDI
    ML-Klasse 2.7 CDI
    ML-Klasse 4.0 CDI
    S-Klasse (280) 3.2 CDI
    S-Klasse (280) 4.0 CDI
    V-Klasse 2.0 CDI
    V-Klasse 2.2 CDI
    Vito 2.2 CDI
    Viano 2.2 CDI


    MERCEDES BOSCH_EDC16 + CP31 M58BW0160 R/W E-Klasse (W210/W211) 2.8 CDI
    E-Klasse (W211) 3.0 V6 CDI
    E-Klasse (W210) 3.2 CDI
    G-Klasse 2.8 CDI
    ML-Klasse 2.8 CDI
    ML-Klasse 3.2 CDI
    S-Klasse (W220) 3.0 V6 CDI
    S-Klasse (W280) 3.2 CDI


    MERCEDES BOSCH_EDC16 + C32 M58BW0160 R/W A-Klasse 1.6 EDC16+ C32
    A-Klasse 1.8 EDC16+ C32
    A-Klasse 2.0 EDC16+ C32


    MERCEDES BOSCH_ME7.2.8 29F400BB R/W CLK cabrio 2.4 Read in Boot Mode, pin 24 Flash to mass
    Motronic CLK cabrio 3.2 Read in Boot Mode, pin 24 Flash to mass
    CLK cabrio 5.0 Read in Boot Mode, pin 24 Flash to mass
    C-Klasse (W201) 1.8 Read in Boot Mode, pin 24 Flash to mass
    C-Klasse (W203) 2.0 Read in Boot Mode, pin 24 Flash to mass
    C-Klasse (W201) 2.4 Read in Boot Mode, pin 24 Flash to mass
    C-Klasse (W203) 3.2 Read in Boot Mode, pin 24 Flash to mass
    C-Klasse (W203) 2.2 Read in Boot Mode, pin 24 Flash to mass
    C-Klasse (W203) 2.7 Read in Boot Mode, pin 24 Flash to mass
    C-Klasse (W203) 3.2 Read in Boot Mode, pin 24 Flash to mass
    E-Klasse (W210) 2.4 Read in Boot Mode, pin 24 Flash to mass
    E-Klasse (W210) 3.2 Read in Boot Mode, pin 24 Flash to mass
    E-Klasse (W210) 4.3 Read in Boot Mode, pin 24 Flash to mass
    E-Klasse (W210) 5.0 Read in Boot Mode, pin 24 Flash to mass
    G-Klasse 2.7 Read in Boot Mode, pin 24 Flash to mass
    G-Klasse 4.0 Read in Boot Mode, pin 24 Flash to mass
    M-Klasse 2.7 Read in Boot Mode, pin 24 Flash to mass
    ML-Klasse 2.7 Read in Boot Mode, pin 24 Flash to mass
    ML-Klasse 4.0 Read in Boot Mode, pin 24 Flash to mass
    S-Klasse (280) 3.2 Read in Boot Mode, pin 24 Flash to mass
    S-Klasse (280) 4.3 Read in Boot Mode, pin 24 Flash to mass
    S-Klasse (280) 5.0 Read in Boot Mode, pin 24 Flash to mass
    S-Klasse (280) 5.5
    SL-Klasse (R230) 5.0
    SL-Klasse (R230) 5.5
    SLK 2.4 Read in Boot Mode, pin 24 Flash to mass
    SLK 3.2 Read in Boot Mode, pin 24 Flash to mass
    SLK 5.5 E55 M113


    MERCEDES BOSCH_ME7.2.8 AMG 29F400BB R/W C-Klasse (W201) 1.8 Read in Boot Mode, pin 24 Flash to mass
    Motronic C-Klasse (W203) 2.0 Read in Boot Mode, pin 24 Flash to mass
    C-Klasse (W201) 2.4 Read in Boot Mode, pin 24 Flash to mass
    C-Klasse (W203) 3.2 Read in Boot Mode, pin 24 Flash to mass
    C-Klasse (W203) 2.2 Read in Boot Mode, pin 24 Flash to mass
    C-Klasse (W203) 2.7 Read in Boot Mode, pin 24 Flash to mass
    C-Klasse (W203) 3.2 Read in Boot Mode, pin 24 Flash to mass
    CLK cabrio 2.4
    CLK cabrio 3.2
    CLK cabrio 5.0 Read in Boot Mode, pin 24 Flash to mass
    E-Klasse (W210) 2.4 Read in Boot Mode, pin 24 Flash to mass
    E-Klasse (W210) 3.2 Read in Boot Mode, pin 24 Flash to mass
    E-Klasse (W210) 4.3 Read in Boot Mode, pin 24 Flash to mass
    E-Klasse (W210) 5.0 Read in Boot Mode, pin 24 Flash to mass
    G-Klasse 2.7 Read in Boot Mode, pin 24 Flash to mass
    G-Klasse 4.0 Read in Boot Mode, pin 24 Flash to mass
    M-Klasse 2.7 Read in Boot Mode, pin 24 Flash to mass
    ML-Klasse 2.7 Read in Boot Mode, pin 24 Flash to mass
    ML-Klasse 4.0 Read in Boot Mode, pin 24 Flash to mass
    S-Klasse (W280) 3.2 Read in Boot Mode, pin 24 Flash to mass
    S-Klasse (W280) 4.3 Read in Boot Mode, pin 24 Flash to mass
    S-Klasse (W280) 5.0 Read in Boot Mode, pin 24 Flash to mass
    SLK 2.4 Read in Boot Mode, pin 24 Flash to mass
    SLK 3.2 Read in Boot Mode, pin 24 Flash to mass


    MERCEDES BOSCH_ME2.1 28F200BB R/W C-Klasse (W201) 1.8
    Motronic C-Klasse (W202) 2.0 C200K
    C-Klasse (W202) 2.3 C200K
    C-Klasse (W203) 2.0
    C-Klasse (W201) 2.4
    C-Klasse (W203) 3.2
    C-Klasse (W203) 2.2
    C-Klasse (W203) 2.7
    C-Klasse (W203) 3.2
    CLK (W208) 2.0 CLK200K
    CLK (W208) 2.3 CLK230K
    CLK cabrio 2.4
    CLK cabrio 3.2
    CLK cabrio 5.0
    E-Klasse (W210) 2.0 E200K
    E-Klasse (W210) 2.4
    E-Klasse (W210) 3.2
    E-Klasse (W210) 4.3
    E-Klasse (W210) 5.0
    G-Klasse 2.7
    G-Klasse 4.0
    M-Klasse 2.7
    ML-Klasse 2.7
    ML-Klasse 4.0
    S-Klasse (W280) 3.2
    S-Klasse (W280) 4.3
    S-Klasse (W280) 5.0
    SLK 2.0 SLK200K
    SLK 2.3 SLK230K
    SLK 2.4
    SLK 3.2


    MERCEDES_SIEMENS_5WK9 29F400BB R/W C-Klasse (W201) 1.8
    C-Klasse (W203) 2.0
    C-Klasse (W201) 2.4
    C-Klasse (W203) 3.2
    C-Klasse (W203) 2.2
    C-Klasse (W203) 2.7
    C-Klasse (W203) 3.2
    CLK cabrio 2.4
    CLK cabrio 3.2
    CLK cabrio 5.0
    E-Klasse (W210) 2.4
    E-Klasse (W210) 3.2
    E-Klasse (W210) 4.3
    E-Klasse (W210) 5.0
    G-Klasse 2.7
    G-Klasse 4.0
    M-Klasse 2.7
    ML-Klasse 2.7
    ML-Klasse 4.0
    S-Klasse (W280) 3.2
    S-Klasse (W280) 4.3
    S-Klasse (W280) 5.0
    SLK 2.4
    SLK 3.2


    TEMIC_ACTROS / ATEGO / UNIMOG 29F200BT TSOP R/W Actros/Atego/Unimog E3/4 16-6 Read & Write in Boot Mode
    Boot Mode 29F200BT PSOP


    TEMIC_ACTROS / ATEGO / UNIMOG 29F400BT PSOP R/W Actros/Atego/Unimog E5 16-6 Read & Write in Boot Mode
    Boot Mode


    MINI

    BMW MINI Benzina SIEMENS E3 29F400BB R/W One 90 CV
    Couper 110 CV
    Couper S, 160 CV


    MINI Benzina SIEMENS VDO E4 29F400BB R/W One 90 CV
    Couper 110 CV
    Couper S, 170 CV


    BMW MINI D BOSCH_EDC15 C2 29F400BT R/W Mini D 1400 70CV DDE

    MITSUBISCHI
    MITSUBISCHI BOSCH_EDC15 C2 29F400BT R/W Carisma 1.9 hdi
    Space Star 1.9 hdi

    MITSUBISCHI BOSCH_EDC16 C33 M58BW0160 R/W Colt 1.5 DI-D

    NISSAN
    NISSAN BOSCH_EDC15 C2 29F400BT R/W Almera Tino 2.0
    Interstar 2.7 TDI
    Primastar 1.9 DCI
    Primera 1.9 DCI
    Primera 2.2 DCI
    Terrano 2.7 TDI
    X-Trail 2.2


    OPEL
    OPEL 17DTI 16V 1 DELCO IBRIDA R/W Astra F (4) 1.7 16V LVP4 Y17DT
    Corsa B 1.7 16V LVP4 Y17DT
    Zafira 1.7 16V LVP4 Y17DT


    OPEL 17DTI 16V 2 DELCO IBRIDA R/W Astra F (4) 1.7 16V LVP11 Y17DT
    Corsa B 1.7 16V LVP11 Y17DT
    Zafira 1.7 16V LVP11 Y17DT


    OPEL 17DTI 16V 3 DELCO IBRIDA R/W Astra F (4) 1.7 16V LVP11 Y17DT
    Corsa B 1.7 16V LVP11 Y17DT
    Meriva 1.7 16V LVP11 Y17DT
    Zafira 1.7 16V LVP11 Y17DT


    OPEL BOSCH_EDC 15M 2 PLLCC 29F010 W Astra F (4) 1.7 16V DTI EDC15M Only Write
    29F200BT Astra F (4) 2.0 16V DI EDC15M Only Write
    Astra F (4) 2.2 16V DI EDC15M Only Write
    Astra G 1.7 16V DI EDC15M Only Write
    Astra G 2.0 16V DI EDC15M Only Write
    Astra G 2.2 16V DI EDC15M
    Frontera 2.2 DTI EDC15M Only Write
    Omega 2.0 / 2.2 16V DI EDC15M
    Sintra 2.2 DT
    Vectra B 1.7 16V DI EDC15M Only Write
    Vectra B 2.0 16V DI EDC15M Only Write
    Vectra C 2.0 16V DI EDC15M Only Write
    Vectra C 2.0 16V DTI EDC15M Only Write
    Zafira 2.0 16V DI EDC15M Only Write


    Saab 93/95 2.2 DTI 16V Only Write
    Isuzu C Max 3.0 DTI

    OPEL BOSCH_EDC 15 C7 29F400BT R/W Astra G 1.7 16V 80 / 100 CV CDTI
    Common Rail Meriva 1.7 16V 80 / 100 CV CDTI


    OPEL BOSCH_M1.5.5E3 IBRIDA R/W Astra G 1.2 16V M1.5.5
    Corsa B 1.0 12V M1.5.5
    Corsa B 1.2 16V M1.5.5
    Corsa C 1.0 12V M1.5.5
    Corsa C 1.2 16V M1.5.5


    OPEL BOSCH_ME1.5.5E4 IBRIDA R/W Agila 1.0/1.2 16V ME1.5.5
    Astra coupe 2.0 16V T ME1.5.5
    Astra 2.0 16V ME1.5.5
    Corsa 1.0/1.2 16V ME1.5.5
    Meriva 1.0/1.2 16V ME1.5.5
    Zafira 2.0 16V ME1.5.5


    OPEL SIMTEC 70 SIEMENS IBRIDA R/W Astra F (4) 1.8 16V Simtec70
    Astra F (4) 2.0 16V Simtec70
    Astra G 1.8 16V Simtec70
    Astra G 2.0 16V Simtec70
    Omega B 2.0 16V Simtec70
    Vectra B 1.8 16V Simtec70
    Vectra B 2.0 16V Simtec70
    Vectra C 1.8 16V Simtec70
    Vectra C 2.0 16V Simtec70
    Zafira 1.8 16V Simtec70
    Zafira 2.0 16V Simtec70


    OPEL DELCO 3 IBRIDA R/W Astra G 1.4 16V Multec 3
    Astra G 1.6 16V Multec 3
    Corsa 1.4 16V Multec 3
    Vectra C 1.4 16V Multec 3
    Vectra C 1.6 16V Multec 3


    OPEL DELCO 2 IBRIDA R/W Astra F 1.4 16V Multec 2
    Astra F 1.6 16V Multec 2
    Corsa 1.4 16V Multec 2
    Vectra B 1.4 16V Multec 2
    Vectra B 1.6 16V Multec 2


    OPEL DELCO 1 29F010 PLCC W Astra F 1.4 16V Multec 1
    Astra F 1.6 16V Multec 1
    Corsa 1.4 16V Multec 1
    Vectra B 1.4 16V Multec 3
    Vectra B 1.6 16V Multec 3


    OPEL SIMTEC 90 SIEMENS IBRIDA R/W Astra F (4) 1.8 16V Simtec90
    Astra F (4) 2.0 16V Simtec90
    Astra G 1.8 16V Simtec90
    Astra G 2.0 16V Simtec90
    Omega B 2.0 16V Simtec90
    Vectra B 1.8 16V Simtec90
    Vectra B 2.0 16V Simtec90
    Vectra C 1.8 16V Simtec90
    Vectra C 2.0 16V Simtec90
    Zafira 1.8 16V Simtec90
    Zafira 2.0 16V Simtec90


    OPEL SIMTEC 56 SIEMENS 29F010 PLCC R/W Astra E (4) 1.8 16V Simtec56
    Astra E (4) 2.0 16V Simtec56
    Astra E 1.8 16V Simtec56
    Astra G 2.0 16V Simtec56
    Omega A 2.0 16V Simtec56
    Vectra A 1.8 16V Simtec56
    Vectra A 2.0 16V Simtec56
    Vectra B 1.8 16V Simtec56
    Vectra B 2.0 16V Simtec56
    Zafira 1.8 16V Simtec56
    Zafira 2.0 16V Simtec56


    OPEL 1300 Multiget IAW MJD6JFH MPC555 R/W Agila 1.3 MULTIGET
    MARELLI Corsa 1.3 MULTIGET
    Meriva 1.3 MULTIGET


    PEUGEOT
    PEUGEOT BOSCH_EDC15 C2 29F400BT R/W 206 2.0 HDI EDC15C2
    306 2.0 HDI EDC15C2
    307 2.0 HDI 110PS EDC15C2
    406 2.0 HDI EDC15C2
    406 2.2 HDI EDC15C2
    607 2.0 HDI EDC15C2
    607 2.2 HDI EDC15C2
    807 2.0 HDI EDC15C2
    807 2.2 HDI EDC15C2
    Boxer 2.0 HDI EDC15C2
    Expert 2.0 HDI EDC15C2
    Partner 2.0 HDI EDC15C2


    PEUGEOT BOSCH_EDC16 C3/9 29BL802CB R/W 206 1,4 16V HDI 90CV E4
    307 1,4 16V HDI 90CV E4
    206 1,6 16V HDI 110CV E4
    307 1,6 16V HDI 110CV E4


    PEUGEOT BOSCH_EDC16+ C34 M58BW0160 R/W 206 1,4 16V HDI 90CV E4 F.A.P.
    307 1,4 16V HDI 90CV E4 F.A.P.
    206 1,6 16V HDI 110CV E4 F.A.P.
    307 1,6 16V HDI 110CV E4 F.A.P.


    PEUGEOT SIEMENS SID 803 AM29BL802 W 307 2.0 16v 136CV E3 14-7 Only Write
    407 2.0 16v 136CV E3
    607 2.0 16v 136CV E3



    PEUGEOT SIEMENS SID 803A AM29BDD160 W 307 2.0 16v 136CV E4 14-7 Only Write
    407 2.0 16v 136CV E4
    607 2.0 16v 136CV E4


    PEUGEOT SIEMENS SID 881/801 29F400BB R/W 206 2.0 8V HDI 90CV E4 Read in Boot Mode, pin 28 Flash to mass
    2.0 90CV 306 2.0 8V HDI 90CV E4 Read in Boot Mode, pin 28 Flash to mass
    307 2.0 8V HDI 90CV E4 Read in Boot Mode, pin 28 Flash to mass
    406 2.0 8V HDI 90CV E4 Read in Boot Mode, pin 28 Flash to mass
    407 2.0 8V HDI 90CV E4 Read in Boot Mode, pin 28 Flash to mass


    PEUGEOT SIEMENS SID 804 29F400BB R/W 1007 1,4 8V HDI 70CV E4 Read in Boot Mode, pin 28 Flash to mass
    1.4 70CV 106 1,4 8V HDI 70CV E4 Read in Boot Mode, pin 28 Flash to mass
    206 1,4 8V HDI 70CV E4 Read in Boot Mode, pin 28 Flash to mass


    PEUGEOT SID 881/801//804/806 29F400BB R/W 1007 1,4 8V HDI 70CV E4 Boot Mode, pin 28 to mass
    1.4 70 CV & 2.0 90CV Boot Mode 106 1,4 8V HDI 70CV E4 Boot Mode, pin 28 to mass
    206 1,4 8V HDI 70CV E4 Boot Mode, pin 28 to mass
    206 2.0 8V HDI 90CV E4 Boot Mode, pin 28 to mass
    306 2.0 8V HDI 90CV E4 Boot Mode, pin 28 to mass
    307 2.0 8V HDI 90CV E4 Boot Mode, pin 28 to mass
    406 2.0 8V HDI 90CV E4 Boot Mode, pin 28 to mass
    407 2.0 8V HDI 90CV E4 Boot Mode, pin 28 to mass


    PEUGEOT SAGEM200_14_E3 29F200BB TSOP R/W 106 1.2 1.4 1.6 8V E3
    206 1.2 1.4 1.6 8V E3
    306 1.2 1.4 1.6 8V E3


    PEUGEOT SAGEM200_14_E3 29F400BB TSOP R/W 1007 1.2 1.4 1.6 8V E4
    106 1.2 1.4 1.6 8V E4
    206 1.2 1.4 1.6 8V E4
    307 1.2 1.4 1.6 8V E4


    PEUGEOT BOSCH_ME 744 Motronic 29F400BB R/W 206 1.6 16V E3
    306 1.6 16V E3
    406 2.0 16V E3


    Citroen Saxo 1.6 16V E3

    PEUGEOT BOSCH_ME 745 Motronic R/W 207 1.6 16V 1-8
    307 1.6 16V


    PEUGEOT MARELLI IAW 48P 29F200BB W 206 1.6 16V E3 Only Write
    306 1.6 16V E3 Only Write
    406 2.0 16V E3 Only Write


    PEUGEOT MARELLI IAW 48P2 29F400BB R/W 206 1.6 16V E4
    306 1.6 16V E4
    406 2.0 16V E4


    PEUGEOT IAW 6LPA01 2.0 176 CV ST10280 R/W 206 2.0 16V GTI 176 CV
    PEUGEOT IAW 6LPA01 1.4 90 CV ST10280 R/W 106 1.4 16V GTI 90 CV
    206 1.4 16V GTI 90 CV


    PORSCHE
    PORSCHE BOSCH_M5.2 CC460 R/W 996 3.6 ME 5.2 CC460
    Boxter 2.5 2.7 M 5.2 CC460

    PORSCHE BOSCH_ME7.2 29F400BB R/W 996 3.2 3.6 ME 7.2 Read in Boot Mode, pin 24 flash to mass
    Boxter 3.2, 3.6 ME 7.2 Read in Boot Mode, pin 24 flash to mass

    PORSCHE BOSCH_ME7.8 29F800BB R/W Cayenne 4.5 V8 Read in Boot Mode, pin 24 flash to mass
    Cayenne S 4.5 V8 BITURBO Read in Boot Mode, pin 24 flash to mass
    Carrera S 4X4 4.5 BITURBO Read in Boot Mode, pin 24 flash to mass

    PORSCHE BOSCH_ME7.8.4 29F800BB R/W 996 3.2,3.6 ME7.8.4 29-6Read in Boot Mode, pin 24 flash to mass
    Boxter 3.2, 3.6 ME 7.8.4 Read in Boot Mode, pin 24 flash to mass
    Carrera S 3.6/3.8 Read in Boot Mode, pin 24 flash to mass
    Carrera S 4X4 4.5 BITURBO Read in Boot Mode, pin 24 flash to mass


    RENAULT

    RENAULT BOSCH_EDC15C2 29F400BB R/W Espace 1.9 dCi EDC15C2
    Espace 2.2 dCi EDC15C2
    Kangoo 1.9 dCi EDC15C2
    Laguna 1.9 dCi EDC15C2
    Master 2.2 dCi 29F400
    Master 2.5 dCi 29F400
    Master 2.8 dCi 29F200
    Megane 1.9 dCi 29F400
    Megane 1.9 dCi EDC15C2
    Scenic 1.9 dCi EDC15C2
    Scenic 1.9 dTi EDC15C2
    Trafic 1.9 dCi EDC15C2

    Opel Vivaro 1.9 16V DI EDC15C2

    RENAULT DENSO DH5 29F400BB R/W Espace V6 3.0 DH5
    Grand Espace V6 3.0 DH
    Vel Satis 05 V6 3.0 DH5


    RENAULT BOSCHEDC16 C3 29BL802CB R/W Espace 1.9 dCi EDC16 C3
    Espace 2.2 dCi EDC16 C3
    Kangoo 1.9 dCi EDC16 C3
    Laguna 1.9 dCi EDC16 C3
    Megane 1.9 dCi EDC16 C3
    Scenic 1.9 dCi EDC16 C3
    Scenic 1.9 dTi EDC16 C3
    Trafic 1.9 dCi EDC16 C3


    RENAULT SIRIUS 32 SIEMENS 29F200BB R/W Clio 1.4/1.6/2.0RS L 16v Siris 32
    Megane 14/1.6/2.0 L 16v Siris 32
    Scenic 14/1.6/2.0 L 16v Siris 32


    RENAULT SIRIUS 34 SIEMENS 29F400BB R/W Clio 14/16 16v
    Clio RS 2.0 16v 170CV
    Megane 14/16 16v
    Scenic 14/16 16v


    RENAULT DELPHI JTD 29F200BB R/W Clio 1.5 Dci 65cv
    Clio 1.5 Dci 82cv
    Clio 1.5 Dci 101cv
    Megane II 1.5 Dci 82cv
    Megane II 1.5 Dci 101cv


    Micra 1.5 D 65cv
    Micra 1.5 D 82cv
    RENAULT DELPHI JTD E4 ST10F280 R/W Clio 1.5 Dci 65cv E4
    Clio 1.5 Dci 82cv E4
    Clio 1.5 Dci 101cv E4
    Megane II 1.5 Dci 82cv E4
    Megane II 1.5 Dci 101cv E4
    Modus 1.5 D 65cv E4


    Micra 1.5 D 65cv E4
    Micra 1.5 D 82cv E4


    RENAULT MARELLI IAW5NR IBRIDA R/W Clio 12/14 16v
    Clio RS 2.0 16v 160CV
    Megane 12/14 16v
    Scenic 12/14 16v


    ROVER
    ROVER BOSCH_EDC 15C DDE 29F400BT R/W Freelender 2.0 CDT DDE4.0
    Rover 75 2.0 CDT DDE4.0
    Rover 75 Tourer 2.0 CDT DDE4.0
    ROVER_MEMS 29F200B R/W Freelender 2.0 16V 3
    MG Rover ZR 140 ZR 160 3
    Rover 25 1.4 1.6 16V 3
    Rover 45 1.6 1.8+D45 16V 3
    Rover 75 1.6 2.0 16V 3


    SEAT
    SEAT BOSCH_EDC15V /VM /VM-1M 29F400BT R/W Alhambra 1.9 TDI VP37
    Rotating Pump Cordoba 1.9 TDI VP37
    Ibiza 1.9 TDI VP37
    Leon 1.9 TDI VP37
    Toledo 1.9 TDI VP37


    SMART
    SMART BOSCH_EDC15C 29F400BT R/W MCC Smart CDI 0.9 CDI
    SMART BOSCH_MEG E2 E3 E4 29F400BB R/W MCC Smart 600/700 MEG1.1 Read in Boot Mode, pin 24 Flash to mass
    SMART FOR 4 BOSCH_EDC16+C31 M58BW0160 R/W Smart FORFOUR 1,5 CDI


    Mitshubishi COLT 1,5 CDI
    SSANGYONG
    DELPHY R/W Rexton 2.7 XDI 27-7

    SUZUKI
    BOSCH_EDC15 C2 29F400BT R/W Gran Vitara
    IGNIS IAW MJD 6J MPC555 R/W Ignis 1.3


    TOYOTA
    TOYOTA BOSCH_EDC15 C9 29F400BT R/W Yaris 1.4 D4D 75cv
    Yaris Verso 1.4 D4D 75cv

    VOLVO
    VOLVO V40 BOSCH_EDC15 C3 29F400BT R/W Volvo V40 2.0 TDI Common Rail
    VOLVO D5 2.5 BOSCH_EDC15 C3 29F400BT R/W S60 2.5 5C Boot Mode, pin 24 Flash to mass
    Boot Mode V70 2.5 5C Boot Mode, pin 24 Flash to mass
    XC70 2.5 5C Boot Mode, pin 24 Flash to mass


    Package list:

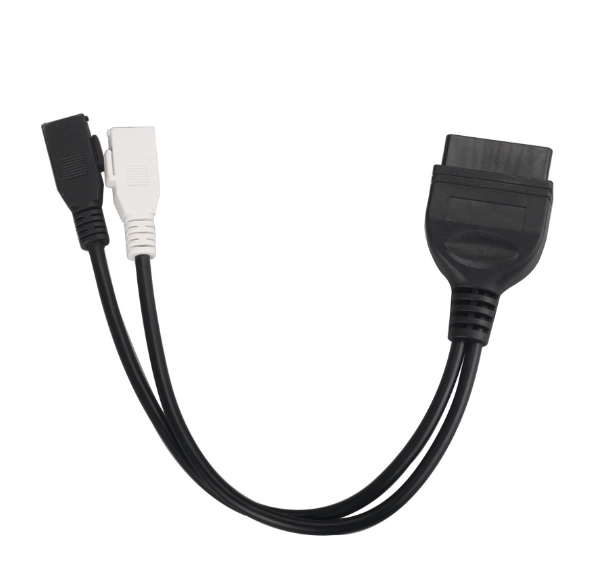

    1 pc x Galletto 1260 cable
    1 pc Driver CD

    User Comment(Total 0 User Comment Num)

    • No comment
    Total 0 records, divided into1 pages. First Prev Next Last
    Rank:
    Your first & Lat Name:
    Your E-mail Address:
    Review detail:
    Verification code: captcha
    Please feel free to contact us ,If you have any question:
    Email: Sales@obd2tool.com
    Whatsapp: +8618437976115
    skype:chryssan2006



    Shipping Terms:
    a) Items will be sent to all the countries over the world. This package will be sent by DHL, Post, Fedex, EMS or UPS .
    b) Items will be checked carefully before sent out.
    c) We will use air bubbles to wrap the items carefully.

    Shipping Time:
    a) Ships within 48 hours on working days after received the payment.
    b) The shipping time is about 5-7 days via DHL, UPS, 5-10 days Via Fedex, 7-10 days via EMS, 7-30 days via Post to Worldwide
    Note: We hope it arrive on time but since this is an international delivery, shipping time will be highly depended on the courier company and local customs/duties. Thank you for your understanding.

    Return Policies:
    Returns will be allowed only with prior authorization, and must be made within 30 days after package delivery.
    Item conditions that allow returns Brand new Item, returns must include all accessories, Items must include original packaging
    Other cases are as follows:
    (1) When the item is defective, the item was sent in error, damaged in transit, or otherwise defective,It can not work once you receive it. In this case we allow returns. We bear the shipping cost.
    (2) When you buy the wrong item, the item doesn't fit, or you don't want the item, the item you return need to be brand new. you need bear shipping costs.

    Contact Us:
    Our Email sales@obd2tool.com 24 hours 7 days
    And if nobody answer you online in time sometimes,do not worry.leave us a message or write down your desires,we will contact you as soon as possible.

    Attention: PLZ leave your telephone number and address in detail when you take order in our website, it is very important to ship your order. (Customers from Brazil PLZ leave your Cutsom ID also, thanks!)

    Email Subscribe


    Join our community Contact us
    Email us: sales@obd2tool.com
    Phone: +86 18437976115
    Skype: chryssan2006
    Location:
    Building B016, Haihao Huating, Xixiang Avenue, Xixiang Street, Baoan District,Shenzhen, 518000 China
