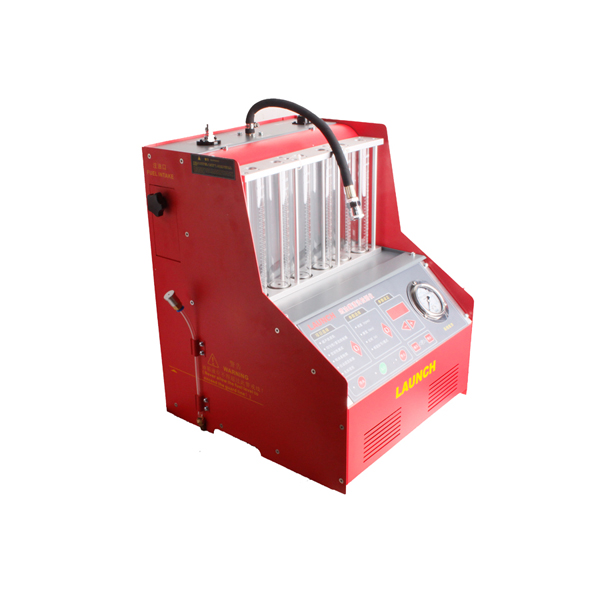

Original Launch CNC-602A Injector Cleaner & Tester


Important notice: Because liquid can not ship by airmail, our CNC-602A do not contain Injector test liquid and Injector detergent, you can purchase it from your local market. Please kindly forgive. Liquid picture is for display.

We provide discounts shipping cost for this product, if when you place order you found shipping cost too high, please contact our customer service for getting discounts shipping cost.

This one is 220V.

CNC-602A description:
CNC-602A is an advanced electromechanical product, which can clean and test injectors by simulating engine working conditions. It can also perform cleaning on the injectors and fuel supply system on vehicle.

CNC-602A Function:
Ultrasonic cleaning: To perform simultaneous cleaning on several injectors and to remove the carbon deposits on the injector completely.
Uniformity/Sprayability test: To test the uniformity of injecting amount of each injector, and to monitor the spraying status of each injector with the help of backlight. This test is also for reverse flush.
Leakage test: To test the sealing and dribbling conditions of injectors under system pressure.
Injecting flow test: To check the injecting amount of the injector in 15 seconds of constant injection.
Auto. test: To test injectors by simulating different working conditions.
On-vehicle cleaning: The unit is equipped with various adaptors and couplers that facilitate cleaning on the injectors on vehicle.

CNC-602A Techenical Parameter:
Power supply: AC220V±10%, 50/60Hz; AC110V±10%, 50/60Hz.
Ultrasonic cleaner power: 100W;
Input power: 250W;
Simulated RPM range: 10～9990rpm; step: 10rpm;
Time range: 1～9999s;
Pulse width: 0.5～25ms; step 0.1 ms;
Fuel tank capacity: 4700ml;

CNC-602A Spare Parts

No. PartCode PartName

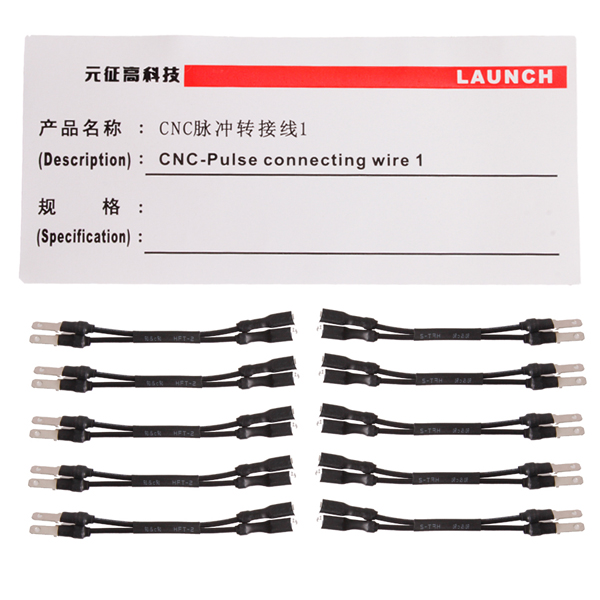

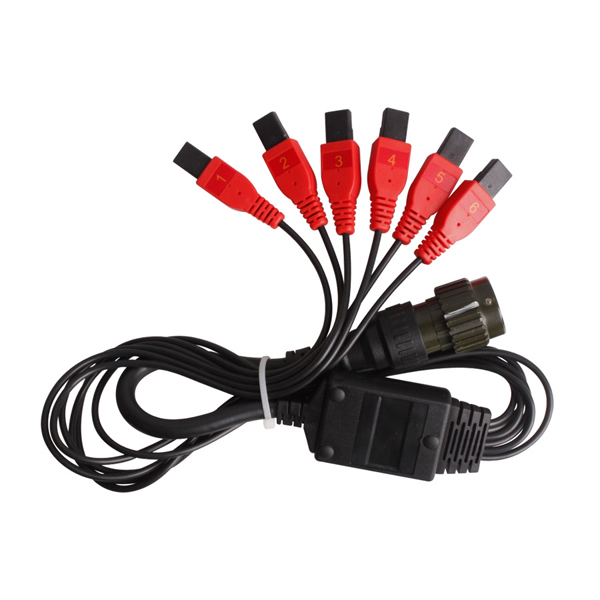

1  105020217  CNC pulse signal connection cable 1,T=0.5
2  105020218  CNC pulse signal connection cable 2,T=0.8

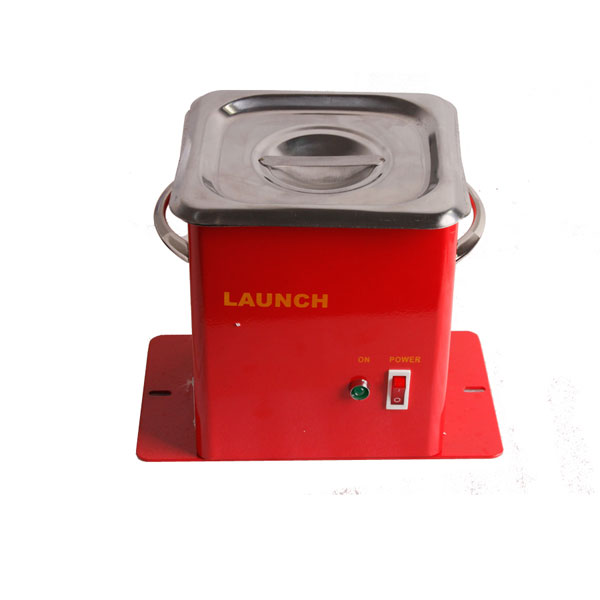

3  103260037  Ultrasonic cleaner assembly 100W

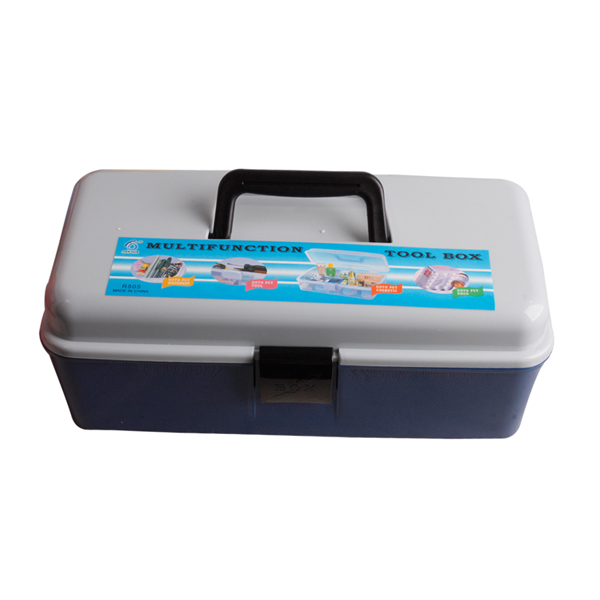

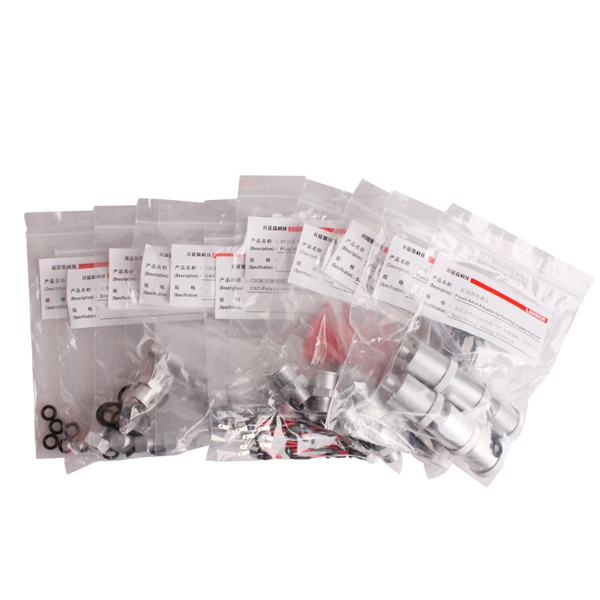

4  106030038  On-vehicle adaptor package(tool kits)

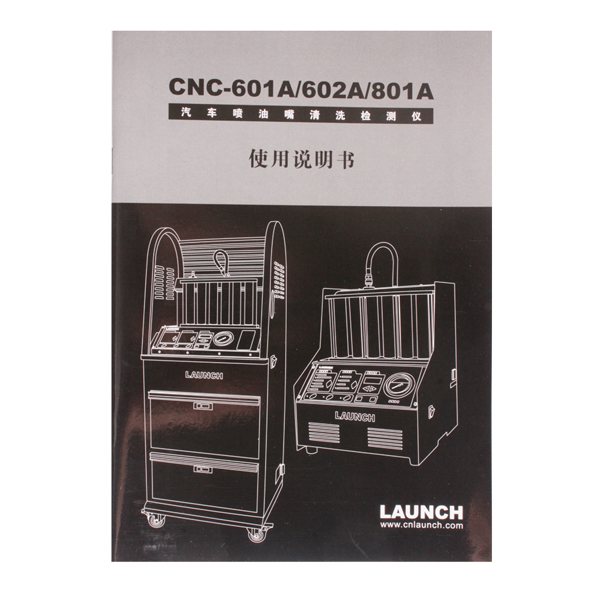

5  107010428  CNC-602A user manual(En&Ch)

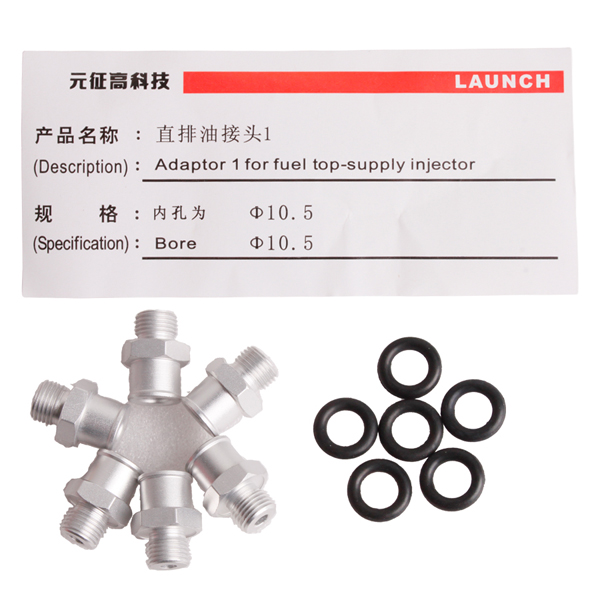

6  103250013  Top-supply connector 1

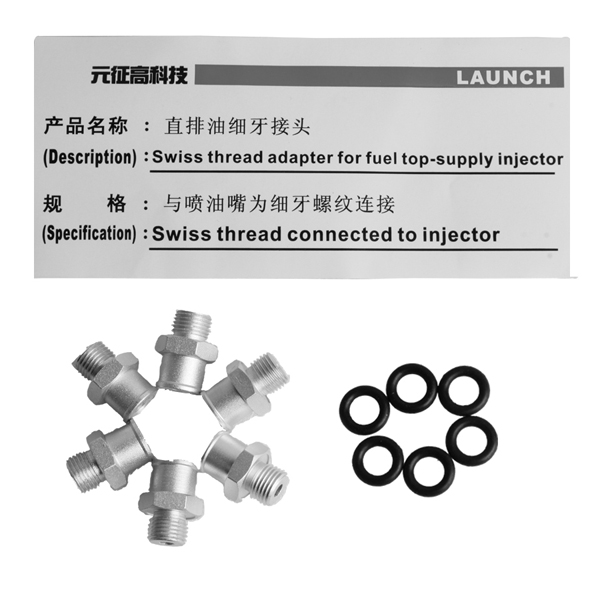

7  103250015  Swiss thread adaptor for fuel top-supply injector

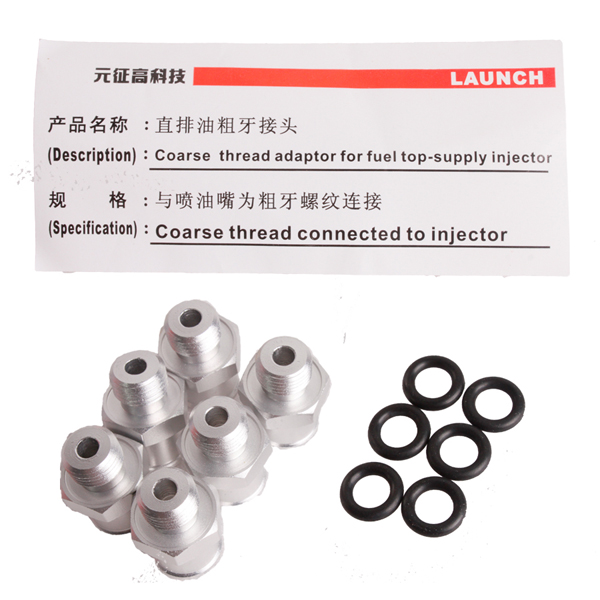

8  103250016  Coarse thread adaptor for fuel top-supply injector
9  103250018  CNC-601/801 Hexangular stopper

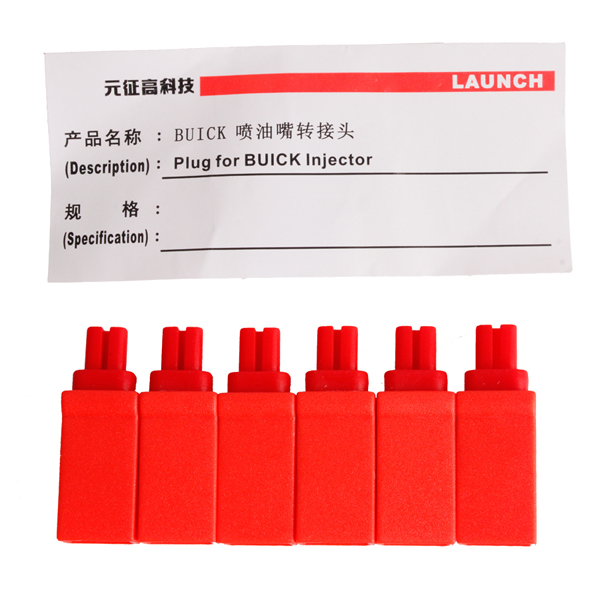

10  104990012  CNC-801 BUICK injector adaptor

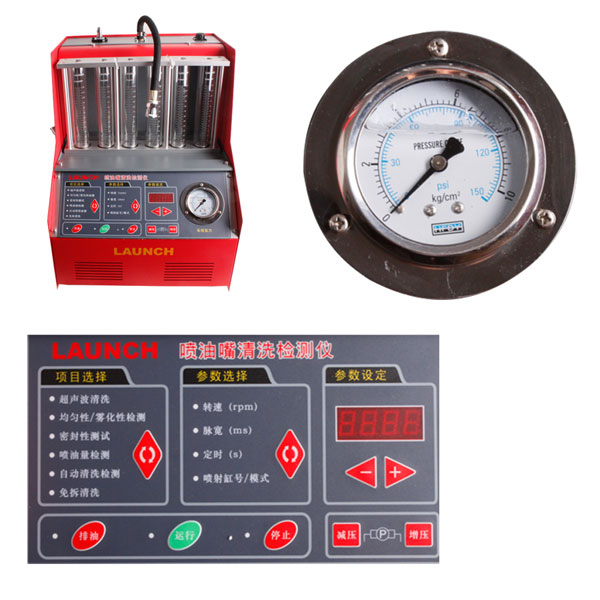

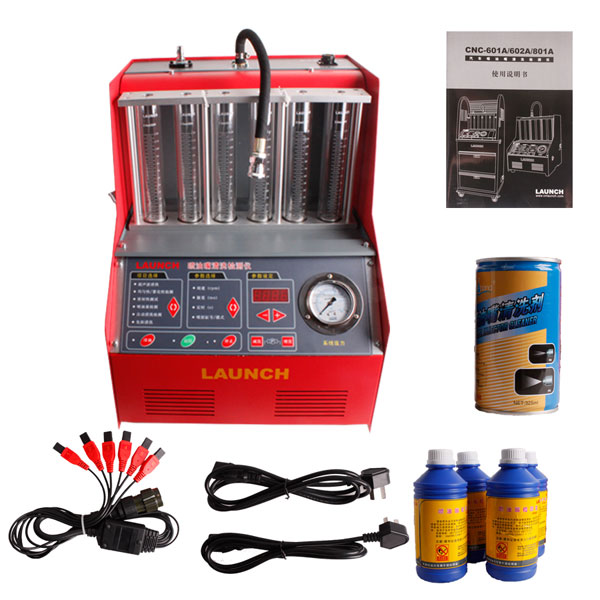

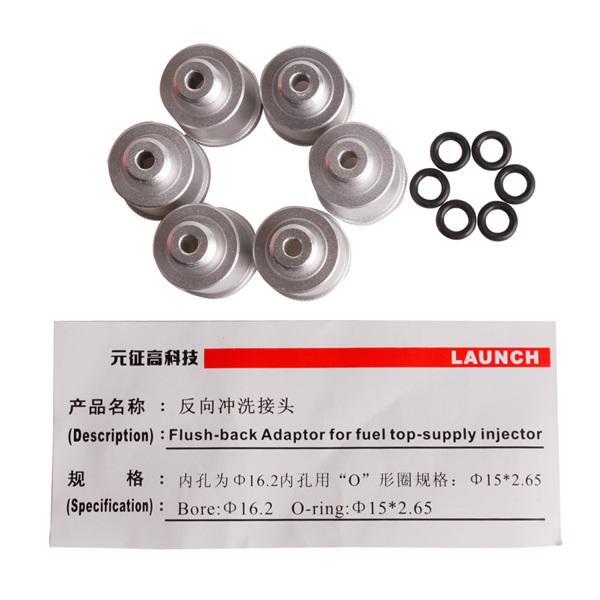

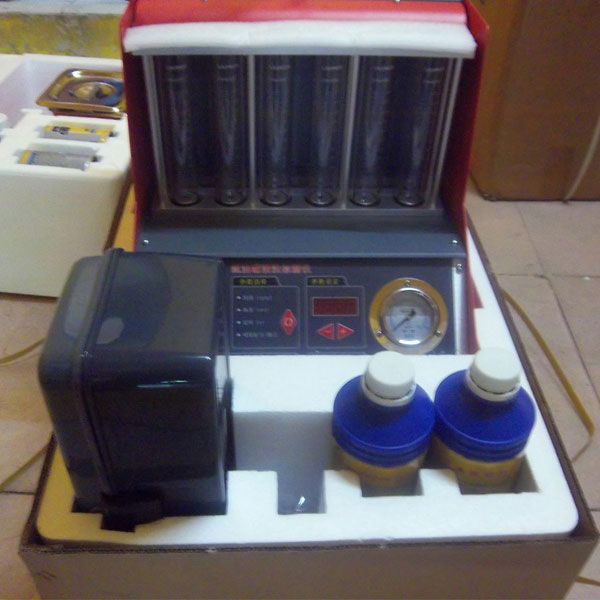

CNC-602A Injector Cleaner picture display:

User Comment(Total 1 User Comment Num)

• by Vice Bojko,Jan 16,2015


  Can i work on Motocycle?

  Reply #1 by OBD2TOOL Jan 16,2015
  Hi friend
  Good day !
  Yes,it can work with Motocycle,thank you !
  Best Regards

  OBD2TOOL

  ---
