    Original Tango Key Programmer with Basic Software V1.115 Supports Toyota H 128 Bit Copy Function

    • Item No.  T177
    • History: 23  sold
    • Market Price: US$1,194.00
      Shop Price: US$995.00You save US$199.00
      Quantity
      Total
      Shipping:
      Express Shipping Service    Estimated delivery time: 3-5 days »
      continue
    • Quantity:  300
    • Weight:  1.0KG
    • Rank:  comment rank 4.5 () Write a Review
      Rated 4.5/5 based on 3 customer reviews

    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video


    Original Tango Key Programmer with Basic Software V1.115 Supports Toyota H 128 Bit Copy Function Get Free Tango OBD Cable



    Original Scorpio-LK Tango Key Programmer:

    1. 100% Original Scorpio-LK Tango

    2. Free update online

    3. Latest Version: V1.115

    4. Supports Daihatsu G Chip Function (Need to pay)

    5. After generating a new transponder with TANGO Programmer, you will not need any additional diagnostic equipment to program the generated transponder to the car! It will start the car directly, even on new FIAT CODE 2 system, also used in PSA Group vehicles! Only you have to write the new file back into the immobilizer system!

    6. With Free TANGO OBD Cable

    7. Operating system: Win98, WinXP, Vista, Win8, Win8/8.1, Win10


    Connect your TANGO to computer with internet, start the software to [help]>>[check update], then you can update Tango to latest software.


    Notice:
    1. After purchasing, you have to visit official website and update within 28 days, or it will get locked
    2. If you want to get authorization for special functions or cars, please refer to this link http://www.scorpio-lk.com

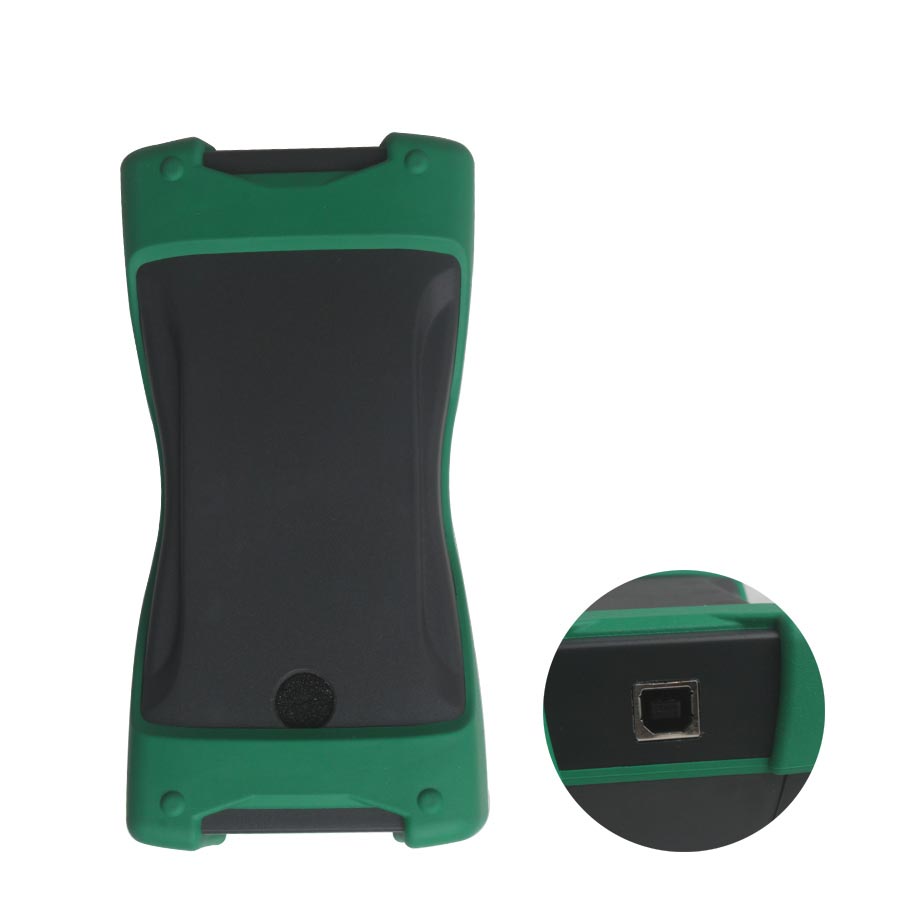

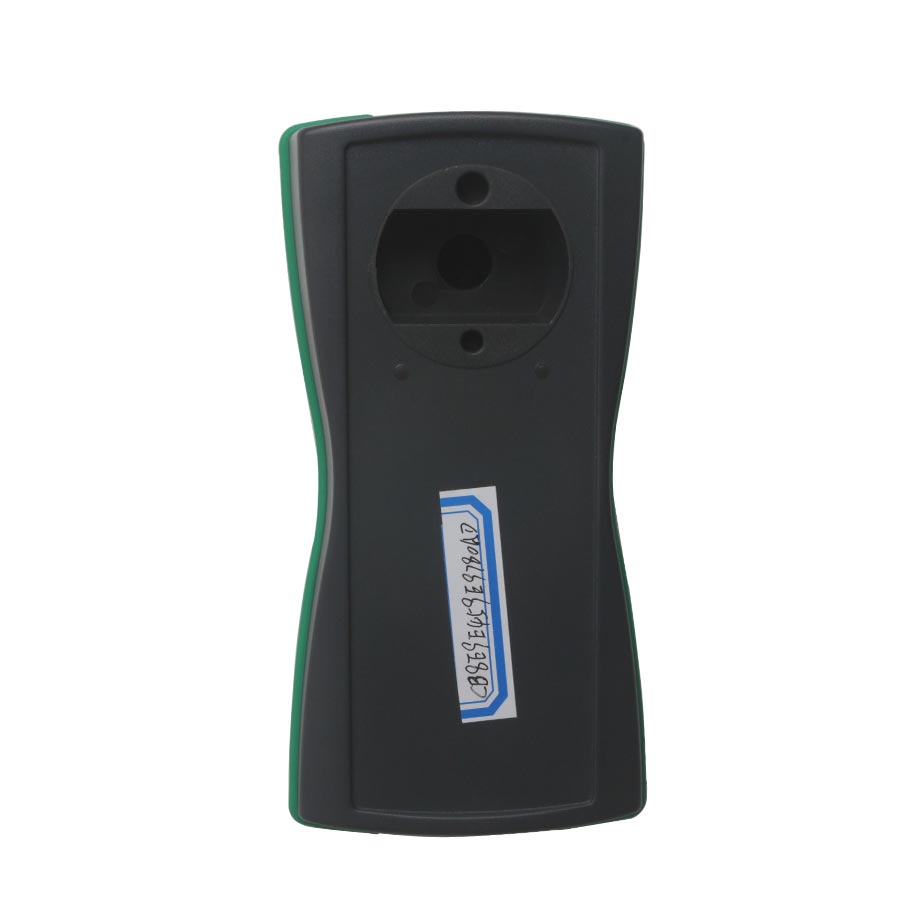

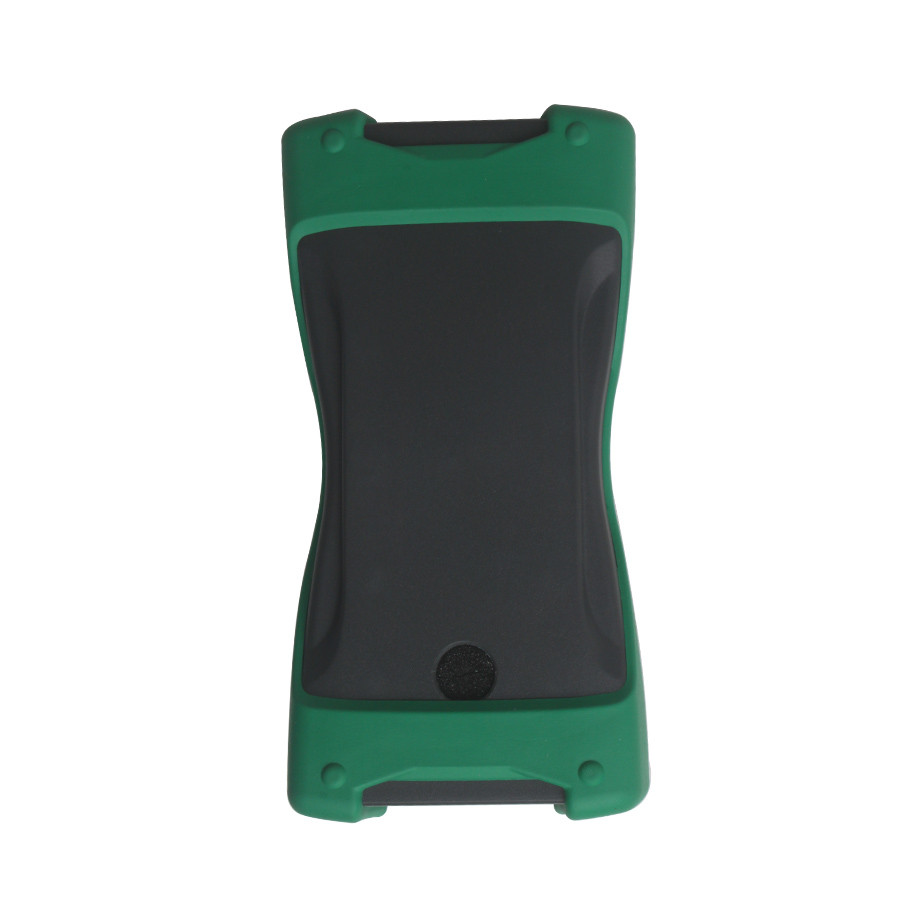

    Tango Key Programmer Hardware:

    The device has an ergonomic design with high mechanical characteristics of IP65 class conforming to the DIN EN 60529 standard

    1. Enclosure is made of 3mm ABS-plastics with a rubber shock-proof damping seal which simultaneously is a decor element

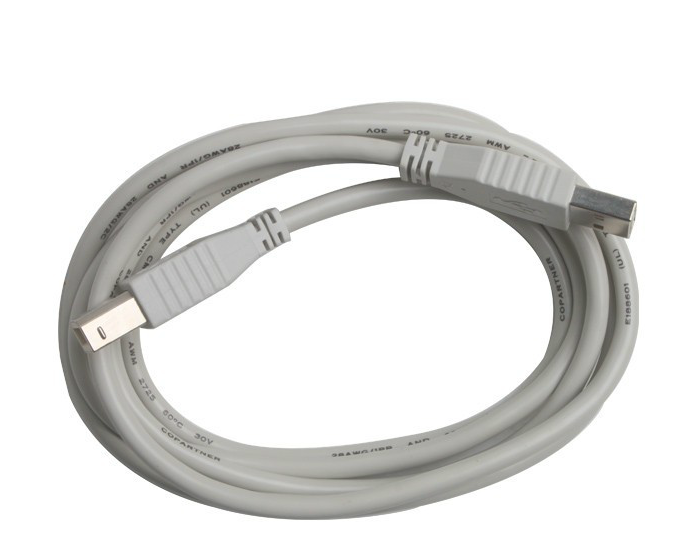

    2. Power is derived from the USB cable, so does not require an external power source

    3. The TANGO uses a specifc type of driver, which avoids con?icts with other devices working through virtual ports

    4. The hardware design accommodates keys and transponders of all sizes

    5. Dimensions: length 160mm; width 80mm; height 50-30mm

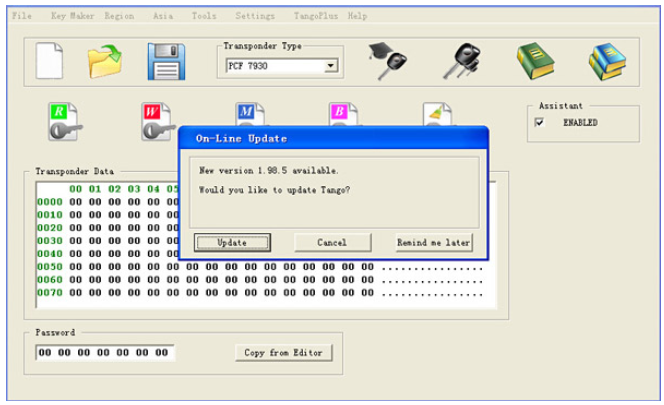

    Software display:



    What's the NEW feature?
    After generating a new transponder with TANGO Programmer, you will not need any additional diagnostic equipment to program the generated transponder to the car!
    The car  will be started directly, even on new FIAT CODE 2 system. And it's also used in PSA Group vehicles!
    What you only have to is writing the new file back into the immobilizer system!


    Tango Software V1.115  Feature:

    11 October, 2019

    1.Version 1.115 (hw 1.087)

    2.Again FIRST in the WORLD!

    3.Key Maker MQB Platform (Skoda, VW), based on Barracuda Image Dump (available since version 1.114.3 )

    4.Again FIRST in the WORLD!

    5.Dealer key maker MQB Platform (Skoda, VW), based on Barracuda Image Dump (available since version 1.114.3 )

    6.Again FIRST in the WORLD!

    7.Key Maker Toyota H-Immo (All Keys Lost), based on Barracuda Image Dump

    8.Key maker Ducati Scrambler 2015- (24C16, DST40)

    9.Key maker Chevrolet Spark 2009- (MC9S08EL32, MEG48,MEG8E)

    10.Key maker Maserati GranTurismo 2013- (MC912DG256, MEG48)

    11.Mitsubishi Mirage, L200 on eeprom 95320 added two versions

    12.Volvo with 95320 and NEC added remote programming

    13.Nissan 2010- (93C66, 93C76) added new versions

    14.BMW bike (25LC160, dashboard) added new version


    Tango Software V1.114 Feature:

    1.Tango software added (online update)

    2.Again FIRST in the WORLD!

    Toyota-H Immobilizer All Keys Lost solution (all markets)

    SLK-06 sniffer for Toyota-H Immobilizer AKL solution

    3.Again FIRST in the WORLD!

    True Image Generator for Toyota H-Keys (Page1 3A, 7A) on TRPWS21 transponder*

    4.Reset Subaru SmartKey (F3)*

    5.Key maker Nissan Micra 2005- (93C56,DST40)

    6.Key maker Nissan Tiida 2005- (93C56,DST40)

    7.Key maker SsangYong Action 2011- (S9S12,DST80)

    8.Key maker Ford Cargo 2014- (24C64,DST40)

    9.KKey maker Buick Excelle 2013- (9S12,DST80)

    10.Key maker Fiat Palio 2012- (95160,HITAG)

    11.Key maker SAIC Kai Yue 2013- (9S12,DST80)

    12.Key maker SAIC Datong V80 (95160,HITAG)

    13.Key maker MAN truck (M29W160,MEG13)

    14.Key maker BMW K19 (25160,DST80)*

    15.Bugs fix and optimization

    The device is intended for programming of transponders , that are a part of automobile immobilizing systems.


    Unlike the previous model the Gambit, new model Tango is the two-band device that has allowed to add the list supported transponders with firm Texas Instruments products (Tiris ©).

    The TANGO programmer is the next generation of transponder programmer which is continuously developed to cover, read, and write the latest transponders used in the newest vehicle immobilizer technologies.

    New function for reading the Kilometers, VIN and transponder type for all BMW keys has been added to the BMW software module.


    Please note after generating a new transponder with TANGO Programmer, you do not need any additional diagnostic equipment to program the generated transponder to the car. It will start the car directly, even on new FIAT CODE 2 system, which is also used in PSA Group vehicles. You only have to write the new file back into the immobilizer system.


    The ever expanding list of  key makers, currently totaling over 1116  (Over 580 are included with basic software) are available here


    Tango Key Programmer Update Information:
    12.05.2018
    Tango Maker Help File Update Updated Tango Maker Help file requires Tango software version 112.1

    09.05.2018
    Tango Software v1.112 Tango software added (online update)
    Added new transponder MEGAMOS AES
    Toyota key maker: new menu item AUTODETECT
    Key maker Kia Sportage 2008- (MPC5xx,HITAG)
    Key maker Hyundai Sonata 2008- (MPC5xx,HITAG)
    Key maker Renault Fluence III 2012- (NEC850,HITAG)*
    Key maker Renault Megane III 2012- (NEC850,HITAG)*
    Fixed some bugs, incl. PCF7930-35

    Tango Update 1.110.1 Software:
    [+]    SLK-05 Transponder launched! Supports Toyota’s SmartKey AES
              (Page1  39)emulation. This feature allows to start an engine, to
              Learn new  keys.
    [+]    TangoPlus for Toyota V6.5
              True Emulation via OBD of all SmartKeys Page1  39*
              The only right conception to solve the “All Keys Lost”problem.
    [+]   Image generator Toyota Page1  39 on SLK-05.The generated
              Transpinder is fully compatible to Toyota requirements that A
              Customer is able to learn it vla OBD.*
    [+]   Cloning Toyota SmartKey 128BIT(Page1  39) to SLK-05*
    [+]   Key maker  BCM2 Audi A4/A5/Q5(95320,PCF7945AC)*
    [+]   Key maker  BCM2 Audi A4/A5/Q5(NEC,PCF7945AC)*
    [+]   Key maker  Ford Transit 2017-(NEC,DST80)*
    [+]    Improved  Toyota Certification ECU maker: compatibility for keys   Page1  39
    [+]    Improved  operations with PCF7930,31,35. Now it is possible to make  Individual settings to each type  of  transponders.

    Tango Software V1.06 (Freely Added):
    Techtream calculator: v9.30, v10.10
    Key maker Citroen Jumper 2012-(95640,HITAG)*
    Key maker Isuzu NPR 2007-(93C56,HITAG)
    Key maker Peugeot 206 2001- (95160,HITAG)
    Key maker Peugeot Partner 2002- (95160,HITAG)
    Image generator Chevrolet Spark (ID8E)
    Cloning of Toyota and Subaru 80 bit Keys**
    Added transponders CN2, CN5 to the Clone mode


    Tango Software Tango software added (online update)
    Key maker Toyota Yaris 2004 (93C56,4C)*
    Key maker Kia Soul 2008- (TC1762,HITAG)
    Key maker Isuzu KB250 2004- (93C66,4D)
    Key maker Mitsubishi Fuso Canter 2009- (93C66,4D)
    Key maker Fiat Ducato 2012- (95640,HITAG)*
    Key maker Fiat Burstner Viseo 2011- (95640,HITAG)*
    Key maker Kawasaki Denso ECU 21175-0811 (93C86,ID4D)
    Key maker Peugeot Boxer 2012- (95640,HITAG)*
    Key maker Peugeot Manager 2013 (95160,HITAG)*
    Key maker Renault Latitude 2010- (9S12, HITAG)*
    Key maker Renault Safrane 2010- (9S12, HITAG)*
    Key maker Renault Samsung SM5 2010- (9S12, HITAG)*
    Key maker VW New Betle (9S12, ID48EMU)
    Dump maker BCM2 (95320,NEC)*
    Image generator Great Wall ID40
    Format Megamos48
    Fixed bug EDC17 Dump editor

    Tango Software V1.99.12, Tango Software Added:
    Key maker Chevrolet Cruze 2008- (24C16,HITAG)
    Key maker Chevrolet Lacetti 2005- (ST7,ID4D)
    Key maker Renault Mascott 2002- (93C66,HITAG)
    Key maker Renault Clio II 2003- (93C66,HITAG)
    Key maker Hyundai Accent 2004- (93C56,ID4D)
    Key maker Hyundai H1 2001- (93C56,ID4D)
    Key maker Hyundai H200 2001- (93C56,ID4D)
    Key maker Hyundai Santa Fe 2006- (93C56,ID4D)
    Key maker Hyundai Sonata 2003- (93C56,ID4D)
    Key maker Hyundai Starex 2002- (93C56,ID4D)
    Key maker Hyundai Terracan 2001- (93C56,ID4D)
    Key maker Hyundai Trajet 2004- (93C56,ID4D)
    Key maker Kia Carnival 2002- (93C56,ID4D)
    Key maker Kia Sorento 2003- (93C56,ID4D)
    Key maker Volvo V40 2004- (9S12,ID48)
    Key maker Volvo V50 2004- (9S12,ID48)
    New pictures in help file (total 315MB)

    Tango Software V1.79:
    Key maker Honda Stream -2006 (93C46,ID48)
    Key maker Honda Fit 2007- (93C66,HITAG)
    Key maker Honda bike ECU 38770-KTW-901 (93C66,HITAG)*
    Key maker Honda bike ECU 38770-MCZ-003 (93C56,HITAG)*
    Key maker Honda bike ECU 38770-MFN-D01 (93C56,HITAG)*
    Key maker Honda bike ECU 38770-MEE-702 (93C56,HITAG)*
    Key maker UAZ Hunter (TC1762,HITAG)
    Key maker Suzuki SX4 2012- (TC1762,HITAG)
    Key maker Mazda B3000 2001- (95040,ID4D)
    Key maker Ford Focus 2000 (77012,ID4D)
    Key maker Ford Ka 2007 (93C86,ID4C)
    Key maker Chrysler Voyager Limited 2008- (93C86,HITAG)
    Calculator Techstream 96 digits*

    New pictures in help file (total 304MB)


    List of Supported Transponders:
    Philips Transponders:
    PCF7930-31 writing, reading
    PCF7935 writing, reading, shadow memory, crypto calculator
    PCF7936 writing, reading, modes password, crypto, Manchester & Biphase encodings
    PCF7941 transponder, remote, eeprom, Manchester & Biphase encodings
    PCF7942 transponder, remote, eeprom, Manchester & Biphase encodings
    PCF7943 transponder, remote, Manchester & Biphase encodings
    PCF7944 transponder, remote, eeprom, Manchester & Biphase encodings
    PCF7945 transponder, remote, eeprom, Manchester & Biphase encodings
    PCF7946 transponder, remote, Manchester & Biphase encodings
    PCF7947 transponder, remote, eeprom, Manchester & Biphase encodings
    PCF7952 transponder, remote, eeprom, Manchester & Biphase encodings
    PCF7961 transponder, remote, Manchester & Biphase encodings
    Auto switching between PCF7936-PCF7961 windows if invalid type detected.
    Autodetect manchester / biphase

    Temic Transponders:
    Temic 11 reading , writing to T5
    Temic 12 reading , writing to T5

    Megamos Transponders:
    Megamos (13) reading , writing to T5 , emulating on PCF7930-35
    Megamos (48) reading, writing, PIN, unlock by PIN, full range of memory contents, crypto calculation
    Megamos CRYPTO-2 (8E) read ID, read/write EEPROM, write Cryptokey

    Texas Transponders:
    Tiris (4C) reading
    Tiris (4D) DST crypto reading, writing, crypto calculator
    Tiris (4E) DST crypto reading, writing, crypto calculator
    Tiris (8C) reading

    Atmel:
    TK5551M (T5 replacement)
    SAAB reading , writing to T5
    The product is in working out stages, therefore the list of the supported transponders will be developed later.

    Key Maker Usage.
    Key maker usage consists of a four steps. The 4-th step is additional and depends on a vehicle model.
    1. Open an immobilizer dump file.
    2. Choose number of the key you want create.
    3. Place a transponder into the coil and click the WRITE button.
    4. In some cases the program asks you to save a modified immobilizer dump. This dump must to be written into the immobilizer.


    First of all, take a look at this picture.  The "Loaded File" window displays the immobilizer file name. Ensure that a valid dump is stored. The "Maker" window displays selected maker name. Ensure the right key maker selected.


    The "info" windows display an important information:
    1. Original transponder---Informs you about type of the original transponder
    2. Allowed transponder---Informs you what type of transponders is suitable for the key maker
    3. Data location---The immobilizer memory may be stored in various chips, the description informs you about from where you have to read a dump. Some immobilizers can have various chipsets. In this case the field displays several possible chips. Find one of them inside of the immobilizer and read it.
    4. Data size---Each chip has certain memory size, the key maker accepts files with the described size.
    5. Data format---This field appears in case of 93CXX eeprom seria.


    There are two standards of data layout:
    Intel format and Motorola format or Little Endian and Big Endian respectively.
    The data layout depends on a chip-programmer that is used for eeprom reading.This field informs you what kind of format is suitable for the key maker.Usually you can see that both formats are suitable. It means that the program can understand any data layout.

    Create a Key Step by Step
    Firstly, run the key maker interface according to the vehicle and read information in the "Info" window. Watch theData location field describes the memory chip. Find out the chip inside of the immobilizer and read it. Save the read data (dump).
    Click the "OPEN IMMOBILIZER FILE" button and load the saved dump.
    The program will analyse the dump.
    If the dump is correct the "WRITE" button will become active and the "Keys" window will display the range of key numbers that can be created.
    Take a look at the "Info" window, the Allowed transponder field.
    Ensure you use a transponder exactly the indicated type.
    Place the transponder into the coil.
    Choose the key position you want create in the "Keys" window.
    Click the "WRITE" button.
    This starts the writing process and transponder will be stored with the appropriate data.

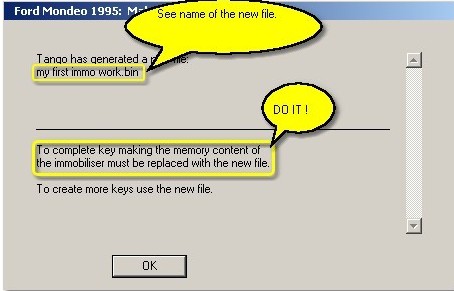

    At this point you may be asked to save a new immobilizer dump.
    The program displays a standard File Save dialog where you have to save the data.
    After this you will be informed about the new data saved and must be written into the immobiliser.



    Write the new dump into the immobilizer. Now it is ready to operate with the created transponder.If you are not asked to save a new file, it means that immobilizer is ready to operate with the created transponder without file replacing.

    Finish

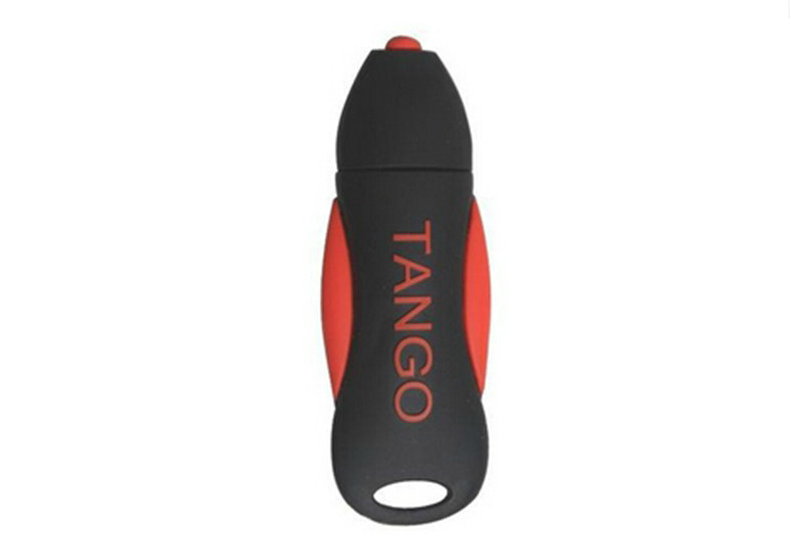

    1. ABS plastic enclosure: ingress protection  IP65/DIN EN 60529
    2. Rubber seal: prevents sliding on a workbench shock-proof function
    3. USB connection:  no external power
    4. Big hole:  adopted to large keys
    5. Three small holes:  adopted to various sizes of transponders


    FAQ:
    Q: Hardware not found after install the software and driver, how to solve it?
    A: You need to install the software v1.83 first, then v1.84, next v1.85(install the software from older to newer)

    Q: Tango Key Programmer and SuperOBD SKP-900 which one is better?
    A: Tango key programmer

    Q: Tango key programmer support update for free or not?
    A: Update free You need to connect the official website to update once within 28 days, otherwise the machine will be blocked. If you need special function or work it on special car model, you need to pay for it, you can check specific cost online

    Q: I reprogram a BMW key, if I can delete the reprogrammed key with Tango?
    A: No, it do not support this function

    Q: Is there tokens limitation for Tango? Is there any extra cost, such as update cost?
    A: There is no tokens limitation for Tango. Software update online for free. But if you need special function, or want to work it on special car model, you need to pay money to open the authorization

    Q: Do you have Tango user manual?
    A: You can check Tango user manual in the menu after software installation


    User Comment(Total 3 User Comment Num)

    • by Gheorghe Ciobanu,Feb 22,2018

      This is exactly what I am looking for

      Reply #1 by Vivian Feb 22,2018
      Thank you for your feedback

      Vivian


    • by niels sanders,Dec 21,2017

      This original tango works great

      Reply #1 by Vivian Dec 21,2017
      Thank you for your feedback

      Vivian


    • by Amos Naim,Jun 10,2017

      Product came right and arrived fast

      Reply #1 by Ivy Jun 10,2017
      Thank you for your feedback

      Ivy


    Total 3 records, divided into1 pages. First Prev Next Last
    Rank:
    Your first & Lat Name:
    Your E-mail Address:
    Review detail:
    Verification code: captcha


    Shipping Terms:

    a) Items will be sent to all the countries over the world.This package will be sent by Hongkong Airmail Post,EMS,UPS or DHL.
    b) Items will be checked carefully before sent out.
    c) We will use air bubbles to wrap the items carefully.

    Shipping Time:

    a) one business days for order processing after received the payment.
    b) The shipping time is about 2 to 5 days via UPS DHL and EMS,15-30days via HK POST AIR to Worldwide

    Note: We hope it arrive on time but since this is an international delivery, shipping time will be highly depended on the courier company and local customs/duties. Thank you for your understanding.

    Return Policies:

    If you are not satisfied with your purchase .please contact us quickly, we can exchange one to you,but buyers is responsible for the returning shiping cost .
    If you have any item proplem, just email us quickly, we will do our best to slove it in 24 hours, please don’t leave bad feedback before contacting us, it is not the best way to slove proplem. thank you!
    If you want more items we can give you a little discout,thank you!

    Contact Us:

    Our office hours are 24hours 7 days online service
    And if nobody answer you online in time sometimes,do not worry.leave us a message or write down your desires,we will contact you as soon as possible.

    Attention: PLZ leave your telephone number and address in detail when you take order in our website, it is very important to ship your order. (Customers from Brazil PLZ leave your Cutsom ID also, thanks!)

    Join our community:
