    TMS374 ECU Decoder

    • Item No.  IM143
    • History: 72  sold
    • Quantity
      Total
      Shipping:
      Express Shipping Service    Estimated delivery time: 5-7 days »
      Affected by the epidemic, there will be delays in transit time.
      continue
    • Quantity:  200
    • Weight:  500.0gram
    • Rank:  comment rank 5 () Write a Review
    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video


    TMS374 ECU Decoder

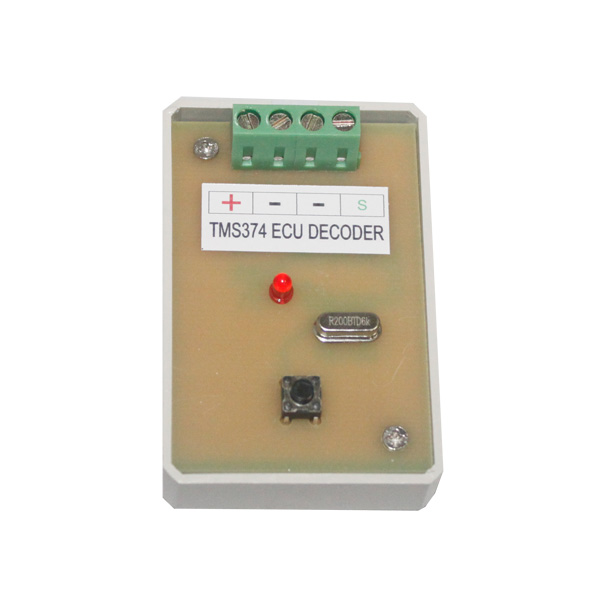

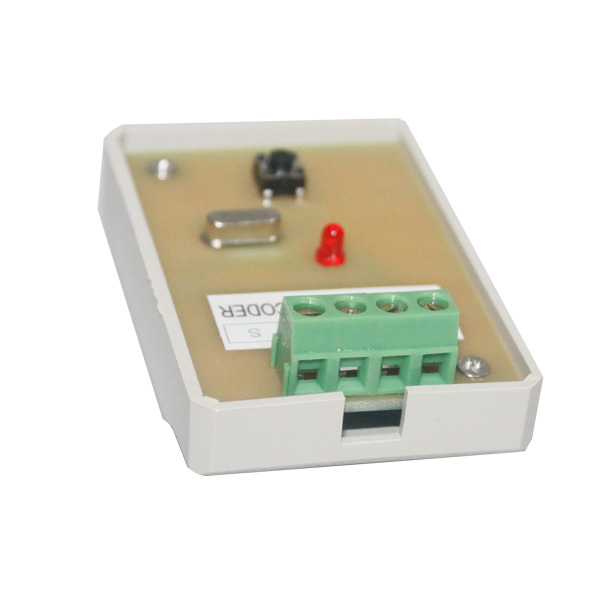

    A small tiny2313 MCU is used to generate the pulses instead of the PC RS232 Tx line. The TMS 374 software is in fact a simple frequency sweeper with an effective range from about 2000Hz to about 100Hz. The Tiny sweeper does exactly the same but much more better (bigger range).

    After powering the device on - the LED should blink twice. Pressing the button will start the sweep procedure. LED ON - means there are pulses on the output. After reaching the lowest frequency the LED goes off and the mcu stops the generation.

    Power the sweeper and ECU
    Connect the GND line to any suitable GND on the ECU
    Connect the Data line to the Reset pin on the 27C512 or 28F512
    TMS-374 Decoder ECU info
    The sweeper should work with the following ECUs:
    Renault SIEMENS Fenix 3 and 5
    Renault Megane 1400cc 8v
    Renault Megane 1600cc 8v
    Renault Megane 2000cc 8v
    Renault Megane 2000cc 16V
    Renault Megane Scenic 1400cc 8v
    Renault Megane Scenic 1600cc 8v
    Renault Megane Scenic 2000cc 8v
    Renault Sefrane 2000cc 16V
    Renault Laguna 2000cc 8v
    Renault Laguna 2000cc 16v
    Renault Espace 2000cc 8v

    Renault SAGEM SAFIR 1 and 2
    ------------------------------
    Renault Clio 1200cc 8V
    Renault Clio 1400cc 8V
    Renault Clio 1600cc 8V
    Renault Clio 2000cc 16V Williams
    Renault Laguna 1800cc 8V
    Renault Laguna 2000cc 8V
    Renault Laguna 1800cc 16V
    Renault Laguna 2000cc 16V
    Renault Twingo 1200cc 8V

    Sagem SL96 Psa
    --------------------
    Peugeot 306 1400cc 8V
    Peugeot 306 1600cc 16V
    Peugeot 306 1800 16V
    Peugeot Ranch 1400 8V
    Citroen Berlingo 1400cc 8V
    Citroen Xrara 1400cc 8V
    Citroen Xrara 1800cc 16V

    DAEWOO SIEMENS
    -------------------
    Daewoo Matiz 800cc

    HYUNDAI SIEMENS
    -------------------
    Hyundai Coupe 1600cc 16V
    Hyundai Coupe 2000cc 16V

    KIA SIEMENS
    --------------
    Kia Rio 1300 16V
    Kia Rio 1500 16V

    MAGNETI MARELLI
    ------------------
    1AP20, 1AP40, 1AP41, 1AP43
    1AP80, 1AP81, 1AP83 1AP90
    Citroen Berlingo 1800cc 8V
    Citroen Saxo 1400cc 8V
    Citroen Saxo 1600cc 16V
    Citroen Xara 1400cc 8V
    Citroen Xara 1800cc 8V
    Citroen Xara 2000cc 16V
    Citroen ZX 1400cc 8V
    Peugeot 106 1400cc 8V
    Peugeot 106 1600cc 8V
    Peugeot 106 1600cc 16V
    Peugeot 206 1100cc 8V
    Peugeot 206 1400cc 8V
    Peugeot 306 1400cc 8V
    Peugeot 306 1600cc 8V
    Peugeot 306 1800cc 8V
    Peugeot 405 1800cc 8V
    Peugeot 406 1800cc 8V
    Peugeot Partner 1800 8V

    A handy tool to have that will decode an all the above ecu's to a new state without the need of a laptop!

    Package including:
    1pc x TMS374 ECU Decoder
