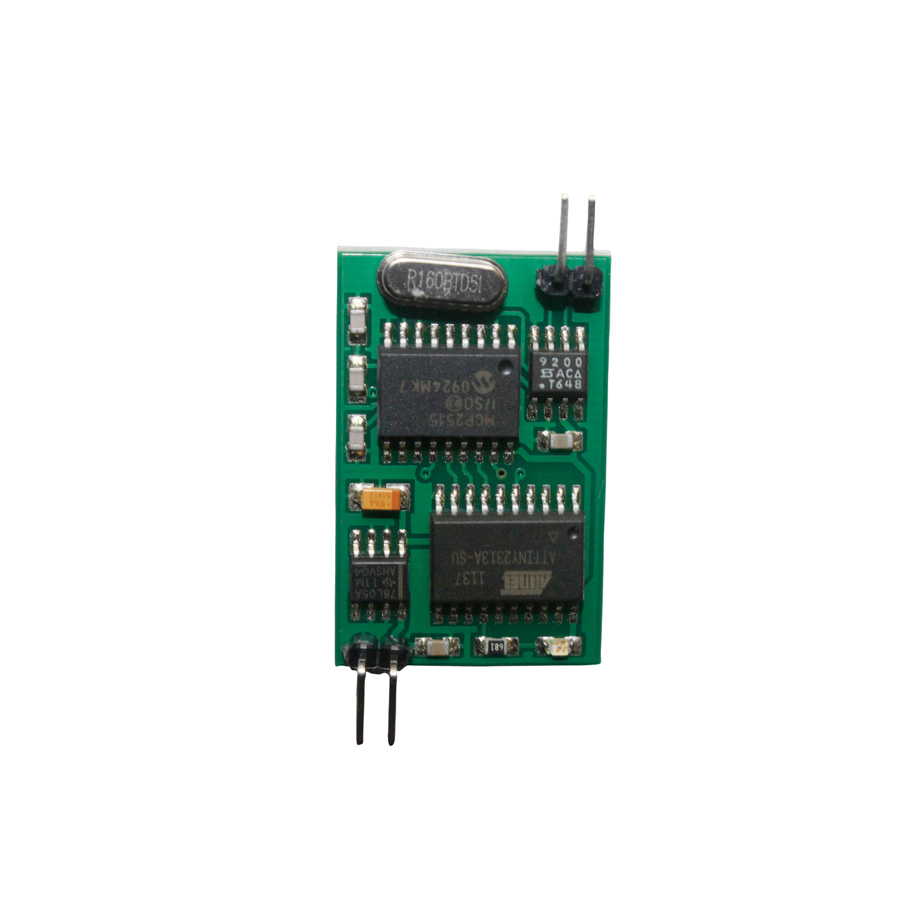

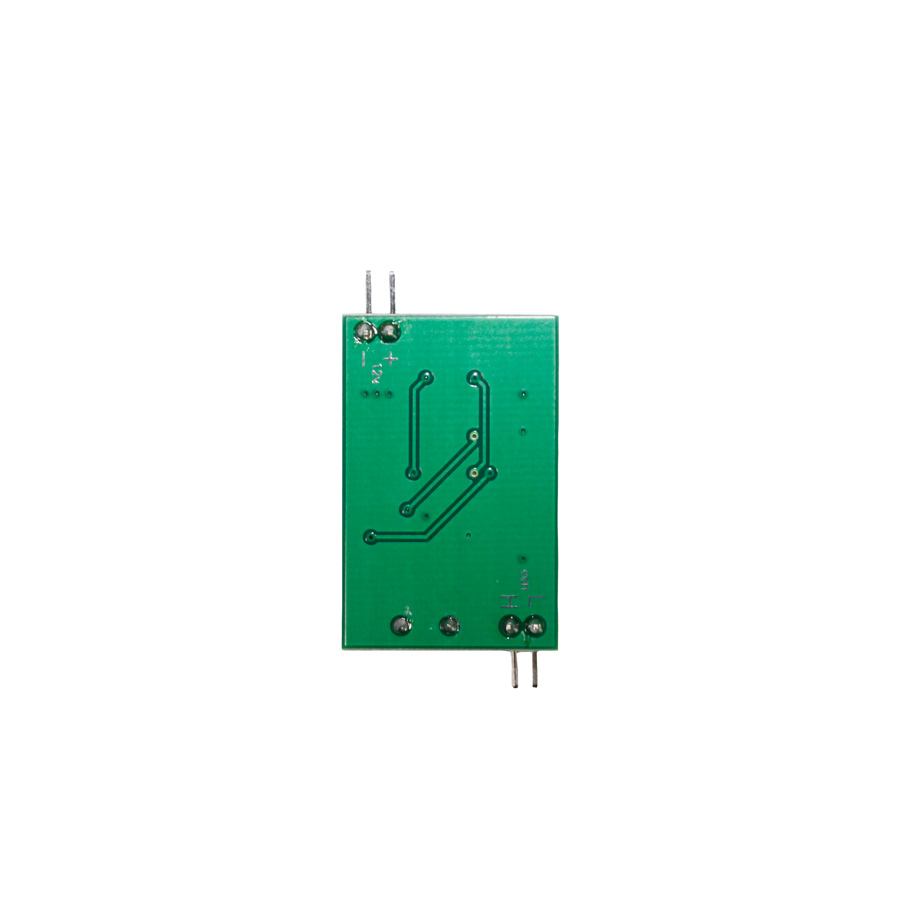

Renault CAN bus emulator

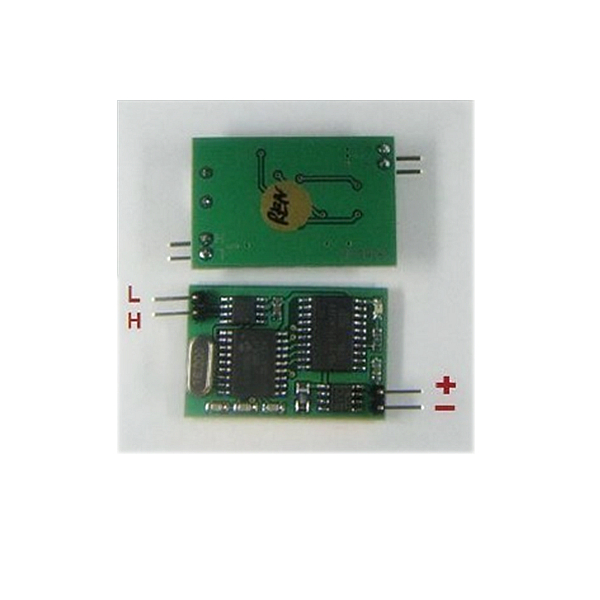

Simple connection-4 wires only: CAN Low, CAN High, +12v, GND.

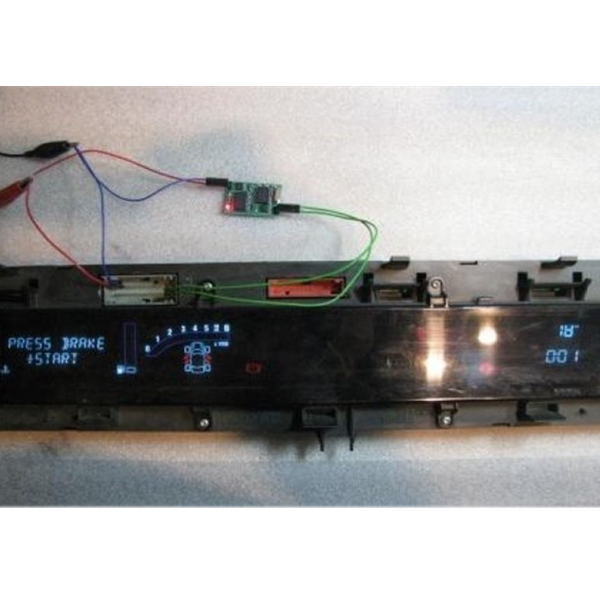

After power connect on emulator then turns on dashboard. If everything is connected correctly and there are no CAN faults RED LED on emulator board is blinking.
Renault Scenic, Laguna:
1 +12v2 GND29 CAN Low30 CAN High
Renault Meganne:
1 CAN High4 CAN Low15 +12v
30 GND
