    GM MDI Scan tool Plus EVG7 Tablet PC V2022.10 Software

    • Item No.  A194-1
    • History: 95  sold
    • Please select :


    • Quantity
      Total
      Shipping:
      Express Shipping Service    Estimated delivery time: 5-7 days »
      Affected by the epidemic, there will be delays in transit time.
      continue
    • Quantity:  356
    • Weight:  7.5KG
    • Rank:  comment rank 4.5 () Write a Review
      Rated 4.5/5 based on 12 customer reviews
    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video


    GM MDI Scan tool Plus EVG7 Tablet PC V2022.10 Software



    Highlights of MDI:
    1.Software version: V2022.10

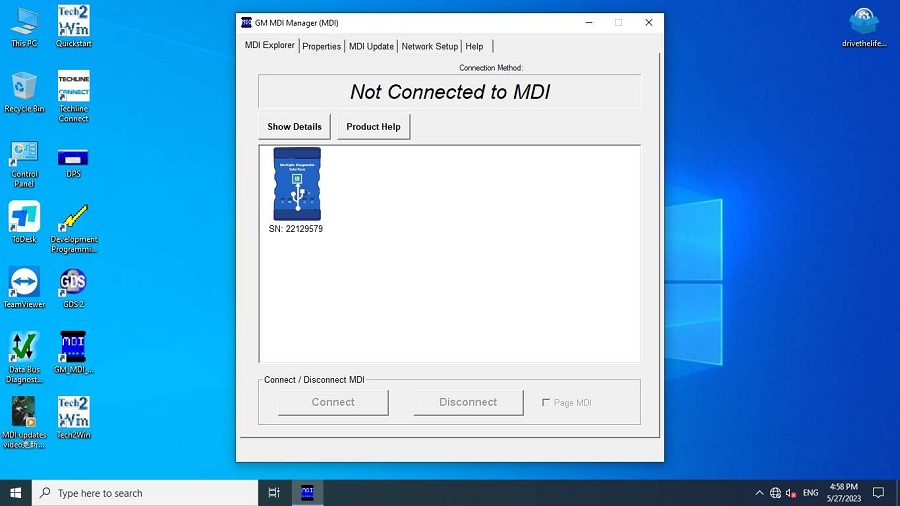

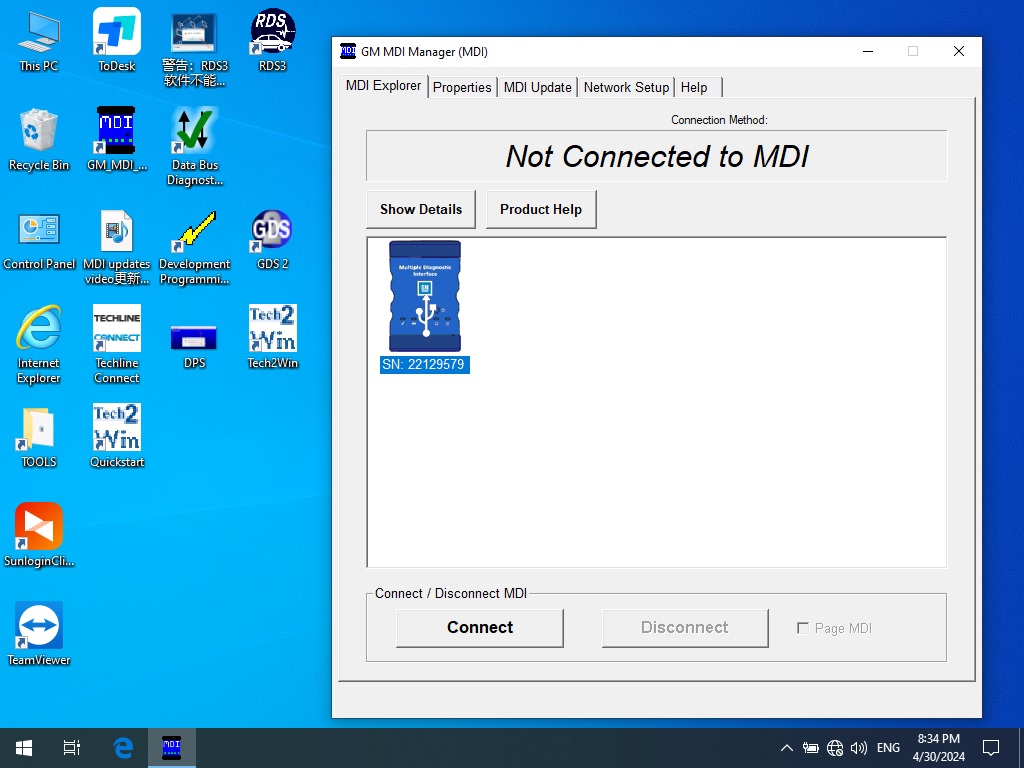

    2.GM MDI Manager version: V8.3.103.39
    3.Update time: GM Global V2022.10
    4.Fully tested and works perfectly
    5.High speed and low-speed GMLAN
    6.Supported Protocol: UART, Class 2, KWP2000,GMLAN (CAN)
    7.For all GM CHEVROLET BUICK CADILLAC GMC HUMMER PONTIAC SAAB Vauxhall/Opel 16 pin vehicles from 1996 to 2023

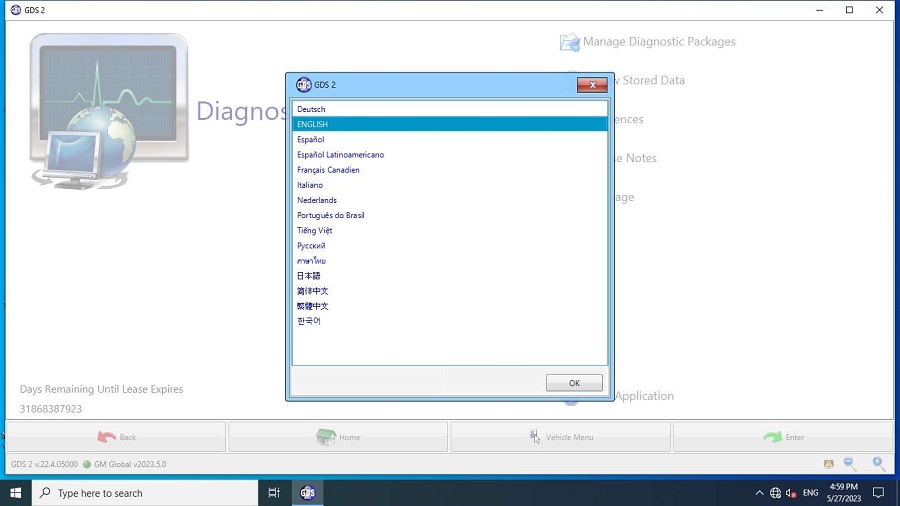

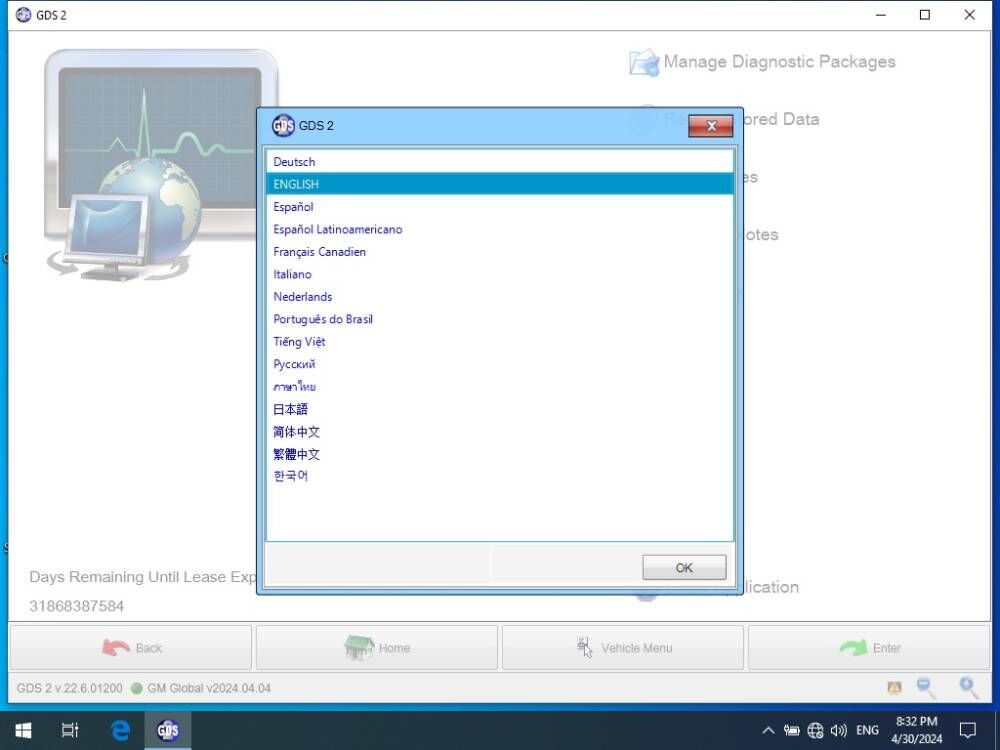

    8.Multi-language: German, Spanish, French, Italian, Dutch, Portuguese, Vietnamese, Russian, Thai, Japanese, Korean, English, Chinese
    9.Tech2win: English only


    EVG7 DL46 Specification:

    Condition: NEW
    Mark: EVG7
    Model: DL46
    Processor: Intel Celeron 1037(Dual - 1.8Ghz/L3 2M)
    DDR: The biggest support memory: 4GB
    LCD: 10.4 Inch The resolution of the 1024x768
    Graphics:
    touchscreen widescreen LED backlight
    The core graphics Intel HD Graphics
    Speakers: Built-in Speakers
    Wireless: 802.11b/g/n
    LAN: The built-in 10-100M card
    Bluetooth: BT2.0 , 4.0
    USB: USB3.0 / Mini USB / 2 x USB2.0
    Card Reader: TF Card Reader
    Other Interface:
    VGA Voice Input / The Sound Output /
    DC Power Jack / Parallel LPT Port I/O
    VGA Output
    Battery Type: 9 The core of lithium batteries 10.08V 6600 mAh
    Power Adapter: 110V-240V The adaptive communication power supply
    Battery Life: The specific time depending on the use environment
    Specifications: 270x180x60 mm
    weight: 1911g (with battery)
    Certificates: CE / FCC /  RoHS


    Newest features for MDI:

    1. With opel Global tis global diagnostic system
    2. With GDS2 diagnostic system
    3. Tech2win diagnostic software support adding latest software
    4. support programming online
    5. support cable communication
    6. support original factory latest software
    7. With European Chevetl Global tis, Supports European Chevet


    Description:
    General Motors Global Electrical Architecture (Global A) and Global Diagnostic Hardware &Software
    Global Diagnostic System DGS& Mutiple diagnostic Interface MDI

    MDI and GDS Background
    MDI is an interface between the vehicle DLC and a PC (by wired USB, wired Ethernet, wireless Ethernet ) and TIS2web.
    Required for diagnostics on new SGM Global A Electrical Architecture Vehicles
    Used with GM Global Diagnostics System (GDS), SPS and MDI Manager Software
    Allows for GDS diagnostic


    Language:

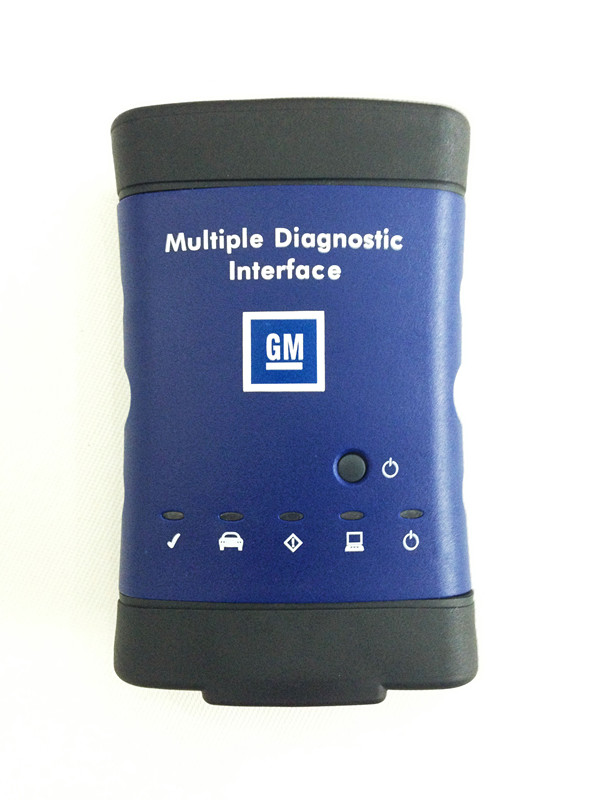

    GM Multiple Diagnostic Interface (MDI)
    All current and most legacy vehicle protocols: UART, KW2000, CLASS2, GM LAN, etc.
    Needed for Global A architechture vehicles
    Supports Service Programming System (SPS)
    Supports PC-Based diagnostics with rollout of the Global Diagnositc System (GDS) application
    Includes Flight Recorder Mode
    New Diagnostic Application Software required for Global A Vehicles
    Global Diagnostic System (GDS)
    PC-based software diagnsotics
    DTCs, Diagnostics, Data Display & Visualization, Device Controls, Special Tests, Flight Recorder management, etc.
    GDS is software which runs on a specific PC. Updates received via TIS2Web.
    Multiple display options. More space for diagnsotics. Session management for multiple us.


    What protocols does the MDI support?
    For immediate use — At present, vehicles have two buses on the 16 pin connector
    (high speed and low speed GMLAN). The GM MDI communicates using all of the existing GM protocols, the same as the Tech 2:
    - UART
    - Class 2
    - KWP2000
    - GMLAN (CAN)

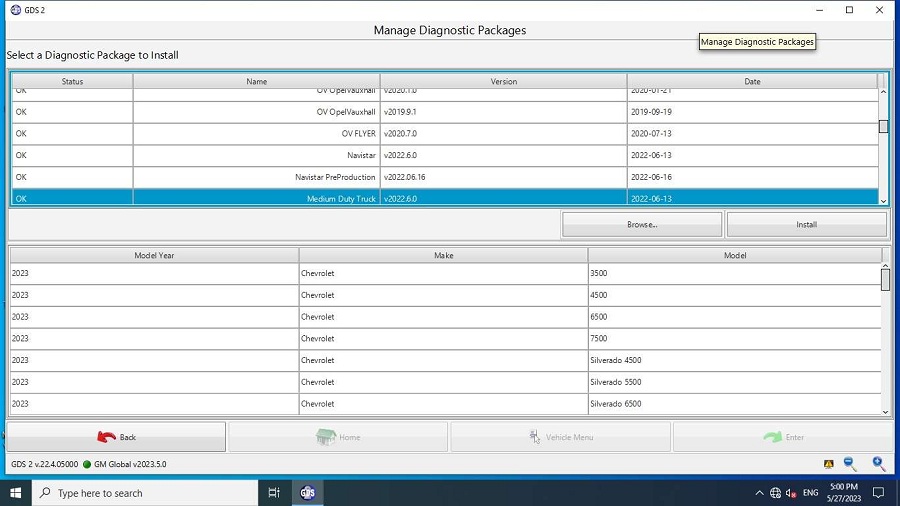

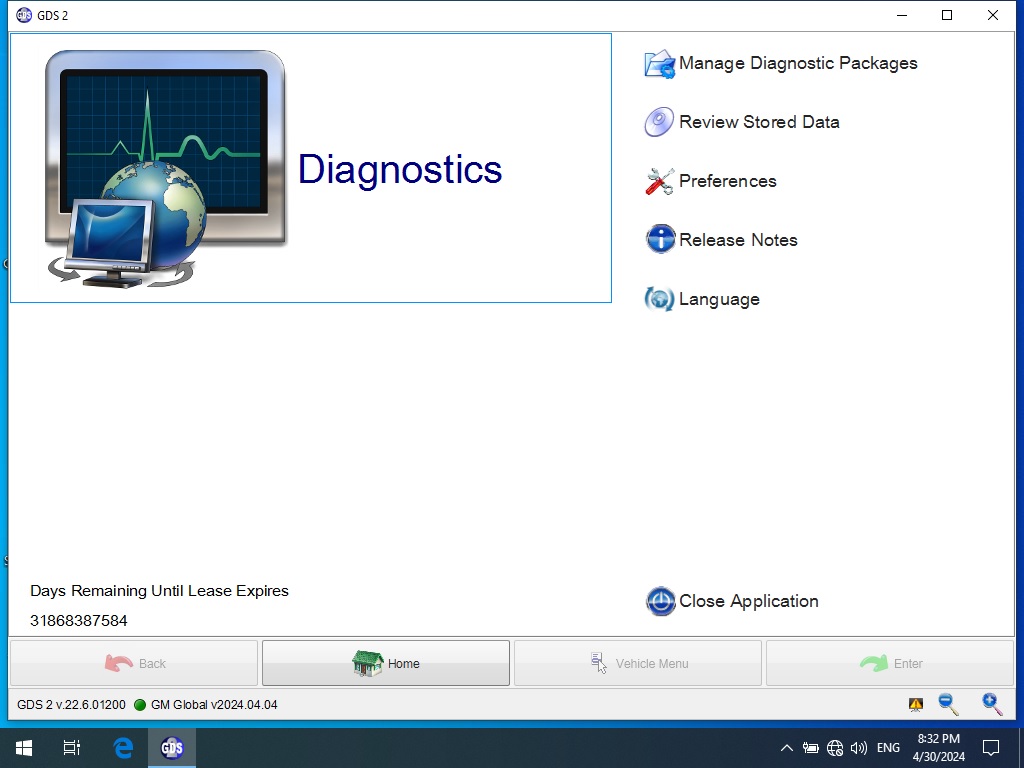

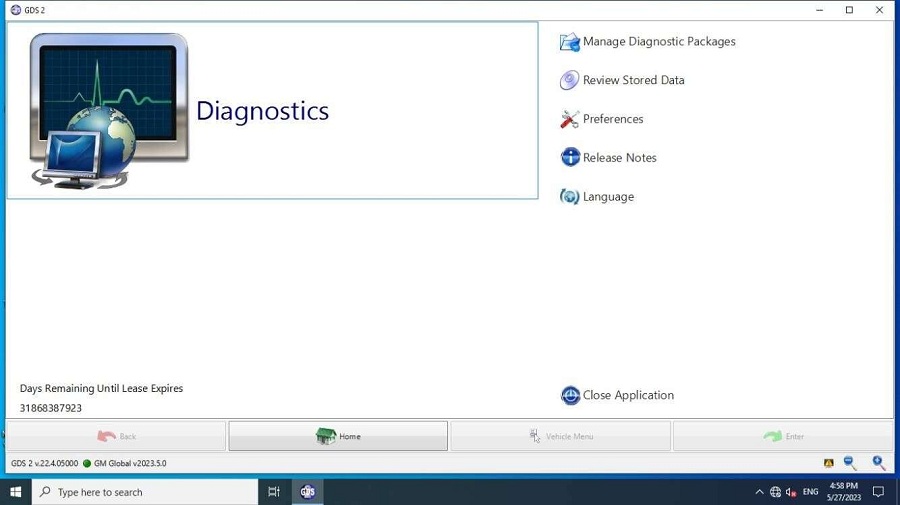

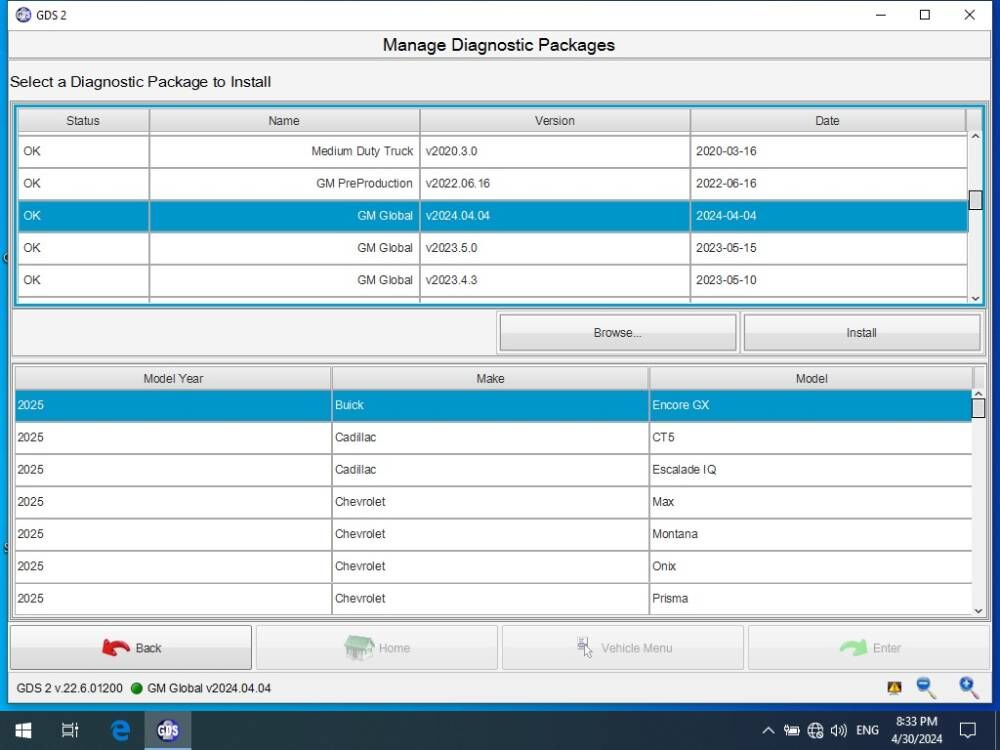

    When you test after 2010 year gm car ,you can use gm gds2 software:

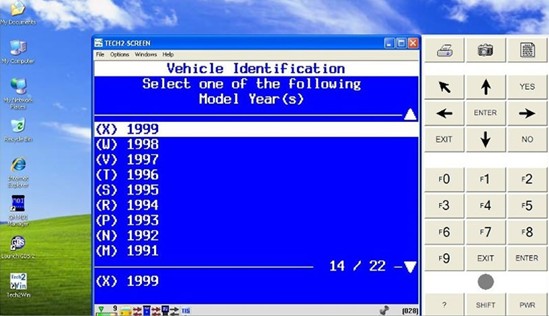

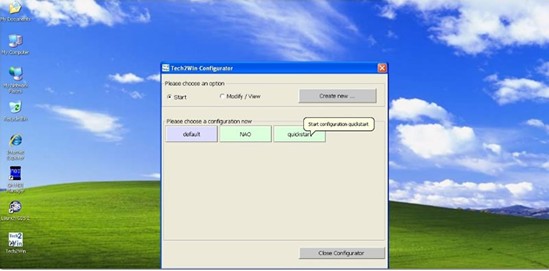

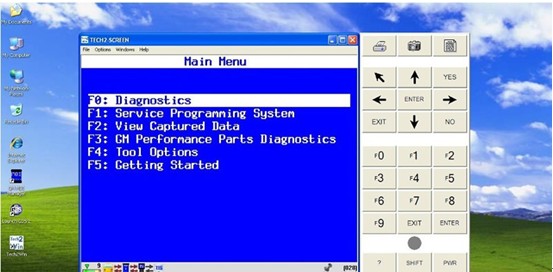

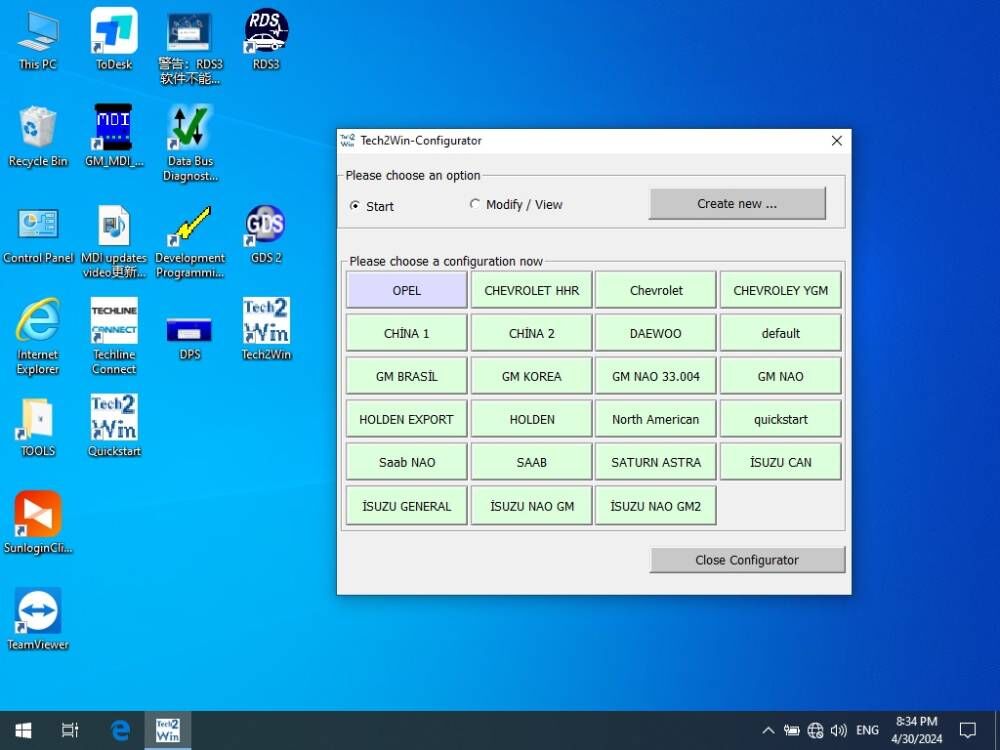

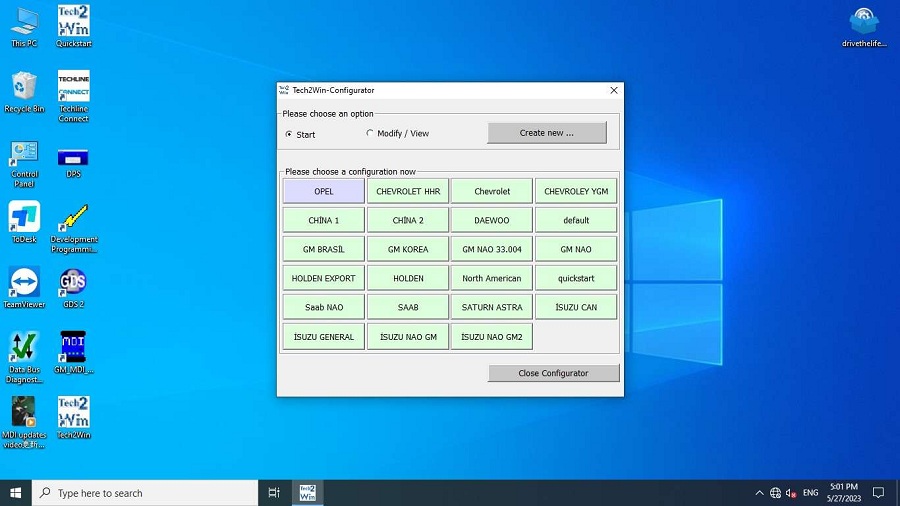

    When you want to test before 2010 year GM car, you can use the techwin software to test it,run fast and stable:

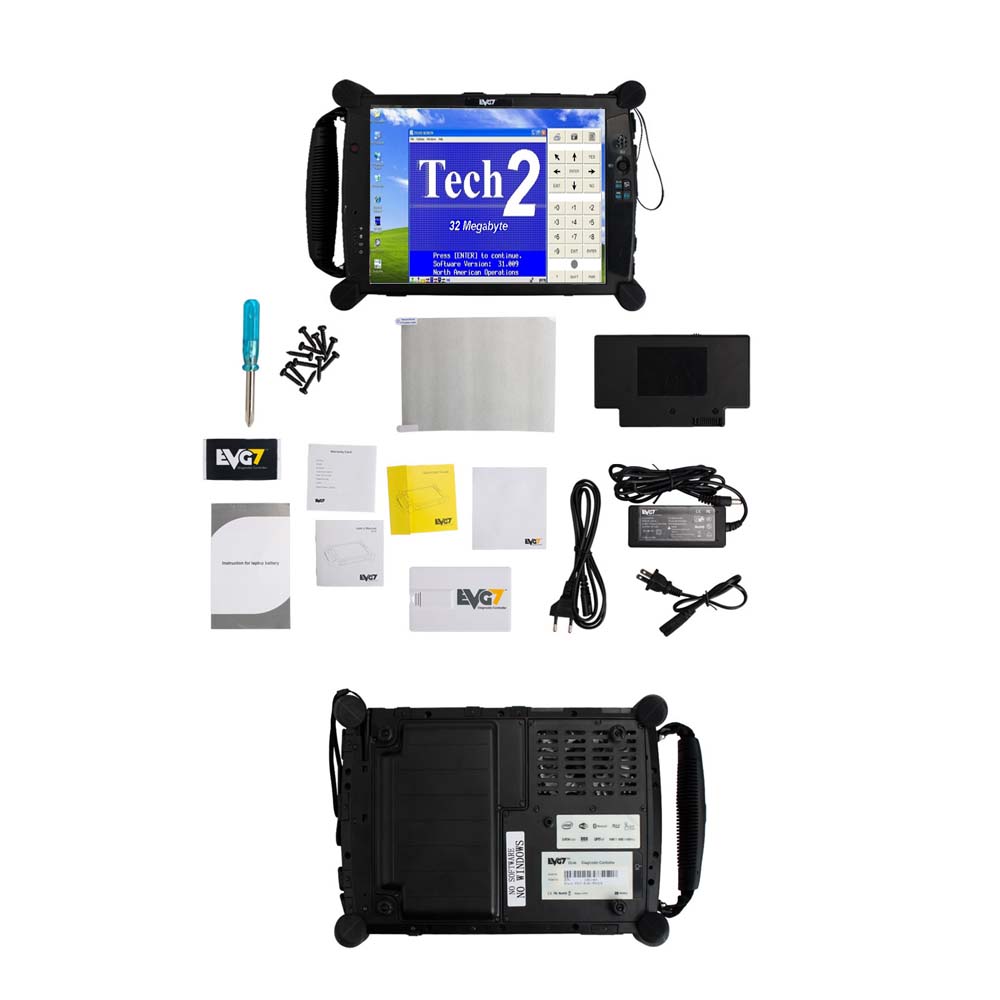

    MDI Scan Tool Package List:

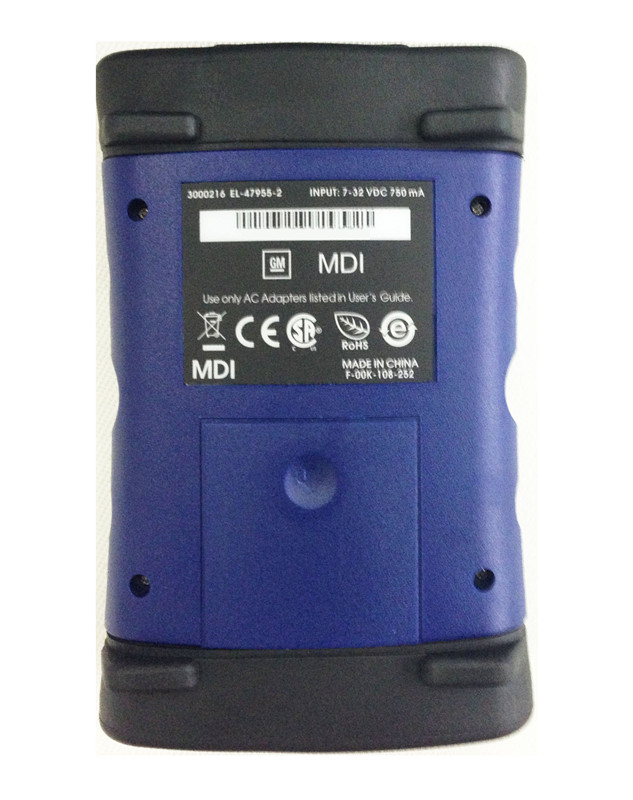

    1pc x MDI Main unit

    1pc x OBD2 Cable
    1pc x USB Cable
    1pc x AC Adapter
    1pc x EVG7 Tablet PC
