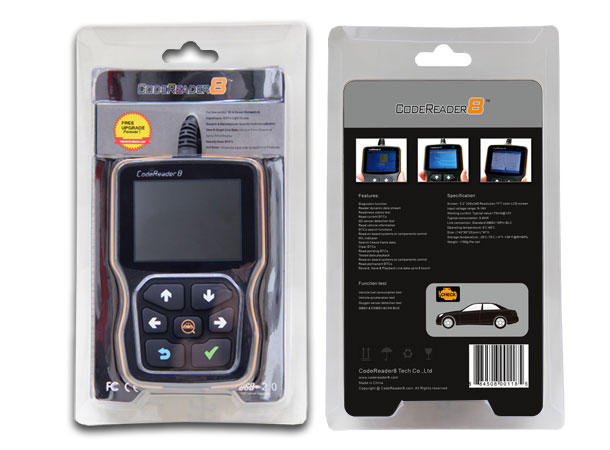

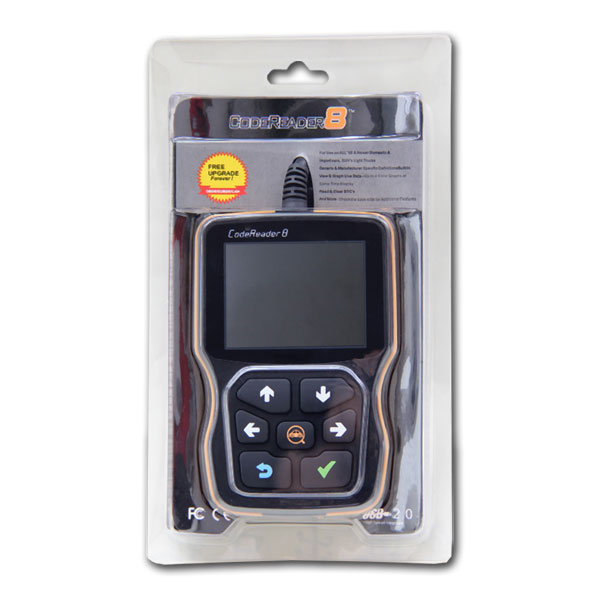

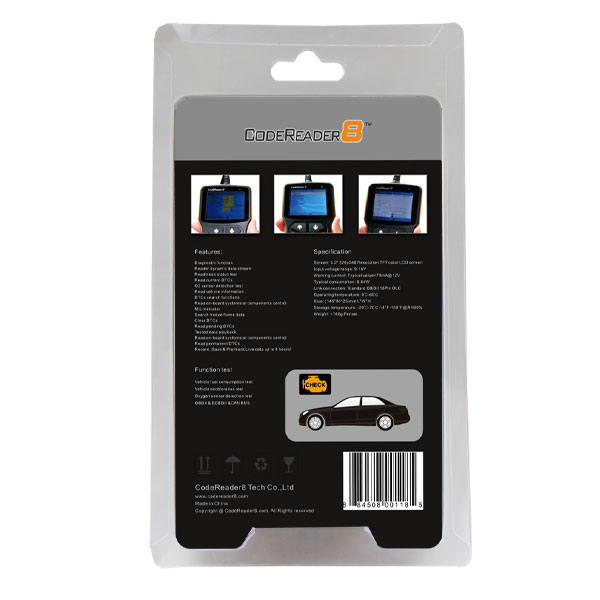

New Version Codereader8 CR800 OBDII EOBD CANBUS Scanner

Codereader8 uses the latest ARM processor system frame. Swift response, a 3.2" full color LCD screen, Gorgeous vivid, Streamlining design, easy to use, humanized menu, three background subject choices according to the environment and the strength of the light.

Codereader8 can automatically adjust the backlit, it is convenient for the users to use it in the car when the light is not strong.  To support the function of OBDII&EOBD and the latest CAN protocol, also it can update freely forever (OBD protocol update, vehicles update, language update and Maintenance help).

Features:

A key type diagnostic function.

Read dynamic data flow

Hazards instructions

Ready  condition test.

Query Freeze data.

Read the current fault code

Erase the fault code.

Oxygen sensor detection test

Specific monitoring system test ,vehicle monitoring

Read pending fault code

Read the vehicle-mounted system or components of the control.

Read vehicle information.

Read permanent fault code.

Fault code search function.

Test data playback

Function test:

Vehicle fuel consumption test

Vehicle acceleration test.

Technical parameter :

Screen: 3.2，320*240 colorful LCD screen.

Input voltage range: 9 ~ 18V

Working current: typical value<100mA@12V.

Typical consumption:<<1.2W

Wiring Connected way: standard 16pin diagnostic port.

Working temperature: 0 ℃ ~ 50 ℃

Storage temperature:-20 ℃ ~ 70 ℃ @ RH 60%

Weight:<0.5kg

Package:

1pc x CodeReader8 main unit

1pc x USB cable

1pc x 6 feet OBDII connected cable
