UPA USB Programmer With Full Adapters V1.3 ECU Programmer ECU Diagnostic Tool

Please refer to your car's user manual or check with your car dealer or local car factory to see if your car is compatible with this product

UPA USB Programmer Description:
Upa-usb 2014 is the full set with all adapters,The main Device can be directly connected to the Elrasoft.com UUSP (UPA-USB Serial Programmer) or by an optional DB9 male / female 1:1 extension cable. It's equipped with an 40pin ZIF Socket for all narrow and wide DIP / DIL devices as well as with a 16 pin SOIC ZIF (150mil, narrow) socket to cover most commonly used devices.

Device configuration is done over special config keys which make the work convenient and safe compared to wiring up all manually.Additional packages can be covered by commonly available Adapters plugged into the 40 pin ZIF socket.

The main Device further includes a 10 pin ISP connector where the included ISP Adapters can be connected using a standard 1:1 flatribbon cable (included). The included PLCC ISP Adapters are to be put directly over the soldered chip of the target device making the work convenient and safe compared to soldering or using clips connecting up all manually. (Power from the UUSP to the ISP target can be enabled or disabled by a jumper next to the 10 pin ISP connector)

UPA Programmer EEproms：
Simply connect the mainboard to the UPA programmer directly or by using a DB9 male / female extension cable (1:1). Insert the correct config key into the slot of the mainboard and start programming either via the ZIF or SOIC Socket. You can also use the included DIL to 10pin Flat-ribbon header, put it inside the ZIF socket and wire up an SOIC clip or clamps for ISP use from there.

UPA USB Programmer Support：
STMicroelectronics ST62*:

ST6240, ST6245, ST6249

NSC CR16*: CR16HCS5(9), CR16MCS5(9), CR16MES5(9), CR16MFS5(9), CR16MCT5/9, CR16HCT5/9

Motorola HC05*: MC68HC05B6, MC68HC05B8, MC68HC05B16, MC68HC705B16, MC68HC05B32, MC68HC05E6, MC68HC705E6, MC68HC05H12, MC68HC05L28, MC68HC05P3, MC68HC705P3*,MC68HC05X16, MC68HC05X32

Motorola HC08*: MC68HC08AS20, MC68HC08AS32, MC68HC08AS60, MC68HC08AZ32, MC68HC(9)08AZ32A, MC68HC908AZ60, MC68HC908AZ60A

Motorola HC11*: MC68HC11A1, MC68HC11A8, MC68HC11E9, MC68HC11EA9, MC68HC11E20, MC68HC11F1, MC68HC11K4, MC68HC11KA2, MC68HC11KA4, MC68HC11KG4, MC68HC11KS2, MC68HC11KS8, MC68HC11L6, MC68HC11P2, MC68HC11PA8, MC68HC11PH8

Motorola HC12*: MC68HC912B32, MC68HC912BE32, MC68HC912D60, MC68HC912D60A, MC68HC912DC128A, MC68HC912DG128, MC68HC912DG128A

Motorola HCS12*: MC9S12D64, MC9S12A128, MC9S12DG128, MC9S12DG256, MC9S12H128, MC9S12H256, MC9S12HZ64, MC9S12HZ128, MC9S12HZ256

Freescale (Motorola) HCS12X*: MC9S12XD64, MC9S12XD128, MC9S12XDG128, MC9S12XDP384, MC9S12XDP512, MC9S12XHZ256, MC9S12XHZ512

Freescale (Motorola) HCS12XE*: MC9S12XEG128, MC9S12XET256, MC9S12XEQ384, MC9S12XEQ512, MC9S12XEP768, MC9S12XEP100

Atmel 8051 Architecture: AT89S51, AT89S52, AT89S53, AT89S8252, AT89S8253

Atmel AVR 8-Bit Risk: AT90S1200, AT90S2313, AT90S2323, AT90S2333, AT90S2343, AT90S4433, AT90S4434, AT90S8515, AT90S8535, ATmega8, ATmega16, ATmega161, ATmega162, ATmega163, ATmega323, ATmega64, ATmega103, ATmega128, ATtiny12, ATtiny15, ATtiny2313, ATmega8515, ATmega8535

Microchip PIC12: PIC12F508, PIC12F509, PIC12F629, PIC12F675

Microchip PIC16: PIC16F627(A), PIC16F628(A), PIC16F648A, PIC16F72, PIC16F73, PIC16F74, PIC16F76, PIC16F77, PIC16F818, PIC16F819, PIC16F83, PIC16F84(A), PIC16F870, PIC16F871, PIC16F872, PIC16F873(A), PIC16F874(A), PIC16F876(A), PIC16F877(A)

EEPROMs I2C: 24C01, 24C02, 24C04, 24C08, 24C16, 24C32, 24C64, 24C65, 24C128, 24C256, 24C512, 85C72, 85C82, 85C92, BAW574252, GRM-003, GRM-004, GRM-005, KKZ-06F, MCM2814, PCA8581, PCF8581, PCF8582, PCF8594, PCF8598, PCF85102, PCF85116, SDA2516, SDA2526, SDA2546, X24C00, X24C01

EEPROMs Microwire: 7002, 93C06, 93C14, 93C46, 93C56, 93C57, 93C66, 93C76, 93C86, 93S46, 93S56, 93S66, GRN-001, GRO-002, KKZ-01, S220, S2914, ST61907, XLS93C46

EEPROMs SPI: M35080, 25C010, 25C020, 25C040, 25C080, 25C128, 25C160, 25C256, 25C320, 25C640, M25P05, M25P10, M25P20, M25P40, M25P80, ST95010, ST95020, ST95040, ST95080, ST95160, ST95320, ST95640, ST95P02, ST95P04, ST95P08, X5043, X5045

EEPROMs Miscellaneous: CXK1011, CXK1012, CXK1013, M6M80011, M6M80021, M6M80041, SDE2506, TC89101, TC89102, 77005, 77007, BR9010, BR9020, BR9040, CAT64LC10, CAT64LC20, CAT64LC40, S-29190A, S-29290A ,S-29390A

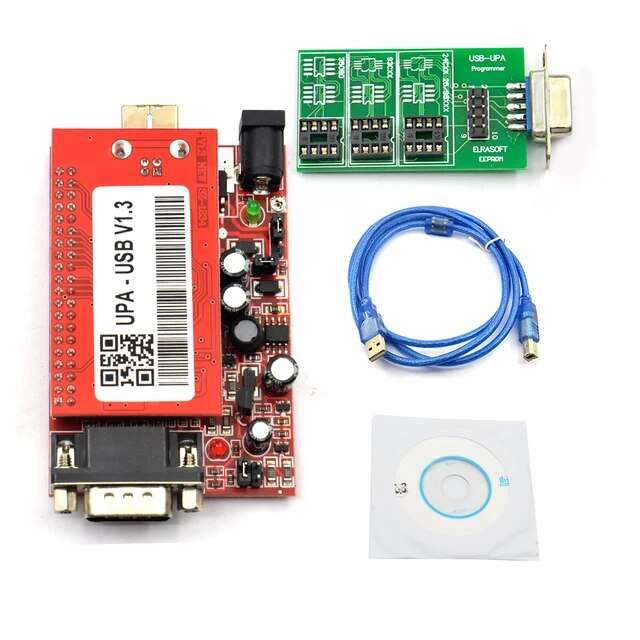

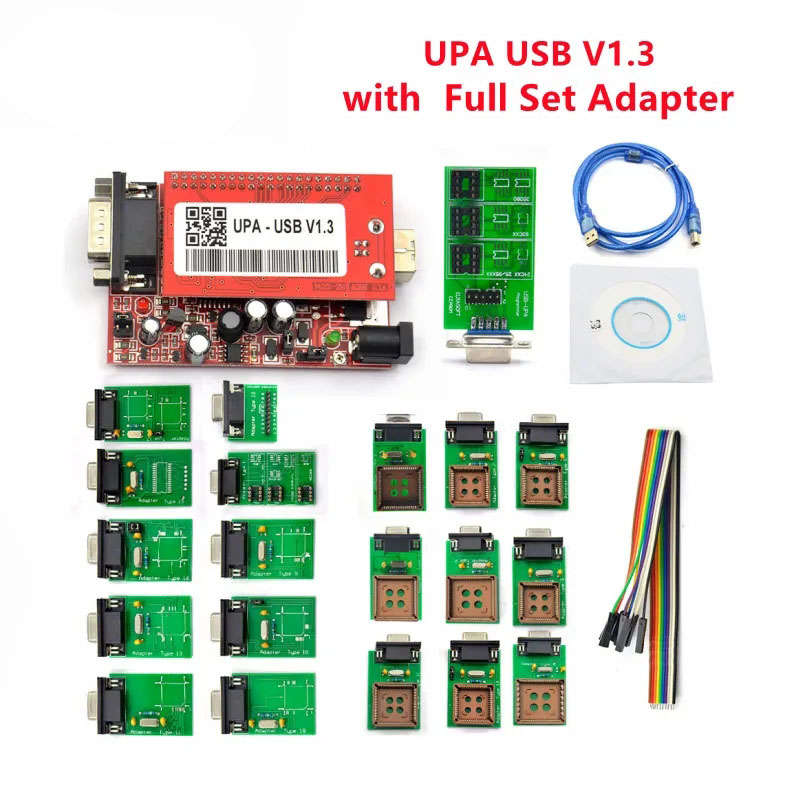

Package Listing:
1pc X Main unit
1pc X USB cable
1pc X CD
1pc X 5pin cable

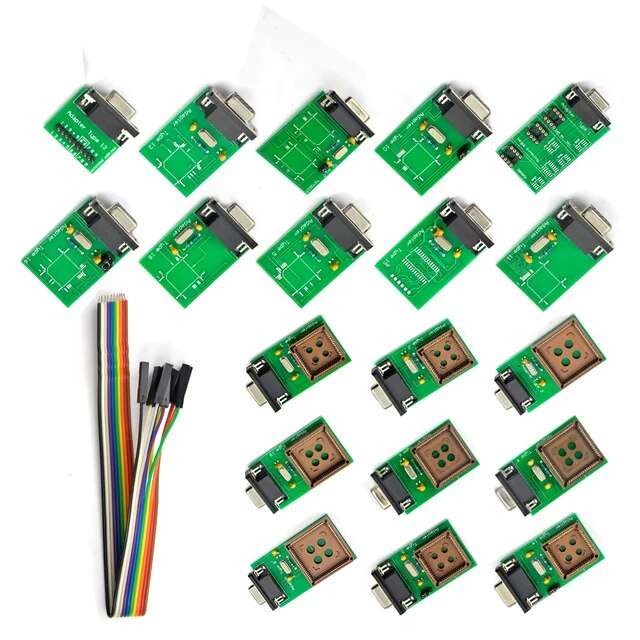

1pc X Adapter Type1 Per eprom I2C,SPI, Microware e M35080
1pc X Adapter Type2 Motorola MC68HC11P2+MC68HC11PH8-PLCC84
1pc X Adapter Type3 Motorola MC68HC08AS-PLCC52
1pc X Adapter Type4 Motorola MC68HC11KA2/4+MC68HC11KS-PLCC68
1pc X Adapter Type5 Motorola MC68HC(9)08-QFP64
1pc X Adapter Type6 Motorola MC68HC11F1-PLCC68
1pc X Adapter Type7 Motorola MC68HC05H12-PLCC52
1pc X Adapter Type8 Motorola MC68HC11K-PLCC84
1pc X Adapter Type9 Motorola MC68HC11A8/E1/E9/E20+MC68HC11EA9-PLCC52
1pc X Adapter Type10 Motorola MC68HC11KA2/4+MC68HC11PA8-QFP64
1pc X Adapter Type11 Motorola MC68HC11K-QFP80
1pc X Adapter Type12 Extended address
1pc X Adapter Type13 Motorola MC68HC11A8/E1/E9/E20-QFP64
1pc X Adapter Type14 Motorola MC68HC05B4/B6/B8/B16/B32+MC68HC705B16/B32-PLCC52
1pc X Adapter Type15 Motorola MC68HC(7)05E6-SOIC28
1pc X Adapter Type16 Motorola MC68HC05B4/B6/B8/B16/B32+MC68HC(7)05X16/X32-QFP64
1pc X Adapter Type17 Motorola MC68HC(9)12B32-MC68HC(9)12D60(A)-QFP80
1pc X Adapter Type18 Motorola MC68HC11F1-QFP80
1pc X Adapter Type19 Motorola MC68HC11L6-PLCC68
