    Autophix OBDMate OM121 EOBD CAN Engine OBDII Code Reader

    • Item No.  F234
    • History: 37  sold
    • Quantity
      Total
      Shipping:
      Express Shipping Service    Estimated delivery time: 5-7 days »
      Affected by the epidemic, there will be delays in transit time.
      continue
    • Quantity:  300
    • Weight:  500.0gram
    • Rank:  comment rank 5 () Write a Review
      Rated 5/5 based on 1 customer reviews
    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video

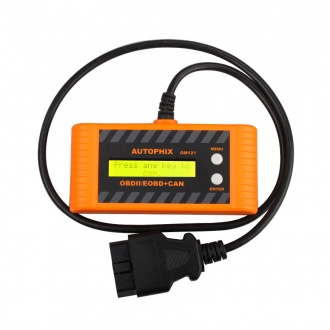

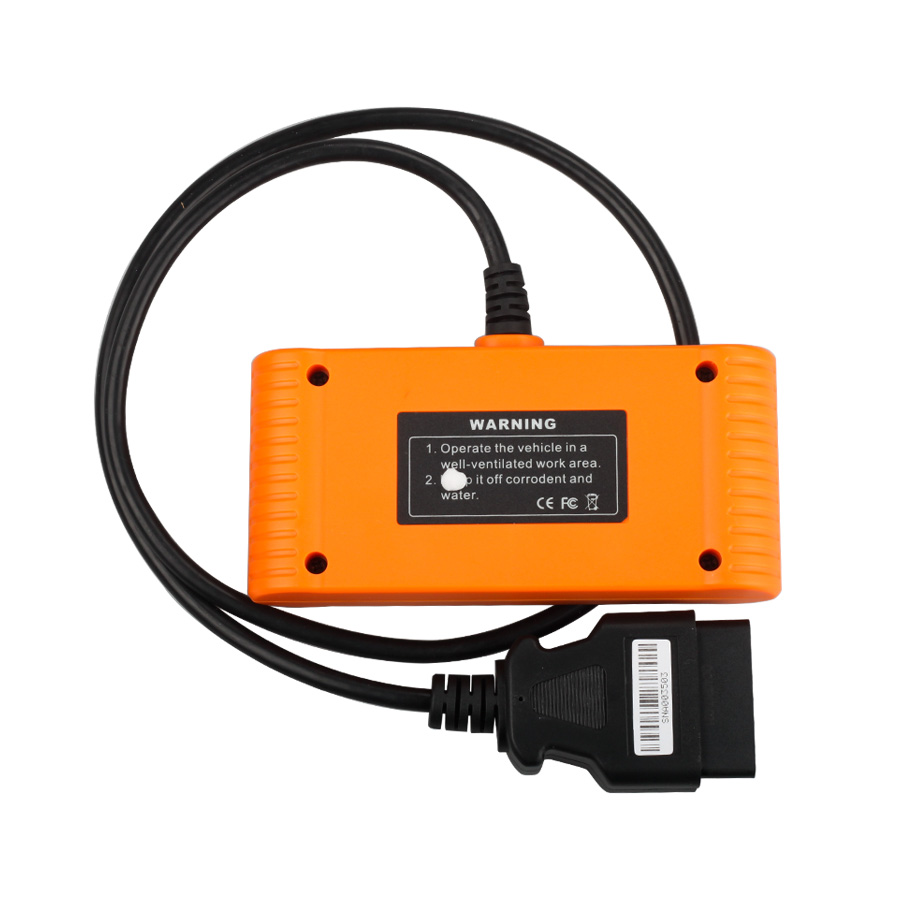

    Autophix OBDMate OM121 EOBD CAN Engine OBDII Code Reader


    OM121 obdii code reader is a kind of auto device for reading and erasing fault code, Vehicle Identification No. , sometimes called car code reader. Though so small, light and handy, with two buttons and display screen, which is dynamic and fashionable in design, competitive in price and easy to use.

    Autophix OM121 Functions:
    1. Read Codes
    2. Clear Codes
    3. Vehicle Info.(VIN, CIN and CVN)

    OM121 Code Reader Feature:
    1. OM121 works on all after 1996 OBD II compliant US, European and Asian vehicles.
    2. OM121 supports ALL OBD II protocols: CAN, J1850 PWM, J1850 VPW, ISO9141 and KWP2000.
    3. OM121 supports Multilingual menu options and code definitions.
    4. Built-in OBD II Fault code lookup library.
    5. Read trouble codes: It would enter into the "Read trouble codes" interface without any actions.
    6. Easy to use with one plug-in-16-pin OBDII Standard Socket.
    7. Easy-to-read backlit 2-line 8 characters LCD display.
    8. No batteries needed-powered via detachable OBD II cable.
    9. Highly reliable and accurateto read fault code & vehicle information.
    10. CE, FCC, RoHS certificates.

    Autophix OM121 Code Reader Specifications:
    Display:    Back-lit, 128 × 64 pixel display with contrast adjustment
    Operating Temperature:    0 to 60°C (32 to 140 F°)
    Storage Temperature:    -20 to 70°C (-4 to 158 F°)
    External Power:    8.0 to 18.0 V power provided via vehicle battery
    Dimensions:
         Length    Width    Height
    140 mm (5.00")    65 mm (2.80")    22 mm (0.90")

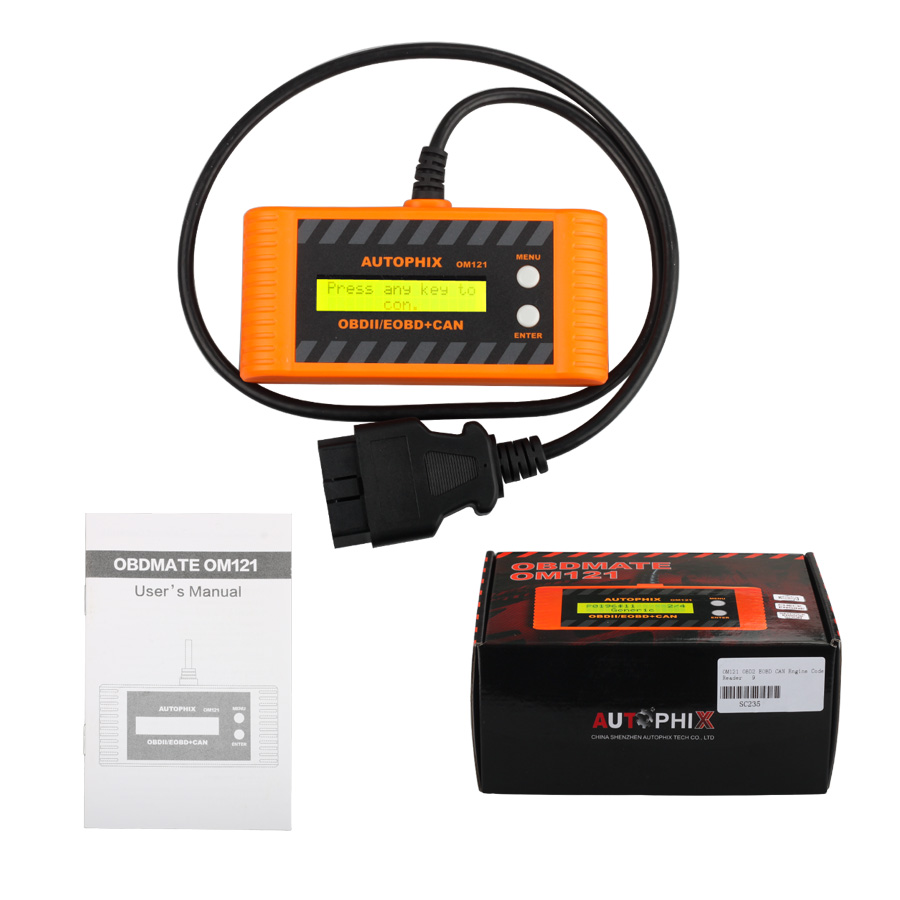

    Autophix OM121 Packing List:
    - 1pc x AUTOPHIX OBDMATE OM121 JOBD Code Reader main unit

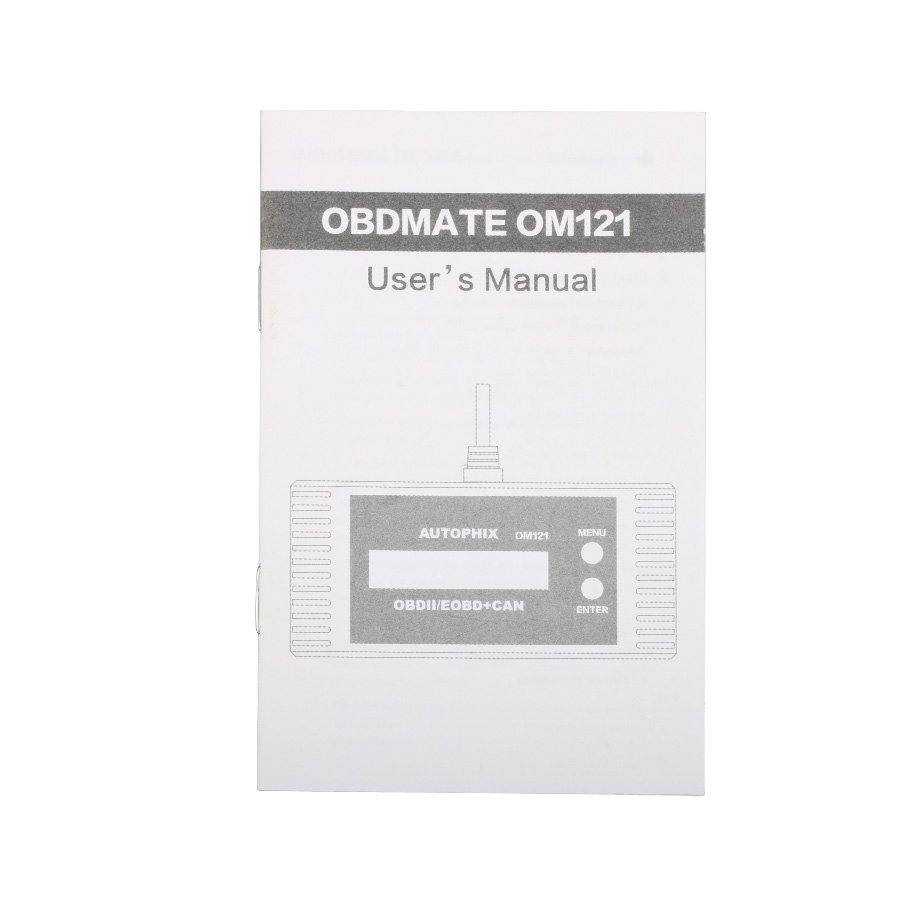

    - 1pc x User's Manual
