DS17 Infineon Tricore Boot Reader Support EDC17 And Tricore
DS17 Infineon Tricore Boot Reader Support EDC17 And Tricore
Support EDC17 and Tricore
Notice:
1.This DS17 cannot be updated
2.Pls just use our software, or mutiplexer will get blocked if you use other software
DS17 Infineon Tricore Boot Reader Description:
Commonly named as bootmode this port is the Infineon pendent to the Motorola/Freescale BDM port. In contrast to the BDM port, whose pins only have this purpose, the bootmode is done over one of the CAN busses of the processor.

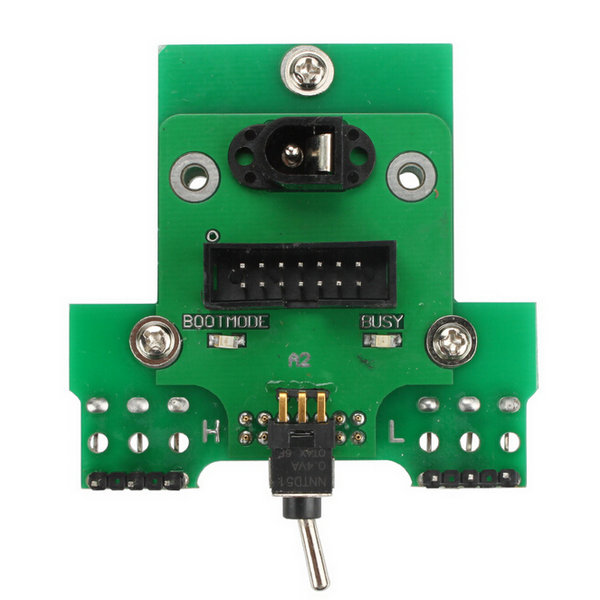

Because new assembled ECUs are programmed over this port, Bosch has put it on a 14 pin pad array. It looks like the BDM port but works completely different.
To put the processor into the bootmode a modification on the printed circuit board is necessary. This modification depends on the type of the processor and so the type of the ECU. In the most simple case one pin of the processor must be connected to ground. Therefore a contact needle with a wire and a tripod is attached to the system.
The power is also supplied over the probe, but is spite to the BDM system the voltage is not manually switchable but automatically controlled by the DS17.
DS17 Infineon Tricore Boot Reader Support:
EDC17/MED17/ME17/MEV17/MEVD17/PCF2.1/SD13/SD14/SD16/SID208/SID807
Here you can see a list of cars, which are successfully tested at DS17 Infineon Tricore Bott Reader:
Car
ECU
Manufacturer
Type
Version
Manufacturer
Type
Alfa-Romeo
Julietta
1750 TBI
Bosch
MED17
Audi
A3
1.4L TSI
Bosch
MED17.5.5
Audi
A3
1.4L TSI
Bosch
MED17.5.20
Audi
A3
1.8L TFSI
Bosch
MED17.5
Audi
A3
2.0L TDI CR
Bosch
EDC17CP14 INTERN
Audi
A3
2.0L TDI CR
Bosch
EDC17C46
Audi
A3
2.0L TFSI
Bosch
MED17.5
Audi
A4
1.8L TFSI
Bosch
MED17.5
Audi
A4
2.0L TDI CR
Bosch
EDC17CP14 INTERN
Audi
A4
2.0L TFSI
Bosch
MED17.1
Audi
A5
2.0L TDI CR
Bosch
EDC17CP20 HW31
Audi
A5
2.0L TFSI
Bosch
MED17.1
Audi
A5
3.0L V6 TDI
Bosch
EDC17CP14 HW02
Audi
A6
2.7L V6 TDI
Bosch
EDC17CP14 EXTERN
Audi
Q5
2.0L TFSI
Bosch
MED17.1
Audi
Q5
2.0L TFSI
Bosch
MED17.5
Audi
Q5
3.0L V6 TDI
Bosch
EDC17CP24
Audi
Q7
3.0L TDI
Bosch
EDC17CP04 HW01
Audi
Q7
4.2L V8 TDI
Bosch
EDC17CP24
Audi
RS5
Bosch
MED17.1.1 HW03
Audi
TT
2.0L TFSI
Bosch
MED17.5
BMW
116i (E81)
1.6L
Bosch
ME17.4.5
BMW
118d (E81)
2.0L D
Bosch
EDC17C06 DDE7.0
BMW
118i (E81)
2.0L
Bosch
ME17.4.6
BMW
120d (E81)
2.0L D
Bosch
EDC17CP02 DDE7.1
BMW
120d (E82)
2.0L D
Bosch
EDC17CP02 DDE7.1
BMW
120d (E88)
2.0L D
Bosch
EDC17CP02 DDE7.1
BMW
120i (E81)
2.0L
Bosch
ME17.4.6
BMW
120i (E88)
2.0L
Bosch
ME17.4.5
BMW
123d (E81)
2.0L D
Bosch
EDC17CP02 DDE7.1
BMW
123d (E82)
2.0L D
Bosch
EDC17CP02 DDE7.1
BMW
316i (E90)
1.6L
Bosch
ME17.4.5
BMW
318d (E90)
2.0L D
Bosch
EDC17C06 DDE7.0
BMW
318d (E91)
2.0L D
Bosch
EDC17C06 DDE7.0
BMW
318i (E90)
2.0L
Bosch
MEV17.4.6
BMW
318i (E91)
2.0L
Bosch
MEV17.4.6
BMW
320d (E90)
2.0L D
Bosch
EDC17CP02 DDE7.1
BMW
320d (E91)
2.0L D
Bosch
EDC17CP02 DDE7.1
BMW
320d (E92)
2.0L D
Bosch
EDC17CP02 DDE7.1
BMW
320d (E93)
2.0L D
Bosch
EDC17CP02 DDE7.1
BMW
320i (E90)
2.0L
Bosch
MEV17.4.6
BMW
320i (E91)
2.0L
Bosch
MEV17.4.6
BMW
320i (E92)
2.0L
Bosch
MEV17.4.6
BMW
320i (E93)
2.0L
Bosch
MEV17.4.6
BMW
325d (E93)
2.5L D
Bosch
EDC17CP09 DDE7.3
BMW
330d (E91)
3.0L D
Bosch
EDC17CP09 DDE7.3
BMW
535D (F11)
3.0L D
Bosch
EDC17C41
BMW
535GT (F07)
3.0L D
Bosch
EDC17CP09 DDE7.3
BMW
540i (F10)
3.0L Turbo
Bosch
MEVD17.2
BMW
X1 (E84)
1.8L D
Bosch
EDC17C06 DDE7.0
BMW
X3 (E83) Facelift
2.0L D
Bosch
EDC17CP02 DDE7.1
BMW
X6 (E71)
4.0L D
Bosch
EDC17CP45
BMW-Motorrad
S1000RR
1.0L
Bosch
ME17.2
Citroen
C3
1.6L Turbo
Bosch
MEV17.4
Citroen
C4
1.6L Turbo
Bosch
MED17.4
Citroen
C5
1.6L Turbo
Bosch
MED17.4
Citroen
DS3
1.6 HDI
Siemens
SID807
Fendt
Bosch
EDC17CV52
Fendt
724
Bosch
EDC17CV56
Ford
Siemens
SID208
Ford
C-Max
1.6 TDCI
Siemens
SID807
Ford
F-250
6.7L TDI
Bosch
EDC17CP05
Ford
F-350
6.7L TDI
Bosch
EDC17CP05
Ford
F-450
6.7L TDI
Bosch
EDC17CP05
Ford
Focus
ST
Bosch
MED17.2.2
Ford
Mondeo
Bosch
EDC17CP42
Honda
Accord
2.2iCDTi
Bosch
EDC17CP06
Hyundai
i25
1.4L
Bosch
MEG17.9.12
Hyundai
Tuscon, Santa Fe
2.2 CDTi
Bosch
EDC17CP14
Iveco
Daily
3.0CR
Bosch
EDC17CP52
Kia
Mohave
3.0D
Bosch
EDC17CP14 INTERN
KIA
Sportage
2.0 CRDI
Bosch
EDC17C08
Land Rover
Defender
2.2D
Siemens
SID208
Land Rover
Discovery 4, Range Rover
3.0D
Bosch
EDC17CP11
Land Rover
Evoque
2.0T
Bosch
MED17.2-V4
Mercedes-Benz
A 180 (W169)
2.0L CDI
Bosch
EDC17C43
Mercedes-Benz
A 250 (W176)
2.0L CGI
Bosch
MED17.7.2
Mercedes-Benz
C 200 (W204)
2.0L CDI
Bosch
EDC17CP01
Mercedes-Benz
C, CL, CLS, E, S
350, 500, 63
Bosch
MED17.7.1
Mercedes-Benz
CLS, E
350CDI, 450CDI
Bosch
EDC17CP46
Mercedes-Benz
G
65 AMG
Bosch
MED17.7.8
Mercedes-Benz
Sprinter
319CDI
Bosch
EDC17CP10
Mercedes-Benz
Viano
120CDI
Bosch
EDC17CP10
Mini
One
1.6L Turbo
Bosch
MEV17.2.2
Mini
One (R56) (0261S04158, 0261S04443)
1.6L Turbo
Bosch
MED17.2-V1
Mini
One (R56) (0261S04161)
1.6L Turbo
Bosch
MED17.2-V2
Nissan
Qashqai
1.6 DCI
Bosch
EDC17C42
Opel
Insignia
2.0L CDTi
Bosch
EDC17C19
Peugeot
207
1.6 HDI
Siemens
SID807
Peugeot
207
1.6L HDI
Bosch
EDC17C10
Peugeot
207
1.6L Turbo
Bosch
MED17.4
Peugeot
207 RC
1.6L Turbo
Bosch
MED17.4
Peugeot
308
1.6L Turbo
Bosch
MED17.4
Polaris
RZR-S
800cc
Bosch
M17.8.7
Porsche
Cayenne
3.0L V6 TDI
Bosch
EDC17CP14 HW03
Porsche
Cayenne
4.8L V8 Turbo
Siemens
SDI4
Porsche
Cayenne II
3.0L V6 TDI
Bosch
EDC17CP44
Porsche
Cayenne S
4.8L V8
Siemens
SDI4
Porsche
Cayman S
3.4L
Siemens
SDI3
Porsche
Panamera
Siemens
SDI6
Renault
Clio
1.5 DCI
Bosch
EDC17C42
Sea-Doo Jetski
RXT-iS 260
1.5L Supercharger
Bosch
ME17.8.5
Seat
Altea
1.4L TSI
Bosch
MED17.5.1
Seat
Altea
1.4L TSI
Bosch
MED17.5.5
Seat
Altea
1.4L TSI
Bosch
MED17.5.20
Seat
Altea
1.8L TSI
Bosch
MED17.5
Seat
Bocanegra
1.4L TSI
Bosch
MED17.5.5
Seat
Ibiza 4
1.4L TDI
Bosch
EDC17U1
Seat
Ibiza 4
1.9L TDI
Bosch
EDC17U1
Seat
Ibiza 4
2.0L TDI CR
Bosch
EDC17C46
Seat
Leon 2
1.4L TSI
Bosch
MED17.5.20
Seat
Leon 2
1.8L TSI
Bosch
MED17.5
Seat
Toledo 3
1.4L TSI
Bosch
MED17.5.20
Seat
Toledo 3
1.8L TSI
Bosch
MED17.5
Skoda
Octavia 2
1.4L TSI
Bosch
MED17.5.20
Skoda
Octavia 2
1.8L TSI
Bosch
MED17.5
Skoda
Superb 2
1.4L TSI
Bosch
MED17.5.1
Skoda
Superb 2
1.4L TSI
Bosch
MED17.5.5
Skoda
Superb 2
1.4L TSI
Bosch
MED17.5.20
Skoda
Superb 2
1.8L TFSI
Bosch
MED17.5
Skoda
Superb 2
2.0L TDI CR
Bosch
EDC17CP14 INTERN
Skoda
Yeti
2.0L TDI CR
Bosch
EDC17CP14 INTERN
Skoda
Yeti
2.0L TDI CR
Bosch
EDC17C46
Toyota
Urban Cruiser
1.4L D4-D
Bosch
EDC17CP07
Volkswagen
EOS
1.4L TSI
Bosch
MED17.5.20
Volkswagen
EOS
2.0L TDI CR
Bosch
EDC17CP14 INTERN
Volkswagen
EOS
2.0L TSI
Bosch
MED17.5
Volkswagen
Golf 5
1.4L TSI
Bosch
MED17.5.1
Volkswagen
Golf 5
1.4L TSI
Bosch
MED17.5.20
Volkswagen
Golf 5
2.0L TSI
Bosch
MED17.5
Volkswagen
Golf 6
1.4L TSI
Bosch
MED17.5.5
Volkswagen
Golf 6
1.4L TSI
Bosch
MED17.5.20
Volkswagen
Golf 6
2.0L TDI CR
Bosch
EDC17CP14 INTERN
Volkswagen
Golf 6
2.0L TSI
Bosch
MED17.5
Volkswagen
Golf 6
2.5L
Bosch
MED17.5
Volkswagen
Jetta 3
1.4L TSI
Bosch
MED17.5.20
Volkswagen
Jetta 3
2.0L TDI CR
Bosch
EDC17CP14 EXTERN
Volkswagen
Jetta 3
2.0L TSI
Bosch
MED17.1
Volkswagen
Jetta 3
2.0L TSI
Bosch
MED17.5
Volkswagen
Jetta 3
2.5L
Bosch
MED17.5
Volkswagen
Passat
1.4L TSI
Bosch
MED17.5.20
Volkswagen
Passat
1.8L TFSI
Bosch
MED17.5
Volkswagen
Passat
2.0L TDI CR
Bosch
EDC17CP14 INTERN
Volkswagen
Passat
2.0L TSI
Bosch
MED17.5
Volkswagen
Passat CC
1.8L TFSI
Bosch
MED17.5
Volkswagen
Passat CC
2.0L TSI
Bosch
MED17.5
Volkswagen
Phaeton
3.0L V6 TDI
Bosch
EDC17CP04 INTERN
Volkswagen
Polo
GTI
Bosch
MED17.5.5 HW02
Volkswagen
Polo, Golf 6, Passat, Caddy
1.6TDI CR
Siemens
PCR2.1
Volkswagen
Scirocco
1.4L TSI
Bosch
MED17.5.5
Volkswagen
Scirocco
1.4L TSI
Bosch
MED17.5.20
Volkswagen
Scirocco
2.0L TDI CR
Bosch
EDC17CP14 INTERN
Volkswagen
Scirocco
2.0L TSI
Bosch
MED17.5
Volkswagen
Tiguan
1.4L TSI
Bosch
MED17.5.1
Volkswagen
Tiguan
1.4L TSI
Bosch
MED17.5.20
Volkswagen
Tiguan
2.0L TDI CR
Bosch
EDC17CP14 INTERN
Volkswagen
Tiguan
2.0L TSI
Bosch
MED17.5
Volkswagen
Touareg
3.0L V6 TDI
Bosch
EDC17CP04 INTERN
Volkswagen
Touareg
3.0L V6 TDI
Bosch
EDC17CP24
Volkswagen
Touareg II
3.0L V6 TDI
Bosch
EDC17CP44
Volkswagen
Touran
1.4L TSI
Bosch
MED17.5.1
Volkswagen
Transporter T6
2.0L TDI CR
Bosch
EDC17CP20 HW31
Volkswagen
Vento
2.0L TDI CR
Bosch
EDC17CP14 INTERN
Volvo
Bosch
EDC17CP01
Volvo
Bosch
EDC17CP22
Volvo
D2
1.6D
Siemens
SID807
Volvo
XC60
2.4 D5
Bosch
EDC17CP48

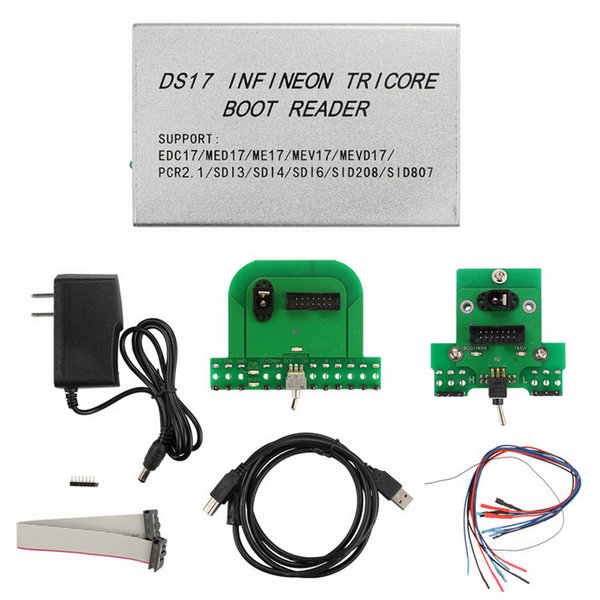

Package including:

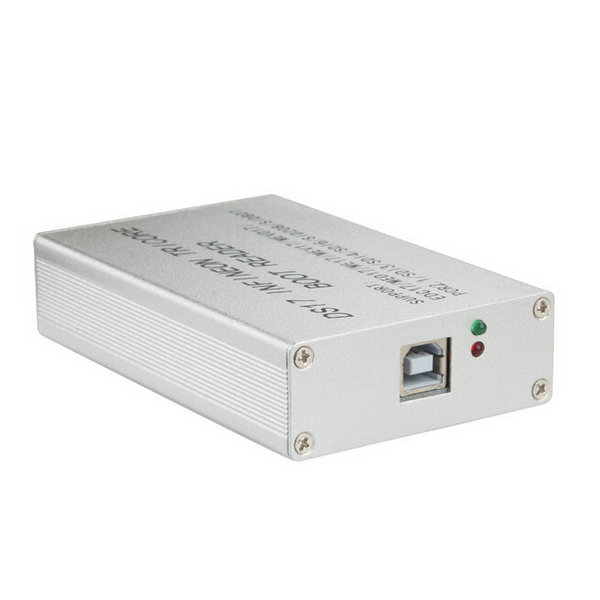

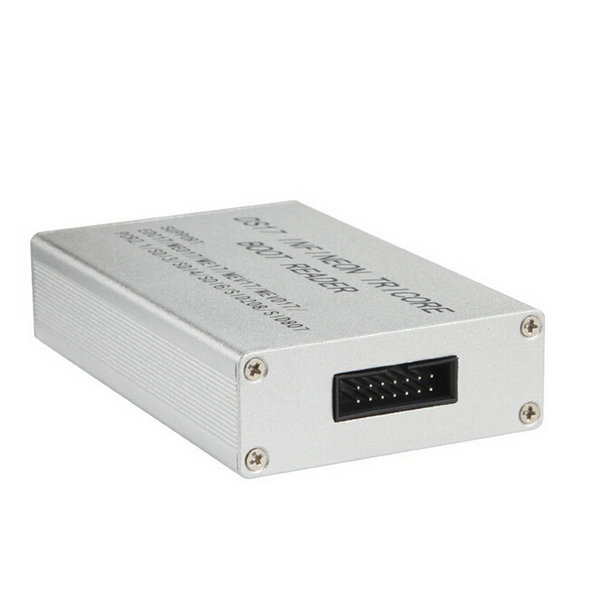

1pc DS17 Infineon Tricore Boot Reader

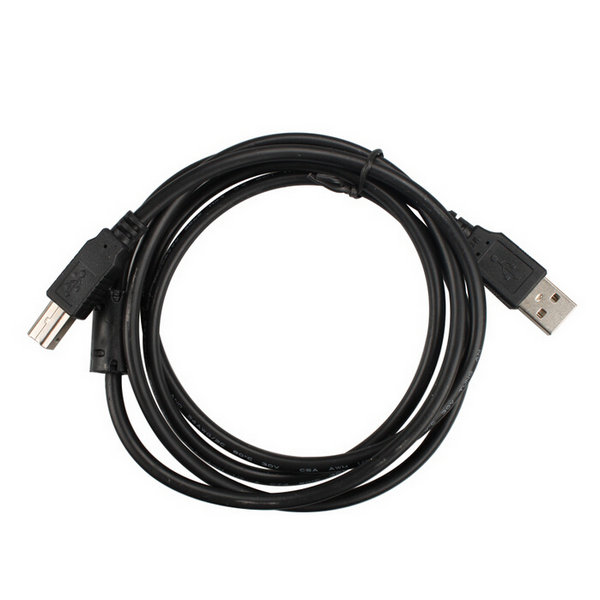

1pc USB Cable

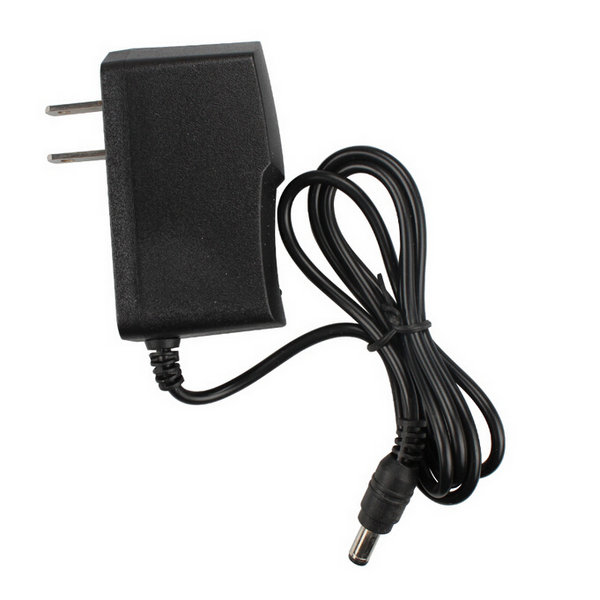

1pc Power Adapter

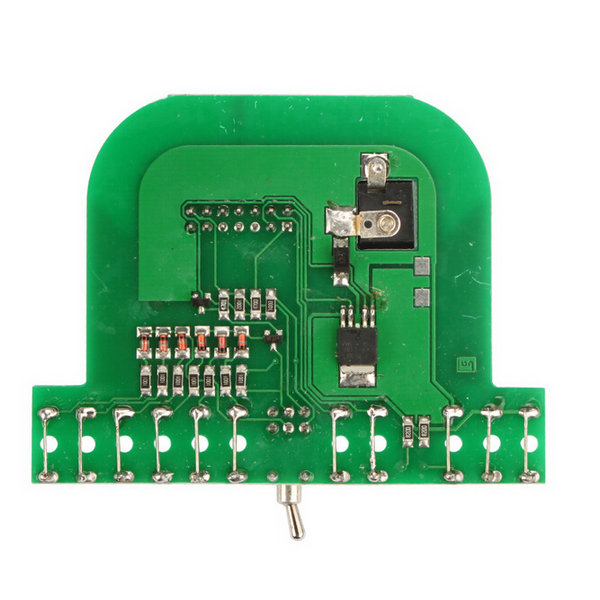

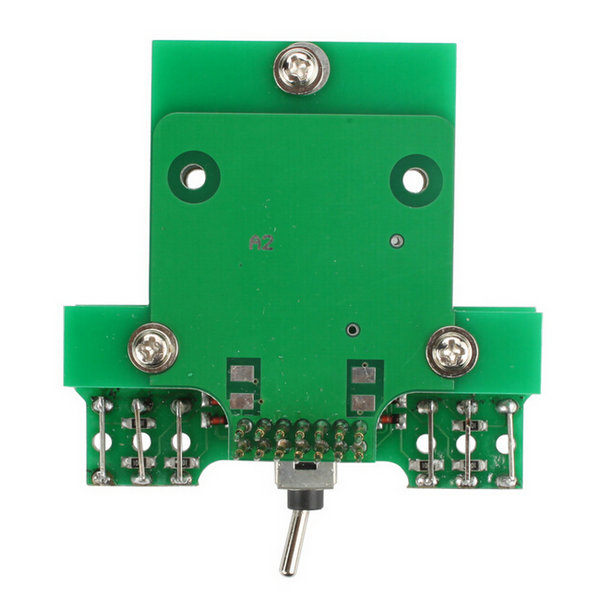

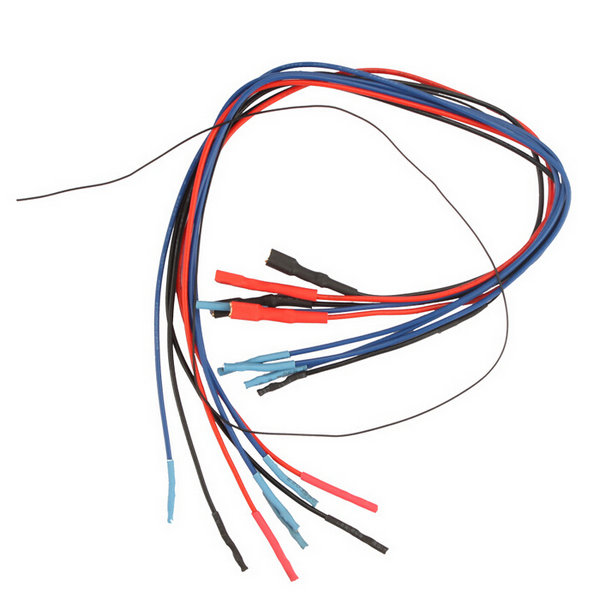

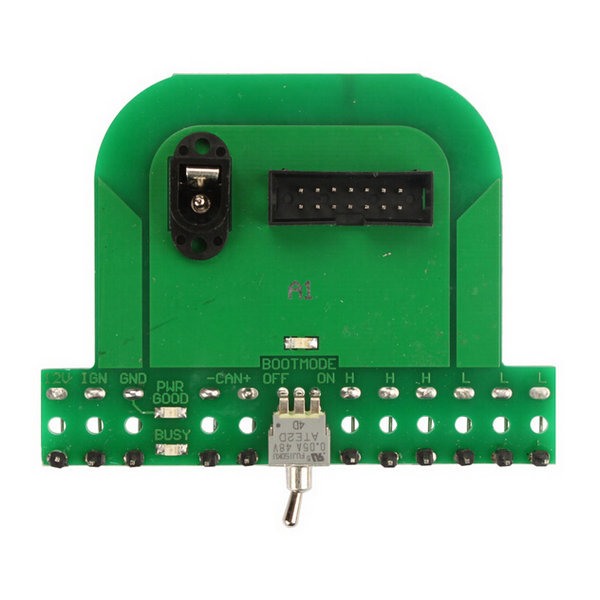

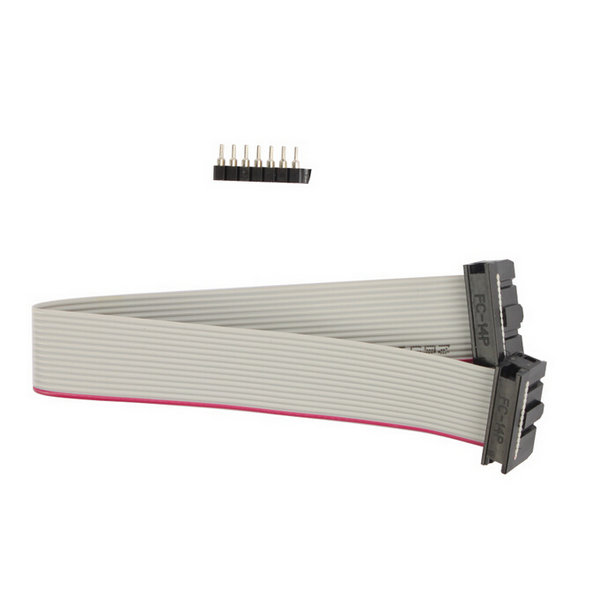

4pcs Adapter and Cables
