    XTOOL X-100 X100 PAD Tablet Key Programmer with EEPROM Adapter Support Special Functions

    • Item No.  T248
    • History: 156  sold
    • Market Price: US$474.00
      Shop Price: US$395.00You save US$79.00
      Express Shipping Service    Estimated delivery time: 3-5 days »
    • Quantity:  268
    • Weight:  3.5KG
    • Rank:  comment rank 4.5 () Write a Review
      Rated 4.5/5 based on 35 customer reviews

    • Member Benefits  Shipping  Return Policy




    Technical Support



    XTOOL X-100 X100 PAD Tablet Key Programmer with EEPROM Adapter Support Special Functions Free Update Online Lifetime

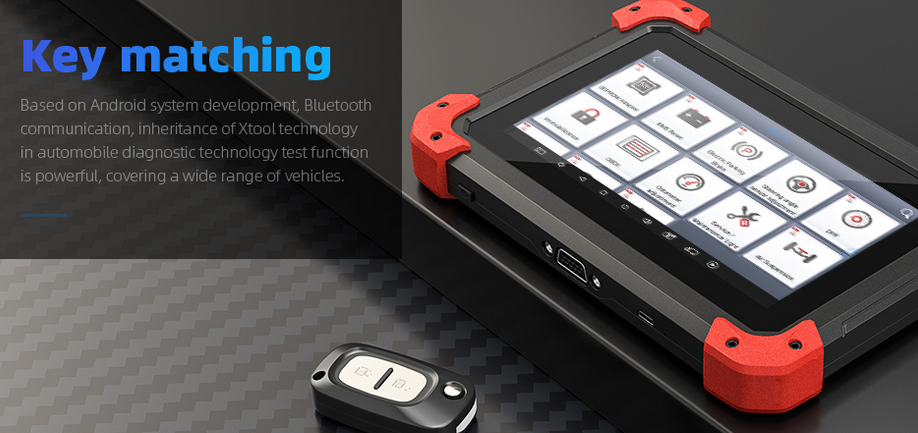

    X-100 PAD is the first tablet key programmer in the world! It not only provides customers with professional key programming, but also the most needed special functions for workshop. X-100 PAD is a tablet with the latest technologies to perform key programming, mileage adjustment, oil service light reset, timing belt service light reset, tire pressure warning light reset, EPB reset, throttle body reset, DPF reset, battery reset, steering angle calibration and OBD-II engine diagnosis.

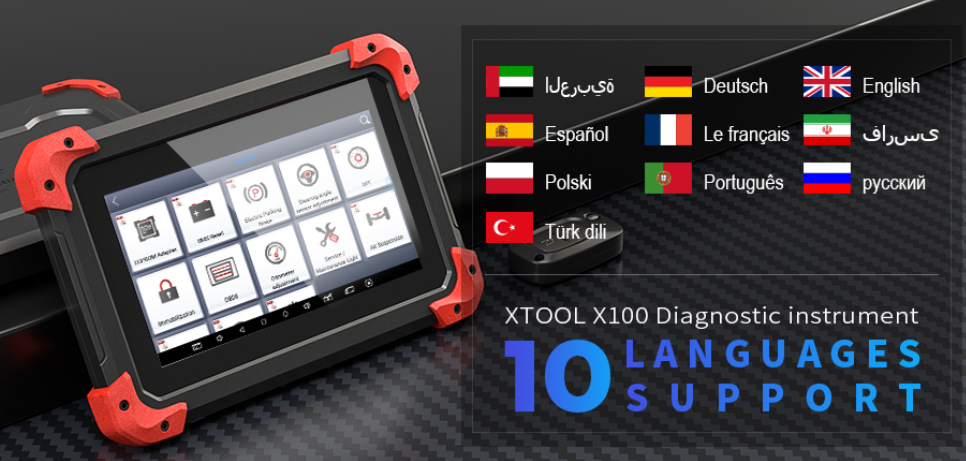

    1. Language: English Only
    2. Dealer Code: XT0240

    3. Free Update Online for Two Years
    4. Can't Support Indian Cars

    Very briefly about functionality of X100 PAD XTool:

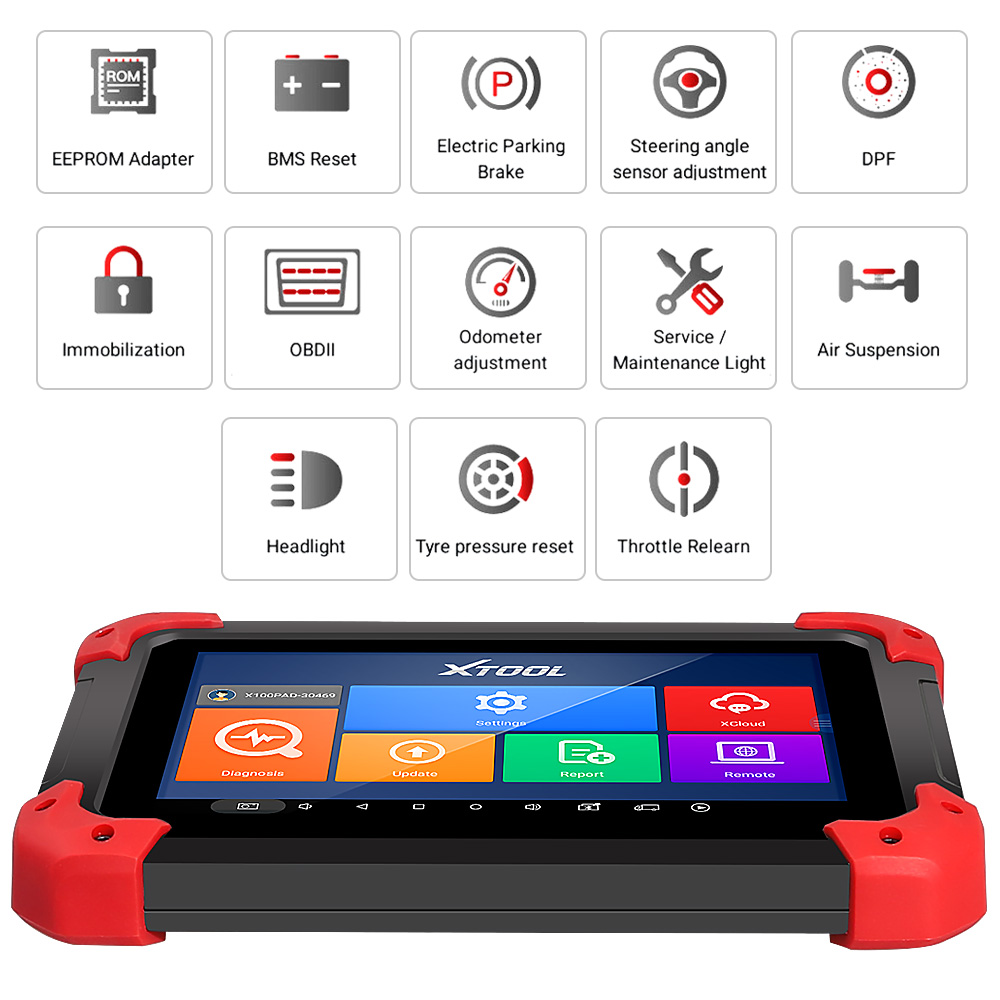

    X-100 Pad Functions:
    * Key programming
    * Oil Reset/Engine oil light reset
    * Odometer Adjustment
    * Tire Pressure Warning Light Reset (Manual Operation)
    * Timing belt light reset (Manual Operation)
    * EPB Electrical Parking Brake Adaptation
    * TPS Throttle Body Adaptation
    * Steering Angle Calibration
    * Battery Reset
    * PIN Code Reading
    * Hexadcimal editor(Win Hex)
    * OBDII Diagnosis
    * Support the latest vehicles with CAN BUS and UDS protocol

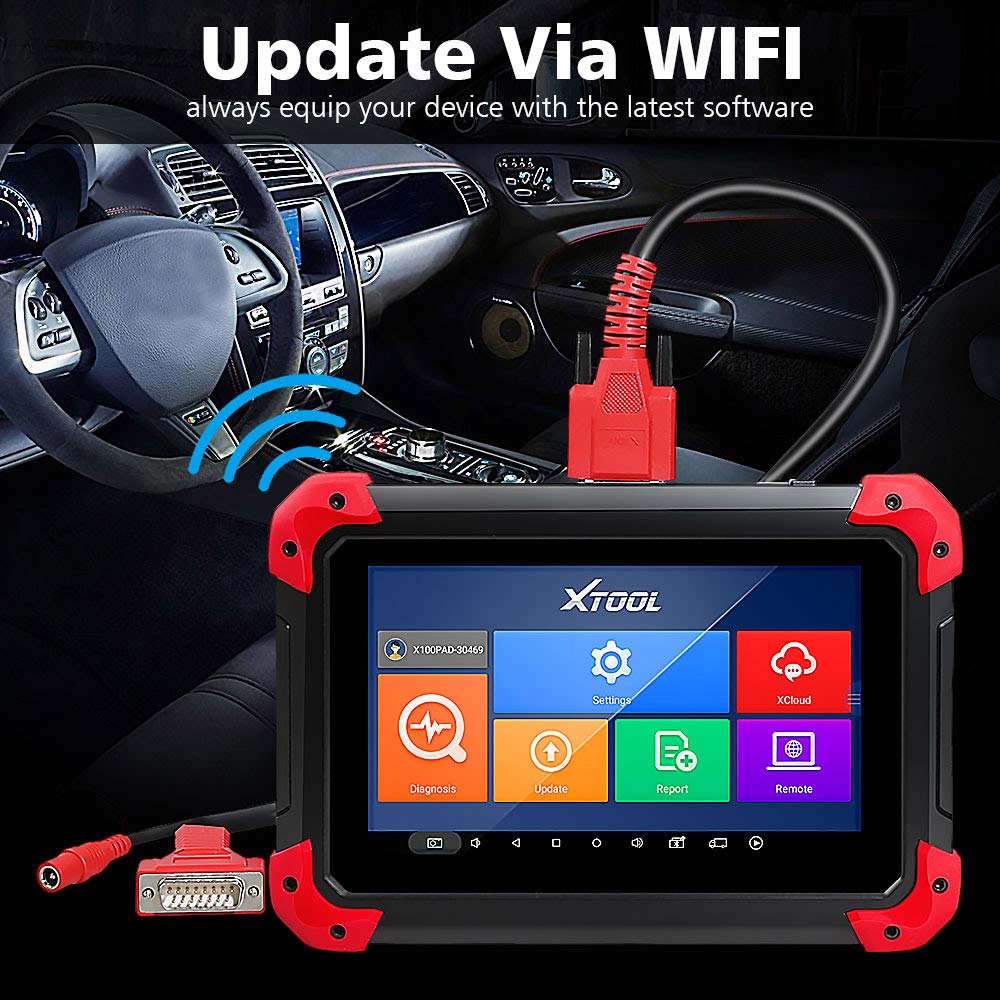

    * Update Via WIFI (always equip your device with the latest software)
    * More…

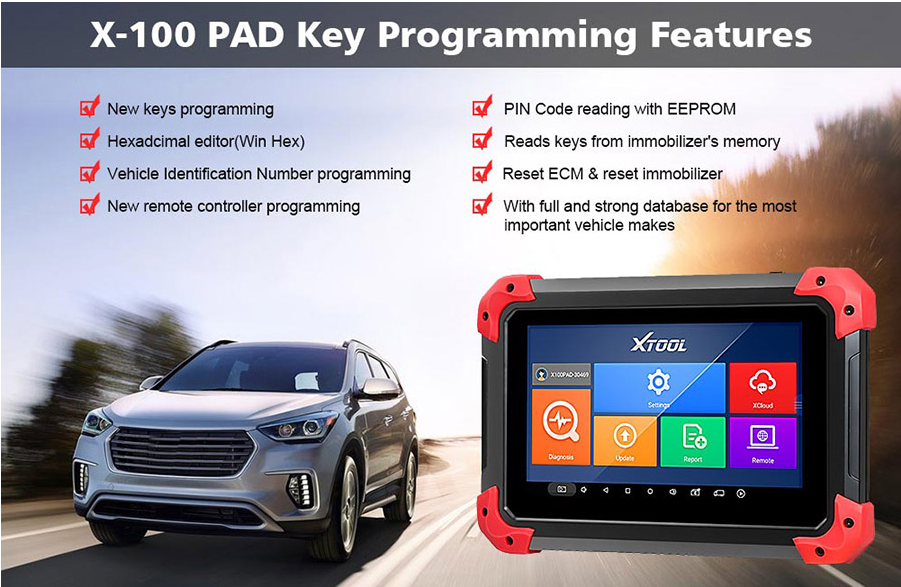

    X-100 PAD Key Programming Features:
    1. New keys programming
    2. PIN Code reading with EEPROM
    3. Hexadcimal editor(Win Hex)
    2. Reads keys from immobilizer's memory
    3. New immobilizer programming
    4. Vehicle Identification Number programming
    5. Reset ECM & reset immobilizer
    6. New remote controller programming
    7. With full and strong database for the most important vehicle makes

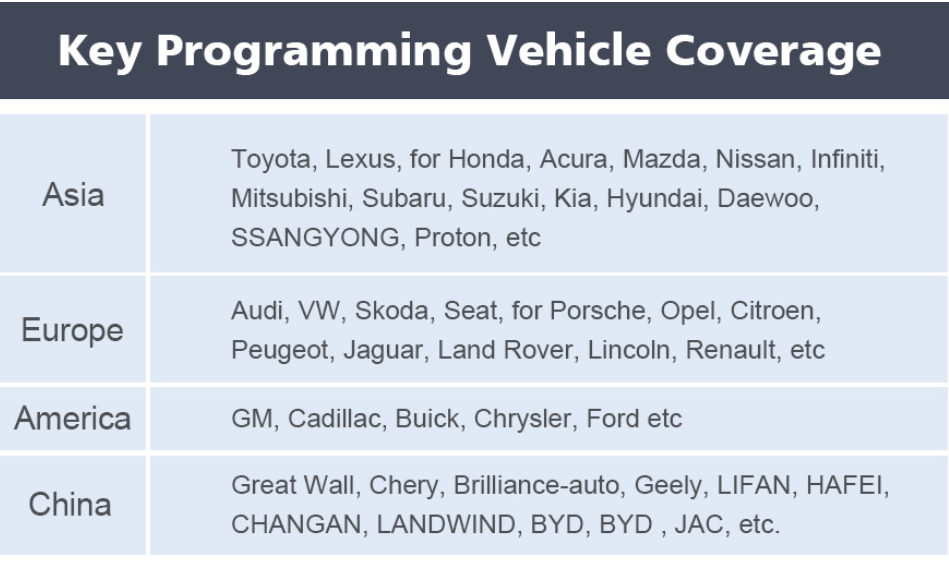

    Key Programming Vehicle Coverage:
    Asia:  Toyota, Lexus, for Honda, Acura, Mazda, Nissan, Infiniti, Mitsubishi, Subaru, Suzuki, Kia, Hyundai, Daewoo, SSANGYONG, Proton, etc
    Europe: Audi, VW, Skoda, Seat, for Porsche, Opel, Citroen, Peugeot, Jaguar, Land Rover, Lincoln, Renault, etc
    America: GM, Cadillac, Buick, Chrysler, Ford etc
    China: Great Wall, Chery, Brilliance-auto, Geely, LIFAN, HAFEI, CHANGAN, LANDWIND, BYD, BYD , JAC, etc.

    You can click the link to get the functions and car list.


    Oil Reset Functions Feature:
    * Innovative one-click oil reset for VW, Audi, BMW, Mercedes Seat, Skoda, Volvo, etc.
    * Support engine oil, spark plugs, front brake pads, back brake pads, air conditioner, brake liquid, coolant liquid, vehicle checking , etc. resetting for BMW. And the supported BMW models are F01/F02/F03/F04/F07/F10/F11/F12/F13/F18/F20/F30, etc.
    * Support Mercedes Benz new C Class, E Class models and Mercedes Benz VITO/VIANO/SPINTER.
    * Support the lifespan percentage resetting of engine oil for Buick, Cadillac etc.
    * Support Porsche Cayenne, Panamera till 2012
    * Support maintenance light reset for Volvo, Land Rover.

    Oil Service Light Reset Coverage:
    America: Buick, Cadillac, Chevrolet, Chrysler, Chevrolet/GMC, Ford/Mercury/Lincoln, Oldsmobile, Pontiac, Saturn, GM, Jeep and more…
    European: VW, Audi, Porsche, BMW, Mercedes-Benz, Volvo, Land Rover, Peugeot, Citroen, SAAB, Seat, Skoda and more…
    Asia: Toyota/Lexus, Nissan/Infiniti, Honda, Acura, Isuzu, Chery, Ford Transit, Roewe, MG and more…
    Odometer Adjustment:

    EPB Electrical Parking Brake Adaptation:
    VW ( R36, CC, Magotan etc.), Audi ( A4L, A6L, Q5 etc.), Seat, Skoda and more…
    Tire Pressure Warning Light Reset (Manual Operation):

    Mercedes-Benz, GM, VW, BMW, Toyota and more…
    Timing Belt Light Reset (Manual Operation)

    Exhaust Gas Treatment (DPF) Features:

    EEPROM Adapter Features:
    1. PIN Code Reading
    2. ECU Initializing
    3. Chip Programming

    Xtool X100 PAD Cloud System
    The  Xtool  cloud  service  platform  allows X-100 PAD users  to  look  up
    maintenance information, share and access diagnosis test results and
    fault  finding  solutions,  communicate  with  other X-100  PAD users  in our  forum,  and  also  access  various  online  databases  of  maintenance and diagnostic skills and vehicle maintenance plans.

    XTOOL X100 PAD Remote Diagnosis
    If users encounter problems and are not able to solve them, they can open this application and ask for remote assistance.
    How to get remote assistance from Xtool Technical Assistance Center:
    a.  Open X-100 PAD
    b.  Click Remote Diagnosis and open the TeamViewer interface.
    Generate and display device ID.
    c.  Your partner will also need to download and install TeamViewer.
    d.  Inform your partner of your TeamViewer ID and password to
    enable them to begin remote access of X-100 PAD.

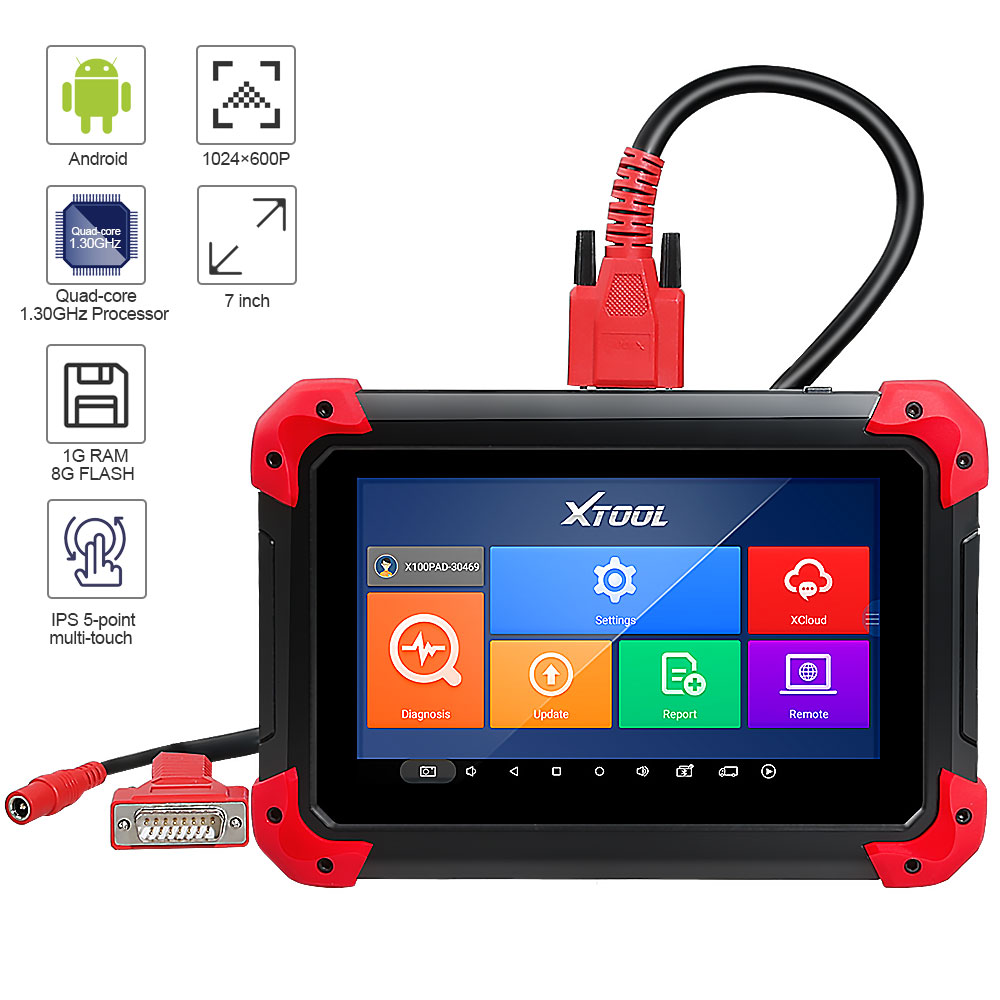

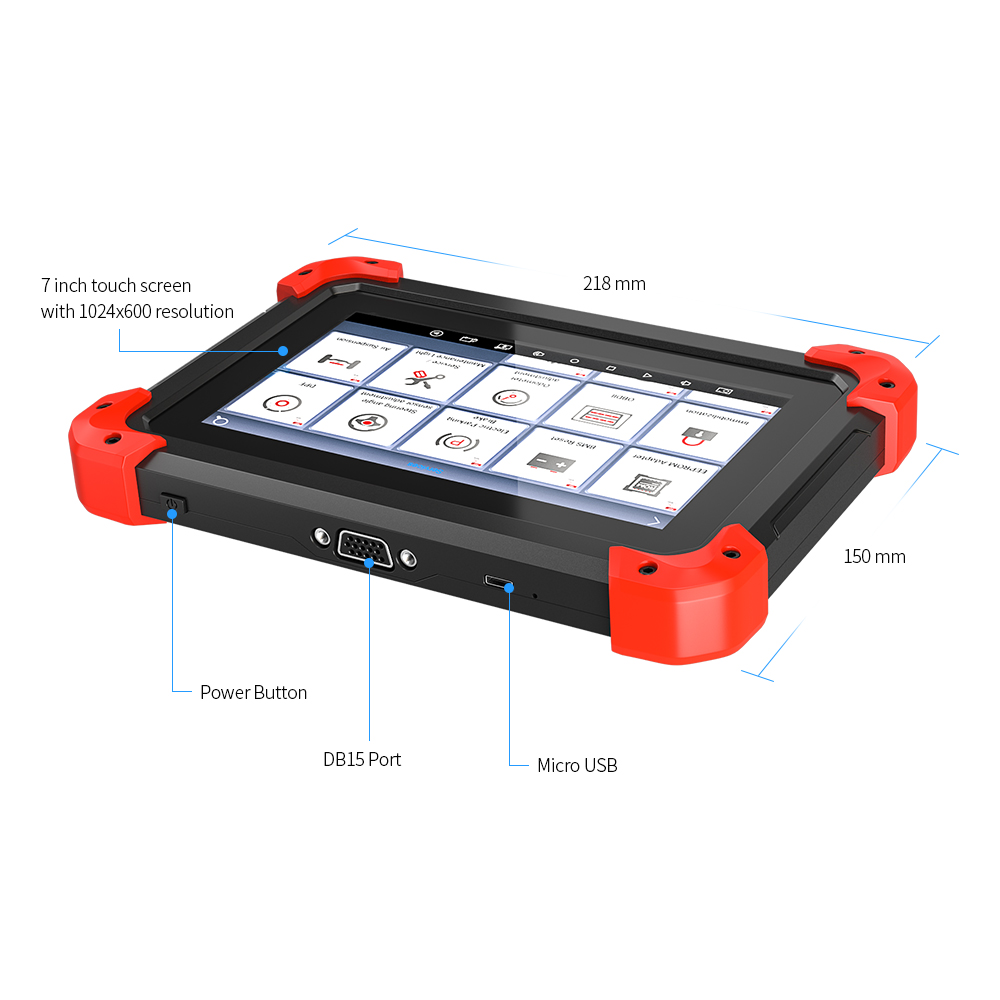

    X-100 Pad Specifications:
    Operating System: Android
    Processor: Quad-core 1.30GHz Processor
    Memory: 1G RAM, 8G FLASH
    Display: 7 inch IPS 5-point multi-touch screen with 1024×600P resolution
    Sensors: Gravity Sensor, Light Sensor
    Audio Input/Output: Microphone, Dual Speakers, 4-Band 3.5 mm stereo/standard headset jack
    Power and Battery: 2400mAh, 3.7V lithium-polymer battery
    Power Voltage: 5V
    Power Consumption: 8W
    Operating Temperature: -20 to 50℃(-4 to 126℉)
    Humidity: <90%
    Dimension (L*W*H): 208*140*15.5mm

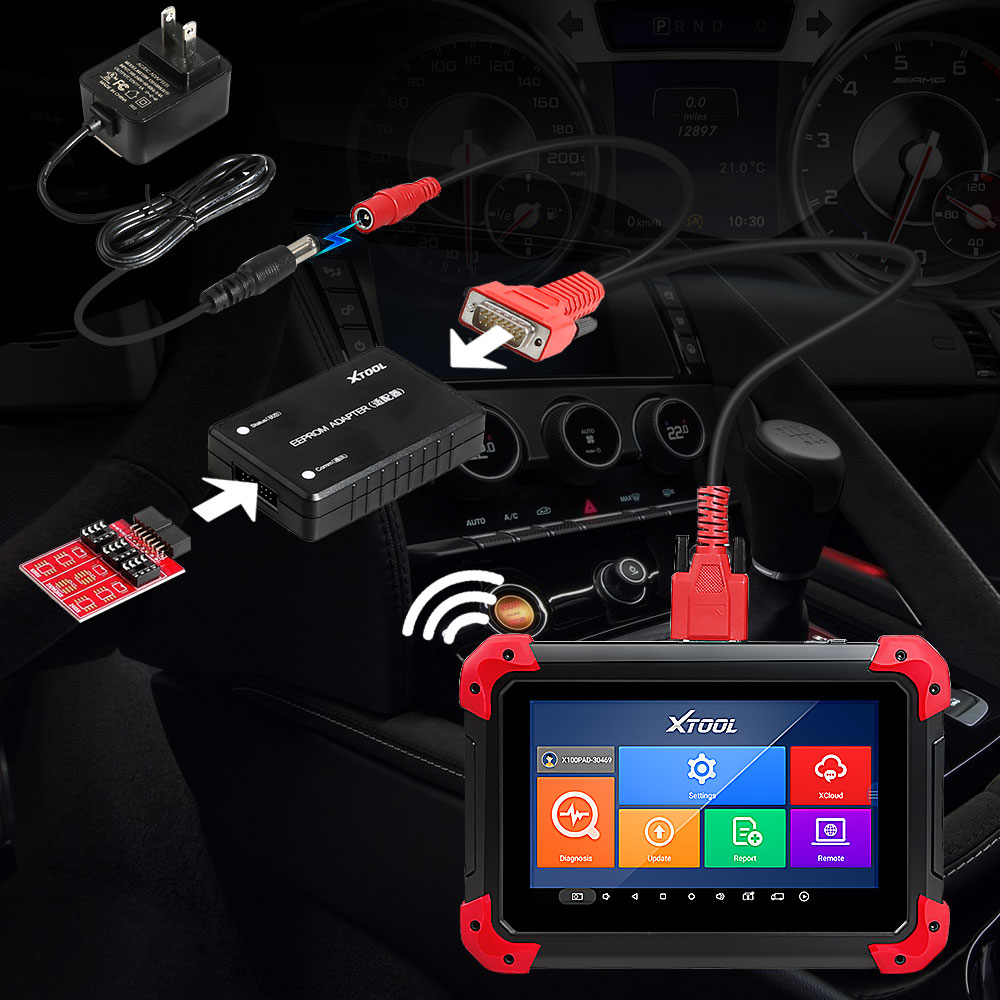

    X-100 Pad Connection Picture:

    How to register xtool x-100 pad key programmer?
    1.Well connect your xtool x100 pad with network/wifi
    2.Power up the x-100 pad and welcome to main interface

    3. Press Login account and login with e-mail address
    4. It will also require to enter “Activation Code” which you can find on the user manual

    5. Complete all information and click “ACTIVATE” button
    Note :Please DO NOT  forget your login e-mail address  and password. Otherwise you are on your own risk!!!

    6. Activation complete brings the x100 pad main menu.

    For activation code, you will find it on the cover of the user book. Serial number, you can find the information on about function of the PAD when you power on the PAD. Nickname you can use any name you want. For login account, please use your valid email address or phone number. For password, you can setup any number you like. PLEASE DO NOT forget the account and password you set up. They system will save it after done. Activation is a one time process. The diagnostic application will start after activation.

    After you finish activation, when new software release in future, you can directly update your tool via WIFI.

    X100 Pad vs EZ300 vs EZ400 vs EZ500

    Difference Between XTOOL Products:

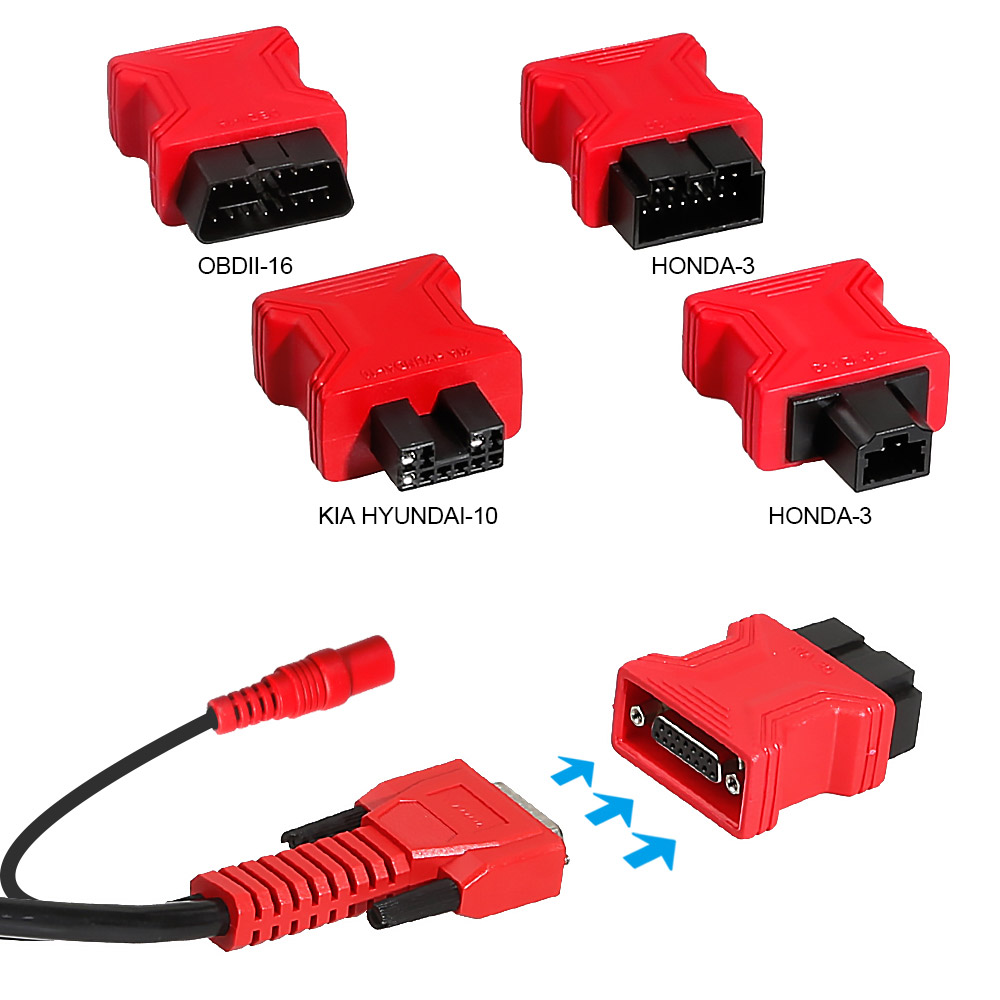

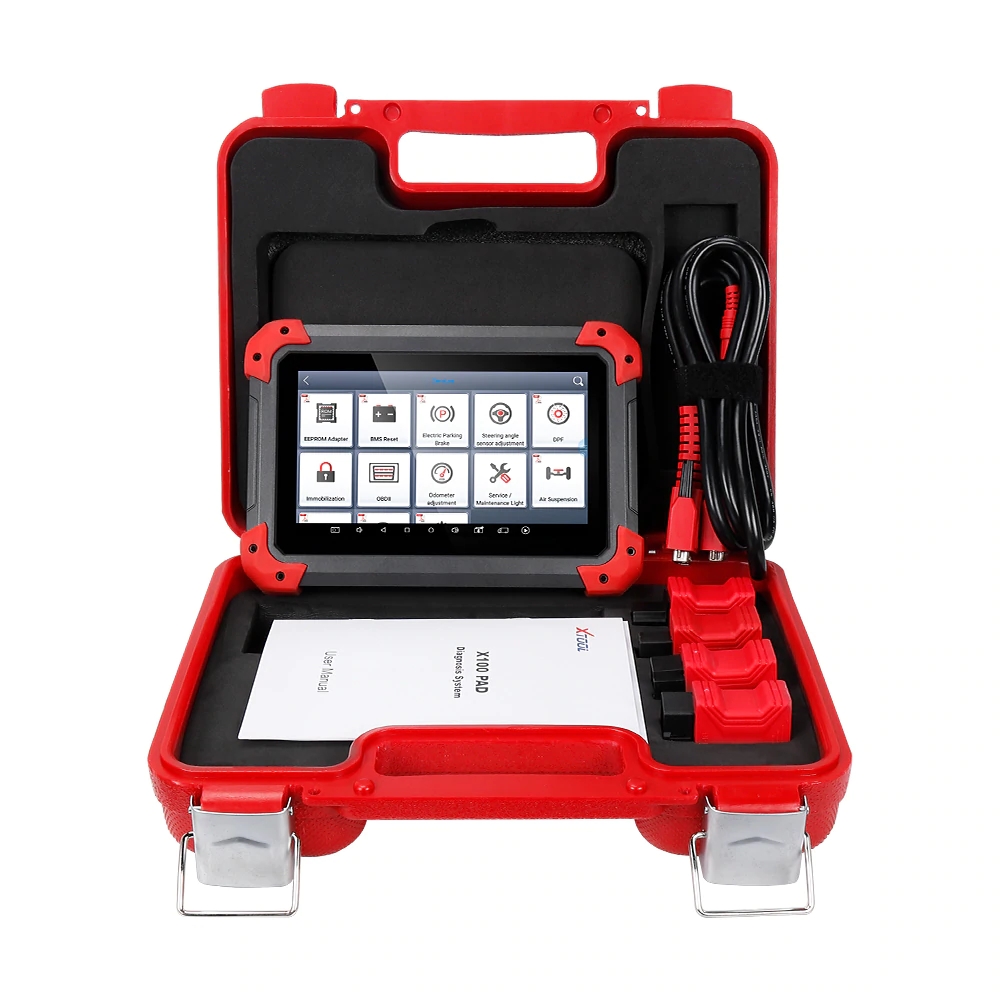

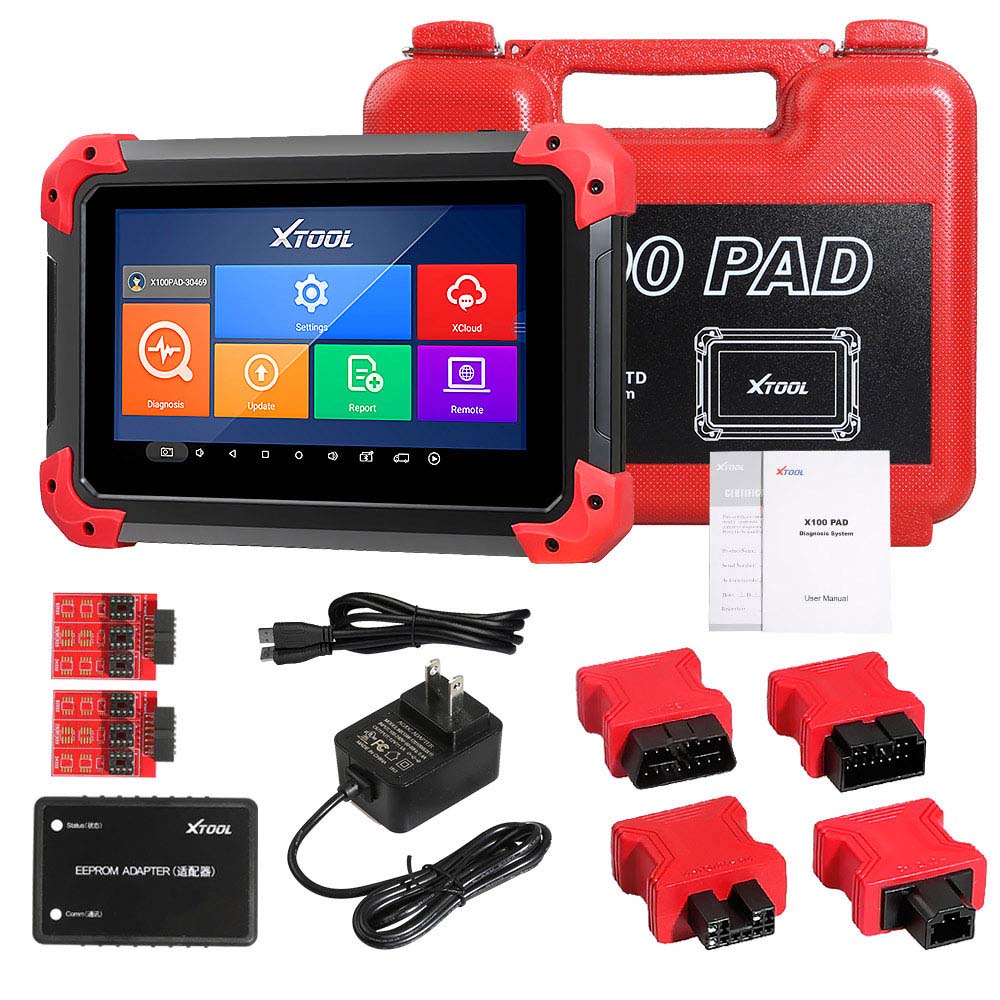

    XTOOL X-100 Pad Package including:
    1pc x X-100 Tablet
    1pc x PS_VCI Box
    1pc x OBDII 16Pin Adapter
    1pc x Honda-3
    1pc x Kia-20
    1pc x Kia/Hyundai-10
    1pc x Power Adapter
    1pc x EEPROM Adapter
    1pc x EEPROM IC Board
    1pc x EEPROM Package Box
    1pc x Test Main Cable
    1pc x Mirco USB Cable
    1pc x User's Manual
