    V1.23.2.15 CN900 Mini CN900 Transponder Key Programmer Plus TOYO Key OBD II Support Toyota G All Keys Lost

    • Item No.  T185-6
    • History: 69  sold
    • Quantity
      Express Shipping Service    Estimated delivery time: 5-7 days »
      Affected by the epidemic, there will be delays in transit time.
    • Quantity:  321
    • Weight:  500.0gram
    • Rank:  comment rank 5 () Write a Review
    • Member Benefits  Shipping  Return Policy




    Technical Support


    Mini CN900 Transponder Key Programmer Plus TOYO Key OBD II Key Pro for 4C 46 4D 48 G H Chips

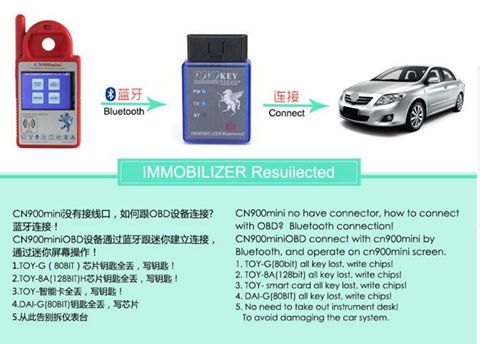

    CN900 Mini or ND900 Mini has no connector,how to connect with OBD2 Bluetooth connection!

    CN900miniOBD connect with cn900mini via Bluetooth, and operate on cn900mini screen.

    1.TOY-G(80BIT) all key lost,write chips!
    2.TOY-8A(128BIT) all key lost, write chips!
    3.TOY-smart card all key lost, write chips!
    4.DAI-G(80BIT) all key lost, write chips!
    5.No need to take out instrument desk!
    To avoid damaging the car system.

    TOP 7 Reasons to get CN900 Mini Transponder Programmer:
    1. Directly copy 4C and other chips like Toyota 4D67.Smart CN900  QC MARK
    2. Supports copy 4D chips,46 chips,72G chip.
    3. Recognize locked ID48 and can unlock ID48.
    4. Language: English/Chinese
    5. Copy 4D chip and Toyota G chip via CN5 chip
    6. CN900 MINI supports all function of CN900, no need to connect with decoders to copy 4D,4C,46,G chips.
    7.  Free Update on www.cn900.net

    Note: Toyota G chip copy needs tokens,one tokens for one copy. Mini CN900 comes with 12 free tokens, after you use up 12 tokens,please contact us for another free 12 tokens. For more tokens, you need to pay. Please kindly notice, thank you.

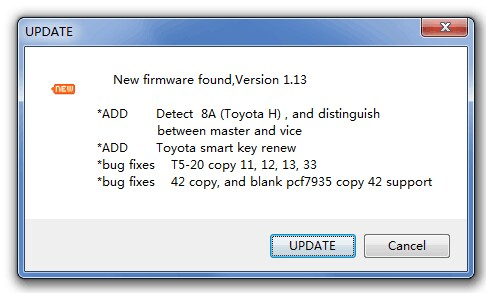

    Mini CN900 Firmware Update to V1.13 (July 29,2016)
    * ADD: Detect 8A chips (Toyota H) and distinguish between master and vice
    * ADD: Toyota Smart Key renew
    * Bug fixes: T5-20 copy 11, 12, 13, 33
    * Bug fixes: 42 copy and blank PCF7935 copy 42 support

    How to update Mini CN900 key programmer?
    1. Browse to CN900 Mini official website, register and download CN900_MINI_Updater_v1.9
    2. Or you can directly download updater v1.9 here
    3. Delete previous updater file (updater v1.8 etc)
    4. Open the updater v1.9 setup.exe
    5. Click on Update button.

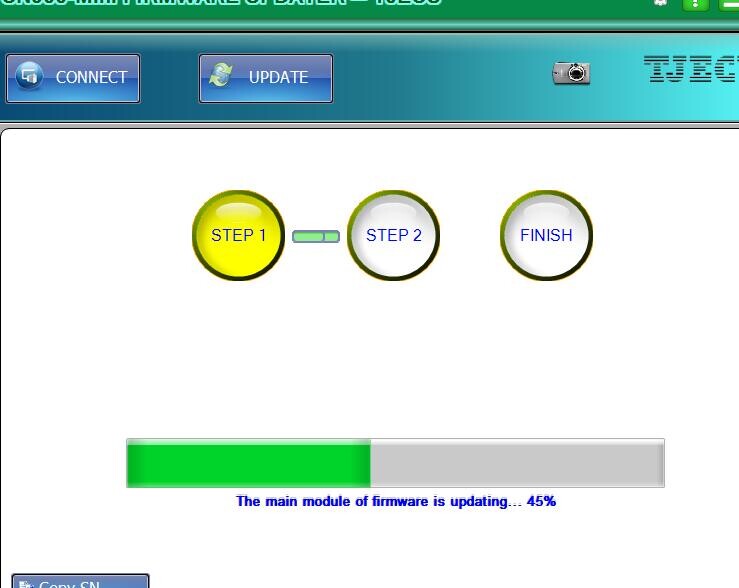

    6. The main module of firmware is updating. Wait for upgrade procedure complete

    Mini CN900 Highlights:
    RFID identifly 125KHZ  134.2KHZ  13MHZ
    RF data reception 27-900MHZ
    RF radio frequency identification,support all kinds of remote controls
    RF Data transmission, supports all kinds of remote control simulation test
    Various types of vehicle anti-the fault detection, matching detection
    Portable Super long standby
    Supports 4 kinds of frequency 850/900/1800/1900MHZ
    Bluetooth4.0(Will be released in future)
    Comes with card slot
    As for the product improvements, specifications are subject to change.

    CN900 MINI Key Copy Machine Main Features

    Function 1:
    1) Read out the chip code for 11 12 13 33 T5  40 41 42 44 45 46 48 4C 4D 8C and 8E chips. With the detail format for ID 48 and 4D Chips.
    2) New identify functions for Toyota "G " chip key  (year: 2010) (Chip: 4D-72).
    And it will show if the key is the main key or the vice key for Toyota, and later will add new identify function for the Chinese Car.
    Function 2:
    Identify Toyota smart key, and read out the data.
    Function 3:
    Supports on copying the chips (11 12 13 33 T5 41 and 42) and parts of 44 and 45.
    Using "FREE " dedicated chips can copy none battery 4C and 4D chips directly.(Remark :cn1(4C),cn2(4D) is the name of  special chip)
    Function 4:
    Connecting with Chinese PC software, it can save the read key code data unlimited.(PC Software has not released,will be released in the future)
    Function 5:
    Supports chip programming: with the inner function of HITAGETI, it can write ID 46 Renault Crypto chips.
    Function 6:
    Without removing the ECU (Benz W140), it can start the chip.
    Function 7:
    Unlock the 48 chips except the crypto lock 48 chips.
    Function 8:
    Supports pin code calculating for Hyundai and Kia (before 07 year), by using the Last 6 Codes of VIN Number.
    Function 9:
    Supports starting the key and calculating the pin code for more than 60 kinds of cars.
    Supports on programming all kind of Fiat key, such as (11, 13 and 33), These 3 kinds of 48 chips anti-theft way.
    Function 10:
    Identify HONDA_46 CRV_46/CIVIC_46/ Mitsubishi 46
    Ordinary 60 can be programmed to be 66/67/68/71/74
    Function 11:
    Copy CN1 (4C), CN2 (4D) chip .And size is 6mmX12mmX4mm
    Supports software update, such as adding new function for copying the induction card for Electronic Gate.
    Function 12:
    Copy all ID46 chip:
    BMW 46 chip,ACURA 46 chips,Honda CRV  FIT(NEW)  Accord(2008) Civic 46 chips;Mazda haima 46 chips;Mitsubishi 46 chips;Buick GMC CRUZE 46  chip. New Chery tiggo A3 46  chips; Nissan TIIDA TENNA LIVINA Sylphy  Nissan QASHQAI Q35 46 chip. Brilliance 46 chip.Peugeot/Citroen 307  206 -46 chips;Triumph  Senna 406 (2001year);Picasso 46 chip.Suzuki swifts  SX4  46 chip.Land Rover FREELANDER 46 chip. Geely dedicated 46 chip.
    Function 13:
    Copy 4D chip
    Function 14:
    Supports 72G Chip copy

    Toyota G Type All Keys Lost, how to progam new key by CN900 Mini and Bluetooth TOYO Key OBDII Key Pro

    here 4 steps to follow:
    Step 1, Insert the new blank key into the ignition and turn it to the NO position, then plug the TOYO OBD adapter into the 16 pin port of the car.
    Step 2, Use the option 72G of CN900 MINI to connect, then start to initialize data, the immo indictor is on for a long time, then follow the CN900Mini prompt to operate.
    Step 3, It will prompt “Complete/ Success”, and then the Immo indicator is on for a long time. TOYO Key OBD II OBD2 Key Pro qc mark
    Step 4: Turn on and off ignition for 5 times quickly, immo indicator is off.

    How to activate TOYO Key OBDII to work with CN900 Mini in order to Program Toyotda 72G Key?
    Before programming Toyota G all keys lost, you need to activate and register TOYO Key OBDII with CN900 Mini.

    Step 1: Run Upgrade.

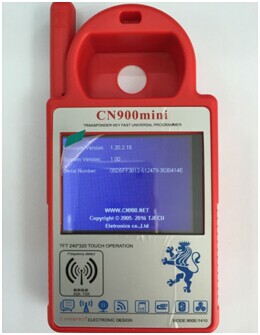

    Connect CN900 Mini with laptop and update software to latest version (current )
    (Note: If the update procedure failed, disconnect and re-connect to update till succeed)

    Power on CN900

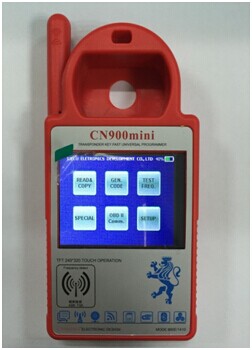

    Select OBDII Comm (Communication) on main menu

    Step 2:

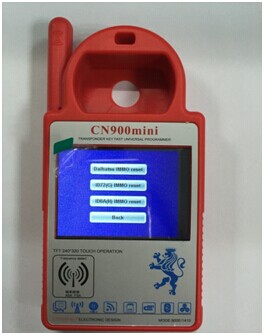

    Select 72G IMMO Reset

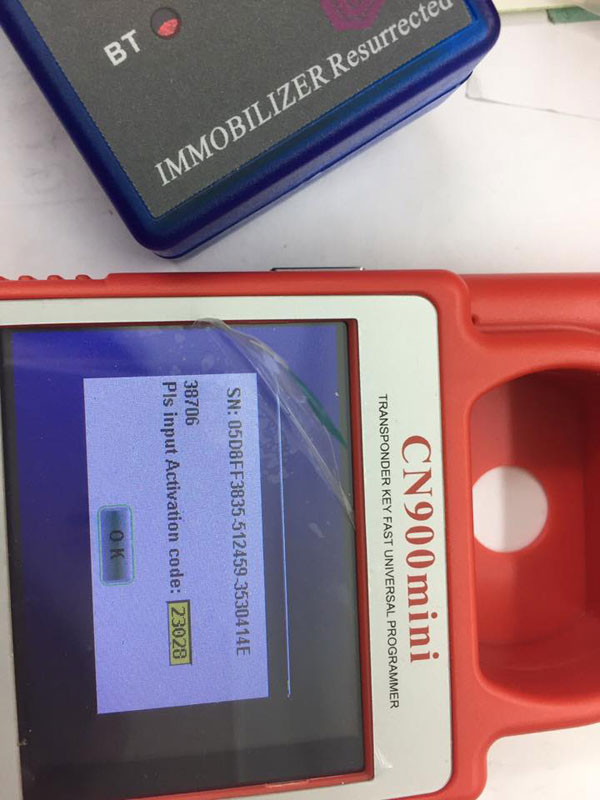

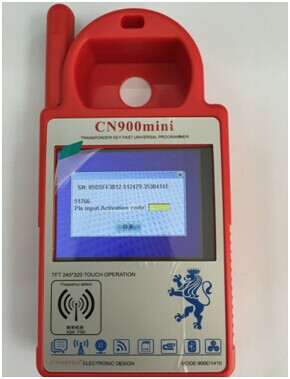

    CN900 Mini will require to enter activation code

    Step 3:
    Please follow these steps:
    After you receive the TOYO KEY OBD2, take a full photo screenshot of the activation interface
    Send your photo to our customer service. Our engineer will register the OBD with CN900mini for you.
    Then customer service will send you the activation code to activate it.

    One activation code can just register one CN900 mini machine and can be activated for once only. Cannot work with more other CN900 machines. Do follow above tips to register CN900 Mini. If you do not follow these guides to register, we are not hold the responsibility if you damage your machine, freight and maintenance costs are on your account.

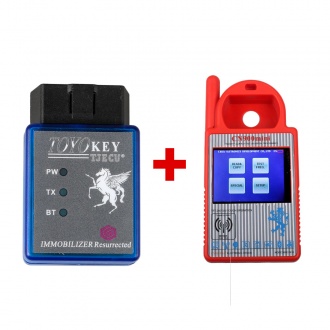

    Package Includes:
    1set x TOYO Key OBD II OBD2 Key Pro
    1set x  Smart Mini CN900 Key Programmer
