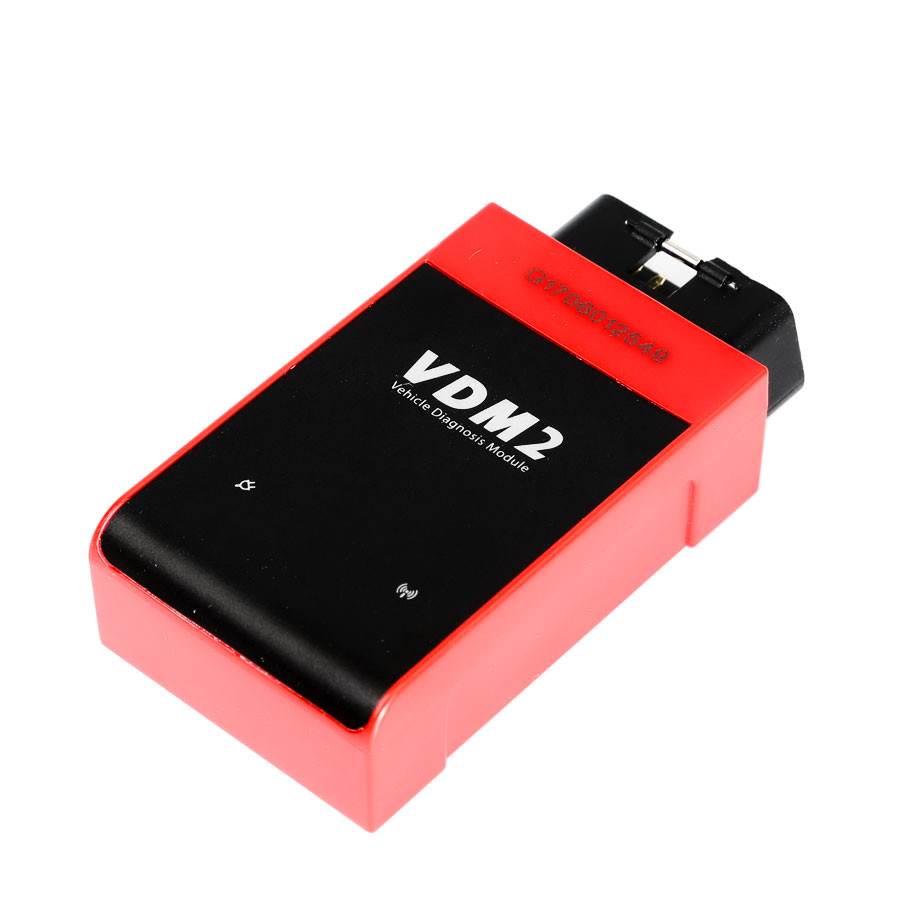

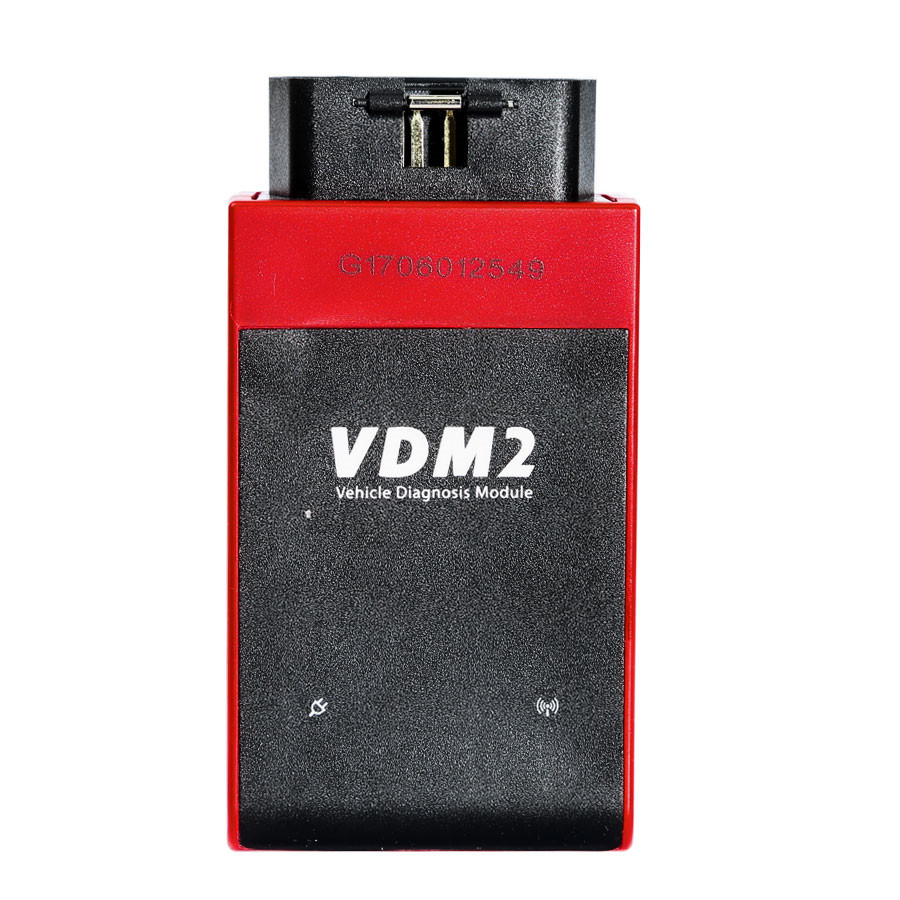

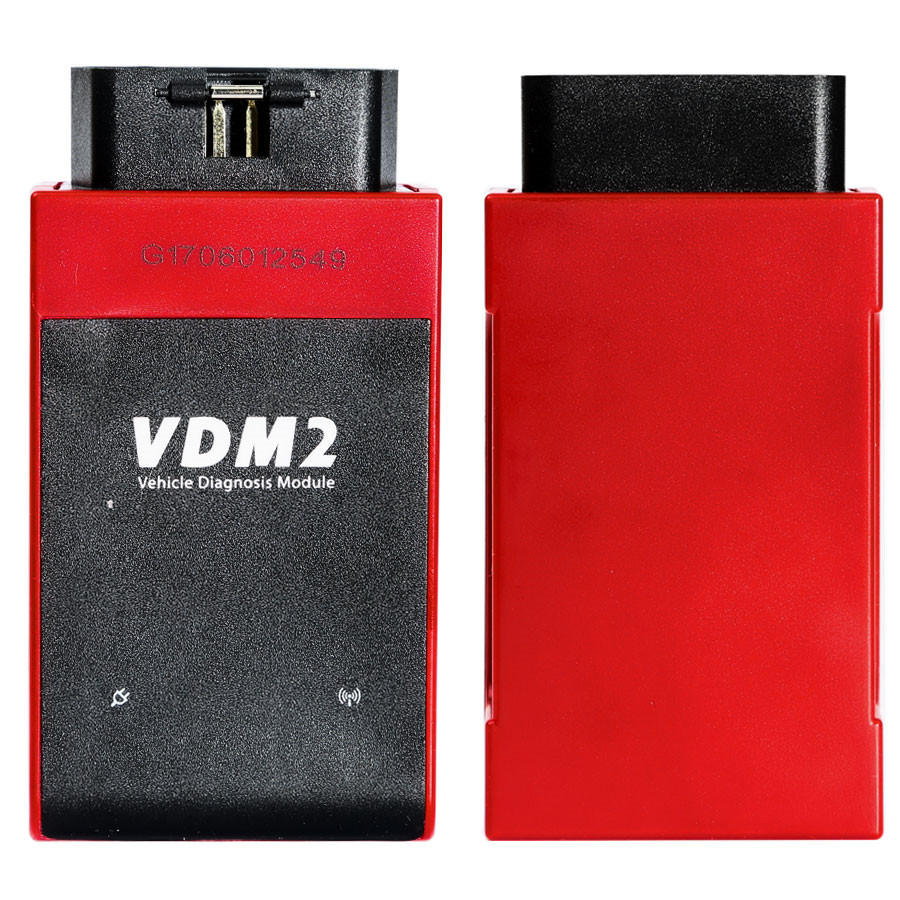

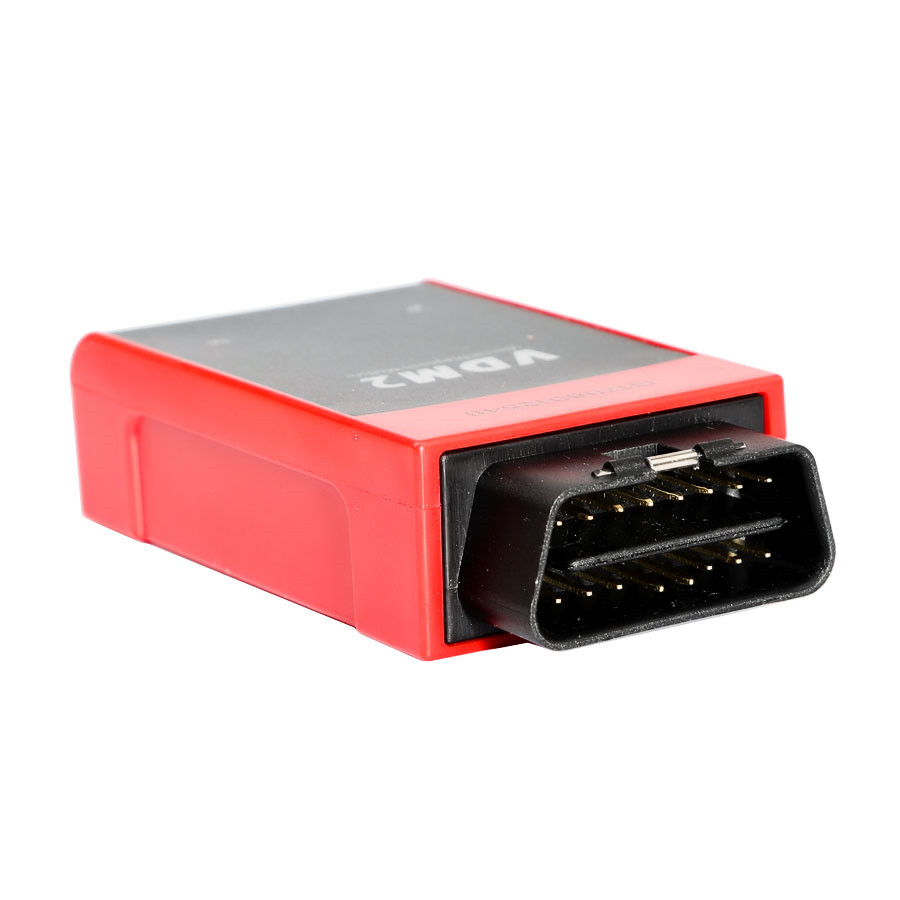

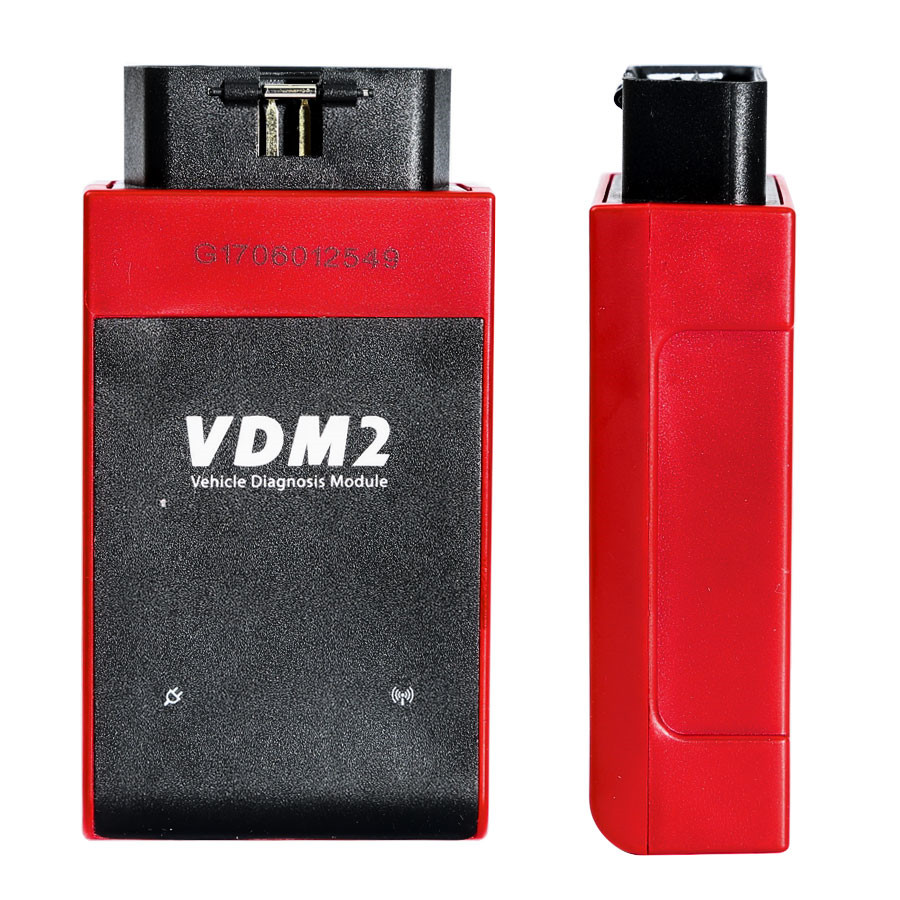

UCANDAS Automotive Scanner VDM II the same software of VDM V3.9 VDM2 Supports Android to connector wifi multi-language

Top 3 Reasons to Get VDM II:
1. Update version for VDM UCANDAS, Android Diagnostic tool for European, American, Asian and Australian prevalent vehicles

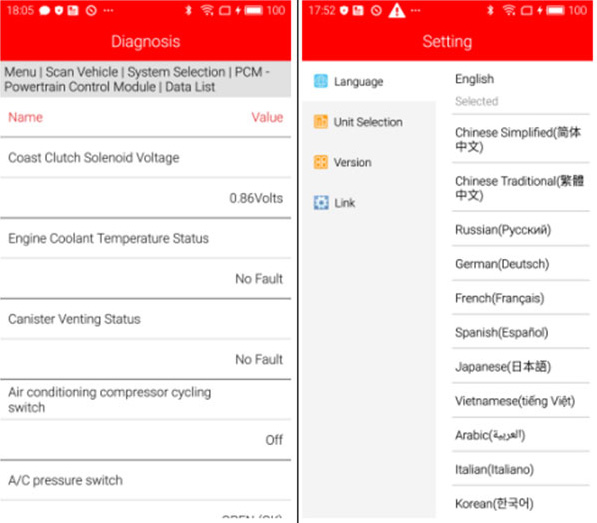

2. Multi-language supported: English,German,Finnish, French, Hungarian, Italian, Japanese, Korean, Dutch, Polish, Portuguese, Portugal, Romanian, Russian, Swedish,
Spanish, Turkish, Chinese Simplified, Chinese Traditional, Czech, Arabic
3. 2 years Free update

UCANDAS VDM II  Product features:
1.Supports ISO 9141-2, K/L line, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, ISO15765-4 protocols
2.Can run at a high speed, medium speed and low speed CAN-BUS (Single CAN-BUS diagnosis protocols is supported)
3.Check out the year and model of the vehicles automatically and quickly
4.Includes all software: European, American, Asian and Australian prevalent vehicles
5.The OBDII diagnostic connector has a wide compatibility, which doesn't need to replace other connectors during the test
6.The new hardware is designed with multiple protection, interference and stability. And it is built with a overvoltage protection module,
in order to protect the scanner and vehicle against accidental damage during checking
7.Works well and stably in the extremely cold and hot environment

Ucandas VDM2 Specifications:
MCU:  ARM7 processor, 66MHz
Input Voltage:  DC 8-18V
Communication Mode:  WIFI
Storage Temperature:  -30 to 120 ºC(-22 to 248 ºF), Relative Humidity: <90%
Operating Temperature:  -30 to 120 ºC(-22 to 248 ºF), Relative Humidity: <90%
Dimension:  137mm*175mm*63mm
Unit Weight:  250g (GW)

Ucandas VDM2 WiFi Scanner Functions & Makes:
Acura, Asian GM,Audi,Bentley,Benz,BMW,Chery,Chrysler,Citroen,Daewoo,Daishatsu, US Ford, Ford EU,  Geely,GM,GWM,  Holden,Honda,HyundaI,Infiniti,Isuzu,Jaguar, Jeep, Kia,Landrover,Lexus,Lifan,Mazda,Mitsubishi,Nissan,obd2,Opel,Perodua, Peugeot,Proton,Renault,Saab,Scion,Seat,Skoda,Smart,Subaru,Suzuki,Toyota, Vauxhall,Volvo,VW

Type	Region	Make
Vehicle make covered	Asia	ACURA, HONDA, TOYOTA, LEXUS, NISSAN, IFINITI, MITSUBISHI, SUBARU, SUZUKI, ISUZU, MAZDA,DAIHATSU, HYUNDAI, KIA,PROTON, PERODUA
Vehicle make covered	EUROPE	MERCEDES-BENZ, SAMRT, BMW, MINI, AUDI, VW, SKODA, SEAT, VOLVO, OPEL, VAUXHALL, PEUGOET, CITROEN, EURFORD,PORSCHE, JAGUAR, LANDROVER, FIAT, LANCIA, SAAB, RENAULT，ALFA，BENTLEY
Vehicle make covered	AMERICA	GM, AMFORD, CHRYSLER,JEEP,SCION
Vehicle make covered	AUSTRALIA	AUSFORD, HOLDEN
Vehicle make covered	China	CHERY, GEELY, GWM,LIFAN
Vehicle make covered	OTHER	OBD-II
System Covered		ME-Motor electronics, CDI-Common Rail Diesel Injection, ETC-Electronic transmission control, ESM-Electronic selector module, SBC-Sensotronic Brake Control, ESP-Electronic stability program, BAS-Brake assist, Suspension, TPC-Tire pressure monitor, Airbag, CGW-Central gateway, EIS-Electronic ignition switch, OCP-Overhead control panel, UCP-Upper control panel, XALWA-Xenon headlamp, HRA-Headlamp range control, ATA-Anti-theft alarm system, IC-Instrument cluster, ASSYST-Active Service System, SCM-Steering column module, EPS-Electrical power steering, PTS-Parktronic system,EPB-Electric parking brake, COMAND/AUDIO, CD/DVD, TV tuner, CTEL-Cellular telephone, DCM-Door control module, ESA driver-Electric seat adjustment driver, ESA passenger-Electric seat adjustment passenger, AAC-Air conditioning, WSS-Weight sensor system, SVMCM-Special vehicle multifunction control module.
Functions		Quick Test, Read ECU Info., Read DTCs, Erase DTCs, Clear learning value, Data Stream, Actuations,Read freeze frame data, Read/Write VIN, Basic Reset, Control unit adaptations, Throttle adaptations, Air bleeding, Level calibration, Theft alarm Reset, Key programming, Oil change, Idle speed learning, Idle speed Adjustment, Ignition timing adjustment, Camshaft timing control learning,Maintenance functions, ECU Initial startup, ECU initialization
Operating system		Andriod 4.0 or newer

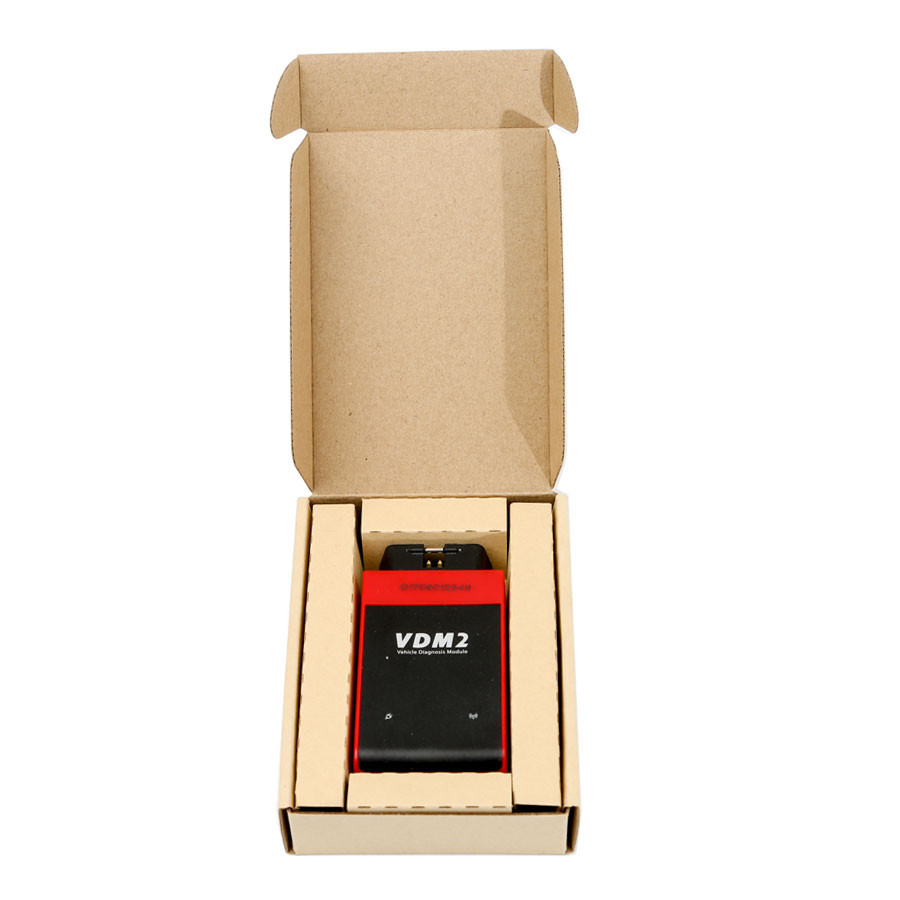

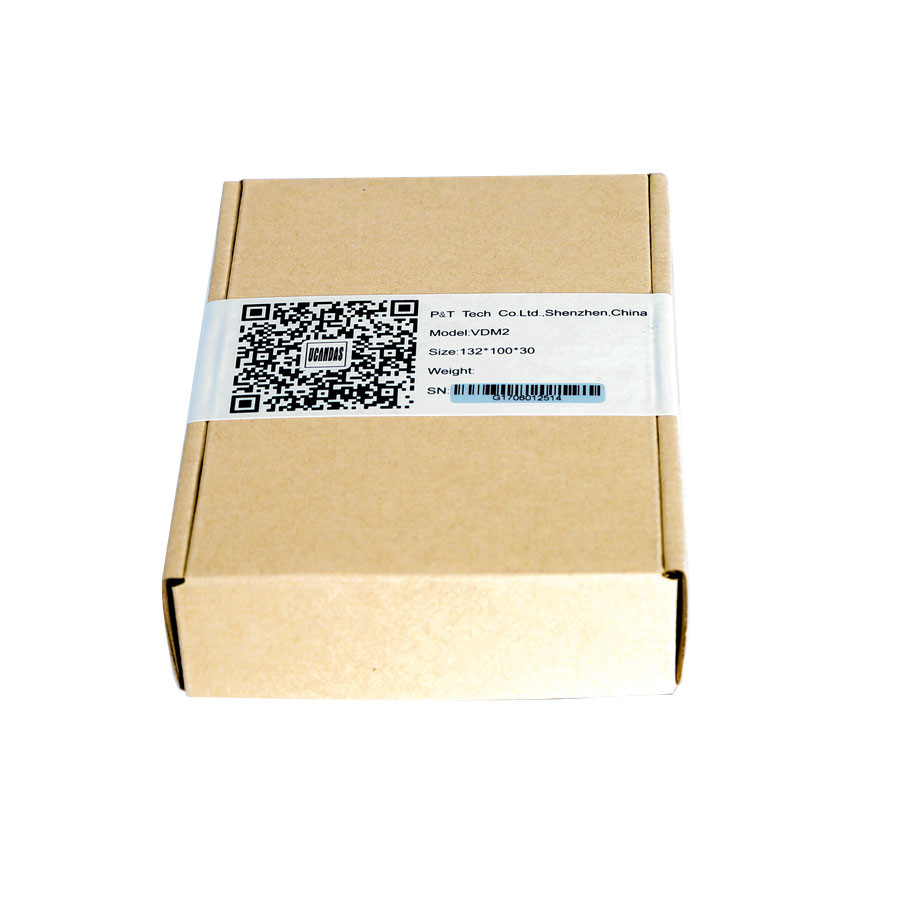

Package includes:

1pc x  UCANDAS for Android and VDM2-WiFi

VDM II Warranty:
UCANDAS Android software is updated for free  within 2 years, from the date of online update automatically.
