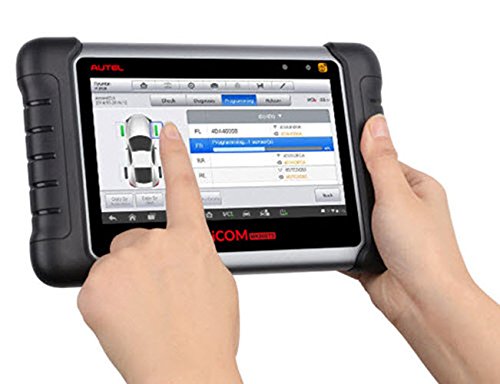

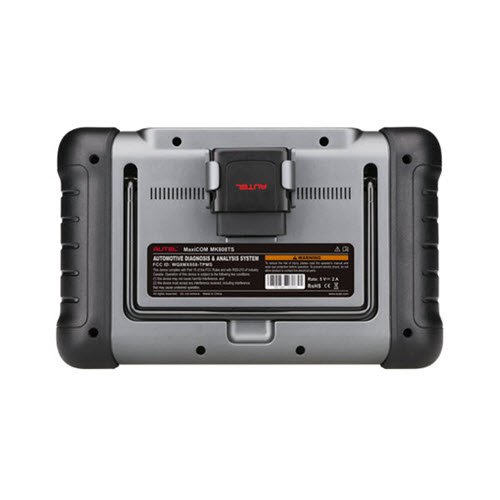

    Autel Maxicheck MX808 TS MX808TS Gray All Systems Code Reader with Full TPMS Functionality

    • Item No.  S149
    • History: 47  sold
    • Quantity
      Express Shipping Service    Estimated delivery time: 5-7 days »
      Affected by the epidemic, there will be delays in transit time.
    • Quantity:  100
    • Weight:  3.5KG
    • Rank:  comment rank 5 () Write a Review
      Rated 5/5 based on 2 customer reviews
    • Member Benefits  Shipping  Return Policy




    Technical Support


    Download & Technical Support

    Autel Maxicheck MX808 TS MX808TS Gray All Systems Code Reader with Full TPMS Functionality


    Advanced TPMS diagnostics for complete TPMS health check

    2.Activate 98% of all known TPMS sensors

    3.Program AUTEL MX-Sensors

    4.Comprehensive OBD relearn coverage

    5.Onscreen relearn procedure

    6.Read/clear codes for all available systems.

    7.Display live data in text, graph & analog for easy data review

    8.Auto VIN technology can automatically identify the vehicle’s make, model and year information in no time.

    9.Reset Steering Angle Sensor (SAS)

    10.Reset service mileage and service intervals

    11.Relearn parking brake pad after replacement

    12.Support forced DPF regeneration and adjusting injectors

    13.Support battery registration and reset



    Recommended Use


    Operating System

    Android™ 4.4.2, KitKat


    Cortex-A9 processor (1.5 GHz)




    7-inch LCD capacitive touchscreen with 1024 x 600 resolution


    Mini USB 2.0 • USB 2.0 • Wi-Fi • HDMI Type A • Micro SD card (supports up to 32GB)


    Light sensor for brightness auto changing

    Audio input/output

    Input: N/A • Output: buzzer

    Power and Battery

    3.7 V/5000 mAh lithium-polymer battery • Charges via 5 VDC power supply

    Tested Battery Life

    Around 7 hours of continuous use

    Battery Charging Input

    5 V/1.5 A

    Power Consumption

    600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V

    Operating Temp.

    -10 to 60°C(14 to 140°F)

    Storage Temp.

    -20 to 70°C (-4 to 158°F)

    Operating Humidity

    5% - 95% non-condensing

    Dimensions (W x H x D)

    270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)

    Net Weight

    885 g (2.31 lb.)


    ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6



    1.USB External Power Adapter_test

    2.USB Cable (for charging)

    3.USB Cable (for test)

    4.MaxiVCI Mini

    5.User Manual

    6.Quick Reference Guide

    7.Carry case
