    Fcar F502 Heavy Duty Handheld Code Reader for J1939 and J1708 Truck Scanner

    • Item No.  F284
    • History: 30  sold
    • Market Price: US$159.60
      Shop Price: US$105.00You save US$54.60
      Express Shipping Service    Estimated delivery time: 3-5 days »
      Affected by the epidemic, there will be delays in transit time.
    • Quantity:  120
    • Weight:  1.0KG
    • Rank:  comment rank 4 () Write a Review
      Rated 4/5 based on 1 customer reviews

    • Member Benefits  Shipping  Return Policy

    Related Products




    Technical Support


    Download & Technical Support

    Fcar F502 Heavy Duty Handheld Code Reader for J1939 and J1708 Truck Scanner

    Top 6 Reasons to get Fcar F502 Heavy Duty Code Reader:

    1.Exclusive Sale Heavy Duty code reader for the vehicles with standard protocol of heavy-duty trucks (J1939 and J1708).

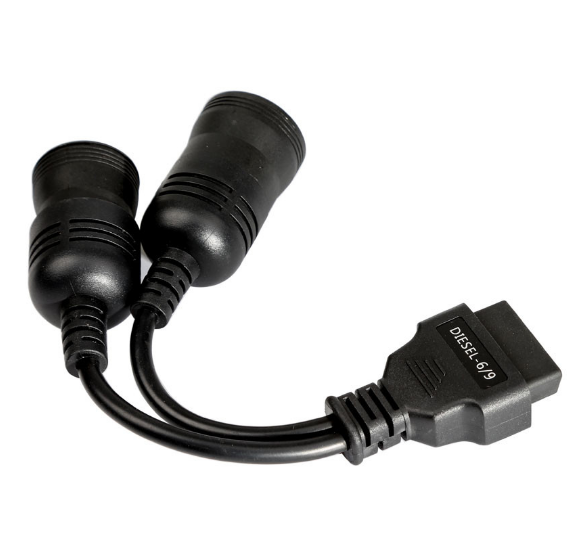

    2.Operation Methods:Diagnose the vehicles by OBD16 via diesel 6PIN and diesel 9PIN Diagnostic Protocol.

    3.Supported Language: English

    4.Update Online on Official Website.

    5.Read DTC

    6.Support ECU of vehicles like CUMMINS、Bosch、DELPHI

    Fcar F502 code reader Functions
    Engine #1
    Axle, Power Unit
    Axle, Trailer
    Brakes, Power Unit
    Brakes, Trailer #1
    Instrument Cluster
    Trip Recorder

    Fcar F502 Update Guide:

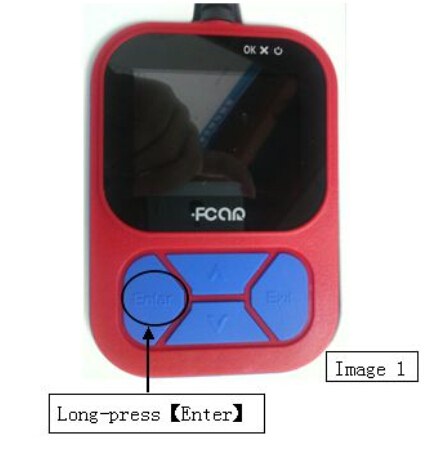

    Step 1:Long-press “Enter” of Main Unit while insert it with USB cable.See Image 1

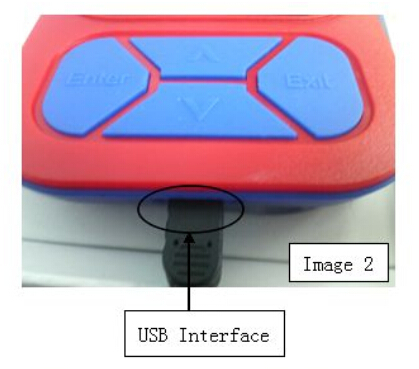

    Step 2:Long-press “Enter” of Main Unitwhile insert it with USB cable. See Image 2.

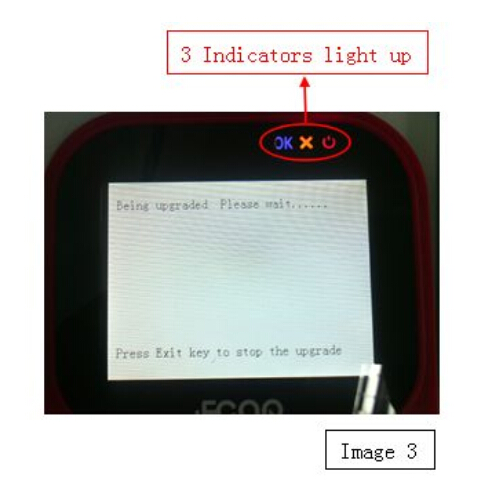

    Step 3:Long-press “Enter” of Main Unit while insert it with USB cable. See Image 3.

    Fcar F502 Parameters:
    Screen size :2.8 inch  320×240  LCD
    Work voltage:8V ~ 32V
    Work current :Typical value <100mA
    Connection method :Standard 16-PIN OBD diagnostic connector
    Working temperature :0℃~ 50℃
    Storage environment temperature: -20℃~70℃
    Relative humidity: 60%
    Product size(mm):123×88×27
    Weight of the main unit: 280g

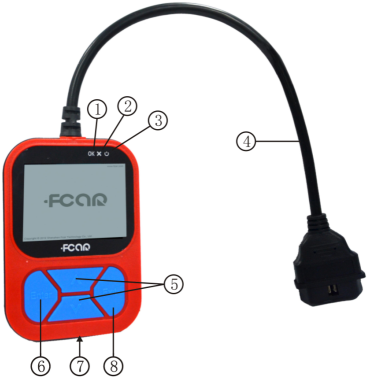

    Fcar F502 Firmware Display:

    1.OK diagnosis normal indicator light: The indicator light is on in communication diagnosis.
    2.OK diagnosis failure indicator light: The indicator light is on when there is a failure of communication diagnosis;
    3.Voltage indicator light: The indicator light is on when the machine is connected to OBDⅡ diagnostic sockets.
    4.Diagnosis communication line, which should be connected to OBDⅡ diagnostic sockets on the vehicle;
    5.Up and down buttons
    6.Enter: The button for confirmation;
    7.USB data line interface: Backup interface for data connecting;
    8.Exit: The button for cancellation and back.
