    JDiag Faslink M1 Bluetooth 4.0 Code Reader Auto Engine Scan Tool OBD2 diagnostic Scanner for Android/Wechat

    • Item No.  F285
    • History: 30  sold
    • Quantity
      Free Shipping
    • Quantity:  152
    • Weight:  200.0gram
    • Rank:  comment rank 5 () Write a Review
    • This goods is Free shipping!
    • Member Benefits  Shipping  Return Policy

    Related Products




    Technical Support


    JDiag Faslink M1 Bluetooth 4.0 Code Reader Auto Engine Scan Tool OBD2 diagnostic Scanner for Android/Wechat

    Hardware Features:

    1. Applicable to vehicles with standard OBDII DLC after 2000 (OBDII, CAN)

    2. Bluetooth 4.0BLE module independent development, the effective distance of 20-30 meters, lighting speed search, lighting speed connection (0.5 seconds)

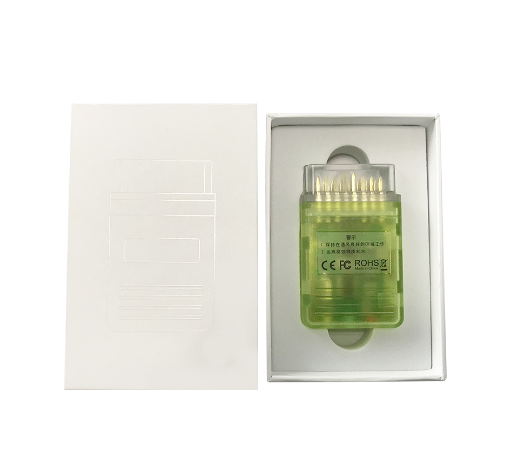

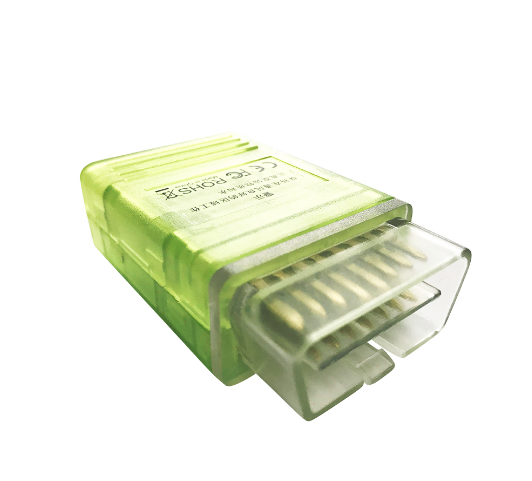

    3. Gilded OBDII pins to ensure the stable connection, faster data transfer, never rust
    4. Shell with environmentally friendly materials, anti-drop dust-proof scratch, no screws, double-buckle design, bite more solid
    5. Compatible with more protocols,and a wider range of baud rates, support more vehicles

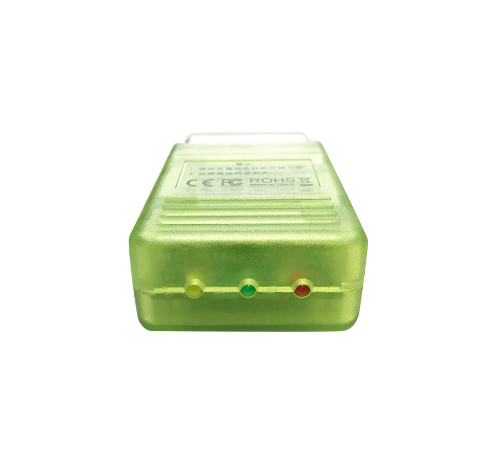

    6. LED indicator, real-time obtaining test status, data interaction status and Bluetooth connection status

    7. Electroless Nickel/Immersion Gold(ENIG) process PCB, to increase the stability of components, effectively prevent oxidation

    Software Features:

    JDiag FasLink M1 supports generic software on the market. At the same time, we developed APP for Android smart phones: JDiag FasLink, what's more we developed a WeChat program internal APP, which you can use JDias FasLink M1 with any platform OS, such as IOS, windows phone etc, only if your smart phone installed Wechat.

    Android App features:
    1. Read/clear vehicle fault code, standard fault codes, brands codes (stored fault code and the pending fault code)
    2. Read the vehicle data stream, custom data stream, data stream entry custom sort (PID entries up to 200 or more)
    3. I/M Readiness function, ready test the function, real-time monitoring of the car as many as 14 kinds of sensor indicators, quickly determine the vehicle status
    4. TPMS reset function
    5. Service reset function
    6. Battery test function, detection of car battery life and provide advice
    7. Vehicle VIN code read
    8. Vehicle protocol read
    9. Vehicle calibration ID identification
    10. Vehicle calibration verification code read
    11. Vehicle protocol ID read
    12. Software hot update function
    13. User Center function, users can manage their own full range of products from JDiag
    14. Quick registration function, through the APP internal camera scan QR code, complete the registration / activation of products, no need to fill in information
    15. Fast feedback function, users do not need to enter the feedback information, just press send then send feedback report
    16. Multi-language Optional: English, Chinese, Japanese, German, French, Italian, Russian, Portuguese, Spanish, other languages will be updated very soon
    17. Support a variety of connections: WIFI, Bluetooth 2.0, Bluetooth 4.0
    18. Support GPS positioning function
    19. English metric units are interchangeable

    20. Built-in user manual, environmental-friendly

    Technical Parameters:
    Support Protocols: ISO9141-2, ISO14230-4, KWP 15765-4, SAE J1850 VPW, SAE J1850-PWM
    Minimum starting voltage: 7.9V
    Maximum operating voltage: 30V
    Working temperature: -20 ℃ ~ 40 ℃
    Storage temperature: -30 ℃ ~ 70 ℃
    Working current: 0.24A

    WeChat Internal App features:

    What is Wechat?

    1. No need to install any APPs, as long as your smart phone installed WeChat program, you can use JDiag FasLink M1

    2. No phone brands or operating system limitation, Android, IOS, Windows Phone, etc. can be used

    3. No need update the software, JDiag will submit the upgrade app to WeChat, each time you open the program, automatically updated can be done within 2 seconds
    4. No need to print the diagnostic results, WeChat users can share the testing results directly to frends
    5. Read/clear vehicle fault codes (stored trouble code and pending fault code)
    6. Read the vehicle data stream, customize the live data
    7. I/M Readiness function, real-time monitoring of the sensor sensor up to 14 kinds of indicators, quickly determine the vehicle status
    8. Battery detection function, detection of car battery life and provide advice
    9. Vehicle VIN code read
    10. Vehicle protocol read
    11. Vehicle calibration ID identification
    12. Vehicle calibration verification code read
    13. Vehicle protocol ID read
    14. fault code cloud query function, the standard OBDII fault code and car trouble code can be queried
    15. Built-in user manual, environmental-friendly

    16. No network can also be used

    WeChat Internal App Get: (Please run WeChat then use QR Code scan)
