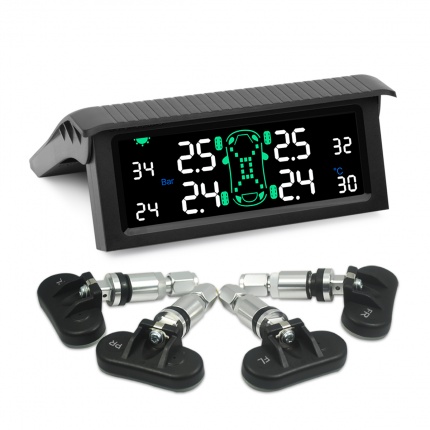

    V-checker T501 TPMS Tire Pressure Monitoring System Tire Internal Sensor With Bluetooth inside

    • Item No.  Z307-1
    • History: 22  sold
    • Quantity
      Express Shipping Service    Estimated delivery time: 5-7 days »
      Affected by the epidemic, there will be delays in transit time.
    • Quantity:  157
    • Weight:  500.0gram
    • Rank:  comment rank 5 () Write a Review
    • Member Benefits  Shipping  Return Policy




    Technical Support


    Download & Technical Support

    V-checker T501 TPMS Tire Pressure Monitoring System Tire Internal Sensor With Bluetooth inside

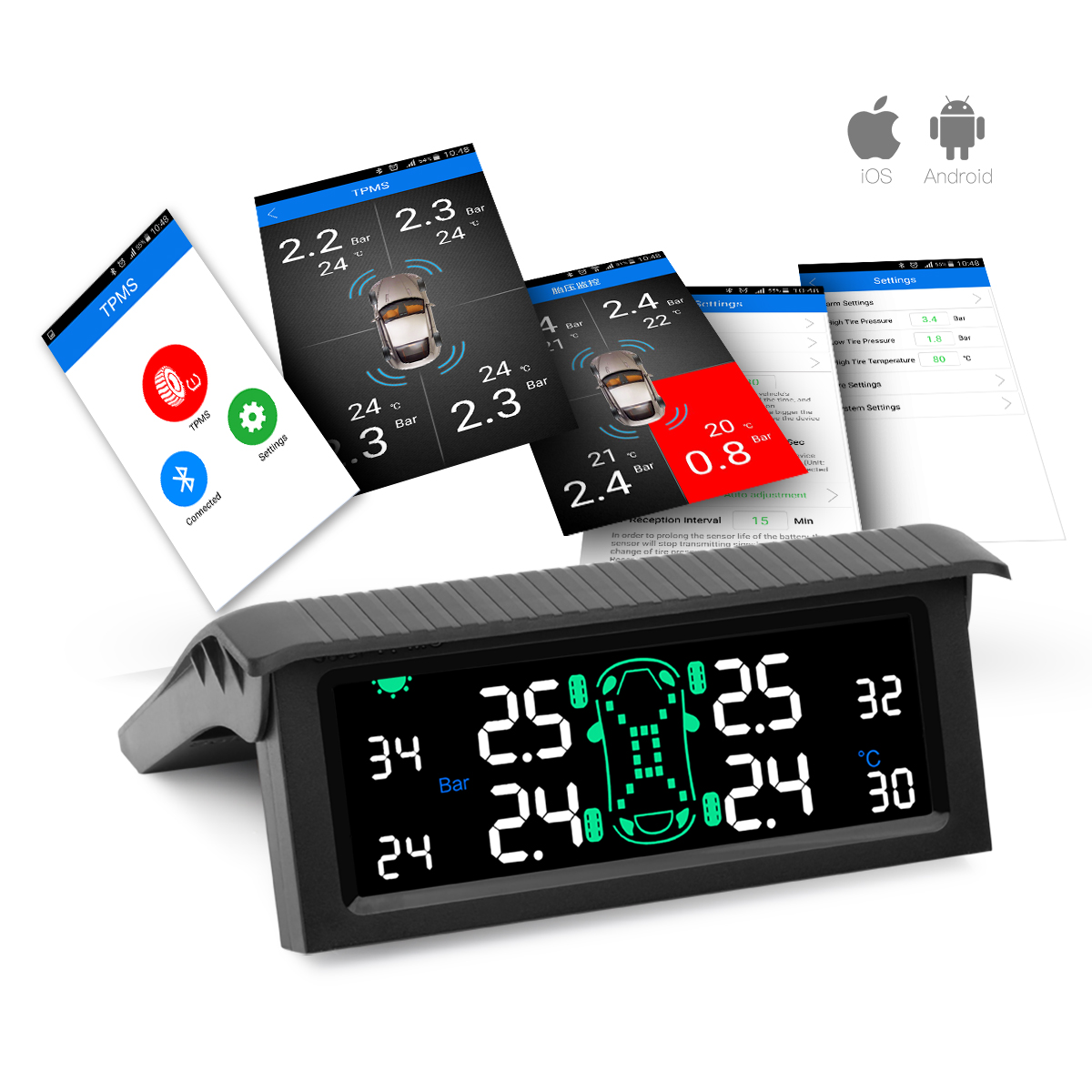

    1. 80% driving accident comes from abnormal tire pressure.The T501 TPMS dynamically monitors tire pressure, which can prevent puncture and damage of car parts caused by flat tire. Improve fuel efficiency, prolong tire life, increase traffic safety and avoid abnormal wear of vehicle parts. Adopting Infineon solution, the device mainly consists of 4 tire sensors modules and monitoring the vehicle tire status and showing all related information such as tire pressure & temperature in real time. through blue-tooth, The device can be connected with your intelligent mobile phone via our self-developed Android and iOS Apps available in Google Play and App Store.

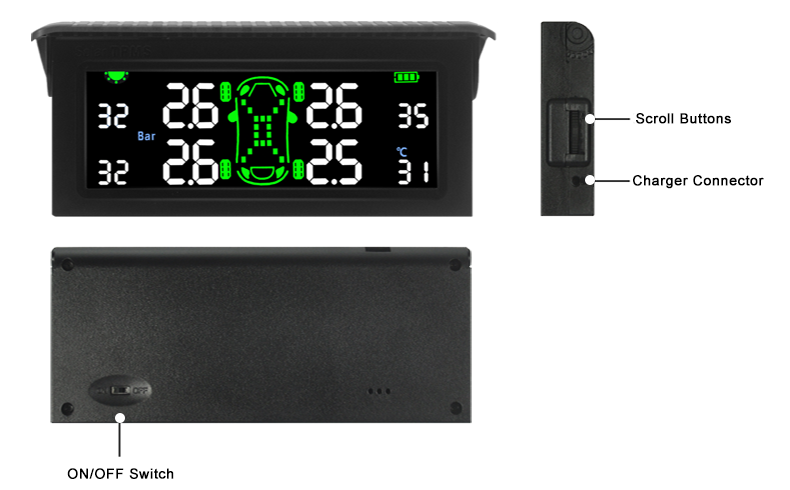

    2. 4" LCD Screen and Brilliantly Colorful Display. Witch the inserted G-sensor, the device is automatically activated once the ignition is on, and turns itself off when the engine stalls. Smart Sleeping Mode for Energy Conservation.

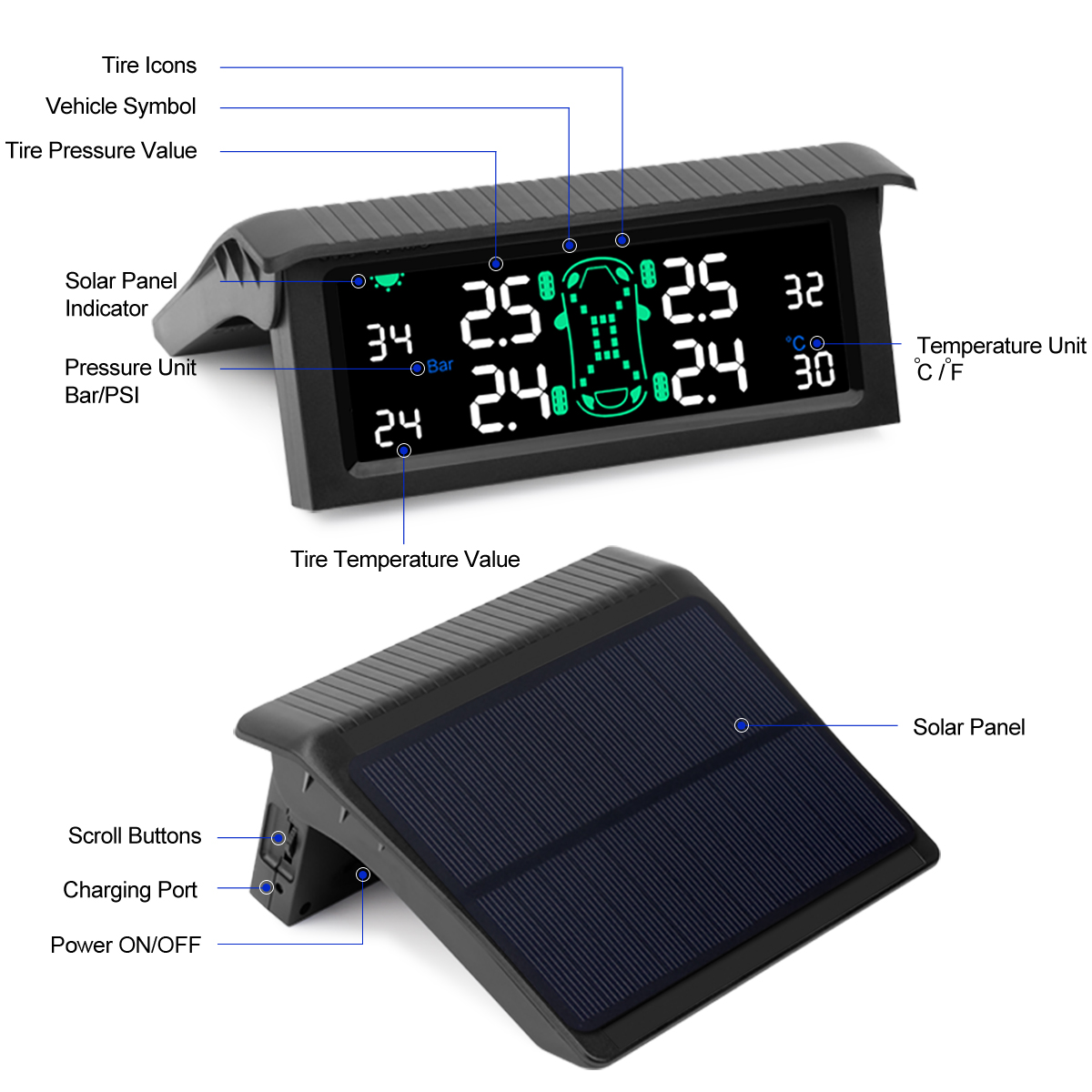

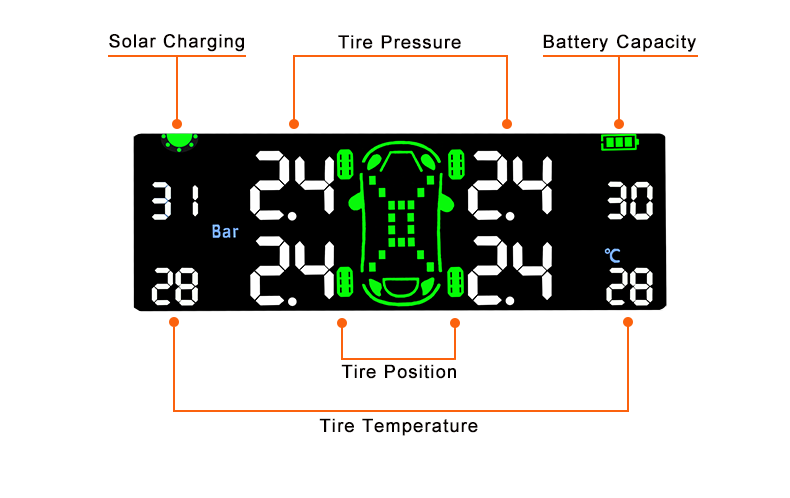

    3. A real-time and accurate display of tire air pressure / temperature / solar panel working status / battery capacity, etc, timely warnings if any abnormal situation happens. Multiple Placements - On Dashboard or On Windshield. Flexible Adjustment of Viewing Angles and No Visual Blind Area.

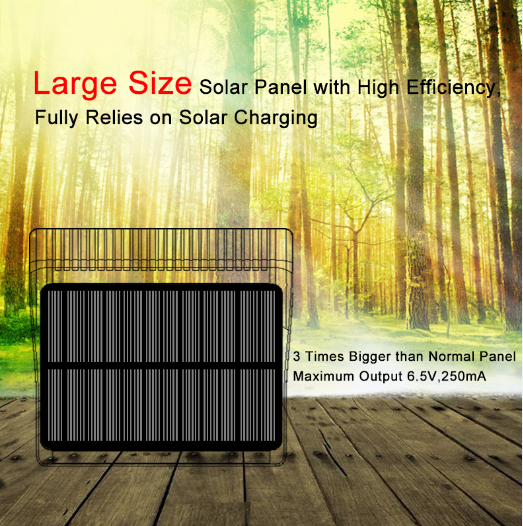

    4. Large size solar Panel with high efficiency, fully relies on solar charging. Explosion-proof battery built-in, high and low temperature resistance. Battery capacity 2000mAH, Once fully charged the endurance can support continuous Usage for 60 days. No need to occupy the cigar lighter.

    5. All models for: all kinds of cars, off-road vehicles, SUV, commercial vehicles, MPV, etc.


    20% under-inflation reduces tire lifetime by 30%;

    30% over-inflation reduces tire lifetime by 45%;

    30% pressure lower looks like proper inflated tire

    So you need a V-checker® T501 TPMS to monitor tire dynamic pressure, warn early of abnormal tire pressure, improve fuel efficiency, increase tire life and traffic safety.


    Host  Parameters

    Operating Frequency


    Operating Voltage

    3.5 - 6.0 VDC

    USB Charging Current

    ≤ 600mA

    Operating Environment Temperature Range

    -20 to 85 (-4 to 185℉)

    Sleeping Mode Current

    < 1mA

    Environment Temperature Range for Long-term Storage

    -40 to 85 (-40 to 185℉)

    Monitoring Air Pressure Range

    0.0 to 4.0 Bar (0.0 to 58.0 PSI)

    Supported Bluetooth

    Bluetooth 4.0 Version or Above

    Monitoring Temperature Range

    -40 to 85 (-40 to 185℉)

    Battery Capacity


    Solar Charging Time


    Operating Environment Humidity Range

    0 - 100%


    Approx 0.4 Kg

    Tire Sensor (Internal)  Parameters


    3V Imported Lithium Battery

    Sensor Chip


    Operating Environment Humidity Range

    0 - 100%

    Operating Environment Temperature Range

    -55 to 125(-67 to 257℉)

    Air Pressure Range

    0.0 to 4.0 Bar (0.0 to 58.0 PSI)

    Radio Frequency


    Transmitting Power

    ≤ 5dBm

    Pressure Display Accuracy

    0.1Bar (1.5PSI)

    Temperature Measuring Accuracy



    Approx 60grams

    Batter Life

    5 Years(depending on the actual usage conditions)

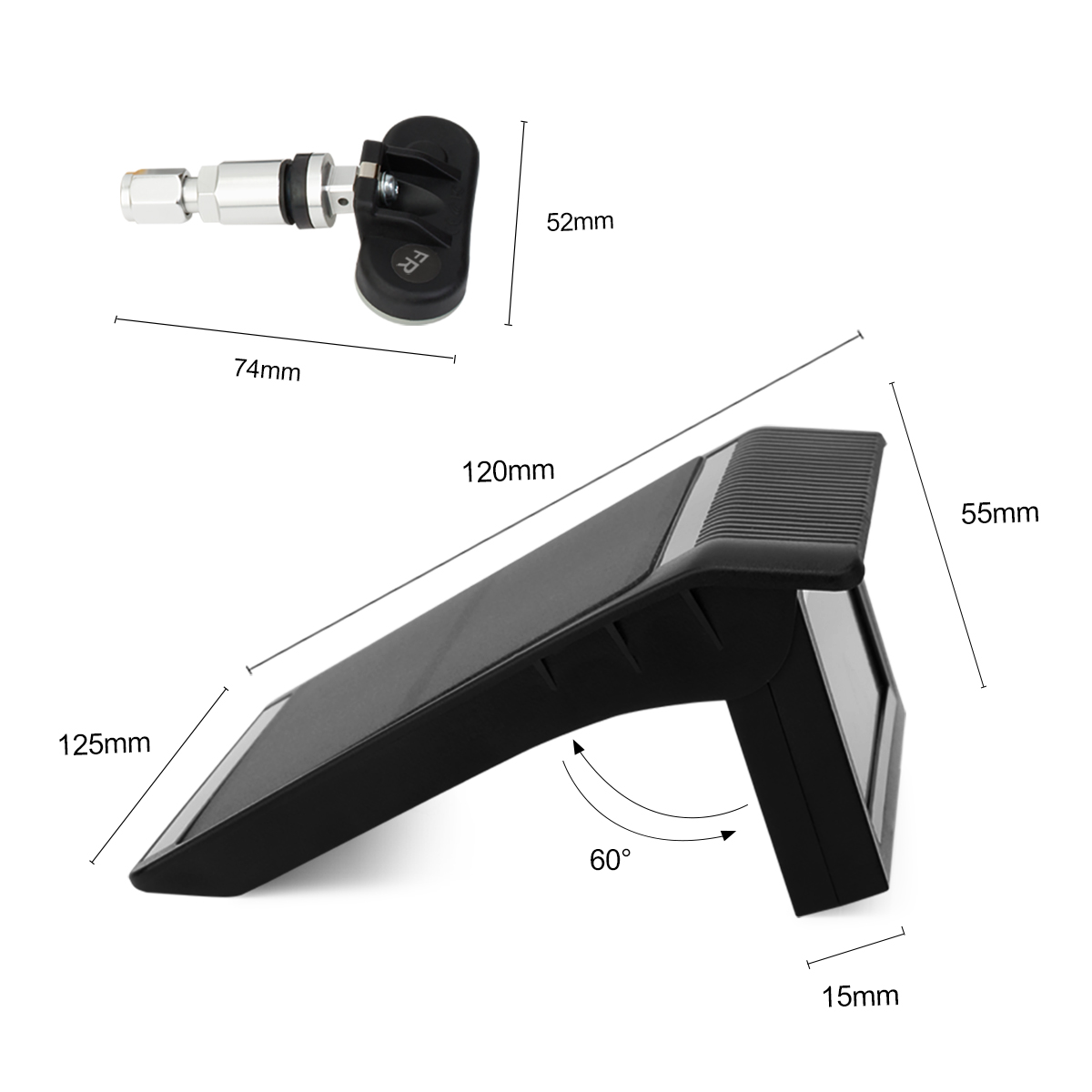

    Package Specifications:

    Dimensions: 255 * 130 * 78 (mm)

    Weight: Approx 0.5Kg

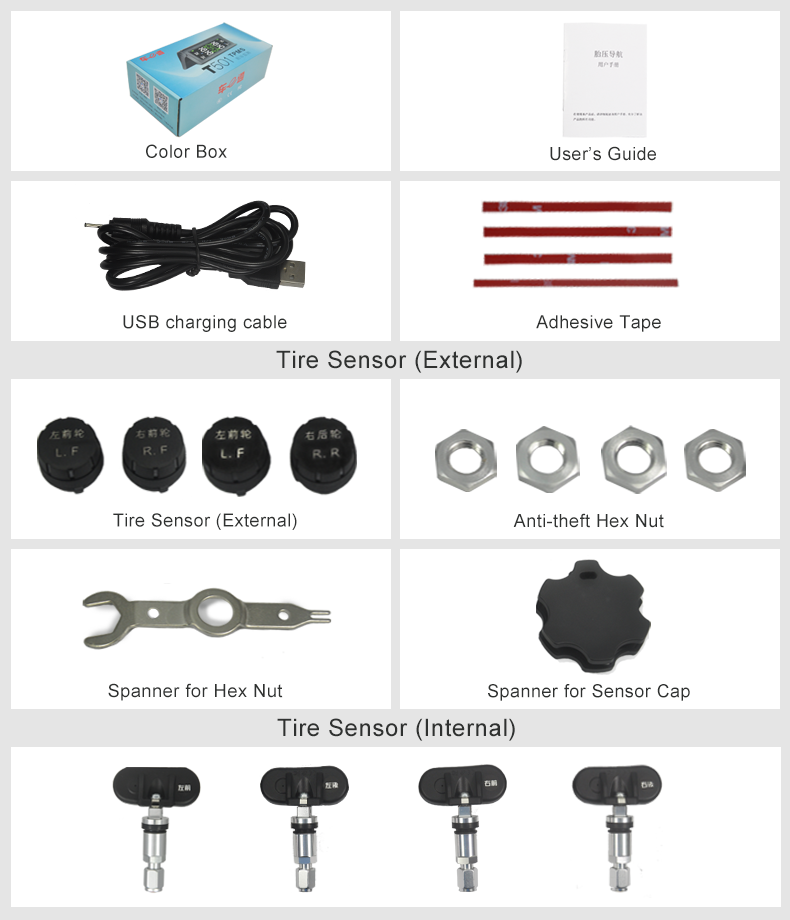

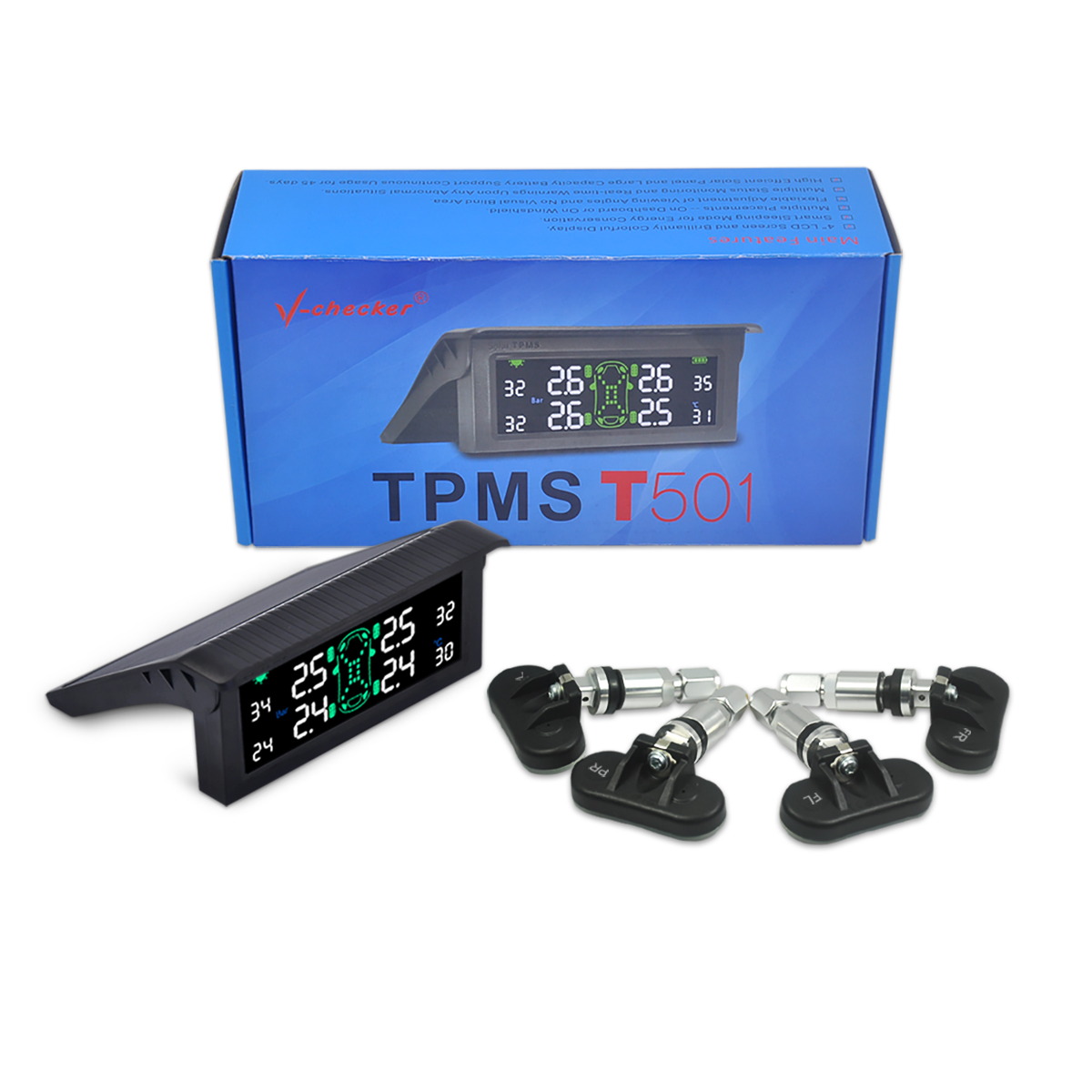

    Package Contains:

    1 x T501 Main Unit

    4 x Tire Internal Sensor

    1 x USB Charge Cable

    4 x Adhesive Tape

    1 x User's Manual

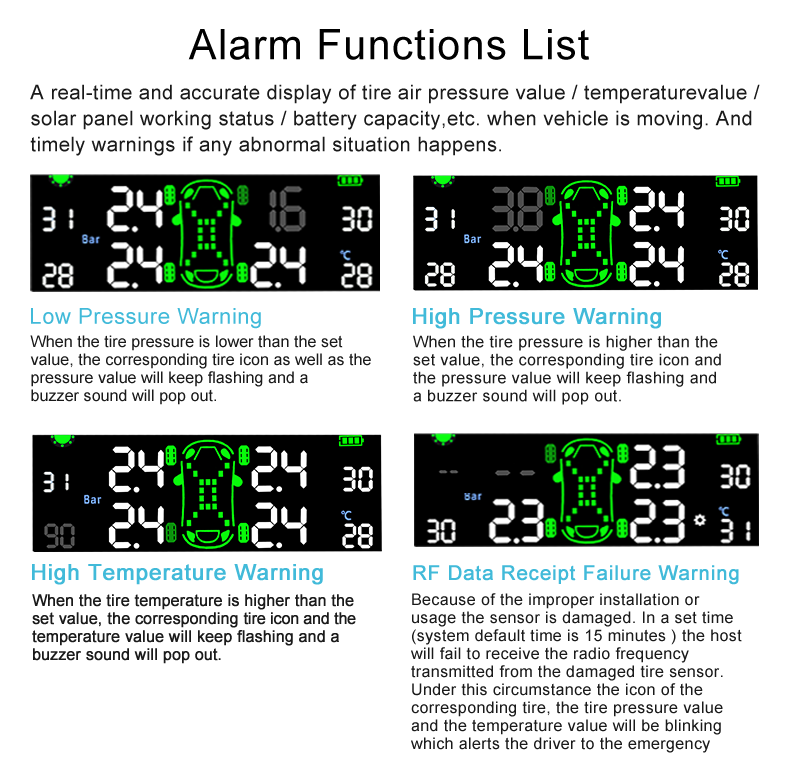

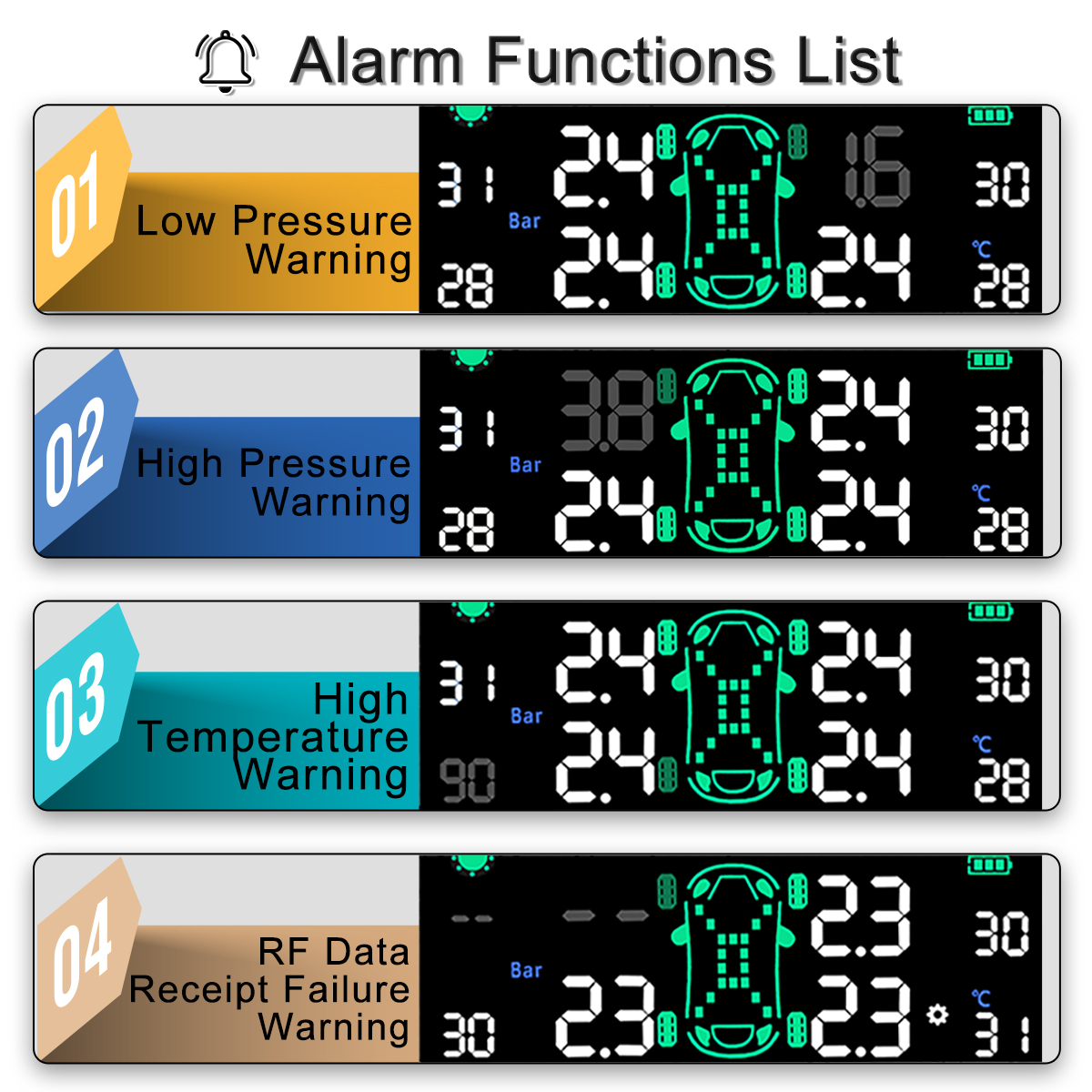

    Alarm and Warning

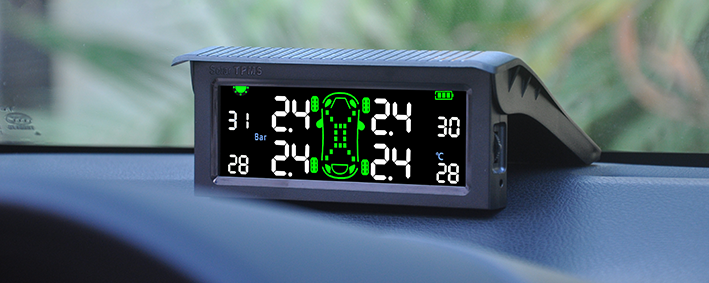

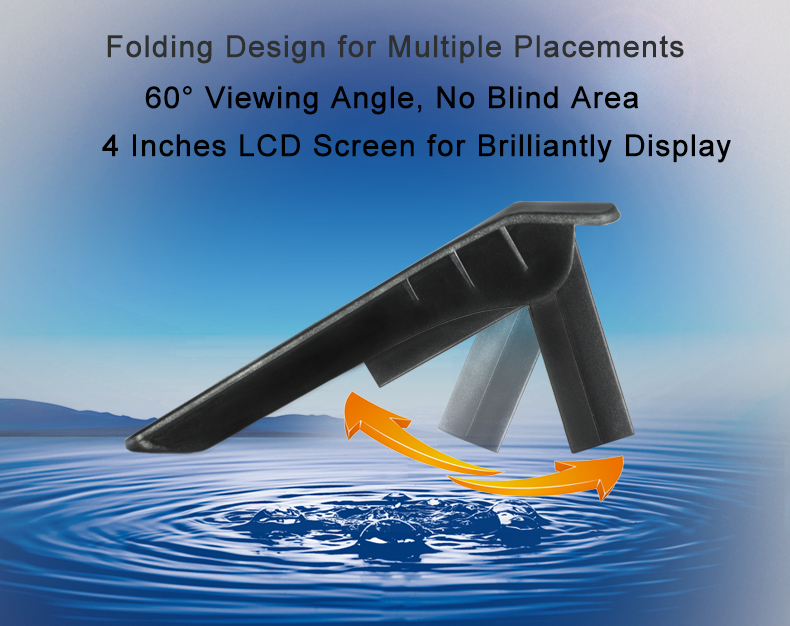

    Multiple Placements

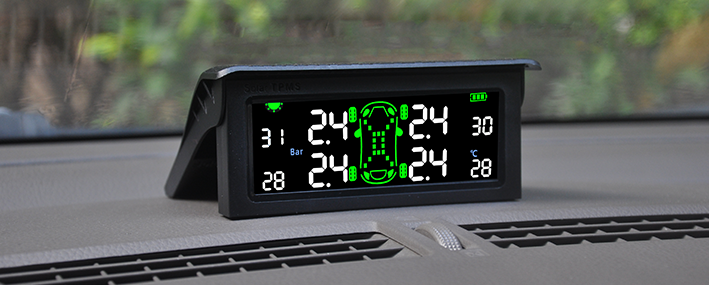

    Placement A: On the Middle of the Central Control Board

    Placement B: On the Central Control Board, Right in Front of the Driver

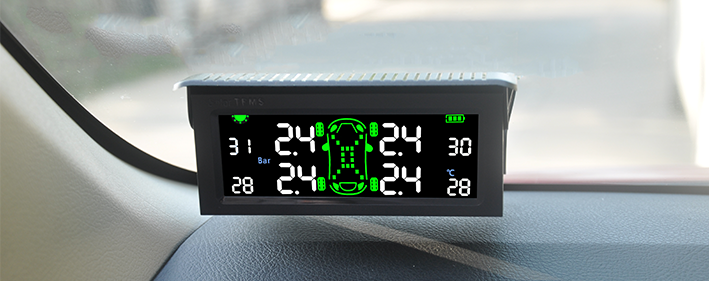

    Placement C: On the Windshield, Left Front Side of the driver, Near the A Pillar

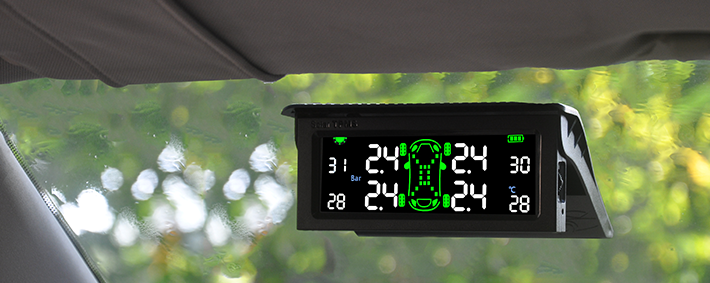

    Placement D: On the Windshield, Below the Sun Visor

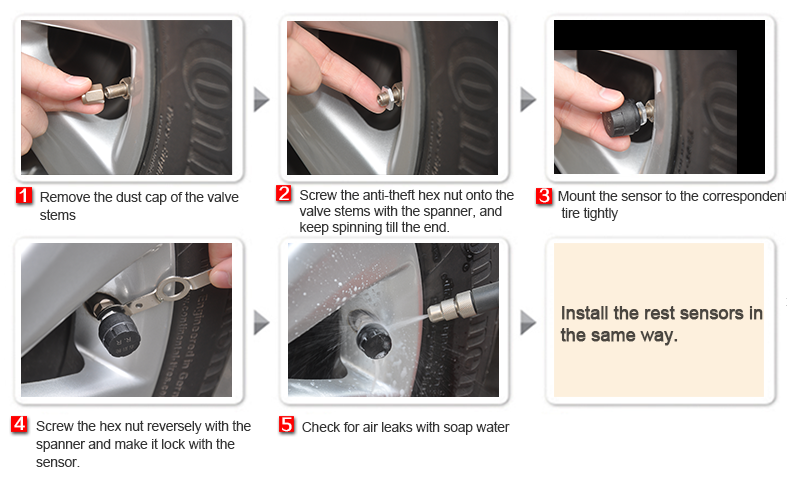

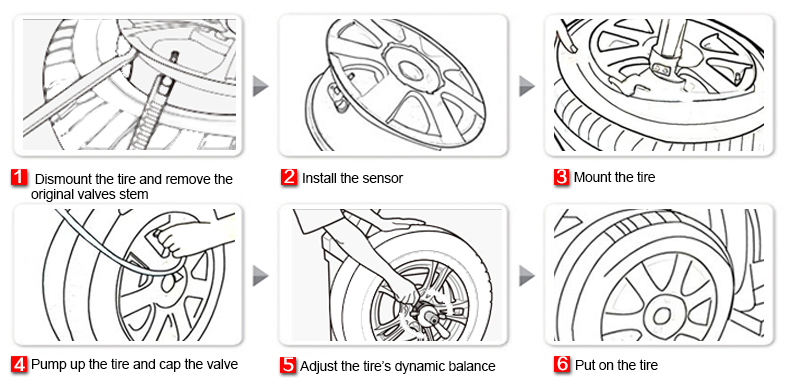

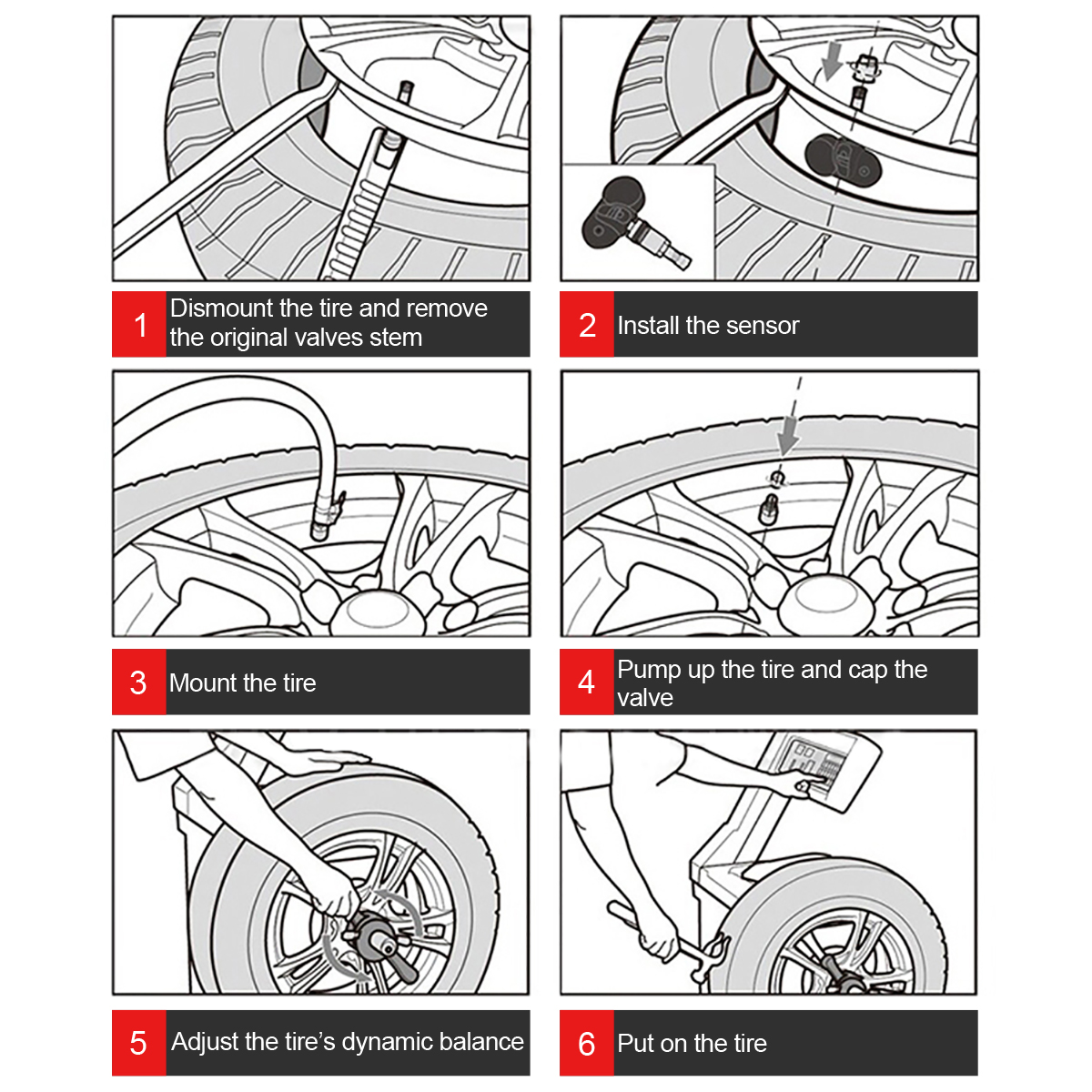

    Installing And Setting Up the Tire Sensor

    Tire Sensor (External)

    Tire Sensor (Internal)

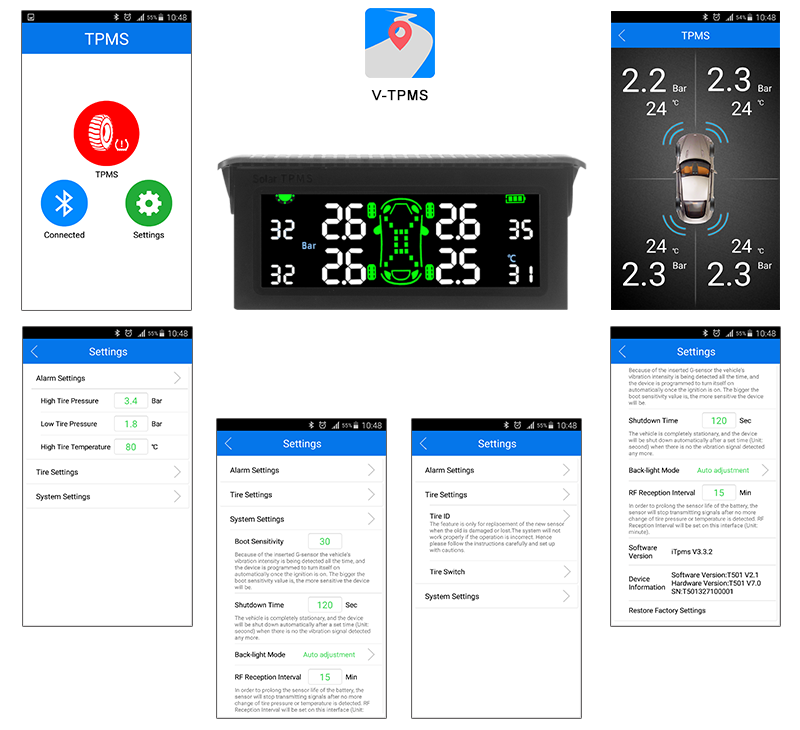

    APP Installation

    Android Phone

    iOS Phone


    Scan the QR code to download

    Search "V-TPMS" in the APP store, download and install it

    Total Package
