JDiag JD101 OBDII EOBD CAN Code Scanner

Features:

1. Works on most 1996 and newer vehicles (OBD II & CAN).
2. The build-in One-Click I/M Readiness allows quick State Emissions readiness check and drive cycle verification.
3. Retrieves generic codes (P0, P2, P3, and U0) and manufacturer specific codes (P1, P3, and U1) .
4. Able to read pending codes, stored codes and freeze codes.
5. Easily determines the cause of the Malfunction Indicator Light( MIL).
6. Turns off Malfunction Indicator Light (MIL), clears codes and resets monitors.
7. Displays DTC definitions on the 2.4inch LCD screen.
8. Views freeze frame data.
9. Displays monitor and I/M readiness status (emissions).
10. Reads live data stream, PID more than 130 pcs.
11. Retrieves vehicle information(VIN, CIN and CVN).
12. Detect the vehicle battery condition.
13. Multilingual menu and DTC definitions- English, Spanish, French, Russian, Germany, Italian, Japanese, Chinese, etc.
14. Extremely easy to use and highly reliable.

15. Online upgrade firmware by USB cable.

Specifications:

1. Display: 2.4'' Black&White LCD display
2. Operating Temperature: 0 to 60°C (32 to 140 F°)
3. Storage Temperature: -20 to 70°C (-4 to 158 F°)
4. External Power: 8.0 to 18.0 V power provided via vehicle battery
5. Length\Width\Height: 124 mm (4.61") \73 mm (2.83")\22 mm (0.71")
6. Weight: 0.12 KG (0.26 LB)

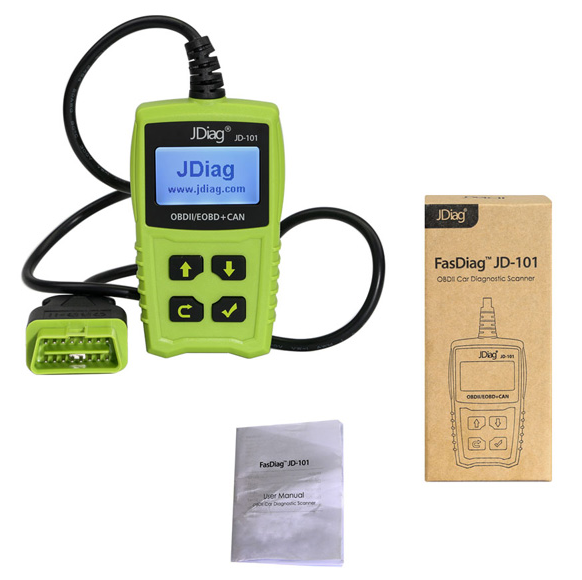

Package list:
1pc x  JDiag JD101 Code Reader Scan
