    Mercedes Benz EZS EIS ELV ESL Dash Gateway Full Testing Device with OBD W210 W211 W212 W220 W221 W164 W166 W203 W204 W20

    • Item No.  Z309
    • History: 55  sold
    • Quantity
      Total
      Shipping:
      Express Shipping Service    Estimated delivery time: 5-7 days »
      Affected by the epidemic, there will be delays in transit time.
      continue
    • Quantity:  236
    • Weight:  1.5KG
    • Rank:  comment rank 5 () Write a Review
    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video

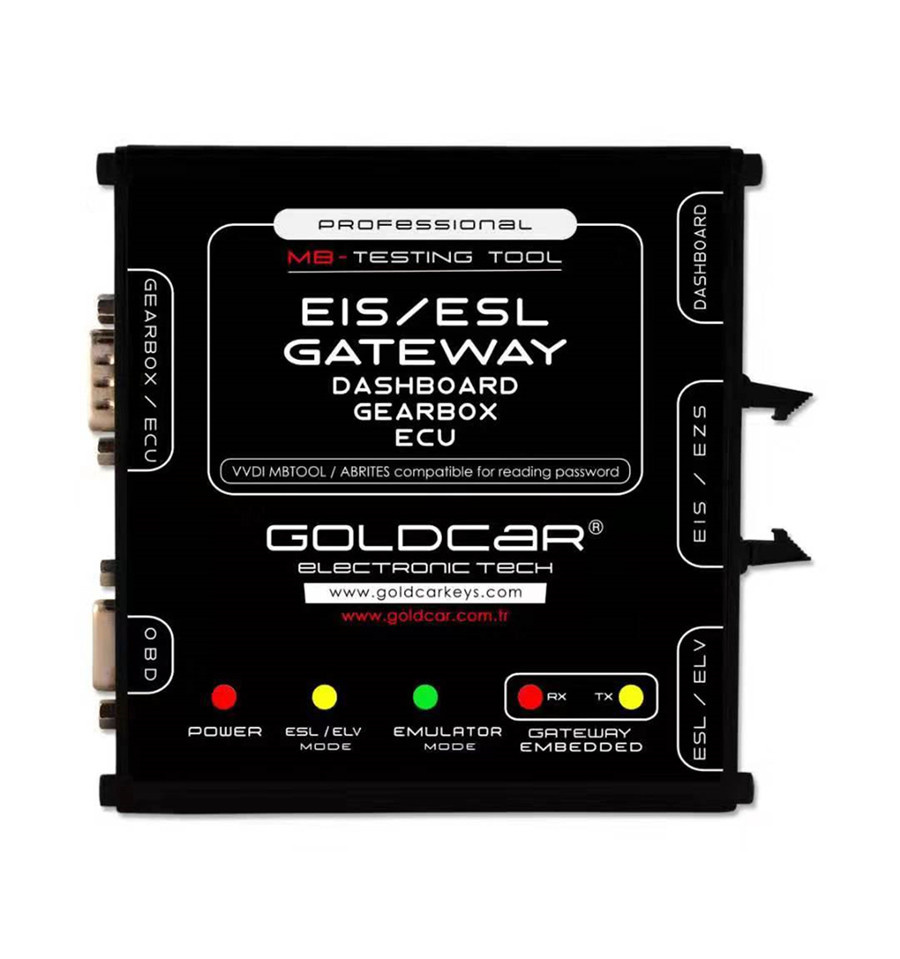

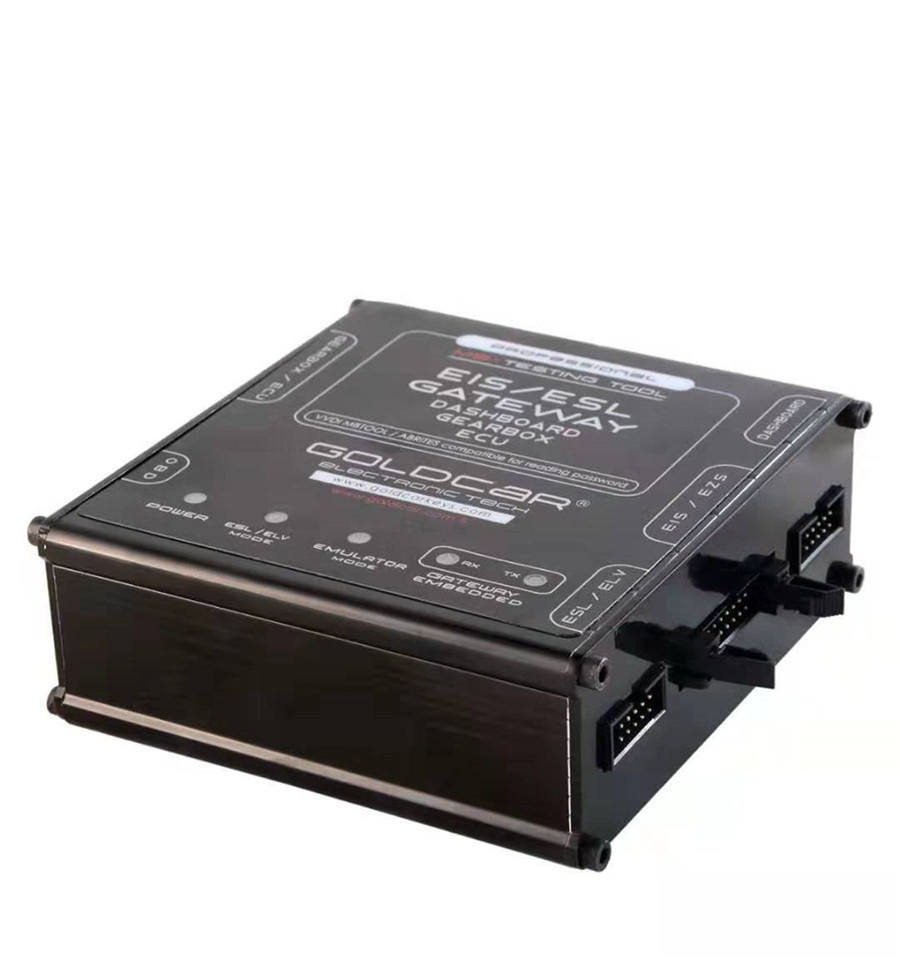

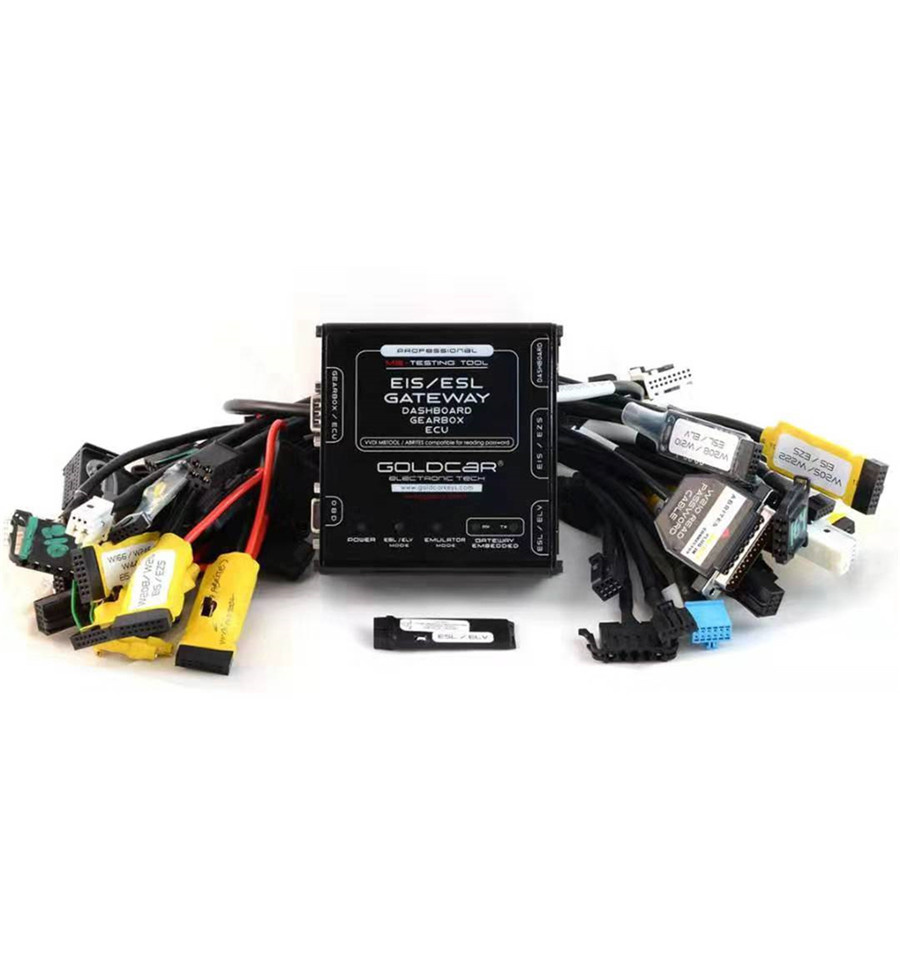

    Mercedes Benz EZS EIS ELV ESL Dash Gateway Full Testing Device with OBD W210 W211 W212 W220 W221 W164 W166 W203 W204 W207 W906 W639



    This new Mercedes Tester supports testing of FBS4 ECU.


    New device designed for on-bench testing of EZS (EIS), ESL (ELV).

    Comes with ESL Emulator inside, has automatically mode switching - read ESL using and Emulation mode. You can test both old (Motorola based EZS) and new (NEC based) units without the car - just connect them with special set of cables.

    Could be purchased in place of old devices: EIS cables set, ESL emulator, W164/166/203/204/207/210/211/212/220/221/639/906 testing cables.


    Features:

    VVDI MBTOOL / ABRITES compatible for reading password

    Test EZS / EIS thanks to the emulator inside our device

    Thanks to the multiplexer inside our device, you can control ELV

    There is no requirement for extra gateway connection with gold car box

    This test platform can help you with the bench work


    EIS/EZS:

    W208 / W210 ( Embedded Emulator ) Abrites and VVDI MBTOOL  read password + Elv control + Obd control

    W209 / W211 ( Embedded Emulator & Embedded GateWay ) Abrites and VVDI MBTOOL read password + Elv control + Obd control

    W169 / W245 ( Embedded Emulator & Embedded GateWay ) Abrites and VVDI MBTOOL read password + Elv control + Obd control

    W203 / W639 / VITO ( Embedded Emulator ) Abrites and VVDI MBTOOL read password + Elv control + Dash board control + Obd control

    W906 / CRAFTER / SPRINTER ( Embedded Emulator ) Abrites and VVDI MBTOOL read password + Elv control + Dashboard control + Obd control

    W215 / W220 Abrites and VVDI MBTOOL read password + Obd control

    W204 / W207 / W212 Abrites and VVDI MBTOOL read password( W204/W212 Embedded Emulator ) + Elv control + Obd control + Dashboard control

    W164 Abrites and VVDI MBTOOL read password ( Embedded GateWay )+ Obd control

    W221 Abrites and VVDI mbtool read password + Obd control

    W246 Abrites and VVDI mbtool read password + Dashboard control + Obd control

    New - W212 Abrites and VVDI mbtool read password + Dashboard control + Obd control

    New - W447 / W176 new model ( FBS4 + FBS3 ) read password ready + Dashboard control + Elv control + Obd control

    New - W222 / W205 new model ( FBS4 + FBS3 ) read password ready + Dashboard control + Obd control



    ESL/ELV:

    W204 / W207 / W212 ELV cable ELV read and write OBD control ( EZS+ELV Personalize )

    W208 / 210 ELV cable ELV read and write OBD control ( EZS+ELV Personalize )

    W209 / W211 ELV cable ELV read and write OBD control ( EZS+ELV Personalize )

    W203 / W639 / VITO ELV cable ELV read and write OBD control ( EZS+ELV Personalize )

    W906 / CRAFTER / SPRINTER ELV cable read and write OBD control ( EZS+ELV Personalize )

    NEW - W447 / W176 ELV cable ELV read and write OBD control ( EZS+ELV Personalize )

    NEW - GEARBOX ECU OUT

    (VVDI MB Mercedes Benz ECU Renew Cables Adapters Kit compatible)


    DASHBOARD CABLE

    OBD CABLE

    test ezs/eis thanks to the emulator inside our device

    Thanks to the multiplexer inside our device you can control elv

    THERE IS NO REQUIREMENT FOR EXTRA GATEWAY CONNECTION WITH GOLDCAR BOX


    Package includes:

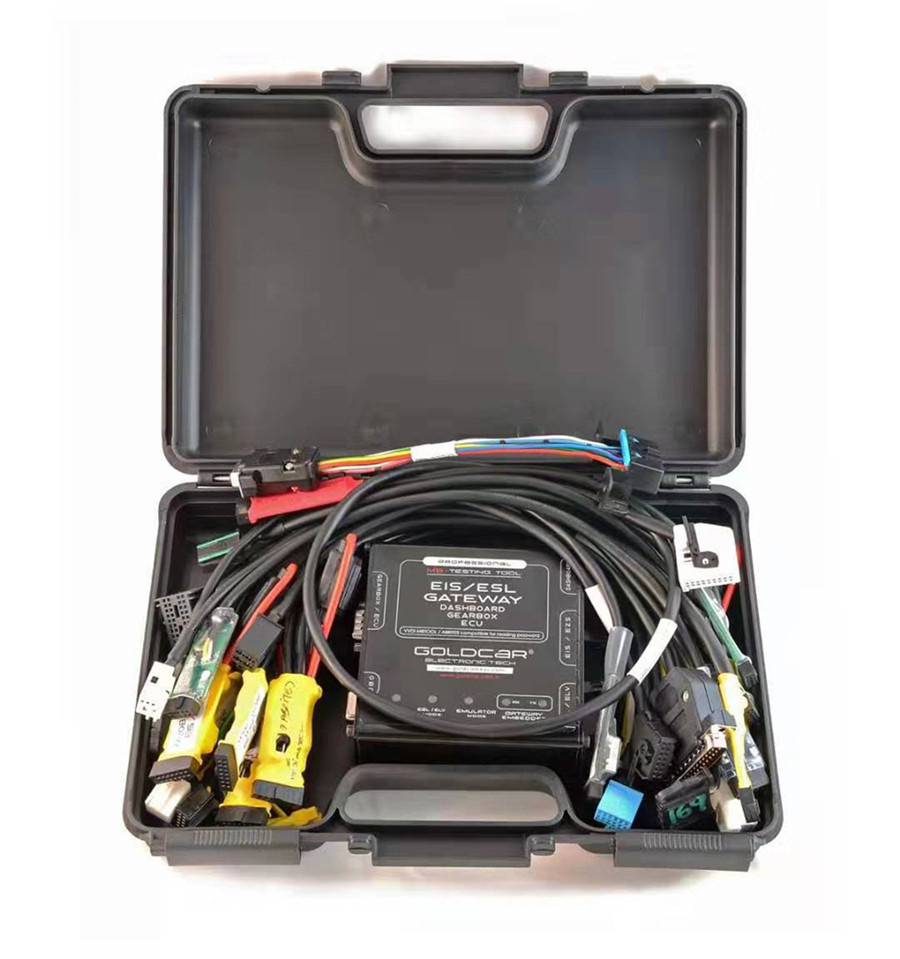

    1pc x PROFESSIONAL EIS ESL DASHBOARD GATEWAY TESTING TOOL Support FBS4
