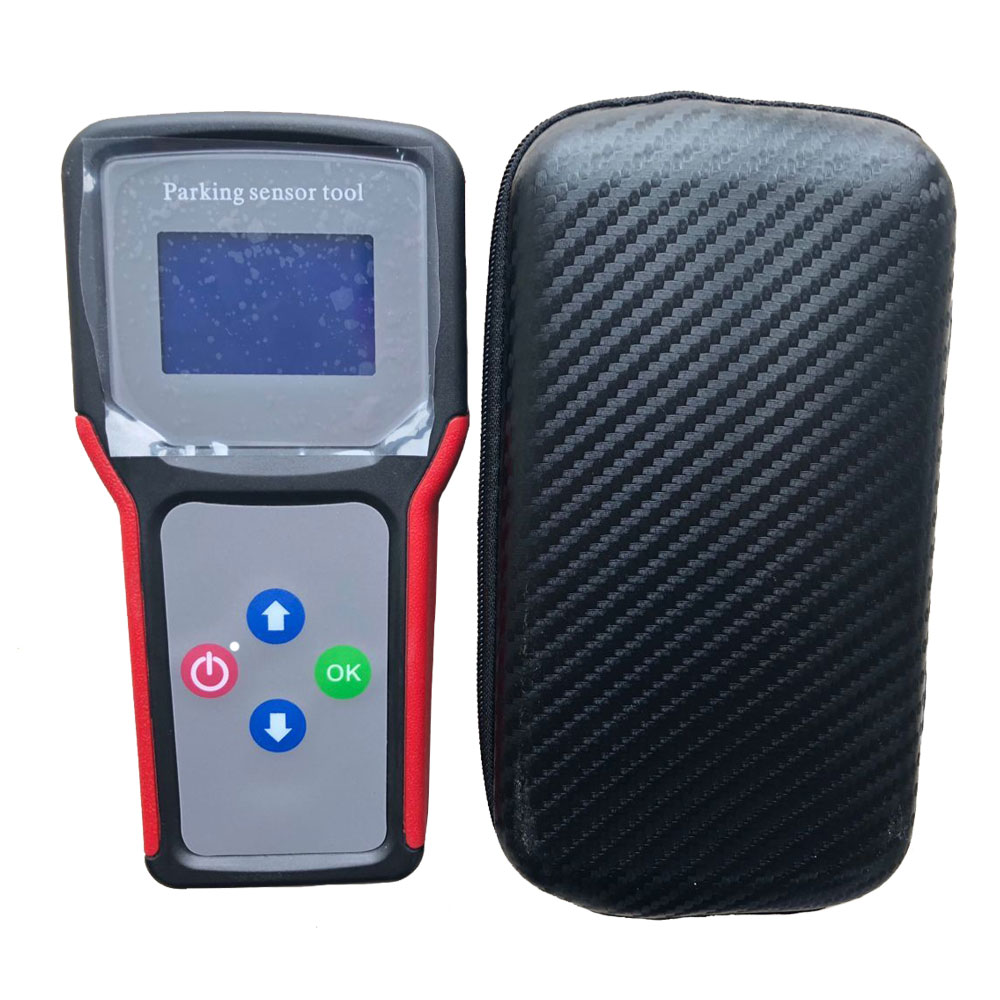

Radar Detector Parking sensor tool for Car radar
Many parking sensor systems now fitted to the latest vehicles require the engine running and the car in reverse gear. In addition to this the vehicles that have a parking assist will shut down if there is a problem and diagnostics of the sensors requires 2 people to check. The PARKING SENSOR TOOL with its extended pick lead allows a single person to operate the vehicle safely and test the sensors while in the drivers seat.
This makes the PARKING SENSOR TOOL both a time saving product, but also ensures the system can be tested safely and easily by the workshop technician.
The internal wide frequency range microphone covers the typical ultrasonic automotive range of 34.8 kHz to 68 kHz. The LCD screen can show the signal as a pulse, an average value in either graph form or as a bar graph or a waveform.
PARKING SENSOR TOOL also has the facility to display the operating frequency of the ultrasonic sensor together with its signal strength.

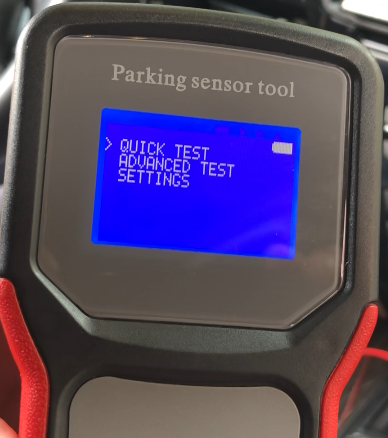

The Quick Test also provides a way to check all the sensors together, and compare the results to ensure they are all operating within their normal specifications.

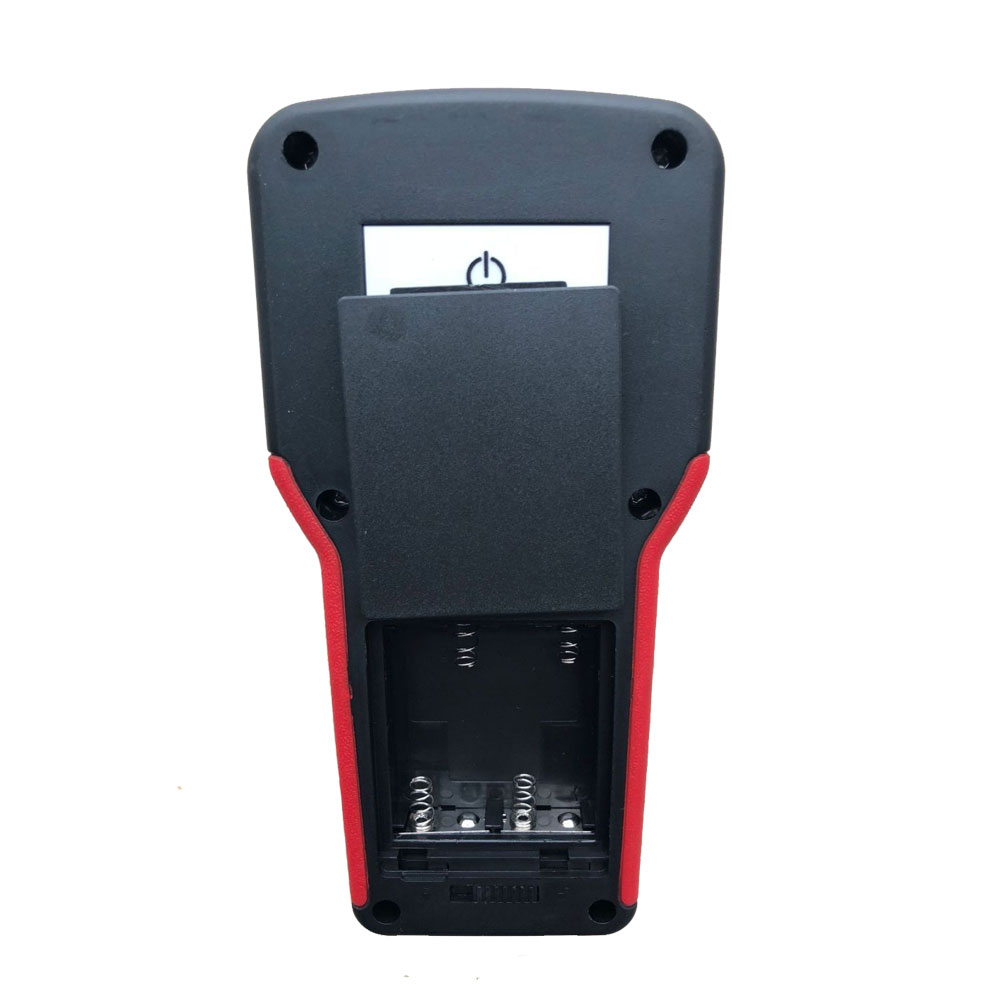

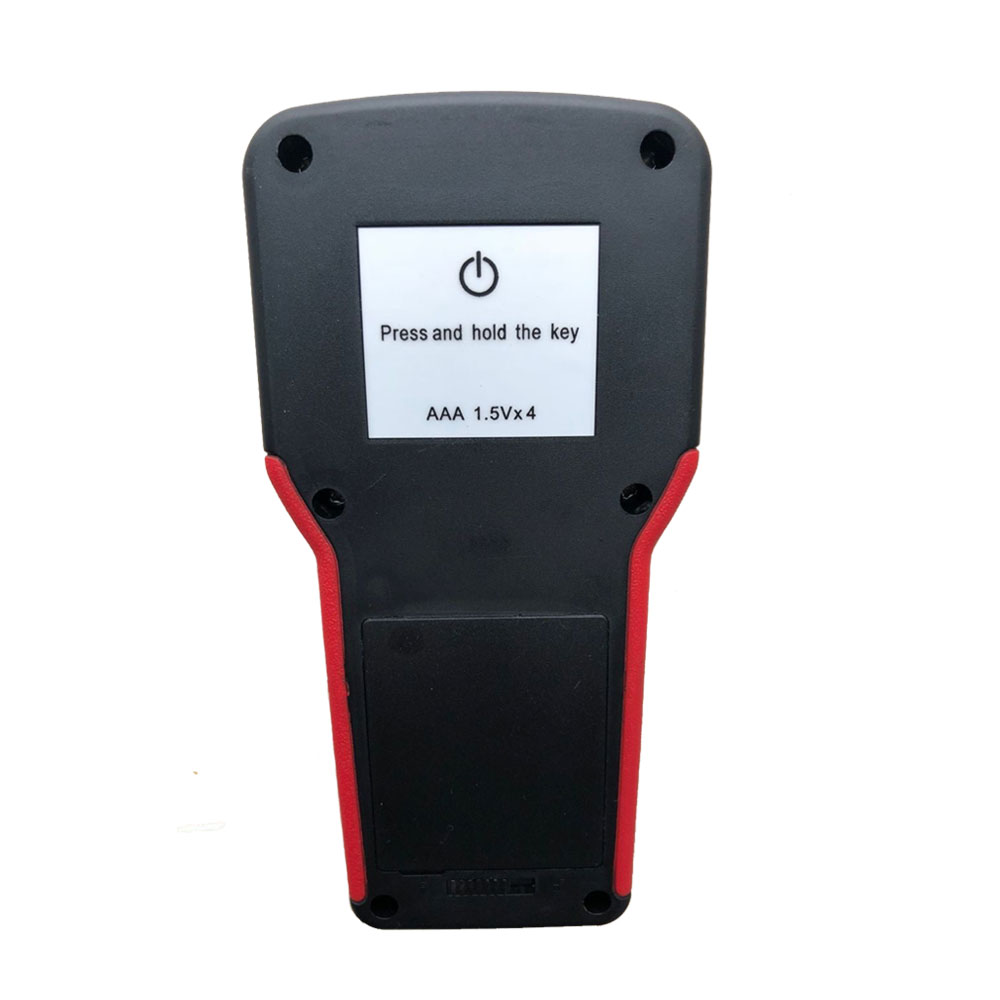

Powered by 4 AAA cells the PARKING SENSOR TOOL has an operational time of over 20 hours of use, and it also includes a low battery warning and programmable auto switch off time.
LCD SCREEN CONTRAST
SELECT UP/DOWN TO SET
REQUIRED CONTRAST.
VEHICLE TEST - STAND ALONE
VEHICLE TEST - EXTERNAL SENSOR PICK UP
VEHICLE TESTING
SELECT THE REQUIRED
TEST AND POINT THE
PARKING SENSOR TOOL SENSOR PICK UP
TOWARDS THE PARKING
SENSOR
PLACE THE EXTERNAL
SENSOR AS CLOSE TO
THE PARKING SENSOR AS
POSSIBLE. ENSURING THE
PICKUP HOLE IS POINTING
TOWARDS THE SENSOR.
PLEASE NOTE THE INTERNAL AND EXTERNAL SENSOR PICK UPS WILL
PRODUCE SLIGHTLY DIFFERENT RESULTS. PLEASE ENSURE YOU TEST
ALL SENSORS WITH THE SAME SENSOR AND NOT MIX THE INTERNAL AND
EXTERNAL SENSOR TESTS OTHERWISE YOU WILL GET MIXED READINGS. OPERATING VOLTAGE 6 VOLTS
OPERATING CURRENT 50 mA average
POWER CONSUMPTION 300 mW
DETECTION RANGE (FREQUENCY) 30kHz to 70kHz
MICROPHONE RANGE 10Hz to >80kHz
BATTERY 4 x AAA Alkaline or NiMh Rechargeable
OPERATING TEMPERATURE RANGE 0 to 50 degrees C
SIZE 165mm x 80mm x 31mm
WEIGHT 160 grams
FREQUENCY ANALYSER Low range 30kHz to 50kHz
High range 50kHz to 70kHz
Sensitivity adjustment
OSCILLOSCOPE Pulse mode 25uS/div
Sensitivity adjustment
PEAK SCAN Scan time (Full screen) 2 seconds
Sensitivity adjustment
BATTERY LEVEL Visual indicator and audible low battery warning
AUDIO TONE Active in the presence of ultrasonic field and repetition rate
increases with signal strength
AUTO POWER OFF User programmable for 5, 10, 15 mins or none
SPECIFICATION
