    Allscanner VXDIAG MULTI Diagnostic Tool for Toyota Honda Land Rover/Jaguar JLR & Volvo 4 IN 1 Scanner with WIFI

    • Item No.  A355-1
    • History: 41  sold
    • Market Price: US$237.60
      Shop Price: US$198.00You save US$39.60
      Quantity
      Total
      continue
    • Quantity:  156
    • Weight:  4.0KG
    • Rank:  comment rank 5 () Write a Review

    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video


    Allscanner VXDIAG MULTI Diagnostic Tool for Toyota Honda Land Rover/Jaguar JLR & Volvo 4 IN 1 Scanner with WIFI



    VXDIAG is the  latest  diagnostic  software platform.  Diagnostic software  can be operated under  WinCE and Windows,  available installation  for Laptop or PDA.
    Automotive Diagnostic language (VDL) exploitation platform based on XML by self -determination  and high efficiency  database management  system, these will make it easily to explore the vehicles.


    Top 5 Reasons to Get VXDIAG Multi Diagnostic Tool:
    1. This Version VXDIAG Support Toyota, Honda, LandRover & Jaguar and Volvo, 4 Software in one Device. (From July 5th, 2017, add Volvo car software on this device, if you bought VX01/VX01-W on our site before, then can get Volvo software for free, if not , need to pay 85USD to get the authorization.)
    2. Support both 12V and 24V gasoline and diesel car.
    3. Hardware support 4-way CAN BUS and 2-way K - Line/L-Line, support multi-protocol high-speed and concurrent communication
    4. With the innovation design of OBD II intelligent bus protocol routing hardware, a diagnostic plug can be intelligent identification test all  models, fully meet the future  demand for all kinds of bus communication
    5. With this VXDiag firmware, you can add more original software, only need buy authorization from us. Already released original software authorization has GM, Ford, Mazda,Toyota, Honda, LandRover, Jaguar, Subaru,Volvo,VW,and Porsche.

    Toyota or VW: 70USD
    Ford&Mazda or JLR or Volvo: 85USD
    GM: 90USD
    Honda:110USD
    BMW:150USD
    Subaru: 270USD
    Porsche: 440USD  Hard Disk: 65USD, needs to ship HDD, not including shipping cost yet
    Benz: 240USD Hard Disk: 80USD, needs to ship HDD, not including shipping cost yet


    Notice:
    1. VXDIAG Can Not Support All Keys Lost, Need At Least One Key.

    2. VXDIAG Multi Diagnostic Tool Software Update: When original newer software coming out, we can send you download link or by CD
    3. VXDIAG Multi Diagnostic Tool Software Version:
    Toyota V12.019
    Honda 3.101
    LandRover, Jaguar Version V153
    VXDIAG Multi Diagnostic Tool support all original software function.

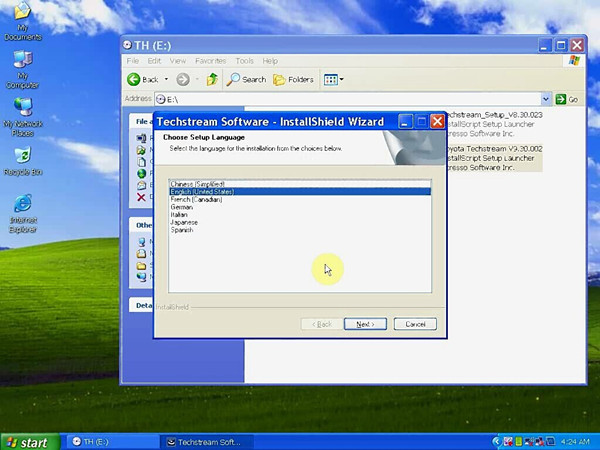

    Toyota Supported Languages:



    Jlr Supported Languages:



    PC Requirement:
    Processor: Pentium 4 / 1.6GHz+.
    Memory: 1G Bytes or more.
    Hard disk: 40G or more.
    Display: Resolution 1024x768 or higher.
    Network interfaces: LAN 10 / 100M or 802.11b / g.
    Communication Interface: USB2.0 or USB3.0


    VXDIAG Multi Diagnostic Tool Specification:
    1. Item State
    RAM 32bit180MHz ARM
    FLASH 1MByte FALSH

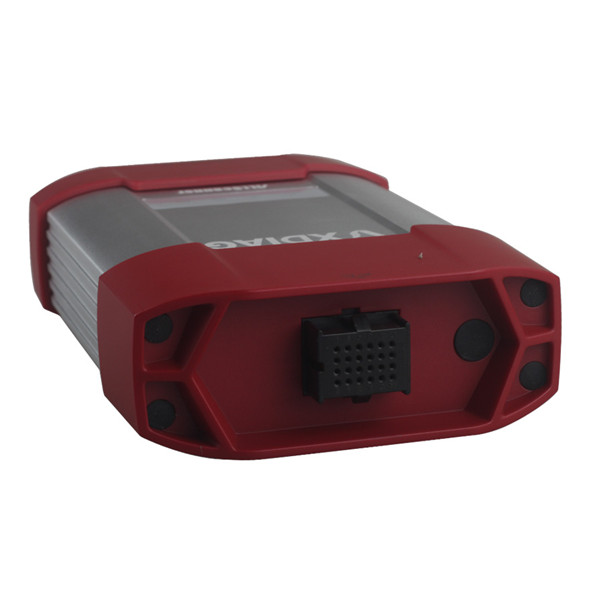

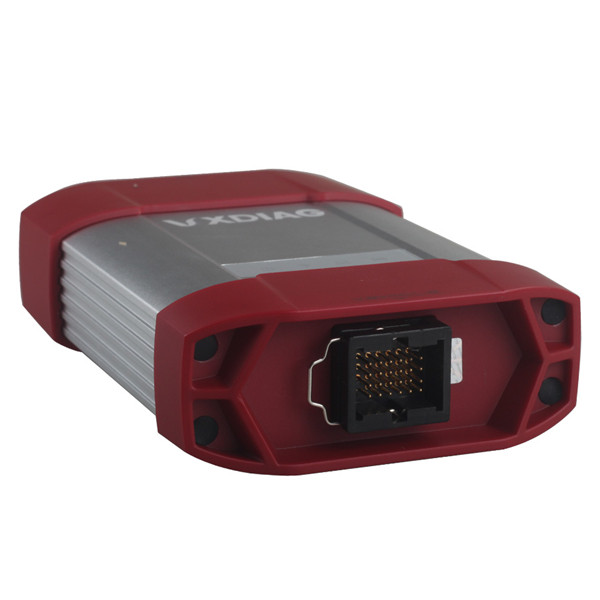

    Diagnostic Port 24PIN, self-determination design

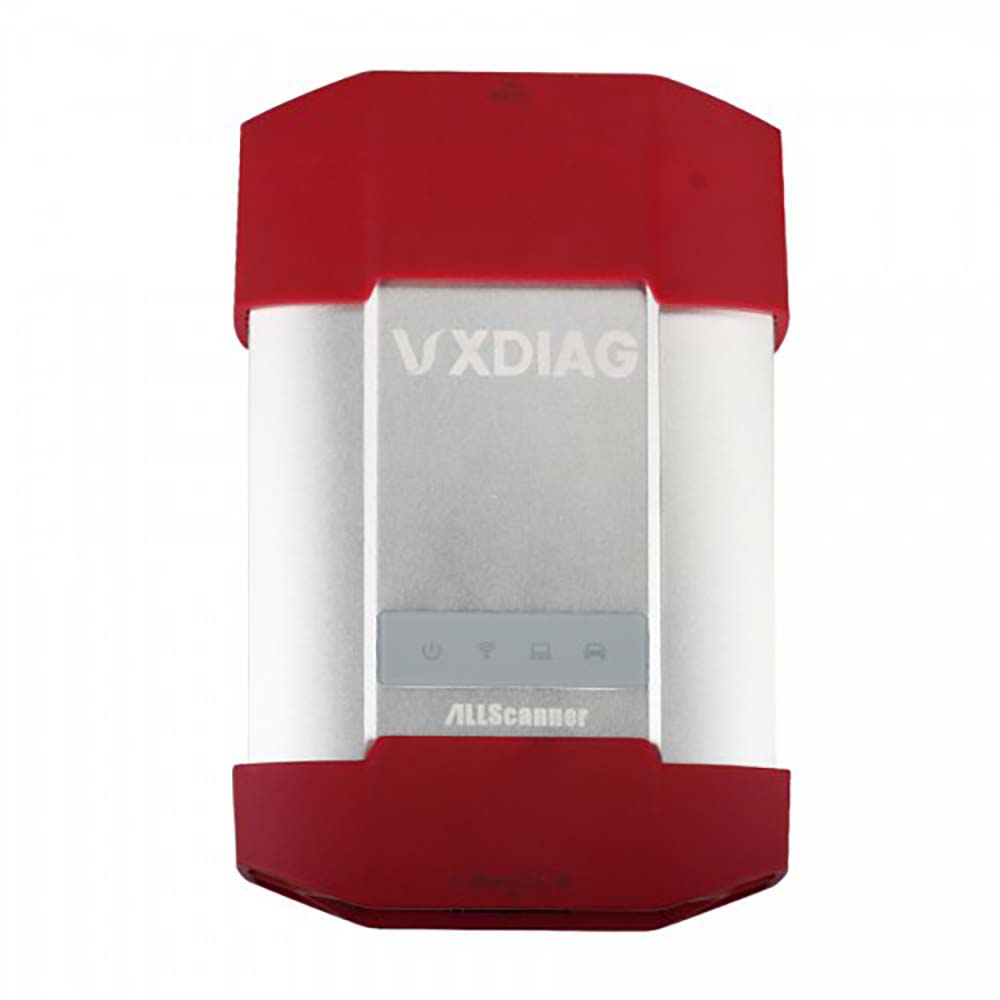

    LED 4 LED indicator light,indicate power and status.
    Power DC 9V-36V
    Consumption 3W
    Working Temperature -20°C~70 °C
    Storage Temperature -40°C~85 °C
    Warranty: One Year

    2. Product Feature
    1. Adopt 16 digit Dual Cell specialize CPU, Full compliant with all vehicles protocols.
    2. Diagnostic software accord with international standard, collocate communication port flexibly, less connectors
    3. Self-determination design for connectors and cables.
    4. Hardware accord with CE and FCC standard.
    5. Support almost all vehicles socket.

    VXDIAG Multi Diagnostic Tool Supported Protocols:
    ISO-9141 K-Line
    ISO-14230 K-Line
    ISO-15765 CAN
    SAE-J1850-VPW (GM Class2)
    SAE-J1850-PWM (FORD SCP)
    ISO-11898-2 DWCAN
    ISO-11898-3 DWFTCAN
    SAE-J2411 Single Wire CAN (GMLAN)
    SAE-J2610 SCI (Chrysler)
    SAE-J1567 CCD BUS (Chrysler)
    SAE-J2740 GM ALDL
    SAE-J2809 (HONDA DIAG-H)
    CAN125/CAN250/CAN500/CAN1000
    SAE-J1939 CAN
    SAE-J1708/J1587 On RS485
    CAT DATALINK (Catepillar)
    ATA DATALINK (Catepillar)

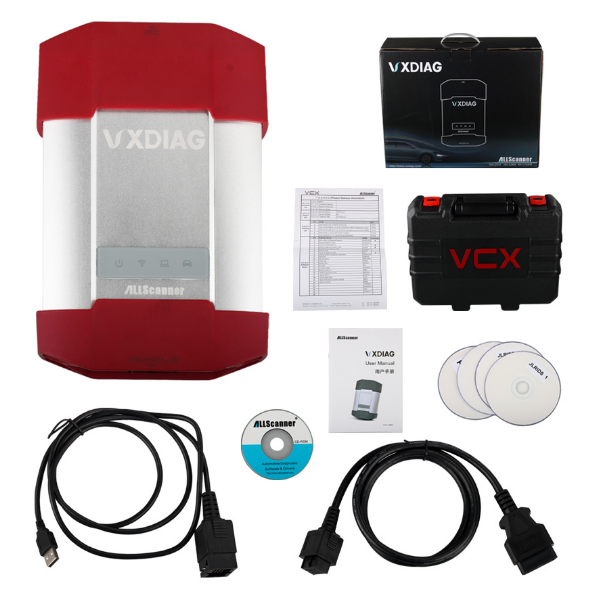

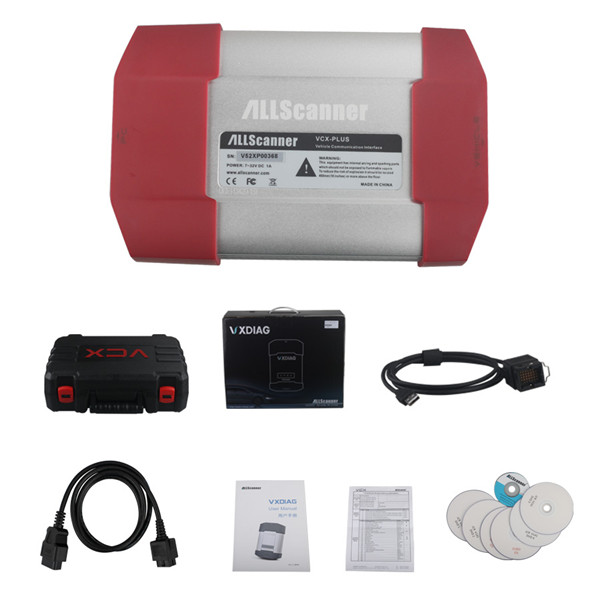

    Package List:

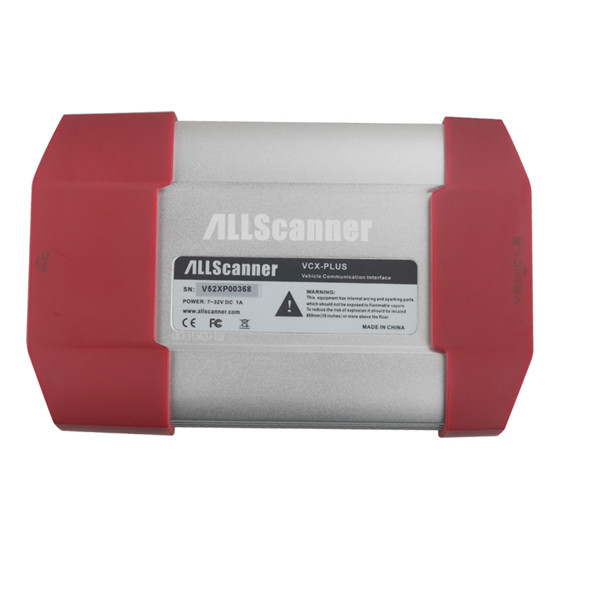

    1pc x VXDIAG VCX-PLUS
    1pc x OBDII Cable
    1pc x USB Cable
    1pc x CD
