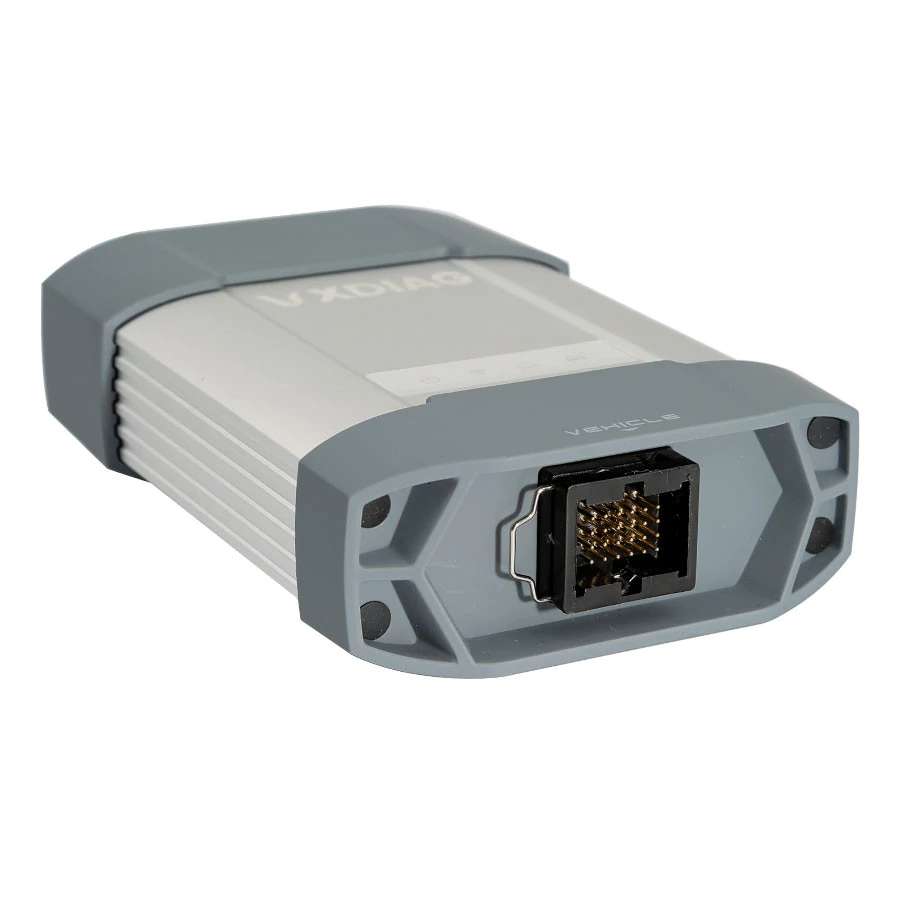

    VXDIAG Multi Diagnostic Tool BENZ MB STAR C5 Plus BMW ICOM next 2 in 1 Scanner

    • Item No.  A414
    • History: 32  sold
    • software in HDD or software in laptop:


    • Market Price: US$718.80
      Shop Price: US$599.00You save US$119.80
      Quantity
      Total
      continue
    • Quantity:  179 50
    • Weight:  7.5KG
    • Rank:  comment rank 5 () Write a Review

    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video


    VXDIAG Multi Diagnostic Tool BENZ MB STAR C5 Plus BMW ICOM next 2 in 1 Scanner



    Note:

    1.If you choose 500G HDD,we will install BENZ and BMW Original Software in the HDD,you just put it into you laptop and you can use it .

    2.If you choose Second Lenovo T410 Laptop,we will install BENZ and BMW Original Software in the laptop,you can use it after receiving it.


    BMW software version: Diagnosis: ISTA-D v40.10.40, Programming: ISTA-P v3.59.4.004
    BENZ software version: Xentry software V2018.07

    Top 5 Reasons to Get VXDIAG Multi Diagnostic Tool:
    1. Support BMW, BENZ  2 in 1 Diagnostics.
    2. With this VXDiag firmware, you can add more original software in feature, only need buy authorization from us. Already released original software authorization has PORSCHE, JLR, VW, BMW, Mercedes Benz(old models), Mercedes Benz(new models), TOYOTA, HONDA, SUBARU, FORD, GM, VOLVO, MAZDA, GM MDI
    3. With the innovation design of OBD II intelligent bus protocol routing hardware, a diagnostic plug can be intelligent identification test all  models, fully meet the future  demand for all kinds of bus communication
    4. VXDiag Multi Diagnostic Tool can be compatible with original BMW and BENZ software.
    5. Hardware support 4-way CAN BUS and 2-way K - Line/L-Line, support multi-protocol high-speed and concurrent communication


    ALLSCANNER VXDIAG for BMW & BENZ Features:
    VXDIAG for BMW Function Introduction:
    The new BMW software can perform programming and coding for all BMW E/ F/ G series cars. Same as BMW ICOM A1 / A2 / A3, ALLSCANNER VXDIAG A3 supports all BMW software and is good at fiber programming.
    The main diagnostic software includes:
    BMW ISTA-D (Diagnostic);
    BMW ISTA-P (Programming)
    BMW Group ISPI (the fourth generation of BMW diagnostic software client);
    E-SYS (Engineer Software for F series, available for programming, coding, Chinesization, realize hidden functions, advanced features);
    WINKFP (for E series: programming, upgrade and downgrade);
    Tool32 (enter key, import codes, delete certification, advanced features of BMW series);
    INPA (read vehicle information, diagnosis, read and clear trouble codes);
    BMW Coding (for E series: import data, change the code or realize hidden functions);
    KSD2 (offer full vehicle repairing information for diagnosis or programming);
    NCS-Expert tool (for E series: set codes, realize hidden functions and change settings);
    BMW software includes the engineer version, which is the quick and easy diagnostic programming and coding system that German BMW engineers are using. The system is designed in English and German. The Engineer version is so practical and powerful that it can achieve professional features which all the original professional computers can realize, can change the language into Chinese through the OBD port for import cars (Europe regulation cars, the United States and the United States, Africa, etc.). Features mainly include: diagnosis, programming (incl. programming one module only), coding, realize hidden function, new features activation, the module system update.
    BMW software version: Diagnosis: ISTA-D v40.01.21, Programming: ISTA-P v3.59.4.004

    Following functions can be activated based on the existing configuration model:
    01 use the button in the cab to close the trunk (electric tailgate), to terminate the reverse operation at any time (available in cars with the electric tailgate)
    02 activate the Bluetooth phone function, to automatically play the music inside the phone every time you start the car. (Available in models with a USB port in the armrest box or gear)
    03 support audio and video playback via USB cable as well as via iPod.
    04 connect to the phone through the Wi-Fi (mobile phones are required to install software)
    05 open the voice recognition function (currently only available in English digital telephone dialing)
    06 operate the navigation menu when driving, watch DVD (Even the original car is available with CD, you can also watch DVD)
    07 Active internet applications (available in post 2012.09 models with professional navigation, but some unsupported with unclear reasons)
    08 immediately fold the rear-view mirror with the remote control (for the original car, owners need to press the lock key for 1.5 seconds)
    09 activate gearbox program on the sport cars, at a quicker response for speeding up. But it will cause fault codes in ECU test in the 4S shop. (NOT recommended)
    10 effectively prevent rear-end collision because brake lights flash quickly when braking severely (for 3 Series 5 Series, testing)
    11 use mobile phone traffic to surf the Internet on iDrive via the phone Bluetooth (not tested yet)
    12 adjust the warning speed of changing a lane (available in high-end cars with the rearview mirror with the dead angle warning indicator) (not tested yet)
    13 automatically released the handbrake (parking button) when the vehicle is started (testing)
    14 add the lane departure system and roadside warning identification function (available in optional cars with front cameras) (not tested yet)
    15 L7 around Sound Pro

    Personalized Customization
    1. Set Seat Belt Alarm time
    2. Disable passenger Seat Belt Alarm
    3. Disable driver Seat Belt Alarm
    4. Set the engine on/off status the same as that before the ignition off or the default status off.
    5. Set the central lock automatically unlock when ignition off
    6. Set Fuel Economy Mode as default mode after ignition on
    7. Enable roll up window when open car door
    8. Enable the option of DRL (Day Running Lights) on or off.
    9. Set Highlight auxiliary and intersection traffic light “Automatic”
    10. Enable to adjust DRL brightness (the default factory setting is brightest)
    11. Set fog light turn on while headlight is on
    12. Enable to Lock/Unlock sound  and adjust the volume
    13. Enable auto close sunroof when raining (May lead to initialize sunroof, it will work only after ignition on for 10 seconds, not very effective.)
    14. Set windshield wiper Back in place when ignition off
    15. Set sunroof automatically close in a tilted state (It needs to initialize sunroof)
    16. Set the turn signal light on/off times (F30)
    17. Enable CIC menu display CI version
    18. Three Bluetooth phone rings available
    19. Enlarge phone number and text storage (25 to 50) A/C (Automatic Air Conditioning)
    20. Set indoor internal circulation memory the same as that when the ignition off last time.
    21. Set air conditioning memory the same as that when ignition off last time.
    22. Display engine output power and torque on navigation screen
    23. Cancel home screen boot delay confirm message
    24.  Cancel rear view camera statement when reversing
    25.  Display available gas station on navigation
    26. Display speed limit info (Need hardware support)
    27. Display engine torque menu
    28. Auto headlight
    29. TPMS
    30. Display tire pressure and temperature (Need hardware support)
    31. Adjust mile to kilometer
    33. GPS time synchronization
    34. Dashboard stimulate instant fuel consumption: change from 20 to 30
    35. Enable dashboard light on always
    36. Enable dashboard light always on at night (For BMW 535, GT, 7 series and part of BMW 530)
    37. Enable dashboard light always on at daytime (For BMW 535, GT, 7 series and part of BMW 530)
    38. Enable dashboard lights turn grey (For BMW 535, GT, 7 series and part of BMW 530)
    39. Enable dashboard lights turn orange or grey (For BMW 535, GT, 7 series and part of BMW 530)
    40. DS Mode display current shift from S1 to S7
    41. Set Head-Up Display (Navigation map distance and turn signal, etc.) (Need hardware support)
    42. PDC reversing radar is changed vertically and horizontally

    2.VXDIAG for BENZ function introduction
    Benz software include two versions of PASSTHRU & PDU,including DAS,Xentry software.Version of PDU support new car models of 222,213,205 etc,other car models need to usepassthru version to diagnose. Not support old models of 210,203,220 with K-Line communication. It support connections of WIFI,LAN and USB.

    Product Features:
    Engines (All Gasoline & Diesel Systems)
    Transmissions and Electronic Selector Modules
    Airmatic and Active Body Control Suspension Systems
    Traction Systems: ESP / ASR / ETS / ABS / BAS / SBC braking systems
    Supplementary Restraint Systems (SRS) / Airbag, All body modules OCP / UCP / LCP / SCM / SKF / KFB / RCM / DCM’s
    Drive Authorisation System
    Sam (Signal Acquisition) Modules
    Electronic Ignition System (EIS)
    Pneumatic System Equipment and ATA functions
    Air Conditioning / climate control Systems
    Instrument Cluster
    Tyre Pressure Control
    Parktronic System
    Keyless Go
    D2b Command & Audio Gateway (D2B and MOST networks)
    TV Tuner
    Headlamp Range Adjustment
    Seat Electronics
    Rvc, RST & Vario Roof modules
    Automatic Clutch System ACS
    M-Class Body Modules (AAM / EAM / DAS / SEM / VG Transfer Case)
    Assyst & ASSYST + systems

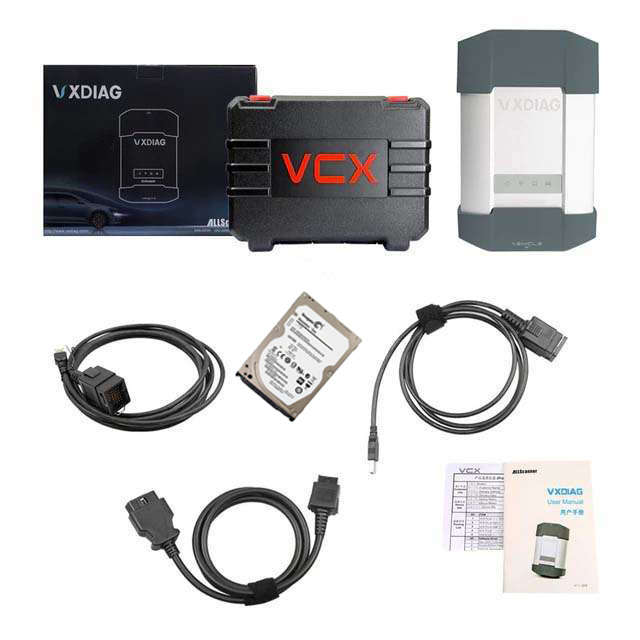

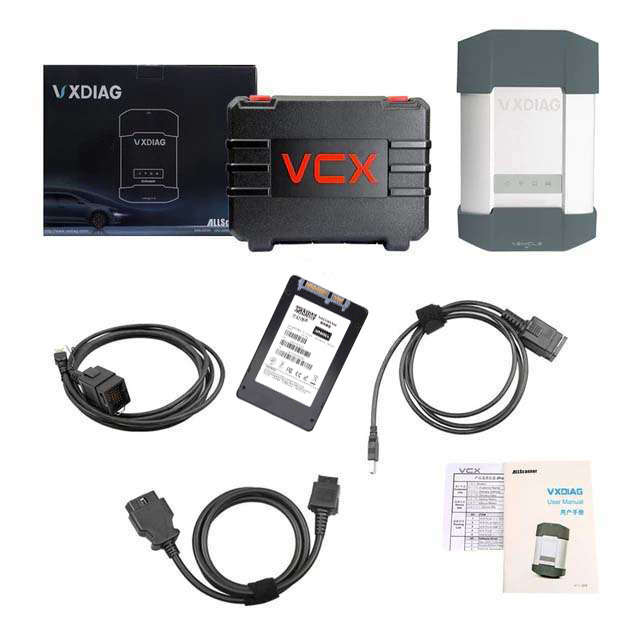

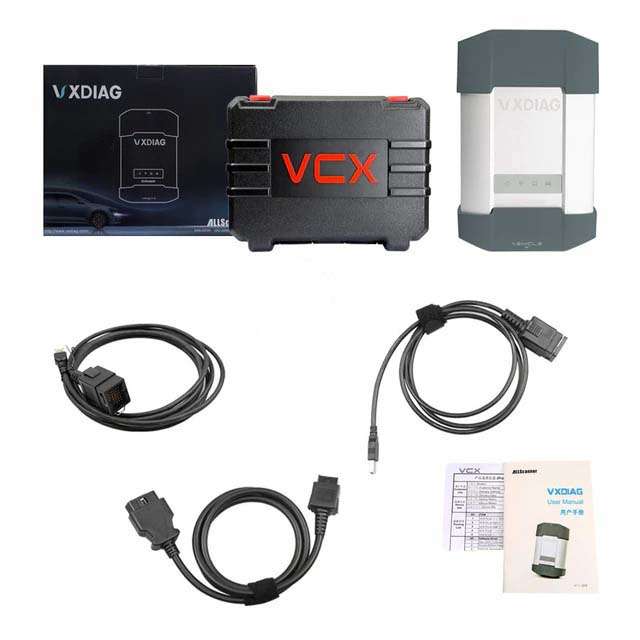

    Packing List 1:

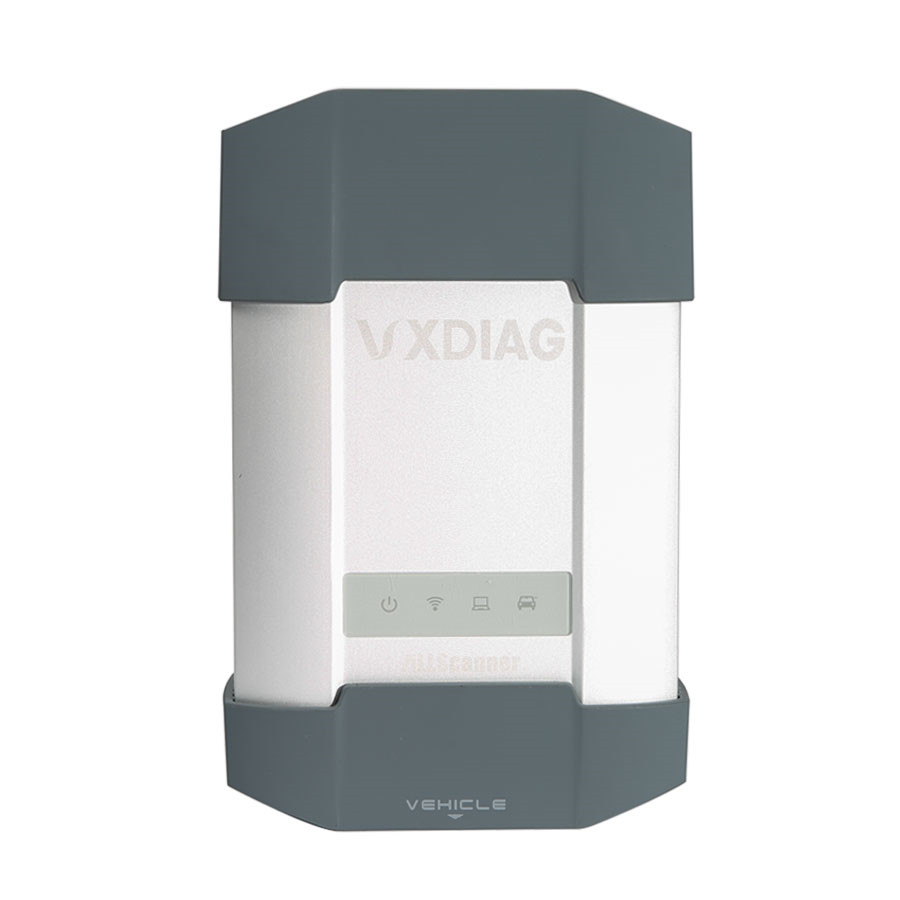

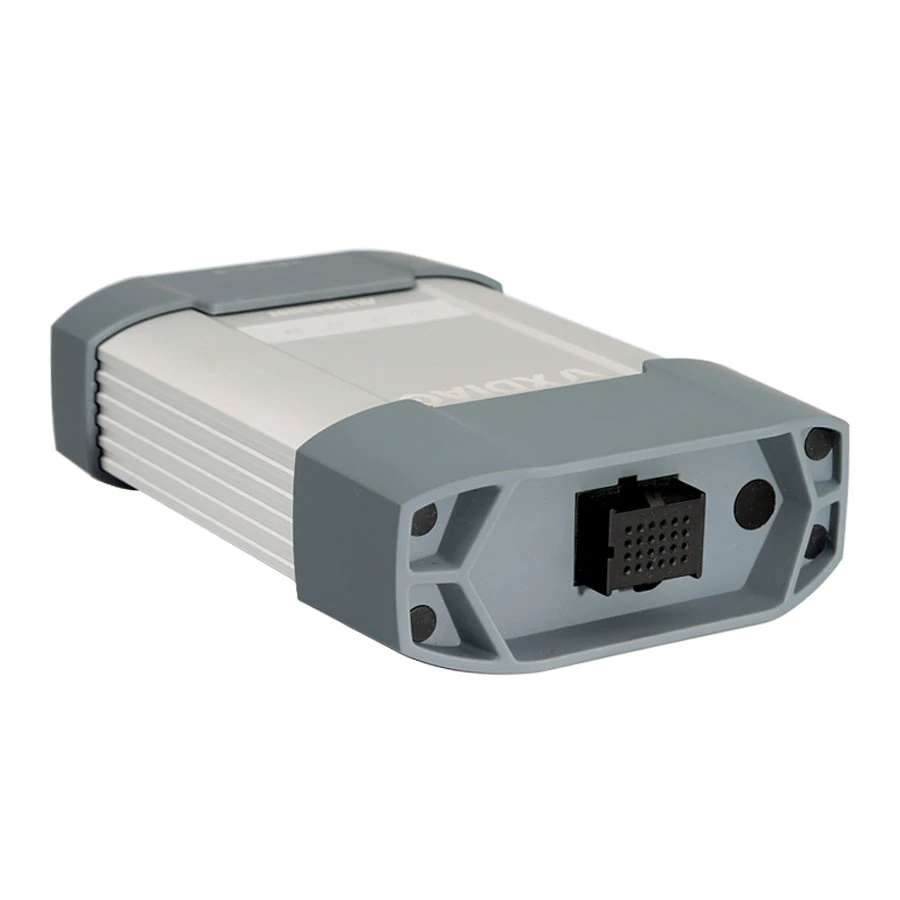

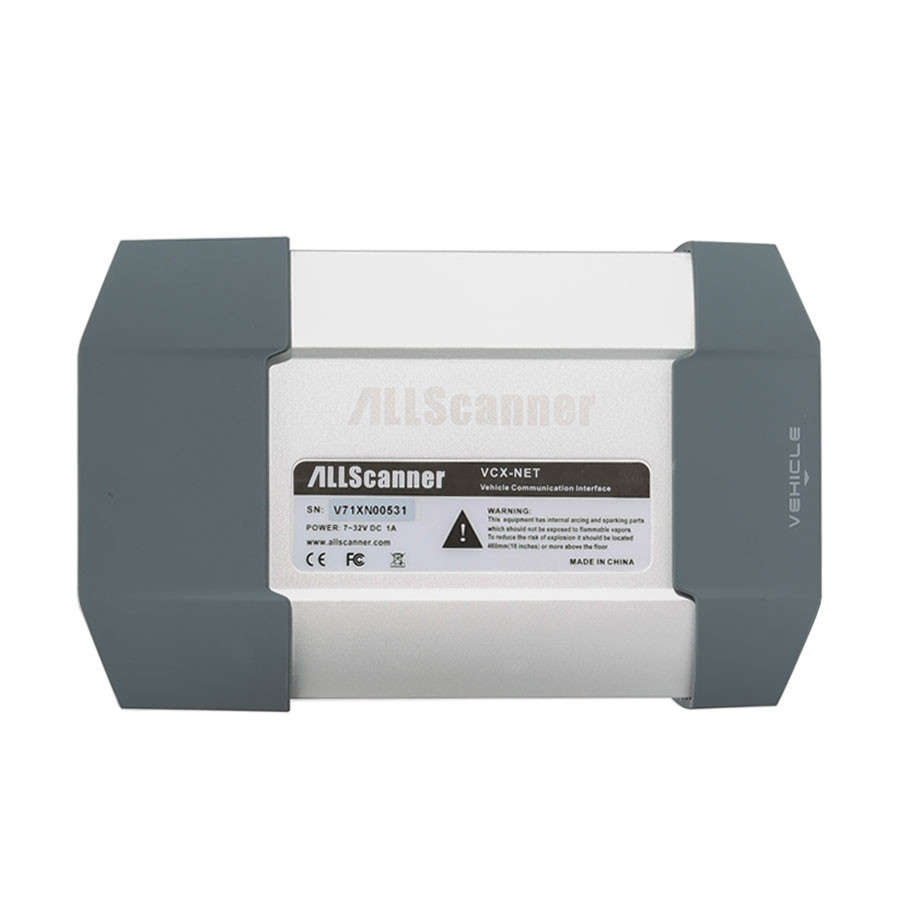

    1pc x ALLSCANNER VXIDAG Main Unit

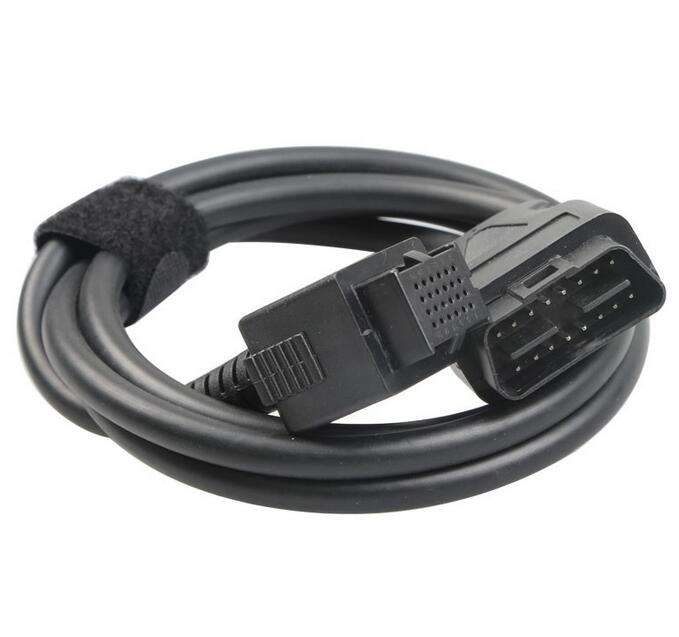

    1pc x OBD cable
    1pc x USB cable
    1pc x network cable
    1pc x 500GB hard drive

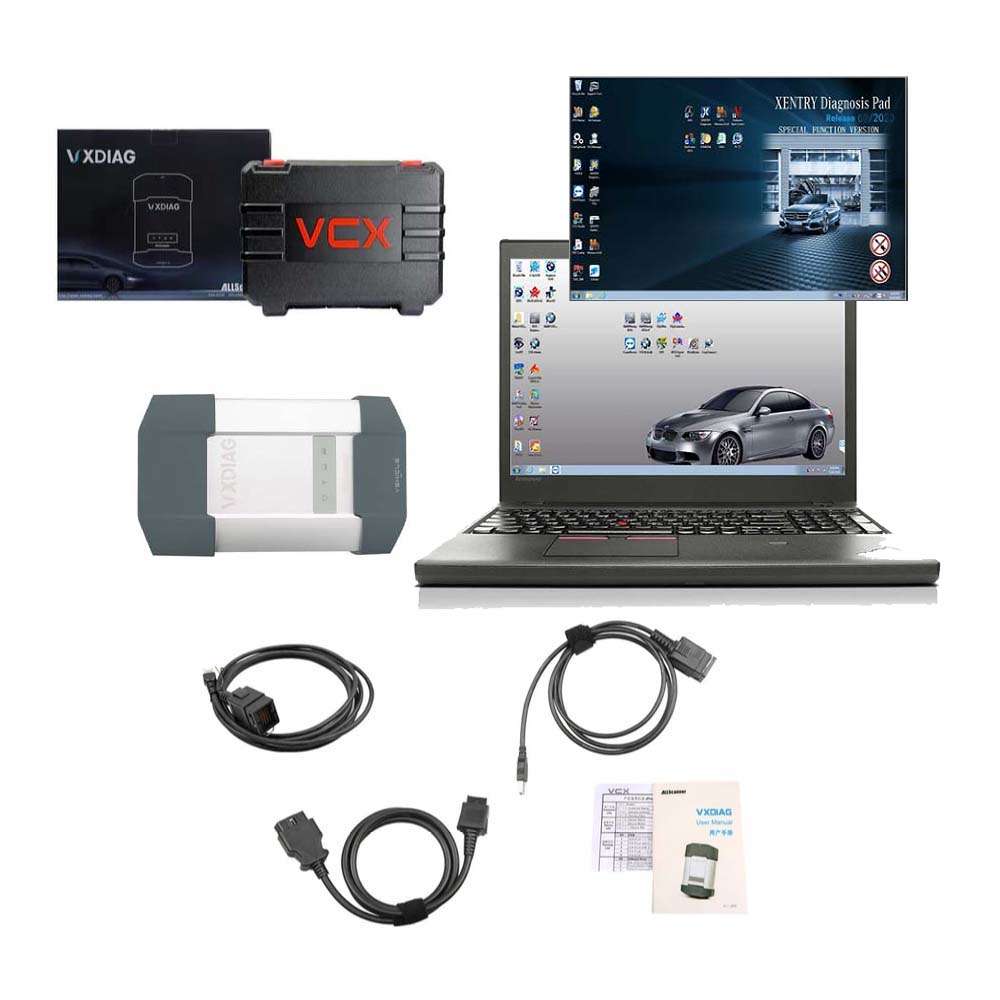

    Packing List 2:
    1pc x ALLSCANNER VXIDAG Main Unit
    1pc x OBD cable

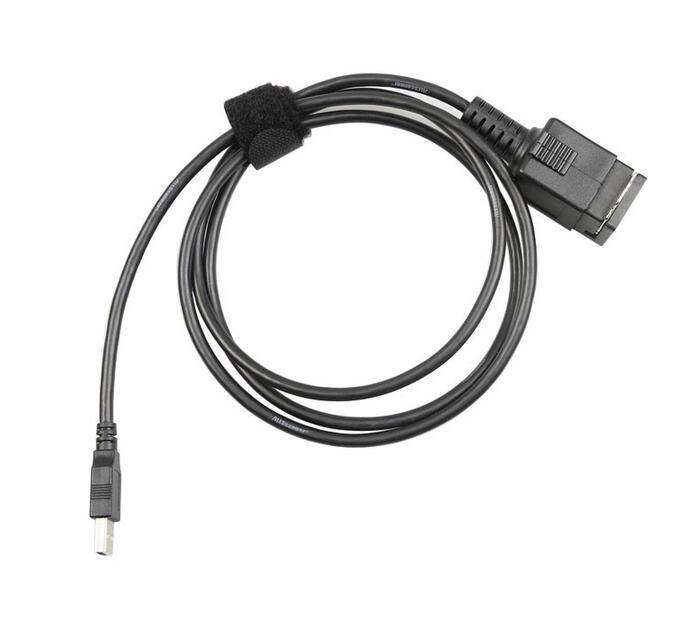

    1pc x USB cable
    1pc x network cable

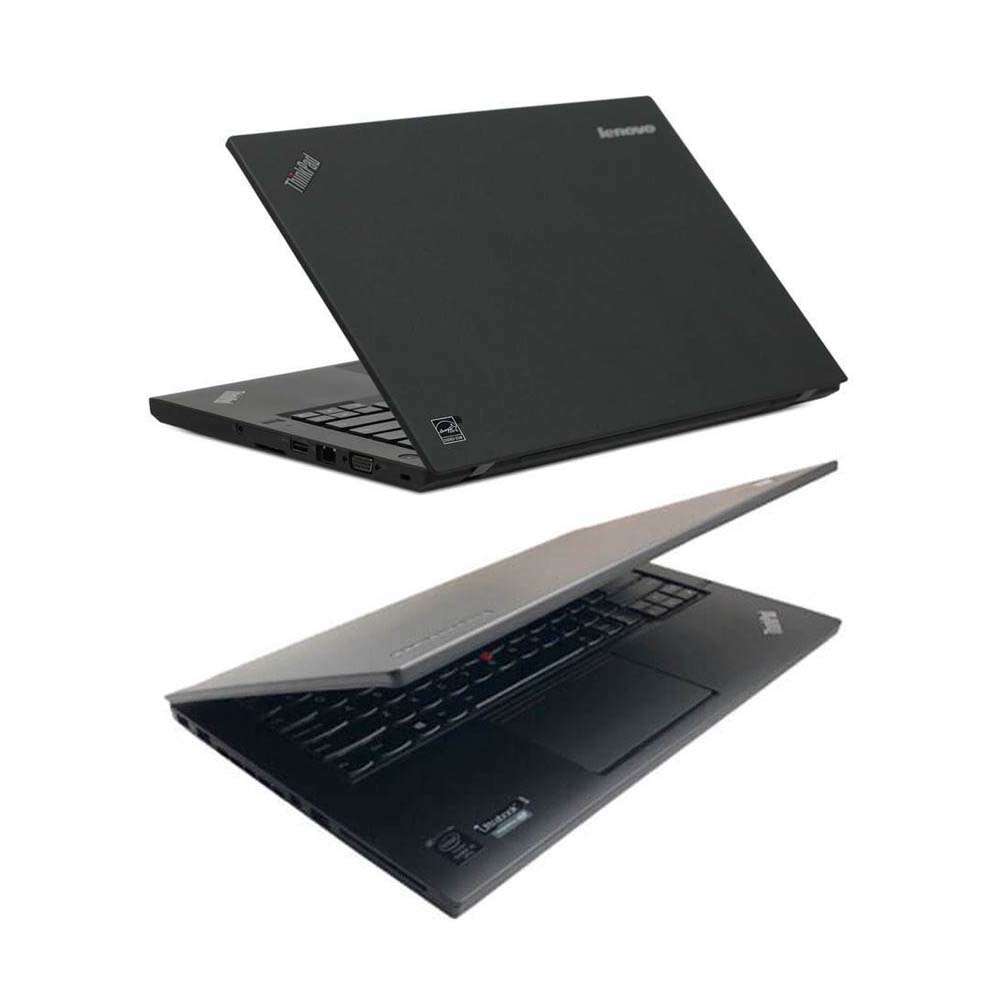

    1pc xSecond Lenovo T410 Laptop


    Note:

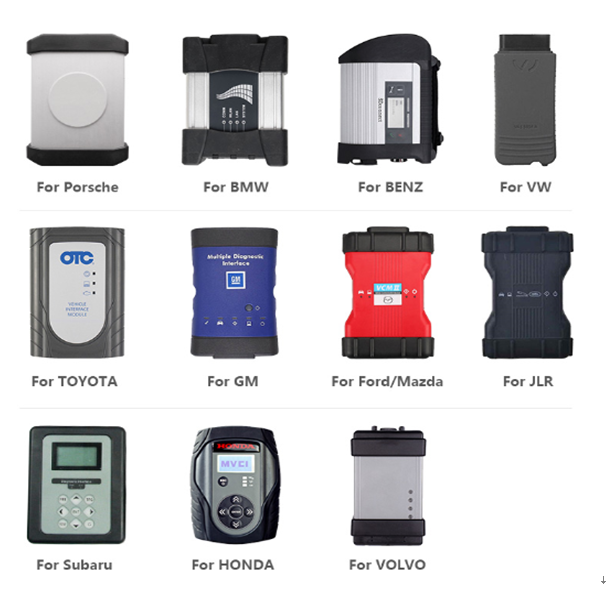

    This product only comes with BMW and BENZ software,if you want to add GM,Ford,Mazda,Toyota, Honda, VW ODIS,LandRover,Jaguar,Subaru,Volvo,VW,Porsche Original Software,please contact us to buy it.

    Software version:
    1.Toyota  13.00.127
    2.HDS      3.101.011
    3.FORD/ MAZDA   109
    4.GM       2017.12
    5.VOLVO Vida   2014D
    6.JLR      153
    7.VW       4.3.3
    8.Benz    2018.7
    9.BMW    4.10.40
    10.PORSCHE   18.1
    11. SUBARU SSMIII   2018.4
