    Autel MaxiIM IM508 ADVANCED IMMO & KEY PROGRAMMING Perfect Replacment of AURO OtoSys IM100

    • Item No.  T293-3
    • History: 113  sold
    • Different Option:

    • Choose which country you are from:

    • Quantity
      Free Shipping
    • Quantity:  197
    • Weight:  7.0KG
    • Rank:  comment rank 4.5 () Write a Review
      Rated 4.5/5 based on 4 customer reviews
    • This goods is Free shipping!
    • Member Benefits  Shipping  Return Policy




    Technical Support


    Download & Technical Support

    Autel MaxiIM IM508 ADVANCED IMMO & KEY PROGRAMMING Perfect Replacment of AURO OtoSys IM100

    Note: Two year free update.

    Kindly Note: Clients from UK,Portugal, Spain please do not buy AUTEL IM608 from China, or your device will get locked, please buy from your local dealer.

    MaxiIM IM508 Supports Muti-Language: English / Portuguese / Germany / Japanese / French / Spanish(Our default language is English. If you need other languages, please leave us a message or contact our customer service.)

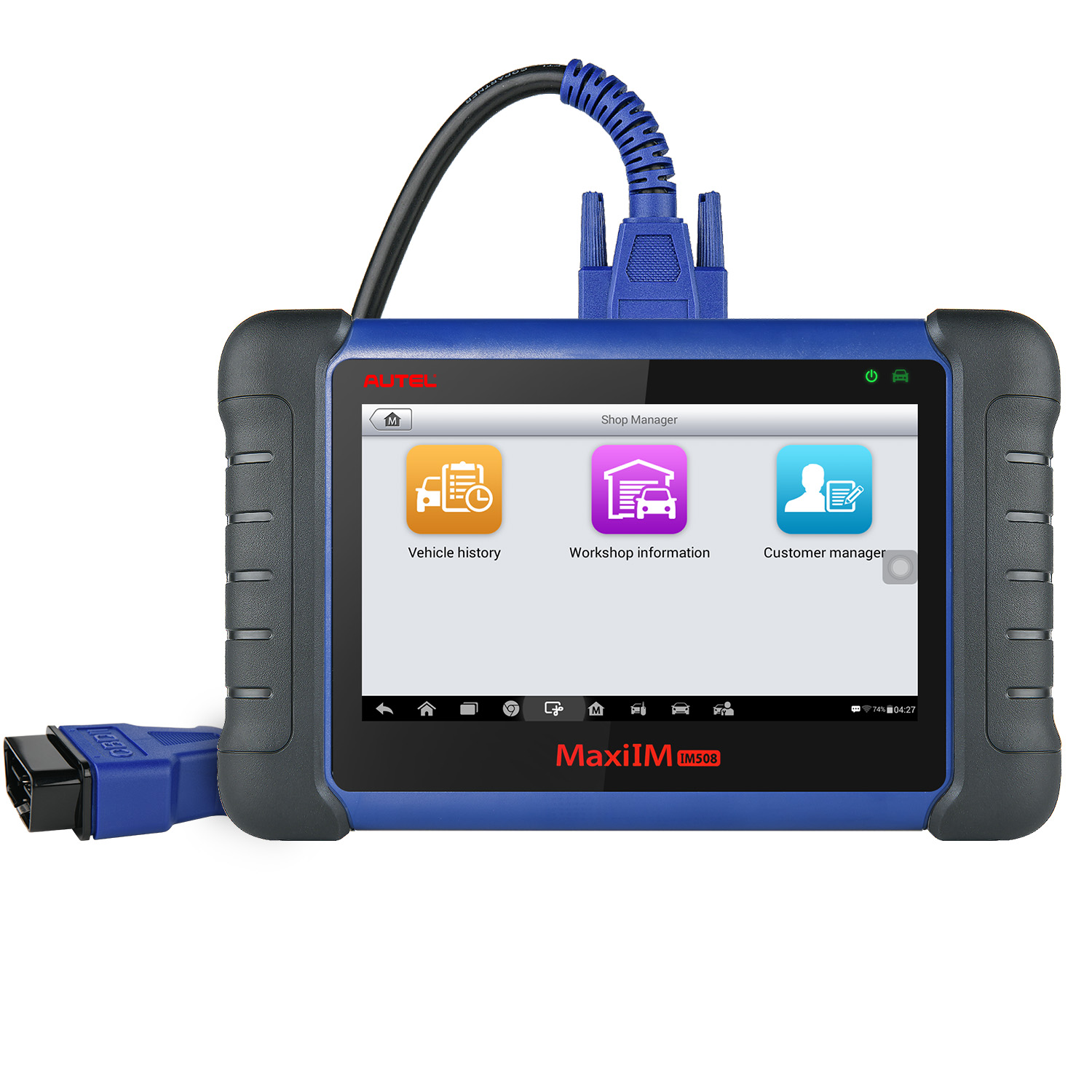

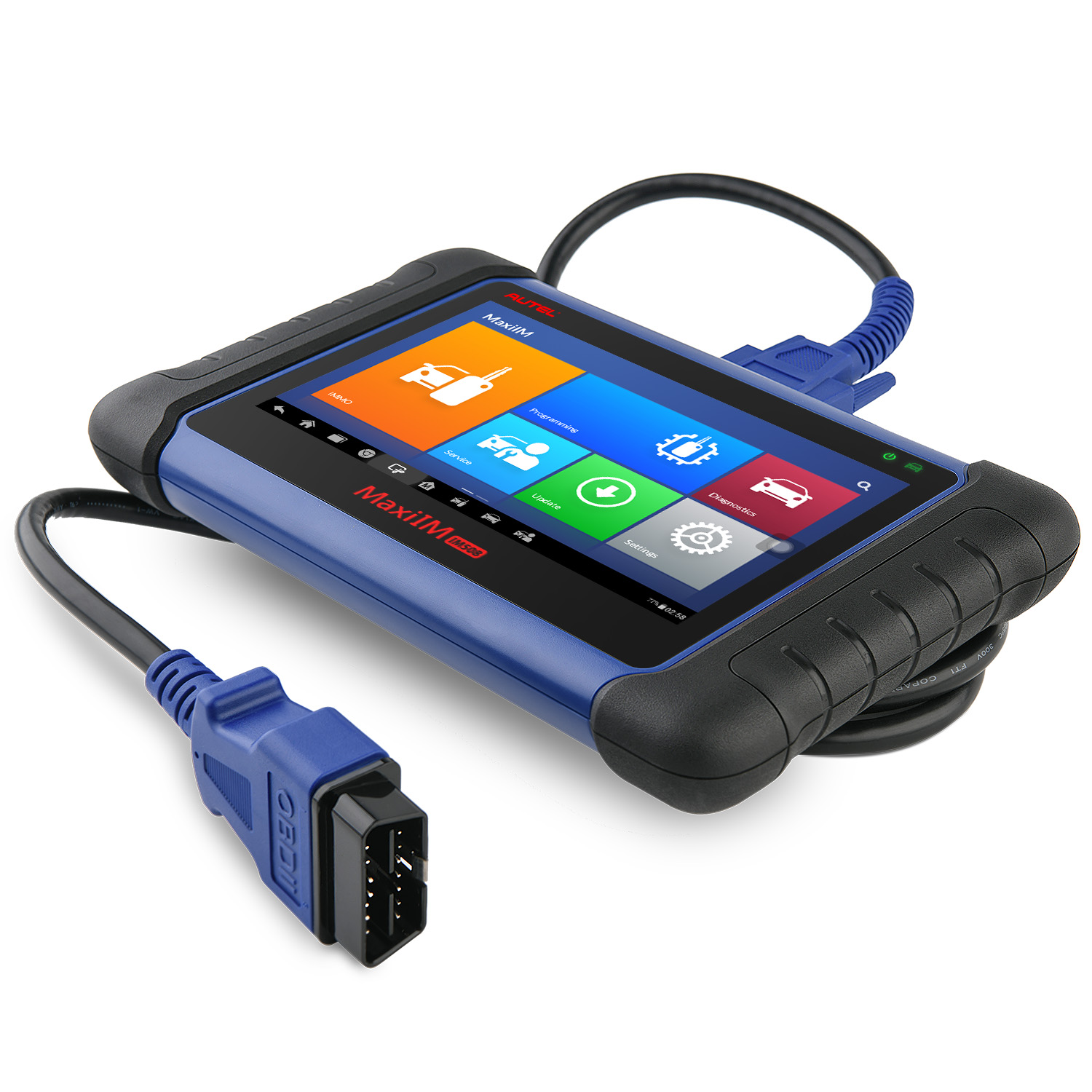

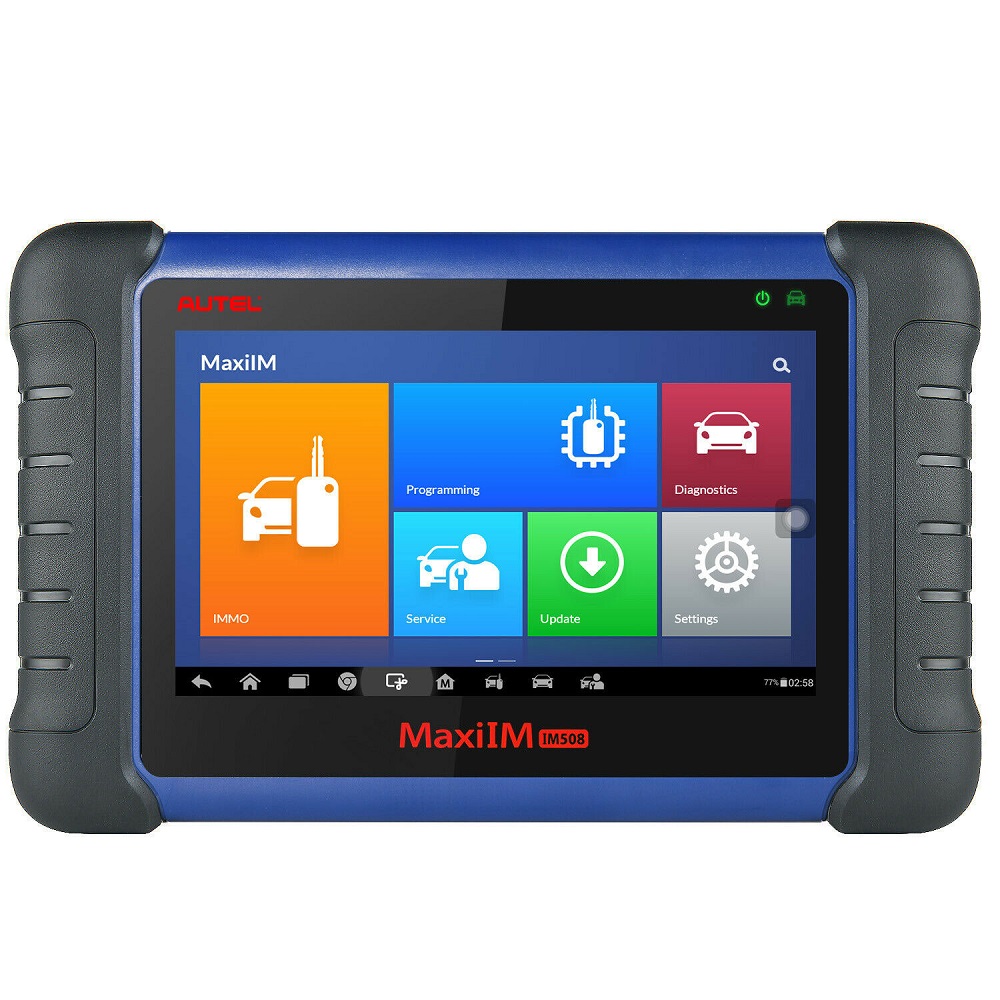

    Autel MaxiIM IM508 is a fast, easy-to-use, and ultraportable immobilizer and key programming device.IM508 is capable of providing extraordinary service functions for the immobilizer system. Together with the ability to quickly diagnose all modules of the majority of the makes and models on the market, IM508 provides you with superior special functions. IM508 is the perfect solution for shops and technicians who demand affordable and powerful IMMO and diagnostic services.

    Autel MaxiIM IM508 Features:


    With XP200 Key Programmer, IM508 Key Programmer Tool has all IMMO functions as IM608 except for Benz 3rd Generation IMMO, BMW CAS4 Key Learning and VW/Audi MQB(VDD & JCI) Add Key, IMMO V A4/A5/Q5 2015+ Key Learning availability. With nearly 1/3 of its price, IM508 is a perfect affordable IMMO tool alternative for Autel IM608. IM508 is a professional automotive key programming tool that combines key programming, all car systems diagnosis and advanced service functions.

    Autel MaxiIM IM508 Function List:

    All Systems Diagnostics

    AutoVIN / AutoScan

    Read / Erase Codes

    View, Record, Playback Live Data

    View Freeze Frame Data

    Shop and Data Manager Applications

    Key Read / Write

    EEPROM / MCU Read / Write

    Read PIN / CS (All Key Lost)

    Key Generation

    Key Learning

    Remote Learning

    Backup / Restore IMMO Data

    IMMO ECU Reset / Adaptation

    IMMO ECU Refresh / Coding

    BMW FEM / BDC Key Learning and ECU Adaptation

    VW / AUDI MQB Key Learning, 48 Transponder (96-bit) Add Key, All Key Lost, A6 All

    Key Lost, and More


    IM508 Diagnostic Scan Tool can perform: Read PIN/CS(All Key Lost), key generation, key learning, remote learning on Benz FEM/BDC Key Learning/ECU Adaptation, BMW CAS3/2 Key Learning, VW/Audi/Skoda/Seat IMMO III/IV/V Add Key, All Key Lost, IMMO ECU reset/adaptation/refresh/coding, Transpronder read & write, EEPROM/MCU read & write. Being compatible with XP400 Key Programmer, you may choose to upgrade its programming capabilities further with XP400.


    As a professional diagnostic scanner, IM508 comes with most useful service functions like Oil Reset, Reset Parking Brake Pads after replacement, SAS Calibration, TPMS Sensors ID Relearn, BMS and performing active tests to test the integrity or functionality of individual system or component.


    Autel MaxiIM IM508 automotive scan tool can quickly diagnose all modules of more than 80 US, Asian and European makes and models on the market. To check compatibility with your vehicles, please send VIN to auteldirect@outlook.com or contact us through Q/A. With complete capabilities for codes, live data, ECU Info, adaptation, matching, coding and etc, IM508 is the perfect automotive diagnostic tool pick for technicians and mechanics.


    IM508 Key Programmer Scan Tool comes with 12 Months Free Software Updates and is backed by 45 Day Money Back Guarantee and 12 Months Seller Warranty. Place your risk-free purchase now and start protecting your cars from being stolen!

    Professional Key Programmer

    Autel IM508 is a professional car diagnostic scanner that provides extraordinary service functions for the immobilizer system, including: immobilizer system status,key learning, key add, all keys lost, remote control learning, remote control add, chip read and write. It’s a professional solution for car keys and remote controls and prevents your car from being stolen!

    The IMMO application requires a data link to the IMMO electronic control system of the test vehicle for diagnosis via OBD II connection. The application retrieves vehicle IMMO information and performs IMMO related functions, including Key Learning, Remote Control Learning, Remote Control Add, etc.

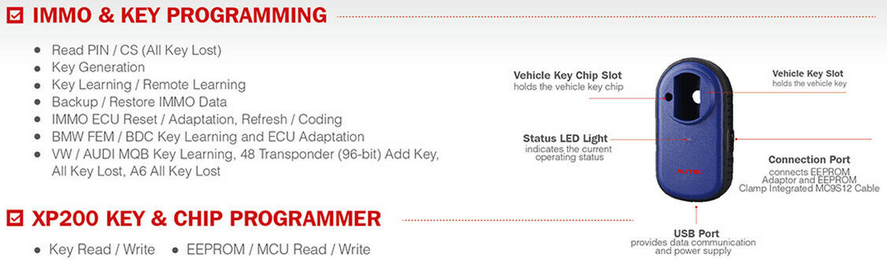

    Autel MaxiIM IM508 Advanced IMMO & Key Programming :

    1.Read PIN/CS (AII key Lost)

    2.Key Generation

    3.Key Learning/Remote Learning

    4.Backup/Restore IMMO Data

    5.IMMO ECU Reset/Adaptation,Refresh/Coding

    6.BMW FEM/BDC Key Learning and ECU Adaptation

    7.VW/AUDI MQB Key Learning,48 Transponder(96-bit)Add Key ,All Key Lost,A6 AII Key Lost

    Smart Mode & Expert Mode

    Smart Mode– accesses to a function menu where each function is configured as a smart guide system.

    Expert Mode– accesses to a function menu where each function is separated from each other.


    The Diagnostics application can retrieve ECU information, read & erase DTCs, and view live data. The Diagnostics application can access the electronic control unit (ECU) for various vehicle control systems, including engine, transmission, antilock brake system (ABS), airbag system (SRS)......

    Most Commonly Used Reset Services

    Oil Rest Service: This function allows you to perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate. The Oil Life Reminder must be reset every time the oil is changed, so the system can calculate when the next oil change is required.

    EPB Service

    This function has a multitude of usages to maintain the electronic braking system safely and effectively. The applications include deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.

    SAS Service

    Steering Angle Sensor Calibration permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM. Therefore,the front wheels and the steering wheel must be set exactly to the straight-ahead position before calibration.

    TPMS Service

    This function allows you to quickly look up the tire sensor IDs from the vehicle’s ECU, as well as to perform TPMS replacement and sensor test.

    BMS Service

    The BMS (Battery Management System) allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement and activate the rest state of the vehicle.

    DPF Service

    This function is used to manage DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

    OE-Level All Systems Diagnosis

    Autel IM508 Car Scanner can perform OE-Level diagnosis on all car electronic systems like ABS, SRS, Engine, Transmission and etc and show live data of multiple sensors.It is compatible with more than 80 American, Asian and European makes and models.

    Auto Scan Technology

    The Autel IM508 professional OBD2 scanner comes with Auto Scan function that performs a comprehensive scanning over all the ECUs in the vehicle to locate systems faults and retrieve DTCs for efficient diagnosis.

    Live Data & Review Freeze Frame Data

    The IM508 car diagnostic scanner reads codes, show live data of multiple sensors in or graph or text, clears codes. The Review Data section allows you to playback the recorded data frames of live data streams.

    Remote Technical Support

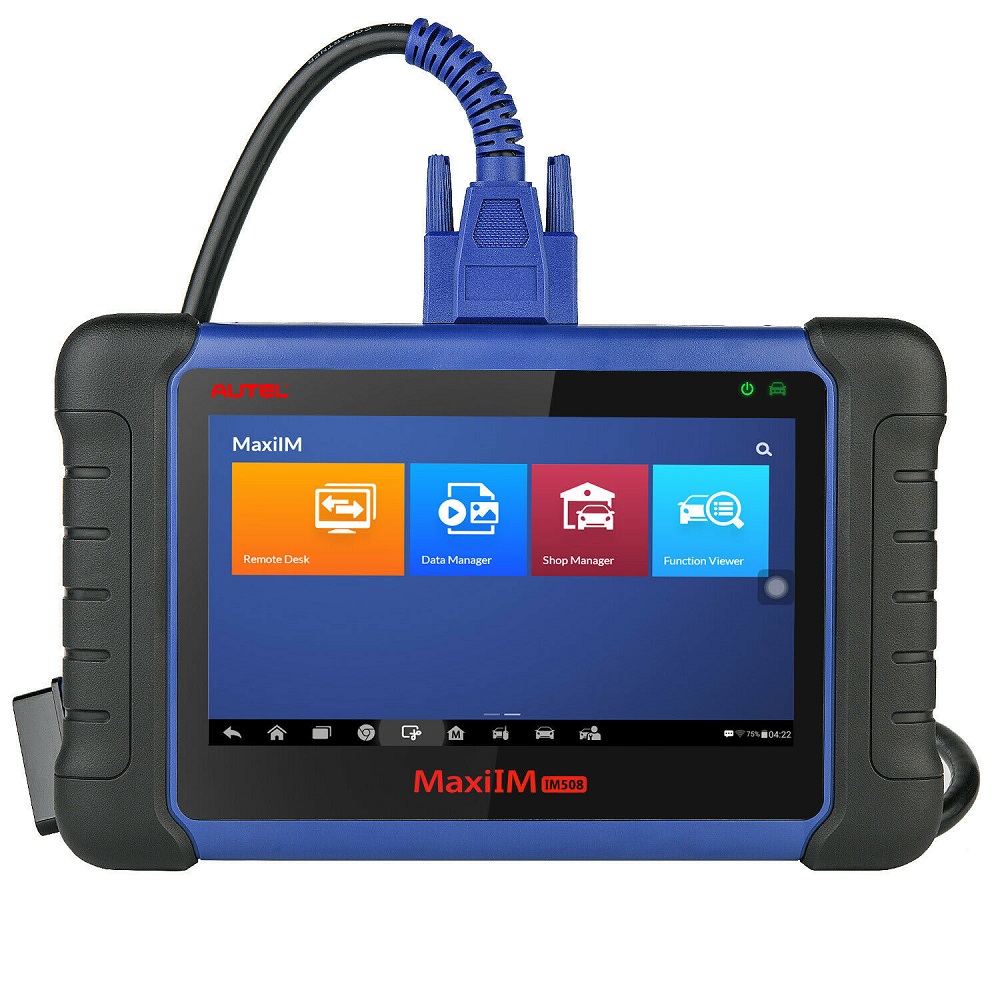

    The Remote Desk application launches the TeamViewer Quick Support program, which is a simple, fast and secure remote control screen. You can use the application to receive ad-hoc remote support from Autel’s support center, colleagues, or friends, by allowing them to control your MaxiIM tablet on their PC via the TeamViewer software.

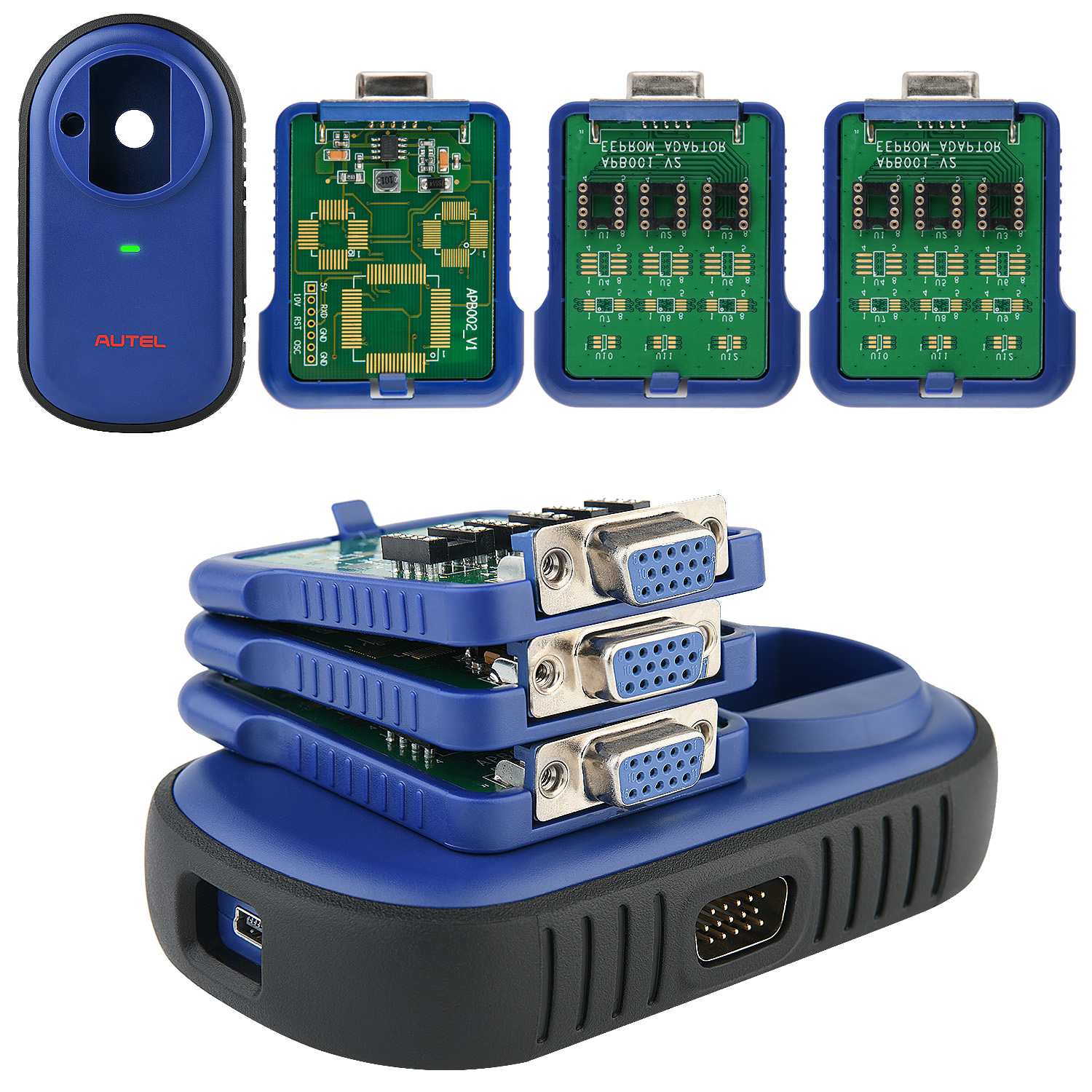

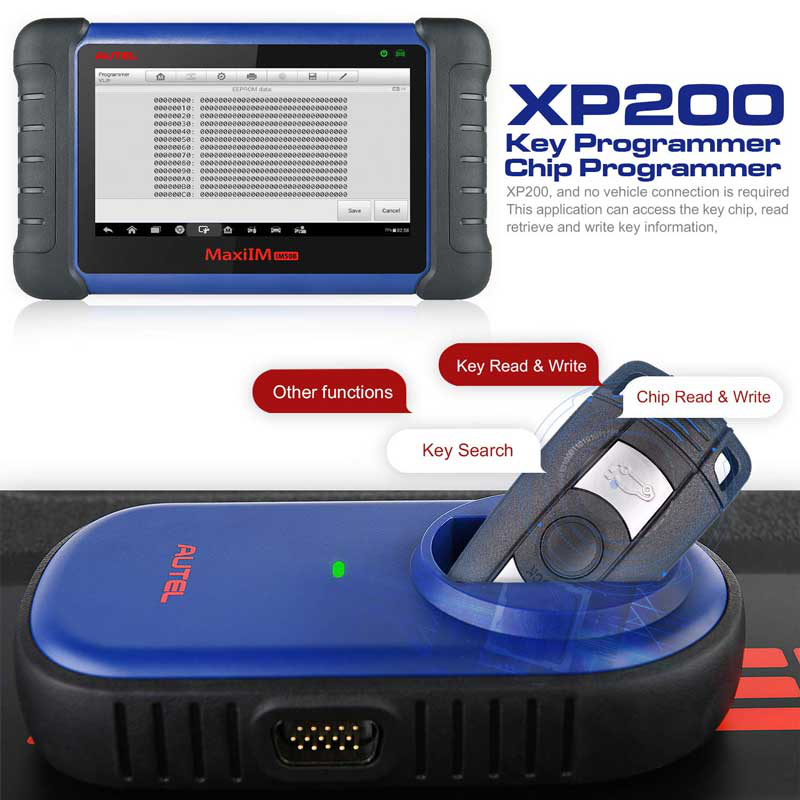

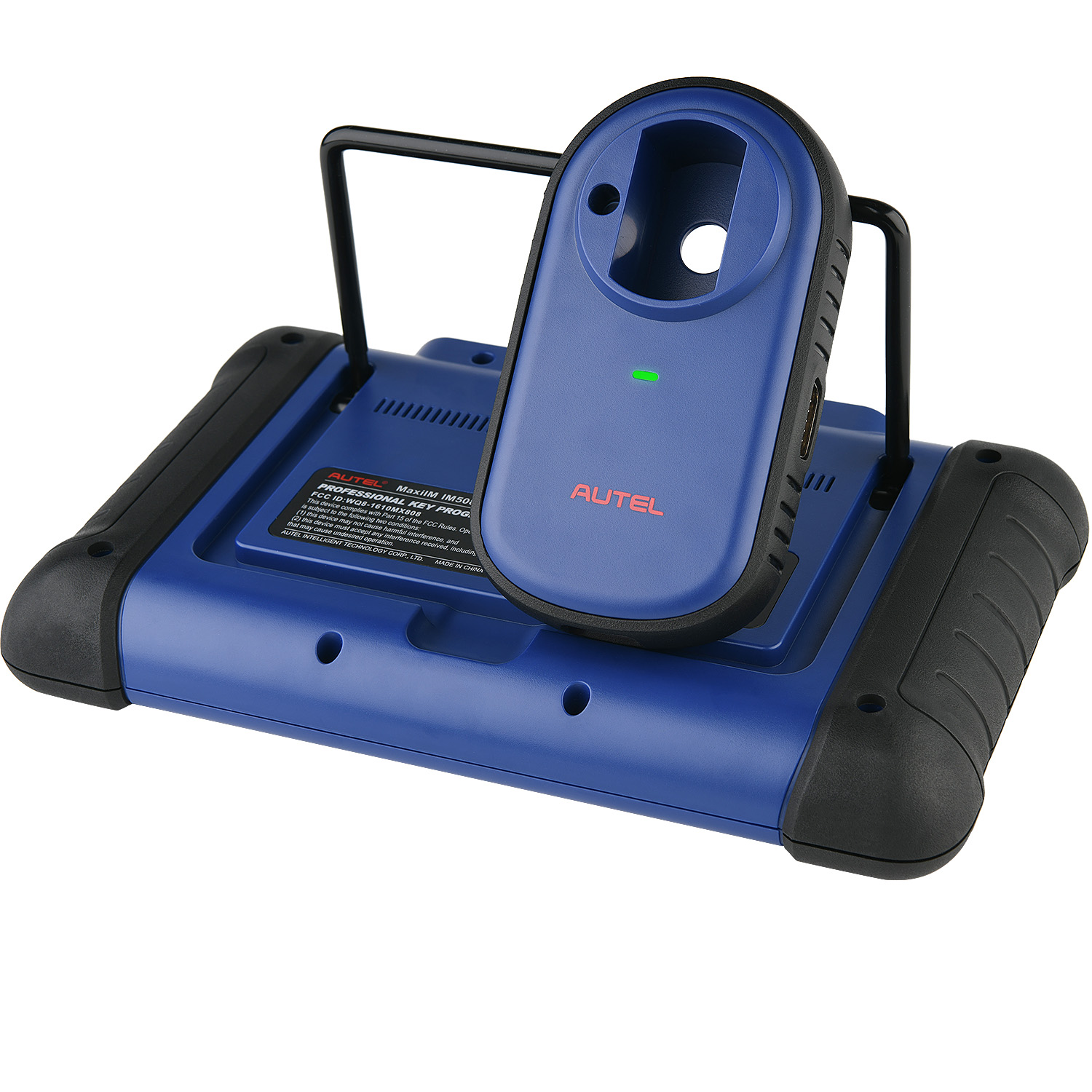

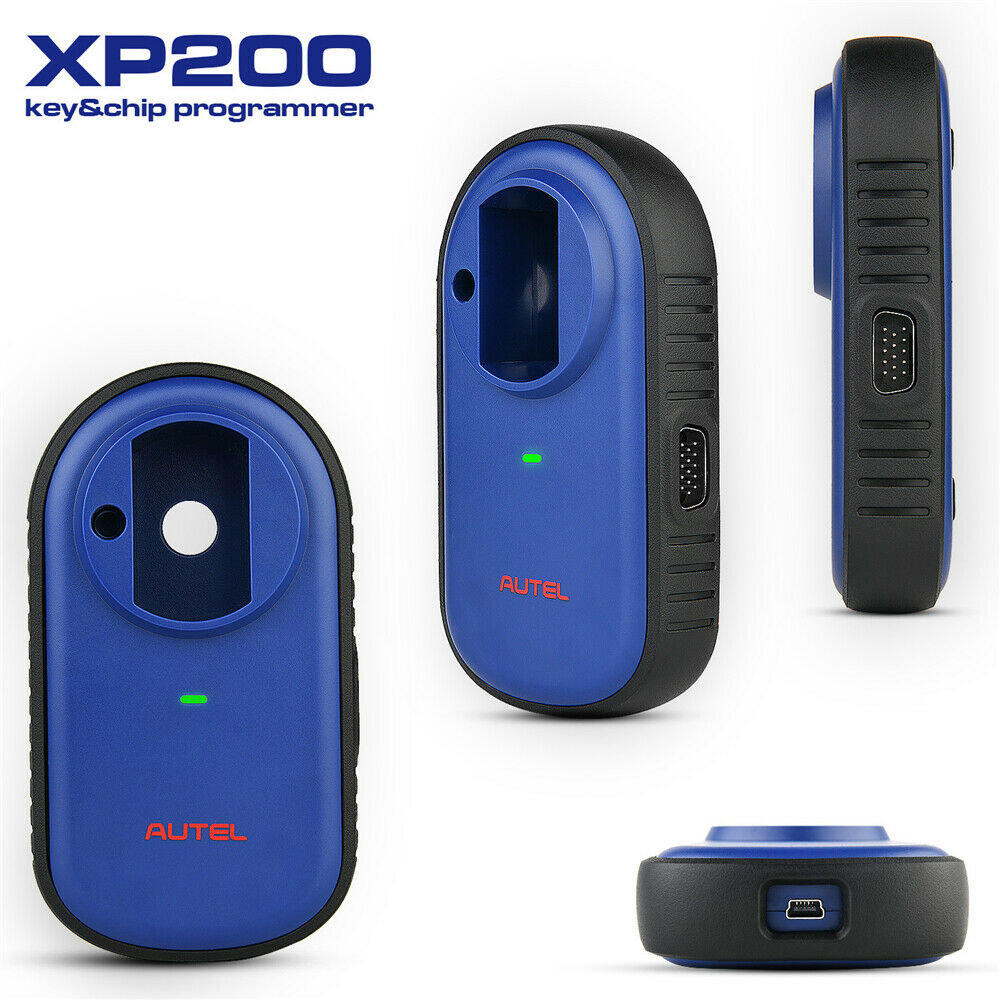

    XP200 Key & Chip Programmer:

    1.XP200,and no vehicle connection is required.This application can access the key chip,read retrieve and write key information.

    2.The XP200 is specially designed to read Volkswagen vehicle key chip data, clone and generate exclusive keys, read/write on-board EEPROM data, and read/write Freescale 9S12 MCUs. By working with diagnostic tool and PC that are both loaded with programmer software, the XP200 can read/write key chip data quickly and accurately.

    Autel IM508 EEPROM Read/Write Supported Types




























    9S12 Read/Write Supported Types




    1.Operating System:AndroidTM 4.4.4

    2. Processor:Cortex-A9 processor (1.6 GHz)


    4.Display:7-inch LCD capacitive touchscreen with 1024x600 resolution

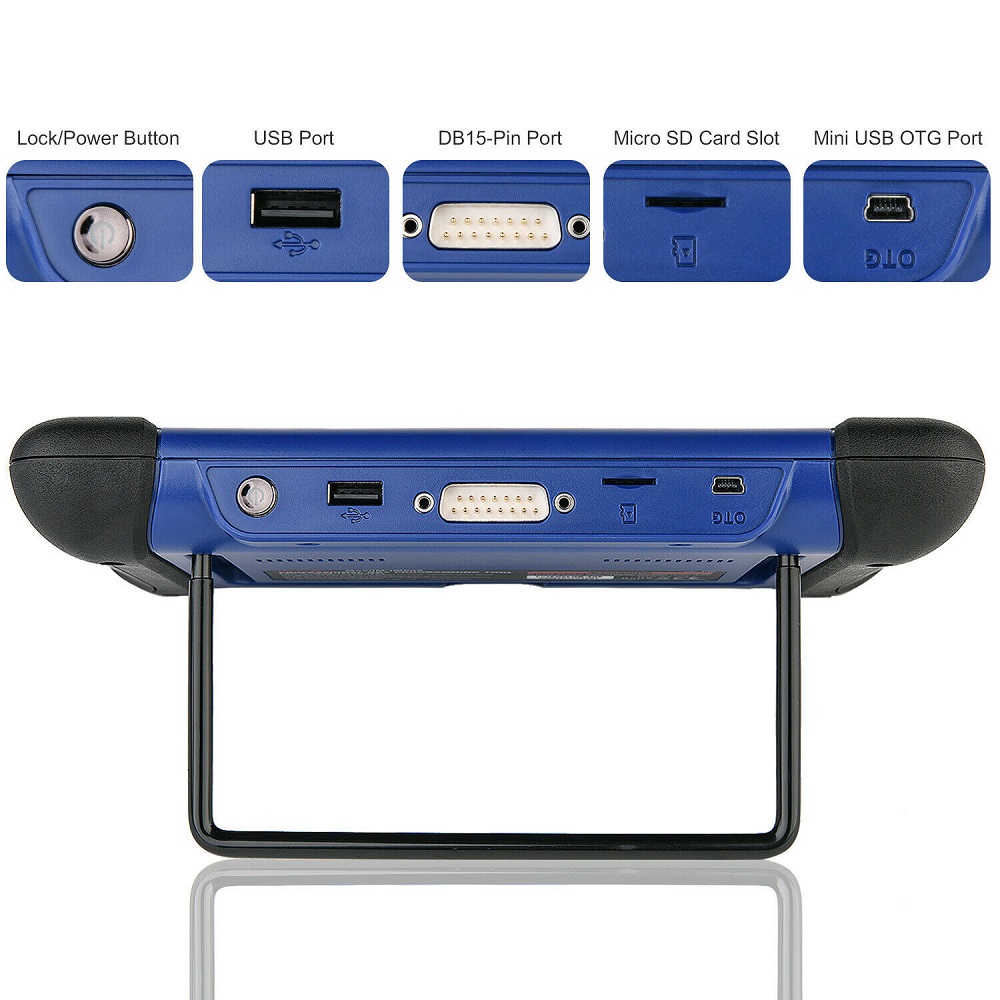

    5.Connectivity:Mini USB 2.0,USB 2.0,Wi-Fi,Micro SD card (supports up to 32GB)

    6.Sensors:Ambient light sensor for brightness auto changing

    7.Audio Input / Output:Input: N/A,Output: buzzer

    8.Power and Battery:3.7 V/5000 mAh lithium-polymer battery, Charges via 5 VDC power supply

    9.Tested Battery Life:Around 4.5 hours of continuous use

    10.Battery Charging Input:5 V/1.5 A

    11.Power Consumption:500 mA (LCD on with default brightness, Wi-Fi on)   3.7 V

    12.Operating Temp:0 to 50°C (32 to 122°F)

    13.Storage Temp:-20 to 60°C (-4 to 140°F)

    14.Operating Humidity:5% - 95% non-condensing

    15.Net Weight:788 g (2.42 lb.)

    16.Supported Automotive Protocols:ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW,

    SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

    How to Update Autel MaxiIM IM508?

    1.Make sure the Display Table is connected to power source with stable access to the Internet.

    2.Tap the Update application button from the MaxiIM Job Menu;or tap the update notification message when received one;or tap the Update icon on Vehicle Menu in Diagnostics application.The Update application screen displays.

    3.Check all available updates:

    ►If you device to update all the items of IMMO software,select IMMO Tab and then tap the Update All button;if you want to update all items of diagnostic software,select Diagnose Tab and then tap the Update All button.

    ►If you only want to update one or some of the item(s),tap the Update button on the right colum of the specific item(s).

    4.Tap the Pause buttons to suspend the updating process.Tap Continue to resume the update and the process will continue from the pause point.

    5.When the updating process is completed,the firmware will be installed automatically.The version will replace the older version.

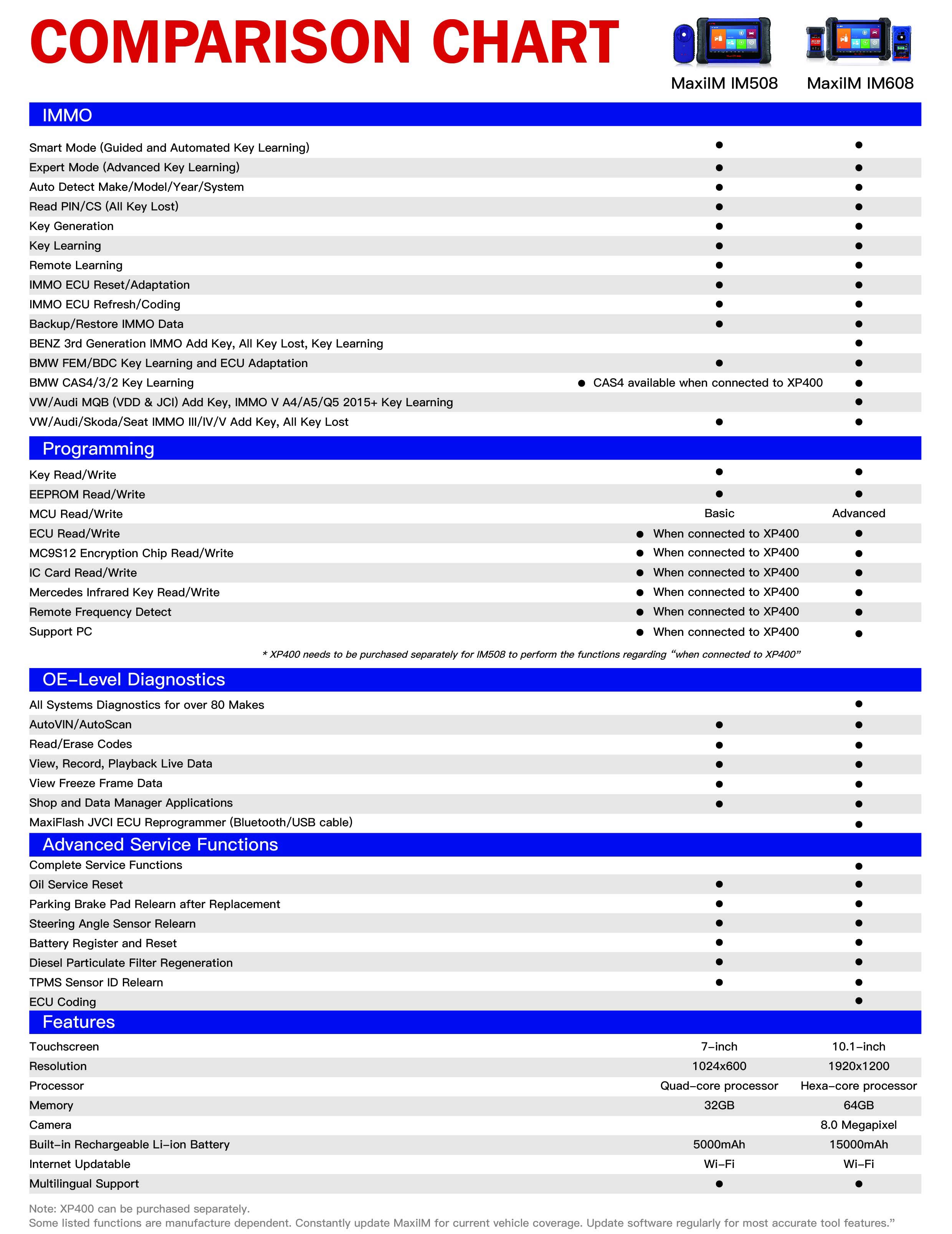

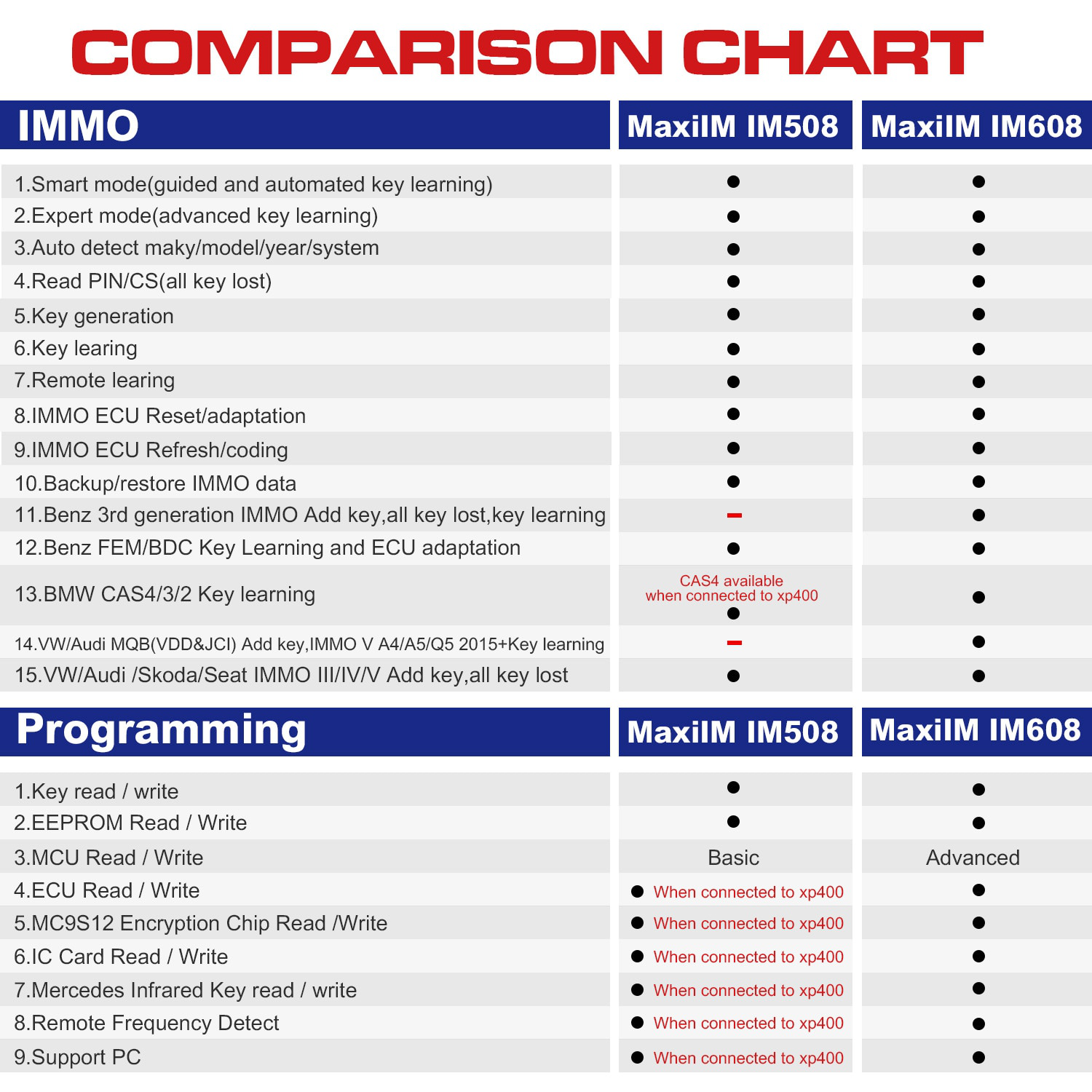

    Autel MaxiIM IM508 vs. IM608 Comparison Chart:

    Autel MaxiIM IM508 Specifications:

    Operating System:                   AndroidTM 4.4.4

    Processor:                                Cortex-A9 processor (1.6 GHz)

    Memory:                                   32GB

    Display:                                     7-inch LCD capacitive touchscreen with 1024x600 resolution

    Connectivity:                            Mini USB 2.0

                                                      USB 2.0


                                                      Micro SD card (supports up to 32GB)

    Sensors:                                    Ambient light sensor for brightness auto changing

    Audio Input / Output:             Input: N/A

                                                      Output: buzzer

    Power and Battery:                 3.7 V/5000 mAh lithium-polymer battery, Charges via 5 VDC power supply

    Tested Battery Life:                 Around 4.5 hours of continuous use

    Battery Charging Input:         5 V/1.5 A

    Power Consumption:              500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V

    Operating Temp.                     0 to 50°C (32 to 122°F)

    Storage Temp.                         -20 to 60°C (-4 to 140°F)

    Operating Humidity:              5% - 95% non-condensing

    Net Weight:                             788 g (2.42 lb.)

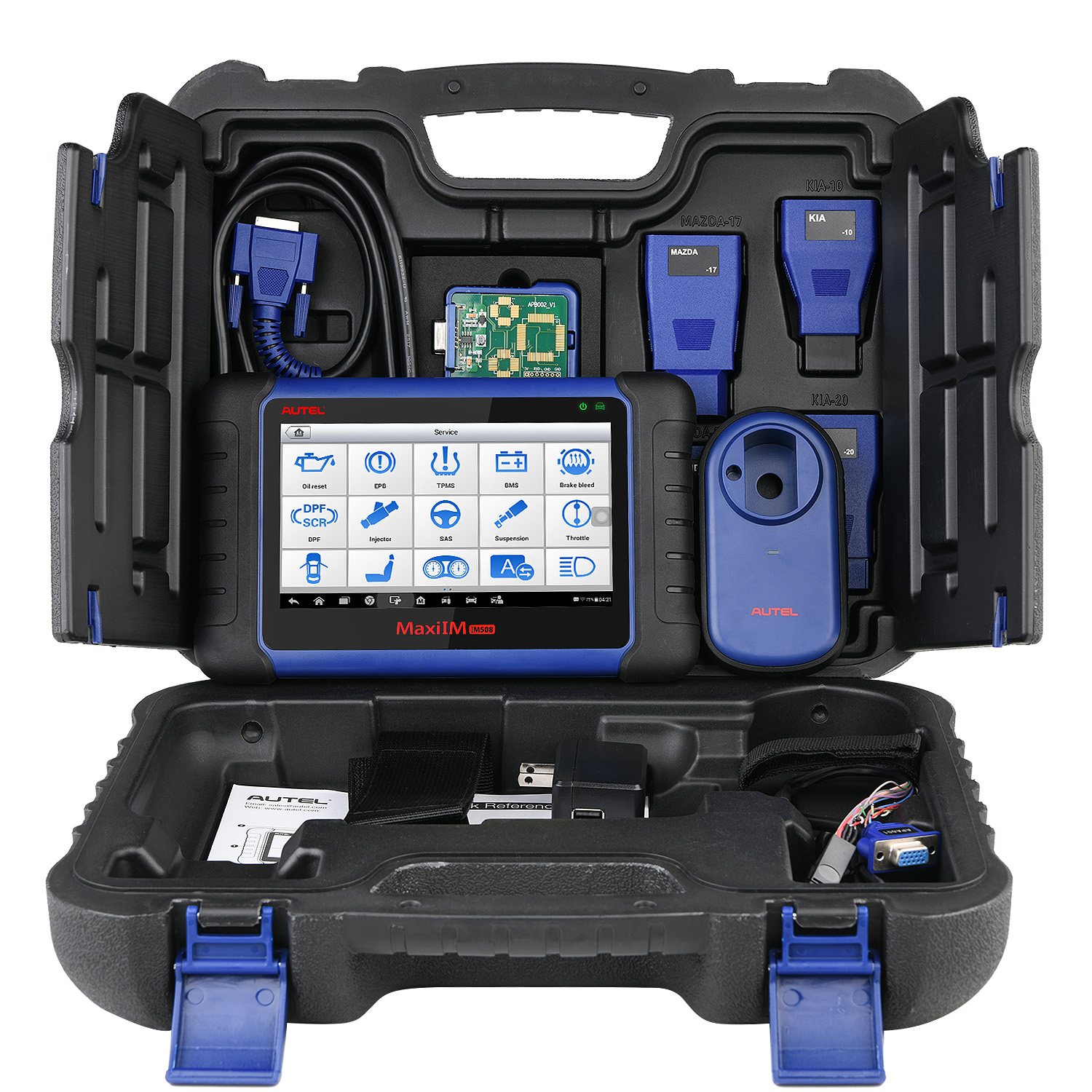

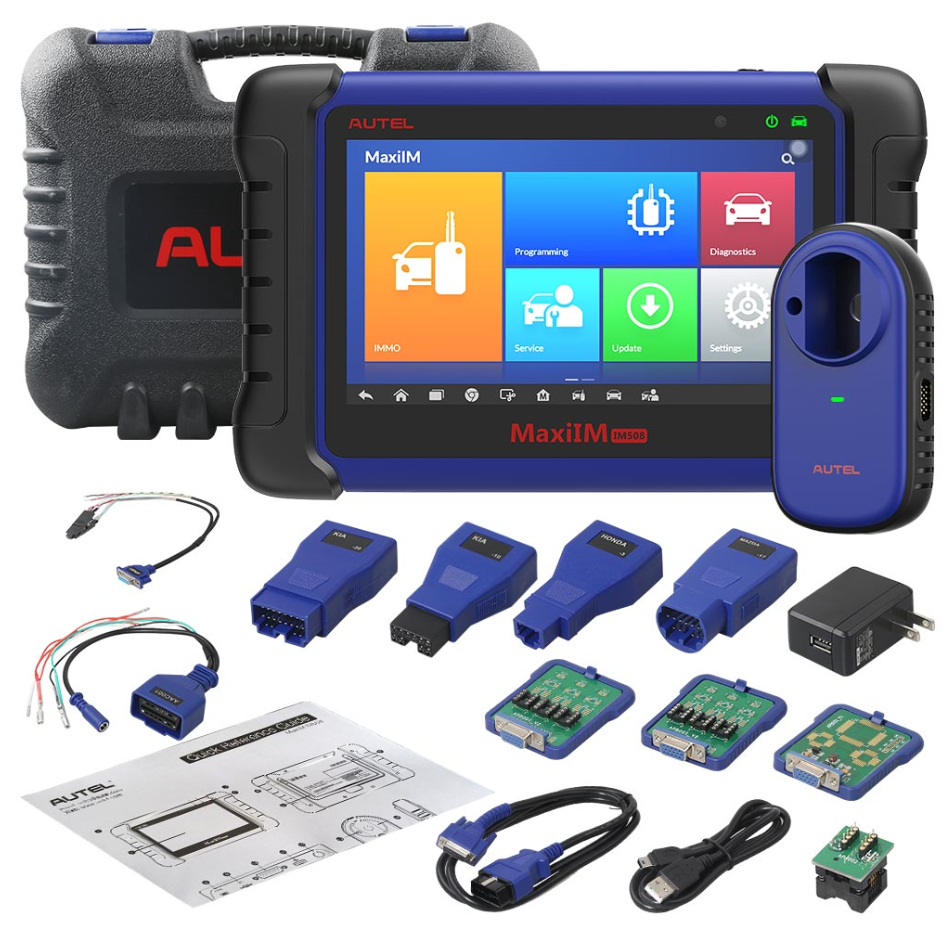

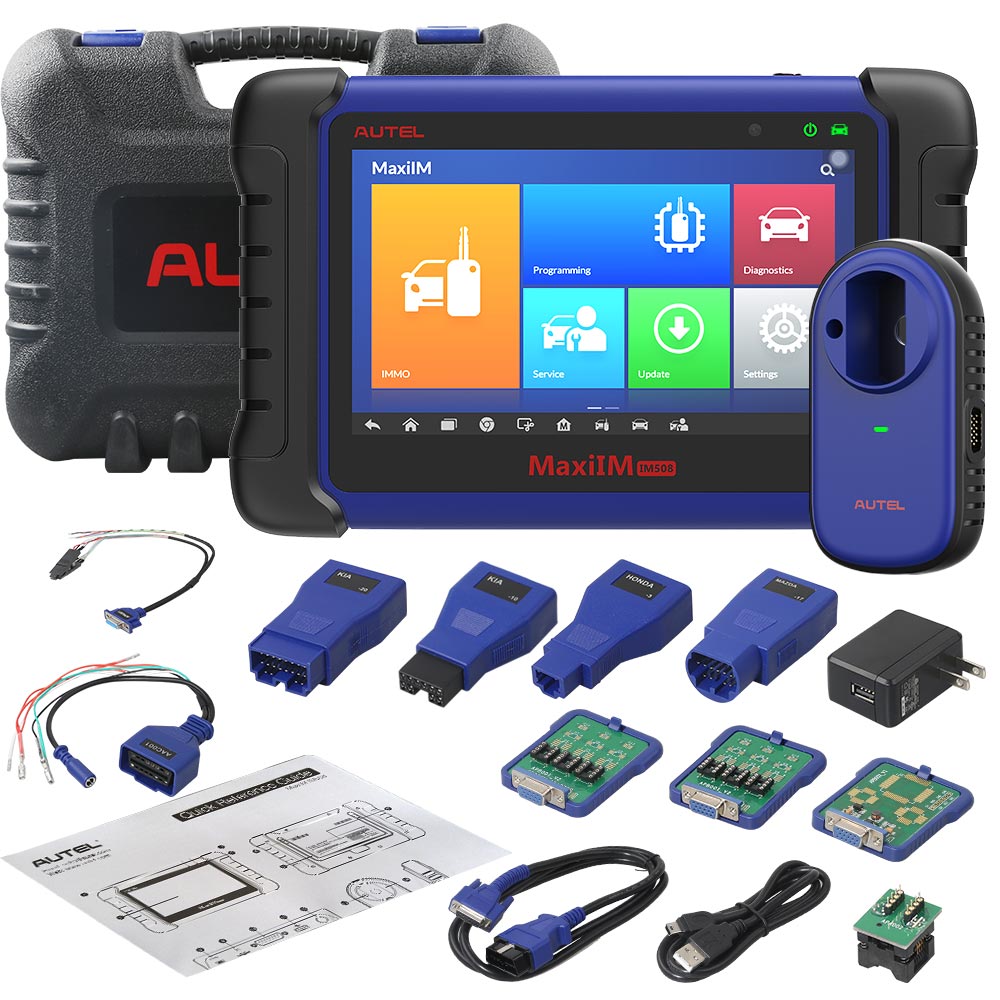

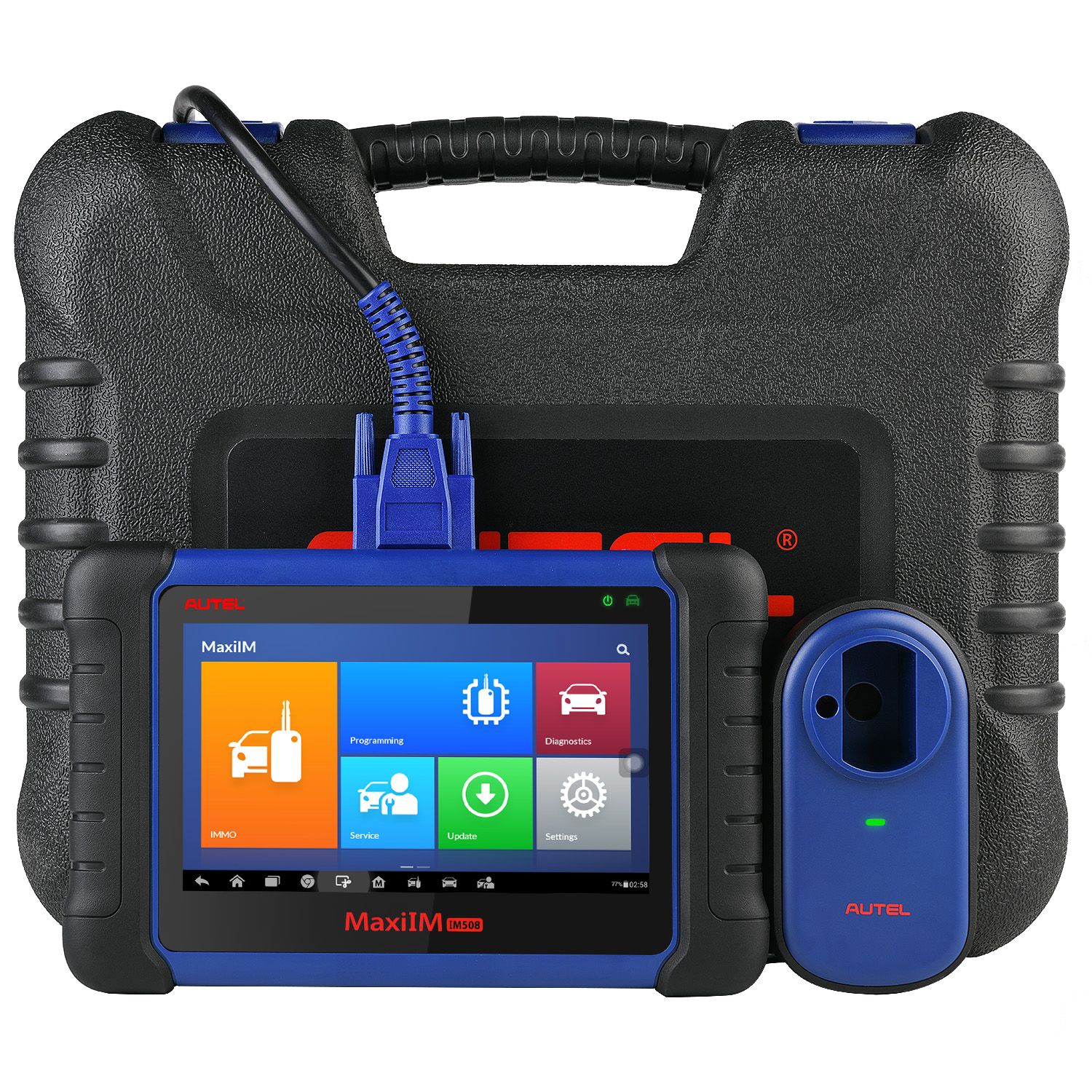

    Autel MaxiIM IM508 Package List:

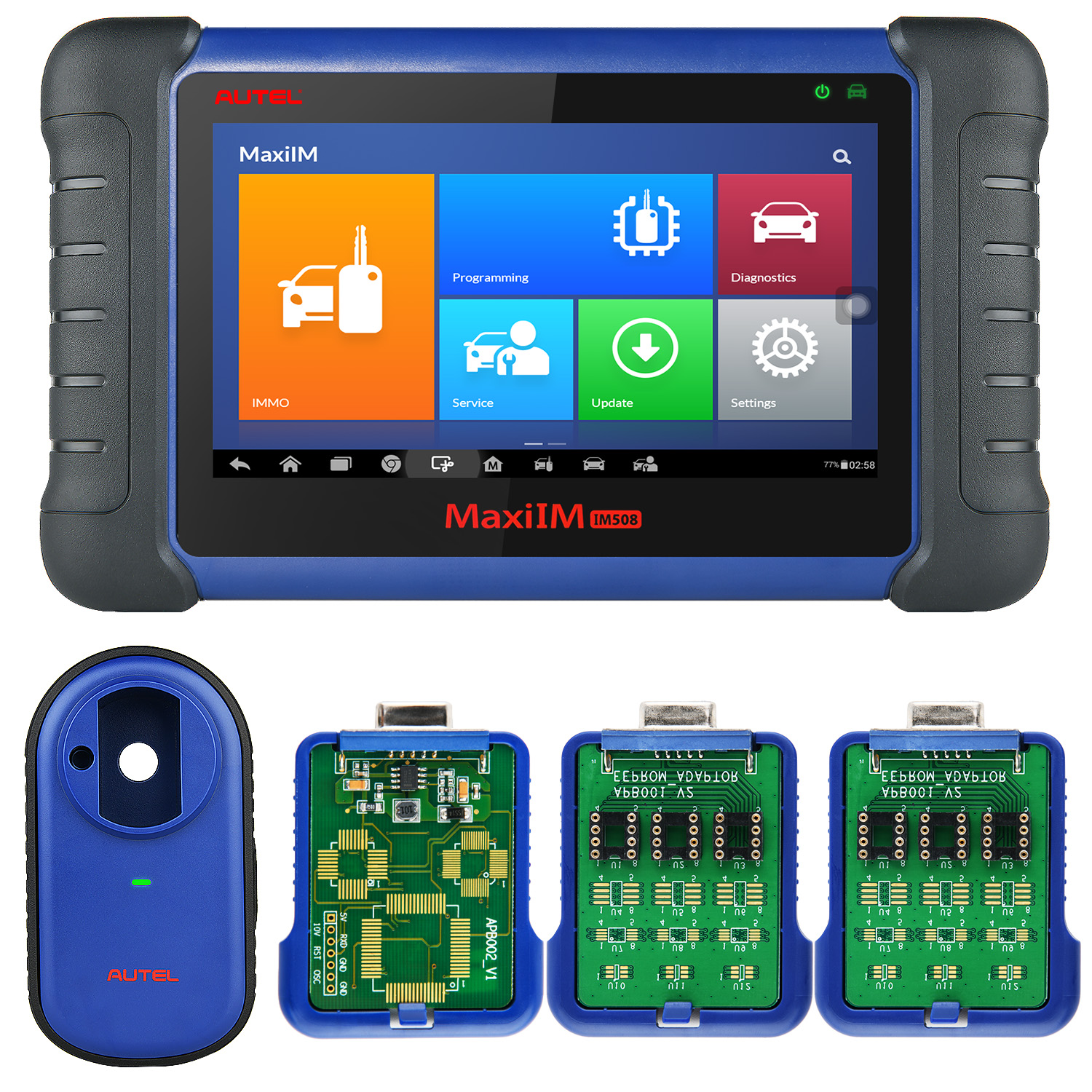

    MaxiIM IM508 Tablet
    XP200 Key Programmer
    AAC001–MED17 Cable
    Honda-3 Adaptor
    KIA-20 Adaptor
    KIA-10 Adaptor
    Mazda-17 Adaptor
    USB External Power Adapter
    Carrying Case
    Main cable
    Quick guide
    Mini USB Cable
    Carry Case

    Autel MaxiIM IM508 + XP400 ProPackage List:
    MaxiIM IM508 Tablet
    XP200 Key Programmer
    AAC001–MED17 Cable
    Honda-3 Adaptor
    KIA-20 Adaptor
    KIA-10 Adaptor
    Mazda-17 Adaptor
    USB External Power Adapter
    Carrying Case
    Main cable
    Quick guide
    Mini USB Cable
    Carry Case
    1 x XP400 Pro Main Unit
    1 x EEPROM Adapter
    1 x EEPROM Socket
    1 x Mercedes Infrared Collector
    1 x MCU_PLCC52 Adapter
    1 x MCU_FQFP64 Adapter
    1 xMCU_FQFP80 Adapter
    1 x MCU_FQFP112 Adapter
    1 x MCU_FQFP144 Adapter
    1 x MCU_FQFP176 Adapter
    1 x MCU_FQFP32 Adapter
    1 x MCU_FQFP48 Adapter
    1 x MCU_SO28 Adapter
    1 x Spare Signal Cable
    1 x USB Cable (Standard USB –Type B USB)
    1 x EEPROM Clamp
    1 x ECU Cable
    1 x MCU Cable
    1 x MC9S12 Cable
    1 x Dupont Line
