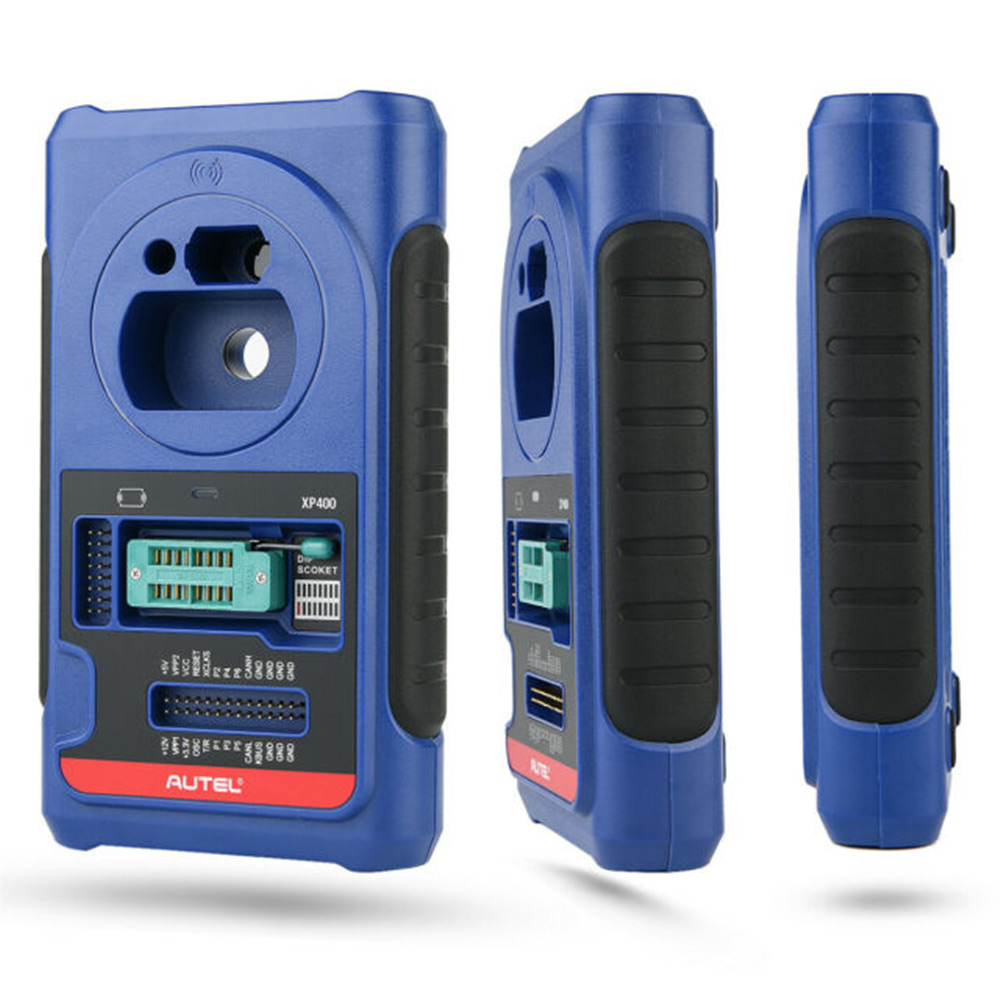

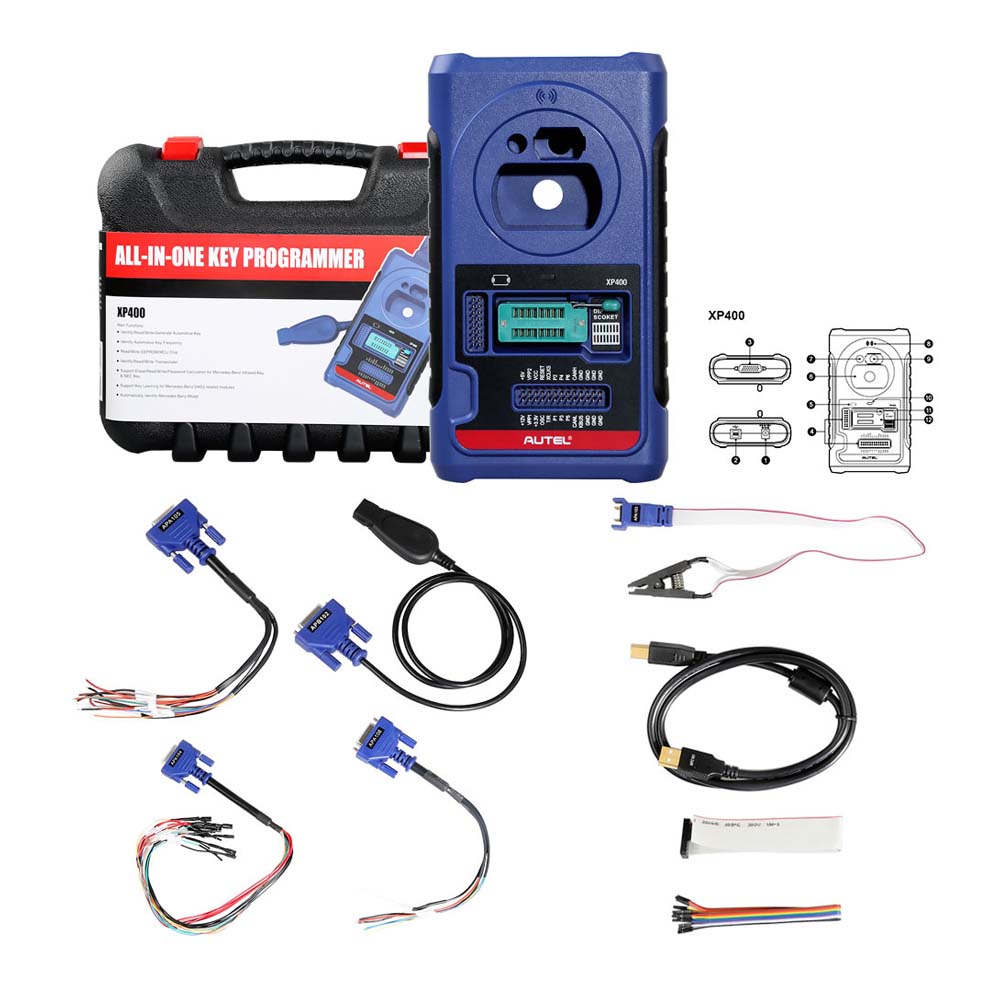

    Autel XP400 Key and Chip Programmer Work for Autel MaxiIM IM608/IM508

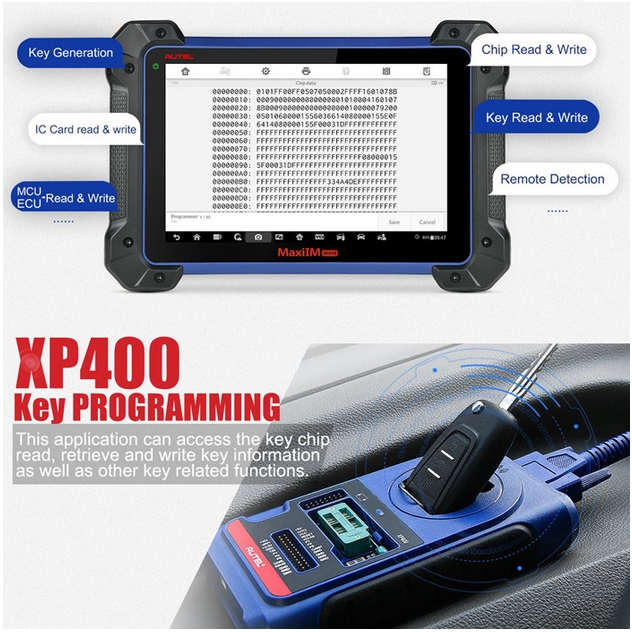

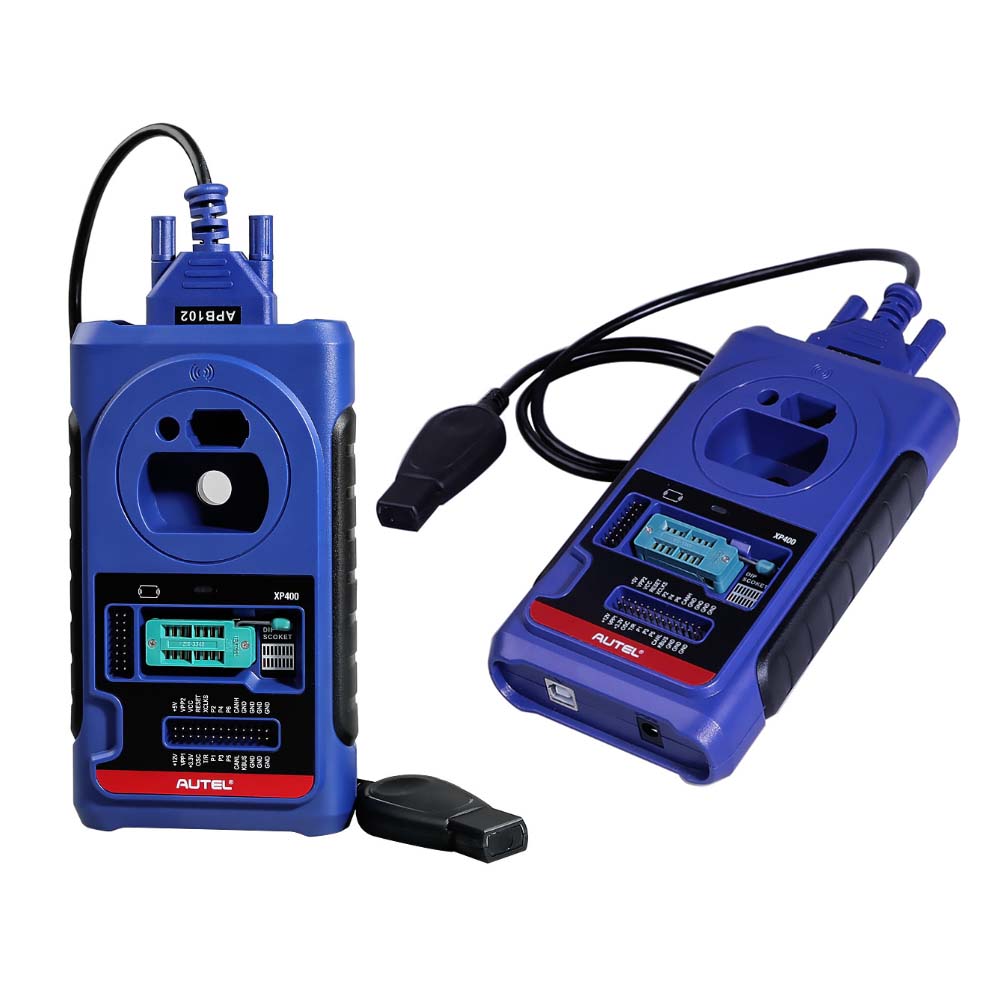

    Autel XP400 Key and Chip Programmer Work with Autel MaxiIM IM608/IM508, which supports MCU, ECU, EEPROM read and write, Mercedes Infrared Key Reading & Writing, Finding the Control Frequency and IC Card Reading & writing.


    Autel XP400 KEY & CHIP PROGRAMMER Function List:

    1.Support PC

    2.MCU / EEPROM Chips Read / Write

    3.ECU Read / Write

    4.MC9S12 Encryption Chip Read / Write

    5.Key Read / Write

    6.Mercedes Infrared Key Read / Write

    7.Remote Frequency Detect

    8.IC Card Read/Write





    Autel XP400 KEY & CHIP PROGRAMMER Introduction:

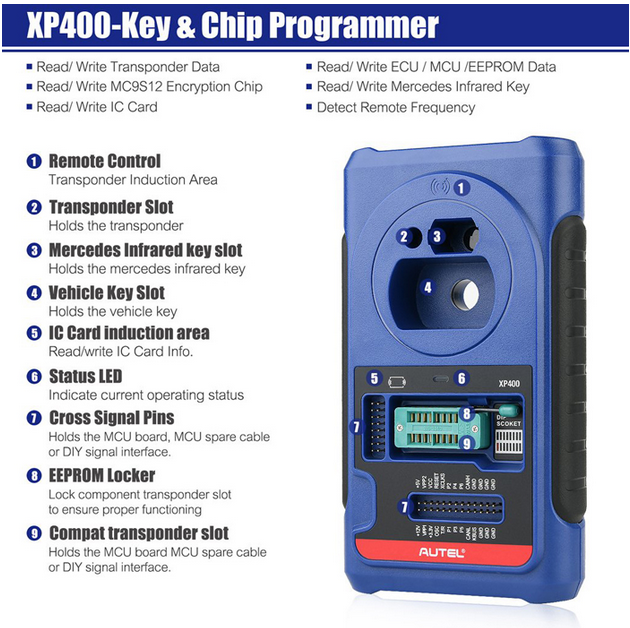

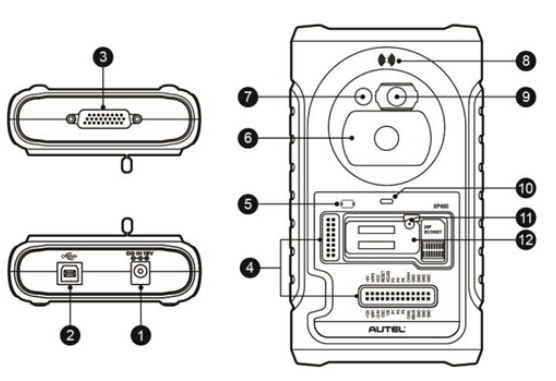

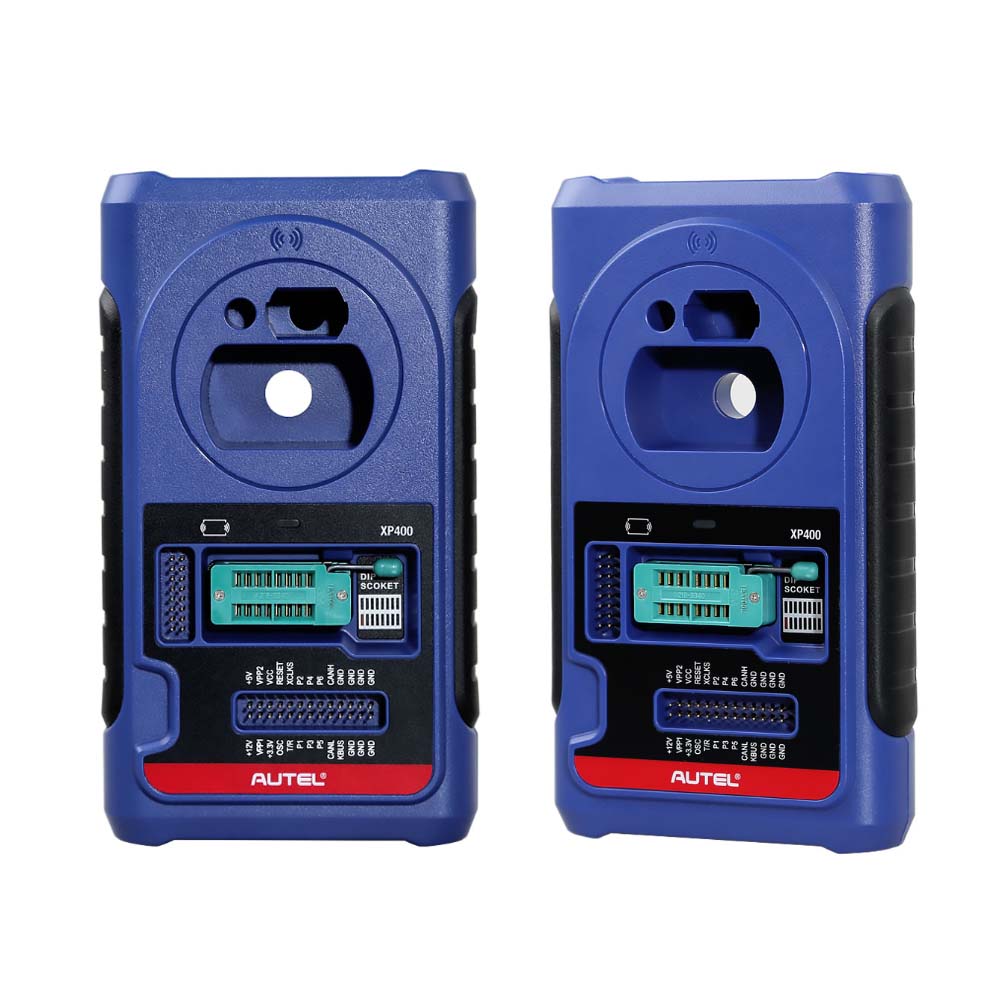

    Connect the IM608 tablet to the XP400 Key Programmer (no vehicle connection required) to access the key chip, read, retrieve and write key information, as well as other key related functions. The XP400 includes 12 ports:


    1. DC Port – provides 12V DC power supply.

    2. USB Port – provides data communication and 5V DC power supply.

    3. DB 26-Pin Port – connects with the Mercedes Benz infrared cable, vehicle key cable, ECU cable, MCU cable, MC9S12 cable.

    4. Cross Signal Pins – holds the MCU board, MCU spare cable or DIY signal interface.

    5. IC Card Induction Area

    6. Vehicle Key Slot – holds the vehicle key.

    7. Transponder Slot – holds the transponder.

    8. Remote Control Transponder Induction Area Figure 2-5 XP400 Views 11

    9. Mercedes Infrared Key Slot – holds the Mercedes infrared key.

    10. Status LED – indicates the current operating status.

    11. Locker – locks the EEPROM component transponder slot to ensure proper functioning.

    12. EEPROM Component Transponder Slot – holds the EEPROM plug-in transponder or EEPROM socket.

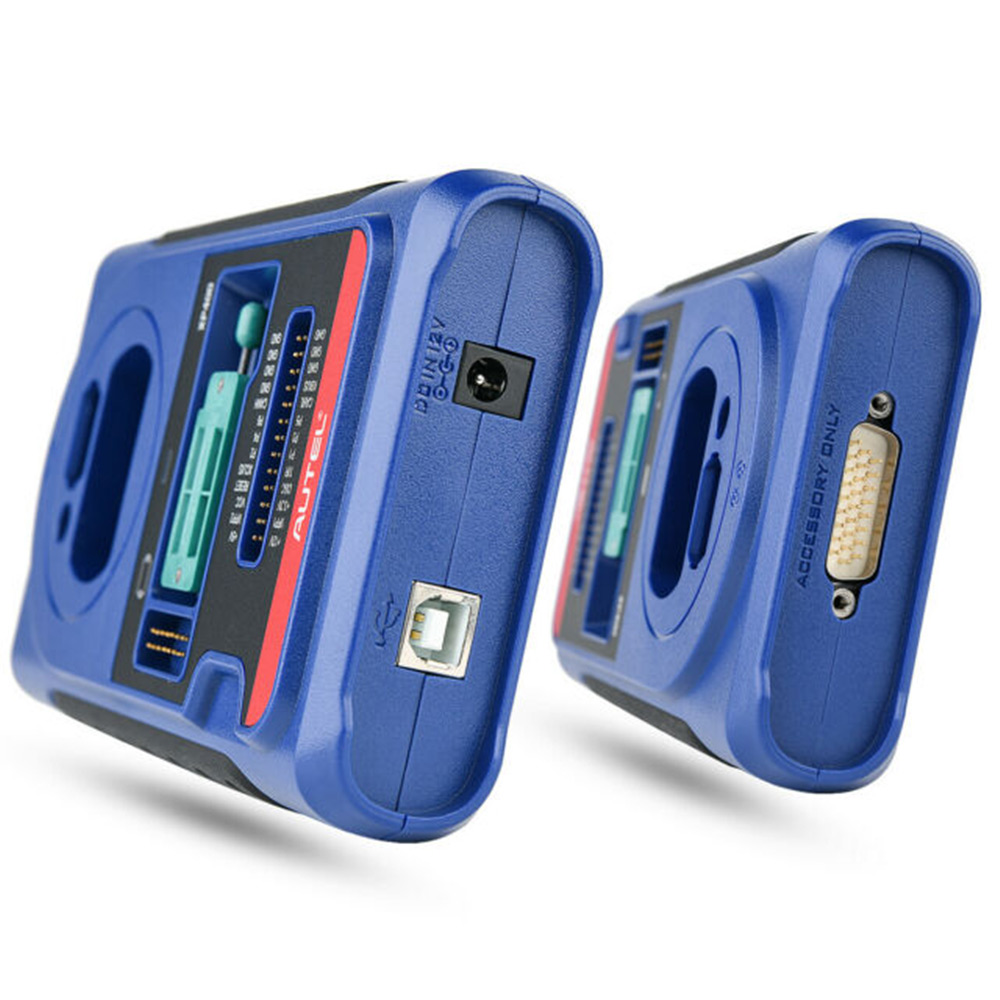

    DC Port :  Provides 12 V power supply for the XP400.

    USB Port: Provides data communication and power supply for handheld device, PC and XP400.

    DB 26-Pin Port:

    Five components can be connected to this port:

    Mercedes Infrared Cable

    APA102 – Remote Match Cable (optional)

    APA104 – ECU Cable

    APA105– MCU Cable

    APA106 – MC9S12 Cable


    APA102 – Remote Match Cable (optional)

    No.

    Color

    Definition

    Pin correspond to DB26

    1

    Red

    VCC5V

    16

    2

    Black

    GND

    3/10/25

     3

    Blue and White

    REMOTE_MISO

    14

    4

    Gray and White

    REMOTE_MOSI

     5

    5

    Brown and White

    REMOTE_CLK

     23

     6

    Green and White

    REMOTE_RX_C S

    15





    APA104 – ECU Cable

    No.

     Color

    Definition

    Pin correspond to DB26

    1

    Red

    VCC12V

    7

    2

    Black

    GND

    25

    3

    Green

    IGN

    /

    4

    Orange

    CANL

    8

    5

    Blue

    CANH

    17

    6

    Brown

    BOOTM

    /

    7

    Yellow

    K

    18

    8

    White

    LIN

    26




    APA105 – MCU Cable

    No.

    Color

     Definition

    Pin correspond to DB26

    1

    Red and White

    VPP1

    20

    2

    Red and Black

    VPP2

    12

    3

    Red and Yellow

    +12V

    7

    4

    Red and Blue

    VPPR

    /

    5

    Black

    GND

    25

    6

    White

    S1

    14

    7

    Brown

    S2

    5

    8

    Gray

    S3

    23

    9

    Blue

    S4

    11

    10

    Red

    S5

    21

    11

    Orange

    S6

    13

    12

    Purple

    S7

    4

    13

    Yellow

    S8

    19

    14

    Green

    S9

    2

    15

    Black

    GND

    10

    16

    White

    OSC




    APA106 – MC9S12 Cable

     No.

     Color

     Definition

    Pin correspond to DB26

    1

    Red

    +5V

    16

    2

    Black

    GND

    25

    3

    Green

    XCLKS

    2

    4

    Blue

    T/R

    11

    5

    Yellow

    RESET

    19

    6

    Black

    GND

    10

    7

    White

    OSC



    Cross-shaped Signal Pin: Places MCU board, MCU spare cable or DIY signal cable to read or write MCU and ECU chips.

    IC Card Induction Area: Reads and writes IC card information.

    Vehicle Key Slot: Holds the vehicle key to read or write vehicle key information.

    Transponder Slot: Holds the transponder to read or write transponder information.

    Remote Control Transponder Induction Area: Reads and writes remote control transponder information.

    Mercedes Infrared Key Slot: Holds Mercedes infrared key to read or write Mercedes vehicle key information.

    Status LED: Shows the current operating status of the XP400. See the table below for detailed description.



    Indicator

    Status

    Description





     On

    Light Green

    Powered on and default


    Flash Green

    Communication



    Light Red

    Error

    Locker : Places EEPROM chip or socket to read or write EEPROM information.


    EEPROM Component Transponder Slot : Holds the EEPROM plug-in transponder or EEPROM socket.


    Autel XP400 Adapter Parameter

    Item

    Description

    Operating Temperature

    -10℃ ~ 60℃ (14℉ ~ 140℉)

    Storage Temperature

    -20℃ ~ 60℃ (-4℉ ~ 140℉)

    Port

    Mini USB, VGA_DB15

    Input Voltage

    5 VDC

    Operating Current

    < 250 mA

    Maximum Consumption

    1 W

    Device Dimensions (L*W*H)

    130 mm * 68 mm * 28 mm

    Package Dimensions (L*W*H)

    201 mm * 167 mm * 75 mm

    Net Weight

    466 g
