    V2023.09 MB Star C6 Mercedes BENZ Xentry Diagnosis VCI DOIP Diagnostic Tool support Benz Cars and Trucks

    • Item No.  A410-3
    • History: 68  sold
    • Please select the configuration you need:



    • Quantity
      Total
      Shipping:
      Express Shipping Service    Estimated delivery time: 5-7 days »
      Affected by the epidemic, there will be delays in transit time.
      continue
    • Quantity:  97
    • Weight:  3.0KG
    • Rank:  comment rank 5 () Write a Review
      Rated 5/5 based on 8 customer reviews
    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video


    V2023.09 MB Star C6 Mercedes BENZ Xentry Diagnosis VCI DOIP Diagnostic Tool support Benz Cars and Trucks

    Note:
    It is recommended that you choose the configuration with the Lenovo T450 laptop. We have installed all the software on the computer and you can use the product directly.

    New Release mb star c6 support DOIP xentry vci diagnostic tool More function than mb star c4 free software

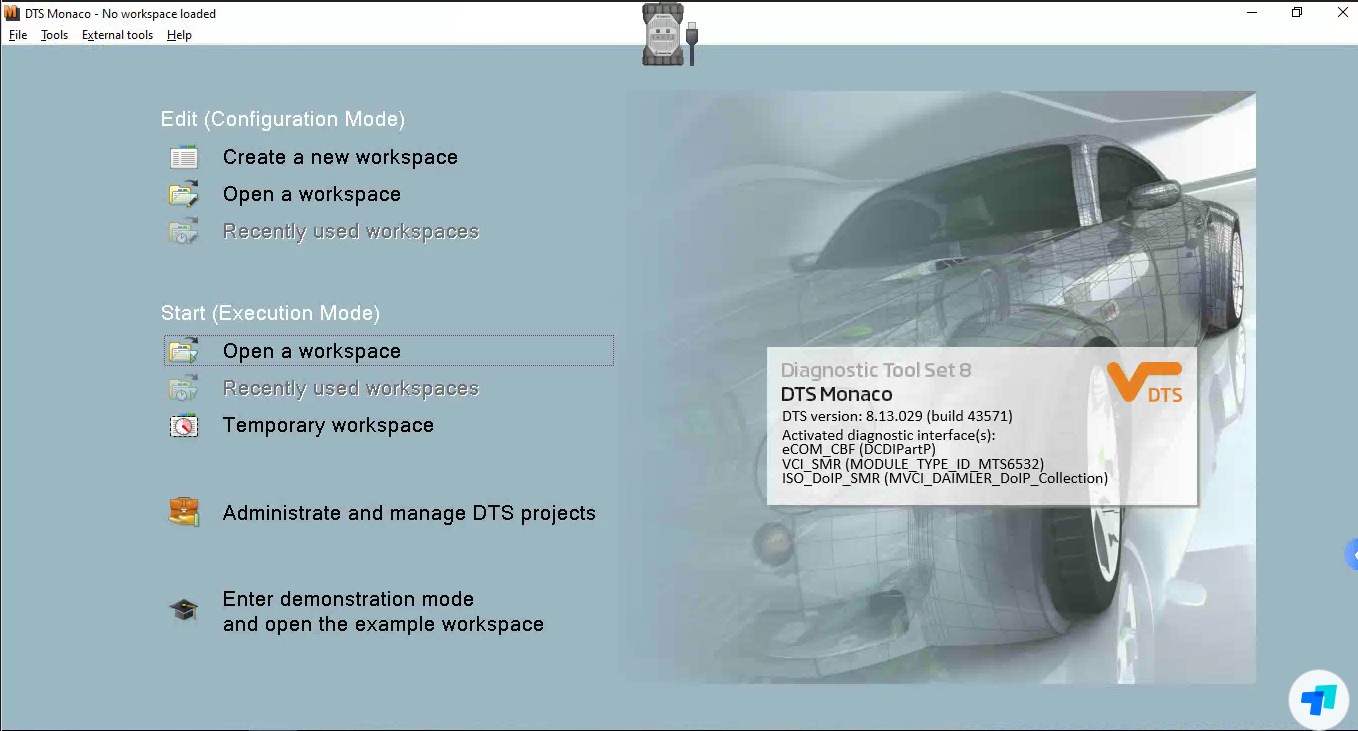

    It supports MB diagnostic software Xenntry, For Mercedes Benz super engineer Vediamo and dedicated development software Monaco DTS, which has higher access rights than SDconnect C4/C5. VCI supports CAN/DoIP networks and can be used for diagnostics and writing of Audio & video entertainment systems for new cars.

    MB Star C6 XENTRY C6 Star Diagnosis VCI Multiplexer for Mercedes Vehicles till 2023.



    Xentry Diagnosis Specification:

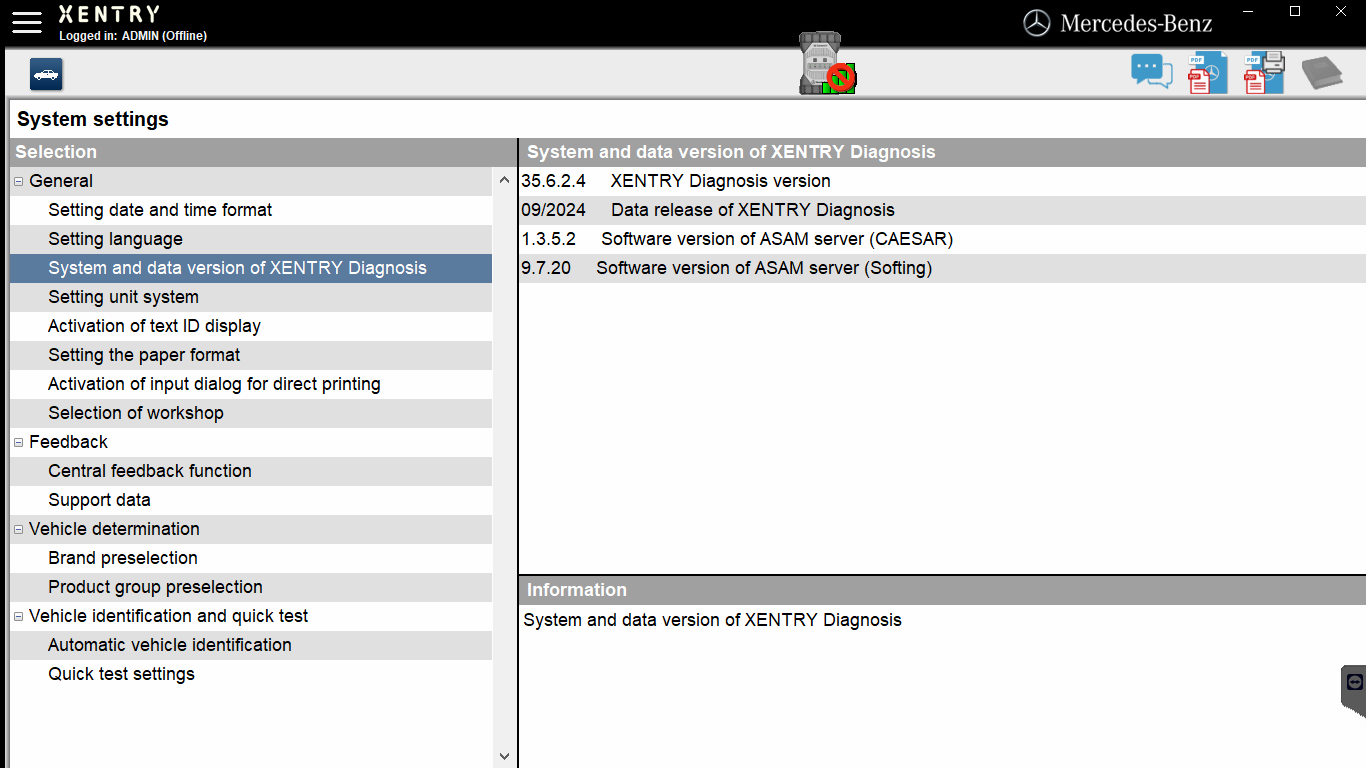

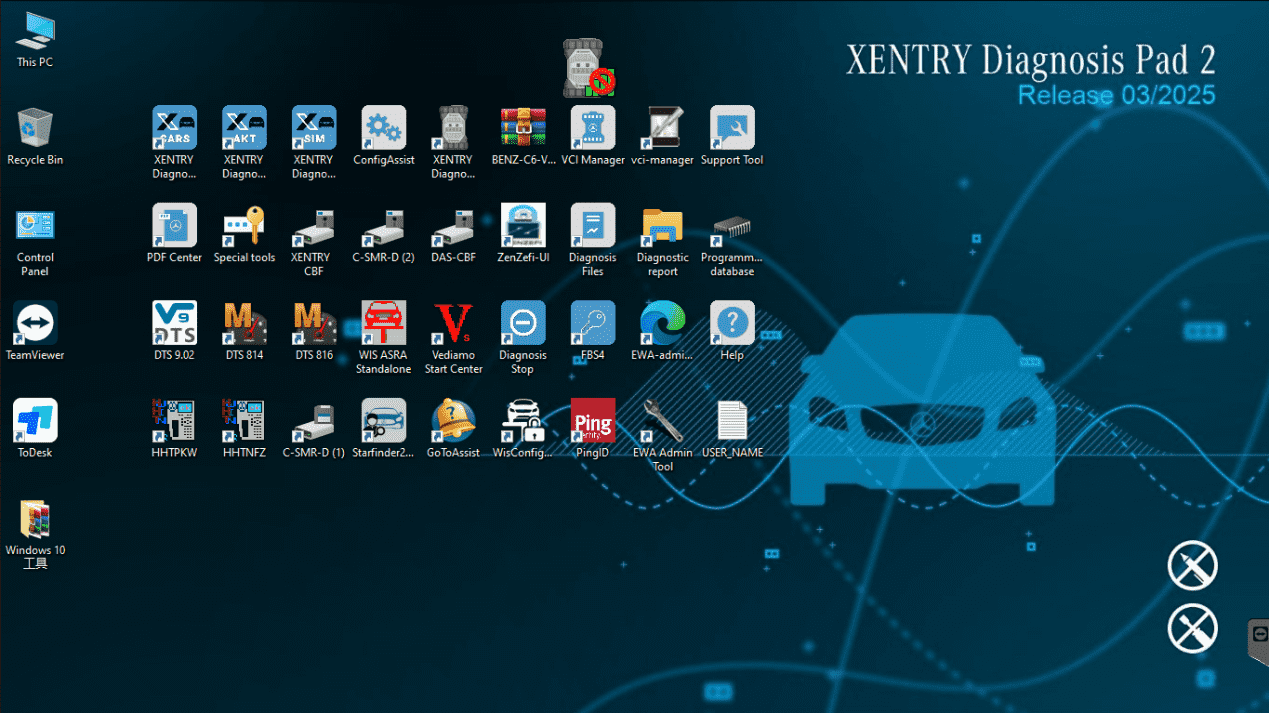

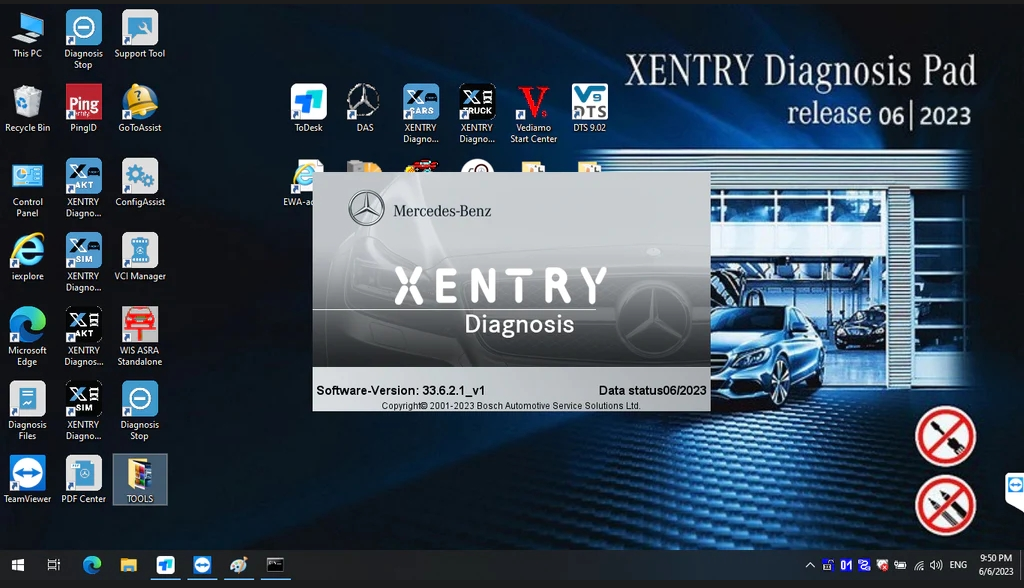

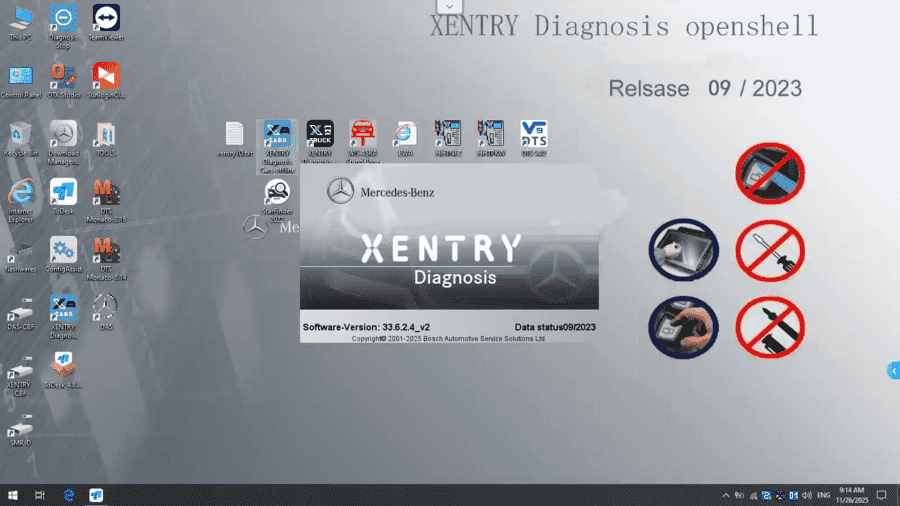

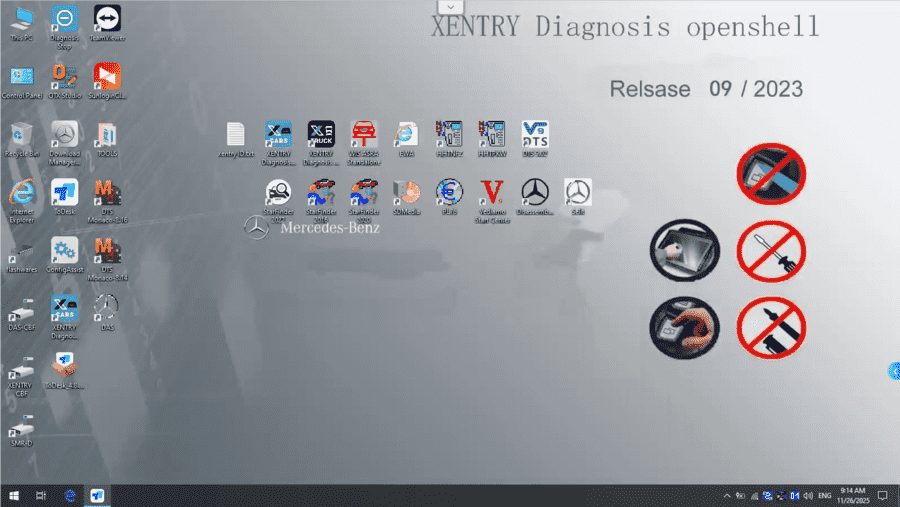

    1.  Software: V2023.09 XENTRY/DAS Software
    2.  Firmware support online update
    3.  Connection: Wireless / Lan Cable Connection
    4.  Support Vehicle: Work for Benz 12V Cars & 24V Trucks ,Support new Mercedes cars till 2023, old car models recommend purchasing SD Connect Multiplexer
    5.  Functions: Star Diagnostic & programming (Support SCN Coding request client have an online account)
    6.  Support DoIP Function (For Commander online programming)
    7.  Update Method: return SSD for update under a 1-year warranty, or buy a new HDD/SSD.
    8.  Activation: SSD software requires activation. When you get the HDD/SSD software, Insert the SSD into the laptop, and just send the Teamviewer ID and password to us (Support Online or Whatsapp ), and we will activate it for you.
    9.  Supported Multi-Language: English, Bulgarian, Danish, Greek, Spanish, French, Italian, Korean, Polish, Romanian, Serbo-Croatian, Turkish, Czech, German, Finish, Hungarian, Japanese, Dutch, Portuguese, Russian, Swedish, Chinese
    10.  Warranty: Main Unit 1 Year Warranty, Free technical support for any device problem




    Mercedes C6 Technical Specifications

    Supported Industrial Standards:
    1. ISO-22900-1/2 MVCI with D-PDU Driver (Actual hardware channel support below)
    2. ISO13400-1/2/3/4 DoIP Driver
    3. CAN-BUS1 Channel:HSCAN1/CANFD1:PIN 6/14
    4. CAN-BUS2 Channel:HSCAN2/CANFD2:PIN 12/13,PIN 3/11,PIN 1/9,
    5. CAN-BUS3 Channel:FTCAN:PIN 12/13,PIN 3/11,PIN1/9,
    6. 2 channel K-Line *13
      K1-Line:K1, K2 ,K3, K6, K7, K8, K9, K10, K11, K12, K13, K14, K15
      K2-Line:K1, K2, K3, K6, K7, K8, K9, K10, K11, K12, K13, K14, K15
    7. ADC Input
    8. Gigabit eCAT DB26 Output
    9. 100Mbps USB2.0 HS Network Card
    10. WIFI Repeater/Bridge

    Supported Protocols:
    1. KW2CVW
    2. CYCLERX
    3. UDS
    4. KW2C3PE
    5. KW2C2N(SAE J1939)
    6. 485(SAE J1708)
    7. KW2CANN
    8. KW2000N
    9. KW2K2N
    10. KW2000PE
    11. DoIP

    Mercedes Benz Xentry diagnosis VCI DOIP C6 Features:
    Can be used for all model series of For Mercedes For Benz vehicles
    Support DoIP, cover more functions during SCN Coding than SD C4/C5
    Functions including diagnosing, programming, simulation studying, repair information, automotive maintenance, technical service bulletin and so on
    Diagnosis updates no longer necessary – firmware updates required on rare occasions
    Does not need a power supply unit for external power supply
    Dandy multiplexer with a small, sturdy construction (no PC core, battery, fan, or display)
    Engines (All Gasoline & Diesel Systems)
    Transmissions and Electronic Selector Modules
    Airmatic and Active Body Control Suspension Systems
    Traction Systems: ESP / ASR / ETS / ABS / BAS / SBC braking systems
    Supplementary Restraint Systems (SRS) / Airbag, All body modules OCP / UCP / LCP / SCM / SKF / KFB / RCM / DCM’s
    Drive Authorisation System
    Sam (Signal Acquisition) Modules
    Electronic Ignition System (EIS)
    Pneumatic System Equipment and ATA functions
    Air Conditioning / climate control Systems
    Instrument Cluster
    Tyre Pressure Control
    Parktronic System
    Keyless Go
    D2b Command & Audio Gateway (D2B and MOST networks)
    TV Tuner
    Headlamp Range Adjustment
    Seat Electronics
    Rvc, RST & Vario Roof modules
    Automatic Clutch System ACS
    M-Class Body Modules (AAM / EAM / DAS / SEM / VG Transfer Case)
    Assyst & ASSYST + systems

    Supported systems
    Engine
    Transmission
    Climate control system
    SRS (Supplementary restraint system)
    ABS
    ASR
    MPL
    GM
    BENZ ORIGINAL ANTI-THEFT DASX SYSTEM
    System «Keyless-Go» from Mercedes-Benz
    OBD-II SYSTEM
    Advantages
    Light and easy-to-use
    No built-in motherboards, hard-drives, fans, displays and batteries
    No external power needed
    No regular firmware update needed

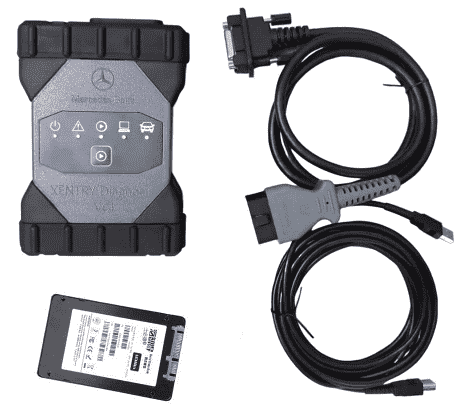

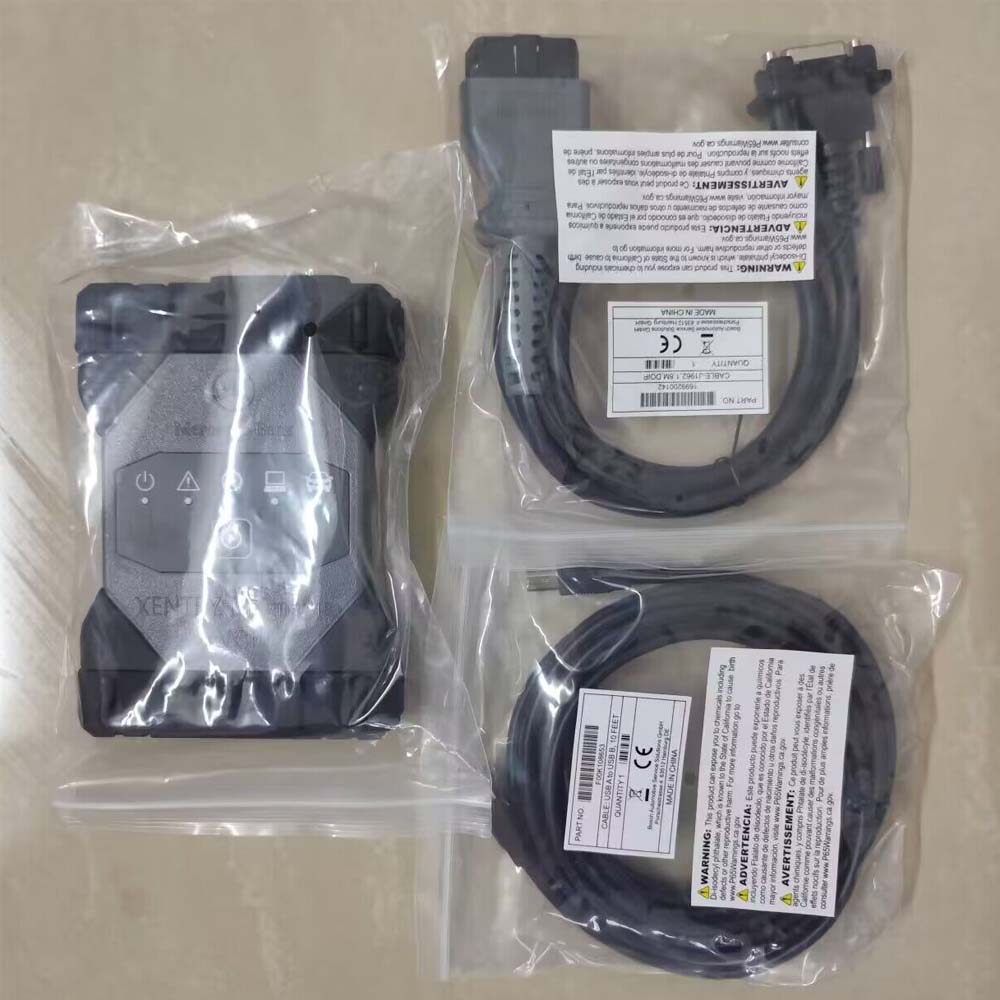

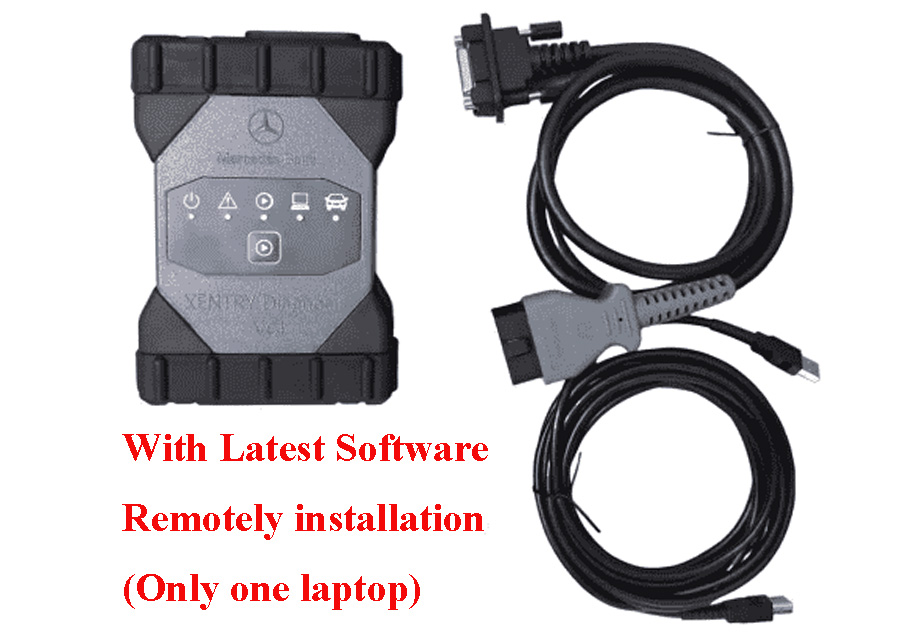

    Package list:

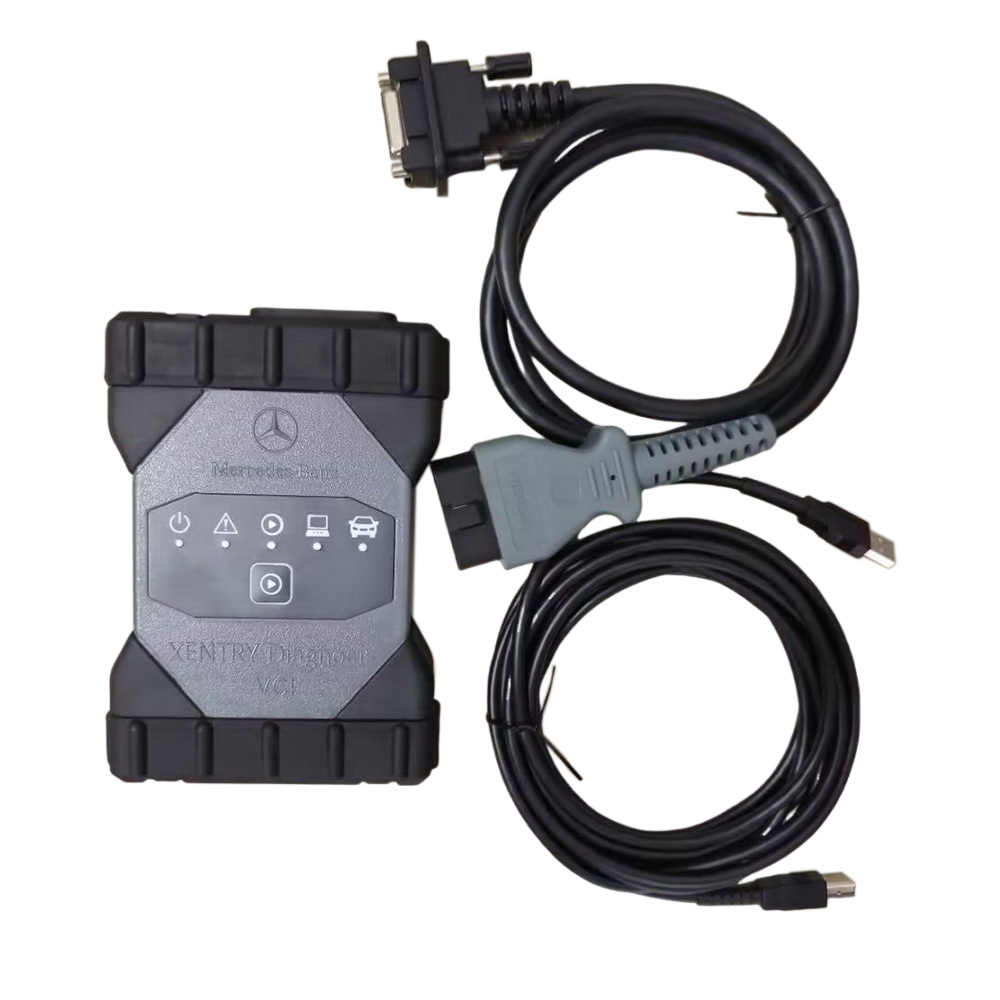

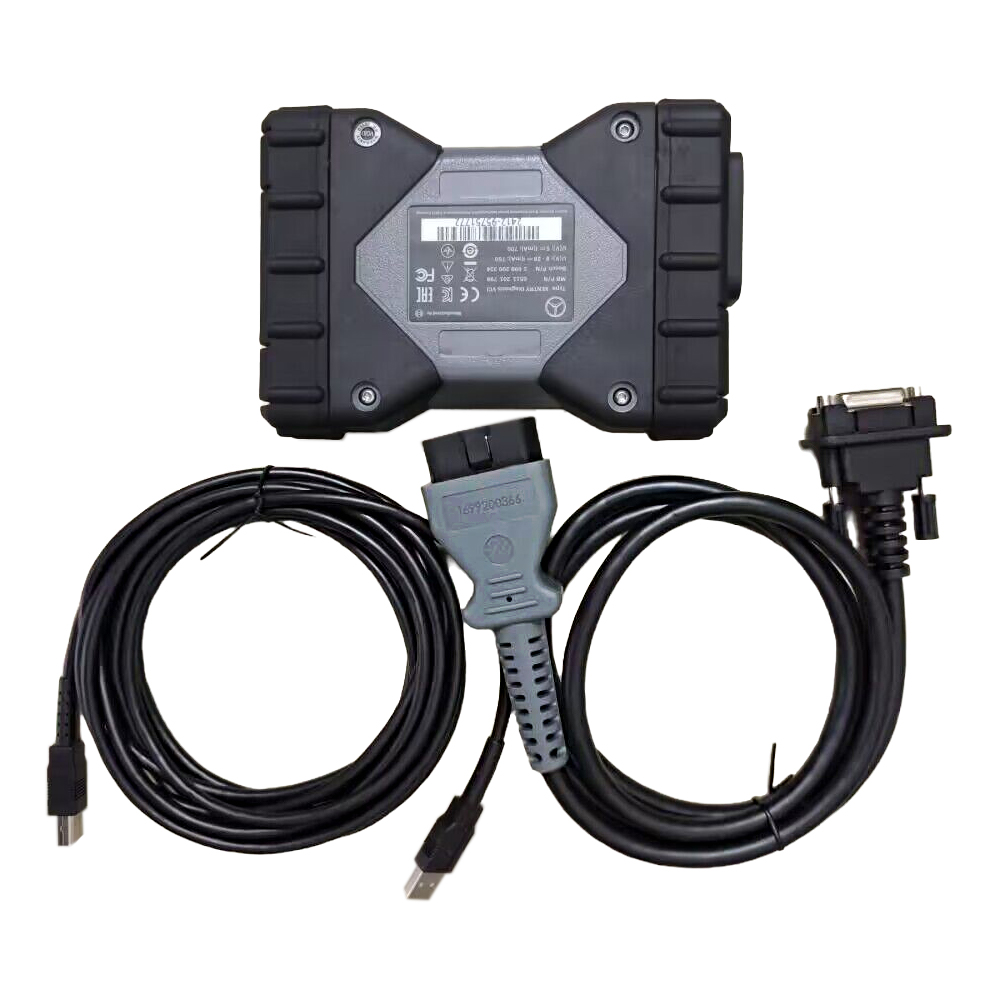

    Option 1 Package list:

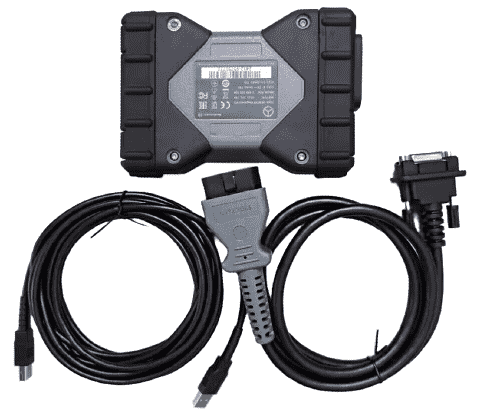

    1pc x XENTRY Diagnosis VCI Bzen C6 Multiplexer
    1pc x OBDII Cable
    1pc x Lan Cable
    1pc x USB Cable

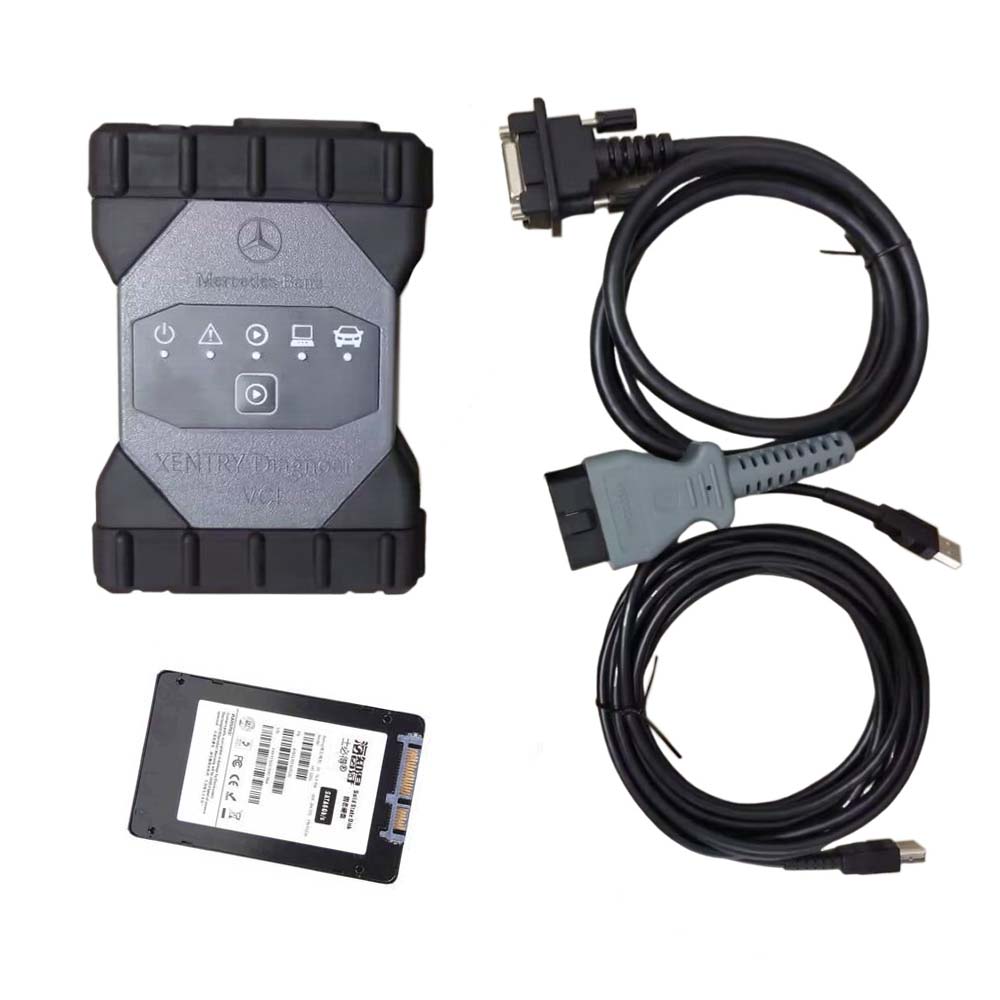

    Option 2 Package list:
    1pc x XENTRY Diagnosis VCI Bzen C6 Multiplexer
    1pc x OBDII Cable
    1pc x Lan Cable
    1pc x USB Cable
    1pc x 256G SSD (V2023.09 software)



    Option 3 Package list:

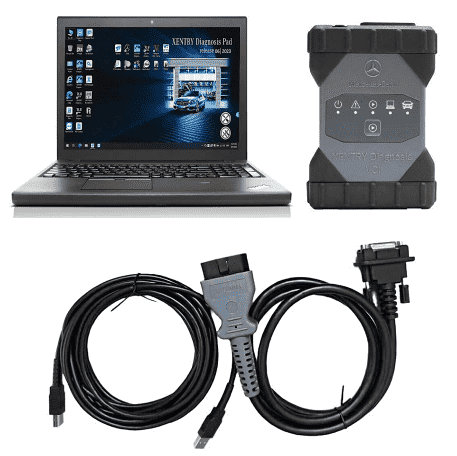

    1pc x XENTRY Diagnosis VCI Bzen C6 Multiplexer
    1pc x OBDII Cable
    1pc x Lan Cable
    1pc x USB Cable
    1pc x second hand Lenovo T450 laptop (V2023.09 software)

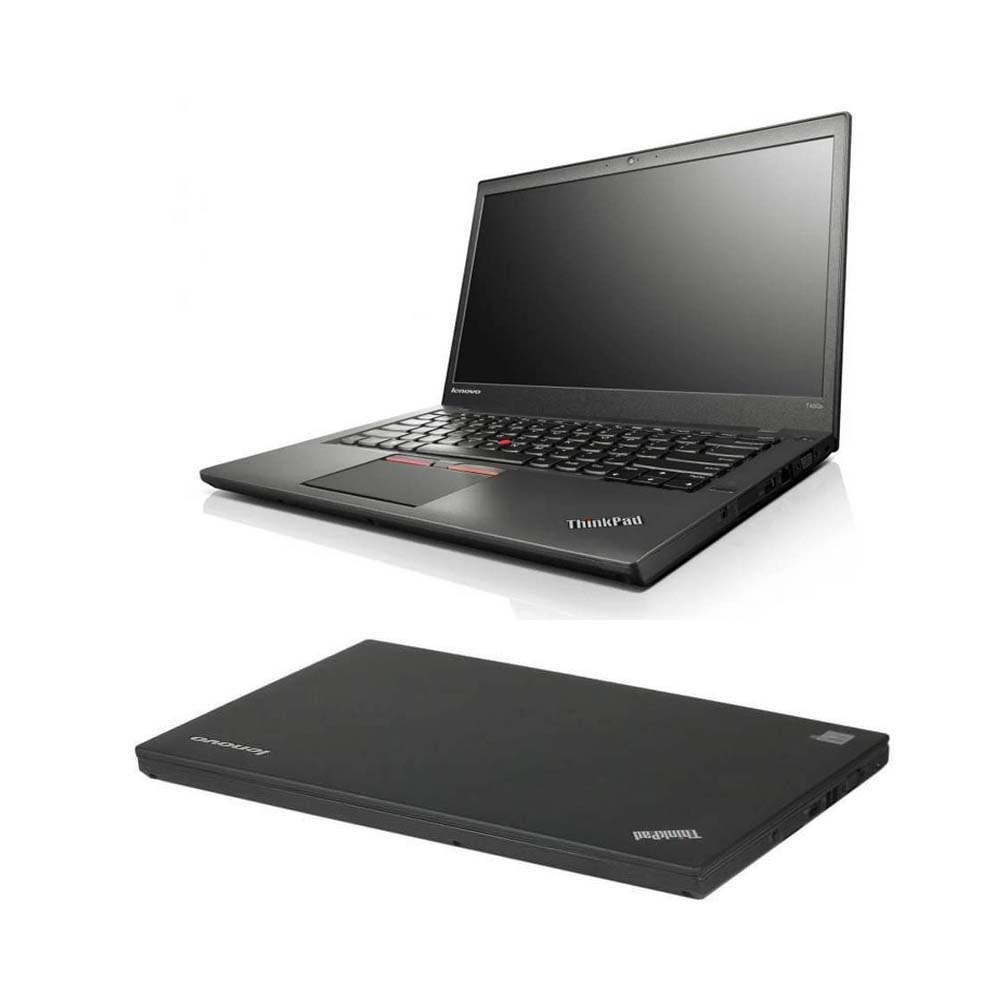

    Second Hand Laptop Lenovo T450
    Specification:
    Brand: Lenovo
    Condition: Used
    Type:Laptop/Notebook
    Screen Size:12.5
    Processor Type:Intel (R) Core(TM) I5-5200U CPU
    Memory: 8GB
