    ALL Brands Original Diagnostic Tool for BENZ C6,BMW ICOM,JLR ,VAS ,HONDA HDS,TOYOTA,PIWIS,Subaru,VOLVO,GM,ford,MAZDA

    • Item No.  A412-1
    • History: 152  sold
    • Please select the configuration you need:




    • Authorization of Add JLR PATHFINDER Software:


    • Market Price: US$1,198.80
      Shop Price: US$999.00You save US$199.80
      Quantity
      Total
      Shipping:
      Express Shipping Service    Estimated delivery time: 3-5 days »
      Affected by the epidemic, there will be delays in transit time.
      continue
    • Quantity:  191
    • Weight:  7.0KG
    • Rank:  comment rank 4.5 () Write a Review
      Rated 4.5/5 based on 27 customer reviews

    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video


    Benz STAR C6,BMW ICOM,JLR,VAS,HONDA,TOYOTA,PIWIS,Subaru,VOLVO,GM,ford,MAZDA Multiple in one diagnostic tool


    All original software will be installed

    1. If you select the software installed the HDD/SSD , you can insert the it to your laptop then can use it

    Configuration requirements and usage of PC

    1.1 Computer hardware requirements: CPU i5/i7; memory: 8g.

    1.2 Usage: there are 4 options after power on, which can be selected by the up and down keys, and then click enter to confirm.

    2. If you select the software installed the laptop , you can use it directly when you get it


    Note:

    The hard drive comes with MB STAR C6 DoIP,BMW ICOM, GM Tech2Win and GM GDS2 ,Ford IDS,Mazda IDS,Toyota TIS, Honda HDS,VW ODIS,JLR SDD and Pathfinderoption),Subaru SSM3,Volvo VIDA,Porsche Piwis2 Original Software.

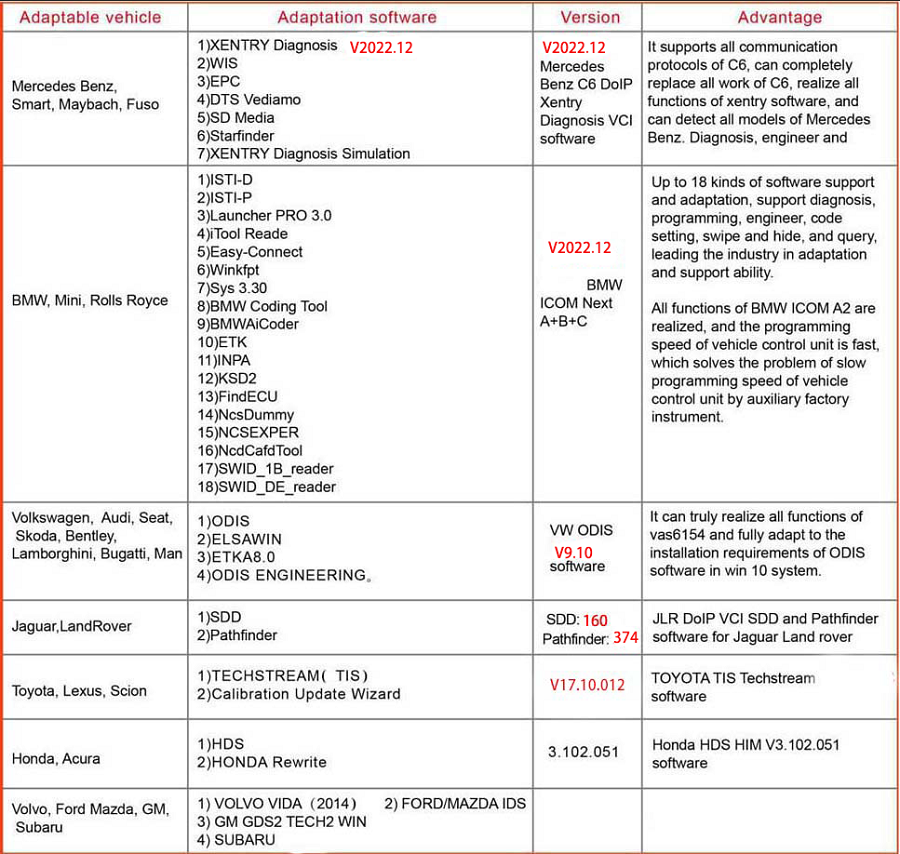

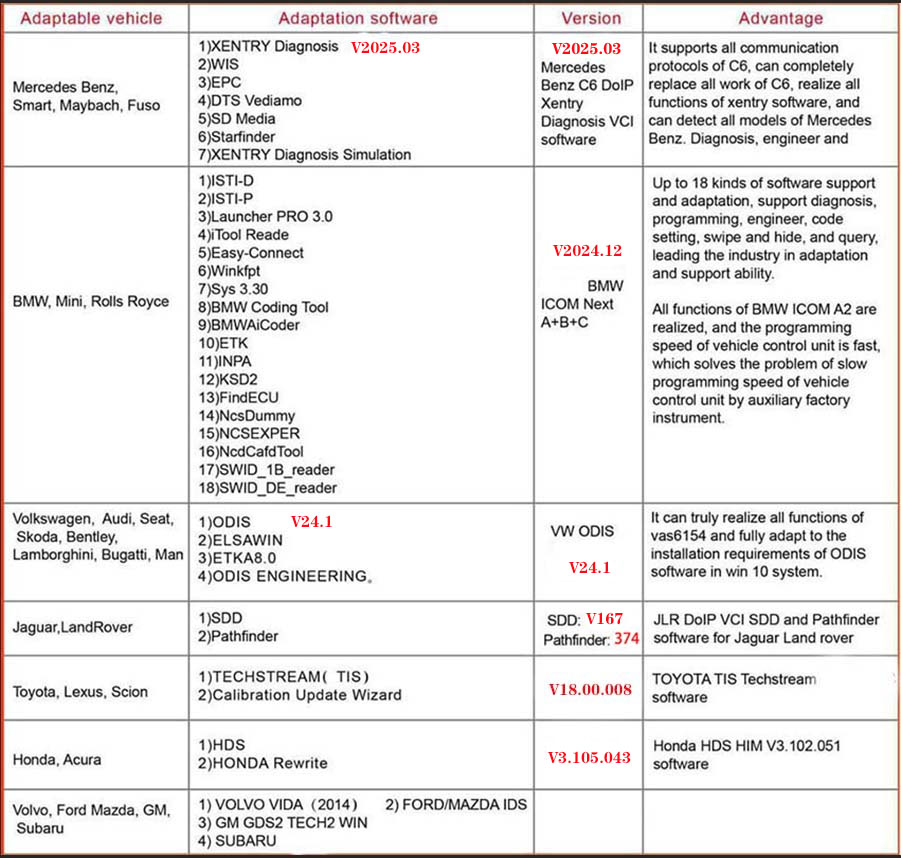

    Software version:

    1.Toyota TIS V15.00.026

    2.Honda HDS      HDS V3.102.054, i-HDS V1.004.025

    3.FORD/ MAZDA IDS  V118

    4.GM MDI2     V2020.09

    5.VOLVO Vida   V2014D

    6.JLR SDD and Pathfinder      V159 and V265

    7.VW ODIS       V5.16

    8.Benz Star C6   V2021.06

    9.BMW ICOM V2021.06 ISTA-D V4.29.22, Programming: ISTA-P v3.68.0.0008

    10.PORSCHE PIWIS 2  V18.1000

    11. SUBARU SSMIII   V2020.07

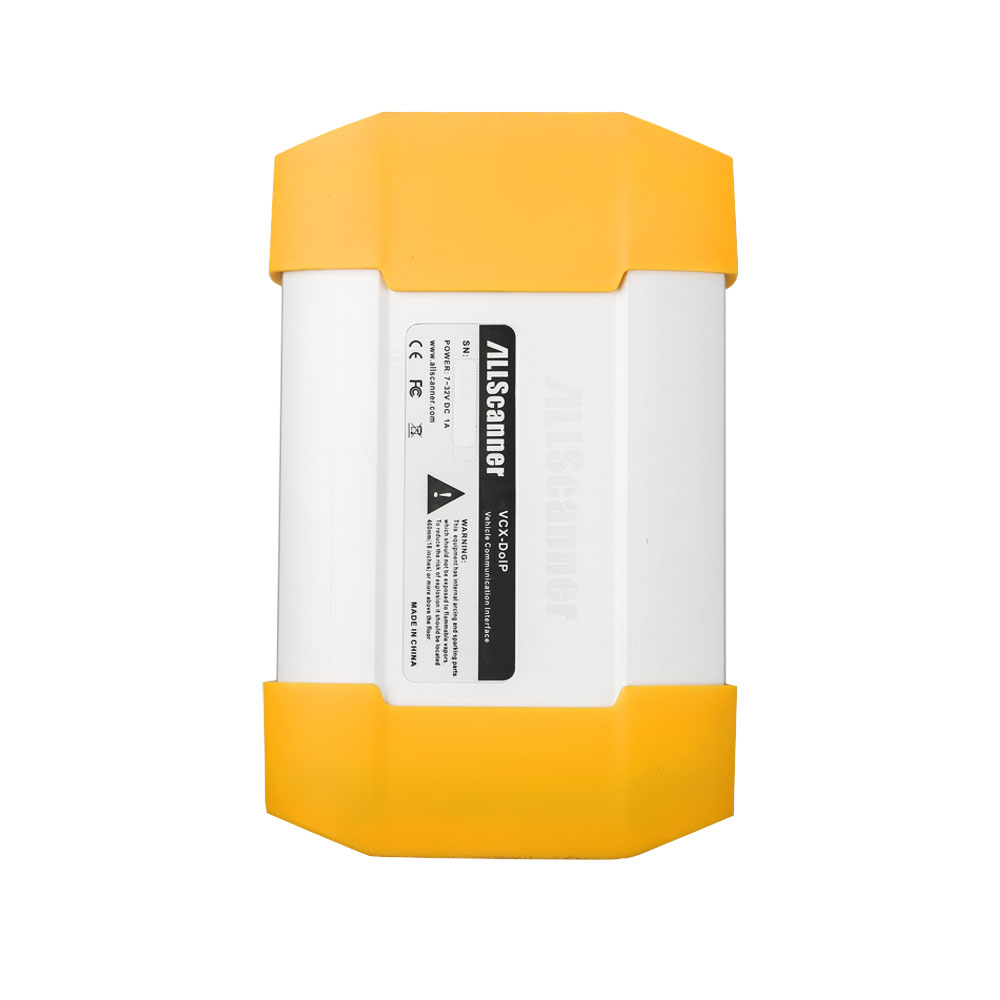

    Multi in one DoIP OE diagnosis is a real DoIP original diagnosis instrument based on DOP, J2534 and more original protocols adaptation under OEMD brand. It not only supports all J2534 protocols, but also takes the lead in realizing perfect and complete DoIP adaptation in the industry, replacing the original diagnosis instrument's adaptation ability, programming ability, diagnosis and programming speed, stability and original diagnosis. The ability of the instrument has been greatly improved, taking the lead in the industry to replace C6 in an all-round way, and it is also the first comprehensive original diagnostic instrument in the industry to realize all functions of ICOM A2 and VAS6154. OD6 has really raised the multi in one and comprehensive original diagnosis instrument to a new benchmark height, which has become the only choice for J2534 and DoIP OE diagnosis tool.

    Features:

    It adapts to the OE diagnosis software, perfectly replaces the OE diagnosis, and realizes the OE diagnosis functions such as control unit identification, reading and deleting fault information, data flow, guided fault query, action test, programming, matching, code setting, brush hiding, changing vehicle configuration, etc.



    Advantage characteristics

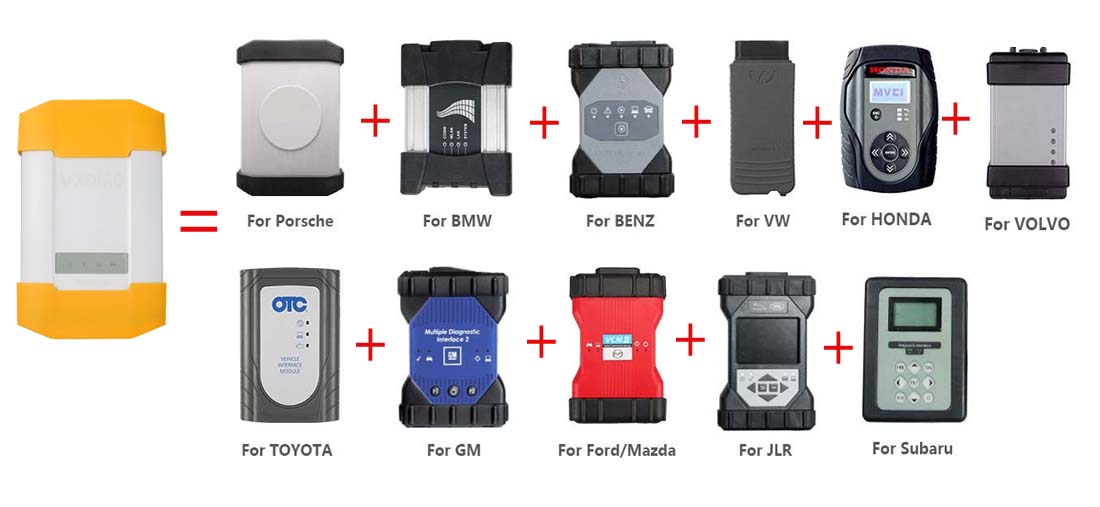

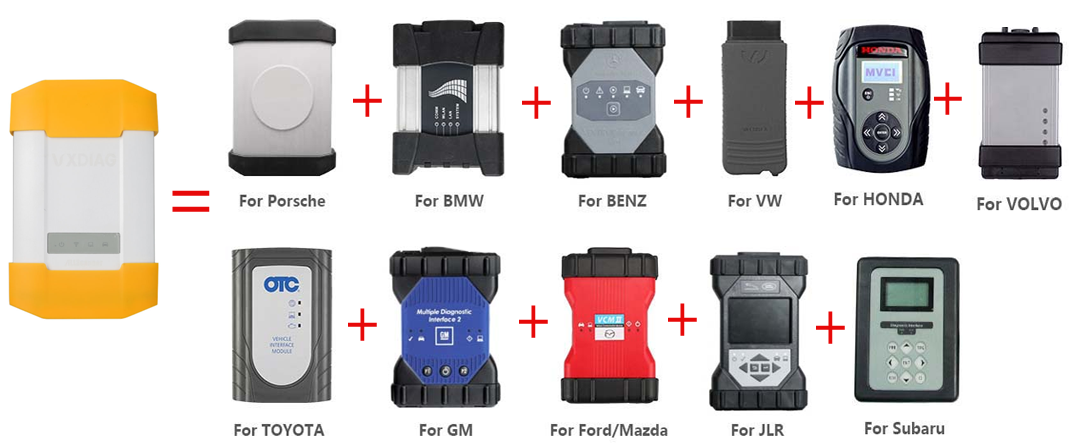

    1.Multi in one comprehensive diagnosis instrument VCI of the original factory, one machine is multi-purpose and cost-effective;

    2.Comprehensive and perfect DoIP support, not only support but also more perfect adaptation;

    3.Realize the functions and speeds that J2534 and other comprehensive original diagnosis instruments cannot achieve;

    4.Solve the problem that non doip or other diagnostic instruments are unable to program audio gateway and instruments;

    5.Solve the problem that non doip or other diagnostic instruments cannot test the new and old models;

    6.The industry takes the lead in supporting and adapting 18 BMW series softwares;

    7.The industry takes the lead in supporting the programming software of Toyota and Honda;

    8.The industry takes the lead in adapting and supporting Mercedes Benz disassembly and assembly tutorials, diagnostic demonstration programs and third-party line query software;

    9.It can perfectly replace BENZ STAR C6 and many original diagnostic instruments;

    10.Realize all functions of BMW ICOM A2, and realize rapid programming of vehicle control unit;

    11.Realize the installation and use of win 10 of Audi ODIS series;

    12.Realize all functions of VAS6154;

    13.At the same time, it supports SDD and Pathfinder, and can modify the vehicle and program the control unit to read the data quickly;

    14.Support all functions of tis software of the main factory, and realize the function of upgrading vehicle power system software that 4S stations at home and abroad can't do at will;

    15.Support all functions of the factory's HDS software, so as to realize the function that 4S stations at home and abroad cannot upgrade the vehicle power system software at will;

    16.Multi protocol is added to ensure comprehensive adaptation ability and programming function;

    17.Support model expansion, such as Volvo, Ford Mazda, GM, Porsche, Subaru, etc;

    18.The actual measurement of doip programming, no gimmick, with data and facts.

    Protocol support

    1.SAE-J2534-1

    2.SAE-J2534-2

    3.ISO-9141 K-Line

    4.ISO-14230 K-Line

    5.ISO-15765 K-Line/CAN

    6.ISO-11898 DWCAN

    7.ISO-11898 DWFTCAN

    8.SAE-J1850 VPW(GM Class2

    9.SAE-J1850 PWM(FORD SCP

    10.SAE-J2411 Single Wire CAN(GMLAN

    11.SAE-J2610 SCI(Chrysler

    12.SAE-J2740 GM ALDL

    13.SAE-J2809 (HONDA DIAG-H)

    14.SAE-J1939 CAN

    15.SAE-J1708 On RS 485

    16.VAG TP16 CAN

    17.VAG TP20 CAN(SAE J2819

    18.VAG KW81(SAE J2818

    19.BMW DS2

    20.FORD UBP

    21.DOIP

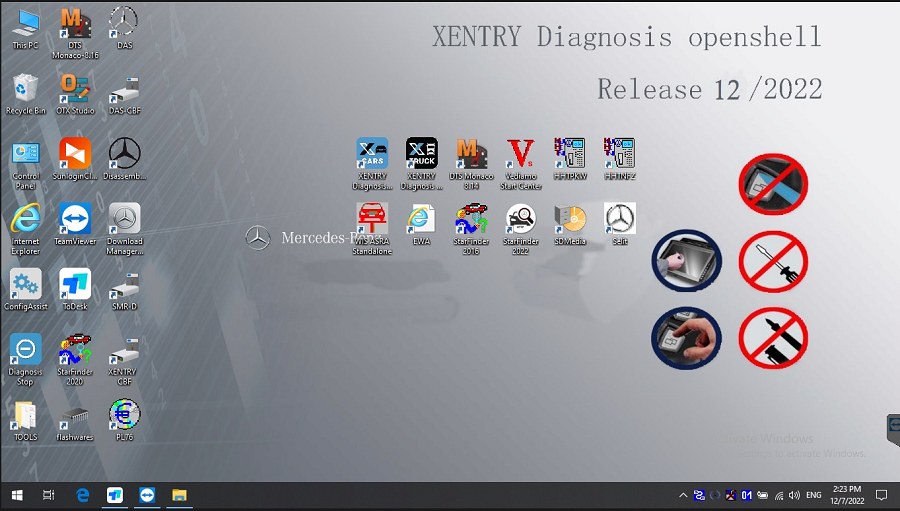

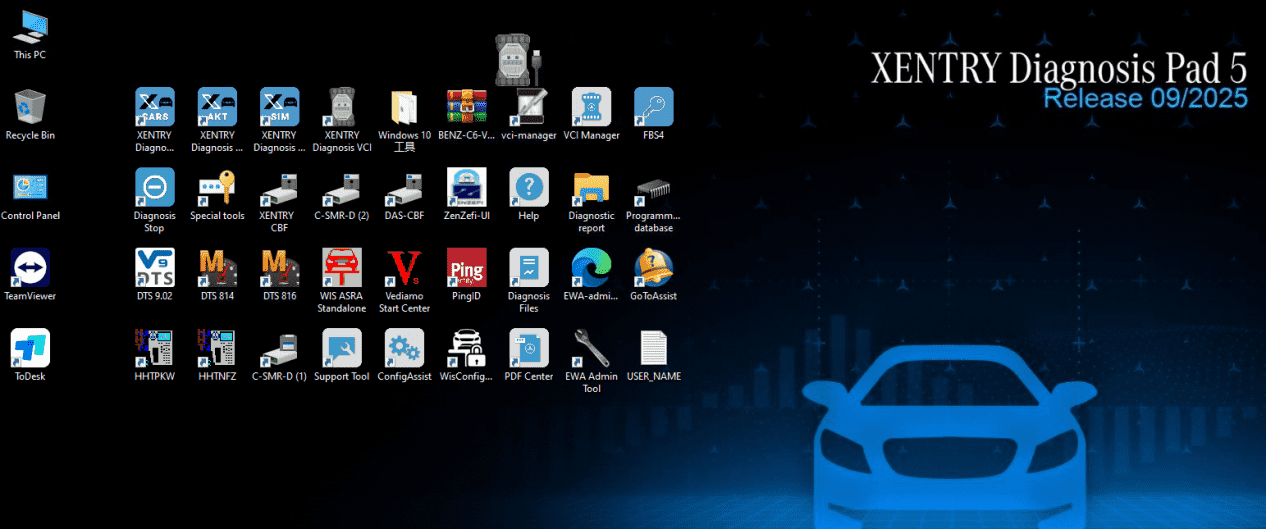

    1. 2021.06 Mercedes Benz C6 DoIP Xentry Diagnosis VCI software display



    Benz software include two versions of PASSTHRU & PDU,including DASXentry software.Version of PDU support new car models of 222213205 etc,other car models need to usepassthru version to diagnose. Not support old models of 210203220 with K-Line communication. It support connections of WIFILAN and USB.

    Product Features:

    Engines (All Gasoline & Diesel Systems)
    Transmissions and Electronic Selector Modules
    Airmatic and Active Body Control Suspension Systems
    Traction Systems: ESP / ASR / ETS / ABS / BAS / SBC braking systems
    Supplementary Restraint Systems (SRS) / Airbag, All body modules OCP / UCP / LCP / SCM / SKF / KFB / RCM / DCM’s
    Drive Authorisation System
    Sam (Signal Acquisition) Modules
    Electronic Ignition System (EIS)
    Pneumatic System Equipment and ATA functions
    Air Conditioning / climate control Systems
    Instrument Cluster
    Tyre Pressure Control
    Parktronic System
    Keyless Go
    D2b Command & Audio Gateway (D2B and MOST networks)
    TV Tuner
    Headlamp Range Adjustment
    Seat Electronics
    Rvc, RST & Vario Roof modules
    Automatic Clutch System ACS
    M-Class Body Modules (AAM / EAM / DAS / SEM / VG Transfer Case)
    Assyst & ASSYST + systems

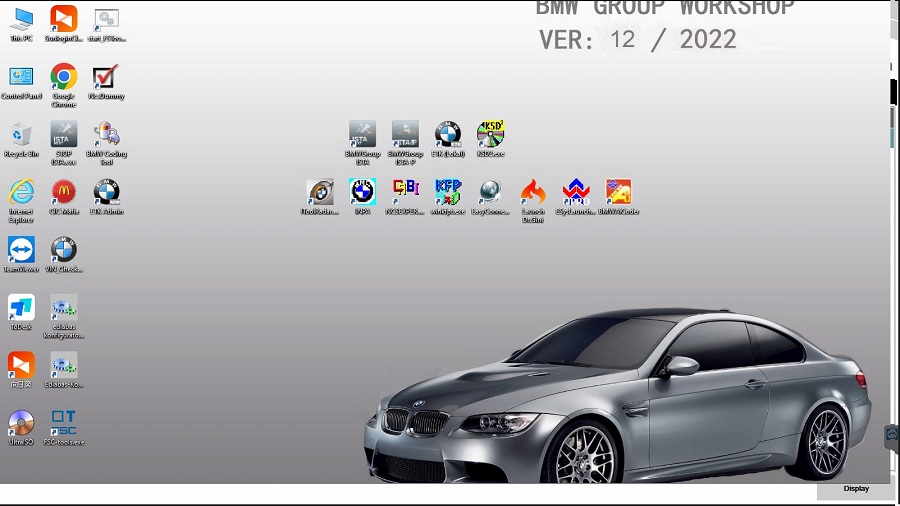

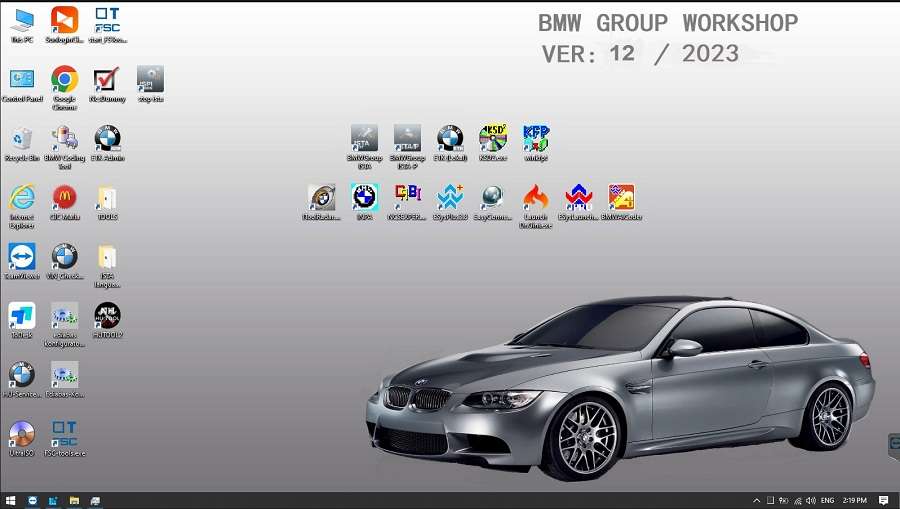

    2. V2021.06 BMW ICOM Next A2+B+C software display:


    BMW software version:

    Diagnosis: ISTA-D v40.29.22,

    Programming: ISTA-P v3.68.0.0008



    The new BMW software can perform programming and coding for all BMW E/ F/ G series cars. Same as BMW ICOM A1 / A2 / A3, ALLSCANNER VXDIAG A3 supports all BMW software and is good at fiber programming.
    The main diagnostic software includes:
    BMW ISTA-D (Diagnostic);
    BMW ISTA-P (Programming)
    BMW Group ISPI (the fourth generation of BMW diagnostic software client);
    E-SYS (Engineer Software for F series, available for programming, coding, Chinesization, realize hidden functions, advanced features);
    WINKFP (for E series: programming, upgrade and downgrade);
    Tool32 (enter key, import codes, delete certification, advanced features of BMW series);
    INPA (read vehicle information, diagnosis, read and clear trouble codes);
    BMW Coding (for E series: import data, change the code or realize hidden functions);
    KSD2 (offer full vehicle repairing information for diagnosis or programming);
    NCS-Expert tool (for E series: set codes, realize hidden functions and change settings);
    BMW software includes the engineer version, which is the quick and easy diagnostic programming and coding system that German BMW engineers are using. The system is designed in English and German. The Engineer version is so practical and powerful that it can achieve professional features which all the original professional computers can realize, can change the language into Chinese through the OBD port for import cars (Europe regulation cars, the United States and the United States, Africa, etc.). Features mainly include: diagnosis, programming (incl. programming one module only), coding, realize hidden function, new features activation, the module system update.

    3.Toyota TIS V15.00.026 Functions and Descriptions:


    1.Fully compatible with SAE J2534
    2.Fully compatible with Toyota TIS Techstream
    3.Supports Diagnostics, and Active tests.
    4.Supports most 1996 and newer Toyota, Lexus, and Scion vehicles with OBDII/DLC3 diagnostics

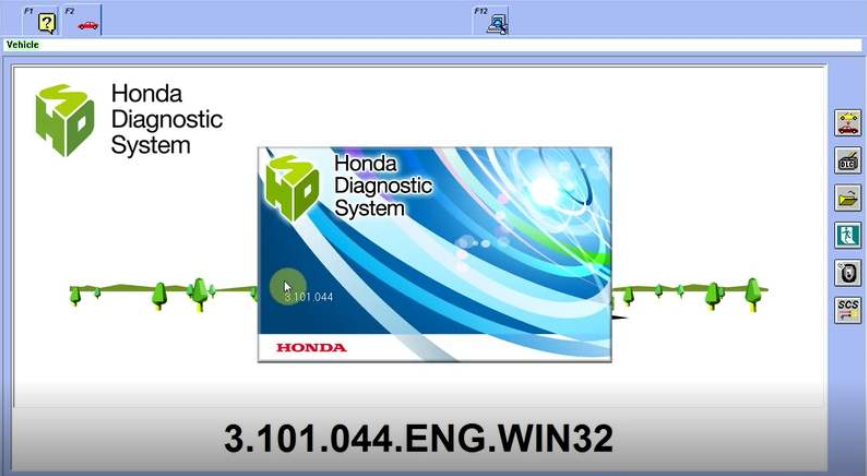

    4. Honda HDS V3.102.054 Function:



    Functions Supported by Honda/Acura Protocols
    Reading and decoding fault codes from control blocks memory
    Deleting fault codes
    Displays system current parameters in digital form
    Combined displaying of data
    Management of executive devices
    Logs keeping - writing and keeping of digital parameters in memory
    Special functions - changing of permissible settings of blocks, programming etc.

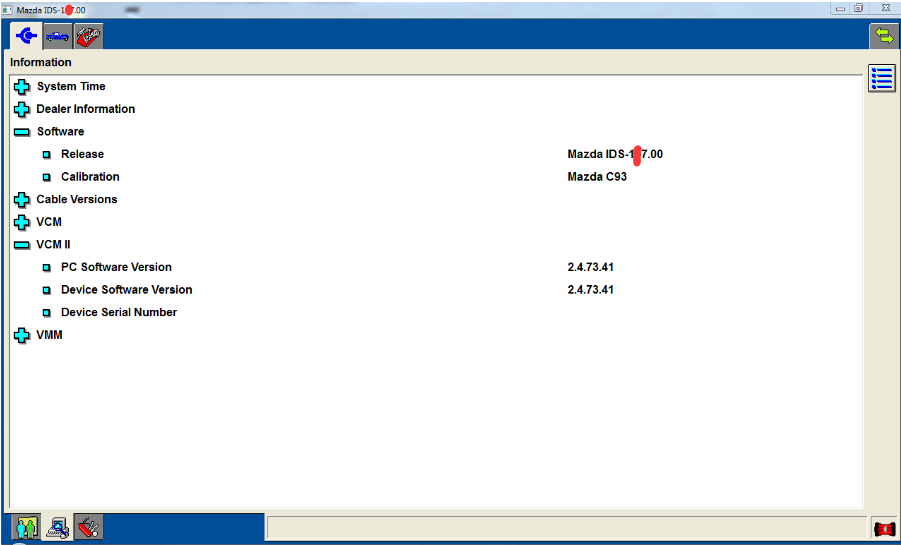

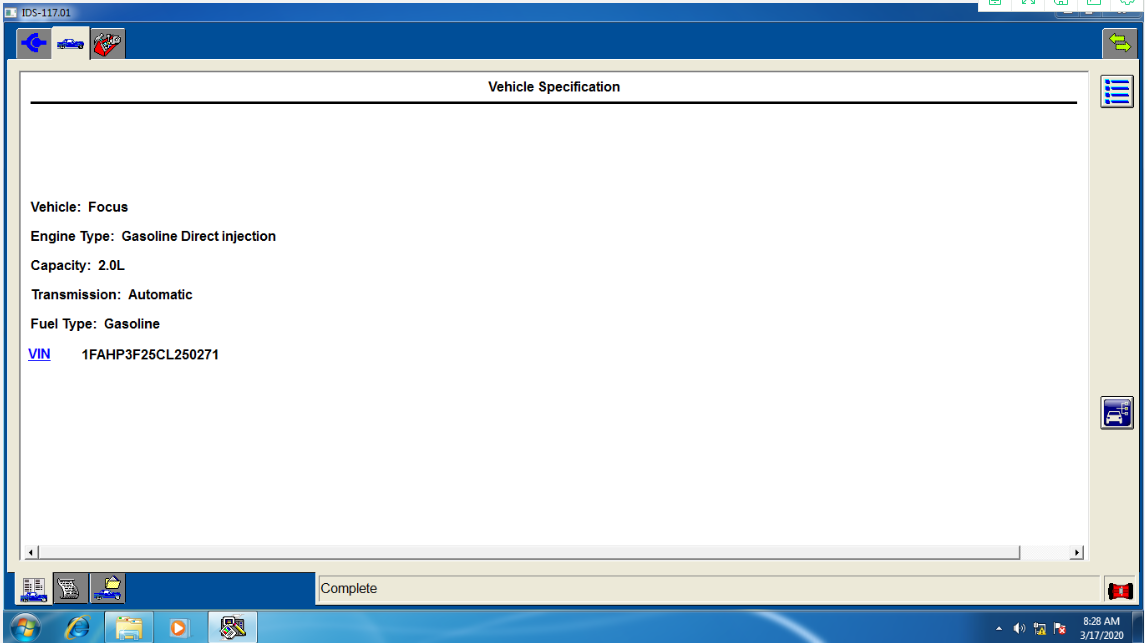

    5. Ford/Mazda IDS VCM2 V118 Function:





    1. Programming & Installation of new ECUs (PCM, ABS, Instrument Cluster, Air Bag, Fuel Pumps, etc.)
    2. Live Data-stream with Recording & Playback Functions for Main ECUs
    3. Read & Clear Diagnostic Trouble Codes (DTCs)
    4. Set, Adjust or Remove Speed Governors
    5. Automatic vehicle recognition
    6. New Software Re-flash for Existing ECUs
    7. All Other Dealer Functions
    8. Steering Angle Resets
    9. Guided Fault Finding
    10. Program New Keys
    11. DPF Regeneration
    12. Brake Bleeding
    13. Injector Coding

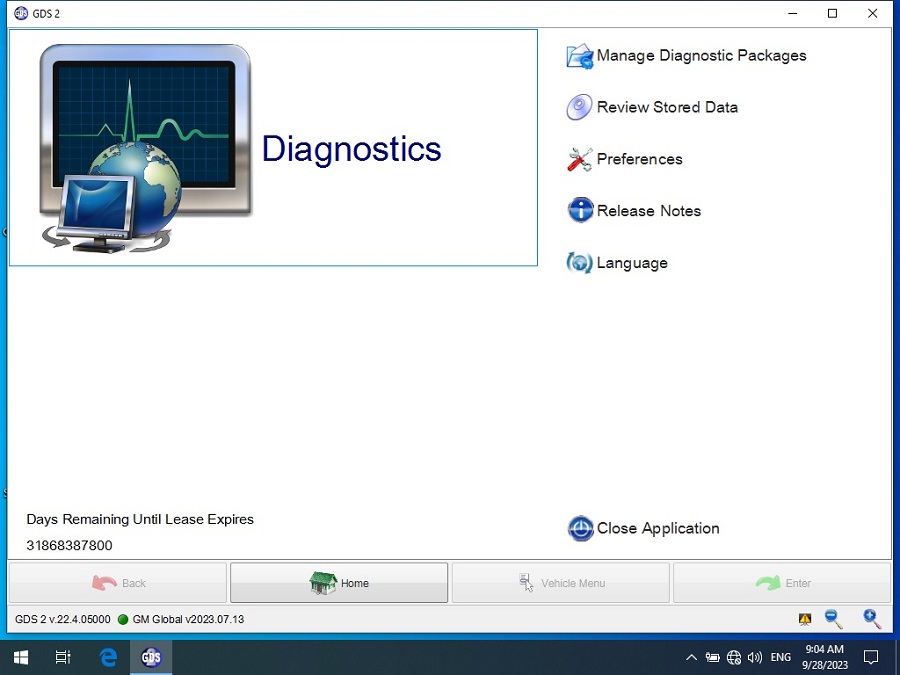

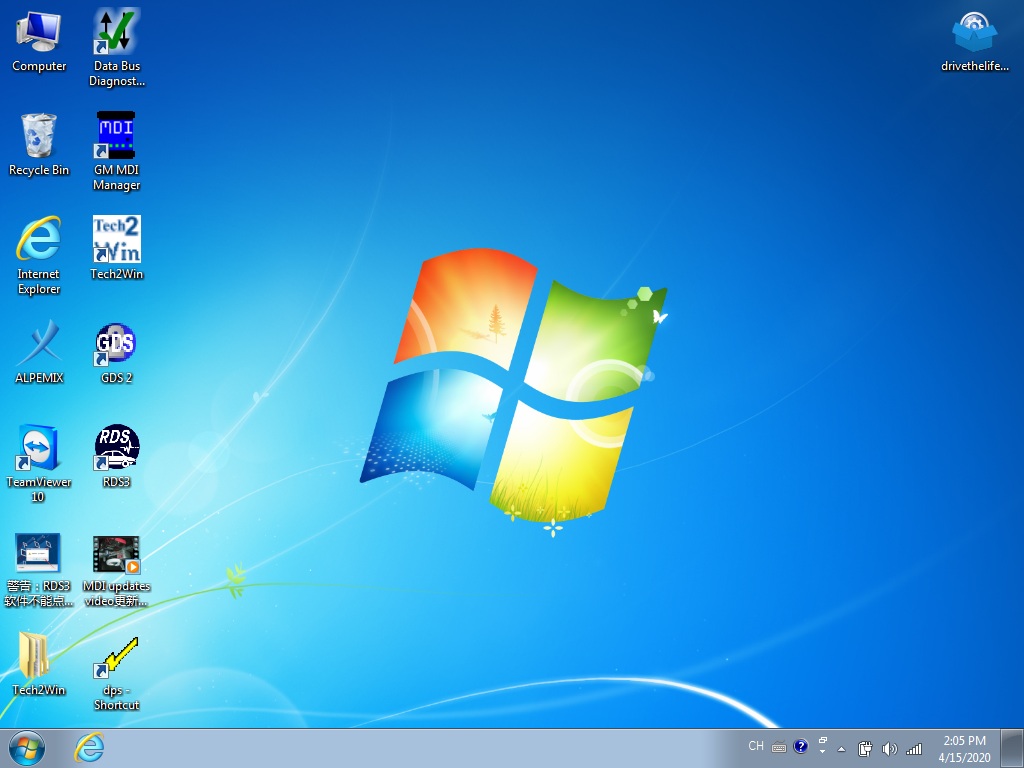

    6.GM MDI 2 V2020.09 GM/OPEL FEATURES:


    1.Fully compatible with SAE-J2534-1 & SAE-J2534-2
    2.All current and most legacy vehicle protocols: CAN, UART, KW2000, Class2, GM LAN, etc.

    Global Diagnostic System (GDS & GDS2)
    * New Diagnostic Application Software required for all GM Global Architecture (Global A) Vehicles.
    * GDS & GDS2 is software which runs on a specific PC. Updates received via TIS2Web.

    GM Kit support both GDS & GDS2. GDS 2 works similar to the original GDS. easier and faster

    GDS 2 provides the following capabilities in multiple languages:
    * Read codes, code status, Freeze Frame data and Clear Codes.
    * Read VIN, ECU part numbers and software numbers.
    * Record, store and replay Stored data.
    * Control and monitor Output Control functions.
    * Configure and Reset functions.
    * Record or display history of the previous vehicle diagnostic sessions.

    COMPATIBLE SOFTWARE:
    * Support PC-based diagnostics with rollout of the Global Diagnostic System GDS & GDS2
    * Support GM TIS2WEB online Service Programming System (SPS)
    * Support Tech2Win application to offering a larger screen with all of the Tech 2 tool functionality

    Service Programming System (SPS)(For this function, you need have GM online account for online programming)
    * passthrough programming on GM past model and Global A vehicles
    * Increase reprogramming speed 20-70% and get ready to service new models

    For pass-through programming of electronic control units on all vehicles built since 1996 and future model releases. The VCX Nano Prime GM KIT is between 20% and 70% faster than Tech 2.For example, on a new Tahoe hybrid with 7 ECUS, it would normally take 2 full hours to reprogram. But, with VCX Nano the process is completed in just 45 minutes. That’s a 64% difference and means you could service 10vehicles rather than 4in an 8-hour day! The potential to increase revenues is dramatic.

    Tech2Win Function
    Tech2Win, an application version of the Tech 2 and CANdi (Control Area Network diagnostic interface) moduleTech2Win can be used during a vehicle road test, offering a larger screen with all of the Tech 2 tool functionality. The Tech2Win application offers all of the features and functions of the Tech 2 for Opel etc. Tech2win need to install on win 7 32 bits.

    7.Volvo Vida V2014D Function:


    2014D Software Language: Italiano, English, French, Portuguese, Swedish, Japanese, Korean, Dutch, Russian, Turkish, Thai, Chinese
    1) Administration - General information, design and function
    2) Standard components, service materials and consumables. General information (among other things, control modules, SRS, general safety)
    3) Service and maintenance
    4) Engine with mounting and equipment
    5) Electrical system
    6) Power transmission
    7) Brakes
    8) Suspension and steering
    9) Springs, shock absorbers and wheels
    10) Body and interior - among other things, diagnostics, design and function, repair and spare part information
    11) Other - special vehicles, e.g., ambulances, police cars. Components that deviate from standard.

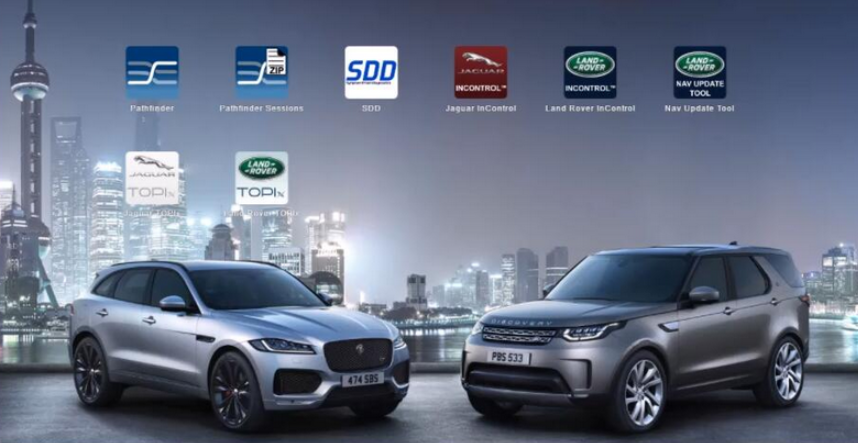

    8.LAND ROVER Jaguar SDD V159 and Pathfinder V265 Software Feature:


    The Pathfinder software
    It is the only unit that will be compatible with the Pathfinder software and all JLR vehicles with the new vehicle architectures found in 2018 and newer vehicles (from the Range Rover/Range Rover Sport L405/L494). In addition to the 2018 and newer vehicles, the DoIP VCI will also be capable of interfacing with 2014 through 2020 Multi-CAN architecture vehicles (see application list below).



    The SDD software

    All 2014-2020 with no DOIP and earlier (2006 to 2020) land rover and Jaguar will still use the SDD JLR software.

    The NEW JLR DoIP VCI is the newest interface for Jaguar and Land Rover vehicles.



    It is the only unit that will be compatible with the Pathfinder Software and all JLR vehicles with the new vehicle architectures found in 2017 and newer vehicles (from the Range Rover/Range Rover Sport L405/L494). In addition to the 2020 and newer vehicles.





    The DoIP VCI will also be capable of interfacing with 2014 through 2020 Multi-CAN architecture vehicles (see application list below). Vehicles 2014 and older vehicles not detailed here will continue to use the current diagnostic system and VCIs.

    DoIP VCI Applications:
    · XE (X760)
    · F-Pace (X761)
    · F-Type (X152)
    · XF (X260)
    · XJ (X351) – 16MY only
    · Evoque (L538)
    · Discovery Sport (L550)
    · Range Rover (L405)
    · Range Rover Sport (L494)

    9. VW ODIS 5.1.6 for VW Audi Skoda



    Support the newest ODIS5.1.6 software and UDS protocol.
    Support Volkswagen, Audi, Skoda, Bentley, Lamborghini

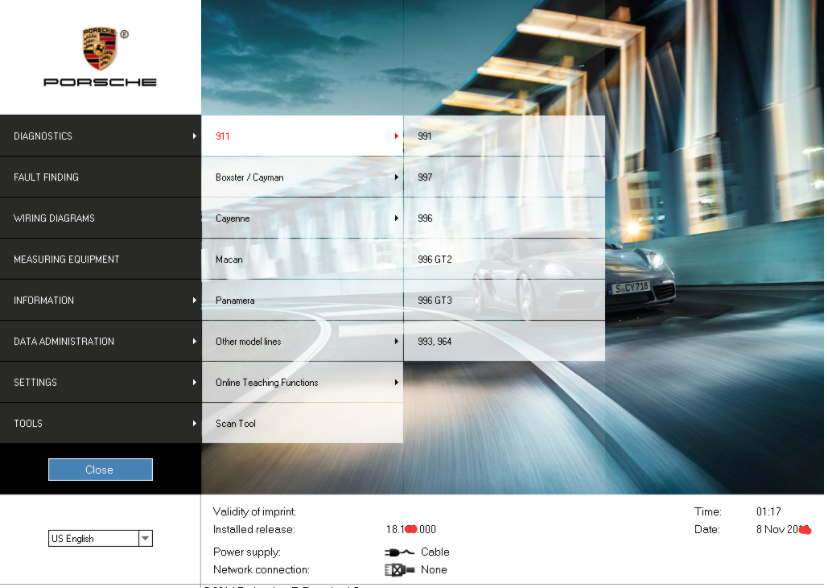

    10.Porsche Piwis Tester II Functions and Descriptions:


    1. Read/clear error code, catch data stream, computer programming match, component test, maintenance information consult, components site drawing, wiring diagram.
    2. Porsche Piws2 II works with the old and latest Porsche cars. It is equipped with the Lenovo or Dell laptop and original software for the test.
    Porsche Piws2 II can help you diagnose and program all new and old kind of Porsche cars. For example: 911(997)(991),Boxster/Cayman, (987),
    Cayenne up to MY 2010, Cayenne from MY 2011 and Panamera.
    3. New Panamera can only be diagnosed by using Porsche Piws2.
    4. Able to work with both old and new Porsche cars up to MY 2013.

    Porsche Piws2 II Support Systems:

    Engine, automatic transmission, air-conditioning, SRS, ABS, ASR, MPL, GM, Original antitheft System, Keyless GO system, OBDII system.

    Porsche Piws2 Vehicle Coverage:
    1. 911(997) (991)
    2. Boxster/Cayman (987)
    3. Cayenne up to MY 2010
    4. Cayenne from MY 2011
    5. Panamera
    6. Support Porsche Cars Till 2017

    11.SUBARU V2020.07 Software Function:

    1. All System Diagnosis. Selecting this item displays on a single screen the fault detect status of all control system control modules for which SSMΙΙΙ diagnosis is supported, and memorized diagnostic codes.
    2. Each System Check. Selecting this item makes it possible to select a particular system from among the control systems forwhich SSM
    ΙΙΙ diagnosis is supported, and perform fault diagnosis. This item can be used to view input/output data of the system control modules that perform fault diagnosis, memorized diagnostic codes, and other data on the PC display. This menu item is also used after repair work is complete to delete diagnostic codes, to configure control module settings, etc.
    3. Saved Data Display. This item can be used to save various data sampled during fault diagnosis operations, and to load data for viewing after work is complete.
    4. Immobilizer. This item performs immobilizer registration.
    5. Reprogram. This item performs reprogramming of the control module.
    6. Read CF application measurement data. This item performs reading stand alone measurement data saved in a CF card to hard disk of your PC.
    7. Convert/Save measurement data on driving recorder. Loads data sampled on the driving recorder to the PC from the CF card, and converts and saves that data.
    8. Oscilloscope. After attaching the optional pulse/analog cartridge to SDI, connect the pulse/analog box to the SDI and using pulse/analog probe to perform analog sampling. But we do not provide pulse/analog cartridge.

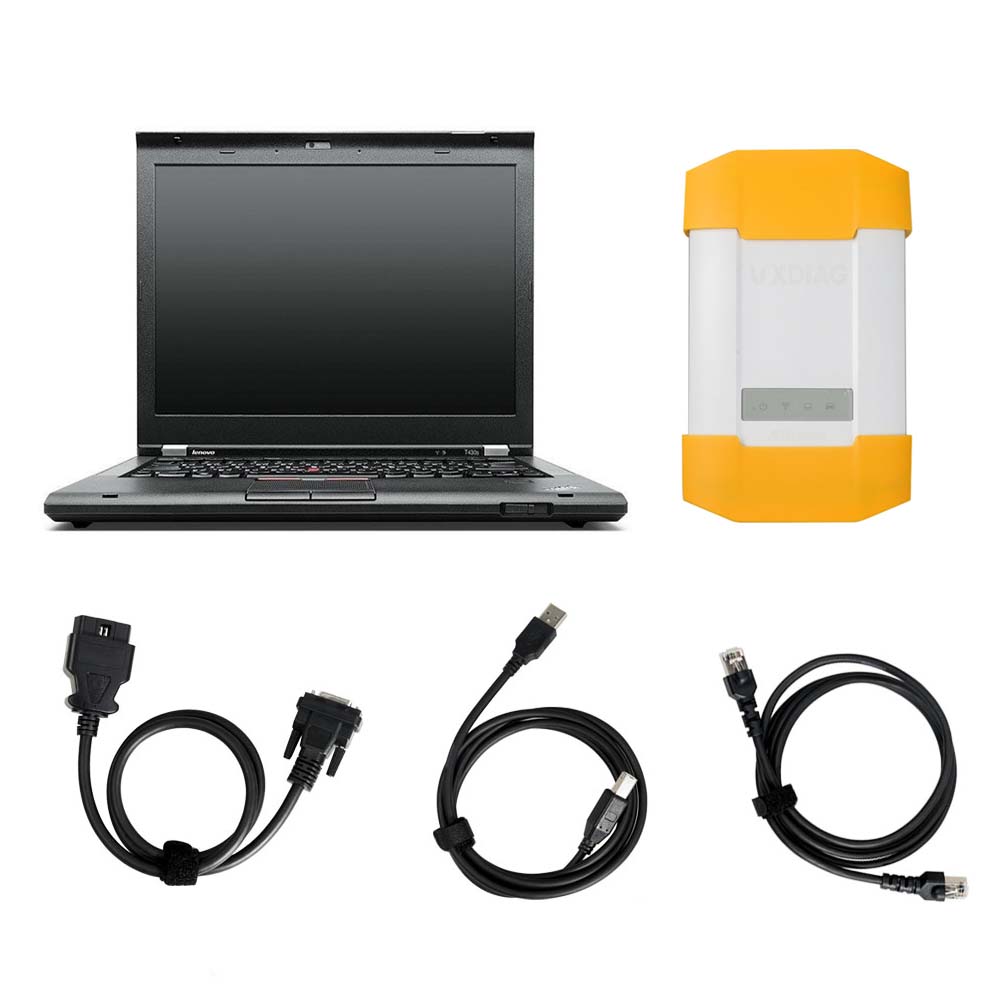

    Package List:

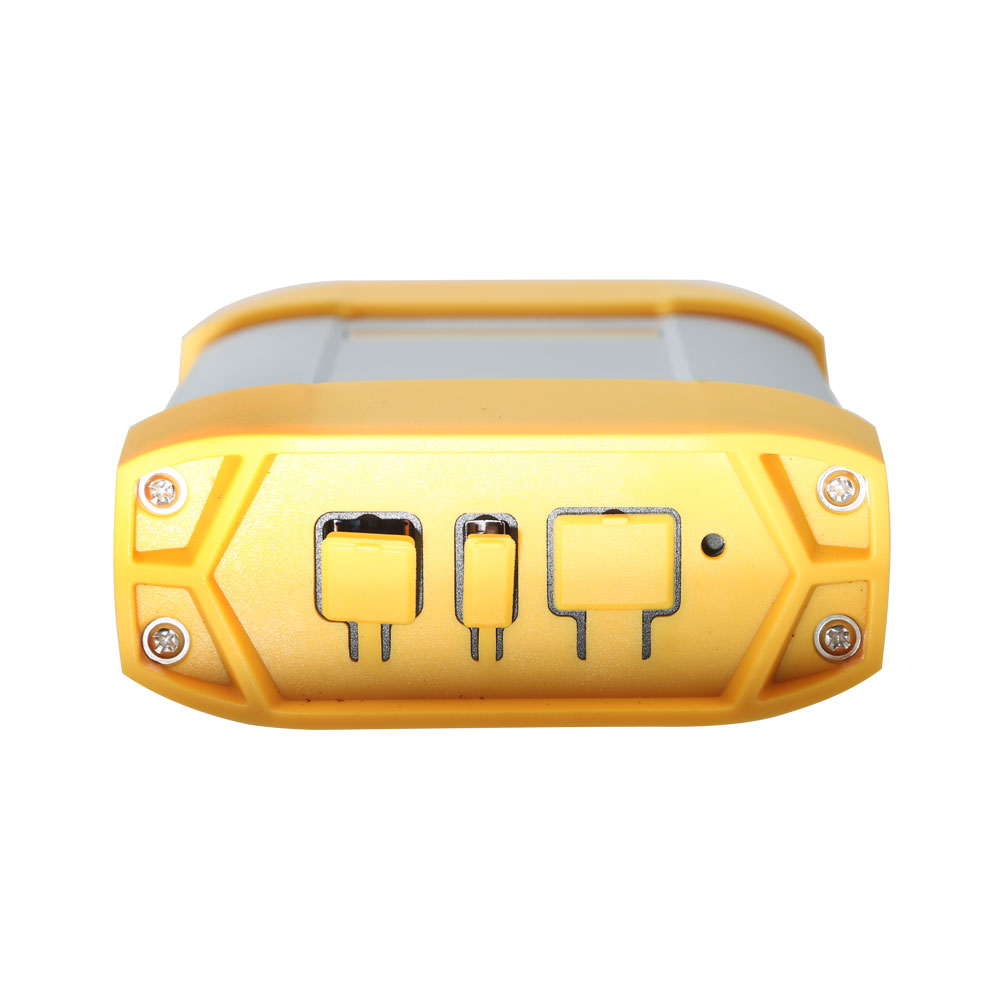

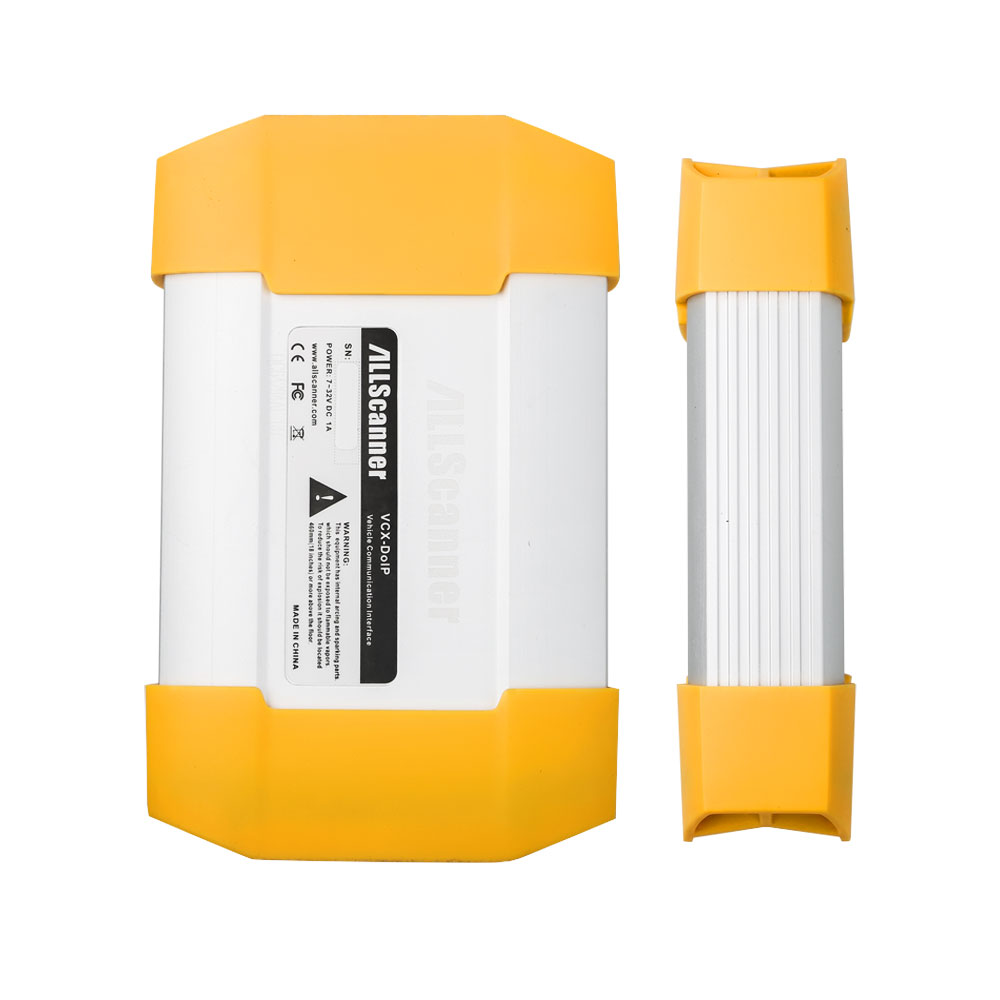

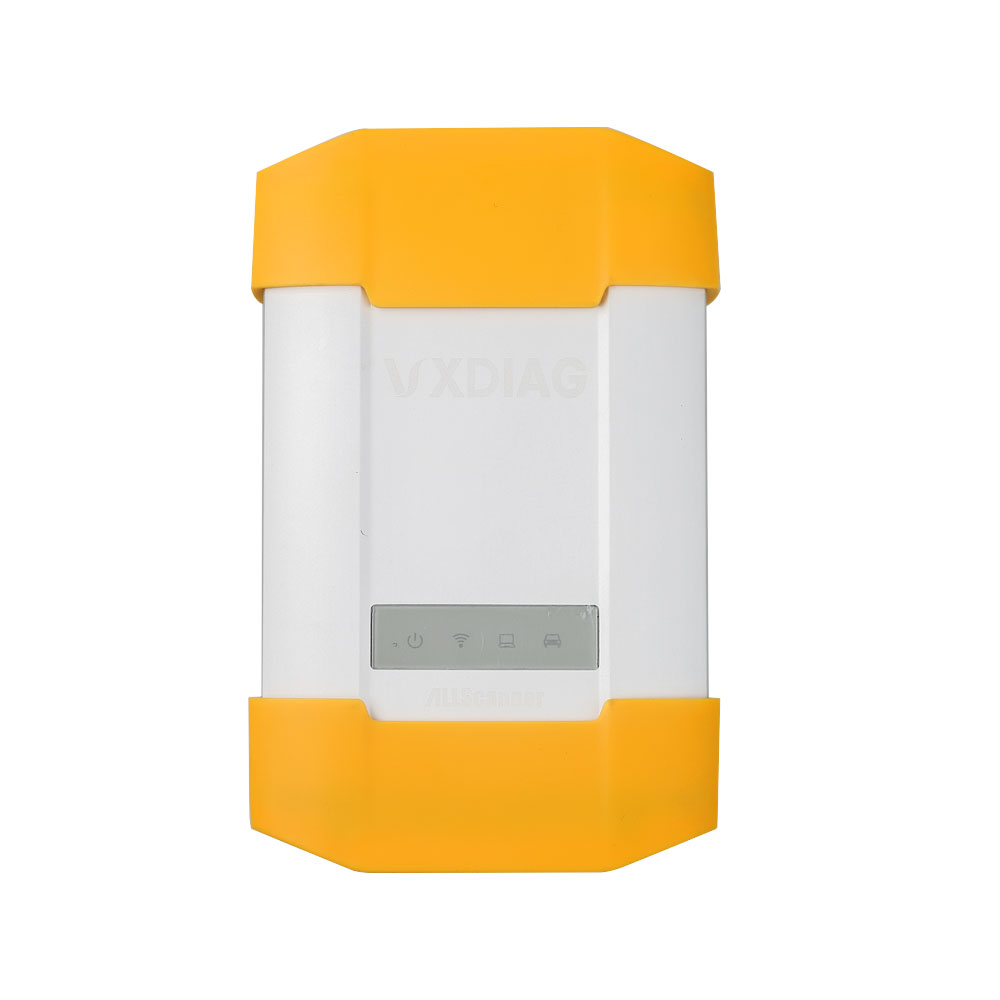

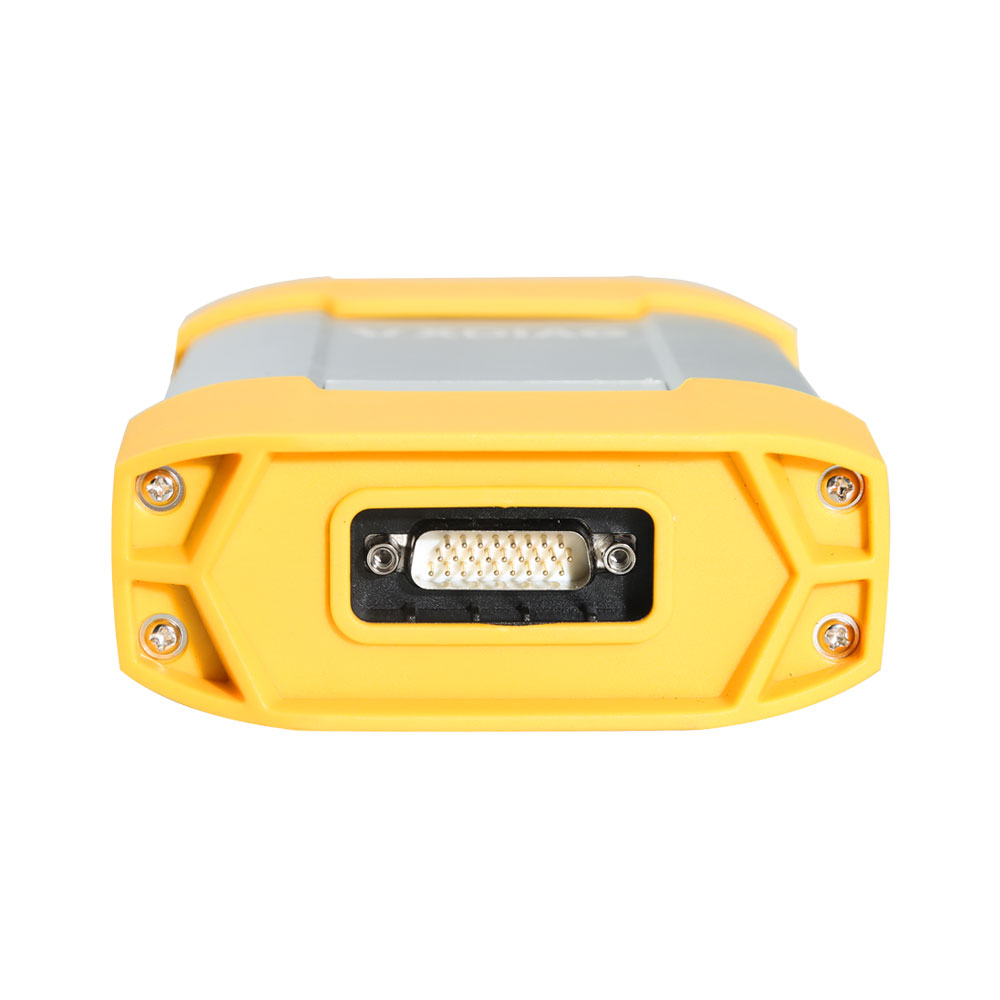

    1pc x VXDIAG VCX-PLUS Machine

    1pc x OBDII Cable
    1pc x USB Cable
    1pc x 2TB HDD(Configuration 1)

    1pc x 2TB SSD(Configuration 2)

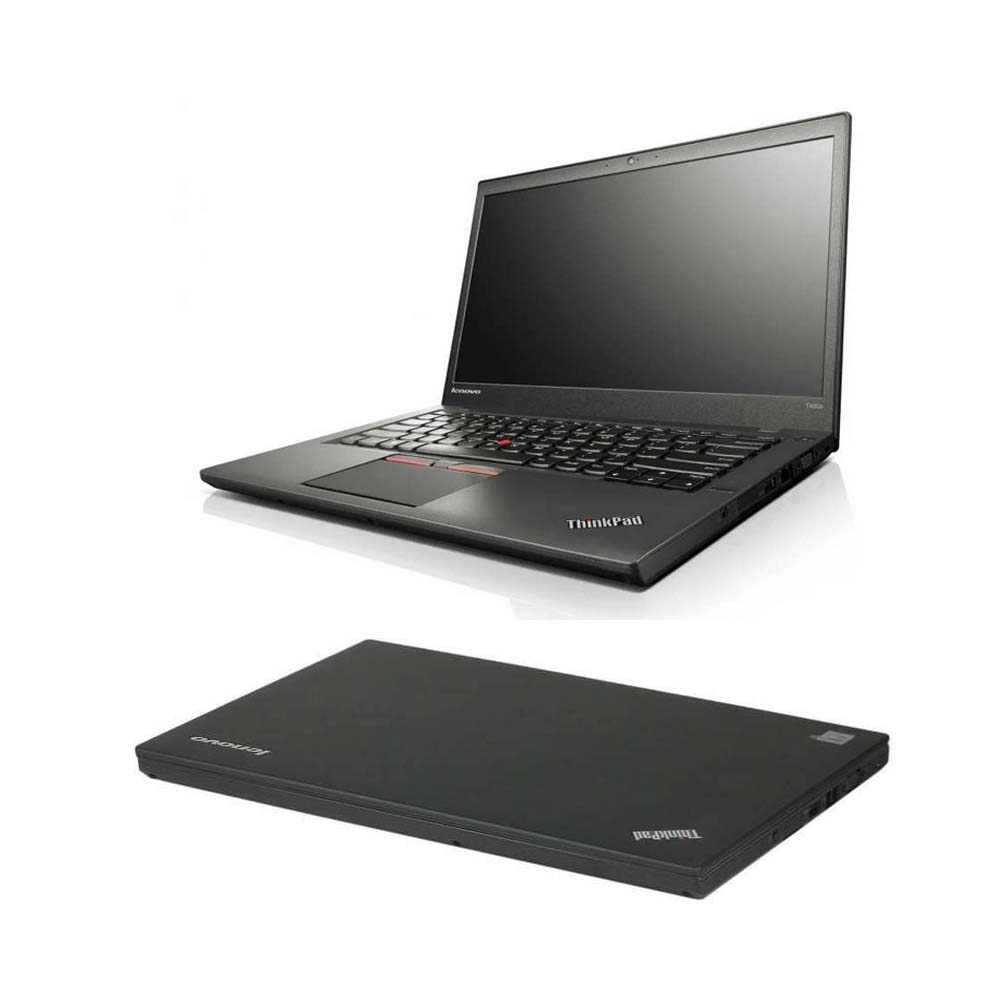

    1pc x Software Installed with Second Hand Lenovo T450 Laptop With 2TB HDD(Configuration 3)

    1pc x Software Installed with Second Hand Lenovo T450 Laptop With 2TB SSD(Configuration 4)

    Second Hand Laptop Lenovo T450 Specification:
    Brand: Lenovo
    Condition: Used
    Type:Laptop/Notebook
    Screen Size:12.5
    Processor Type:Intel (R) Core(TM) I5-5200U CPU
    Memory: 8GB
    Hard Disk:2000G HDD or 2000G SSD


    User Comment(Total 27 User Comment Num)

    • by Arian,Jul 28,2021

      Toyota is working now! I checked it after he fix the GM software and it is working!

      Reply #1 by Kelly Jul 29,2021
      ok, Thank you so much for your feedback.If you have problem to use our tool, Please no hesitate to contact us.

      Kelly


    • by Jermaine Ware,Jul 03,2021

      Very happy working flawlessly. Have tested several different BMW models for both diagnostic and programming.

      Reply #1 by Kelly Jul 04,2021
      Hello, Thank you so much for your feedback.If you have problem to use our tool, Please no hesitate to contact us.

      Kelly


    • by jake naylor,Jun 04,2021

      Takes some time to prepare and delivery is very fast Program installation proceeds very quickly remotely. Everything is on the ssd hard disk.

      Reply #1 by Kelly Jun 05,2021
      Hello, Thank you so much for your feedback.If you have problem to use our tool, Please no hesitate to contact us.

      Kelly


    • by Jung In Hwang,Jun 06,2021

      I am so happy with my purchase! Best seller ever I couldn’t be happier with the products. The device works amazingly and the shipping time was very fast thank you very much

      Reply #1 by Kelly Jun 06,2021
      Hello,
      Thank you for your support and feedback on our website.
      Any further questions please feel free to contact us.
      Best regards!

      Kelly


    • by Wendy Usilton,Jun 04,2021

      Hello i am having trouble programming a bmw e53,2002 bmw x5 using ista/p and it is giving me this message in img-3515
      and when i try to use INPA it give me the other message in img-3542 attached.
      can you please help me?

      Reply #1 by Kelly Jun 04,2021
      Hello,The engineer said that you can use the INPA software to do programming. We had send the instruction to you via email. Please check it.

      Kelly


    • by Anthony Vozza,May 29,2021

      I just bought it to the old car I bought recently.
      Luckily there is no error but this helps me troubleshoot if there are any problems.
      Worth buying it even if you need it 1 or 2 times during the ownership of the used car save you trip to mechanic.

      Reply #1 by Kelly May 29,2021
      Hello, Thank you so much for your feedback.If you have problem to use our tool, Please no hesitate to contact us.

      Kelly


    • by Jennie Duude,May 14,2021

      Get what you pay for. A simple product that does exactly what you need it to. Very happy with it, saves me from going to the shop when my check engine light came on. Was accurate. Able to clear lights as well.

      Reply #1 by Kelly May 14,2021
      Hello, Thank you so much for your feedback.If you have problem to use our tool, Please no hesitate to contact us.

      Kelly


    • by JON HOWES,May 10,2021

      Are there any softwares paid updates for the next years? will the software stop working if it needs an update?

      Reply #1 by Kelly May 10,2021
      Hello, You can purchase the Update SSD with new version software next year. If you don’t want to purchase, you can work with your old version software. No need to pay extra cost. You can keep it alway for your work.

      Kelly


    • by John McCleverty,Apr 27,2021

      Hi
      How are you
      What huppen to my device why ask me about renew license im taken from you only 3 months why my license expired

      Reply #1 by Kelly Apr 27,2021
      Hello,Please connect internet for your laptop, then updated firmware and update license ,the software coming activated. Please have a try. If you meet problem, our engineer will work for you via teamviewer.

      Kelly


    • by Dale McVittie,Apr 16,2021

      very serious. I’m happy with what I received. you can buy with confidence from this seller

      Reply #1 by Kelly Apr 16,2021
      Hello,
      Thank you for your support and feedback on our website.
      Any further questions please feel free to contact us.
      Best regards!

      Kelly


    Total 27 records, divided into3 pages. First Prev Next Last
    Rank:
    Your first & Lat Name:
    Your E-mail Address:
    Review detail:
    Verification code: captcha


    Please feel free to contact us ,If you have any question:

    Live Support: Chat with us online
    Whatsapp: +8618437976115
    Email: sales@obd2tool.com
    Skype: chryssan2006



    Shipping Terms:

    a) Items will be sent to all the countries over the world.This package will be sent by Hongkong Airmail Post,EMS,UPS or DHL.
    b) Items will be checked carefully before sent out.
    c) We will use air bubbles to wrap the items carefully.

    Shipping Time:

    Usually the shipping time is about 5-7 days via DHL, UPS, TNT and Fedex Express, 15-30 days via POST AIR to Worldwide, but Because the COVID-19 Global Pandemic recently, the delivery date will may be delayed. We are sincerely sorry to bring all inconvenience to you.

    Note: We hope it arrive on time but since this is an international delivery, shipping time will be highly depended on the courier company and local customs/duties. Thank you for your understanding.

    Return Policies:

    If you are not satisfied with your purchase .please contact us quickly, we can exchange one to you,but buyers is responsible for the returning shiping cost .
    If you have any item problem, just email us quickly, we will do our best to slove it in 24 hours, please don’t leave bad feedback before contacting us, it is not the best way to slove problem, thank you!
    If you want more items we can give you a little discount, thank you!

    Contact Us:

    Our office hours are 24hours 7 days online service
    And if nobody answer you online in time sometimes,do not worry.leave us a message or write down your desires,we will contact you as soon as possible.

    Attention: PLZ leave your telephone number and address in detail when you take order in our website, it is very important to ship your order. (Customers from Brazil PLZ leave your Cutsom ID also, thanks!)

    Join our community:
