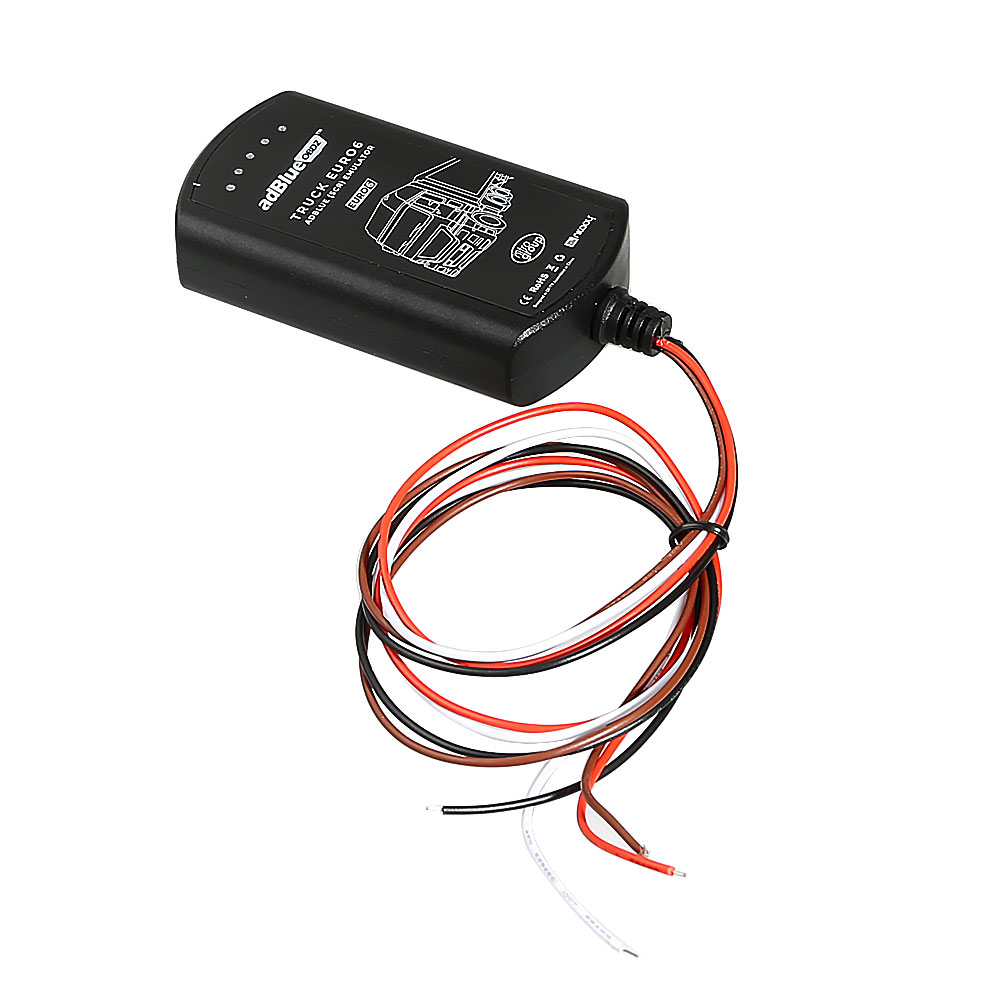

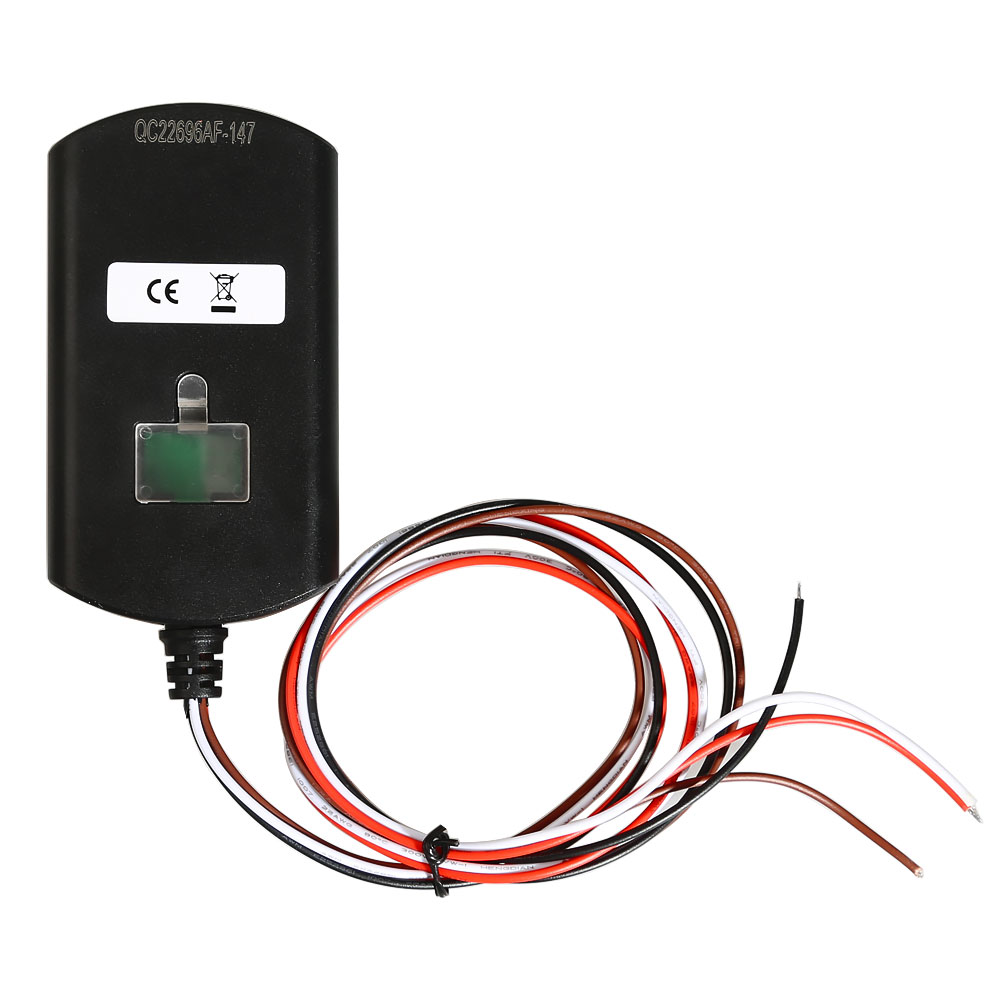

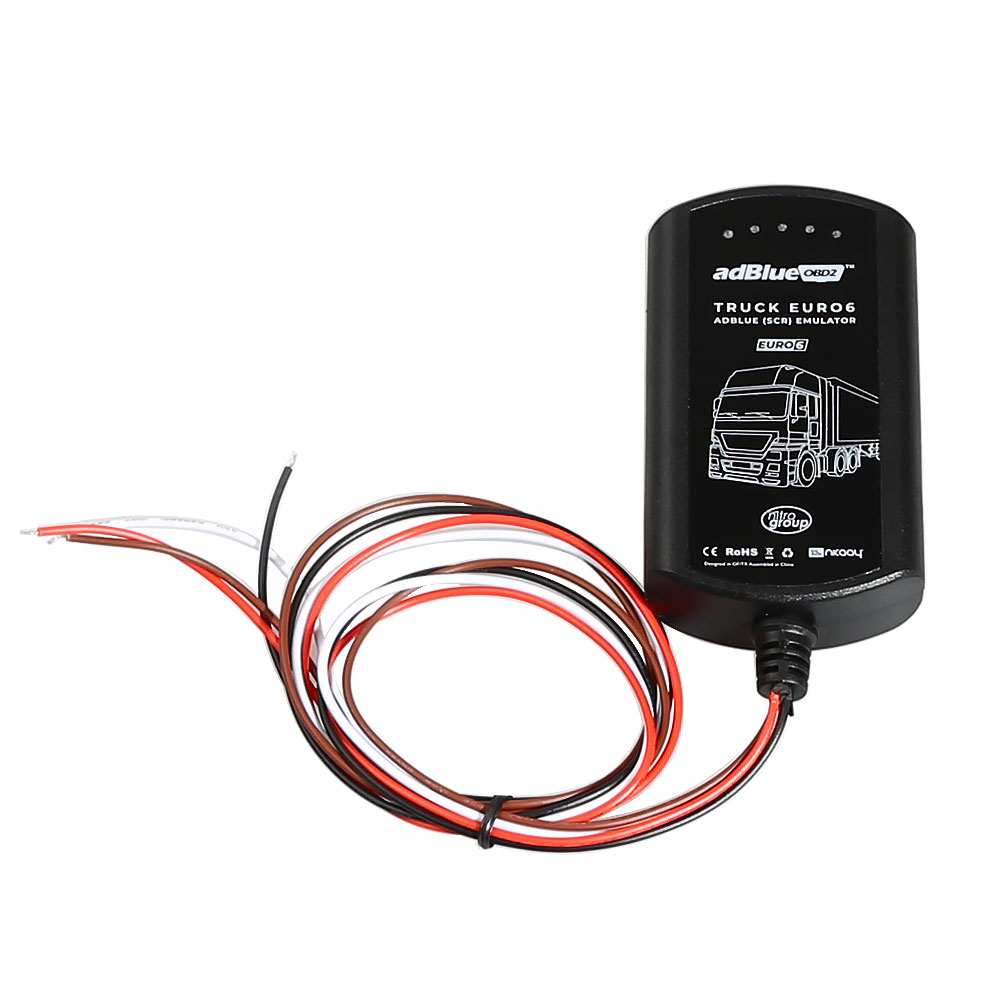

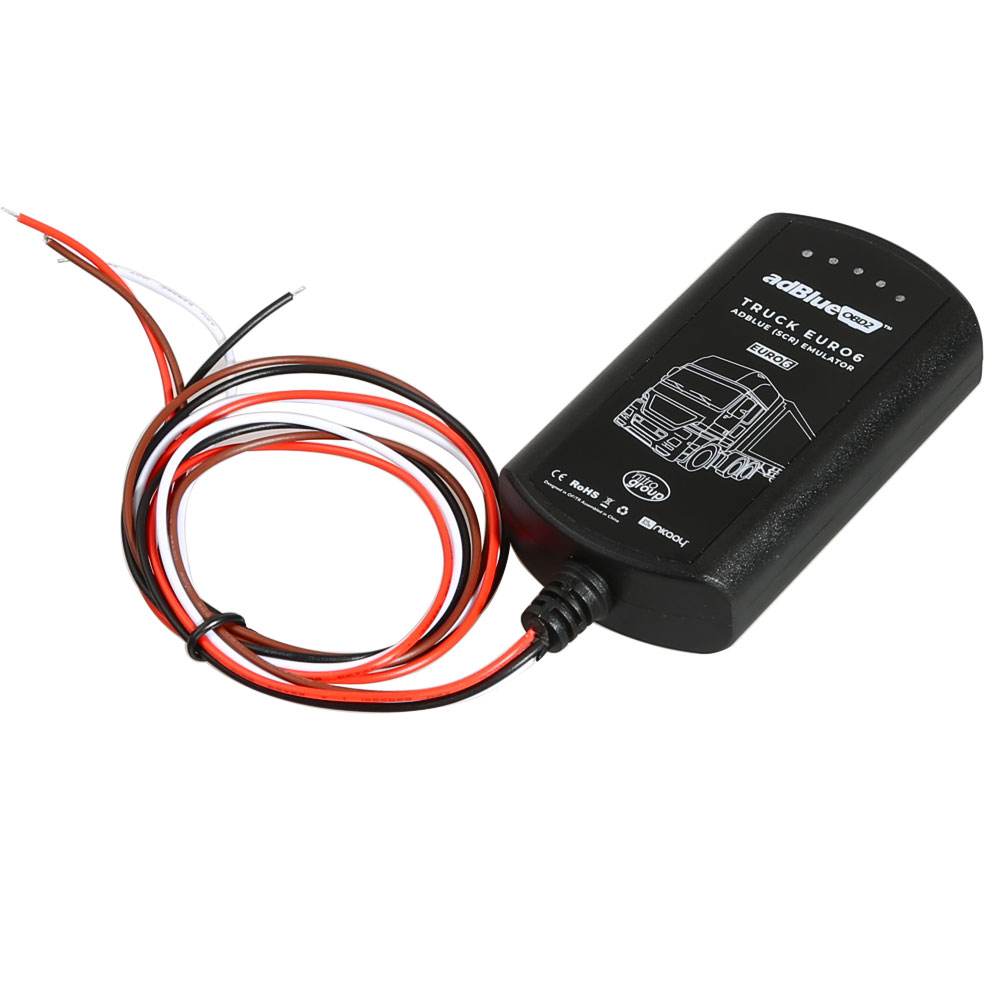

Mercedes EURO6 AdBlue Emulator

High quality Adblue Emulator for truck for MB for Mercedes Support Euro6 Adblue OBD2 ADBLUEOBD2 Emulator for ben

Mercedes Euro 6 AdBLue Remove Emulator Installation

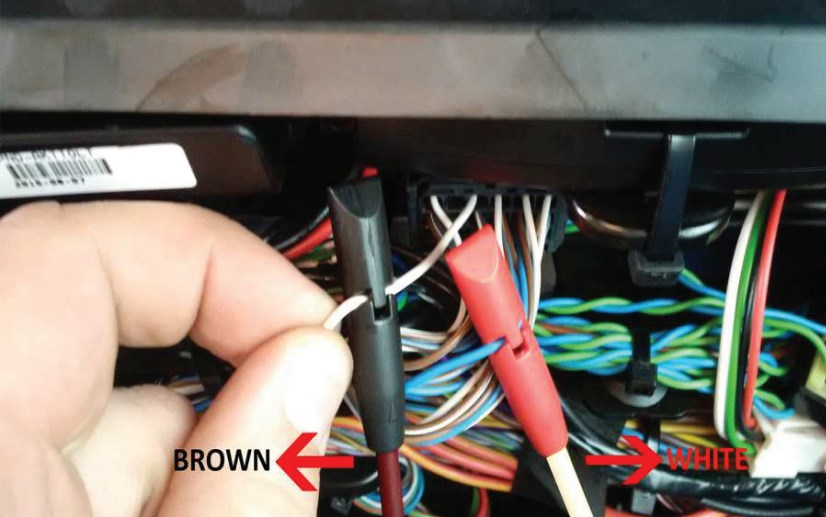

Behind fuses in the middle is a plug- as in the price (not right like in manual-correct is middle)

Connnection colors-White(Emulator side) with Blue (Truck side) with White (Truck side)

Red wire from emulator connection with any(+)after ignition

Black i GND

Next step is remove Fuse

F23 Thats all

Mercedes Atego Euro 6 AdBlue Remove Emulator Installation

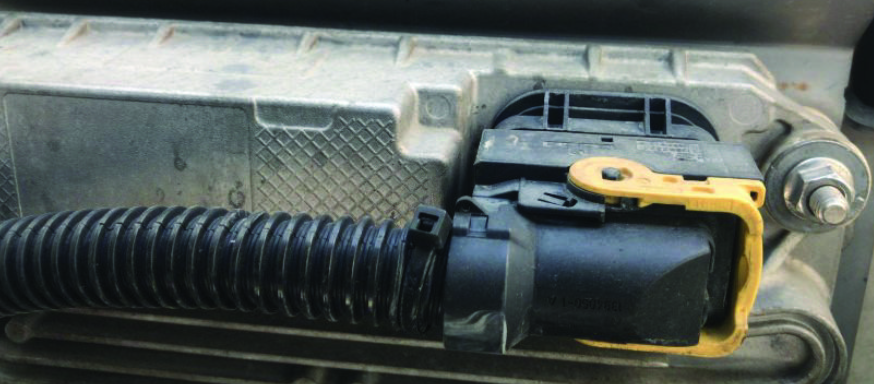

You must locate the ACm Module and remove the socket.

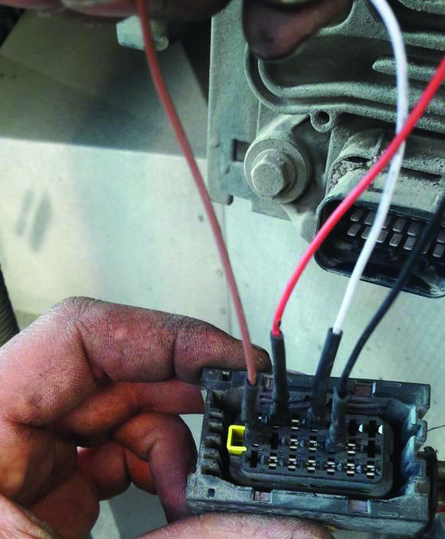

The cable should be installed as shown in the picture below.

Emulator White cable(CAN H) ----->Atego vehicle socket 10 pin(CAN H)

Emulator Brown cable (CAN L) -----> Atego vehicle socket 20 pin (CAN L)

Emulator Red (+) ----->Atego vehicle Positive(+)Cable

Emulator Black(-) ----->Atego vehicle GND (-)

After installation, you must remove errors with fault detecting device.

The Mercedes DTC fault code eraser can also be used to erase the fault in your Atego vehicle

You will not mount the socket back into the ACM module Isolate the Atego ACh nodule without damage.

You should definitely cancel the DPF after installing the AdBlue Removal Emulator

Package includes:

1pc x Mercedes EURO6 AdBlue Emulator Installation

1pc x Installation Guide
