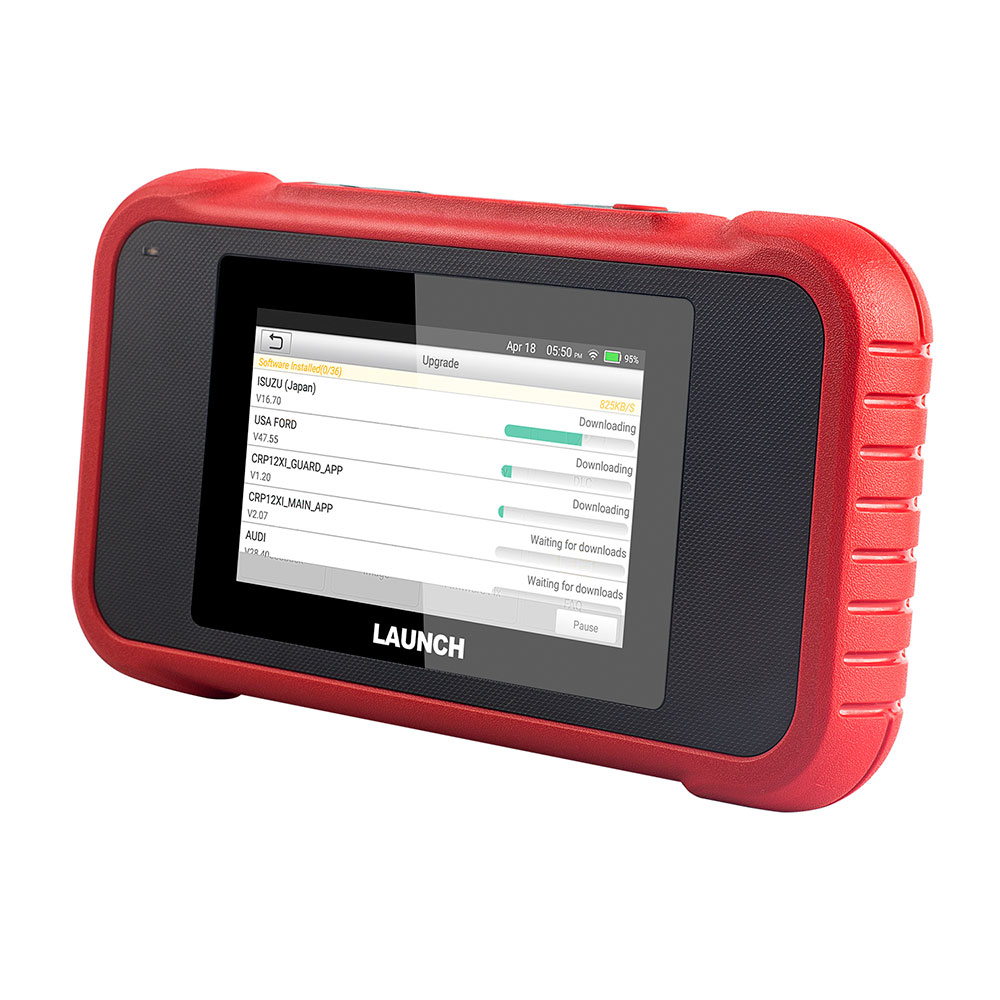

Launch CRP123E OBD2 Code Reader Diagnostic Scanner Support Engine ABS Airbag SRS Transmission
Launch CRP123E OBD2 Code Reader Diagnostic Scanner Support Engine ABS Airbag SRS Transmission Lifetime Free Update
Top 7 Reason To Choose Launch CRP123E Code Reader:
1. 5'inch Android Touch Screen, Easy to operate,
2. CRP123E is an upgraded Version of CRP123 and Creader VII+ , Support more car
3. Fast VIN autodetect, CRP123E will read VIN information when you connect Car
4. Lifetime Free Update , Support One-Click Update via Wifi
5. Automatically generate and upload diagnostic reports
6. Support Multi-Protocols : OBDII , EOBD, JOBD , KOBD
7. Language : English, Spanish, French, German, Italian, Russian, Japanese, Korean, Portuguese
Introduction :
1.Creader Professional 123E is an evolutionary smart solution for passenger car diagnosis. It inherits from LAUNCHrsquos advanced diagnosing technology and is characterized by covering a wide range of vehicles, featuring powerful functions, and providing precise test result.
2.CRP123E support Multi-protocols (including OBDII , EOBD,JOBD, KOBD), CRP 123E also supports the system diagnosis of Engine , ABS Airbag , SRS and Transmission system.
The advantage of CRP123E:
1.Smart(Auto-Detect) Diagnosis: Once the tool and the vehicle are properly connected, the system starts auto-detect process. Once the whole process is successfully finished, a diagnostic report will be automatically generated and sent to your email box (if bound).
2.Manual Diagnosis: If Auto-Detect failure occurs, manual diagnosis is also available. Diagnosis functions include: Version Information, Read DTCs, Clear DTCs and Read Data Stream (supports 3 display modes: Value, Graph and Merged).
3. OBD II Diagnosis: 10 modes of OBD II test are supported, including EVAP, O2 Sensor, I/M Readiness, MIL Status, VIN Info, and On-board monitors testing etc.
4. One-click Update: Let you update your diagnostic software and APK online.
5. Diagnostic History: This function provides a quick access to the tested vehicles and users can choose to view the test report or resume from the last operation, without the necessity of starting from scratch.
6.Diagnostic Feedback: Use this option to submit the vehicle issue to us for analysis and troubleshooting.
7. DTC Library: Allows you to retrieve the definition of the diagnostic trouble code from the abundant DTC database.
8. Displays battery real-time voltage once properly connected to the vehicle.
CRP123E support all 10 models of OBDII test for a complete diagnosis.CRP 123E also supports the system diagnosis of ABS.SRS, ENG and AT system.

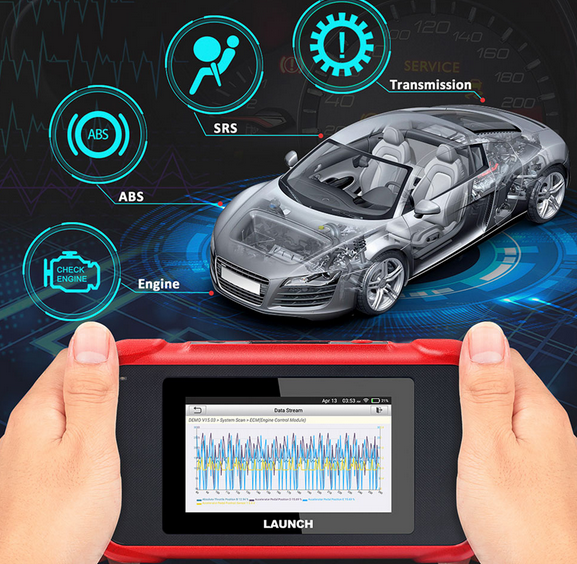

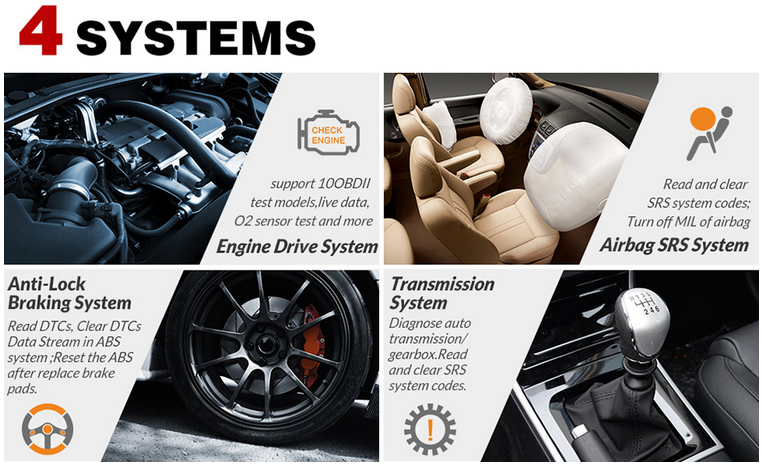

4 System diagnostic - Launch CRP123 scan tool does not only include OBD/EOBD standard protocol diagnosis but also performs full determination on vehicles four main ECU's for Engine / Airbag / ABS and Auto Transmission, reads and erases fault codes in above four systems, and turns off warning light.
1.For Engine System: The diagnostic tool can help detect the engine ignition, fuel injection, air and fuel ratio, and exhaust emission conditions in Engine system to enhance vehicle performance, save energy and reduce exhaust emission.
2.For Transmission: It makes great sense in the safe driving when your car is slipping or difficult to shift. This diagnostic scanner can figure the problems out via reading codes in the Transmission system, or check the health status via live data viewing.
3.For ABS System: Diagnosing an ABS problem should always start with a visual inspection of all brake components, next you will need to retrieve ABS codes to tell you where the problem is, and this is what this scanner does for you.
4.For SRS System: SRS, safety restraint system, is made up of impact sensors, a control module, and the airbags themselves, and this diagnostic device can detect every electronic parameter to check its health status.

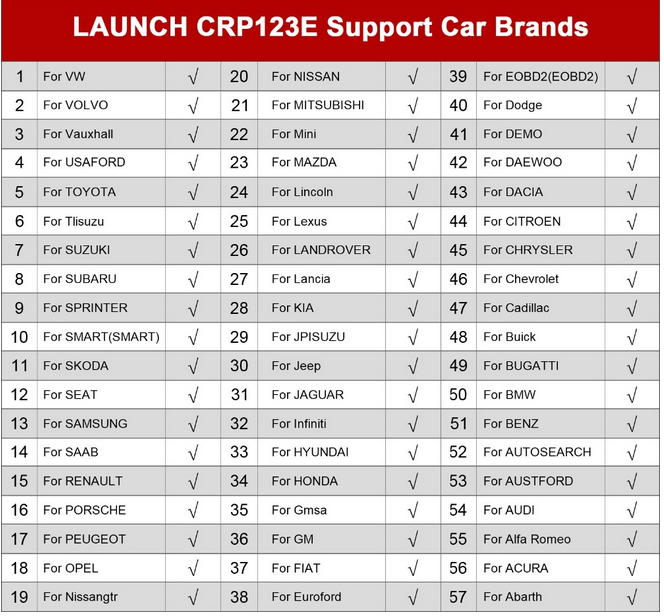

Launch CRP123E Supported Car List:
Launch CRP 123E Scan Tool Specification:
Screen: 5'inch Touch Screen
RAM: 1G
ROM: 8GB
Battery: 4000mAh rechargeable Li-battery
OBD II input voltage range: 9~18V
Charging via:DC 5V charging cable or Diagnostic cable through connection to vehiclersquos DLC
Dimension: 228mm x 125mm x 34.5mm
Working temperature: -10 to 50degC (14 to 122 Fdeg)
Storage temperature: -20 to 70degC (-4 to 158 Fdeg)
FAQ:
1 System halts when reading data stream. What is the reason?
It may be caused by a slackened connector. Please turn this tool off, firmly connect the connector, and switch it on again.
2 Screen of main unit flashes at engine ignition start.
Caused by electromagnetic disturbing, and this is normal phenomenon.
3 There is no response when communicating with on-board computer.
Please confirm the proper voltage of power supply and check if the throttle has been closed, the transmission is in the neutral position, and the water is in proper temperature.
4 What to do if the system fails to start auto VIN detection?
Please check the following possible reasons:
bull Whether the tool is properly connected to the vehiclersquos DLC.
bull Whether the ldquoAutomatic detection on Connectrdquo switch is OFF. If yes, slide it to ON.
5 Why are there so many fault codes?
Usually, itrsquos caused by poor connection or fault circuit grounding.
6 How to upgrade the system software?
1. Switch the tool on and ensure a stable internet connection.
2. Tap ldquoSettingrdquo on the Job Menu, select ldquoAboutrdquo -> ldquoVersionrdquo, and tap ldquoDetect the System Versionrdquo to enter the system upgrading page.
3. Follow the on-screen instructions step by step to finish the process. It may take several minutes depending on the internet speed, please be patient. After upgrade is successfully finished, the tool will automatically restart and enters the Job menu.
Packing List :
1. Creader Professional 123E handset
2. OBD II diagnostic cable
3. DC 5V charging cable
4. User manual
5. Carrying bag
