    Best Quality Cummins INLINE 6 Data Link Adapter Cummins Diesel Truck Diagnostic Tool

    • Item No.  A360-2
    • History: 454  sold
    • Please choose the configuration you want:




    • Market Price: US$225.60
      Shop Price: US$188.00You save US$37.60
      Quantity
      Total
      Shipping:
      Express Shipping Service    Estimated delivery time: 3-5 days »
      Affected by the epidemic, there will be delays in transit time.
      continue
    • Quantity:  136
    • Weight:  2.5KG
    • Rank:  comment rank 4.5 () Write a Review
      Rated 4.5/5 based on 22 customer reviews

    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video


    Best Quality Cummins INLINE 6 Data Link Adapter Cummins Diesel Truck Diagnostic Tool


    Note:

    There are three configurations for this product:

    Configuration 1: Cummins INLINE 6 with Cummins Insite 7.6.2 Software, you can complete the software installation and activation yourself

    Configuration 2: Cummins INLINE 6 with Cummins Insite 8.5 Software, you need to complete the software installation yourself, then contact us to activate the software for you remotely.

    Configuration 3: Cummins INLINE 6 Plus Lenovo X220 Laptop with Cummins Insite 8.5 Software, the software we have installed for you in the computer, can be used directly

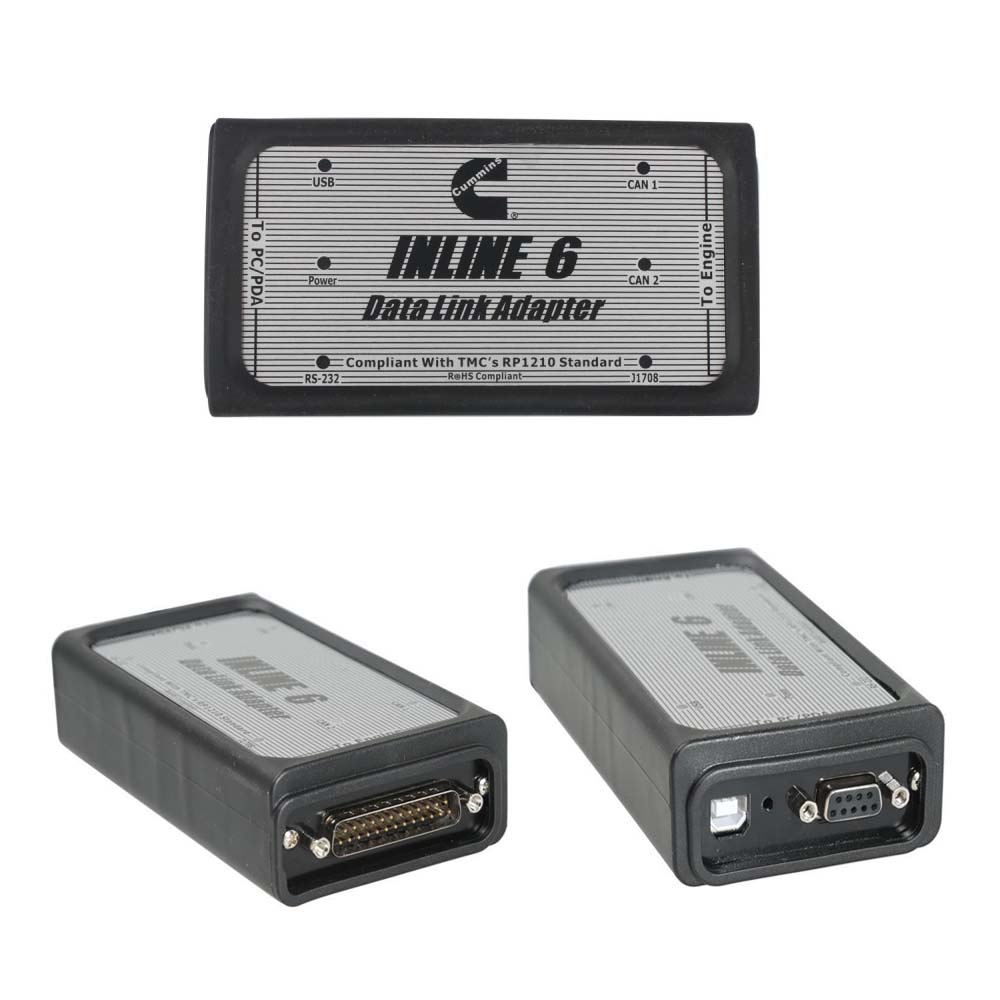

    Cummins INLINE 6 Data Link Adapter:

    1. The INLINE 6 can communicate with your PC through a 9-pin serial connector. The INLINE 6 also can communicate with your PC over a Universal Serial Bus (USB) through a 4-pin standard connector. The INLINE 6 adapter connects to vehicle power, the SAE J1708/J1587 data link, and two CAN/J1939 data links via a 25-pin serial connector.

    2. With full compliance to the Technology and Maintenance Council's RP1210 standard, the INLINE 6 will work with the latest  INSITE, PowerSpec and Calterm III software applications.

    3. It will also work with any other software applications that are fully compliant with the RP1210 standard (note that while some non- applications fully support RP1210, others do not, so you should test each application in question with the INLINE 6 adapter to make that determination).

    4. The eye-catching INLINE 6 breaks new ground by utilizing the latest electronic technology to deliver high performance and high quality at an attractive price.

    5. Each INLINE kit contains a data link adapter, basic cables, and the INLINE PC software driver. Load the software driver, connect all the hardware, and you are ready to start a new era in data link adapters.


    Languages:

    English, Hungarian, Polish, Czech, Indonesian, Portuguese, German, Italian, Romanian, Danish, Japanese, Russian, Greek, Korean, Swedish, Spanish, Netherlands, Turkish, Finnish, Norwegian, Chinese


    Cummins INLINE 6 Data Link Adapter Features:

    1. Supports SAE J1708/J1587 and J1939/CAN data links

    2. Both CAN ports auto detect between 250 & 500 kbps

    3. Supports USB full speed port at up to 2M baud rate

    4. Custom USB cable includes thumbscrews for secure mounting to INLINE 6

    5. Supports RS-232 PC serial port at up to 115.2k baud rate

    6. Is fully compliant with TMC's RP1210 standard

    7. Small enough to fit in pocket

    8. Attractive black powder coated aluminum housing provides ruggedness

    9. Derives 8 V to 50 V DC power from vehicle

    10. Controlled by advanced 140 MHz 32-bit Freescale processor for maximum speed and performance

    11. Includes 6 LEDs to indicate status of power, USB, RS-232, J1708/J1587, and two CAN communication ports

    12. Both CAN ports support SAE J1939, SAE J2534, and ISO 15765 protocols

    13. INLINE 6 is certified to meet European CE requirements

    14. Rated for -40° to +85° C operating temperature

    15. INLINE 6 meets rigorous  in-cab environmental test requirements

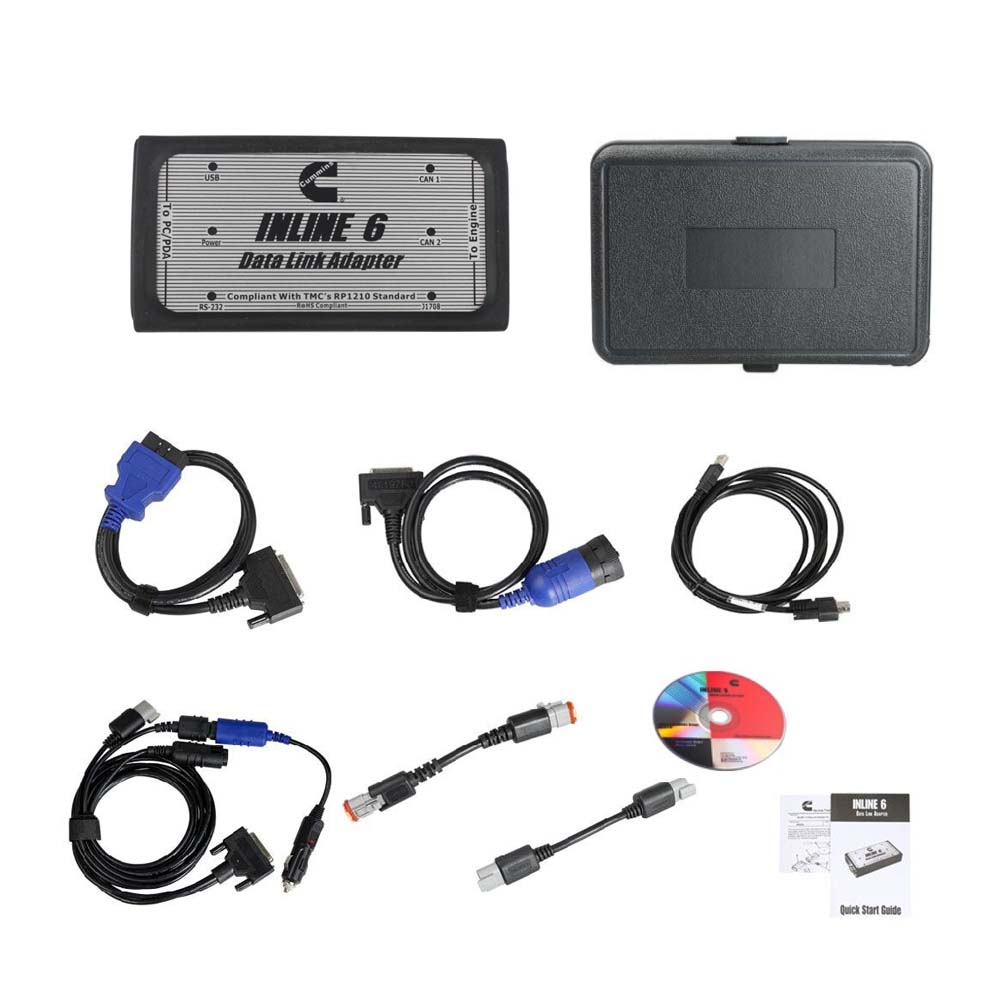

    Package Including 1:

    1 x INLINE 6 data link adapter (P/N 2892093)

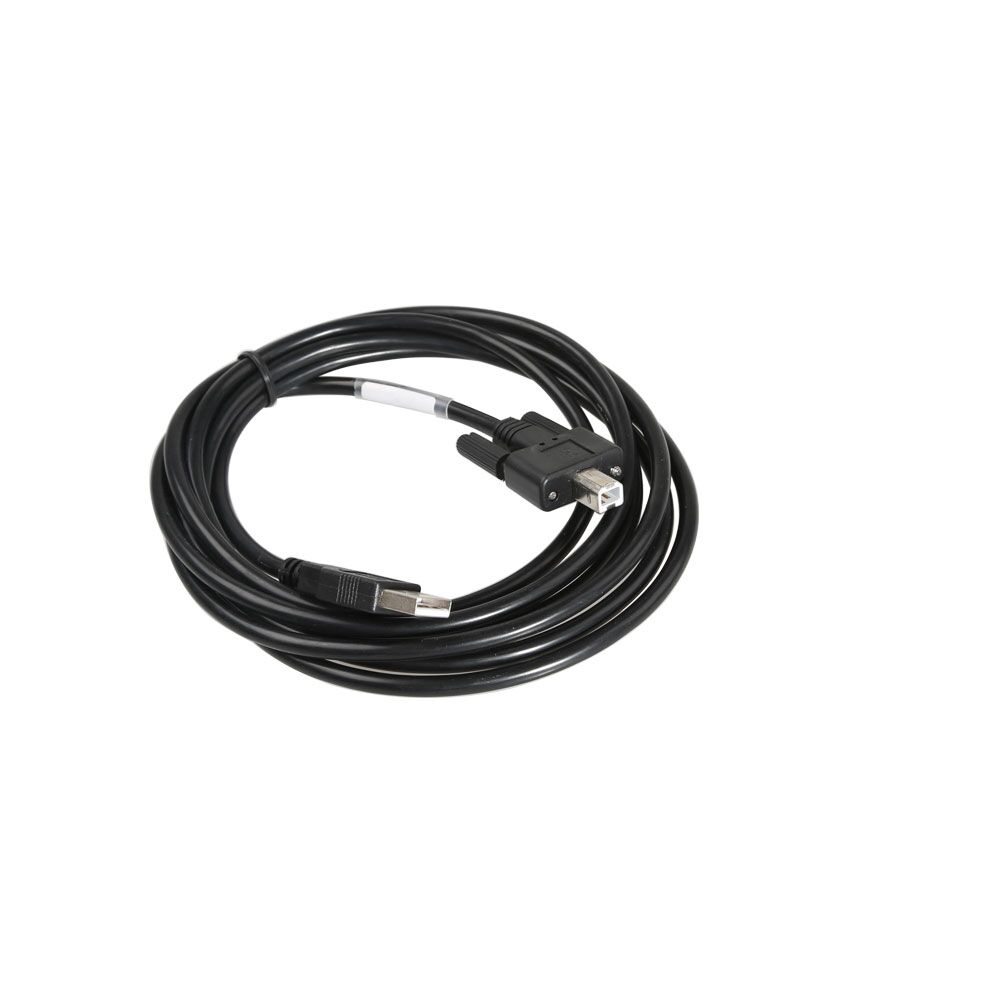

    1 x USB 14-foot  cable (P/N 2892176)

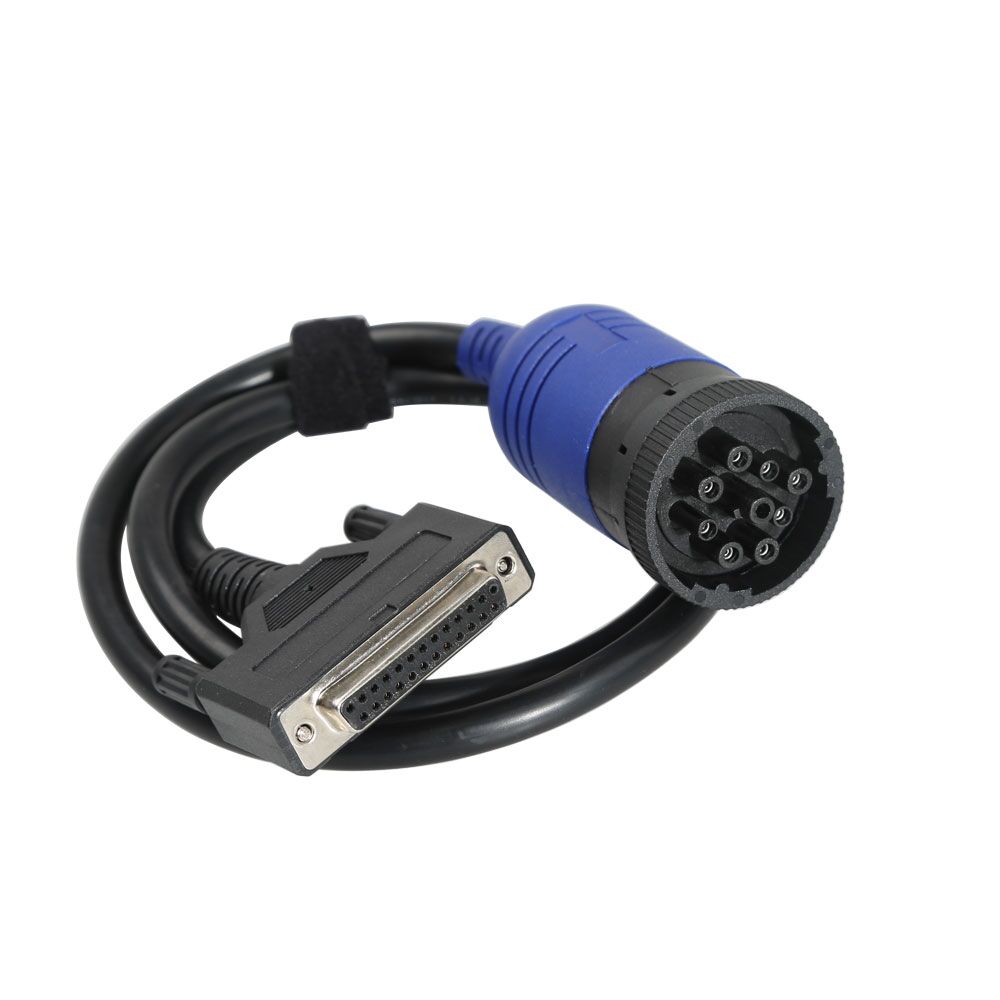

    1 x DB25F/9-pin data link cable (P/N 4919780)

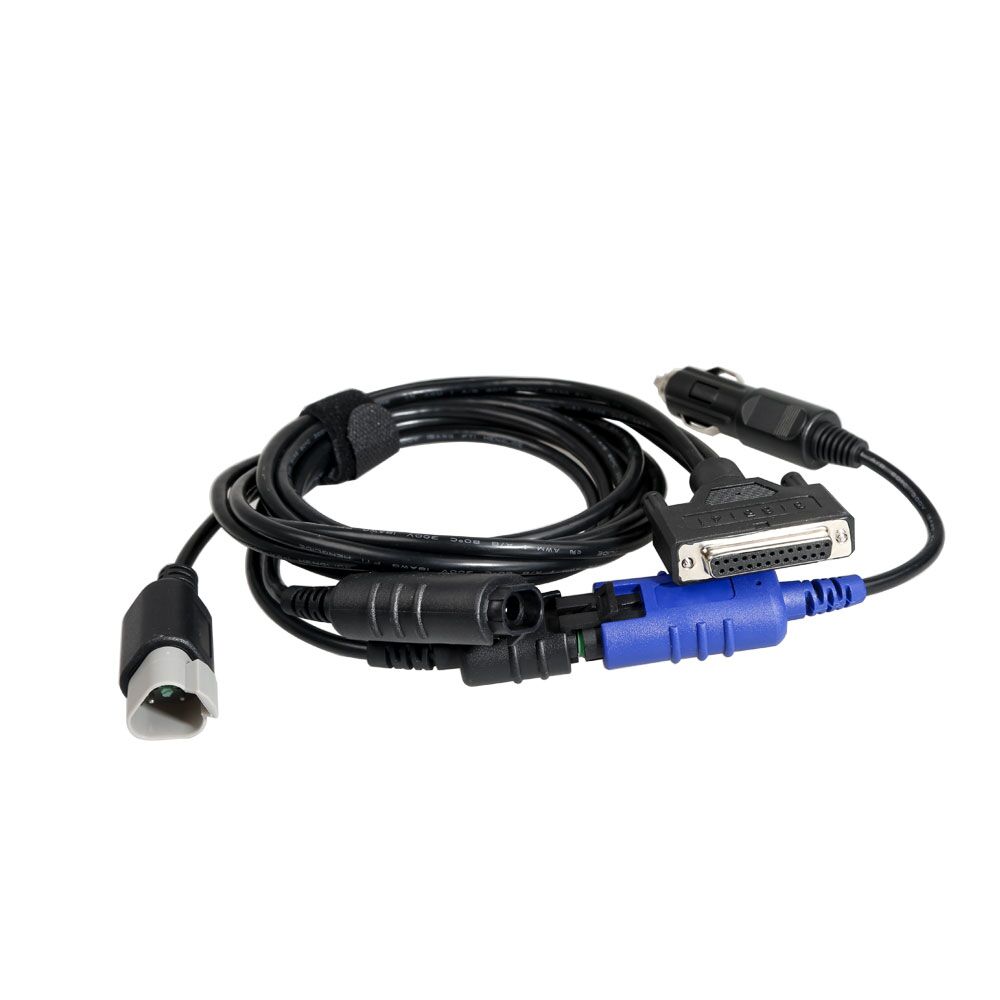

    1 x DB25F/3-pin/3-pin/2-pin cable (P/N 4919797)

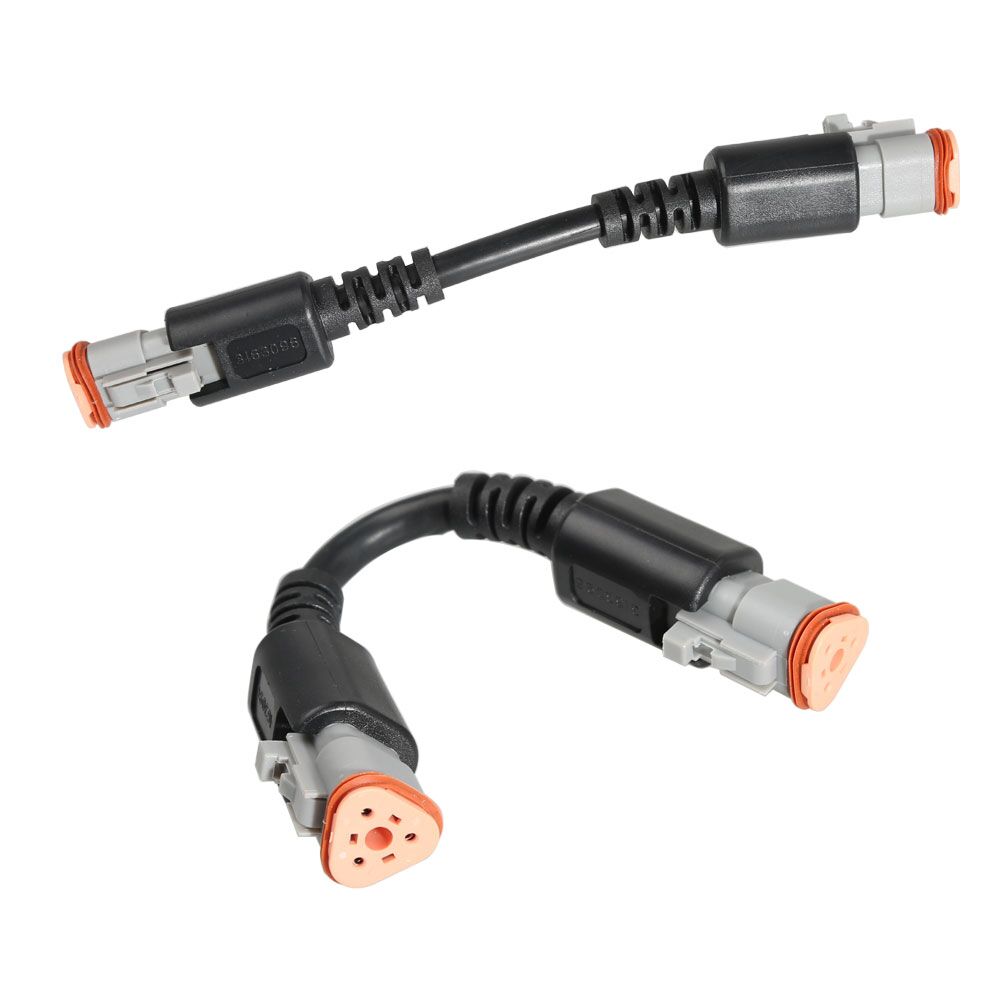

    1 x J1939 Gender Changer adapter (P/N 3163597)

    1 x J1939 Backbone adapter (P/N 3163096)

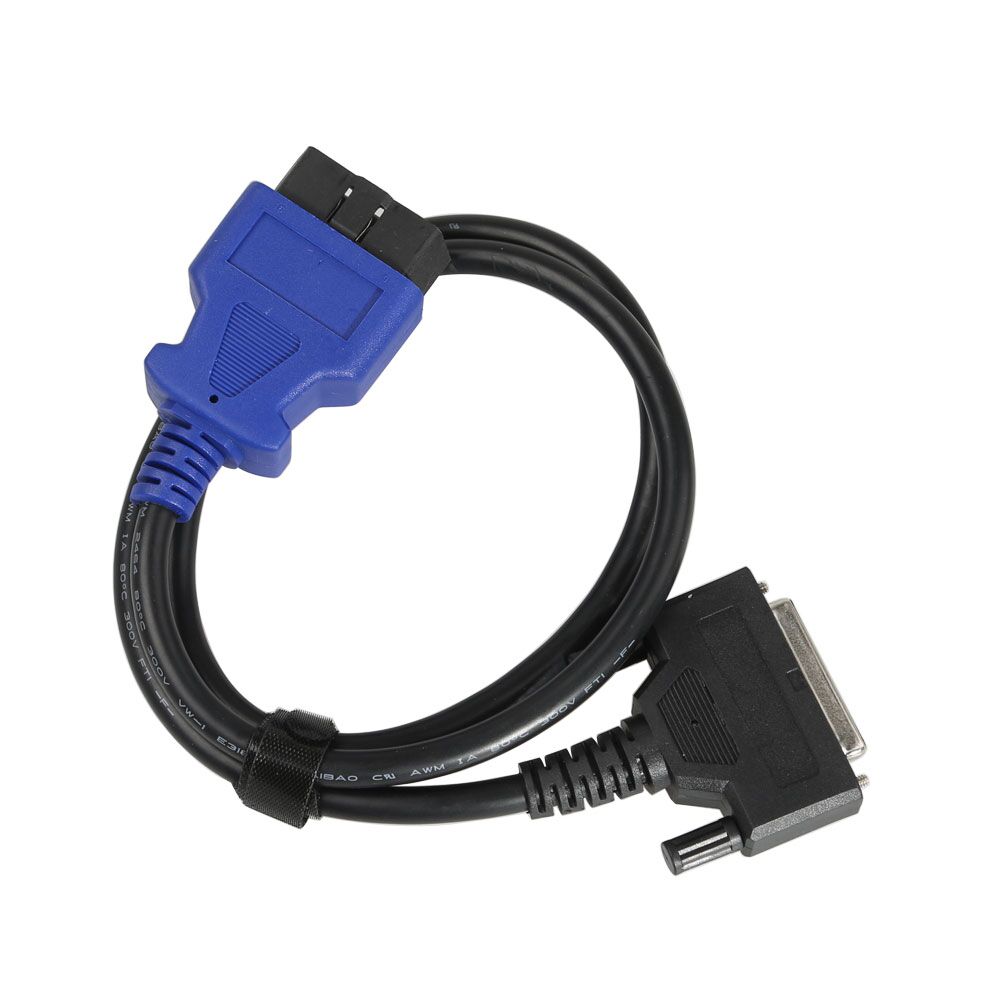

    1 x ObdII cable  (P/N 4919781)

    1 x Komatsu 12 pin cable

    1 x INLINE 6 software CD (P/N 2892095)  Include Insite 7.6.2 + keygen


    Package Including 2:

    1 x INLINE 6 data link adapter (P/N 2892093)

    1 x USB 14-foot  cable (P/N 2892176)

    1 x DB25F/9-pin data link cable (P/N 4919780)

    1 x DB25F/3-pin/3-pin/2-pin cable (P/N 4919797)

    1 x J1939 Gender Changer adapter (P/N 3163597)

    1 x J1939 Backbone adapter (P/N 3163096)

    1 x ObdII cable  (P/N 4919781)

    1 x Komatsu 12 pin cable

    1 x INLINE 6 software CD (P/N 2892095)  Include Insite 8.5 +Provide remote activation service

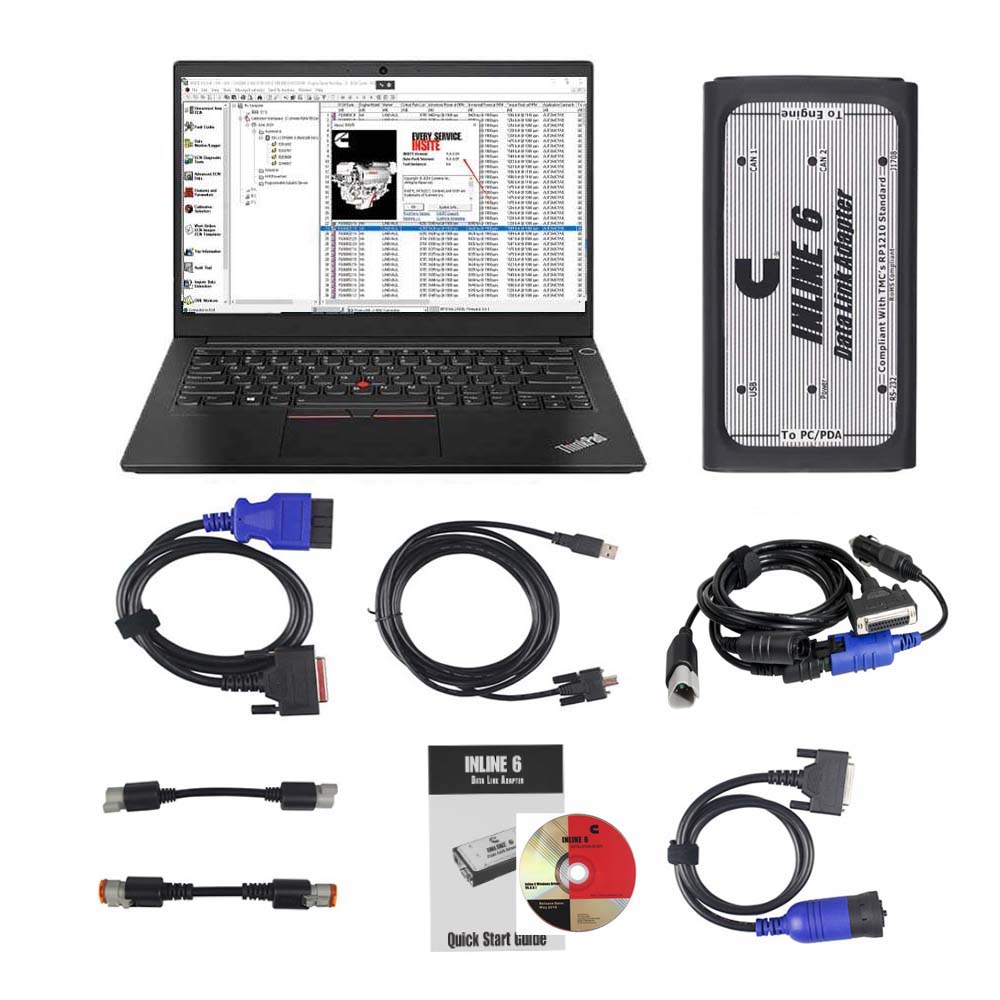

    Package Including 3:

    1 x INLINE 6 data link adapter (P/N 2892093)

    1 x USB 14-foot  cable (P/N 2892176)

    1 x DB25F/9-pin data link cable (P/N 4919780)

    1 x DB25F/3-pin/3-pin/2-pin cable (P/N 4919797)

    1 x J1939 Gender Changer adapter (P/N 3163597)

    1 x J1939 Backbone adapter (P/N 3163096)

    1 x ObdII cable  (P/N 4919781)

    1 x Komatsu 12 pin cable

    1 x Second Hand Laptop Lenovo X220 Laptop with Cummins Insite 8.5 SoftwareAll software activated. All system ready to use



    Package Including 4:

    1 x INLINE 6 data link adapter (P/N 2892093)

    1 x USB 14-foot  cable (P/N 2892176)

    1 x DB25F/9-pin data link cable (P/N 4919780)

    1 x DB25F/3-pin/3-pin/2-pin cable (P/N 4919797)

    1 x J1939 Gender Changer adapter (P/N 3163597)

    1 x J1939 Backbone adapter (P/N 3163096)

    1 x ObdII cable  (P/N 4919781)

    1 x Komatsu 12 pin cable

    1 x Second Hand Laptop Lenovo X220 Laptop with Cummins Insite 8.7 Software All software activated. All system ready to use



    Second Hand Laptop Lenovo X220 Laptop Specification :

    Brand: Lenovo

    Condition: Used

    Type:  Laptop/Notebook

    Screen Size:  14.0

    Processor Type:  Intel (R) Core(TM) I5-2520M CPU

    Processor Speed:  2.50 GHz

    Processor Configuration:  Dual Core

    Memory: 4GB

    Compared with other laptop, this one is better quality and run faster.
