5 ReasonsforCummins INLINE 6:

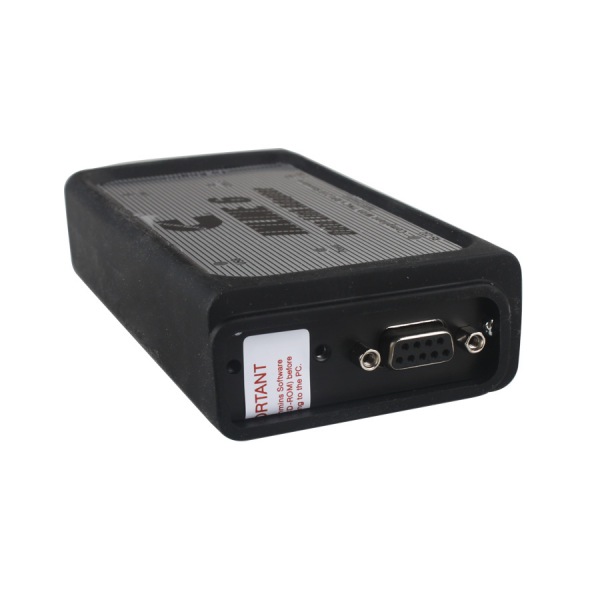

1. The INLINE 6 can communicate with your PC through a
9-pin serial connector. The INLINE 6 also can communicate with your PC over a
Universal Serial Bus (USB) through a 4-pin standard connector. The INLINE 6
adapter connects to vehicle power, the SAE J1708/J1587 data link, and two

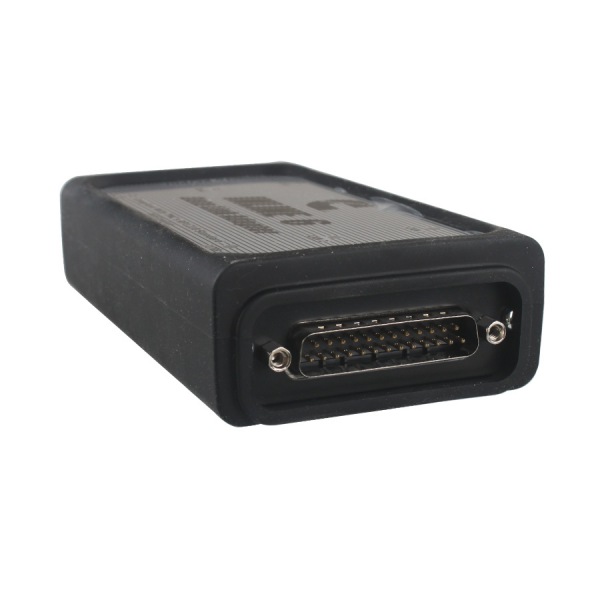

CAN/J1939 data links via a 25-pin serial connector.
2. With full compliance to the Technology and Maintenance Council's RP1210 standard, the INLINE 6 will work with the latest Cummins INSITE, PowerSpec and Calterm III software applications.
3. It will also work with any other software applications that are fully compliant with the RP1210 standard (note that while some non-Cummins applications fully support RP1210, others do not, so you should test each application in question with the INLINE 6 adapter to make that determination).
4. The eye-catching INLINE 6 breaks new ground by utilizing the latest electronic technology to deliver high performance and high quality at an attractive price.
5. Each Cummins INLINE kit contains a data link adapter, basic cables, and the INLINE PC software driver. Load the software driver, connect all the hardware, and you are ready to start a new era in data link adapters.
New inline 6 adapter is now the only genuine Cummins product on the market and is the only adapter available that Cummins certifies to be 100% compatible with all features of the latest Cummins ECMs and software applications. The INLINE 6 can communicate with your PC through a 9-pin serial connector. The INLINE 6 also can communicate with your PC over a Universal Serial Bus (USB) through a 4-pin standard connector. The INLINE 6 adapter connects to vehicle power, the SAE J1708/J1587 data link, and two CAN/J1939 data links via a 25-pin serial connector.
With full compliance to the Technology and Maintenance Council's RP1210 standard, the INLINE 6 will work with the latest Cummins INSITE, PowerSpec, and Calterm III software applications. It will also work with any other software applications that are fully compliant with the RP1210 standard (note that while some non-Cummins applications fully support RP1210, others do not, so you should test each application in question with the INLINE 6 adapter to make that determination).
Cummins has become the innovator and technology leader in data link adapters and service tools for diesel engines. The eye-catching INLINE 6 breaks new ground by utilizing the latest electronic technology to deliver high performance and high quality at an attractive price. If you ever use data link adapters to download new calibrations to ECMs, you really should be taking advantage of the high-speed communications capabilities inherent in the new Cummins INLINE 6 adapter. So why waste your time and money on more expensive, inferior products that are not fully-compatible with Cummins software? Check out the entire family of INLINE products by selecting from the Products menu above.
Each Cummins INLINE kit contains a data link adapter, basic cables, and the INLINE PC software driver. Load the software driver, connect all the hardware, and you are ready to start a new era in data link adapters.
INLINE 6 Features:
1. Supports SAE J1708/J1587 and J1939/CAN data links
2. Both CAN ports auto detect between 250 & 500 kbps
3. Supports USB full speed port at up to 2M baud rate
4. Custom USB cable includes thumbscrews for secure mounting to INLINE 6
5. Supports RS-232 PC serial port at up to 115.2k baud rate
6. Is fully compliant with TMC's RP1210 standard
7. Small enough to fit in pocket
8. Attractive black powder coated aluminum housing provides ruggedness
9. Derives 8 V to 50 V DC power from vehicle
10. Controlled by advanced 140 MHz 32-bit Freescale processor for maximum speed and performance

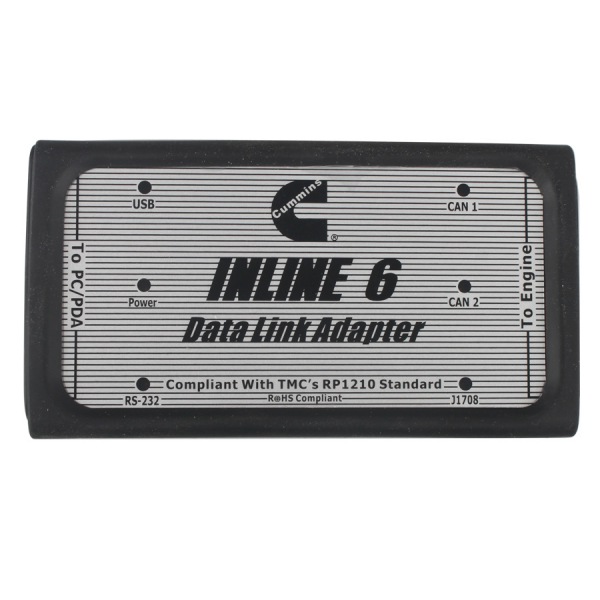

11. Includes 6 LEDs to indicate status of power, USB, RS-232, J1708/J1587, and two CAN communication ports
12. Both CAN ports support SAE J1939, SAE J2534, and ISO 15765 protocols
13. INLINE 6 is certified to meet European CE requirements
14. Rated for -40° to +85° C operating temperature
15. INLINE 6 meets rigorous Cummins in-cab environmental test requirements
INLINE 6 product kit (P/N 2892092) includes:
INLINE 6 data link adapter (P/N 2892093)
USB 14-foot 3M cable (P/N 2892176)*

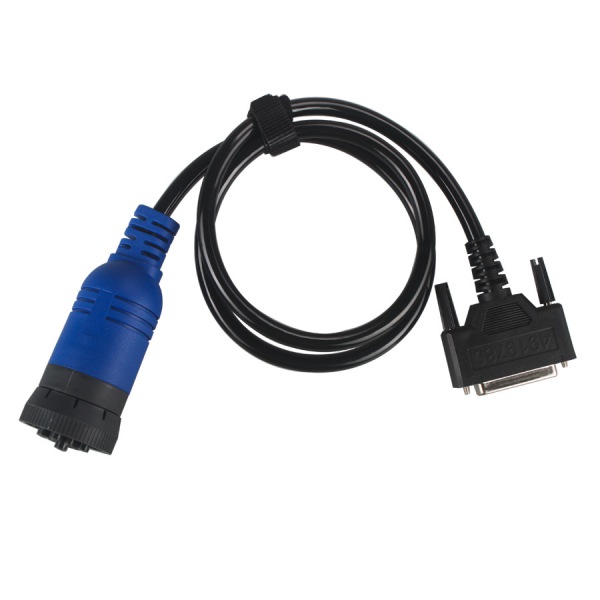

DB25F/9-pin data link cable (P/N 4919780)

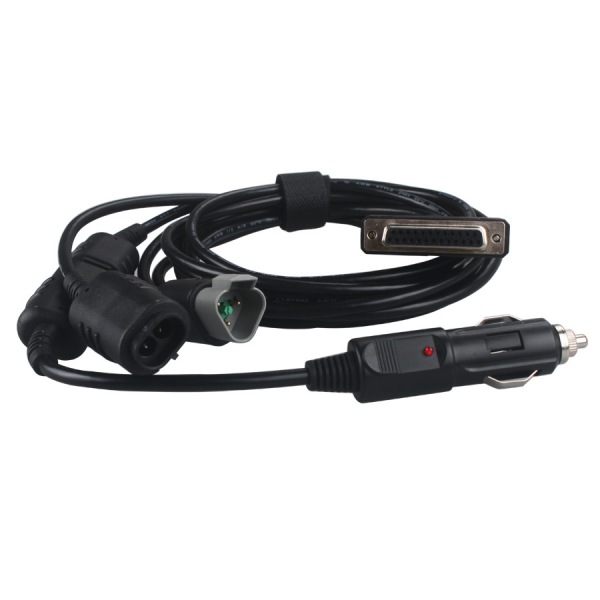

DB25F/3-pin/3-pin/2-pin cable (P/N 4919797)
INLINE 6 software CD (P/N 2892095)
Storage case (P/N 4918713)
J1939 Gender Changer adapter (P/N 3163597)
J1939 Backbone adapter (P/N 3163096)
Our package added obd cable part No.: 4919781
Domestic Optional: OBD-round16, price USD40
Foreign Optional: Round9-6pin 31651600 , price: USD70
If you need these two optional cables, please contact us directly.
Cummins INLINE 6 Data Link Adapter
Software Version:
1. Version: V7.6.2/V8.7/V9.1
2. Supported Languages: English(united states) /Chinese(simplified) /Danish /Dutch /Finnish /French /German /Italian /Japanese /Korean /Norwegian /Portuguese /Russian /Spanish /Swedish /Turkish
Note:
There are four configurations for this product:
Configuration 1, Cummins INLINE 6 with Cummins Insite 7.6.2 Software, you can complete the software installation and activation yourself. Please set the computer date to 2014 Year
Configuration 2, Cummins INLINE 6 with Cummins Insite 8.7 Pro Software, you can complete the software installation and activation yourself.
Configuration 3, Cummins INLINE 6 with Cummins Insite 9.1 Pro Software, please contact us after you receive the order, we will install and activate the software remotely.
Configuration 4, Cummins INLINE 6 Plus Lenovo X230 Laptop with Cummins Insite 9.1 Pro Software, the software we have installed for you in the computer, can be used directly
Note:
1. The 7.6 Software only can be installed in Win7 System, can't install in Win XP System!!!
The V8.7 Pro software only can be installed on Win10 system.
The V9.1 Pro software can be installed on Win10/Win11 system.
2. Please don't change the time of your laptop easily.
5 ReasonsforCummins INLINE 6:
1. The INLINE 6 can communicate with your PC through a 9-pin serial connector. The INLINE 6 also can communicate with your PC over a Universal Serial Bus (USB) through a 4-pin standard connector. The INLINE 6 adapter connects to vehicle power, the SAE J1708/J1587 data link, and two CAN/J1939 data links via a 25-pin serial connector.
2. With full compliance to the Technology and Maintenance Council's RP1210 standard, the INLINE 6 will work with the latest Cummins INSITE, PowerSpec and Calterm III software applications.
3. It will also work with any other software applications that are fully compliant with the RP1210 standard (note that while some non-Cummins applications fully support RP1210, others do not, so you should test each application in question with the INLINE 6 adapter to make that determination).
4. The eye-catching INLINE 6 breaks new ground by utilizing the latest electronic technology to deliver high performance and high quality at an attractive price.
5. Each Cummins INLINE kit contains a data link adapter, basic cables, and the INLINE PC software driver. Load the software driver, connect all the hardware, and you are ready to start a new era in data link adapters.
New inline 6 adapter is now the only genuine Cummins product on the market and is the only adapter available that Cummins certifies to be 100% compatible with all features of the latest Cummins ECMs and software applications. The INLINE 6 can communicate with your PC through a 9-pin serial connector. The INLINE 6 also can communicate with your PC over a Universal Serial Bus (USB) through a 4-pin standard connector. The INLINE 6 adapter connects to vehicle power, the SAE J1708/J1587 data link, and two CAN/J1939 data links via a 25-pin serial connector.
With full compliance to the Technology and Maintenance Council's RP1210 standard, the INLINE 6 will work with the latest Cummins INSITE, PowerSpec, and Calterm III software applications. It will also work with any other software applications that are fully compliant with the RP1210 standard (note that while some non-Cummins applications fully support RP1210, others do not, so you should test each application in question with the INLINE 6 adapter to make that determination).
Cummins has become the innovator and technology leader in data link adapters and service tools for diesel engines. The eye-catching INLINE 6 breaks new ground by utilizing the latest electronic technology to deliver high performance and high quality at an attractive price. If you ever use data link adapters to download new calibrations to ECMs, you really should be taking advantage of the high-speed communications capabilities inherent in the new Cummins INLINE 6 adapter. So why waste your time and money on more expensive, inferior products that are not fully-compatible with Cummins software? Check out the entire family of INLINE products by selecting from the Products menu above.
Each Cummins INLINE kit contains a data link adapter, basic cables, and the INLINE PC software driver. Load the software driver, connect all the hardware, and you are ready to start a new era in data link adapters.
INLINE 6 Features:
1. Supports SAE J1708/J1587 and J1939/CAN data links
2. Both CAN ports auto detect between 250 & 500 kbps
3. Supports USB full speed port at up to 2M baud rate
4. Custom USB cable includes thumbscrews for secure mounting to INLINE 6
5. Supports RS-232 PC serial port at up to 115.2k baud rate
6. Is fully compliant with TMC's RP1210 standard
7. Small enough to fit in pocket
8. Attractive black powder coated aluminum housing provides ruggedness
9. Derives 8 V to 50 V DC power from vehicle
10. Controlled by advanced 140 MHz 32-bit Freescale processor for maximum speed and performance
11. Includes 6 LEDs to indicate status of power, USB, RS-232, J1708/J1587, and two CAN communication ports
12. Both CAN ports support SAE J1939, SAE J2534, and ISO 15765 protocols
13. INLINE 6 is certified to meet European CE requirements
14. Rated for -40° to +85° C operating temperature
15. INLINE 6 meets rigorous Cummins in-cab environmental test requirements
INLINE 6 product kit (P/N 2892092) includes:
INLINE 6 data link adapter (P/N 2892093)
USB 14-foot 3M cable (P/N 2892176)*
DB25F/9-pin data link cable (P/N 4919780)
DB25F/3-pin/3-pin/2-pin cable (P/N 4919797)
INLINE 6 software CD (P/N 2892095)
Storage case (P/N 4918713)

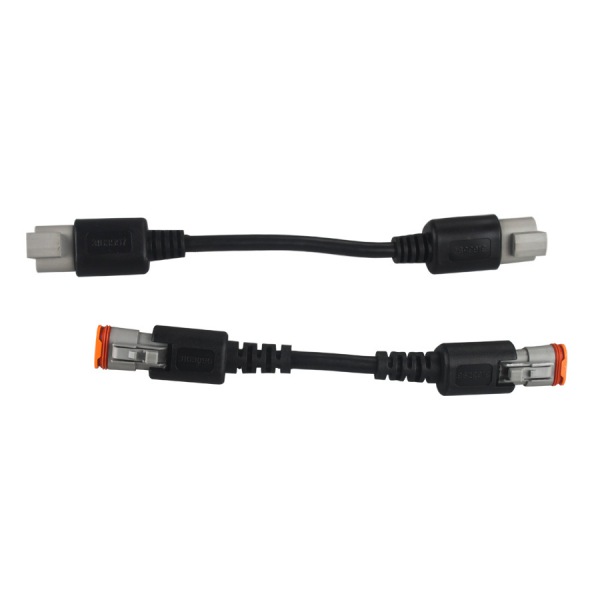

J1939 Gender Changer adapter (P/N 3163597)
J1939 Backbone adapter (P/N 3163096)
Our package added obd cable part No.: 4919781
Domestic Optional: OBD-round16, price USD40
Foreign Optional: Round9-6pin 31651600 , price: USD70
If you need these two optional cables, please contact us directly.
