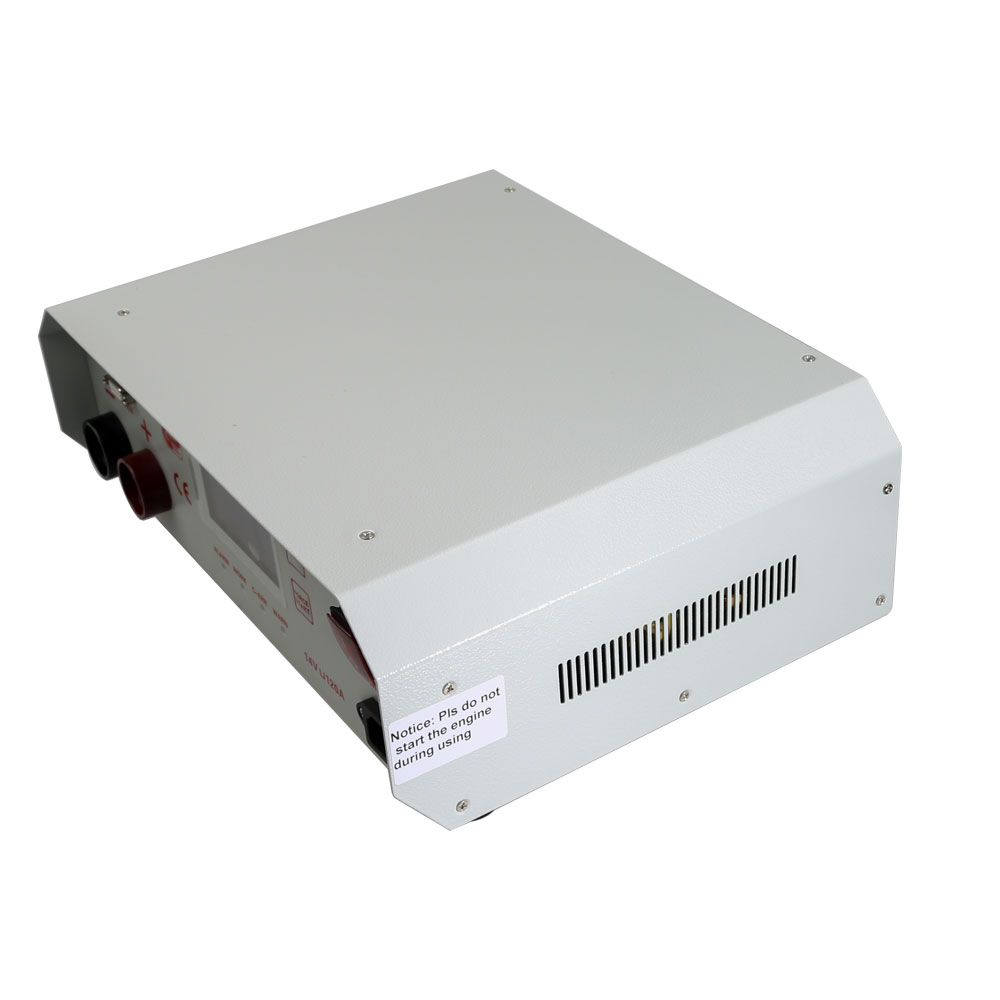

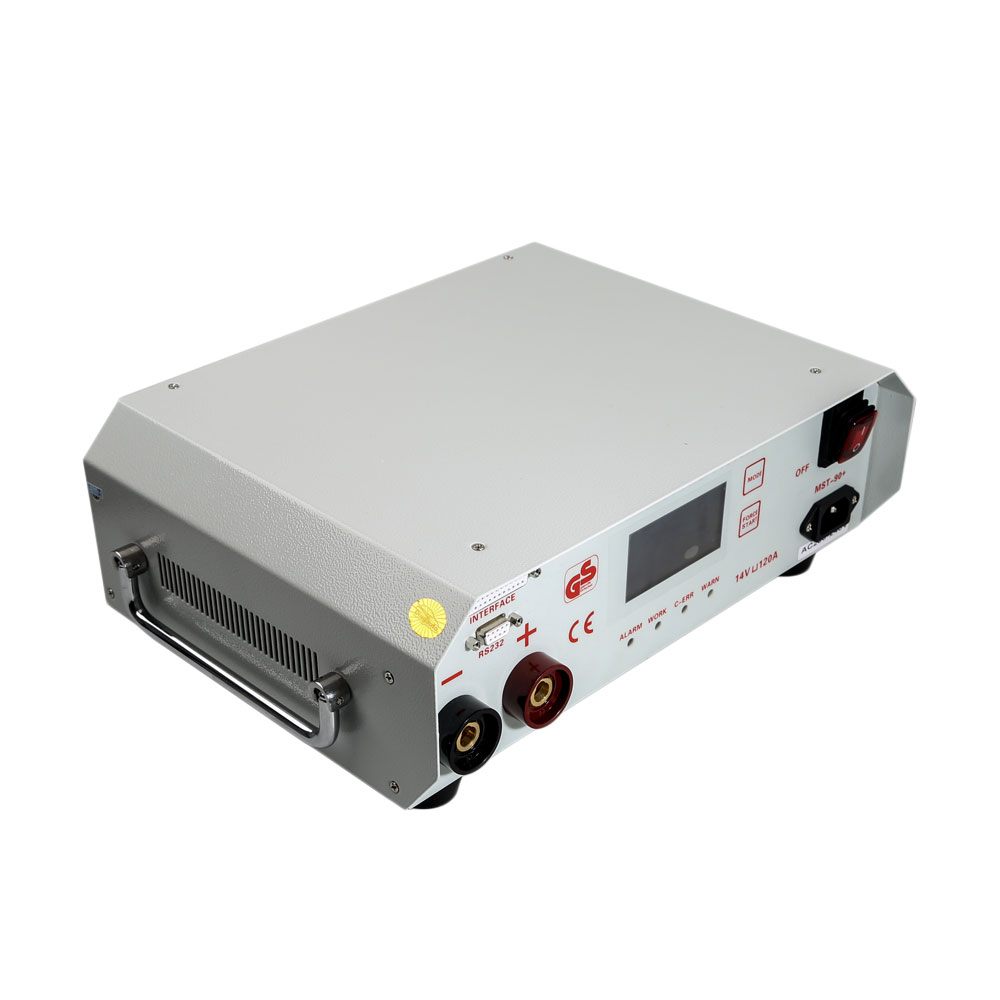

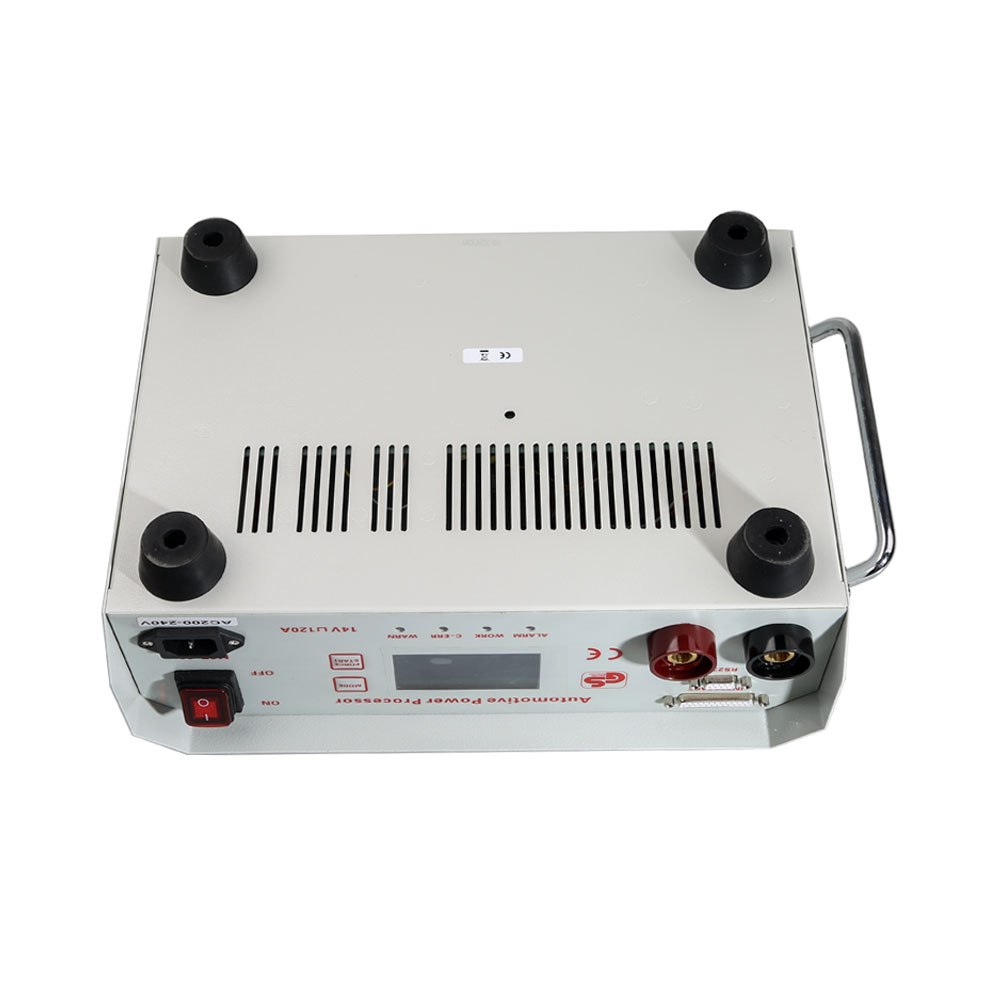

MST-90+ battery voltage regulator & charger (14v 120A) Automotive Programming Dedicated Power For AUDI/VW/BENZ/BMW

Automotive Programming Dedicated Power For AUDI/VW/BENZ/BMW

Automotive Power Processor Automatic Voltage Regulator delivers cost-effective and high quality power protection for many applications (Often times, it takes too long time to do vehicle ECU programming, the battery voltage usually is lower or higher than standard values due to electricity instability which might result sudden disruption during programming and cause damage to Vehicle ECU.)

Automotive Programming Dedicated Power for AUDI/VW/BENZ/BMW can prevents equipment damage from voltage fluctuations and transien

Applicable Models: Volvo, Volkswagen, Audi, BMW, Mercedes, General Motors Etc.

Function:
1.Smart vehicle Program
2.Charging dedicated power
3.Input voltage 220V only, Output Voltage 14V/120A.
4.High temperature alarm.
5.Intelligent charger for motor vehicles starter battery
6.Extensive protection functions and self-protection functions
7.Short circuit and reverse polarity protection

Automotive Programming Dedicated Power Output Characteristics

DC voltage: 14.5V

Rated current: 0-100A

Rated maximum power: 1500W

Ripple and noise: 100mVp-p

Automotive Programming Dedicated Power Input Characteristics

input voltage: AC220V±15%

Frequency range: 40-60HZ

Power Factor: 0.95

Efficiency: 85%



Automotive Programming Dedicated Power Protection Features

Overload: 90-110% of rated output power

Output voltage/ A : 14V /120A

Working temperature: -40°C±85°C

Safety: UL60950, TUV EN60950-1

Withstand voltage: I / P-O / P: 3KVAC I / P-FG: 1.5KVAC

Insulation resistance: I / PO / P, I / P-FG: 100M Ohms, 500VDC/25 C / 70% RH

EMC: Complies with EN55022, EN61000

Operating Instructions

1. Connect power input line and battery charging wires, open power(LED1 will light) Display window will display normal charging voltage and current. And light LED2

2. Don’t charge over-discharger battery show voltage down 8V, will show (Battery bad)

3. When battery charge full, charger will cut-off in-put and show(charge end)

4. When charging current over 100A or charger out-put voltahe over 15V, this charger will cut-off out-put and light LED3, show(large charging) or (high voltahe)

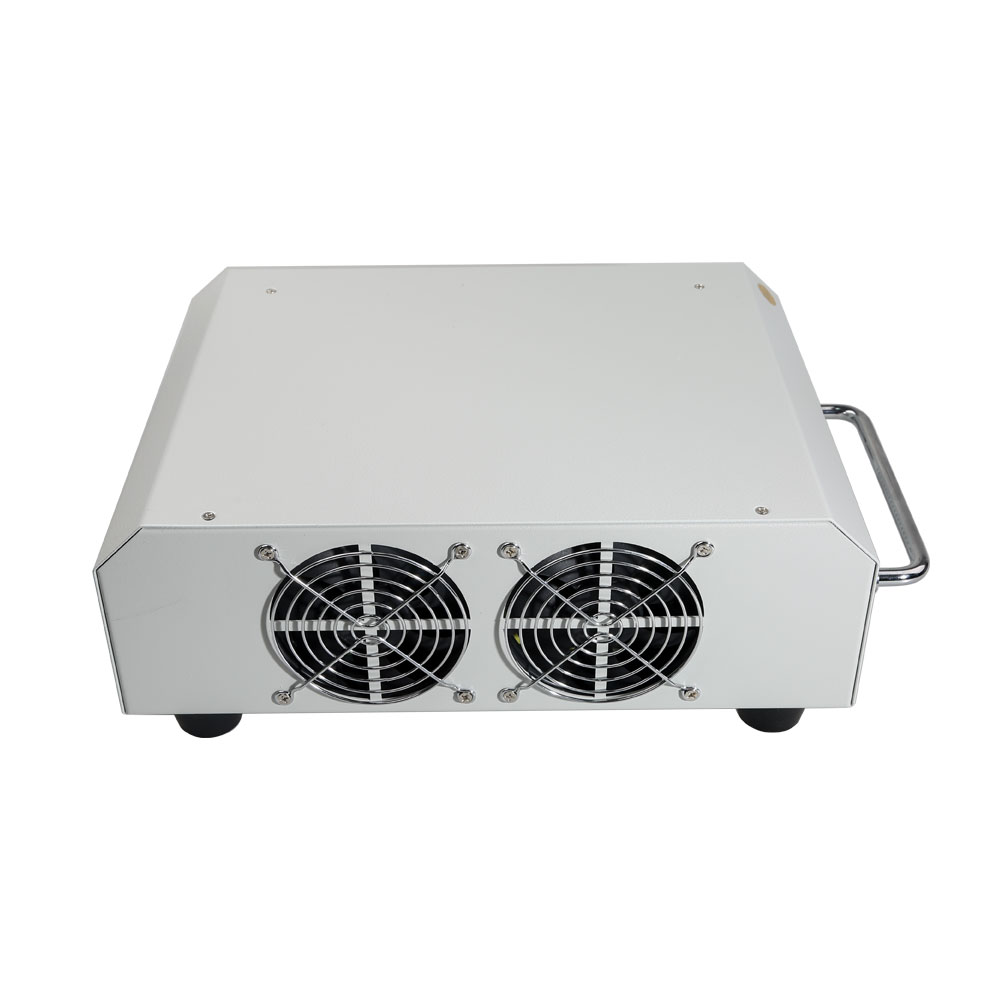

5. When charger’s temperature over 60 degrees celsius, LED4(Yellow light) will light and open cooling fan at the same time.

6. When charger input have problem of over-current, over-voltage, high temperature, breaker will automatic pop-ip, user need press in breaker and cheak whether circuit have problem.

Notice

1. Please use piwer socket over 10A

2. After connect charging wire, please screw tight tum right and screw tight.

Please confirm the connection is NO problem before turn on power.

3. Don’t operate charger when the power ON

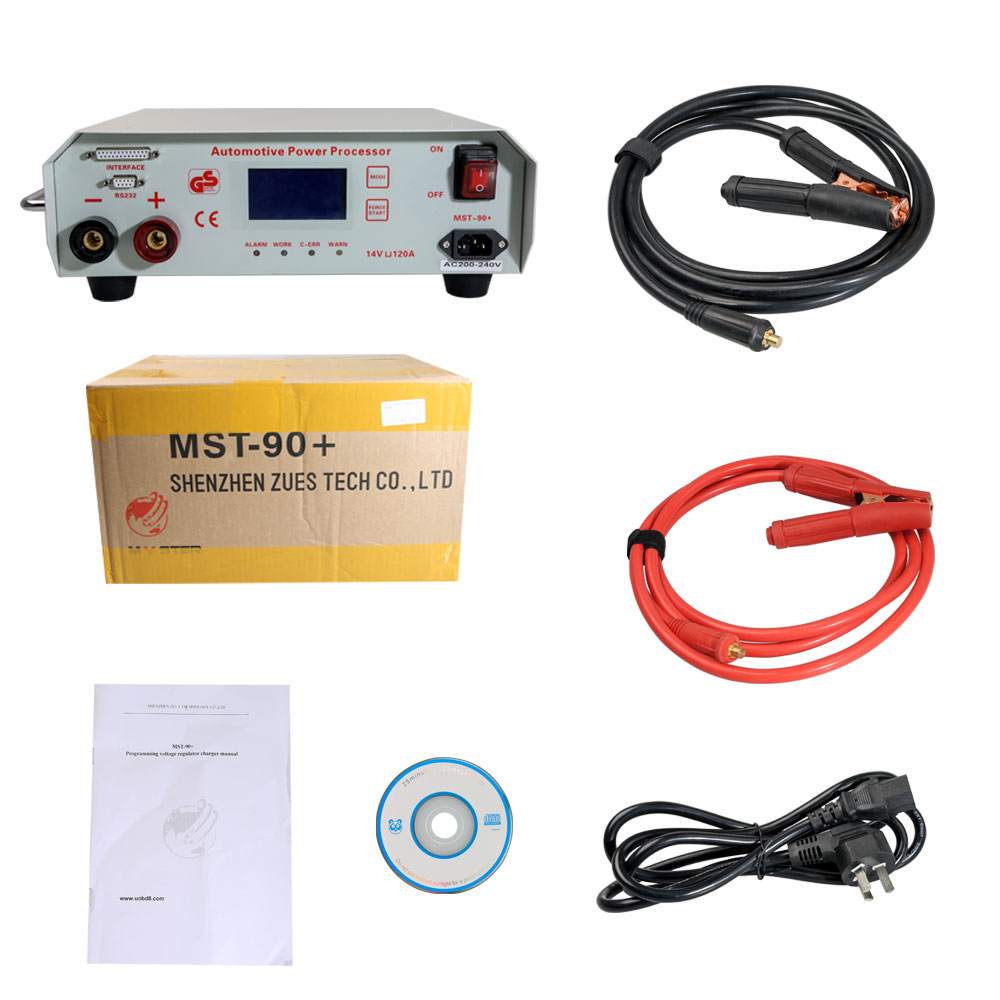

Package List:
1.charger host          1   set

2.red clip line           1   piece

3. black clip line         1   piece

4. power input line       1   piece
