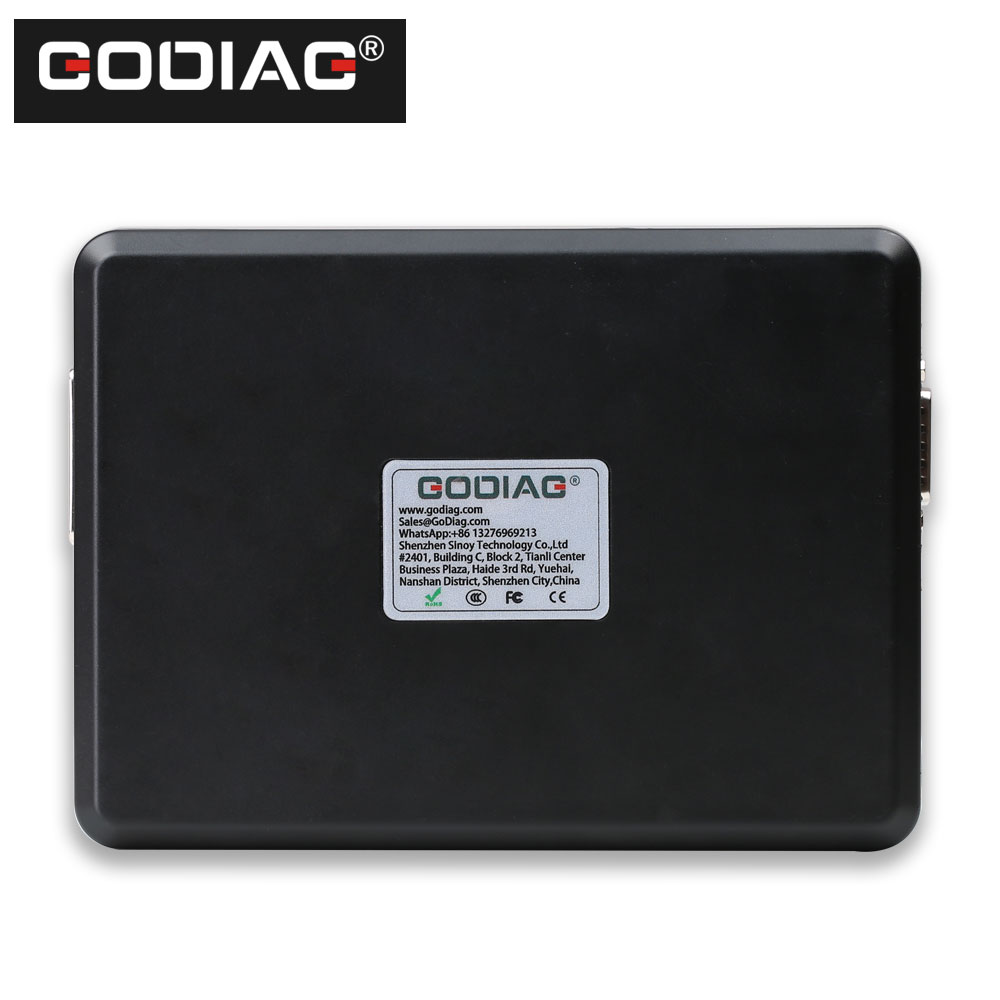

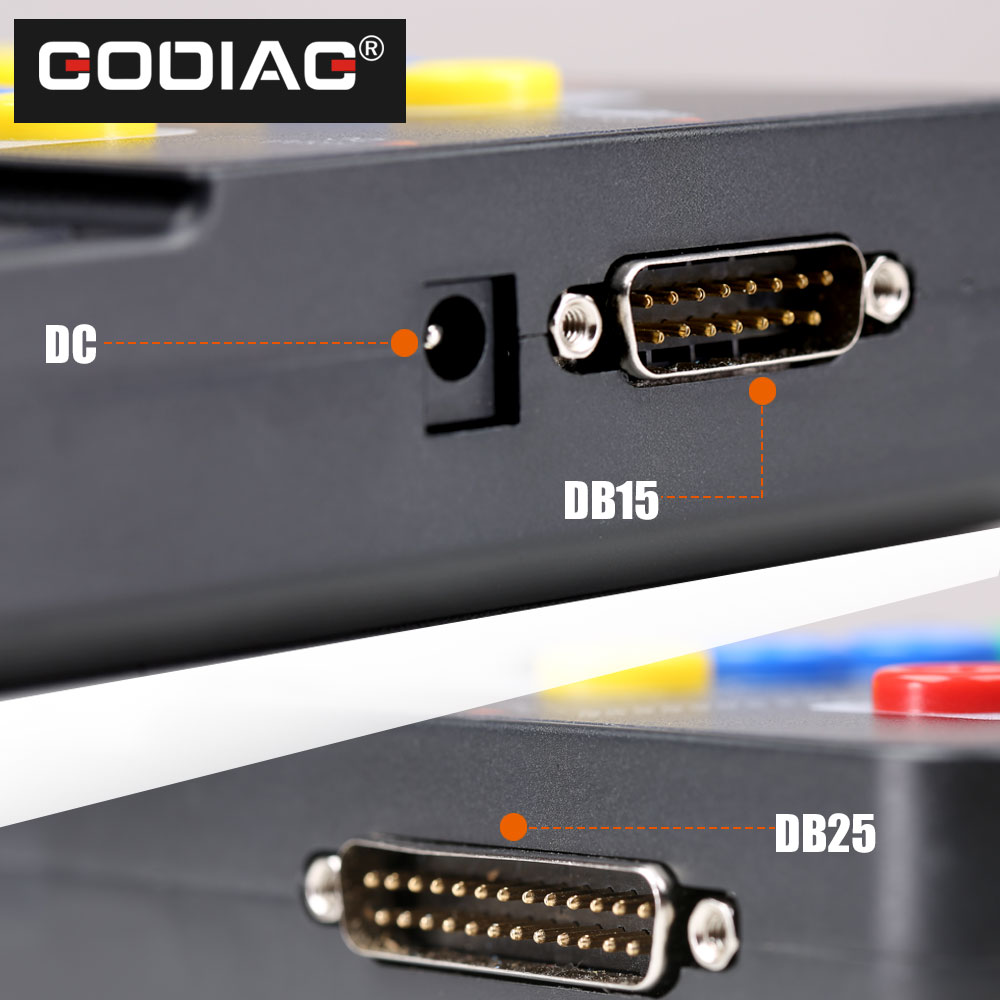

    GODIAG GT100 Auto Tool OBDII Break Out Box ECU Connector

    • Item No.  CN224
    • History: 1  sold
    • Quantity
      Free Shipping
    • Quantity:  264
    • Weight:  1.1KG
    • Rank:  comment rank 5 () Write a Review
    • This goods is Free shipping!
    • Member Benefits  Shipping  Return Policy




    Technical Support

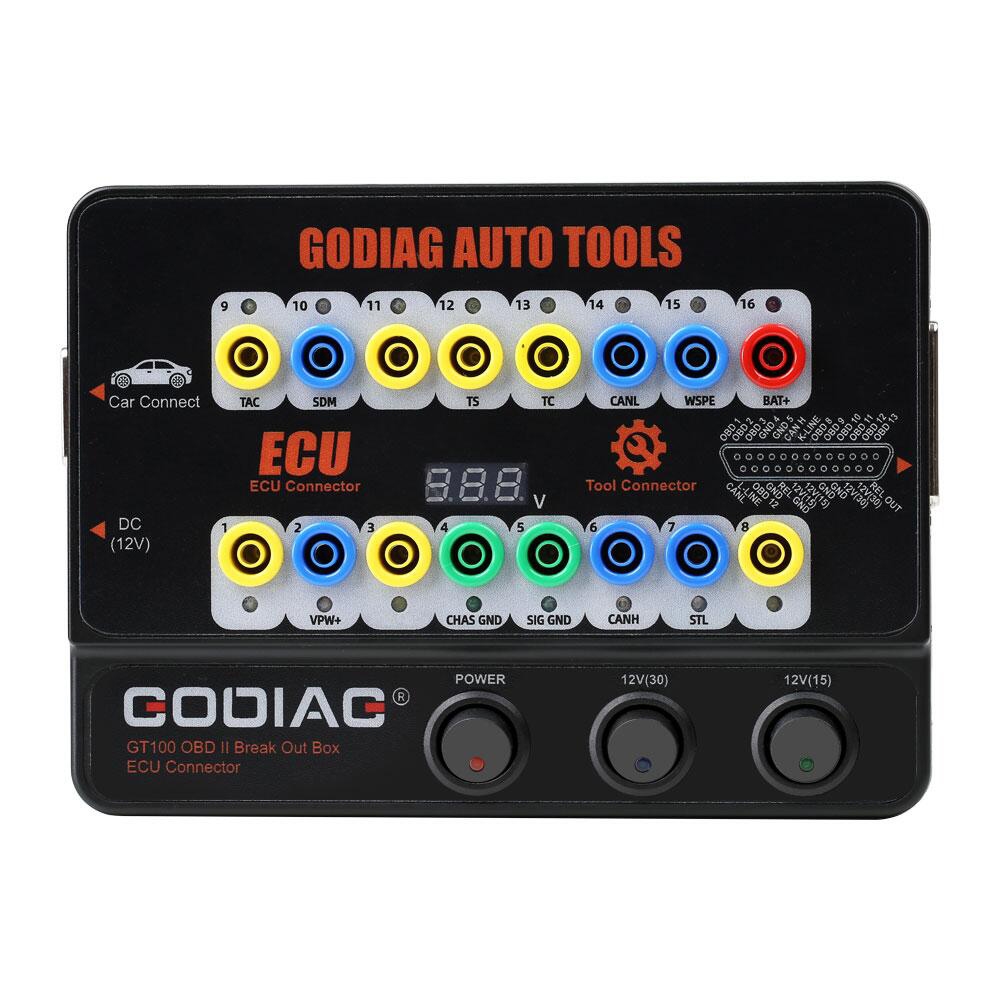

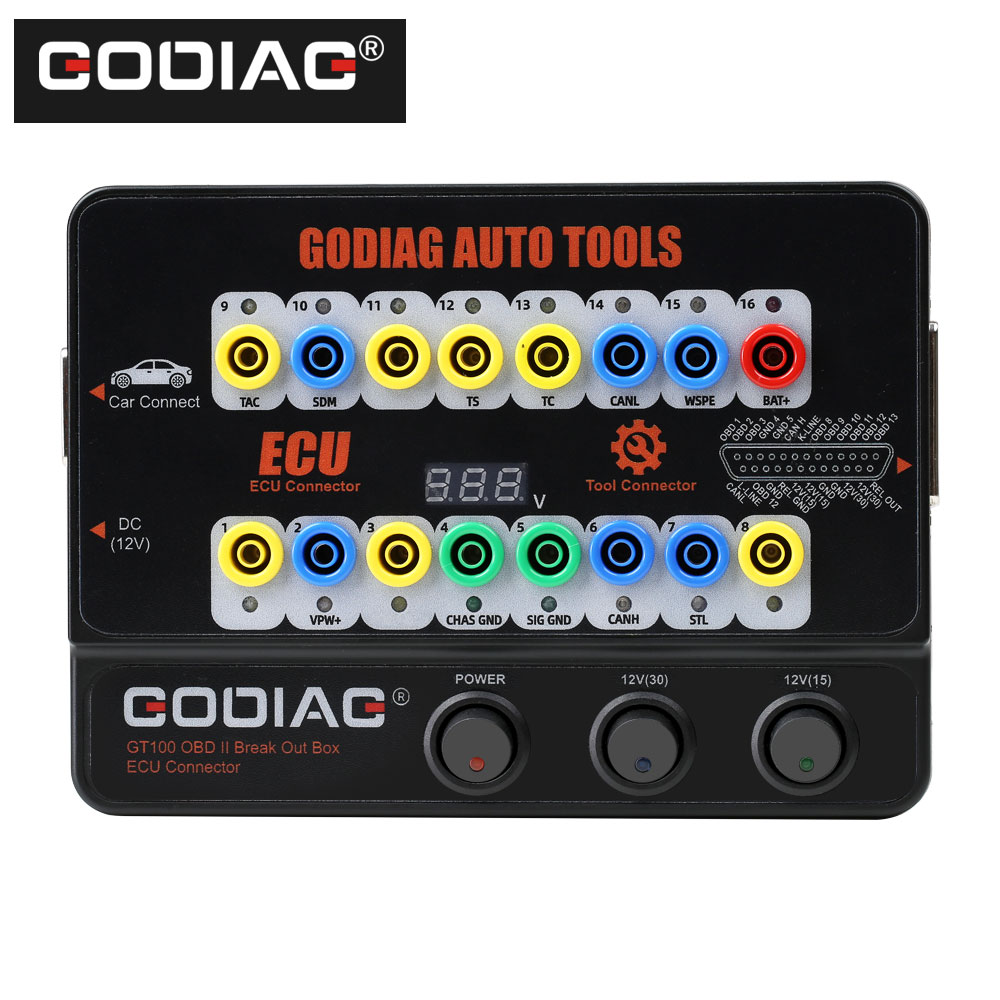

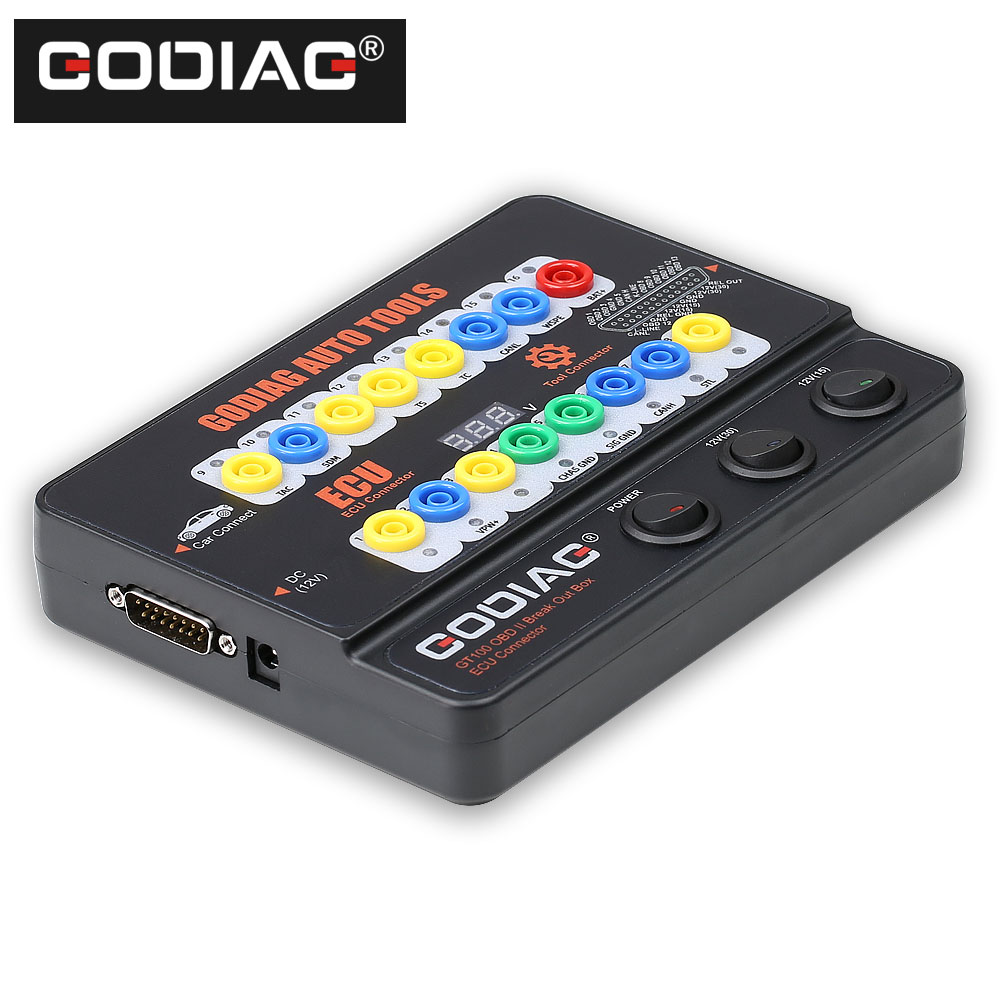

    GODIAG GT100 Auto Tool OBDII Break Out Box ECU Connector

    GODIAG GT100 is newest  developed test platform for OBDII protocol communication judgment and ECU maintenance diagnosis programming coding development. It can convert the car OBD2 interface into 16 holes for signal judgment level conversion. Modules can be connected individually, or multiple vehicle modules can be connected. It can be connected with any diagnostic equipment to determine whether the car communication is normal. You can also supply power to the car when you change the battery to prevent the vehicle control module data from being lost, automatically locked, the key remote control fails, and the fault light turns on.

    Highlights of GODIAG GT100:

    1. GODIAG GT100 is a latest testing platform for OBDII protocol communication detection and ECU maintenance, diagnosis, programming & coding.
    2. It can convert the car OBD2 interface into 6 pin for signal detection and electrical level conversion.
    3. Able to connect the single modules or multiple modules of the vehicle.
    4. Connect with any diagnostic tool to tell whether the car communication is good or not.
    5. Supply power to the car when you change the battery to avoid the vehicle control module data being lost, automatically locked, key remote control fails or the fault light turns on.
    6. One Year Warranty.

    GODIAG GT100 Function and Operation Guide:
    - By connecting the vehicle and diagnostic tool via OBDII, Godiag GT100's LED will indicate whether the OBDII diagnostic interface has a good communication with the car.
    - Monitor the voltage of vehicle OBDII interface and display it in real time. If it is less than 11V, please stop the diagnosis and programming to avoid the vehicle being unable to start/data loss/module locked.

    GODIAG GT100 OBD Breakout Box Specifications:
    Diagnostic interface    OBDII
    Working voltage    DC 9V-24V
    Product power    0.5-0.6W
    Adapter power input    AC100v-240v output DC12V 1A
    Operating temperature range    -20 to 70 °C (-4 to 158 °F)
    Storage temperature range    -40 to 85 °C (-40 to 185 °F)
    Product packaging size    23*18*7 (cm)

    How to use GODIAG GT100 OBD II Break Out Box ECU Connector

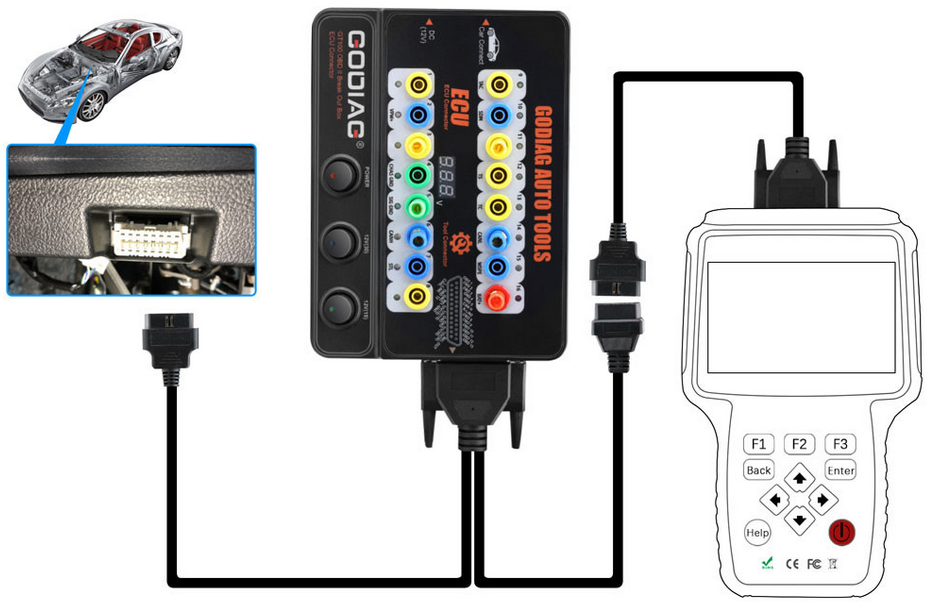

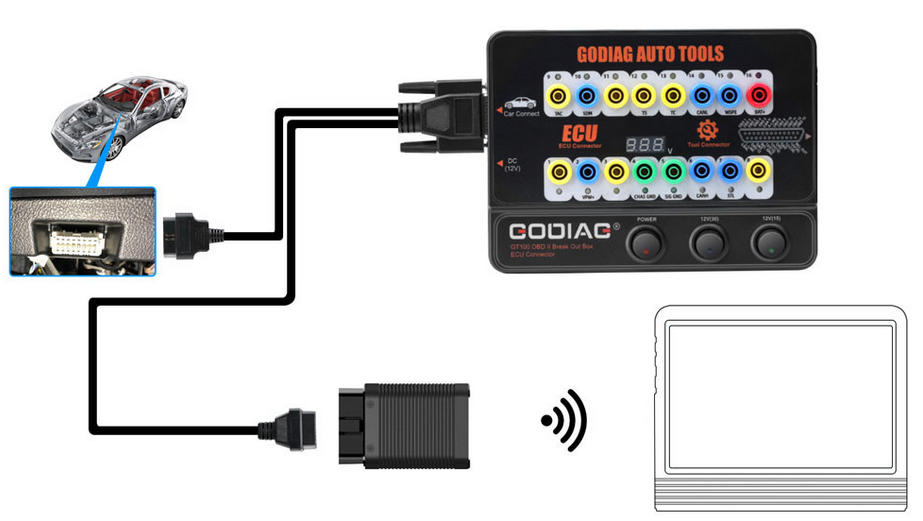

    1. OBDII Protocol Detector & communication detection

    1) Connect GODIAG GT100 to the OBDII diagnostic port of the car.

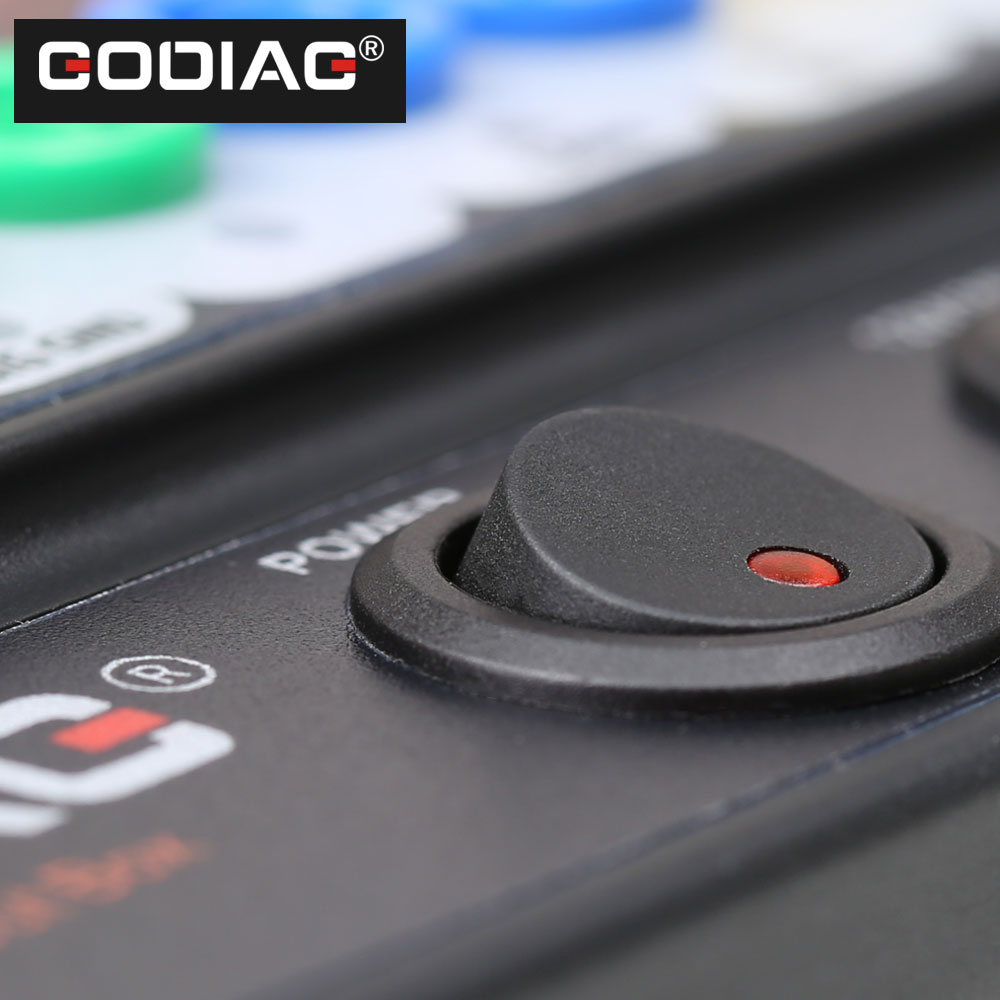

    2) When the device displays the voltage, turn on the power switch of GODIAG GT100.
    3) Then connect to the diagnostic tool, when the tool is communicating with the car, the LED indicator of corresponding protocol will light up or flash. ( If the CAN protocol is detected, it will have the maximum brightness. When the communication is successful, the corresponding CAN-H and CAN-L will dim or twinkling weakly)

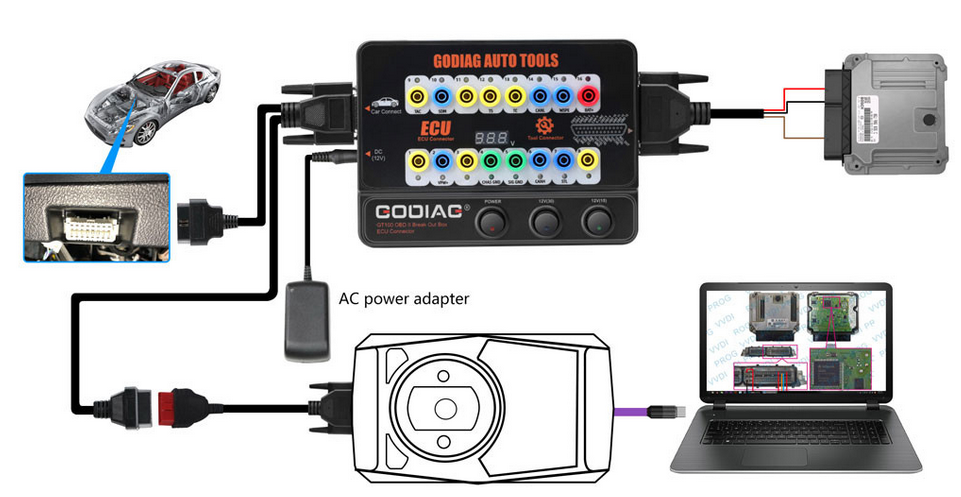

    2. ECU connection: single module connection
    GODIAG GT100, connected to a single ECU module, is convenient for a user to do the single-module diagnosis and programming.

    1)Connect the ECU with the color jumpers. (If the ECU is CAN protocol, please check whether you will need to connect a 120 ohm resistor.)
    2)The Godiag GT100 can be powered by connecting to the OBDII diagnostic interface of car, or by an AC power adapter.
    3)To diagnose and program for a single ECU by connecting the diagnostic tool or ECU programmer.

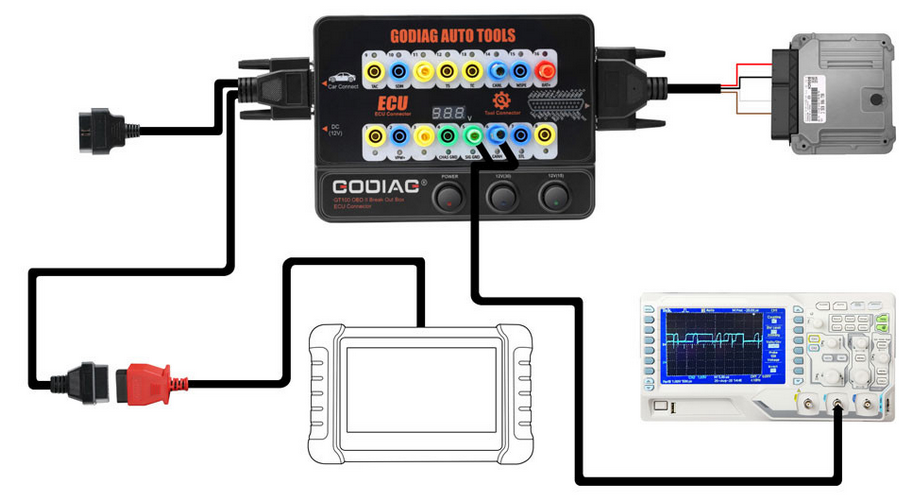

    3. Banana plug extension connection:

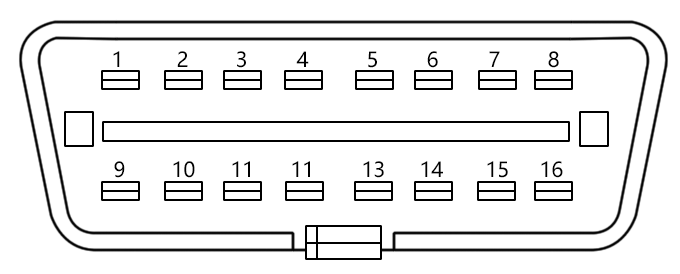

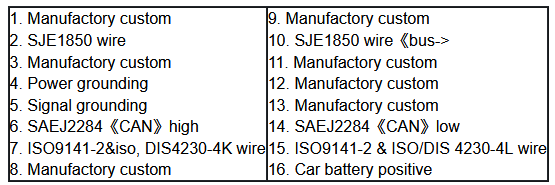

    Extend the car's OBDII 16pin interface to tell you whether the OBDII interface connection is good or not, which is convenient for the test of OBDII interface voltage waveform.

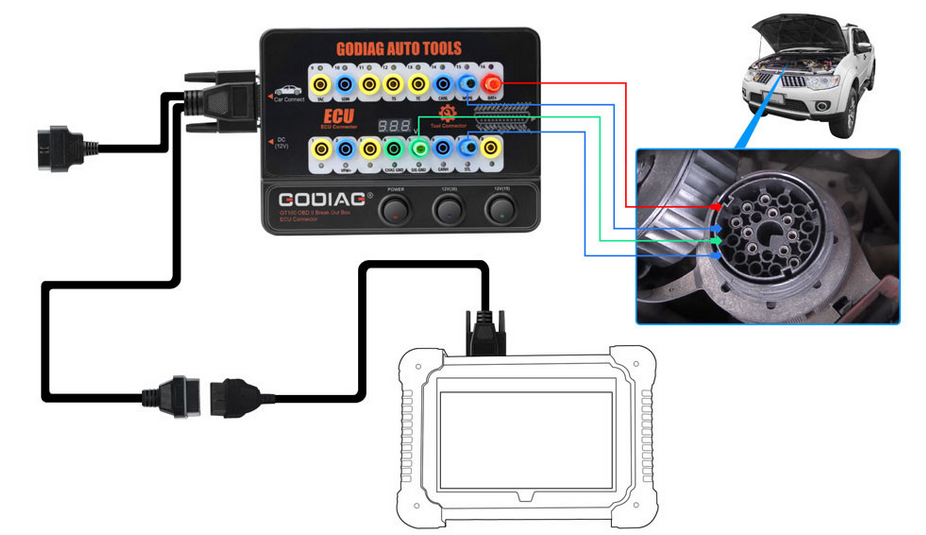

    4. Convert OBD1 diagnostic interface to the standard OBD2
    Use the connector to convert the OBD1 interface into obd2 interface according to the diagnostic interface communication protocol.

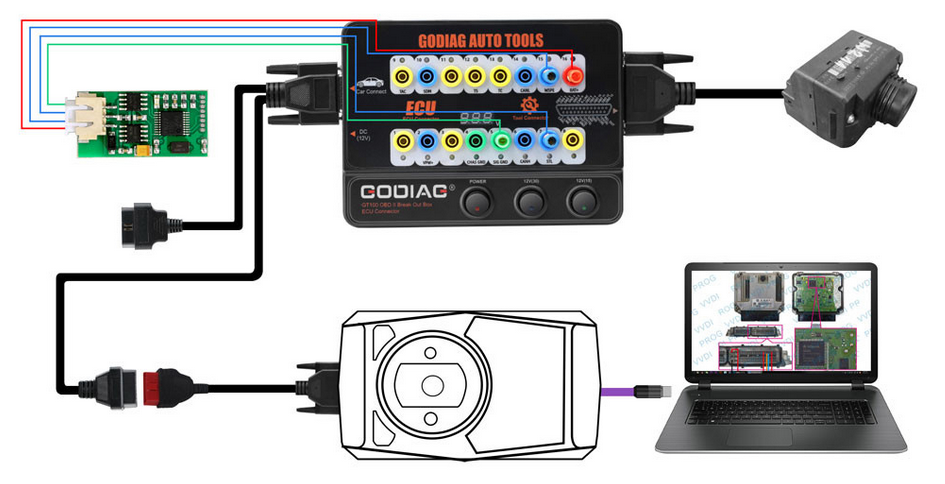

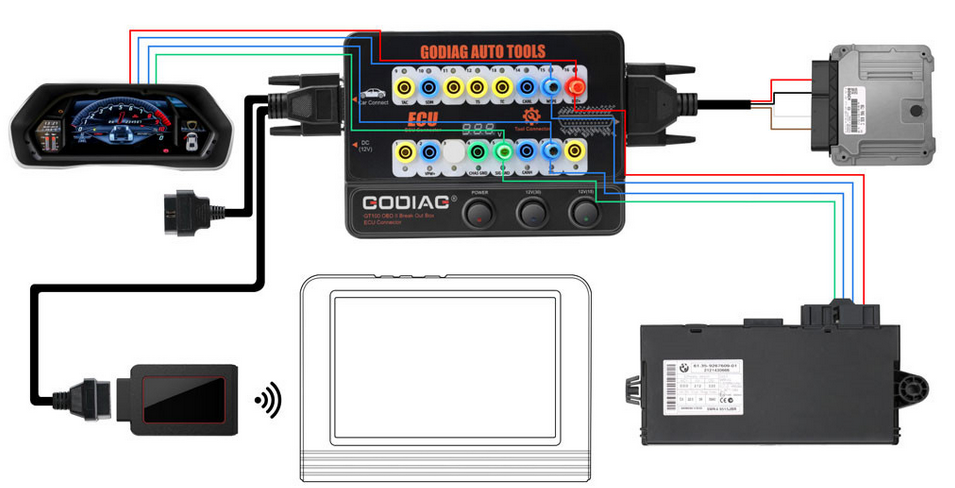

    5. Connect multiple ECU control modules at the same time, which is convenient for the professional engineers to detect and maintain.

    6. When to use the extension cables: The space of the diagnostic interface location is too narrow to connect to the diagnostic tool, or the user find that the diagnostic cable is not long enough during maintenance. It can be extended by 1.2 meters.

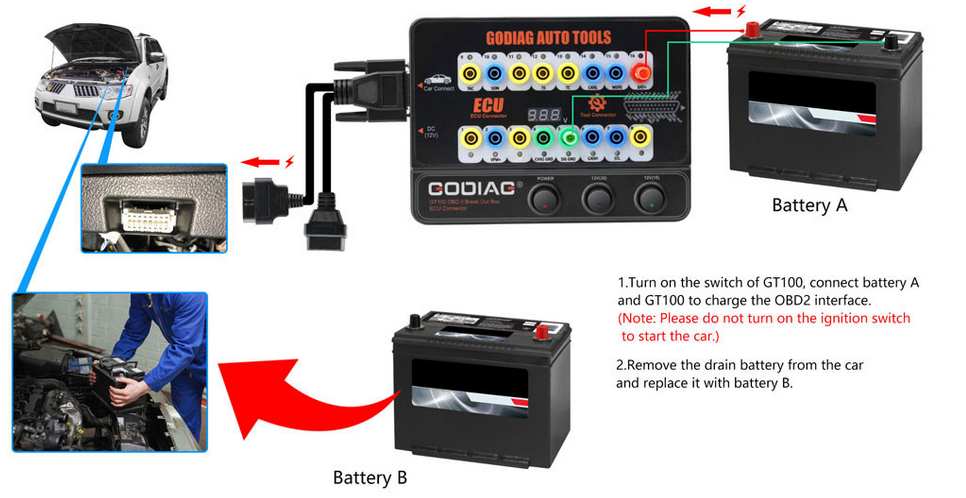

    7. Able to power the car when replacing the used battery.
    1)Prepare battery A to supply power by connecting to No. 16 / 4 / 5 holes of Godiag GT100 & to the OBD2 diagnostic interface of the car.
    [Notice 1. Turn on the power switch of Godiag GT100. 2. Don't turn on the ignition switch, don't start the car]
    2)Then replace the brand-new battery B with the used battery in the car, which will ensure that the car has fully power to prevent data loss and audio lock-up or the malfunction due to lack of power to the ECU control module.

    8. The dedicated adapter will be released (help GT100 connect to the special ECU module)

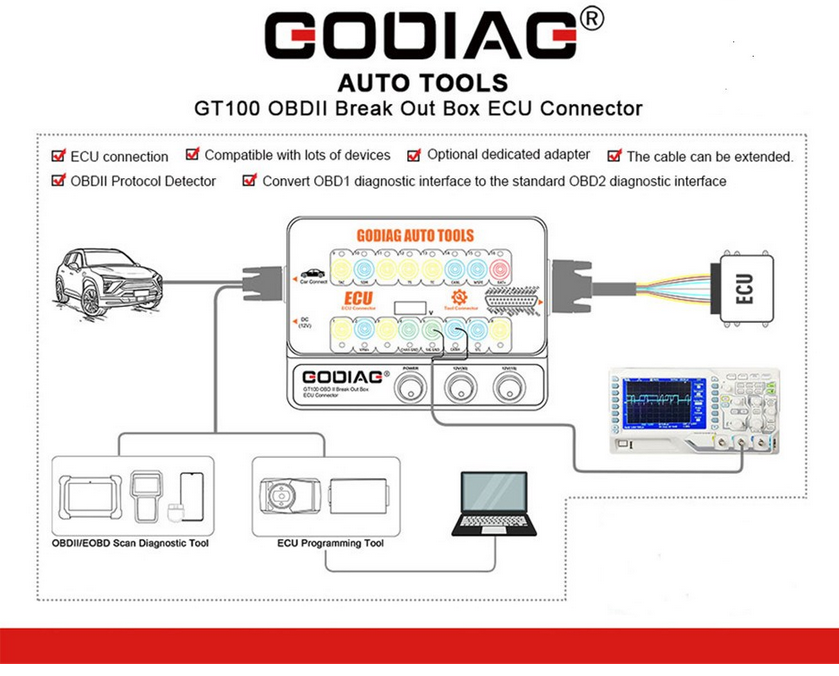

    Hardware Connection Diagram:

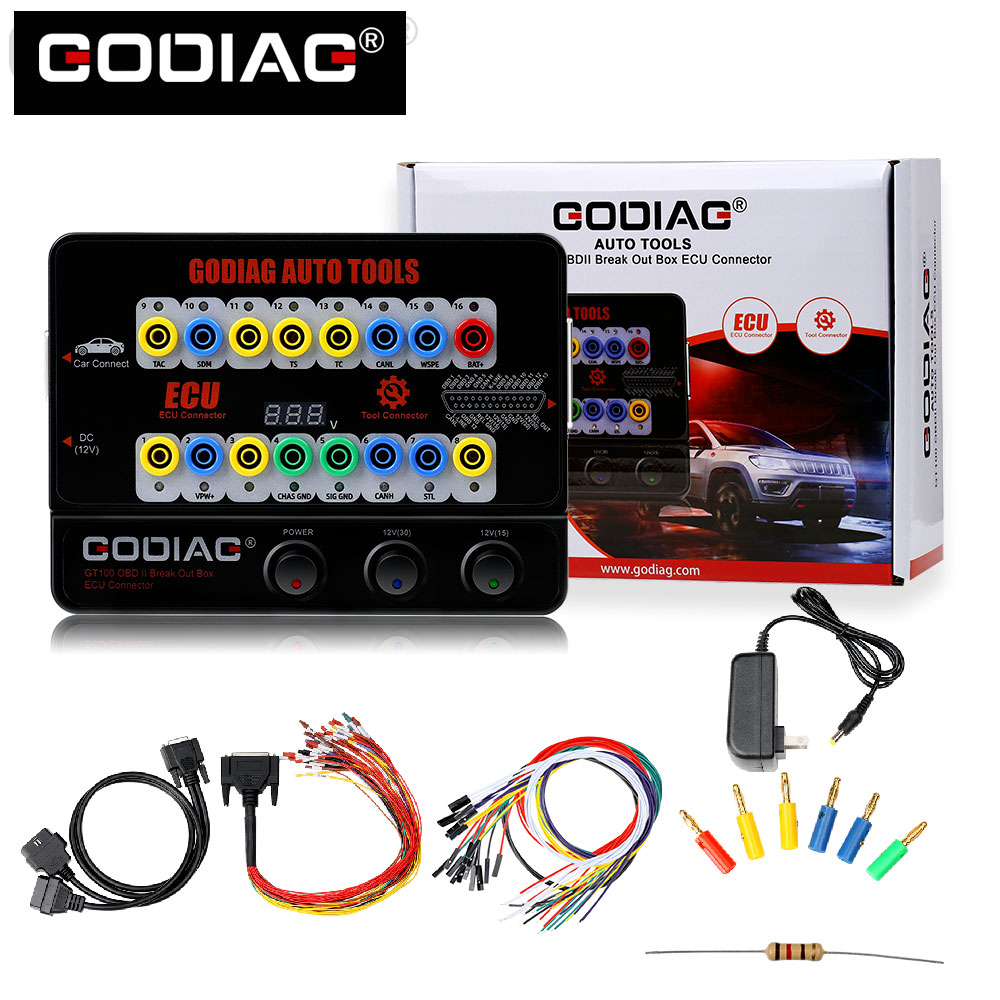

    Package List
    Host: 1pc
    OBD 2-in-1 extension cable: 1pc

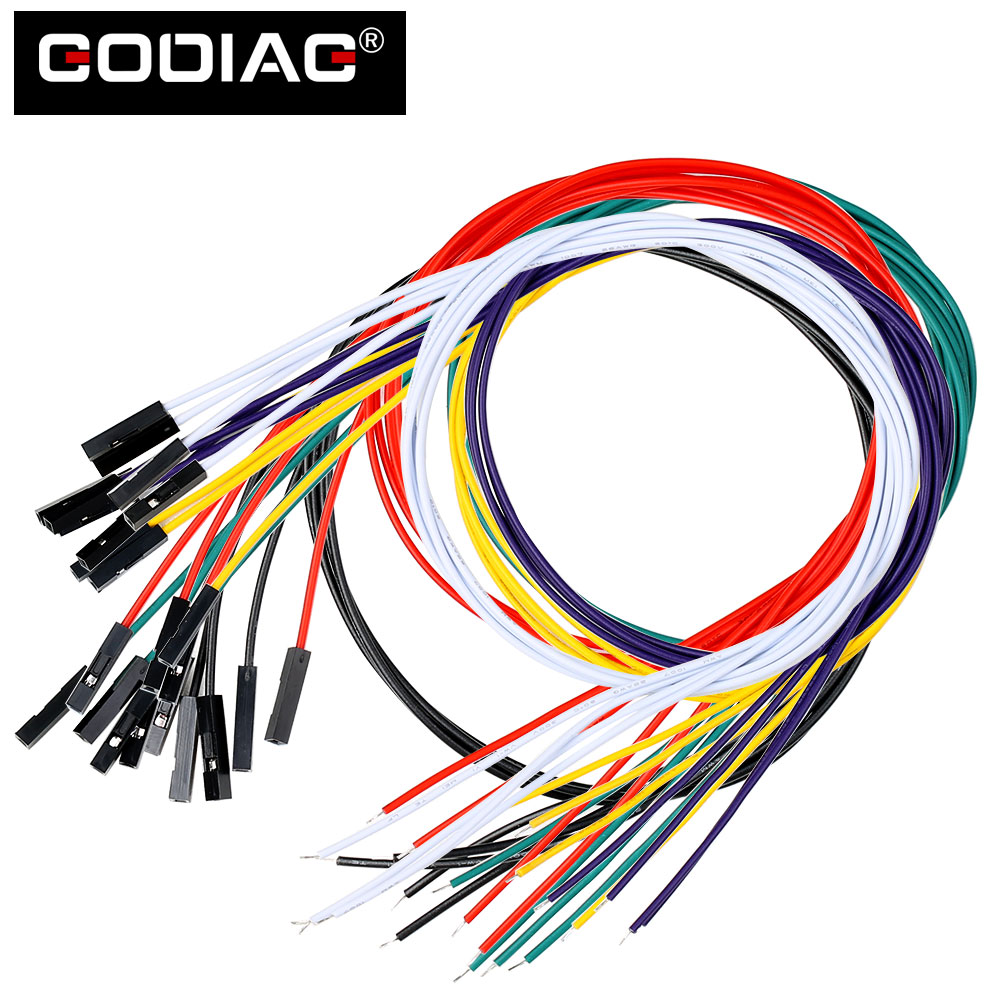

    Colored jumper cable: 1pc
    Power supply 12V: 1pc
    Resistance 120 ohm: 1pc
    Banana plug: 6pcs
    Wire accessories, Dupont 2.54mm connector female pins: 24pcs
