    Latest Version Cat Caterpillar ET 2021A Electronic Technician Diagnostic Software With 1 Time Free Activation

    • Item No.  RD150-4
    • History: 0  sold
    • Market Price: US$238.79
      Shop Price: US$199.00You save US$39.79
      Quantity
      Total
      Shipping:
      Express Shipping Service    Estimated delivery time: 3-5 days »
      Affected by the epidemic, there will be delays in transit time.
      continue
    • Quantity:  500
    • Weight:  0.0gram
    • Rank:  comment rank 5 () Write a Review

    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video


    Latest Version Cat Caterpillar ET 2021A Electronic Technician Diagnostic Software With 1 Time Free Activation

    Note:
    1.After receiving the payment, we will send you the software by email.

    2. we will remote help customer installed and activation for a single PC by Teamviewer!


    Diagnostic Software Caterpillar ET 2021A (replaces CAT ET 2020B, 2019C, 2018A) :
    1.Latest Caterpillar ET 2021A Software to work with CAT/CAT3 Truck Scanner
    2.With one free activation, can send software online
    3.Support Multi-languages:English, Chinese, Danish, French, German, Italian, Japanese, Portuguese, Russian, Spanish
    4. OS:Windows 7 32 bit, Windows 7 64 bit, Windows 8/8.1 32 bit, Windows 8/8.1 64 bit, Windows 10 32 bit, Windows 10 64 bit

    PC, Communication Hardware, and Cable Requirements

    To run the service tool, the next PC, communication hardware, and cable requirements must be met. NOTE: The minimum PC Configurations should not be used as a standard when buying new personal computers for service tool purposes. If the existing equipment meets these minimum requirements, it will run the service tool.


    PC Requirements

    Recommended Configurations

    PC containing a 2.0 GHz dual-core processor

    3GB RAM

    3GB of the available hard disk drive

    DVD-ROM drive (optionally)

    15.4-inch XGA Screen (1280x1024 compatible)

    Microsoft Windows™ 7 Professional or Windows 8 Professional, Windows 10 Professional (Not tested with Home Edition) (Note: Windows 8 RT is not supported)

    RS232 port with 16550AF UART or compatible (for use with Comm Adapter II)

    USB 1.1 or 2.0 port (for use with Comm Adapter 3)

    Ethernet RJ45 connector

    Built-in pointing device or mouse

    For security purposes, Microsoft Internet Explorer version 11 or newer or Microsoft Edge is recommended.

    Note: The most recent version of Microsoft Internet Explorer may not be validated to work with the service tool.

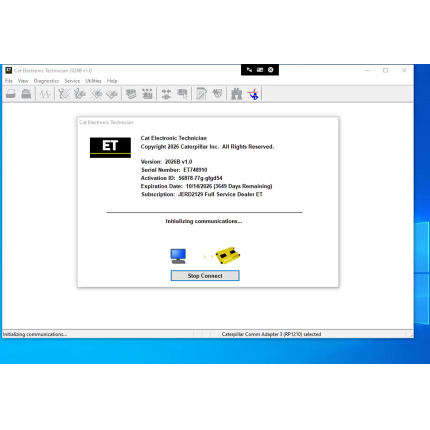

    Caterpillar electronic technician 2021A with WinFlash future is an updated version of the caterpillar dealer diagnostic software that can help technicians to diagnose existing and potential problems with their electronically controlled Caterpillar Engines and Machines.

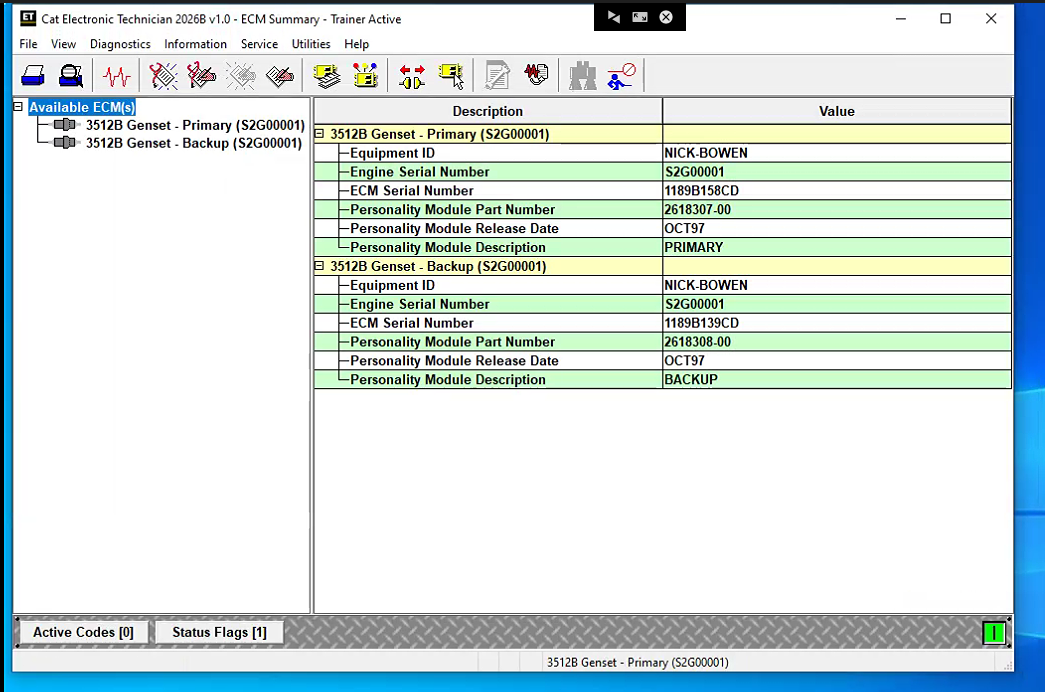

    To get the vehicle information the Cat ET software must be connected to the Electronic Control Module (ECM). For this purpose, you need a suitable diagnostic link adapter (DLA), for instance, Genuine CAT Comm Adapter III .


    The laptops with ARM CPUs (Snapdragon 8cx, Microsft SQ1, etc) type are not supported!


    Microsoft ended extended support for Windows 7 as of January 2020. The CAT ET service tool no longer supports Windows 7 as of the 2020B release. The installation is still possible, but we're not able to guarantee the stable work of 2020B or later versions.


    The list of supported CAT machines and engines can be found below:
    Engines:

    Electric Power

    Electric Power Generation

    Industrial

    Marine Power Systems

    Oil and Gas


    Machines:

    Articulated Trucks

    Asphalt Pavers

    Backhoe Loaders

    Cold Planers

    Compactors

    Dozers

    Drills

    Excavators

    Feller Bunchers

    Forest Machines

    Forwarders

    Harvesters

    Hydraulic Mining Shovels

    Knuckleboom Loaders

    Material Handlers

    Motor Graders

    Off-Highway Trucks

    Pipelayers

    Road Reclaimers

    Site Prep Tractors

    Skid Steer and Compact Track Loaders

    Skidders

    Telehandlers

    Track Loaders

    Underground - Hard Rock

    Underground - Longwall

    Underground - Room and Pillar

    Utility Vehicles

    Wheel Dozers

    Wheel Excavators

    Wheel Loaders

    Wheel Tractor-Scrapers

    What's New - 2021A

    No significant new features or feature enhancements

    What's New - 2020C

    No significant new features or feature enhancements

    What's New - 2020B

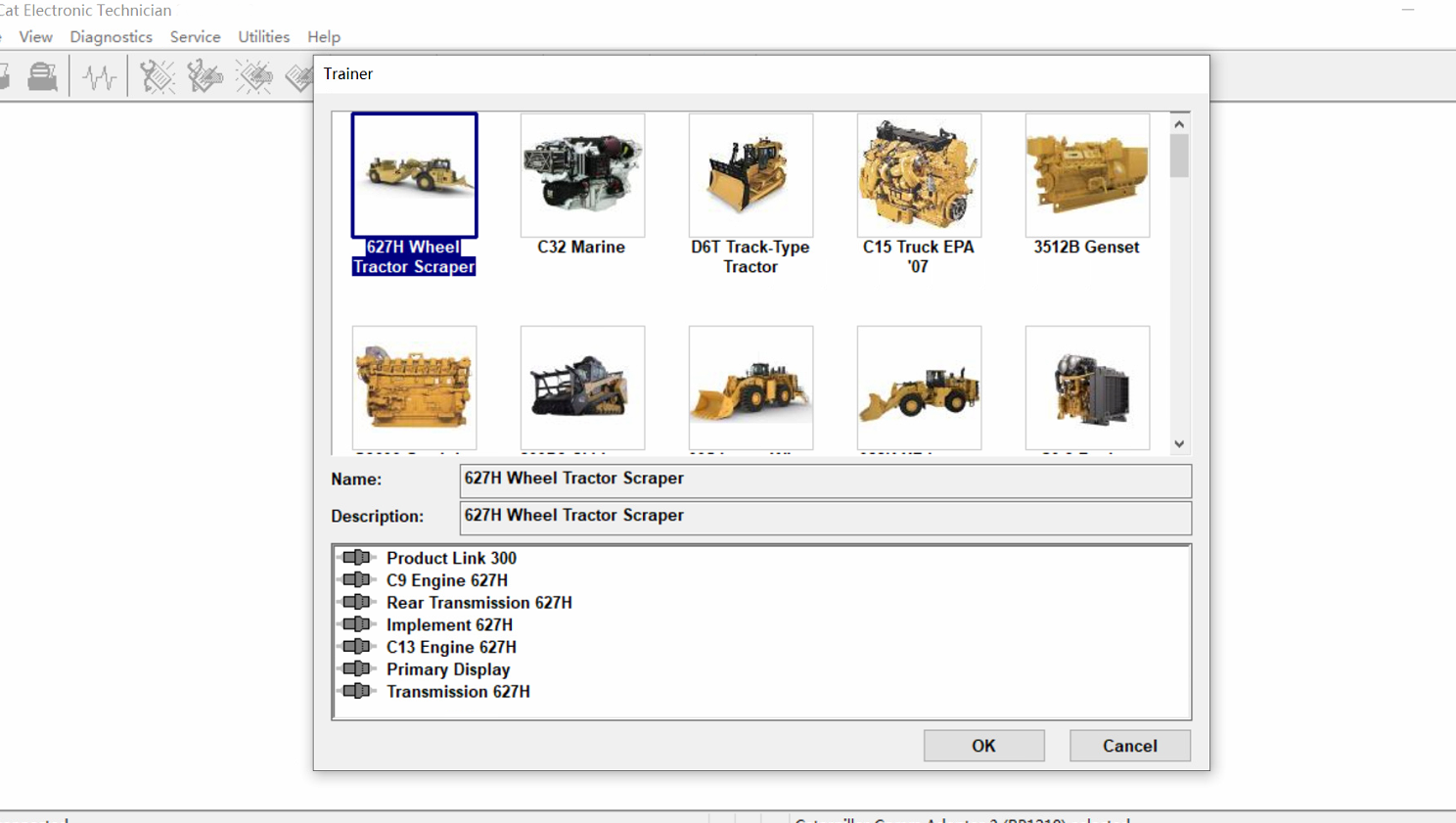

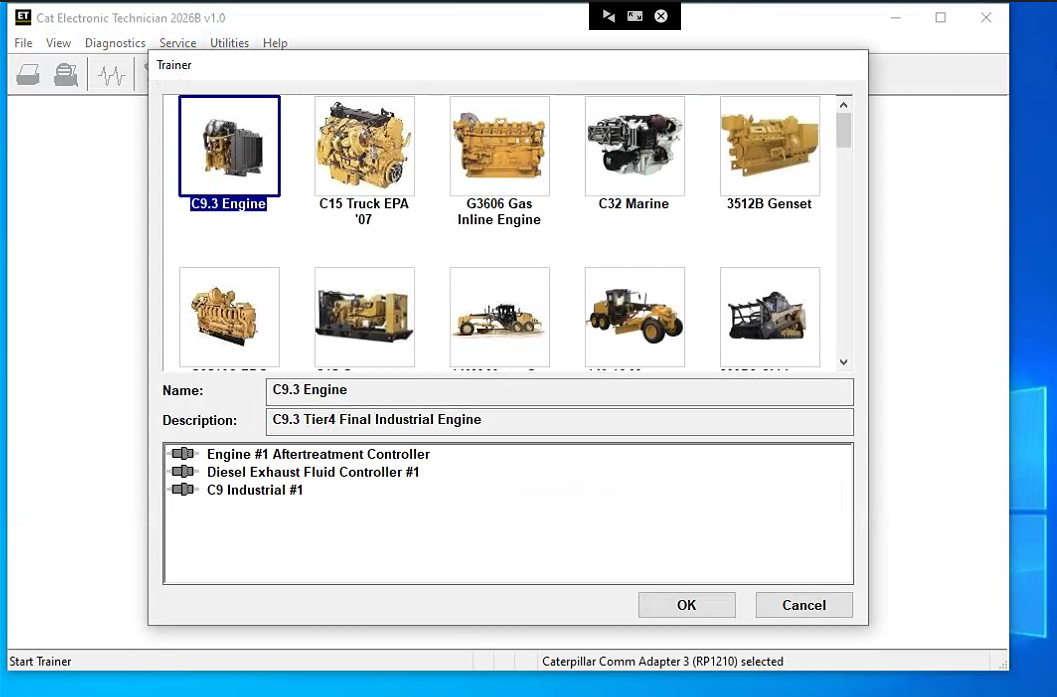

    Trainer Update – 299D3

    The 299D3 Skid Steer Loader has been added to the Trainer application.

    What's New - 2020A

    Product Status Report Updates

    The Product Status Report has been updated to include throttle configuration information.

    Built-in Factory Password Generator

    The experimental feature allows you to decode (18-Bit passwords not supported) factory passwords


    What's New - 2019C

    Indication of Selected Communications Adapter

    The service tool now displays the selected communications adapter when the service tool is disconnected. The adapter name is displayed in the status area at the bottom right of the service tool window.

    End of Support for Windows 7

    Microsoft is ending extended support for Windows 7 as of January 2020. The service tool will be ending support for Windows 7 as of the 2020A release.


    What's New - 2019B

    Automatic Product Status Report (PSR) Upload

    The service tool includes a new tool that automatically uploads Product Status Reports. The tool scans for newly generated Product Status Reports and uploads them when an internet connection is available. The default is that automatic report uploading is enabled. The Preferences dialog has an option to disable the tool.


    What's New - 2019A

    ECM Naming Changes

    Certain ECMs connect to the service tool over two data links at the same time. The service tool shows a message popup when the ECM is only detected on one link. The service tool has been changed to add the text **INCOMPLETE** in the ECM name when the connection is incomplete. Service tool features that display a connection icon also use a new icon for an incomplete connection.


    What's New - 2018C

    No significant new features or feature enhancements


    What's New - 2018B

    CEOS Fleet Configuration File TOP

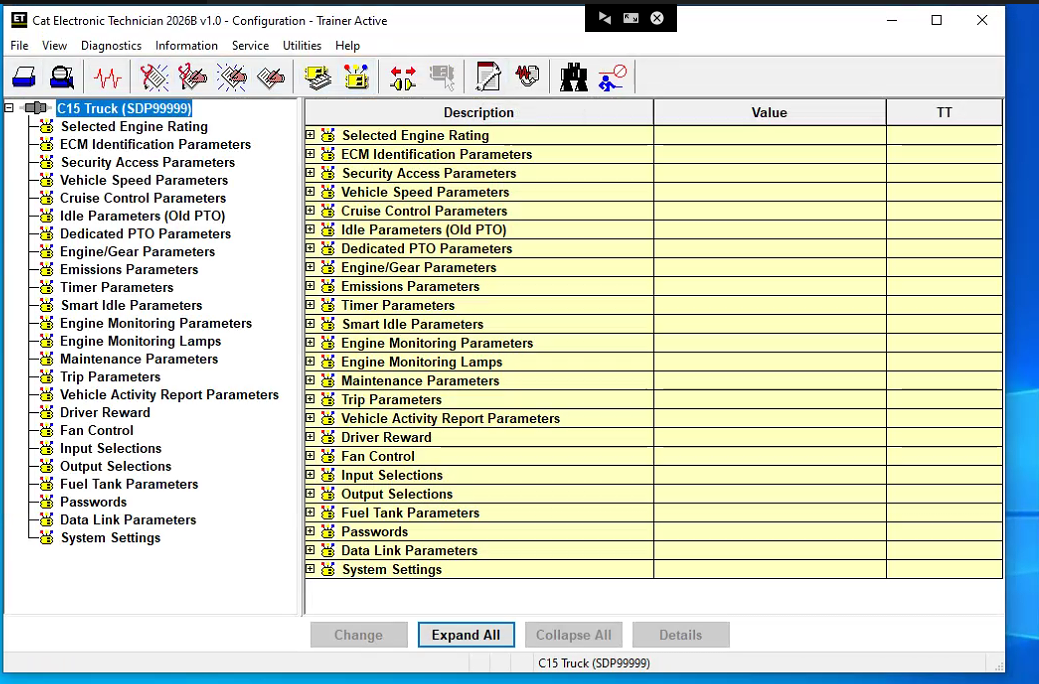

    A CEOS (Customer Electronic Option Selection) Fleet Configuration File can be created/modified for an engine using the Service Tool. This is available in connected and disconnected mode.

    Error When Launching Service Tool

    There is a Microsoft issue with upgrading libraries during an installation involving certain versions of the C++ redistributable. After a successful service tool installation, when trying to run the service tool for the first time, one of the following errors may occasionally appear: “The entry point could not be located in api-ms-win-crt-runtime or The program can't start because mfc140u.dll is missing from your computer. If either of these messages is displayed, please let us know and we will send you to step by step troubleshooting guide. This procedure requires administrator rights.

    Service Tool License Corruption Issues with Windows 10 Updates

    Windows 10 updates 1709 and 1803 will corrupt service tool licenses. Future Window 10 updates may do the same

    If either of the license error messages is displayed, please let us know and we will send you to step by step troubleshooting guide.


    What's New - 2018A

    Trainer Update - 988K XE Wheel Loader

    The 988K XE Wheel Loader has been added to the Trainer application.


    What's New - 2017C

    Preferences Option to Save a Product Status Report to PDF

    The Preferences dialog for the Product Status Report has changed. The dialog contains a new checkbox to automatically save a Product Status Report as a PDF file when the report is created. The service tool will continue to automatically save Product Status Reports as an XML file.


    What's New - 2017B

    Product Status Report Updates

    The Product Status Report has been updated to include certain history features supported by the ECM, such as the after-treatment Regeneration History and the Service Test History.

    Winflash Screen Update

    The screen for the Winflash feature has been updated. A new Expand All button opens all sections of the screen to show all details for ECMs detected by WinFlash. A new Collapse All button hides all sections of the screen, except for header rows showing detected ECM names.

    Communication Hardware

    Caterpillar Communication Adapter III

    Configuring Cat Electronic Technician to use the Communication Adapter 3

    For Cat Electronic Technician to work with the Communication Adapter 3, the settings must be changed to select the Communication Adapter 3 as the Communication Interface Device:

    Step 1 Start Cat Electronic Technician.

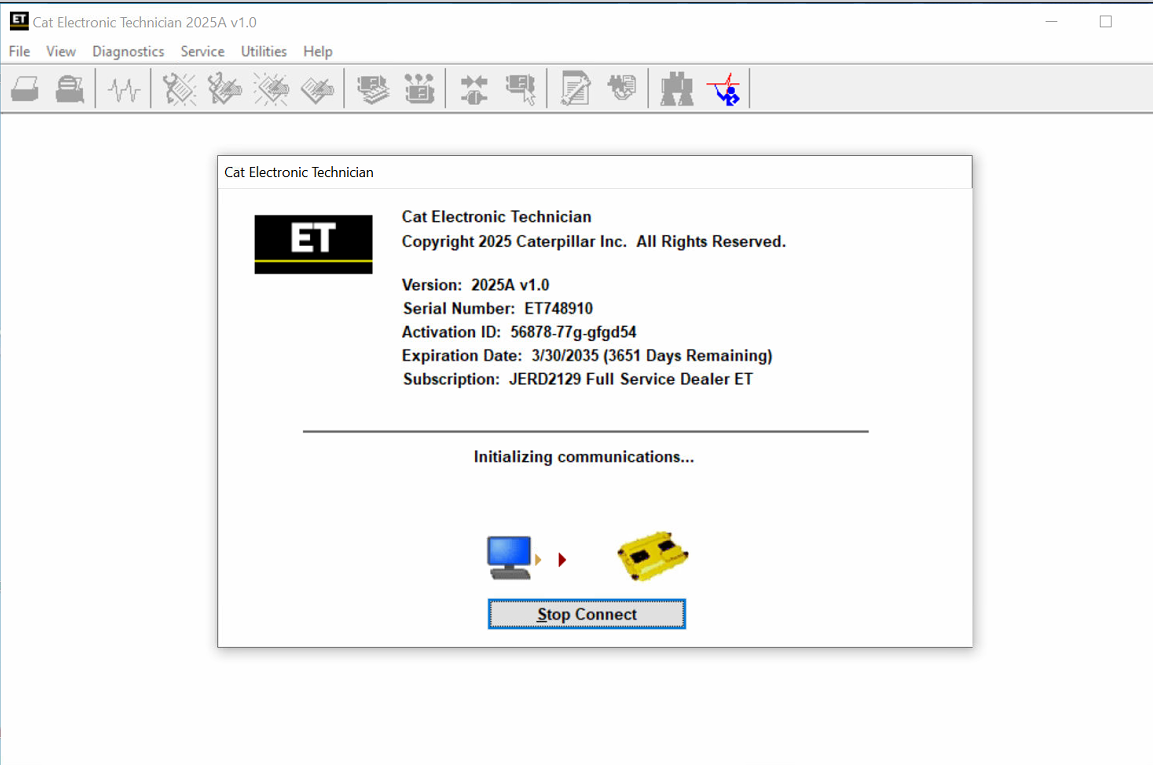

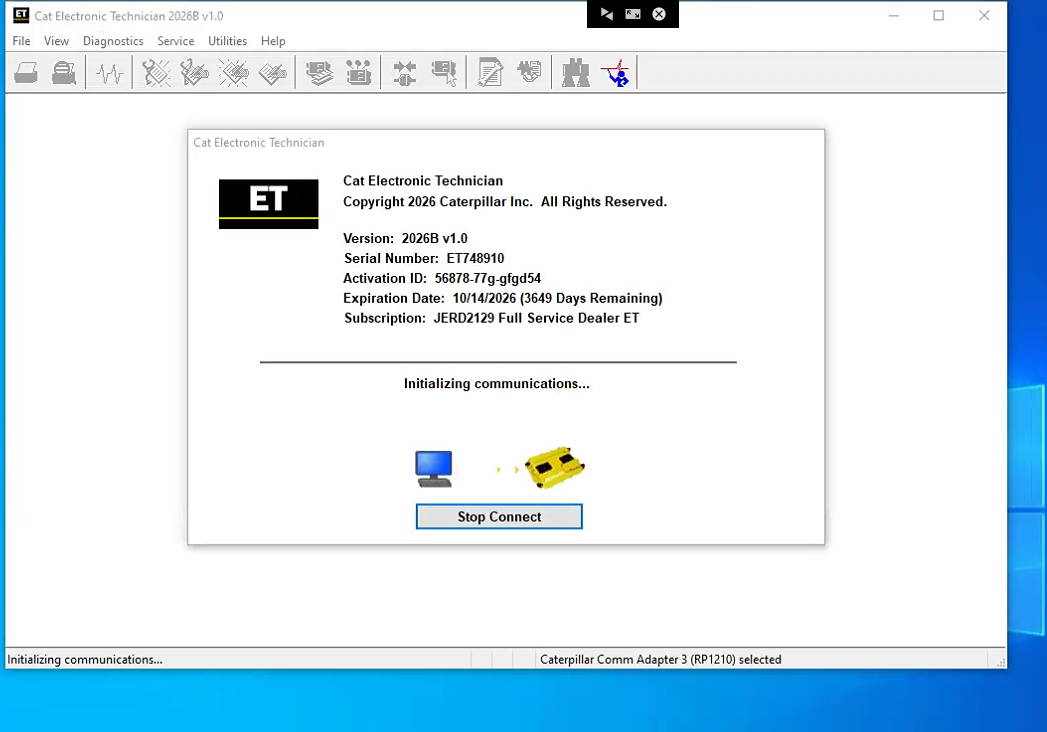

    Step 2 Click the Stop Connect button when it appears.

    Step 3 Select the Utilities menu.

    Step 4 Choose “Preferences > Modify...”.

    Step 5 Select the Communications tab.

    Step 6 Select Cat Comm Adapter 3 (RP1210) and click OK.

    NOTE: Because a growing number of products require multiple data link service, the “Enable Dual Datalink Service” checkbox has been pre-selected.

    Servicing ECMs on more than one data link requires this check box to be enabled.

    Failure to do this will result in undetected ECMs and reduced functionality.

    Package Includes:
    1pc x Caterpillar ET 2021A software (Can choose to send online)
