    2020C/2020A/2019C CAT Caterpillar ET Diagnostic Adapter 3 (Real Caterpillar ET3 Adapter III) PLUS DELL D630 Laptop

    • Item No.  A239
    • History: 278  sold
    • different software version::



    • Market Price: US$1,065.60
      Shop Price: US$888.00You save US$177.60
      Quantity
      Total
      Shipping:
      Express Shipping Service    Estimated delivery time: 3-5 days »
      Affected by the epidemic, there will be delays in transit time.
      continue
    • Quantity:  282
    • Weight:  6.5KG
    • Rank:  comment rank 4.5 () Write a Review
      Rated 4.5/5 based on 32 customer reviews

    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video

    Download & Technical Support

    2020C/2019C Version CAT Caterpillar ET Diagnostic Adapter III Cat Communication Adapter 3 PLUS DELLd630 laptop (Real Caterpillar ET3 Adapter III)

    We will install the software before ship, so you can get it work directly after you receive it.And we can send you a 14 pin cable as a gift(diagnose part new cars).

    Note:
    1.After receiving the payment, we will send you the software by email.
    2. we will remote help customer installed and activation for a single PC by Teamviewer!

    Cat et Caterpillar Electronic Technician Software:
    Brand: Caterpillar
    Region:    WorldWide
    Support Multi-languages:English, Chinese, Danish, French, German, Italian, Japanese, Portuguese, Russian, Spanish
    Compatible OS: Windows 7 32 bit, Windows 7 64 bit, Windows 8/8.1 32 bit, Windows 8/8.1 64 bit, Windows 10 32 bit, Windows 10 64 bit

    2020C is an upgraded version of 2020B , B represents the second quarter, and C is the software updated in the third quarter.



    2020C Cat ET software as Cat Caterpillar ET 2019C 2020A 2020B Software update version, 20120C Caterpillar Electronic Technician softwarer With CAT ET 3 Cat caterpillar adapter 3 support caterpillar diagnostic till 2020.


    Support car list of CAT Caterpillar ET Diagnostic Tool :


    Product Description
    CAT Caterpillar ET Diagnostic Tool from Caterpillar provide the capability to access Electronic Control Modules (ECMs) from a personal computer. Many job-critical tasks can be performed with an electronic service tool. The user can display the status of a group of parameters (temperatures, pressures, etc.) simultaneously, view active and clear logged diagnostics, display the current configuration of an ECM and much more. The service tool works with a communication adapter to allow connection to an ECM. A graphical interface makes this software quick to learn and easy to use. A separate pull-down menu for each function enhances the "ease of use." The version and identification of the ECM is automatically retrieved and is displayed on a summary screen when the program is started. Diagnostic tests and calibrations can also be performed.

    CAT Caterpillar ET Diagnostic Tool enable service technicians to reprogram ECMs, reconfigure control system parameters, fine tune performance or diagnose the root cause of a failure the first time. These powerful tools allow service personnel to display and analyze vital performance and health information from any system quickly and accurately. The service tool communicates with any system using ATA (J1708), J1939 or the Caterpillar proprietary data link networks. The service tools provide information and features needed to help a technician diagnose problems and perform repairs and to customize and personalize the operation of a product. By allowing customers to design flexibility and configurability into a product, Caterpillar service tools stretch beyond the capabilities of preprogrammed ECMs or onboard display systems.

    Features
    Display, graph and log status parameters.
    Retrieve prognostic data including histograms, engine totals for fuel used and miles traveled.
    View active diagnostics and clear logged diagnostics. View events where irregularities have occurred and have been logged by the ECM.
     Perform calibrations to enhance performance of the ECM.
     Customize the ECM with application-specific settings.
     Over 100 custom Diagnostic, Information and Service features including:
      - 2D and 3D Histogram plotting capability (engine software
        support required).
      - Custom Status screen groups
      - Snapshots (Download and display snapshot data recorded by the
        ECM)
      - Configuration Aid that allows upload/download of same
        configuration to multiple control modules

    Customised Service Tool Options
    Customized service tool name
    Customized graphics for the splash screen and icons
    Customized installation
    Aftermarket differentiation, i.e., the tool for one customer does not work on the product of another customer.
    Licensing options for customer management
    Flash programming of the ECM(s)
    Training demonstration allows familiarity with the tool's primary functions without connecting to ECM(s)
    Perform customized diagnostic tests to identify harness problems, cylinder or component failures (Automatic Cylinder Cutout with cylinder to cylinder fueling comparison)

    Caterpillar electronic technician 2020C with WinFlash future is an updated version of the caterpillar dealer diagnostic software that can help technicians to diagnose existing and potential problems with their electronically controlled Caterpillar Engines and Machines.

    To get the vehicle information the Cat ET software must be connected to the Electronic Control Module (ECM). For this purpose, you need a suitable diagnostic link adapter (DLA), for instance, Genuine CAT Comm Adapter III

    The list of supported CAT machines and engines can be found below(if your vehicle is missing, please contact us we will double check):
    Engines:
    Electric Power
    Electric Power Generation
    Industrial
    Marine Power Systems
    Oil and Gas

    Machines:
    Articulated Trucks
    Asphalt Pavers
    Backhoe Loaders
    Cold Planers
    Compactors
    Dozers
    Drills
    Excavators
    Feller Bunchers
    Forest Machines
    Forwarders
    Harvesters
    Hydraulic Mining Shovels
    Knuckleboom Loaders
    Material Handlers
    Motor Graders
    Off-Highway Trucks
    Pipelayers
    Road Reclaimers
    Site Prep Tractors
    Skid Steer and Compact Track Loaders
    Skidders
    Telehandlers
    Track Loaders
    Underground - Hard Rock
    Underground - Longwall
    Underground - Room and Pillar
    Utility Vehicles
    Wheel Dozers
    Wheel Excavators
    Wheel Loaders
    Wheel Tractor-Scrapers

    Original Factory Caterpillar ET3 Adapter III Compare With OEM Caterpillar ET Diagnostic Adpater III
    1. Original Factory CAT ET can use once pluged, no need install the USB drive, the software can automatic realize it for ET3 Adapter, and the machine can automatic weld the high quality Circuit board, quality will be more reliable.
    2. The OEM Caterpillar ET Diagnostic Adapter III need use USB Drive to install, and need choose the COM Port, and  in the software ET also need choose ET2 then can be used.

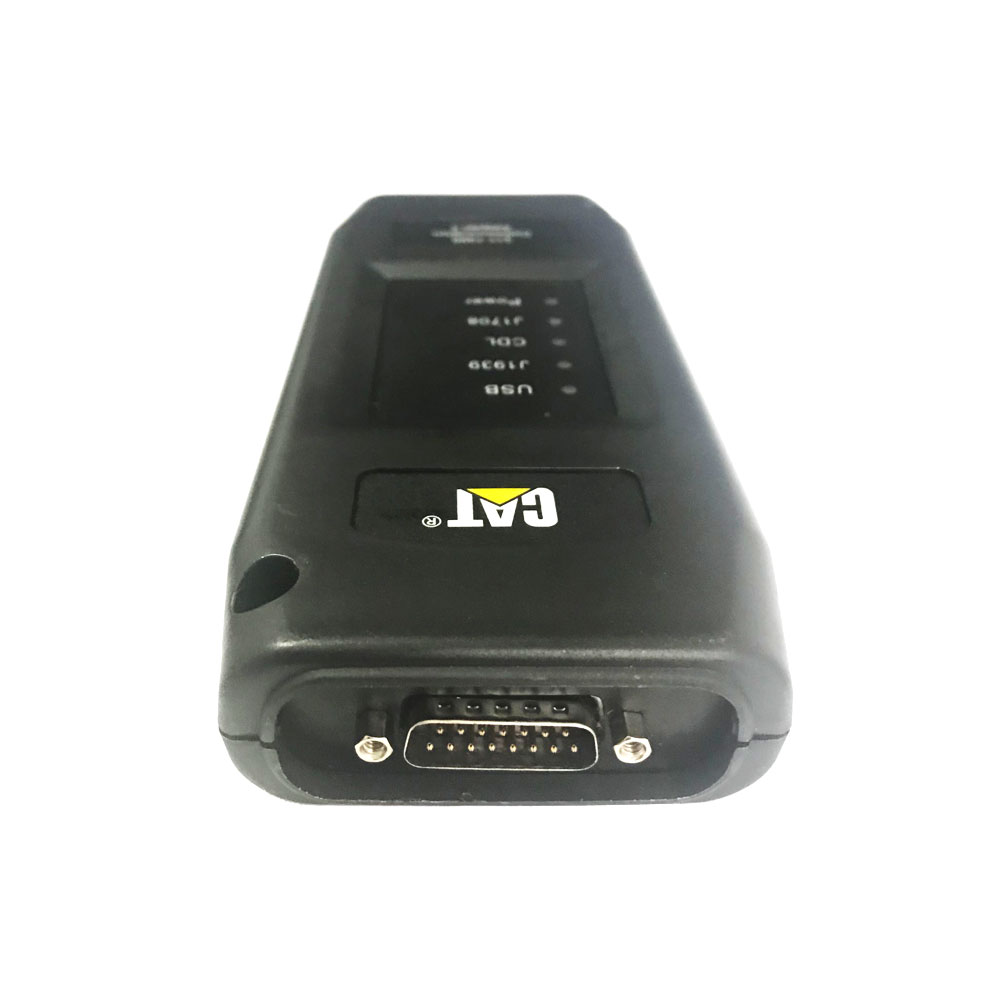

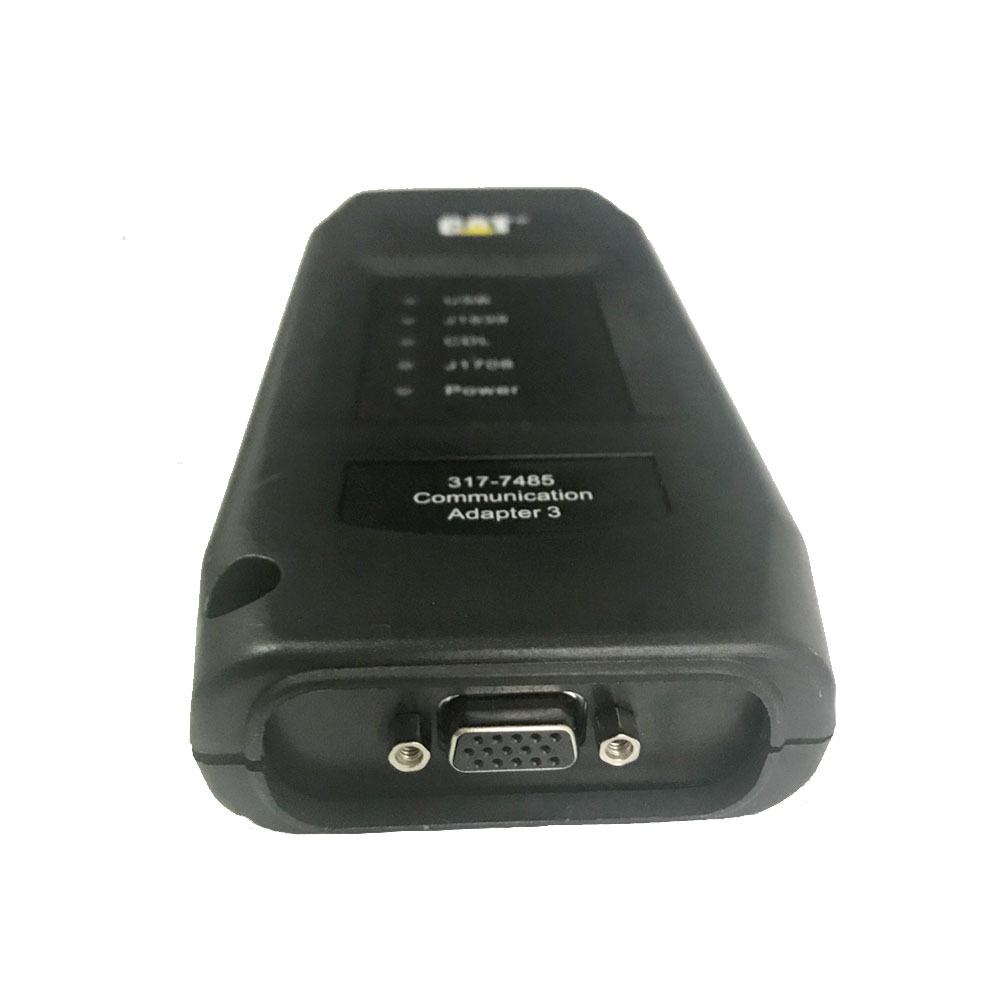

    CAT Caterpillar ET Diagnostic Adapter III Main Board


    Package:
    1.Used Dell D630 laptop
    2.Real CAT et3 Comm Adapter III(it's best quality cat et 3,not adapter 2,please check Communication port)

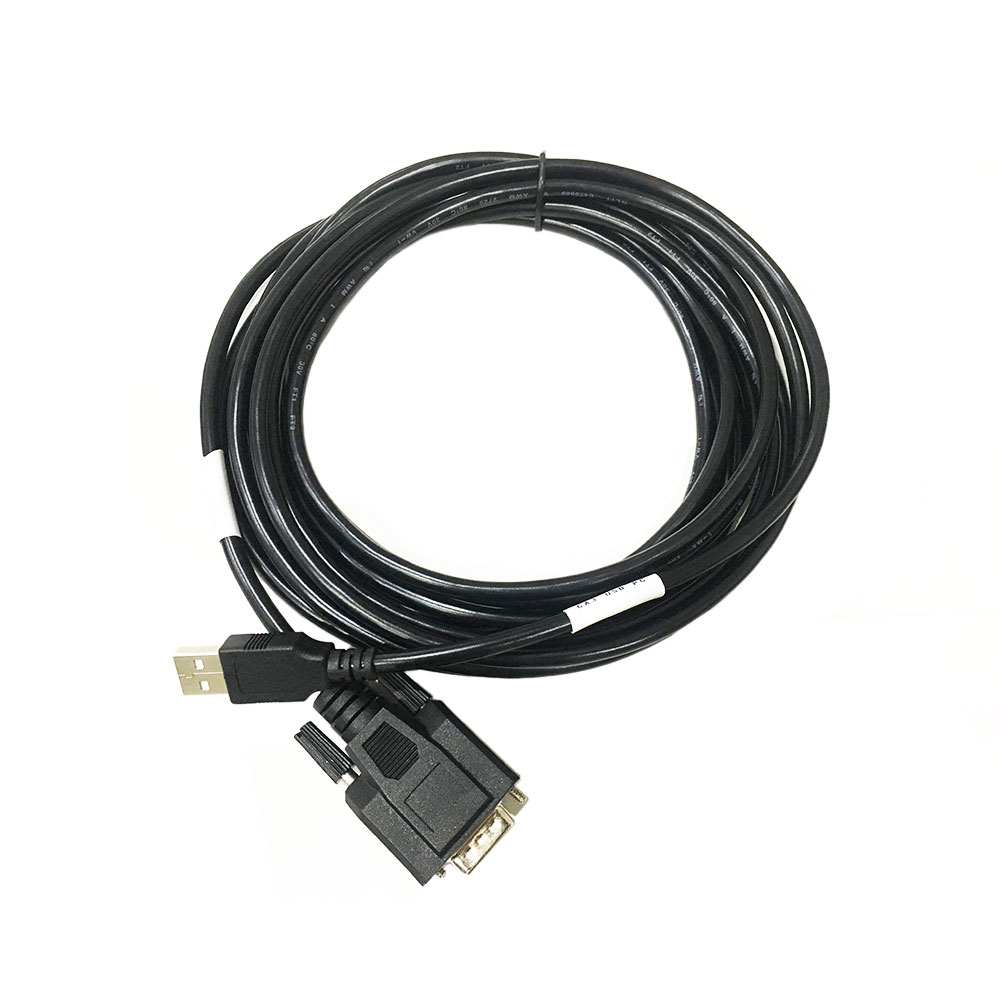

    3.USB Cable (From device to your computer)

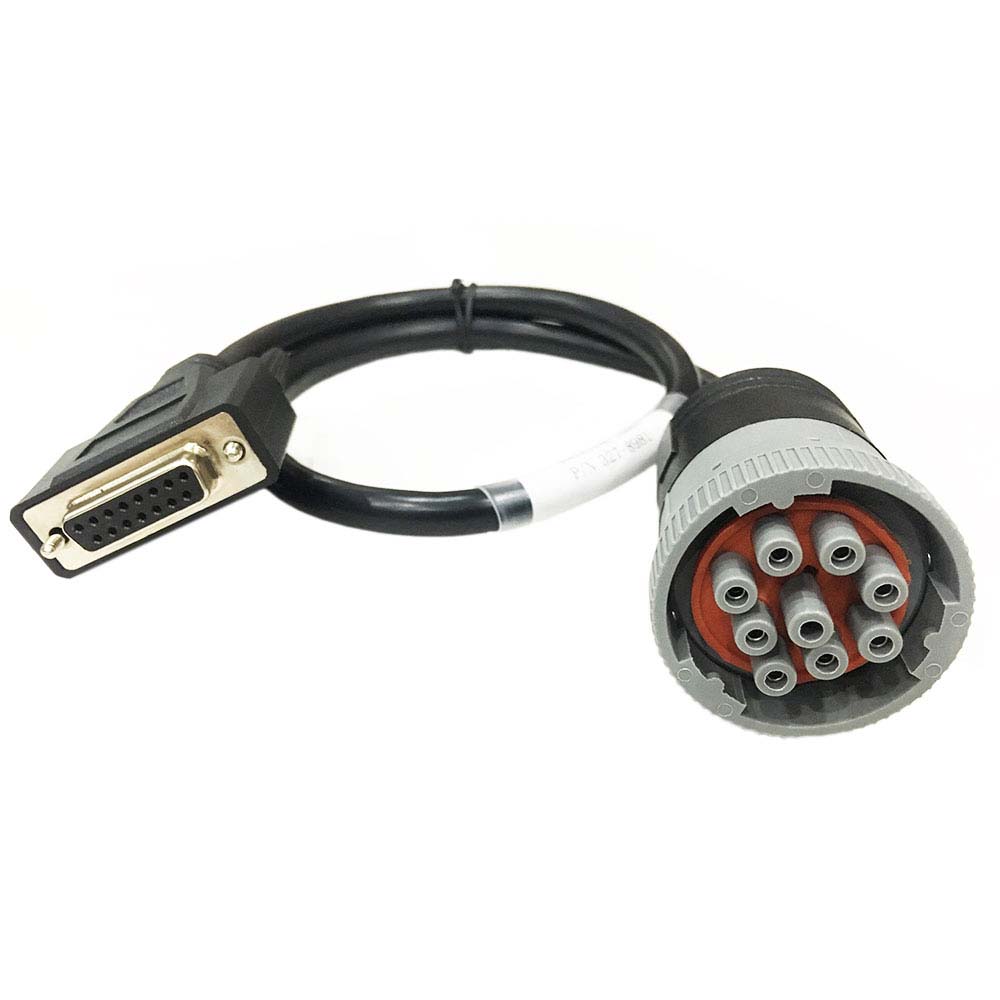

    4.J1939/J1708 9PIN Cable (from device to your truck)

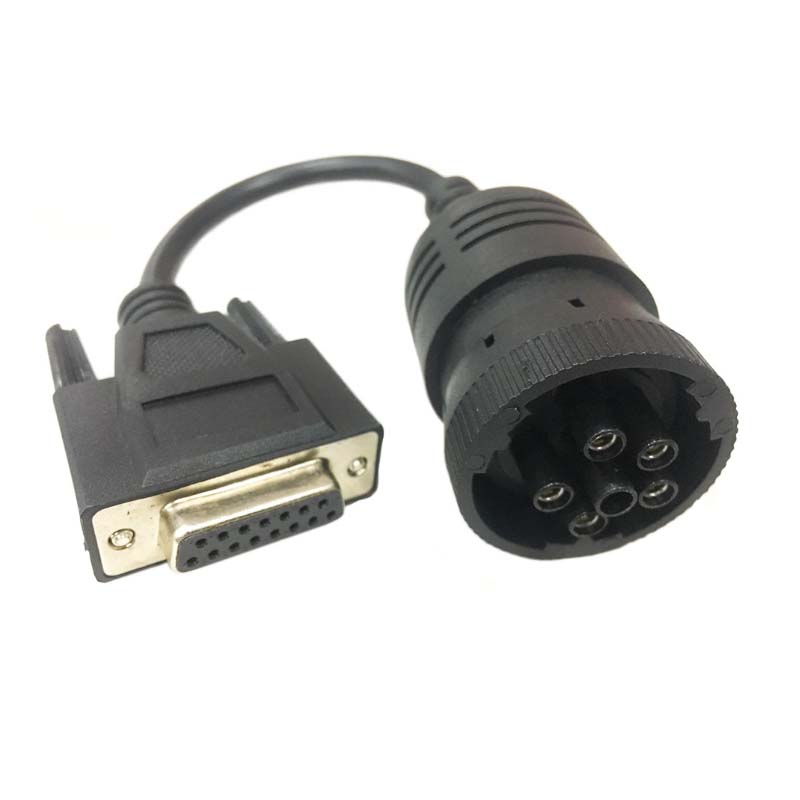

    5.6PIN Cable (for old truck)

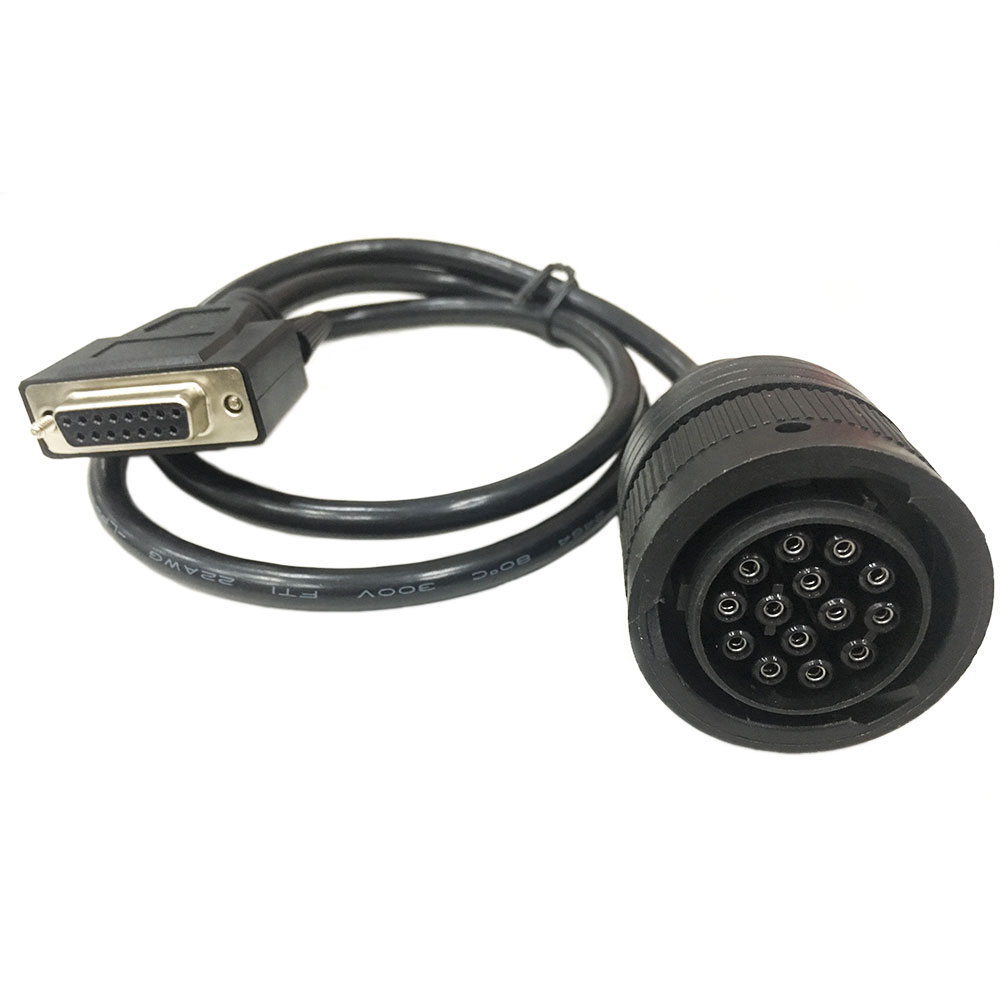

    6.14PIN Cable(for new truck)

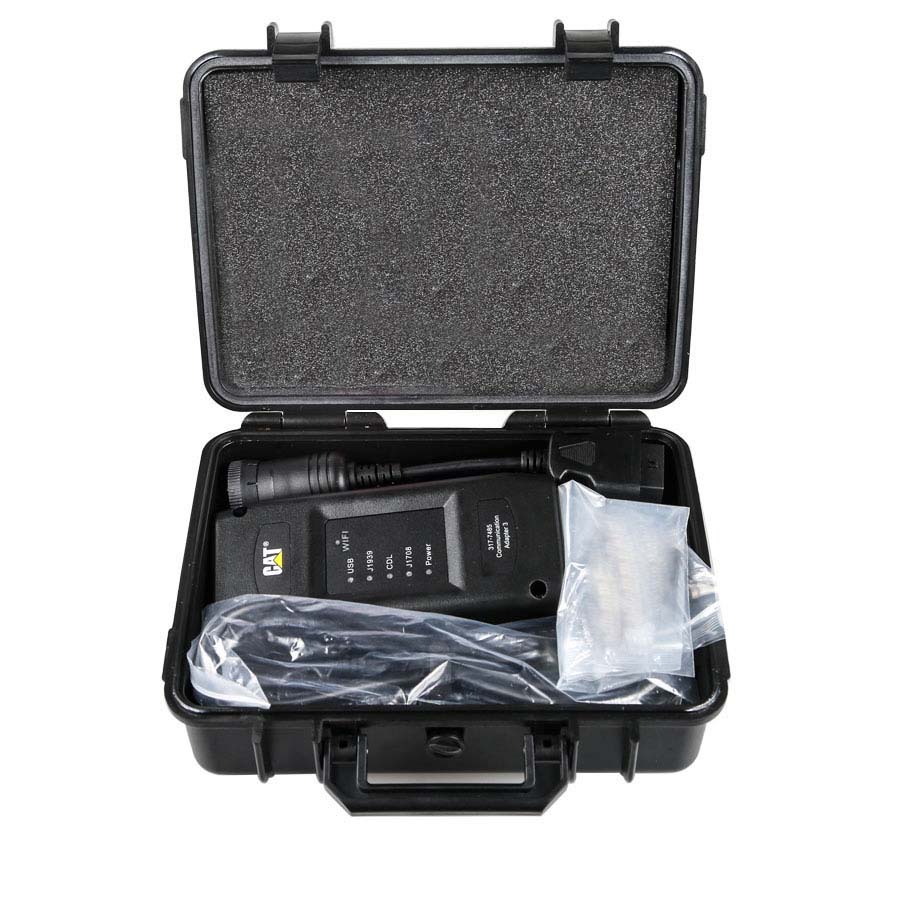

    7.Plastic box

    Caterpillar ET Software Function:
    This diagnostic app allows you to:
    View active and logged diagnostics.
    View events where irregularities occurred and were logged by the ECM.
    View the status of a group of parameters (temperatures, pressures, etc.) simultaneously.
    Record and log performance data.
    Graph a group of status parameters.
    View the current configuration of an ECM.
    Change ECM configurations.
    Perform diagnostic tests.
    Perform calibrations.
    Print reports and diagnostic results.

    Please keep in mind that some ecm settings for example, speed limit requires factory password. The factory password generator is not included in this application

    What's New - 2020B
    Trainer Update – 299D3
    The 299D3 Skid Steer Loader has been added to the Trainer application.

    What's New
    What's New - 2020A
    Product Status Report Updates
    The Product Status Report has been updated to include throttle configuration information.

    What's New - 2019C
    Indication of Selected Communications Adapter

    The service tool now displays the selected communications adapter when the service tool is disconnected. The adapter name is displayed in the status area at the bottom right of the service tool window.

    End of Support for Windows 7

    Microsoft is ending extended support for Windows 7 as of January 2020. The service tool will be ending support for Windows 7 as of the 2020A release.

    What's New - 2019B
    Automatic Product Status Report (PSR) Upload

    The service tool includes a new tool that automatically uploads Product Status Reports. The tool scans for newly generated Product Status Reports and uploads them when an internet connection is available. The default is that automatic report uploading is enabled. The Preferences dialog has an option to disable the tool.

    What's New - 2019A
    ECM Naming Changes
    Certain ECMs connect to the service tool over two data links at the same time. The service tool shows a message popup when the ECM is only detected on one link. The service tool has been changed to add the text **INCOMPLETE** in the ECM name when the connection is incomplete. Service tool features that display a connection icon also use a new icon for an incomplete connection.

    What's New - 2018C
    No significant new features or feature enhancements

    What's New - 2018B
    CEOS Fleet Configuration File TOP
    A CEOS (Customer Electronic Option Selection) Fleet Configuration File can be created/modified for an engine using the Service Tool. This is available in connected and disconnected mode.
    Error When Launching Service Tool
    There is a Microsoft issue with upgrading libraries during an installation involving certain versions of the C++ redistributable. After a successful service tool installation, when trying to run the service tool for the first time, one of the following errors may occasionally appear: “The entry point could not be located in api-ms-win-crt-runtime” or “The program can't start because mfc140u.dll is missing from your computer.” If either of these messages is displayed, please let us know and we will send you to step by step troubleshooting guide. This procedure requires administrator rights.
    Service Tool License Corruption Issues with Windows 10 Updates
    Windows 10 updates 1709 and 1803 will corrupt service tool licenses. Future Window 10 updates may do the same
    If either of license error messages is displayed, please let us know and we will send you to step by step troubleshooting guide.

    What's New - 2018A
    Trainer Update - 988K XE Wheel Loader
    The 988K XE Wheel Loader has been added to the Trainer application.

    What's New - 2017C
    Preferences Option to Save a Product Status Report to PDF
    The Preferences dialog for the Product Status Report has changed. The dialog contains a new checkbox to automatically save a Product Status Report as a PDF file when the report is created. The service tool will continue to automatically save Product Status Reports as an XML file.

    What's New - 2017B
    Product Status Report Updates
    The Product Status Report has been updated to include certain history features supported by the ECM, such as the after-treatment Regeneration History and the Service Test History.
    Winflash Screen Update
    The screen for the Winflash feature has been updated. A new Expand All button opens all sections of the screen to show all details for ECMs detected by WinFlash. A new Collapse All button hides all sections of the screen, except for header rows showing detected ECM names.

    PC, Communication Hardware, and Cable Requirements
    To run the service tool, the next PC, communication hardware, and cable requirements must be met. NOTE: The minimum PC Configurations should not be used as a standard when buying new personal computers for service tool purposes. If the existing equipment meets these minimum requirements, it will run the service tool.

    PC Requirements
    Recommended Configurations
    PC containing a 2.0 GHz dual-core processor
    3GB RAM
    3GB of the available hard disk drive
    DVD-ROM drive (optionally)
    15.4-inch XGA Screen (1280x1024 compatible)
    Microsoft Windows™ 7 Professional or Windows 8 Professional, Windows 10 Professional (Not tested with Home Edition) (Note: Windows 8 RT is not supported)
    RS232 port with 16550AF UART or compatible (for use with Comm Adapter II)
    USB 1.1 or 2.0 port (for use with Comm Adapter 3)
    Ethernet RJ45 connector
    Built-in pointing device or mouse
    For security purposes, Microsoft Internet Explorer version 11 or newer or Microsoft Edge is recommended.
    Note: The most recent version of Microsoft Internet Explorer may not be validated to work with the service tool.
    Wi-Fi (for the Wireless Comm Adapter 3)

    Minimum Configurations
    PC containing a Pentium 2 GHz processor or greater
    1GB RAM
    500MB of an available hard disk drive
    CD-ROM drive
    Super VGA monitor or display (1024x768)
    Microsoft Windows™ 7 Professional or Windows 8 Professional, Windows 10 Professional (Not tested with Home Edition) (Note: Windows 8 RT is not supported)
    RS232 port with 16550AF UART or compatible (for use with Comm Adapter II)
    USB 1.1 or 2.0 port (for use with Comm Adapter 3)
    Ethernet RJ45 connector
    Built-in pointing device or mouse
    For security purposes, Microsoft Internet Explorer version 9 or newer is recommended. Note: The most recent version of Microsoft Internet Explorer may not be validated to work with the service tool.

    Communication Hardware

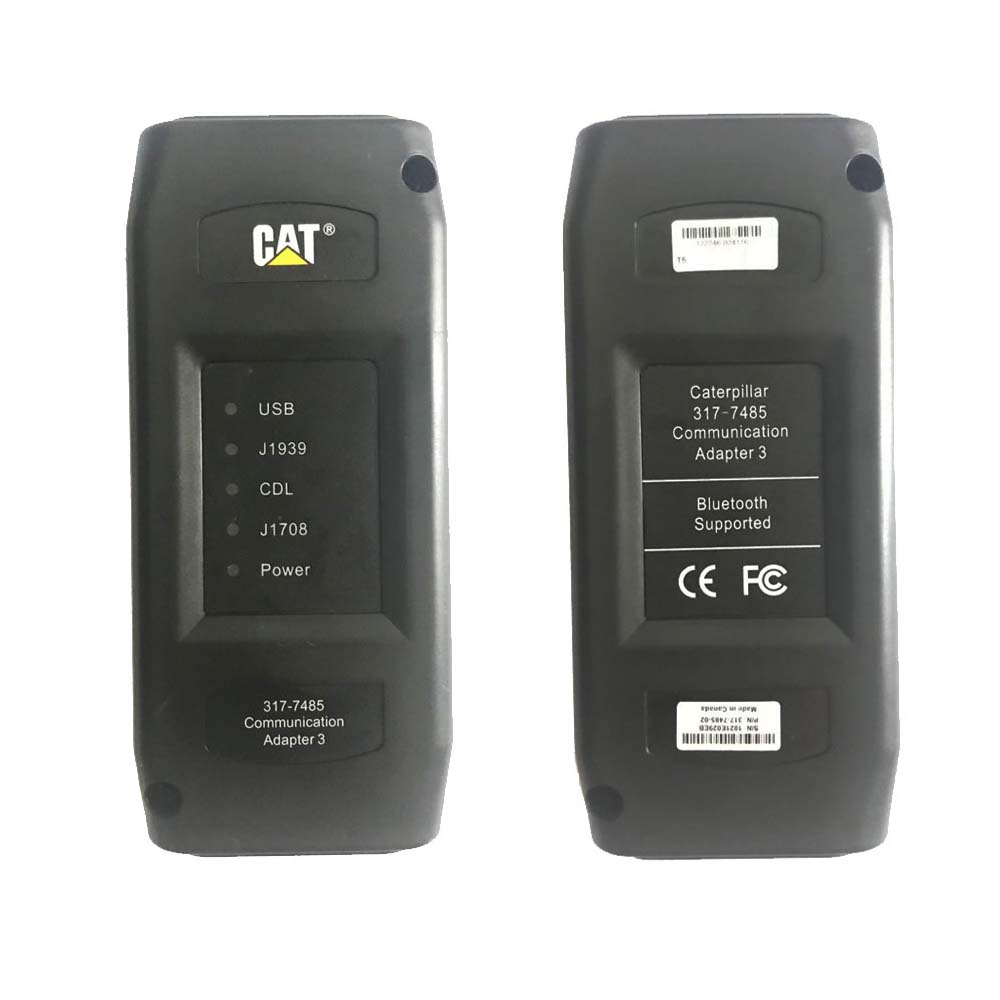

    Caterpillar Communication Adapter III
    Configuring Cat Electronic Technician to use the Communication Adapter 3
    For Cat Electronic Technician to work with the Communication Adapter 3, the settings must be changed to select the Communication Adapter 3 as the Communication Interface Device:
    Step 1 Start Cat Electronic Technician.
    Step 2 Click the Stop Connect button when it appears.
    Step 3 Select the Utilities menu.
    Step 4 Choose “Preferences > Modify...”.
    Step 5 Select the Communications tab.
    Step 6 Select Cat Comm Adapter 3 (RP1210) and click OK.
    NOTE: Because a growing number of products require multiple data link service, the “Enable Dual Datalink Service” checkbox has been pre-selected.
    Servicing ECMs on more than one data link requires this check box to be enabled.
    Failure to do this will result in undetected ECMs and reduced functionality.
