Full IO-Prog PSA BSI + Opel GM ECU BCM EPS TCM Programmer

Product Description

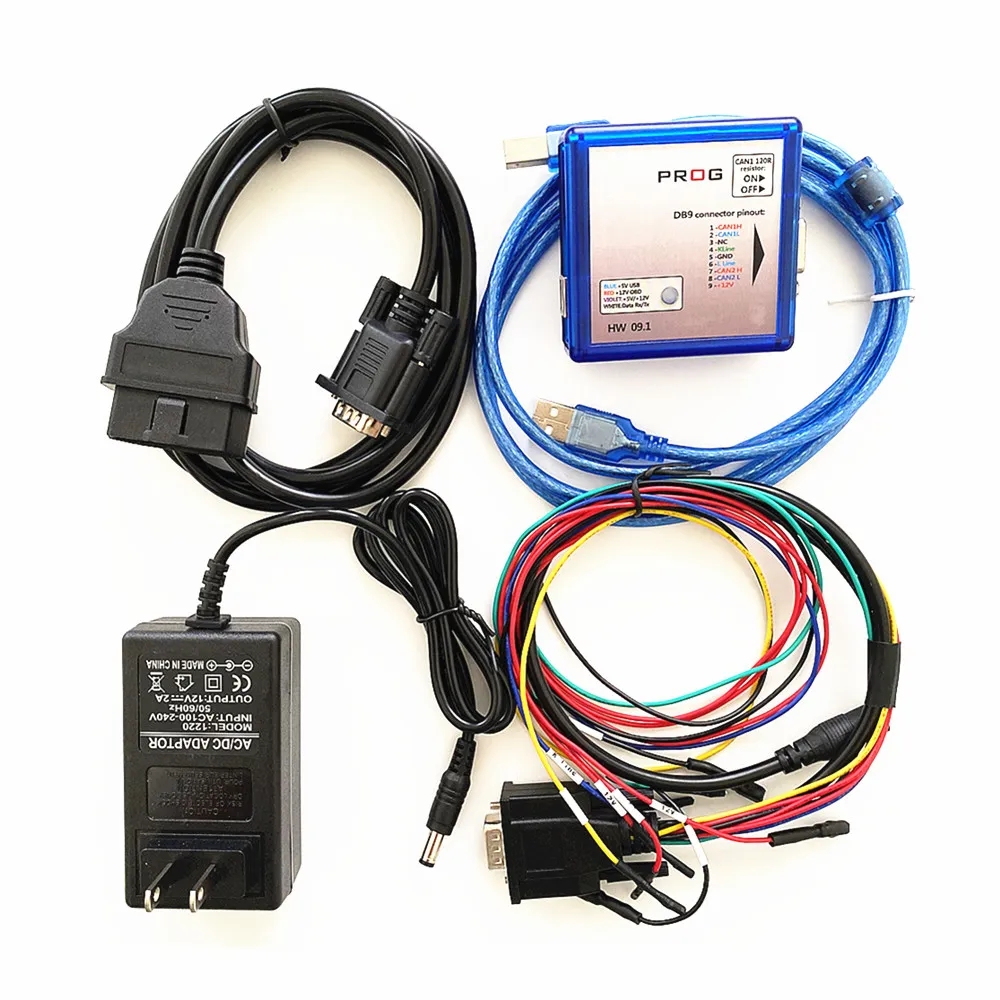

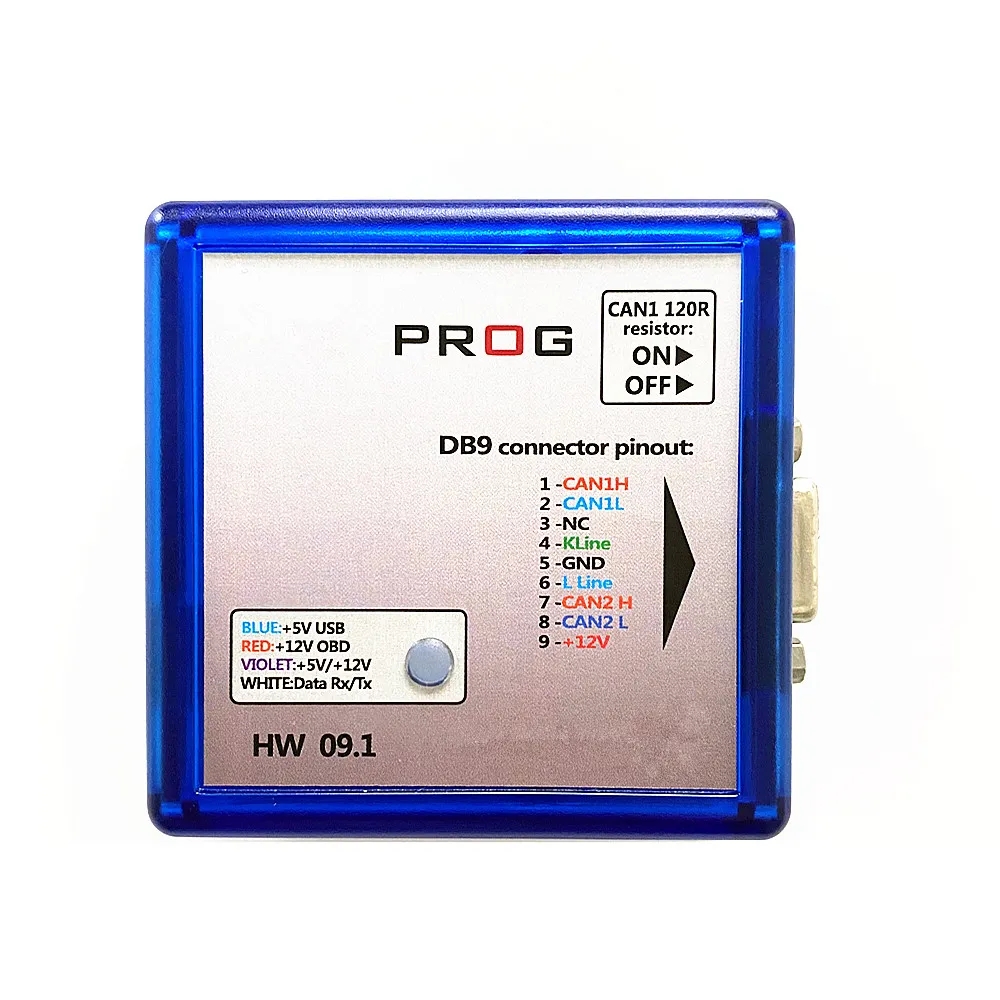

ECUHELP IO-Prog PSA BSI Opel ECU BCM TCM EPS K-line and CAN compatibility via BD9 connection and OBD
I/O Terminal offers a comprehensive software and hardware solution specifically designed to read and program Flash and EEPROM memory of ECUs, automatic transmissions, and BSI for various vehicles such as VAG, Mitsubishi, Mazda, Ford, Nissan, Subaru, Suzuki, Opel, Volvo, Alfa Romeo, Fiat, Jaguar, Land Rover, Lancia, Maserati, Hyundai, Kia, Daewoo, and more utilizing the OBD-II data link connector.

Currently, PSA, partial Ford and Opel ECU licenses are available in the basic edition.

Advantages of IO-Prog Terminal:
With its integrated K-line and CAN interfaces, I/O Terminal ensures exceptional software compatibility, eliminating the need for expensive J2534 devices.  It is capable of reading and flashing of FLASH and EEPROM memory images through the diagnostic connector link.  Moreover, it can do auto checksum and correction, ensuring a secure and reliable reading and flashing process.

IO-Prog License Information:
The software is distributed in modules, with each module functioning independently while sharing a common adapter.  Users are entitled to download and utilize only the software modules for which they possess licenses.  These licenses are stored on specialized cards, which must be inserted into the dedicated adapter slot for software usage.  Some licenses can be recorded on a single card, while others need separate recording.



Newly added license as below:
MULTITOOL PSA BSI
Siemens D76F0018+95160 KLINE (BSI-E0X-00/BSI-F0X-00); EEPROM 95160 R/W, show PIN;
Siemens 1L00M+95128/95256 CAN (BSI-S0X-00); EEPROM 95128/95256 R/W, show PIN, 9S12DP512 FLASHR/W;
Continental SC667050+95256 CAN (BSI-Q0X-00); EEPROM 95256 R/W, show PIN, SC667050 FLASH R/W;
Valeo 4L00M+95128/25128 CAN (BSI2004-P0X-00); EEPROM 95128/25128 R/W, show PIN, 9S12DP512 FLASH R/W;
Valeo 2M48H+24C128 CAN (BSIEV-X0X-00); EEPROM 24C128 R/W, show PIN, 9S12XEP768 FLASH R/W;
Valeo SC667152+95256 CAN (BSI-N0X-00); EEPROM 95256 R/W, show PIN, SC667152 FLASH R/W;
Johnson Controls easy CAN4+29LV400+95128 CAN (BSI2004-H0X); EEPROM 95128 R/W, show PIN,29LV400BB FLASH R/W;
Johnson Controls easy CAN4F1M-32+95128 CAN (BSI04EV-K0X); EEPROM 95128 R/W, show PIN,
Johnson Controls easy CAN4F1M-32 FLASH R/W; SPC560B60+95128 Support list as below:CAN (BSI04EV2-KEX);
EEPROM 95128 R/W, show PIN, SPC560B60 FLASH R/W

MULTITOOL FORD/BCM
FORD LEAR BCM MC9S12XEP768. MC9S12XEP768

ln addition, fixed the bug that opel/GM Delphi BCM could not read.
OPEL BCM DELPHI 70F3238 + 93C86
OPEL BCM DELPHI 70F3379 + 93C86
OPEL BCM DELPHI 70F3533/70F3634:

also this set now can calculate seed key for Opel BCM that the seed is 5-byte.
MULTITOOL OPEL/GM ECU
Reading/writing of OPEL/GM ECUs by CAN (OBD or wired on the bench) . Also software has bootpin recovery mode.

Supported OPEL/GM ECU types:
* ACDELCO E83 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;
* ACDELCO E78 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;
* ACDELCO E87 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;
* ACDELCO E39 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;
* ACDELCO E39A MPC5566 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
* ACDELCO E98 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
* DELPHI DCM3.7AP MPC5566 FLASH R/W.CAN (OBD);
* DELPHI DCM3.7AP R5F72544 FLASH+DATAFLASH R/W.CAN (OBD);
* DELPHI DCM3.7AP R5F72513 FLASH+DATAFLASH R/W.CAN (OBD)
* ACDELCO E37 M58BW016DB FLASH R/W.CAN (OBD);
* ACDELCO E38 AM29BDD160GB FLASH R/W.CAN (OBD);
* ACDELCO E92 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
* ACDELCO E80 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
* ACDELCO E82 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
* ACDELCO E67 S29CD016 FLASH R/W.CAN (OBD);
* ACDELCO (BOSCH)E84MPC5676 FLASH R/W.CAN (OBD);
* EEPROM DUMP VIEWER, EDITOR.

New liecense added full Opel license version as below:
MULTITOOL OPEL BCM

Supported BCM/BSI types
OPEL DELPHI BCM 70F3238+93C86 CAN . EEPROM 93C86 R/W, show PIN, reset PIN. 70F3238 FLASH R/W;
OPEL DELPHI BCM 70F3379+93C86 CAN . EEPROM 93C86 R/W, show PIN, reset PIN. 70F3379 FLASH R/W;
OPEL DELPHI BCM 70F3633 CAN . 70F3633 DATA & PROGRAM FLASH R/W, show PIN, reset PIN;
OPEL/GM BOSCH BCM 70F3469+24C16.70F3469 FLASH R/W. EEPROM 24C16 R/W show PIN, reset, change odometer, change VIN;
OPEL/GM BOSCH BCM 70F3385+24C16.70F3385 FLASH R/W. EEPROM 24C16 R/W show PIN ,reset, change odometer, change VIN;
OPEL/GM BOSCH BCM 70F3558+24C32.70F3558 FLASH R/W. EEPROM 24C32 R/W show PIN, reset,change odometer, change VIN;
OPEL/GM CONTINENTAL BCM 70F3469+95160(25160). 70F3469 FLASH R/W. EEPROM 95160(25160) R/W show PIN, reset, change odometer, change VIN;
OPEL/GM CONTINENTAL BCM 70F3558+95320(25320) .70F3558 FLASH R/W. EEPROM 95320(25320) R/W show PIN, reset, change odometer, change VIN.

Good news for sharing: This kit can calculate the seed key for Opel BCM.
MULTITOOL OPEL/GM TCM
Reading/writing of OPEL/GM TCM 6T30, 6T35, 6T40, 6T45, 6T50, 6T70, 6T75, 6T80, 6L45, 6L50, 6L80, 6L90 via CAN (OBD or wired on the bench).

Supported OPEL/GM TCM types:
TCM 6T30, 6T35, 6T40, 6T45, 6T50 AM29BDD160GB FULL FLASH R/W. CAN (OBD); TCM 6T70,6T75,6T80,6L45,6L50,6L80,6L90

FULL M58BW016DB FLASH R/W. CAN (OBD).

MULTITOOL OPEL/GM EPS
Reading/writing of OPEL/GM EPS modules via CAN (OBD or wired on the bench).

EPS BOSCH 70F3187+95080 70F3187 FLASH R/W 95080 EEPROM R/W. CAN (OBD).
