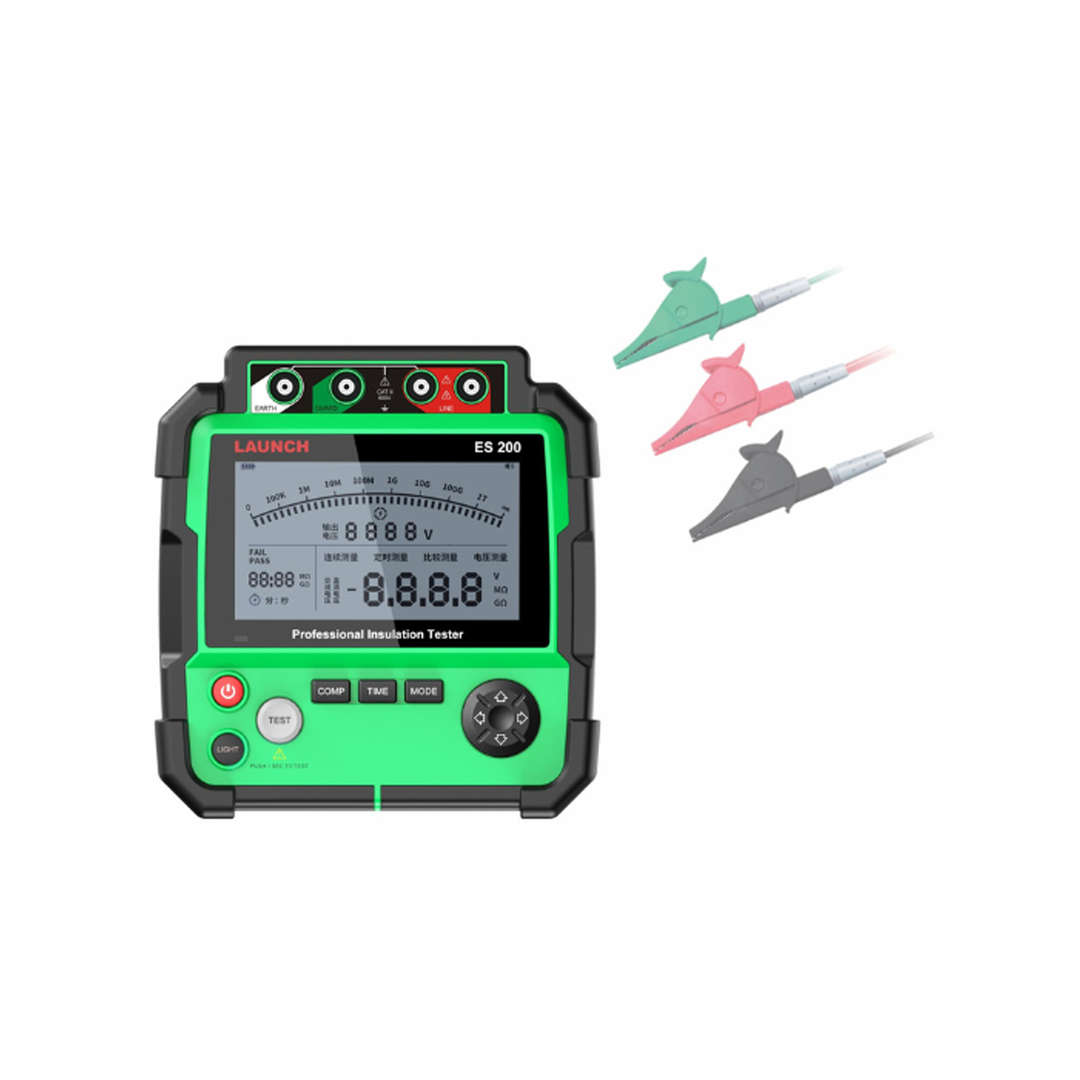

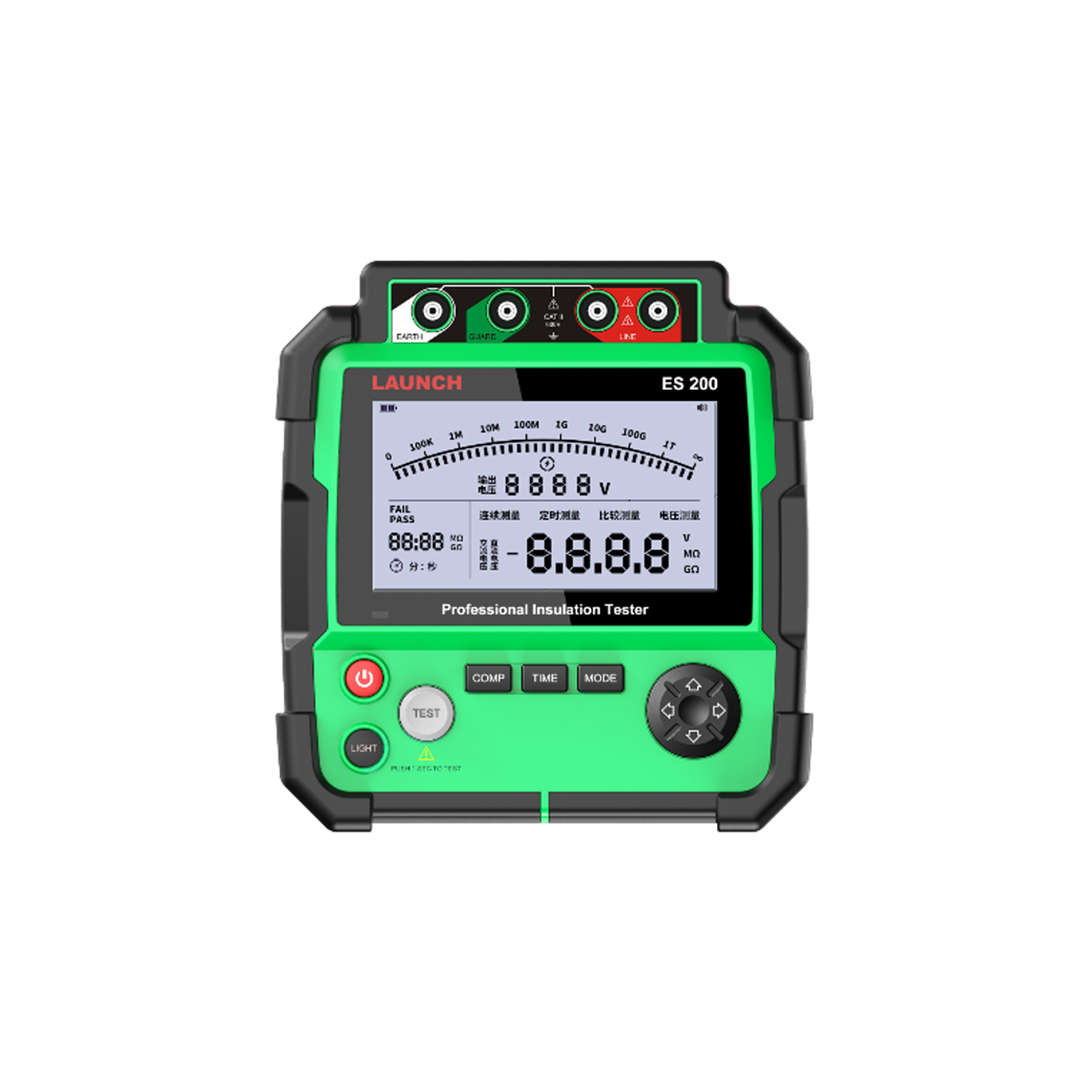

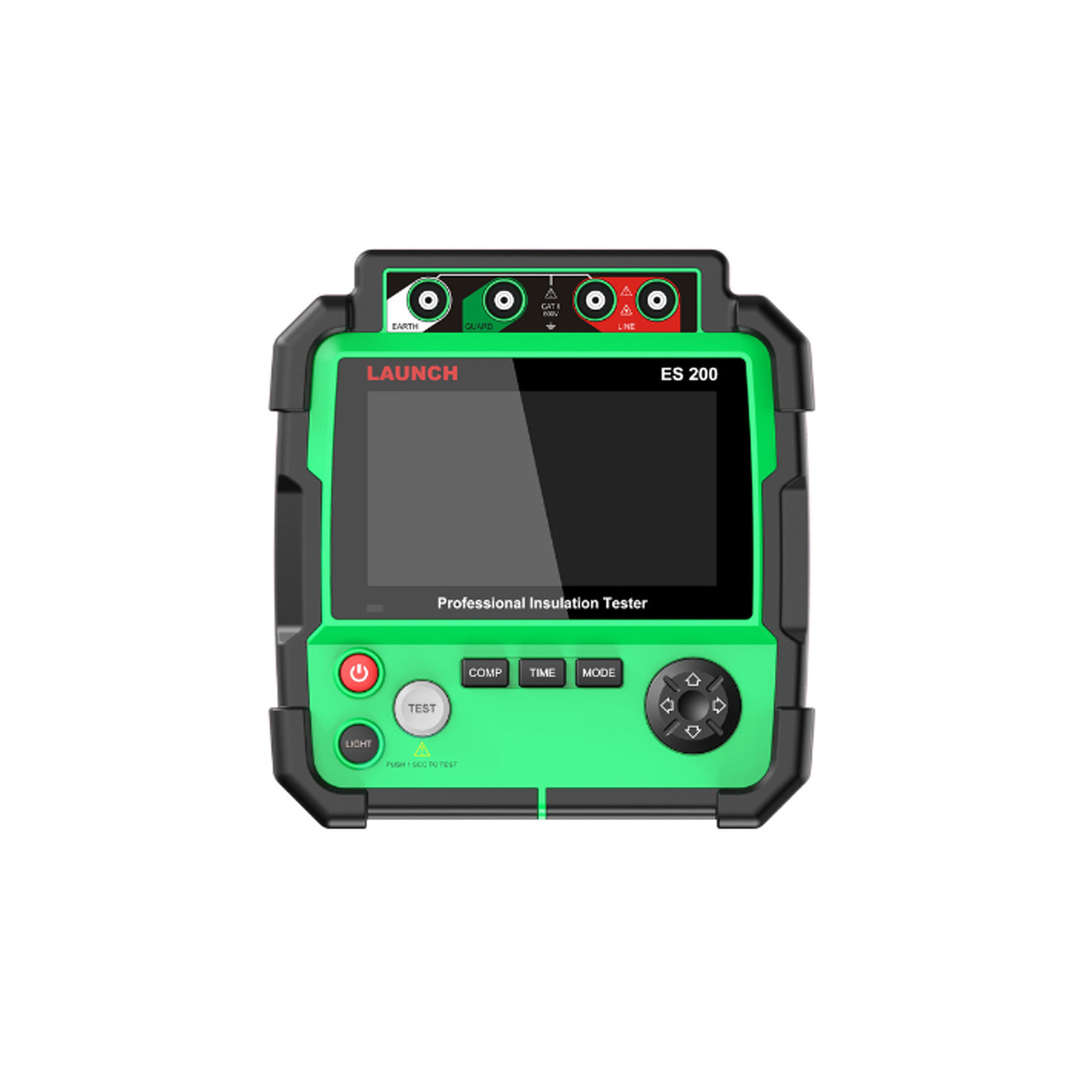

LAUNCH ES200 EV Insulation Resistance Tester

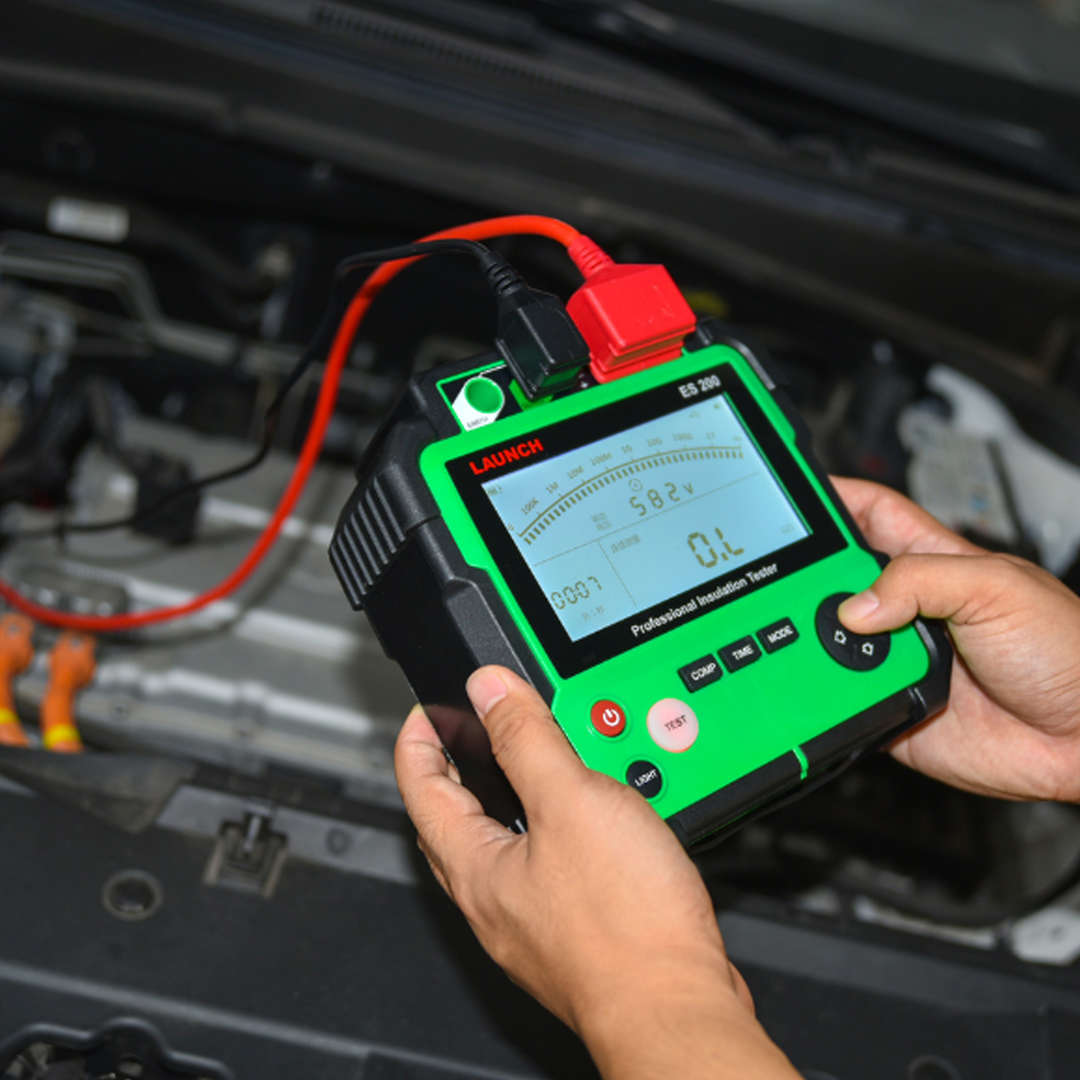

Insulation resistance meters are commonly known as megohm meters, or shake meters, high resistance meters, insulation resistance testers, etc. It is reflected by insulation resistance. The product insulation resistance which is measured refers to the insulation resistance between the live part and the exposed non-live metal part(case). Using an insulation tester for measurement can effectively protect the safety of maintenance personnel.


Product Features:
1.ES200 s capable of measuring insulation resistance, and also innovatively increases the voltage measurement function.
2.Equipped with standard resistance, in the comparison measurement mode, the measured resistance value is compared with the standard resistance to ensure the measurement accuracy.
3.Three measurement modes: timing measurement, comparison measurement, continuous measurement and omnidirectional measurement.

Product Specification:
ES200 Specification
Battery: 3150mAh
Display: 5''
Working Temperature: 0~50℃
Dimensions: 180*174*65.5(mm)
Weight: 3kg

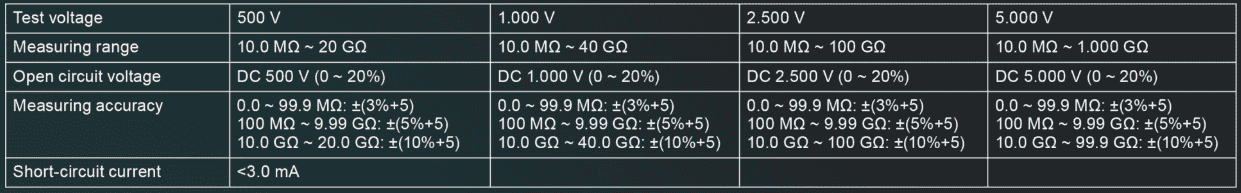

Insulation Resistance Test Performance Parameters


Package includes:
1pc x LAUNCH ES200 EV Insulation Resistance Tester
