LAUNCH VALUE 500 PLUS High-Performance Automotive AC Refrigerant Reclamation Machine

The VALUE-500PLUS is a state-of-the-art, fully automatic, and multi-functional refrigerant service station designed for comprehensive automotive air conditioning maintenance.It integrates a complete suite of functions—including recovery, recycling, recharging, and advanced system flushing—into a single, efficient, and user-friendly unit.

What can LAUNCH Value-500 Plus do for you ?
1) Primary Functions
A、 Automatic flushing;
B、 Automatic recovering/recycling;
C、 Automatic/manual used oil drain;
D、 Vacuum timing;
E、 Automatic/manual new oil injection;
F、 Quantitative recharging;
G、 Quantitative recharging via a secondary tank (Optional);
H、 Auto mode;
I、 Database;
J、 Print.

2) Subsidiary Functions
A、 System function;
B、 Discharge non-condensable gases;
C、 Machine maintenance procedures;
D、 Equipment info inquiry.
Product Features
A、 Fully automatic, easy to operate.
B、 Internal pipeline A/C system flushing effectively clears internal grease and fouling to restore A/C system performance.
C、 Equipped with forward flushing, reverse flushing, and pulse flushing functions, which greatly improve the cleaning effect.
D、 Uses a large-size glass tube with LED backlighting, allowing effective observation of the entire cleaning process.
E、 Vertically installed HP & LP gauges let the operator observe pressure parameters timely, even from within the vehicle.
F、 Unique pipeline design achieves a high recovery rate for both gas and liquid.
G、 Easy to operate with a concise operating interface.
H、 Designed with a large-size LCD screen.
I、 Database functionality.
J、 Program and database can be updated.
K、 Equipped with a printer.
L、 Designed with an auxiliary load cell for recharging via an external refrigerant tank (Optional).

Technical Specifications

Item	S
Power Supply	AC 220V / 50/60 Hz
Power Consumption	1000W
Operating Ambient Temperature	10°C to 50°C
Integrated Scale Accuracy	±10g
Recovery Speed	Gaseous: 400g/min / Liquid: 700g/min
Vacuum Pump Ultimate Pressure	2 Pa
Internal Storage Tank Capacity	10 kg
Recharge/Injection Speed	1200g/min

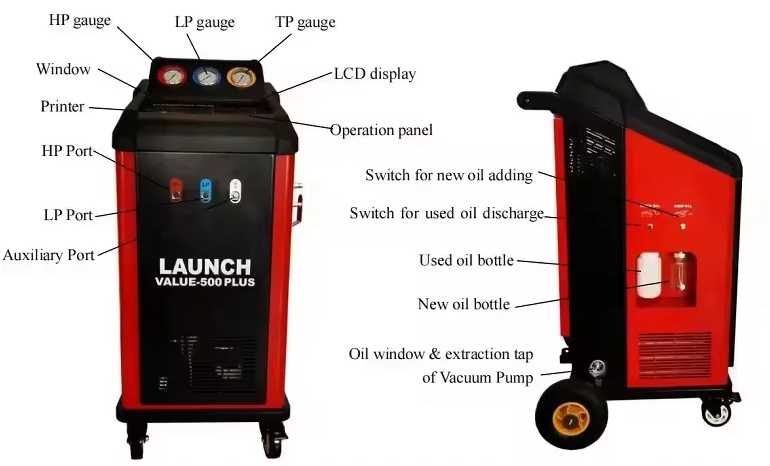

Parts descriptions
