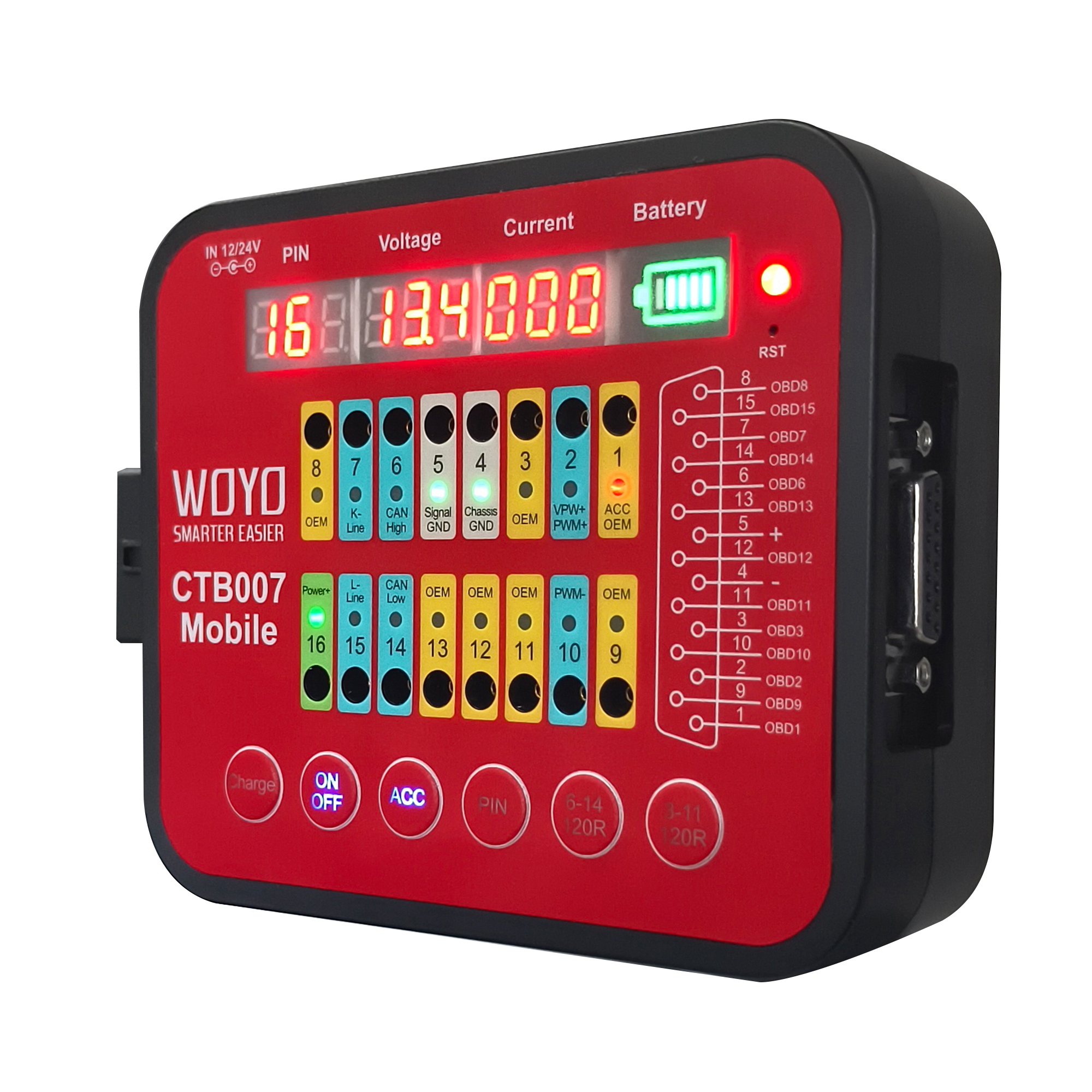

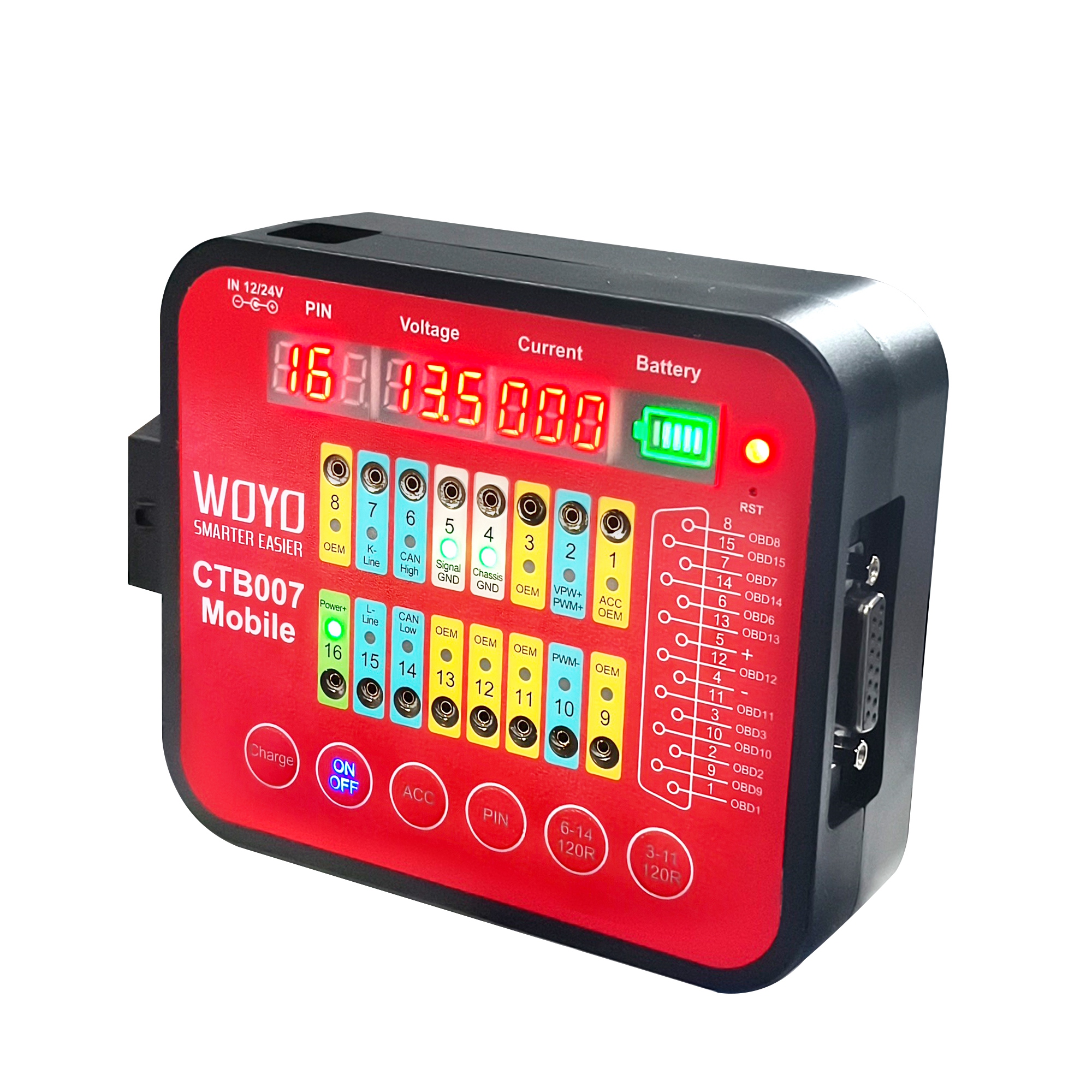

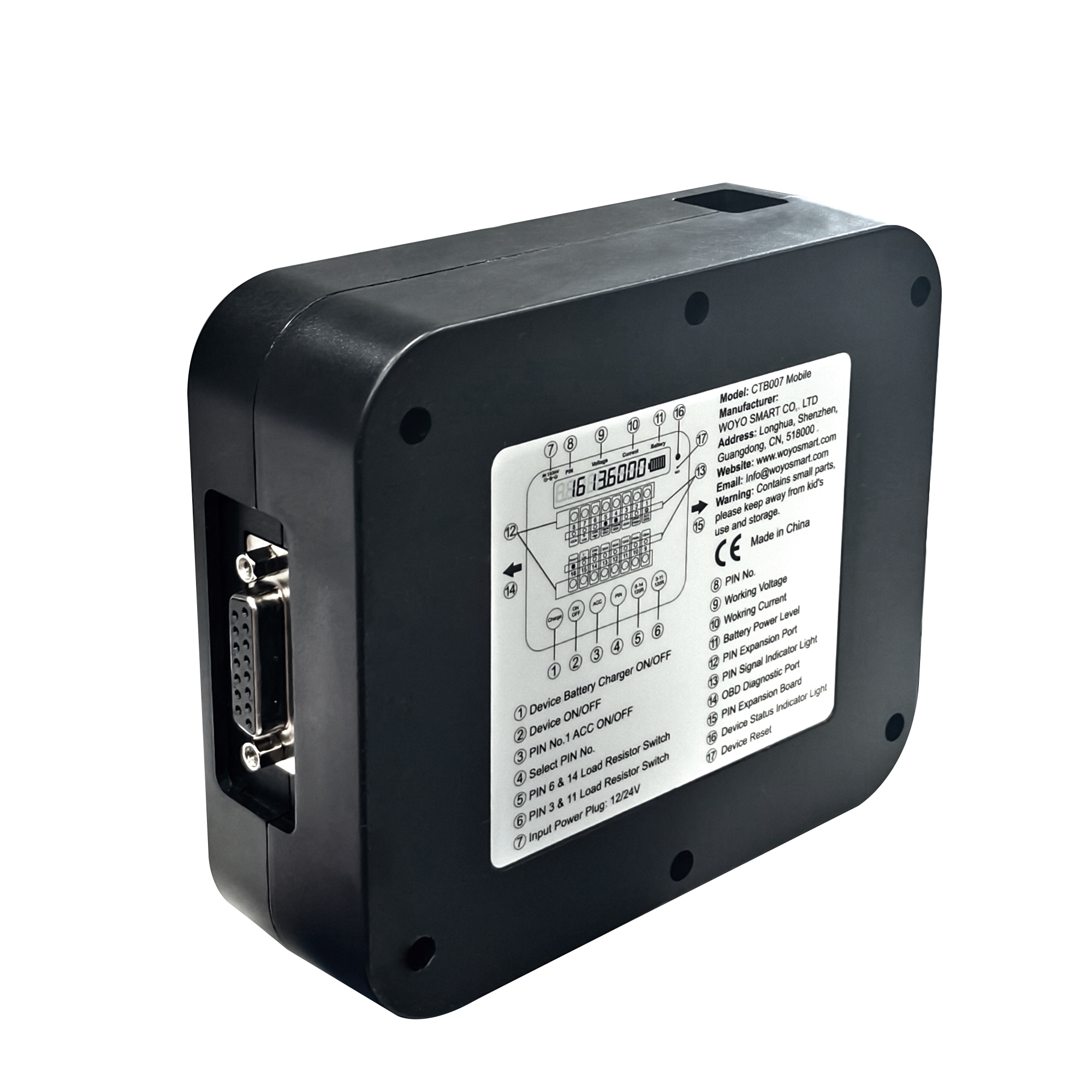

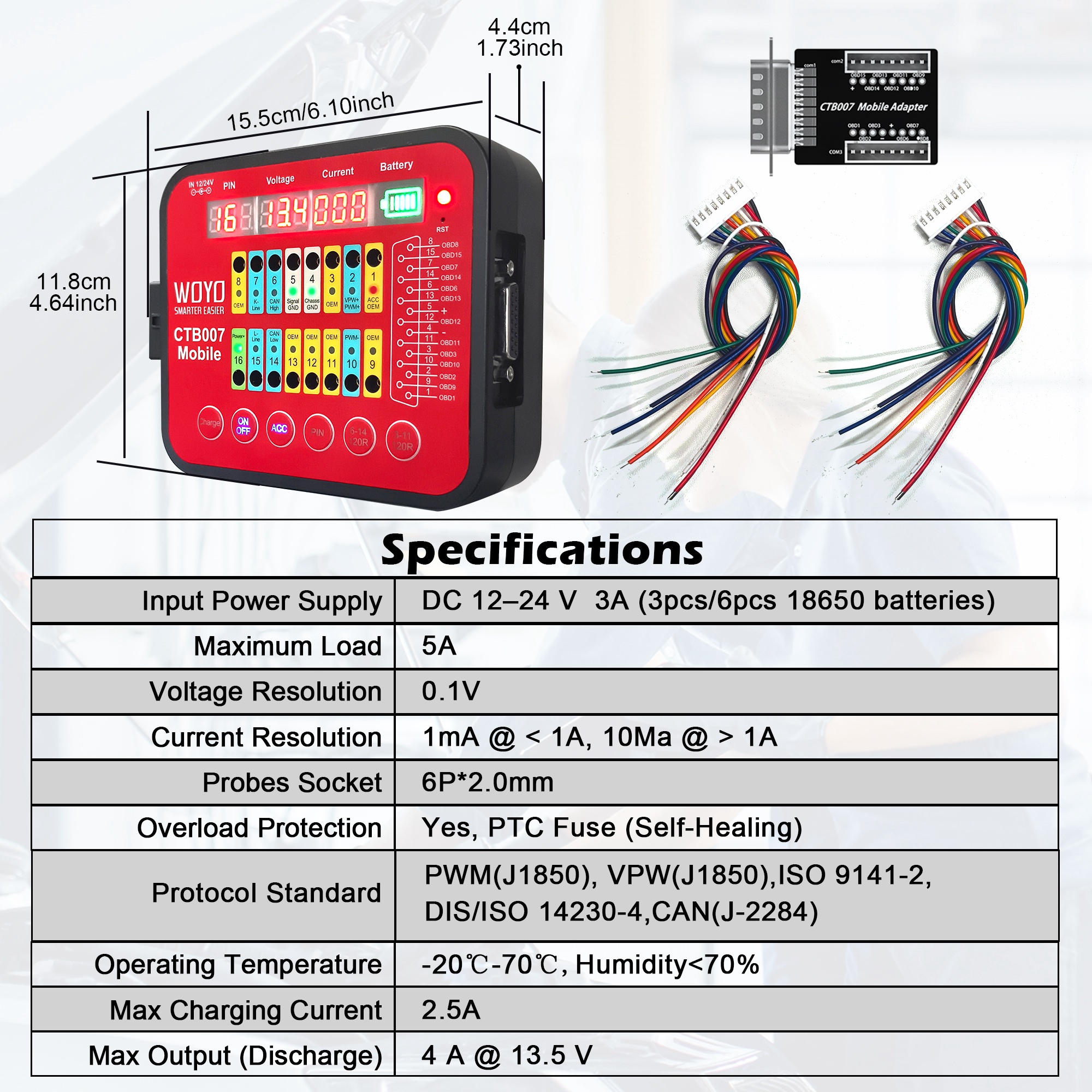

WOYO CTB007 Mobile OBD2 Diagnostic Test Box ECU Bench Tester

The WOYO CTB007 Mobile OBD2 Diagnostic Test Box is a portable, all-in-one solution for bench testing ECUs, troubleshooting OBD2 port faults, monitoring real-time voltage and preserving vehicle data.

Compatible with 12V and 24V vehicle systems (cars, trucks, buses), this compact tool eliminates repetitive disassembly of vehicle components, improves repair efficiency and ensures safe operation of diagnostic equipment.



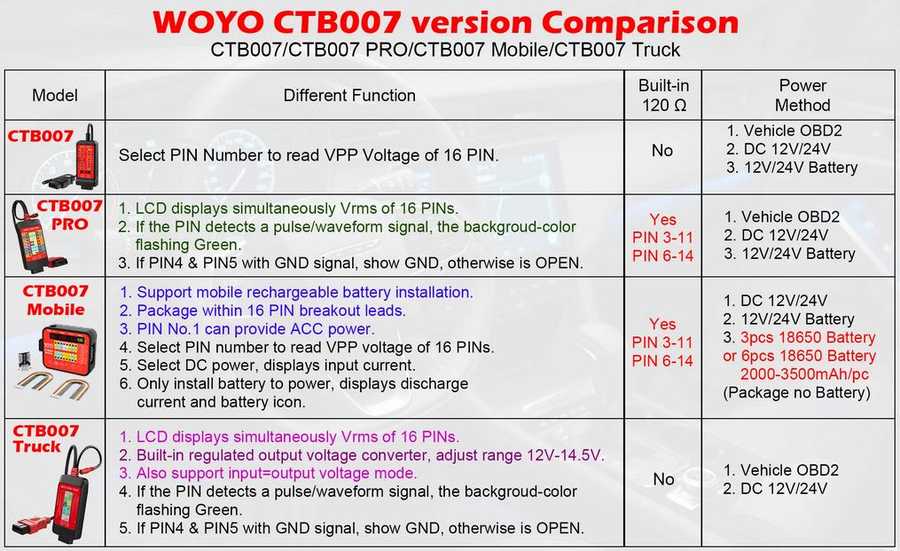

Why Choose WOYO CTB007 Mobile?
1.Professional Grade Performance
Designed for automotive professionals, with comprehensive functions to solve all OBD2 port and ECU testing pain points, improve repair efficiency by 80%.
2.Safe & Reliable Operation
Intelligent voltage alarm, built-in protection resistors and fault detection function, ensure safe use of equipment and avoid secondary damage to vehicles.
3.Flexible & Portable
Cordless mobile use with battery power, compact size, perfect for workshop, bench and on-site testing scenarios.
4.Cost-Effective All-in-One Kit
All necessary accessories included, no extra purchase required, one tool meets multiple professional testing needs.
5.Wide Compatibility
Supports 12V/24V systems and brand-specific pin testing, compatible with most vehicles on the market, strong versatility.

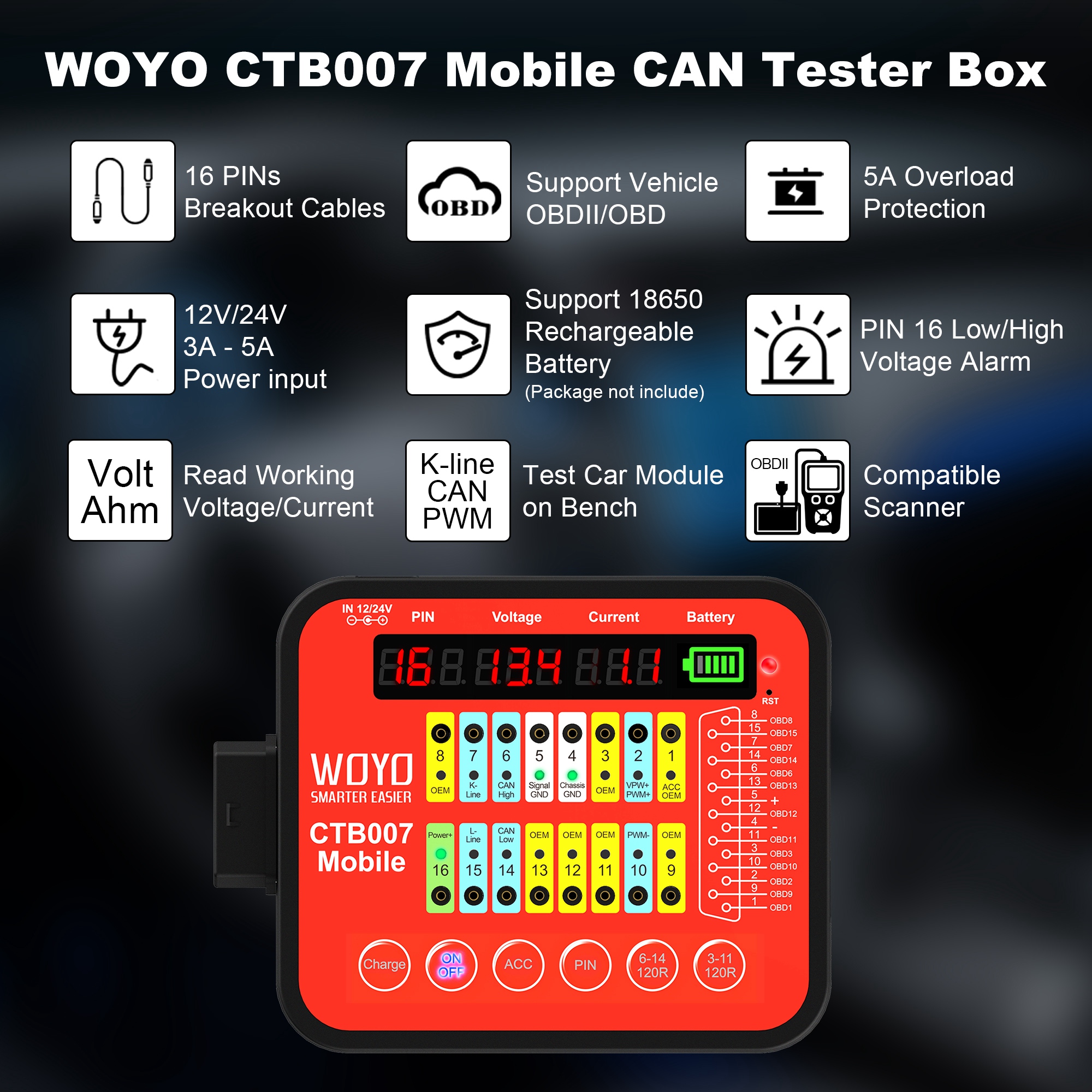

WOYO CTB007 Mobile OBD2 Diagnostic Test Box Core Professional Functions
1.ECU Bench Testing Without Vehicle Installation

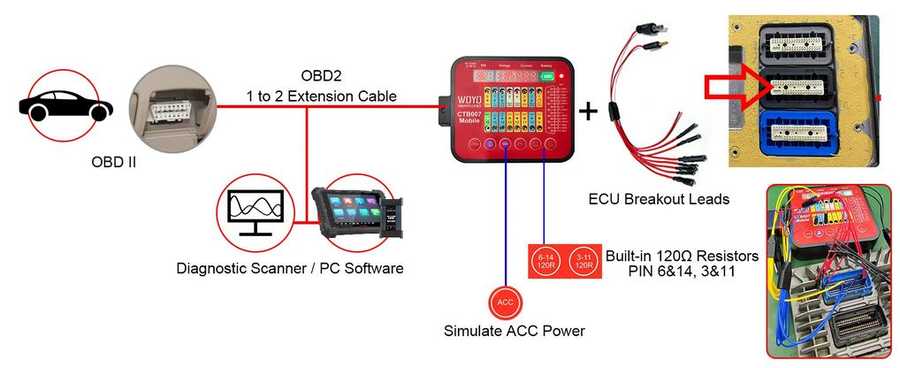

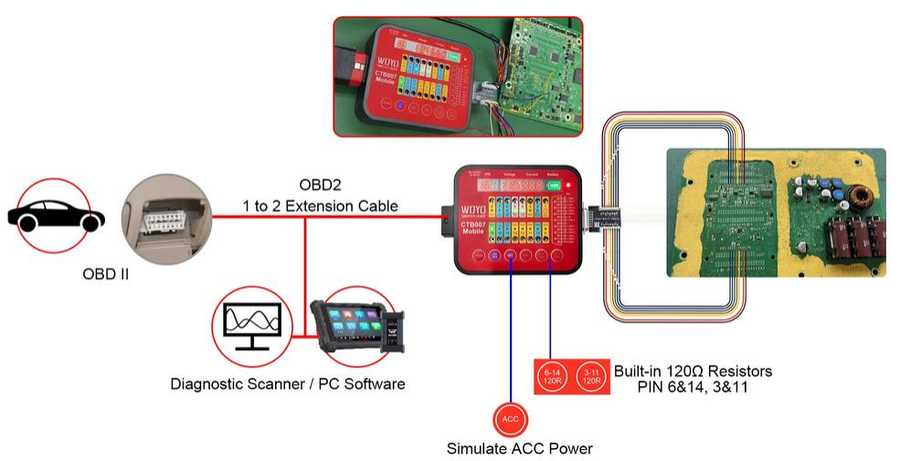

Test repaired ECU circuit boards on a bench before reinstalling them into the vehicle, with built-in 120Ω resistors (PIN 6&14, 3&11) for stable signal transmission. One-touch IGN/ACC activation simulates the vehicle's ignition environment, enabling accurate offline ECU function testing and avoiding rework caused by on-vehicle testing.
2.Real-Time 16-PIN Voltage & Signal Monitoring
Displays the voltage and communication signals of all 16 OBD2 pins in real time for rapid fault identification of vehicle electronic circuits. Equipped with intelligent high/low voltage alarm for PIN 16: slow beeps for low voltage (12V<11.0V/24V<23.6V) and fast beeps for high voltage (12V>15.5V/24V>31V), effectively protecting diagnostic equipment and vehicle electronic components from voltage damage.
3.Precise OBD2 Port Fault Detection
Quickly check the OBD2 DLC port for common faults such as pin short circuits and reverse polarity before connecting other diagnostic tools, avoiding misdiagnosis caused by port issues. Specially optimized for brand-specific pin testing: Porsche (3&7), Volkswagen (1&6), Mitsubishi (1&4) and Toyota (4&13), covering mainstream vehicle brands on the market.
4.Vehicle Data Protection During Battery Replacement
Maintain continuous 12V/24V power supply to the vehicle when replacing the car battery, effectively preserving vehicle settings including driving computer data, seat memory, navigation information and electronic control unit parameters—no need to reconfigure after battery replacement.
5.Flexible Expansion & Mobile Operation

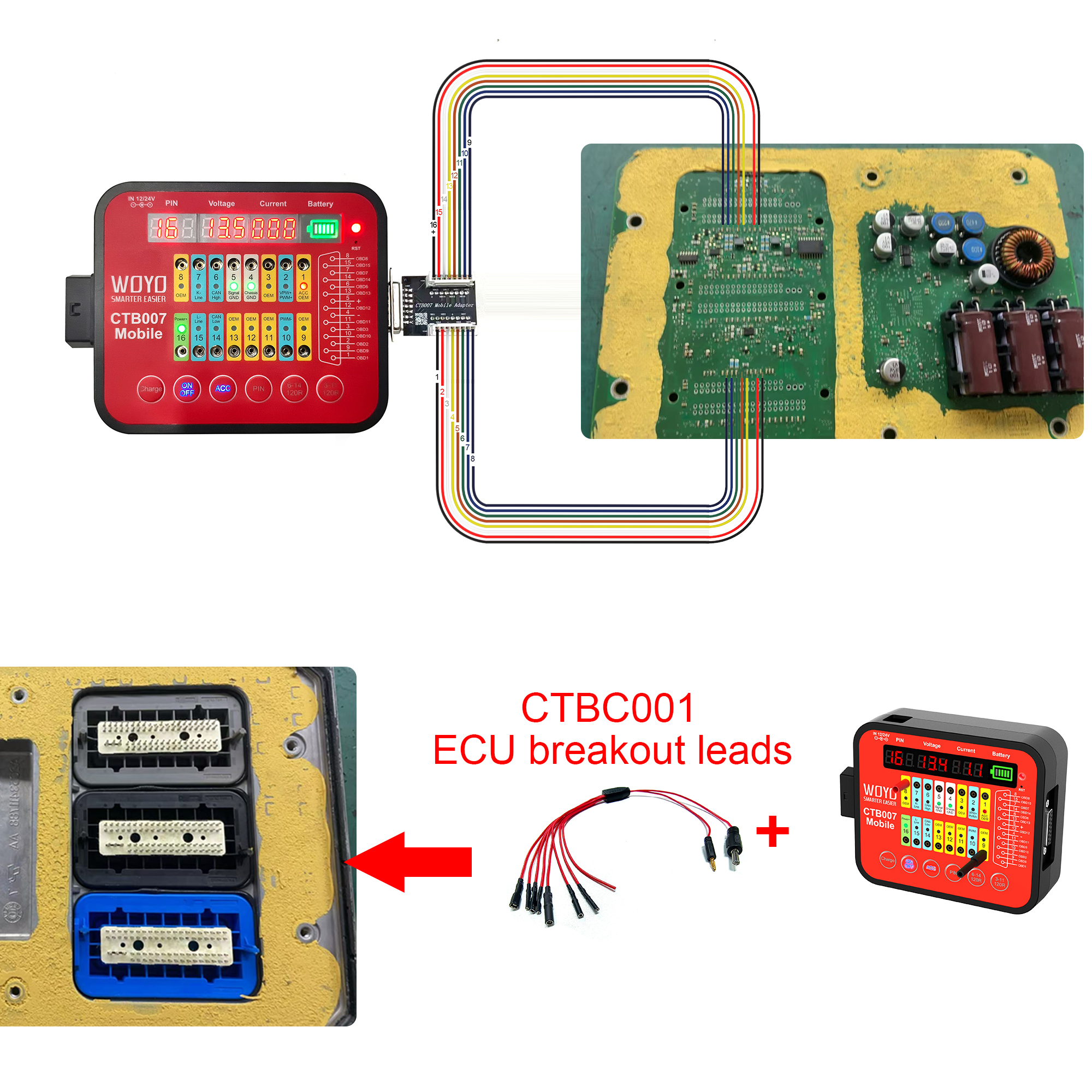

Easily connect other diagnostic devices to any OBD2 pin via the included expansion board and breakout leads, meeting complex testing and modification needs. Supports installation of 3/6 pcs 18650 rechargeable batteries (batteries not included) for cordless mobile use, perfect for on-site rescue and outdoor testing; the device also features battery charging function for convenient daily use.
6.120Ω Termination Resistor with Independent Switch
Built-in 120Ω termination resistors for single ECU or small bench networks to compensate for missing termination, improving signal integrity and reducing signal reflection. Independent switch design allows easy on/off control—only use for bench testing to avoid over-termination during normal in-vehicle operation.

WOYO CTB007 Mobile OBD2 Diagnostic Test Box Humanized Design & Easy Operation
1.Multi-Power Supply Modes
Support DC power input (3A-5A capacity), 18650 battery power and vehicle OBD2 port power, flexible for use in workshop, on bench and outdoor scenes, no power supply restrictions.
2.All Accessories Included
Comes with 12 professional test probes, 1 expansion board and 2 breakout leads—ready to use out of the box without additional accessory purchase, meeting all daily testing needs.
3.Compact & Portable
With a lightweight design of only 1.32 LBS and small size, it can be easily placed in a toolbox or carried in a bag, convenient for on-site service and mobile operation.
4.Durable & Reliable
Adopts high-quality ABS material and precision electronic components, with stable performance and strong anti-interference ability, suitable for long-term professional use in harsh workshop environments.

WOYO CTB007 Mobile OBD2 Diagnostic Test Box Wide Compatibility
This OBD2 diagnostic test box is compatible with all 12V/24V vehicle systems with OBD2 interface, including:
Passenger cars, SUVs, MPVs (12V systems)
Trucks, buses, engineering vehicles (24V systems)
Specialized pin testing for Porsche, Volkswagen, Toyota, Mitsubishi and other mainstream brands


What You Get in the Box

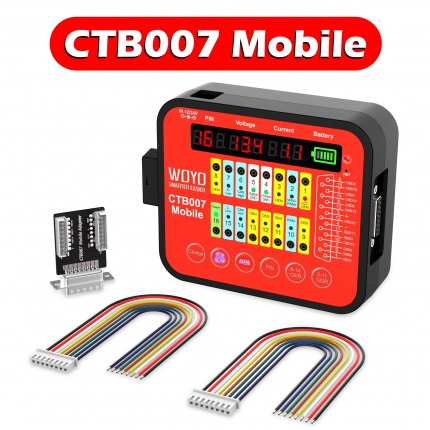

1 × WOYO CTB007 Mobile Main Device
12 × Test Probes (for precise pin detection)
1 × Expansion Board (for extended connection)

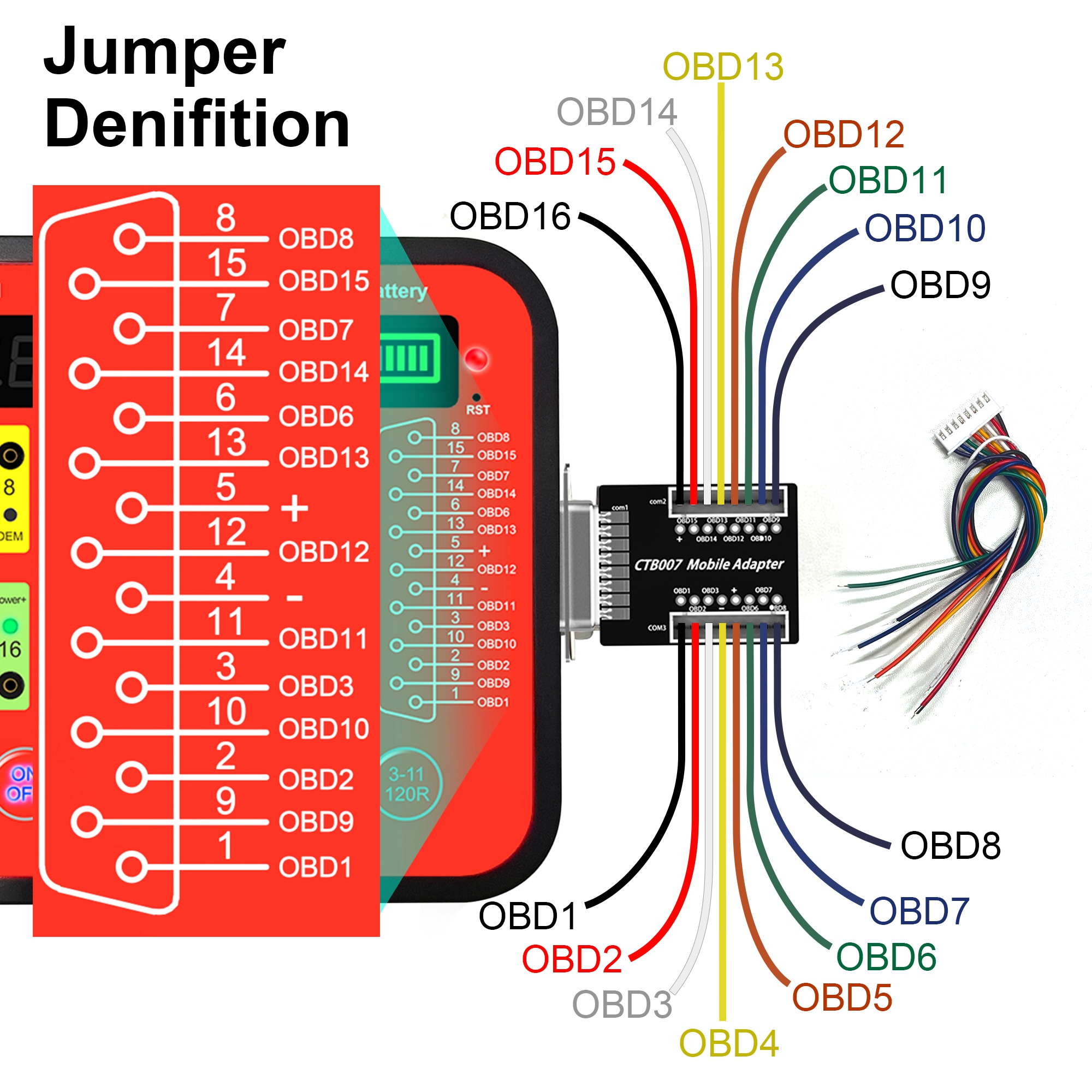

2 × Breakout Leads (for OBD2 port connection)
1 × User Manual (detailed operation guide)
