EONEBOSS TLK2 Locked Key Reuse Tool for ToyotaLexus 4A-AA BA Keys

The TLK2 is a professional device designed for reusing locked Toyota keys. Through innovative technology, it allows direct matching of used keys without unlocking them, significantly improving key reuse efficiency and reducing overall costs.
EoneBoss proudly introduces the TLK2, the ultimate solution to breathe second life into original keys.

Core Highlights:
High Compatibility: Specifically engineered for Toyota 4A-AA BA original locked keys.
Non-Destructive: 100% preserve original key integrity—no dismantling required.
Convenient & Efficient: A streamlined 3-step operation designed for speed.
Global Ready: User-friendly interface with customizable language support for international markets.

Support Key Models:
Toyota: 4A-AA BA
Camry(2024-)
Sienna(2024-)
Corolla Cross(2022-)
Corolla(2019-)
Levin(2019-)
Allion(2016-)
Note: 2 sets Toyota keys are not included, just for display.

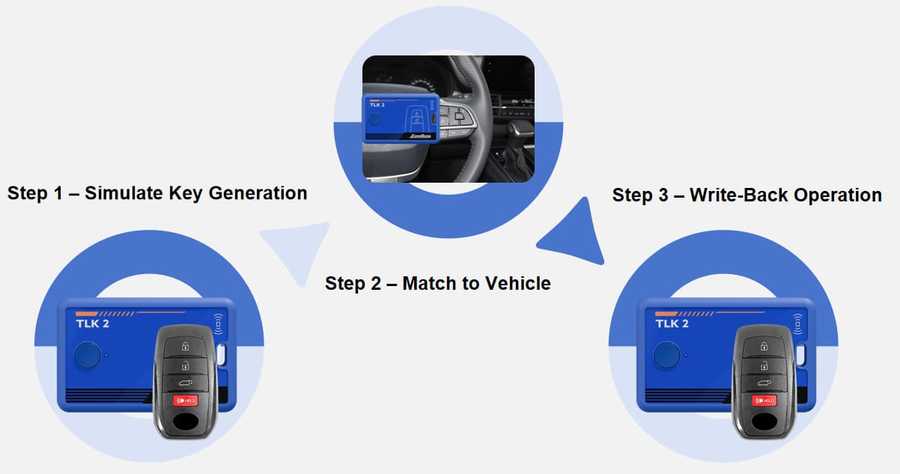

How to Use? The Simple 3-Step Process:
Step1: Simulate Key Generation: TLK2 reads the secure identifier (Key ID) and simulates a matching key using smart internal data.
Step2: Match to Vehicle: Use the TLK2 device as the replacement key during the vehicle matching process.
Step3: Write-Back Operation: TLK2 writes the complete data back to the original locked key, reactivating it perfectly.

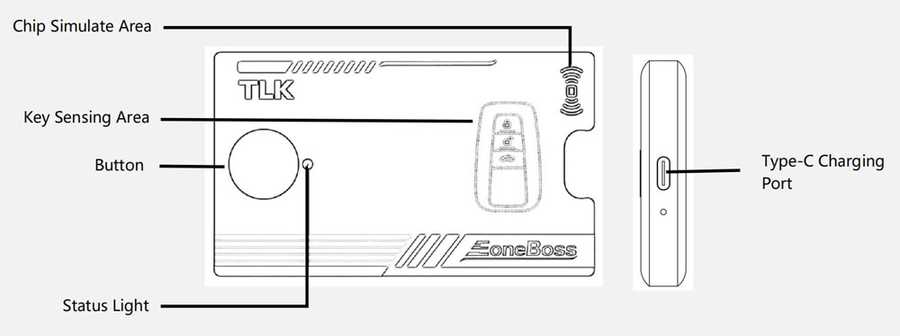

Status Light Indicators Description of corresponding functions
Green (solid): Device is connected and charging
Red (solid): Voice broadcast mode with real-time status updates
Flashing: Device is performing core operations (read, match, write)

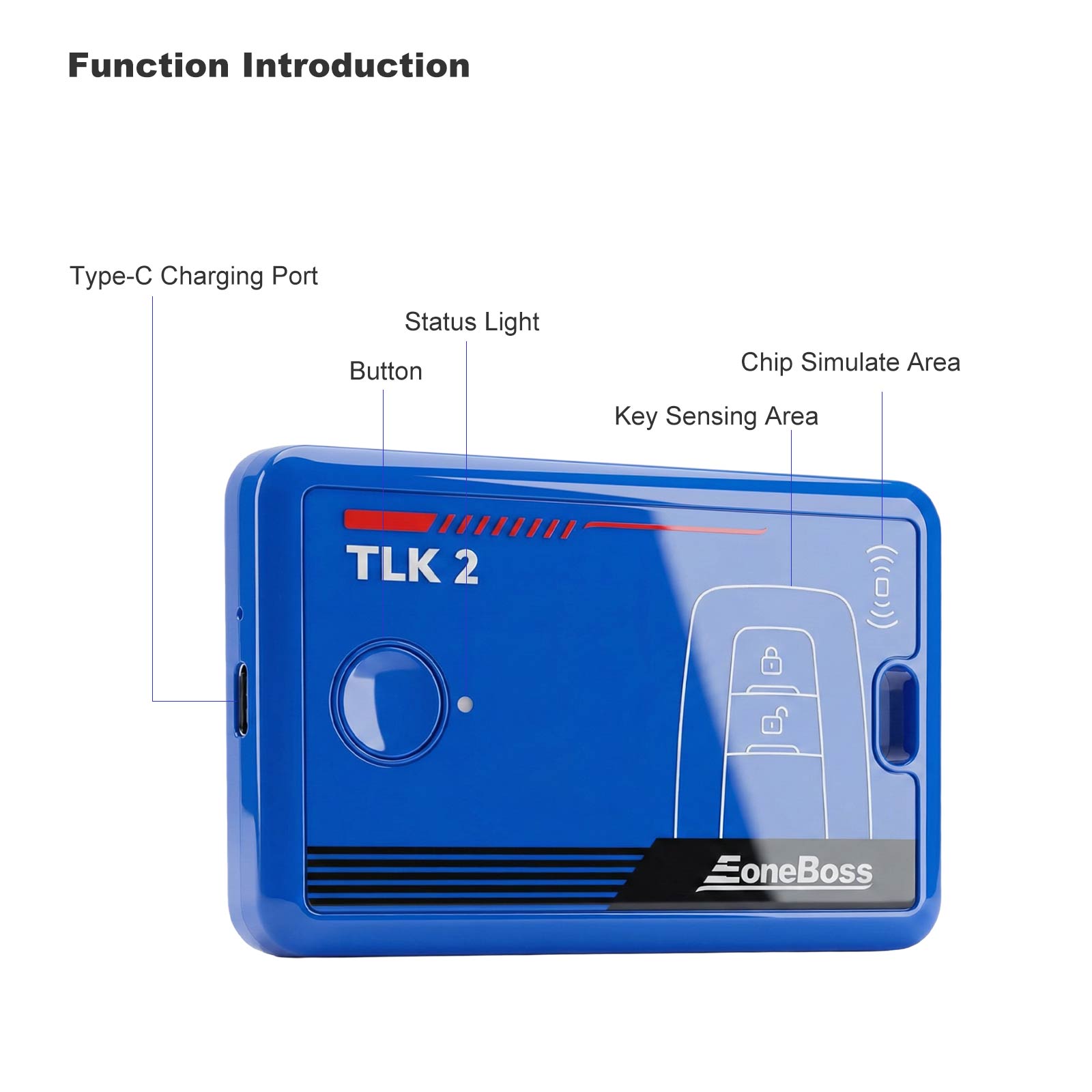

Button Functions
Power On/Off: Long press (~3 seconds) to toggle power
Status Inquiry: Short press while powered on to hear current operation via voice prompt
Reset: Long press (~5 seconds) to reset the device

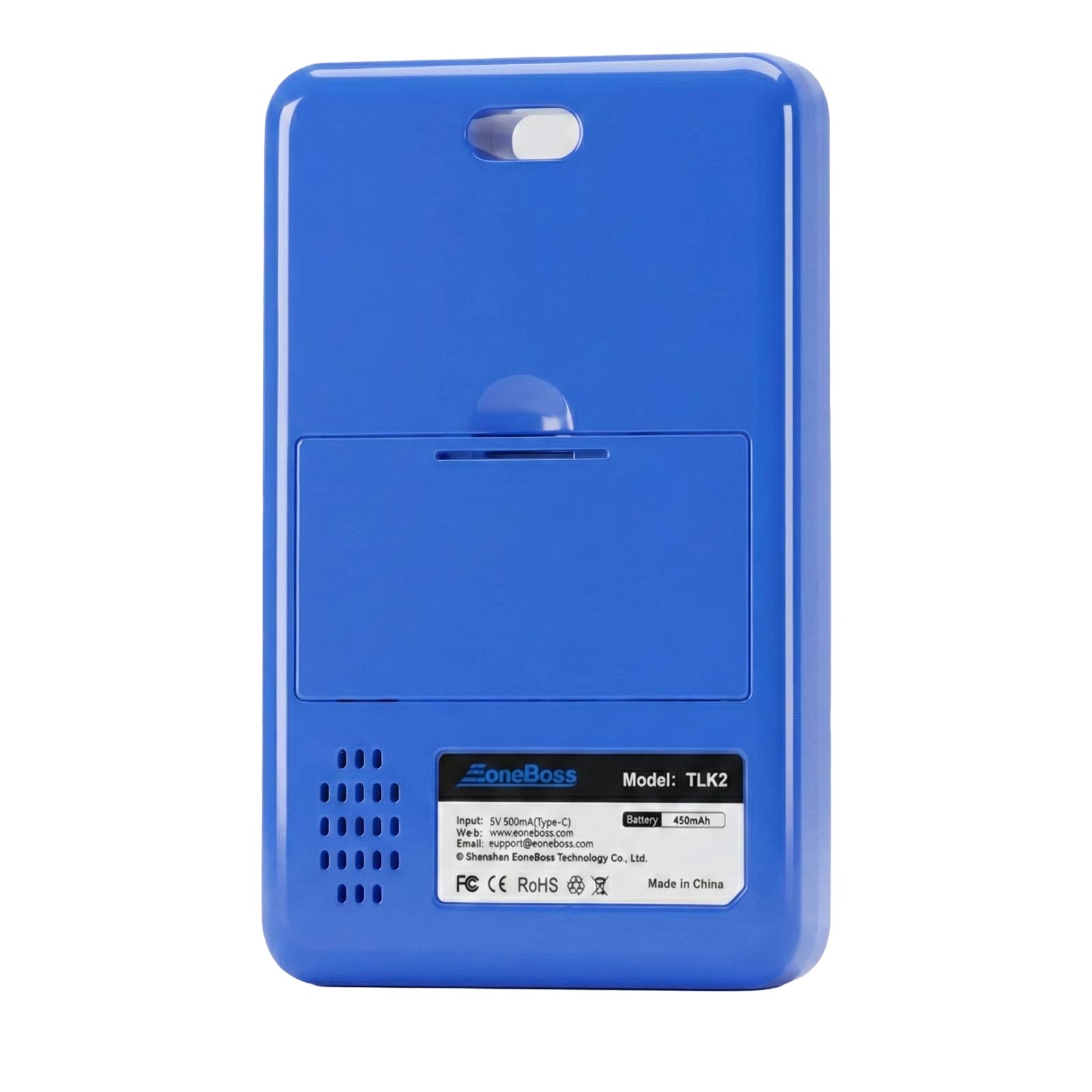

Power Options Battery-Free Version:
Requires 5 V / 500 mA power supply during operation
Battery Version: Includes a built-in 3.7 V, 450 mAh battery; supports simultaneous charging and use.
Defaults to external power and switches to battery when needed.

Compatible Power Sources Can be powered by mobile phone chargers, computers (USB), power banks, and standard 5 V adapters.

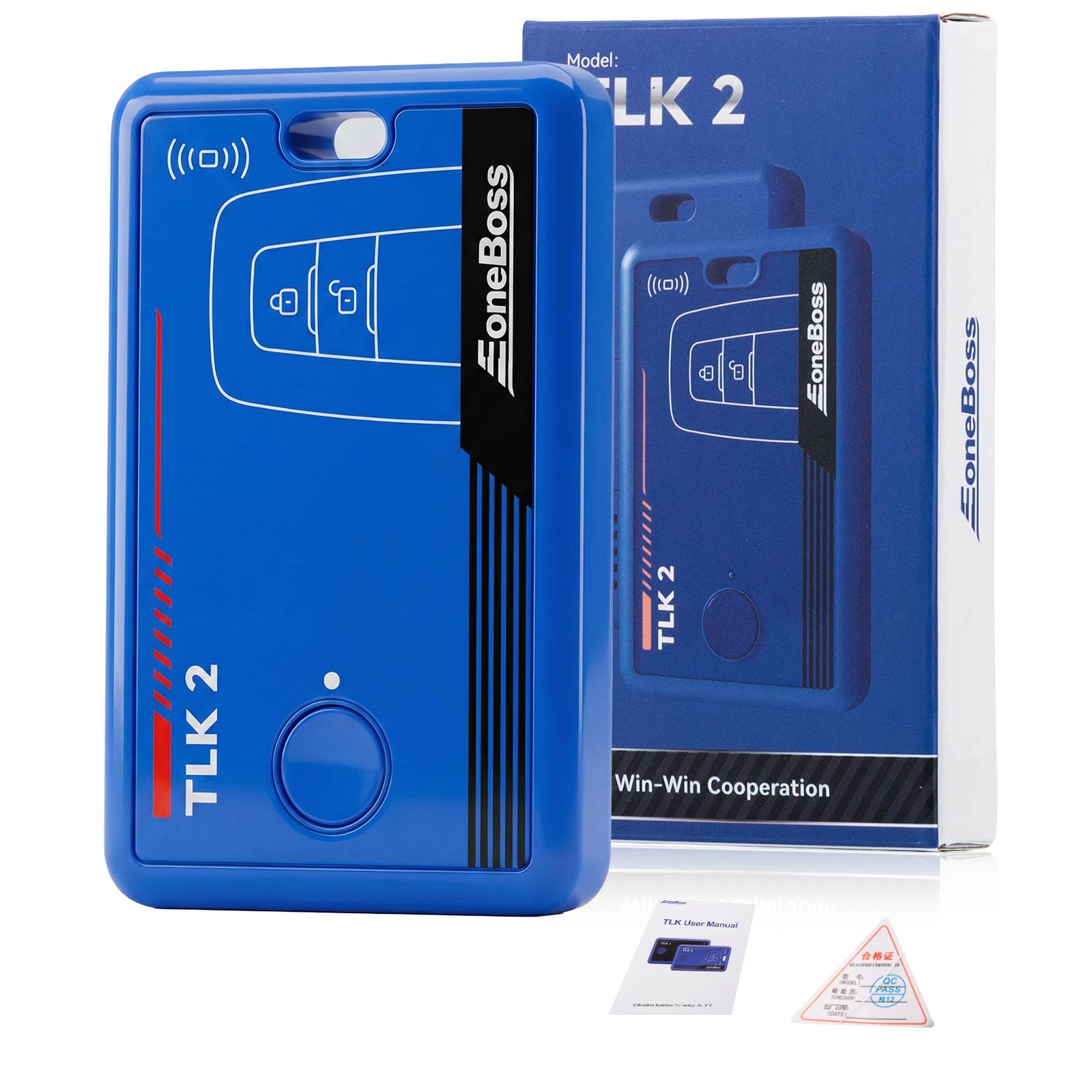

Package includes:
1set x EONEBOSS TLK2



TLK1 vs TLK2 vs TLK3:
TLK1: for Toyota Lexus 8A-AA BA B9 B8 original key unlock
TLK2: for Toyota Lexus 4A-AA BA original key unlock
TLK3: for unlocking Toyota/Lexus/Subaru aftermarket smart keys. Precise Data Reading All Keys Lost (AKL) Signal Acquisition



Note: TLK1,TLK2 and TLK3 devices are not compatible with each other.
