LAUNCH X431 PRO3S+ EV Diagnostic Scanner for EV Diagnostics & Battery Pack Analysis Supports Topology 40+ Service Functions CAN FD DoIP

For modern new energy vehicle repair shops and professional technicians, a reliable, efficient, and full-featured diagnostic tool is the core of improving maintenance efficiency and service quality. LAUNCH X-431 PRO3S+ EV Diagnostic Device, equipped with upgraded SmartLink CV2 connector, integrates professional electric vehicle diagnosis and high-precision battery pack analysis, supporting both local and remote diagnostic modes, becoming your ideal choice for new energy vehicle maintenance.

Highlights:
1.Supports 95% new energy vehicle models. Wide electric vehicle coverage and 20+ battery packs supported.
2.OE-level EV diagnostics and battery pack diagnostics.
3.Battery pack data stream enables precise fault detection and faster repair.
4.Fast reading of battery pack information: module count, SOC, SOH, temperature, etc.
5.In-depth access to cell voltage and temperature data help guide repair decisions.
6.Supports dual mode diagnosis: local diagnostics and super remote diagnosis
7.Supports CAN FD, CAN 2.0, DoIP, J2534 and D-PDU protocols
8.Supports AutoVIN, Guided Function, FCA AutoAuth
9.Supports Topology mapping
10.Supports CAN BUS PIN Detection
11.Optional X-431 FIX Database.
12.Supports diagnostic report generation, sharing, and printing.
13.Supports multiple add-on modules: TPMS, ADAS, videoscope, battery tester, sensorbox, scopebox, IMMO programmer, X431 key programmer etc.
14.Expandable vehicle coverage via MALL, including passenger cars, commercial vehicles, motorcycles, IMMO service, etc (purchase in Mall)
15.2 Years free update

Powerful Diagnostic Functions:
Dual Diagnostic Modes
Supports Local Diagnostics
Super Remote Diagnostics

Super Remote Diagnostics
Server side supports:
X431 diagnostic devices
Specialized diagnostic devices (original equipment)
Third-party diagnostic devices

Diagnostic Functions
Smart Diagnosis, VIN Auto Recognition, Fault Guidance, Topology Map, Rapid Scan, Guided Functions, SGW Gateway, etc.

Mainstream Protocol Support
Supports J2534, D-PDU and other standards
Supports mainstream protocols such as CAN2.0, CANFD, DOIP, etc.

New Energy Vehicle Diagnostics
Supports over 95% of new energy vehicle models
Keeps pace with market trends with rapid model updates and precise diagnostics

Battery Pack Diagnostics
Multiple battery pack diagnostic methods
Comes with a complete set of connectors for new energy battery packs

Resources
Supports the X431 FIX database
Provides a rich free resource library including repair cases, fault code help, technical manuals, operation tips, and more

High Expandability
Supports expansion for passenger cars, commercial vehicles, immobilizer, and motorcycles
Supports various hardware expansion modules: ADAS, immobilizer programmer, TPMS, oscilloscope, sensors, and over a dozen other expansion modules

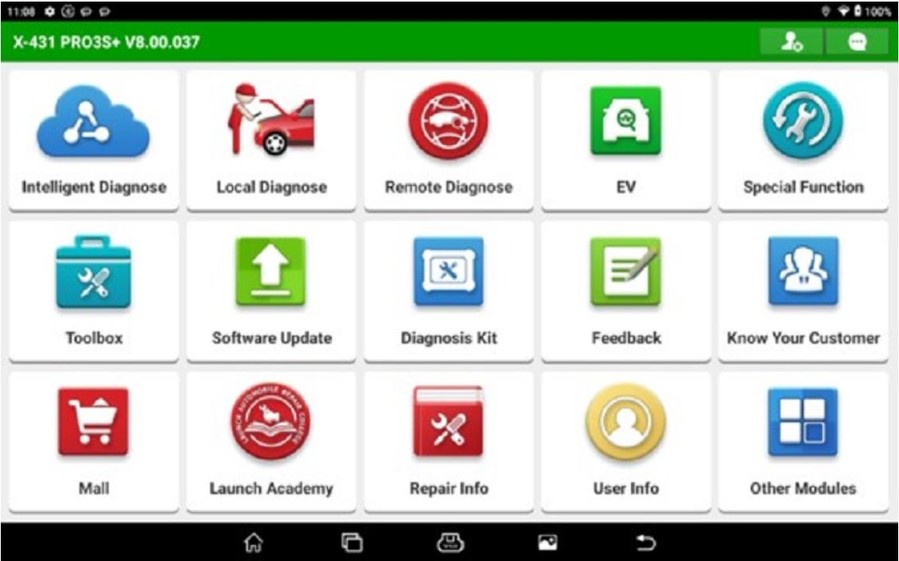

Product Functions:

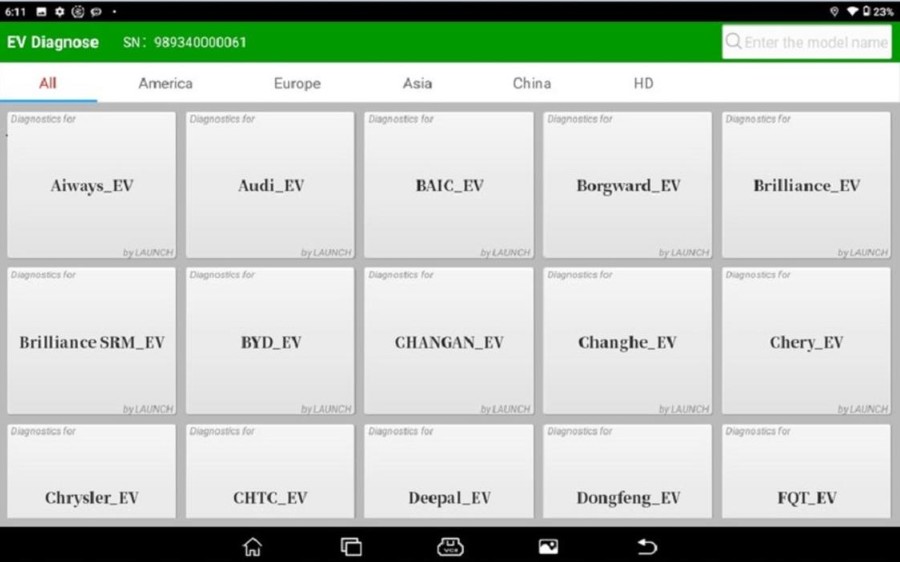

EV Diagnose
By comparing the differences between new energy vehicles and traditional vehicles, the diagnostic software logic has been optimized in terms of overall vehicle diagnostics, improving diagnostic speed while ensuring accuracy and enhancing the diagnostic experience. Currently, diagnostic software has been developed for multiple vehicle models, including BYD, Xpeng Motors, Leapmotor, Neta, Roewe, GAC, BAIC New Energy, Zeekr, etc., with a model coverage rate of over 95%. More models are continuously being updated…

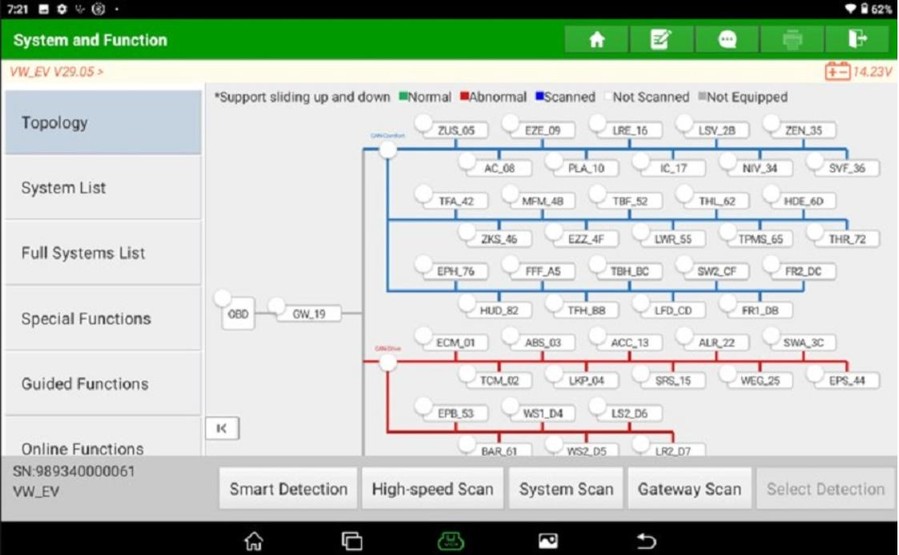

System and Function:
OEM-level diagnostic functions, graphical display of the entire vehicle system structure for a comprehensive view; rapid scanning to quickly locate faults; test plans guide repairs step by step.

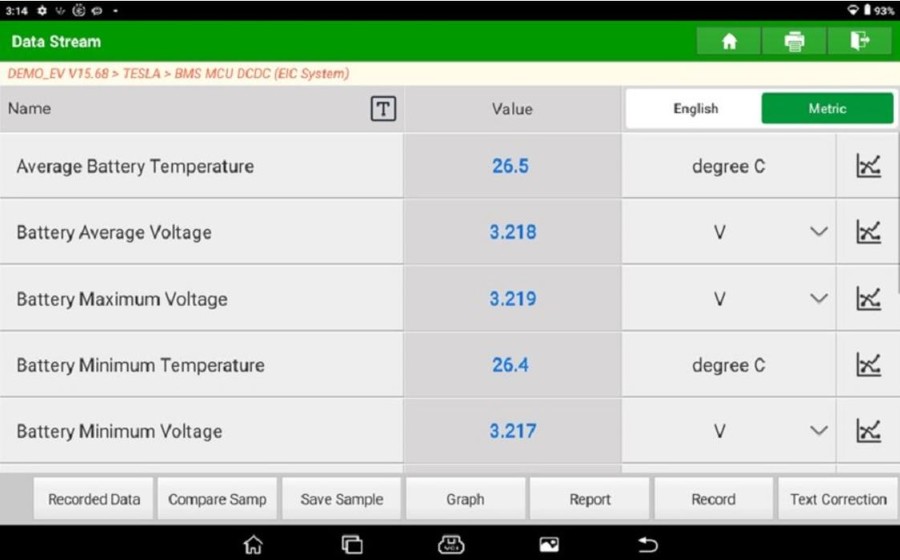

Through battery pack data streams, the cause of faults can be precisely located, improving diagnostic and repair efficiency.

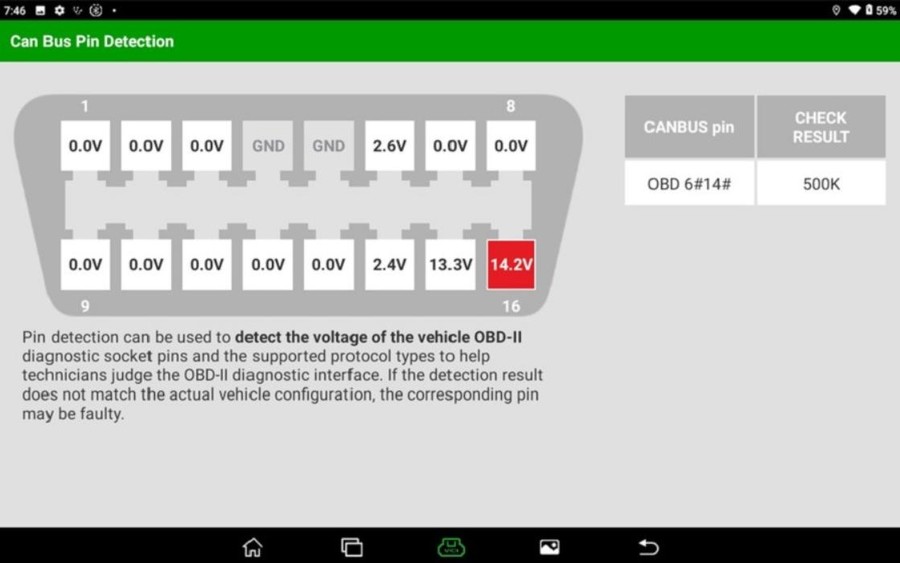

Can Bus Pin Detection
Used to detect the voltage of the pins on the vehicle's OBD-II diagnostic socket and the supported protocol types, helping technicians determine whether the OBD-II diagnostic interface has a fault.



EV Battery Pack Diagnostics

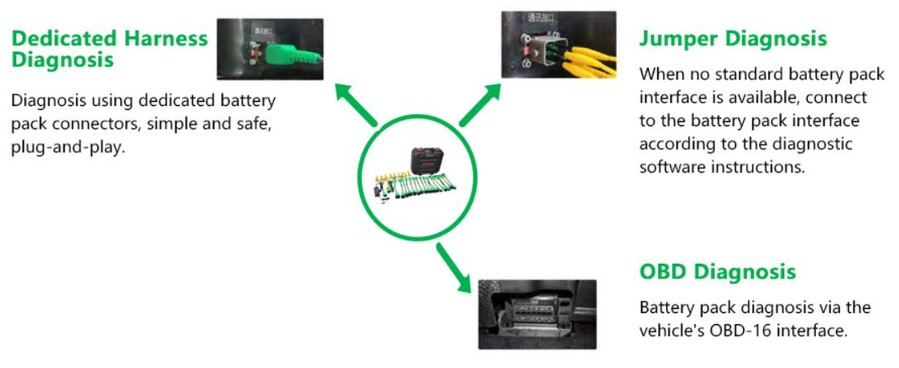

Multiple Battery Pack Diagnostic Methods
Dedicated Harness Diagnosis: Diagnosis using dedicated battery pack connectors, simple and safe, plug-and-play.
Jumper Diagnosis: When no standard battery pack interface is available, connect to the battery pack interface according to the diagnostic software instructions.
OBD Diagnosis: Battery pack diagnosis via the vehicle's OBD-16 interface.

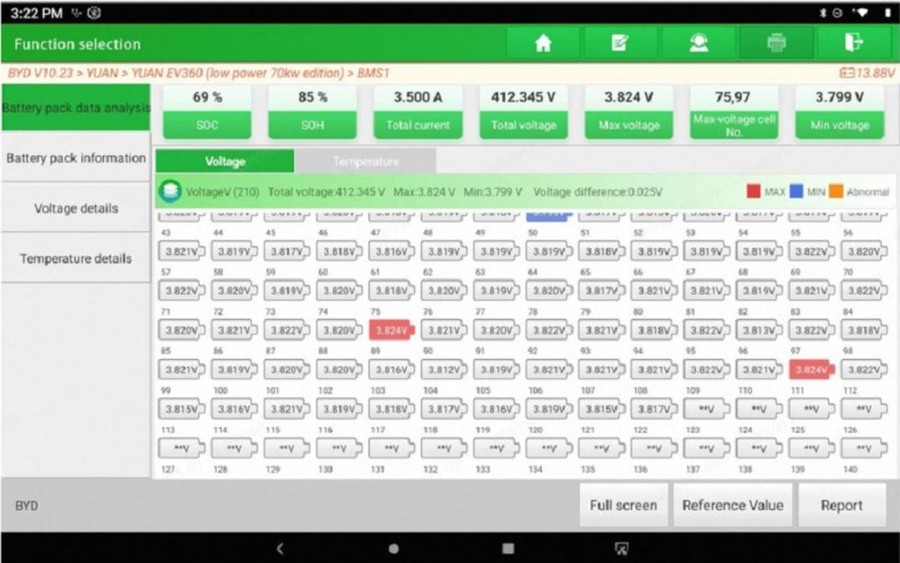

The battery pack is a key component of EVs. Testing the battery pack is one of the important steps in EV inspection. Using the battery pack diagnostic software, you can quickly read battery pack information, including but not limited to the number of battery pack modules, SOC, SOH, current temperature, etc. Additionally, it can deeply read the voltage and temperature values of individual cells within each module, helping technicians quickly understand the battery pack status and providing guidance for subsequent repairs.

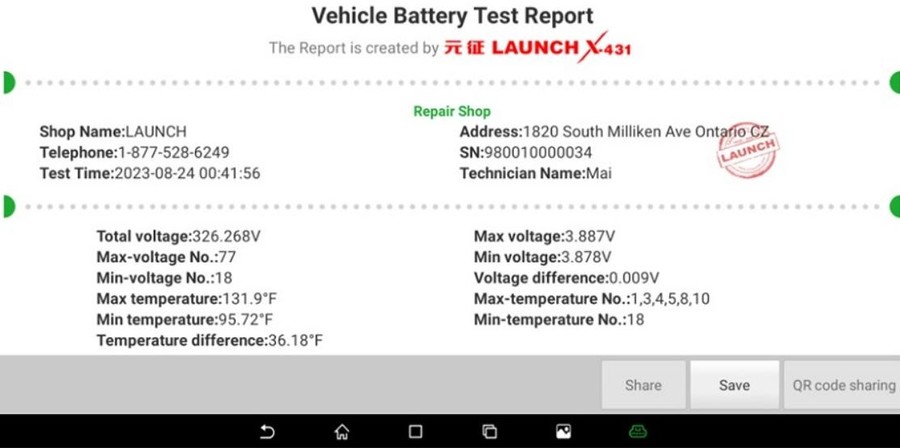

Supports generating diagnostic reports, as well as report sharing and printing.

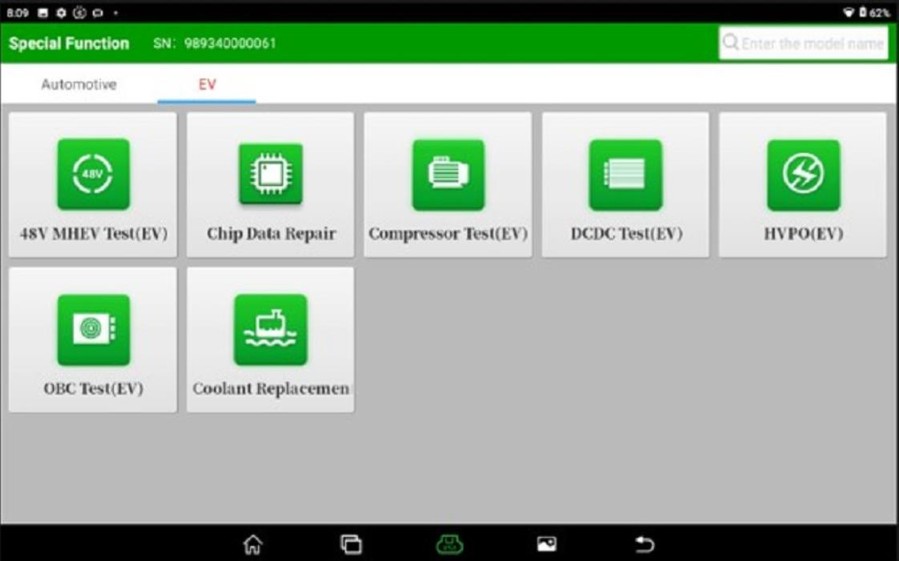

Special Functions
Supports matching, coding, and common special functions for programmable modules on most vehicle models,

Such as for EV: EV air conditioning compressor testing, coolant replacement, high voltage poweroff(HVPO), onboard charger offline testing(OBC Test), DCDC converter offline testing(DCDC Test), 48V mild hybrid component testing(48V MHEV Test), chip data repair,

For Automotive: maintenance light reset, throttle matching, steering angle reset, brake pad reset, tire pressure reset, immobilizer matching, ABS bleeding, battery matching, gear learning, injector coding, sunroof initialization, headlight matching, suspension matching, transmission matching, exhaust gas recirculation, window calibration, seat calibration, tire modification, language setting, A/F adjustment, electronic water pump activation, transport mode deactivation, startstop setting, automatic air conditioning initialization, engine power balance, highvoltage battery health detection, intelligent cruise control system calibration, motor angular position sensor calibration, and other special functions.

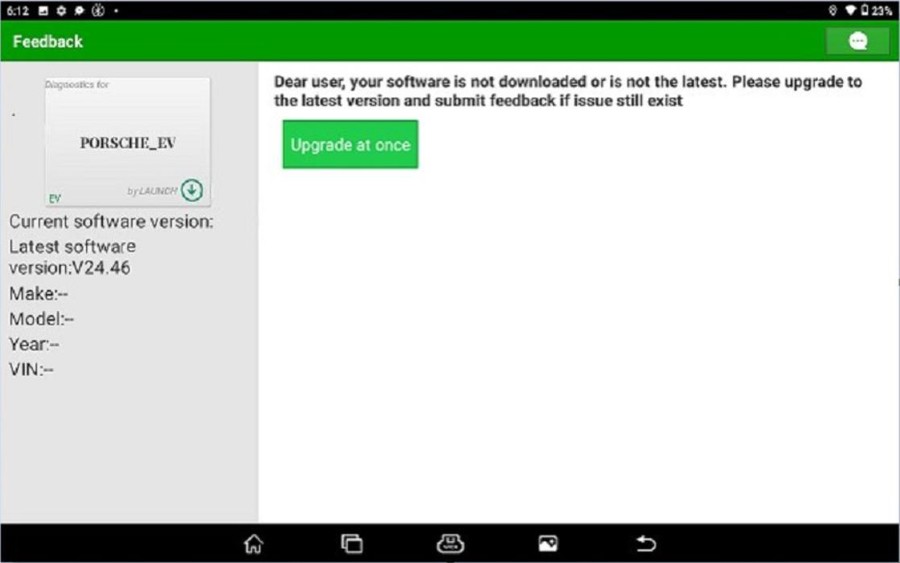

Feedback
If you encounter abnormal vehicle software or function issues under special circumstances during use, you can report the problem to LAUNCH Company, and specialized technical staff will track and handle it.

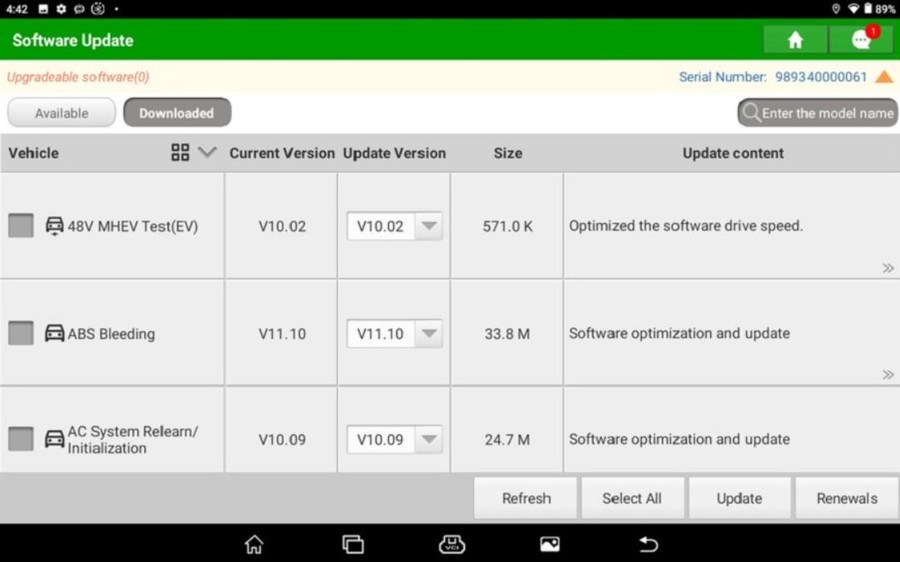

Software Update
Supports oneclick updates for the operating system, client, vehicle software, and firmware; vehicle software updates quickly to keep pace with the market.

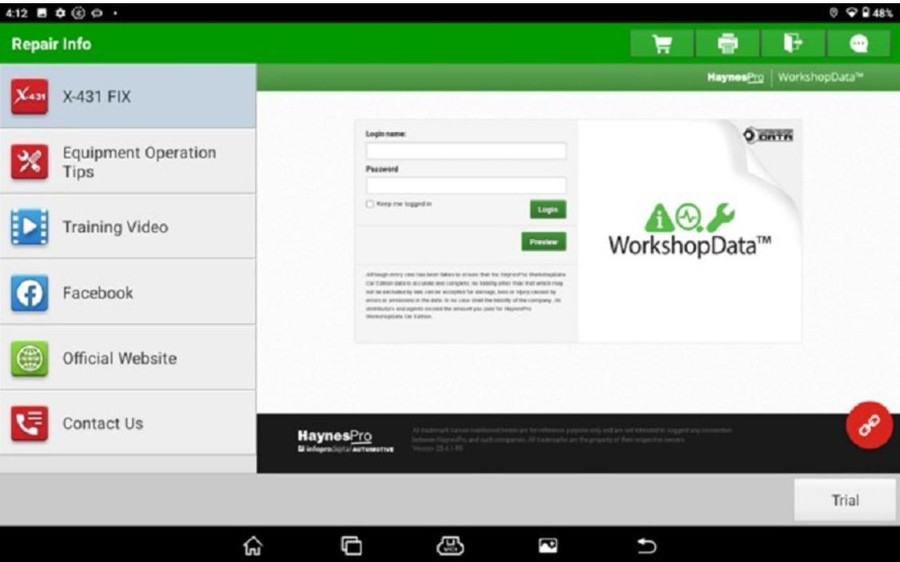

Repair Infor
Supports optional purchase of X431 FIX. Provides free training videos and equipment operation tips: including repair cases, fault code help, technical manuals, operation tips, etc.

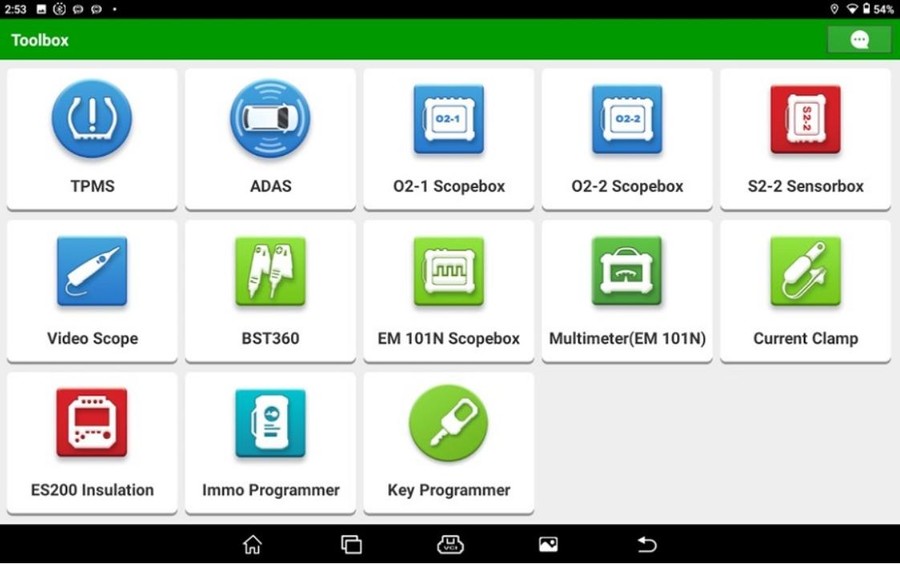

Toolbox
Supports 13 expansion modules including TPMS, ADAS, new energy current clamp, new energy oscilloscope, new energy multimeter, battery tester, etc.

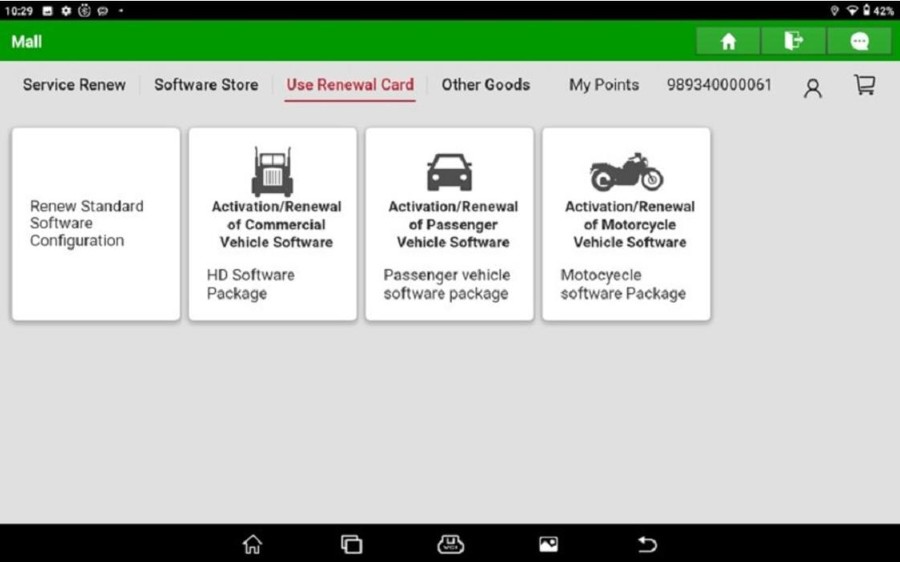

Mall
Supports expansion of commercial vehicle, passenger vehicle, immobilizer, and motorcycle software packages for new energy equipment.

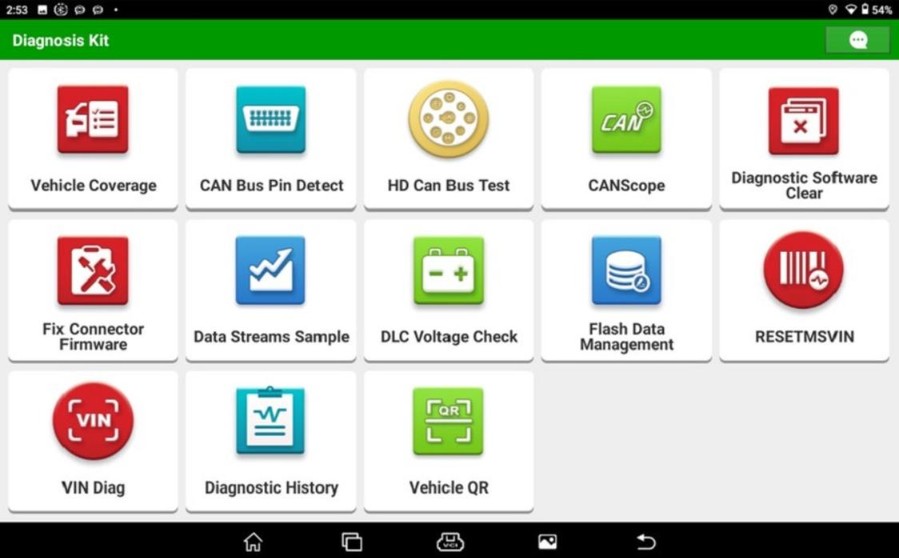

Diagnosis Kit
Small tools such as vehicle coverage, CANScope, HD CAN BusTest, Can Bus pin detect, Flash data management, etc., assist with repairs.

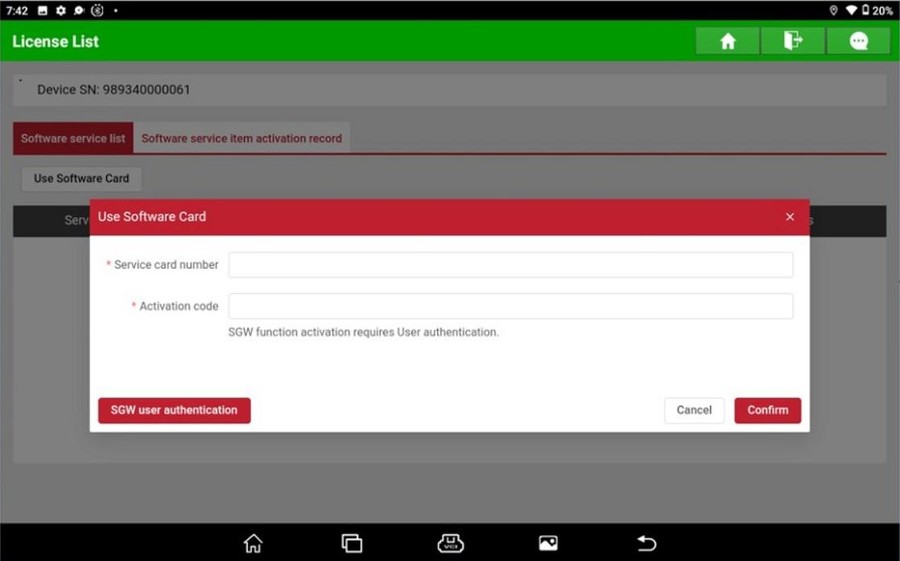

License List
Supports activation of SGW gateway and other services to use corresponding functions.

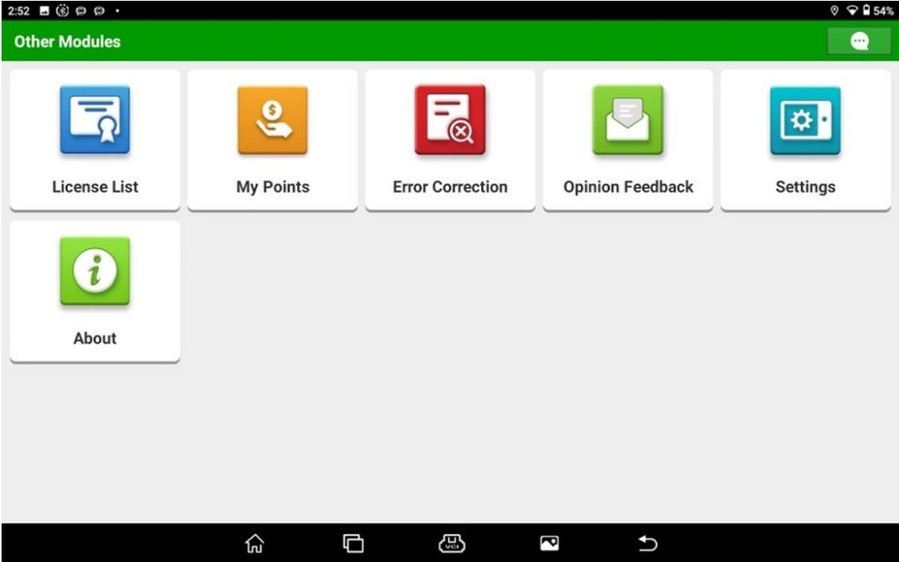

Other Modules
Supports License List, My Points, error correction, opinion feedback, settings, about, and other functions.

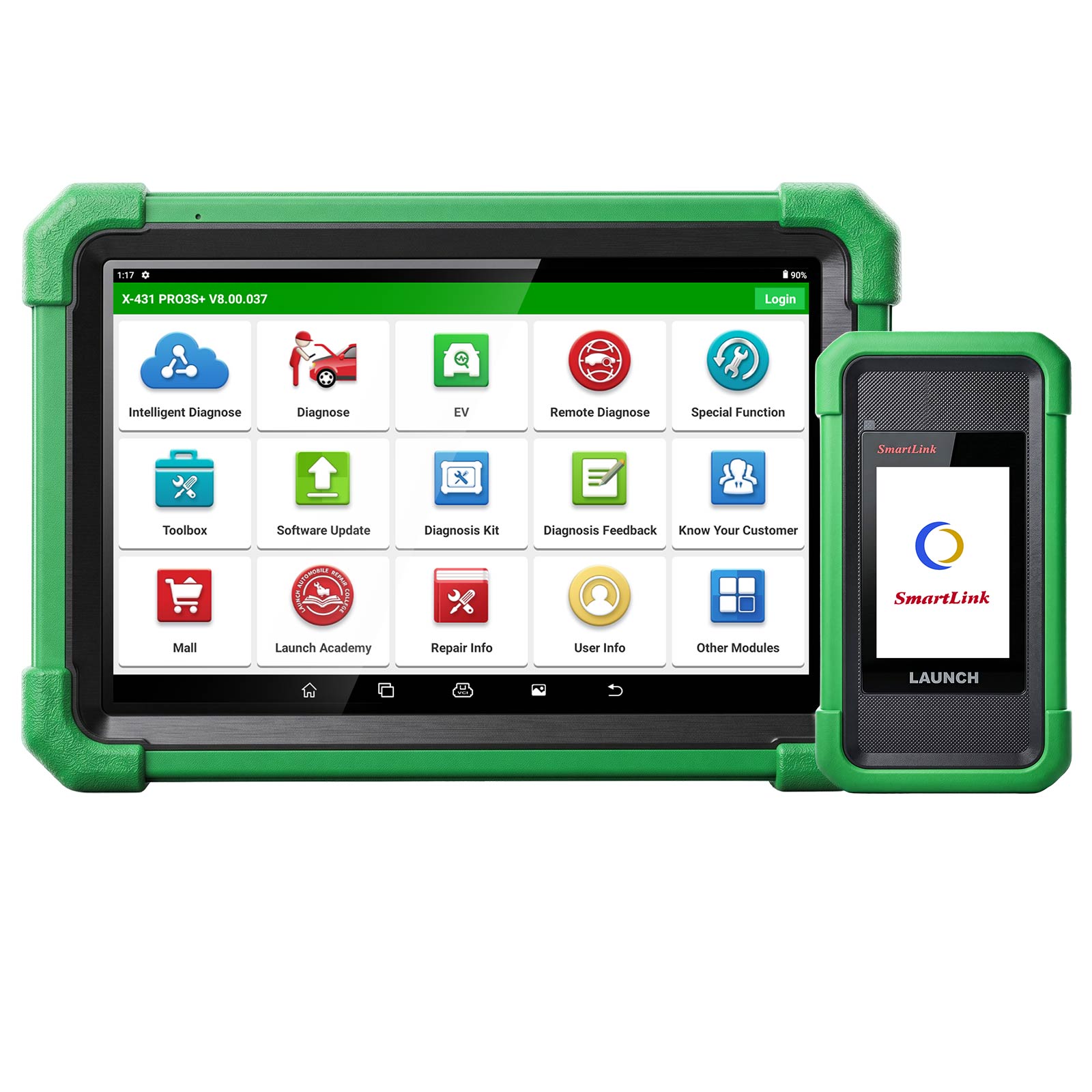

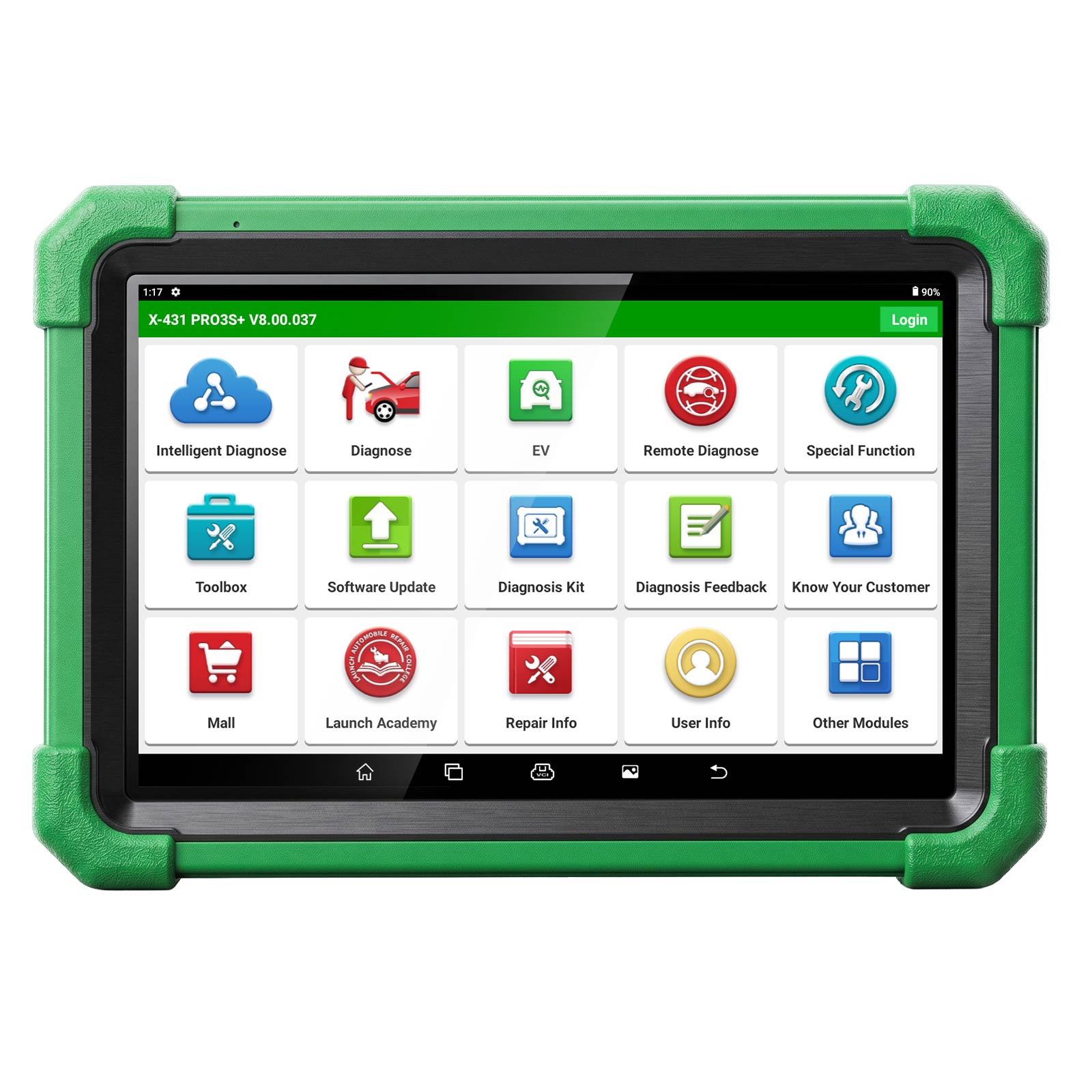

Product Features of LAUNCH X-431 PRO3S+ Tablet:
Powerful Hardware Upgrade
Android 10.0 OS
4GB RAM + 64GB storage
Stable system with strong compatibility

Display Upgrade
10.1-inch Gorilla Glass screen
Sunlight-readable for clear visibility

Battery Upgrade
Cells connected in series for high power output
6300mAh @ 7.6V
Strong power delivery with extended battery life

Enhanced Compatibility
New Type A port added
Supports external expansion tools such as oscilloscopes, sensors, and immobilizer programming devices

Human-Centered Industrial Design
Reinforced edges for impact protection
Swivel stand for easy support and hanging
Dust-resistant design

Product Specifications of the LAUNCH X-431 PRO3S+ Tablet:
Operating System: Android 10.0
Processor: 2.0GHz quad-core
Memory: 4GB RAM
Storage: 64GB
Display: 10.1-inch, fully laminated, sunlight-readable screen
Resolution: 1280×800
Camera: 80 MP rear camera
Wi-Fi: Supports 2.4GHz & 5GHz dual band
Operating Temperature: 0℃～50℃
Dimensions: 274×190.5×40.5 mm
Interfaces: Type A and Type C

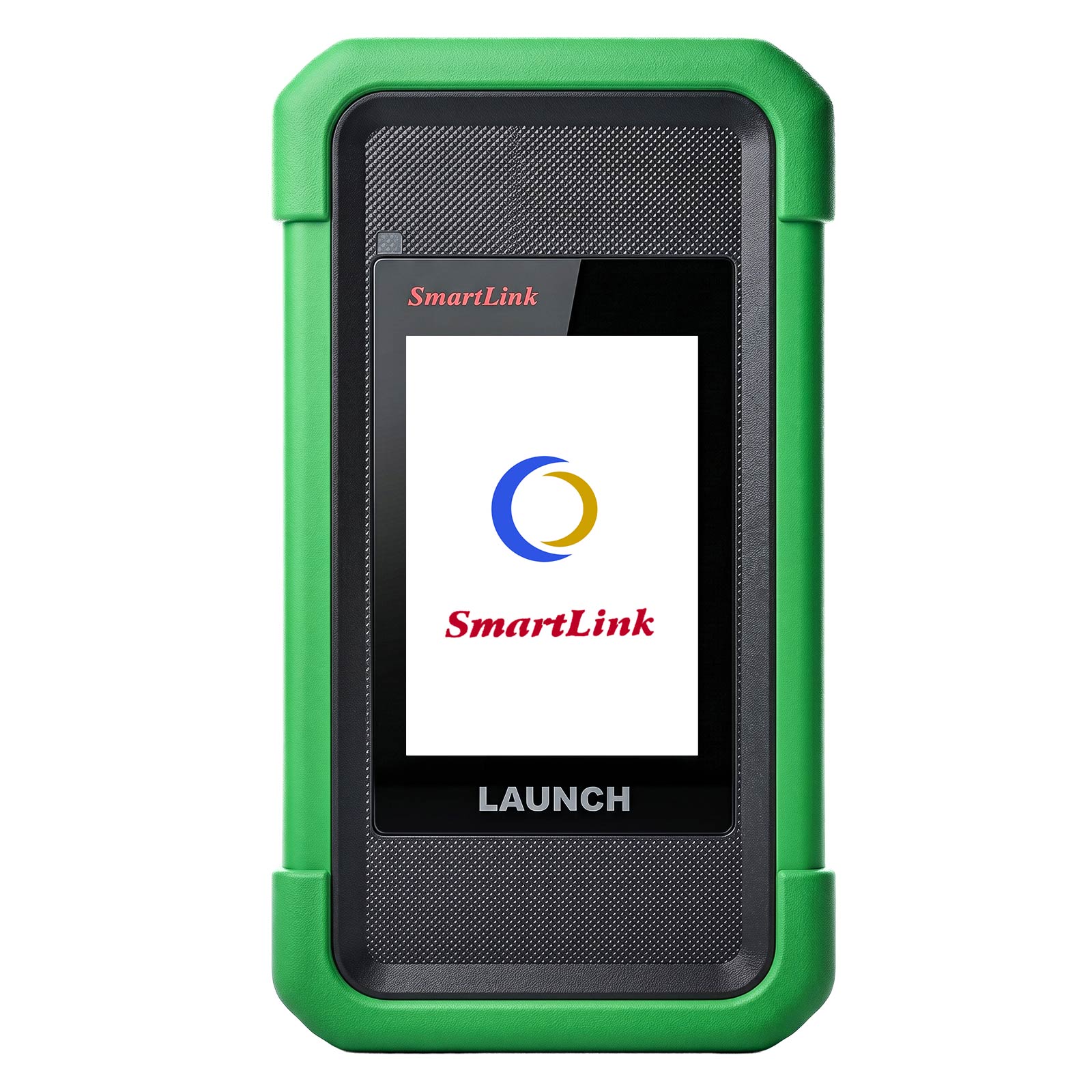

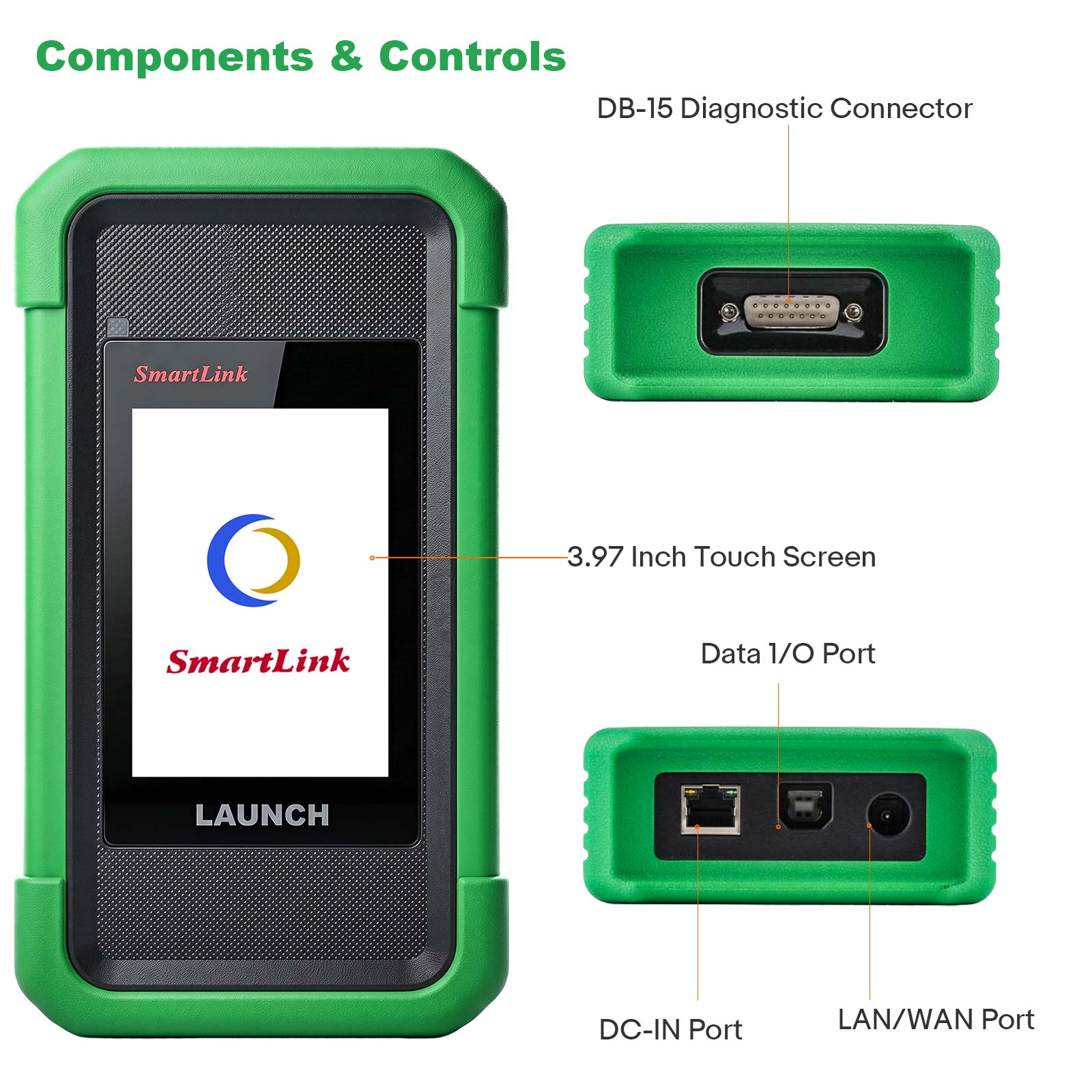

Product Features of the SmartLink C V2 Connector:
Fully Laminated Screen Design
Prevents dust from entering the screen
Prevents fogging

Enhanced Wi-Fi Signal
Optimized Wi-Fi antenna and module

Improved Heat Dissipation
Additional cooling vents

More Secure Connection
OBD16 changed to DB15 for improved connection stability
Test cable secured to the interface with screws

Multi-Protocol Support
Supports CANFD protocol
Supports CAN2.0
Supports DOIP protocol
Supports J2534 standard
Supports D-PDU standard

Super Remote
Request remote technician service support
Supports remote service via X431 diagnostic devices
Supports remote service via specialized diagnostic devices (original equipment)
Supports remote service via third-party diagnostic devices

Product Specifications of the SmartLink C V2 Connector:
Display: 3.97-inch TFT screen, 320×480 resolution
Operating Voltage: DC 9V ~ 36V
Power Consumption: < 6W
Memory: 256 MB
Storage: 8 GB
Operating Temperature: 0℃ ~ 50℃
Dimensions: 200 mm × 110 mm × 47 mm
Communication Modes:
Local Diagnostic Mode: Bluetooth / Wired
Remote Diagnostic Mode: Ethernet

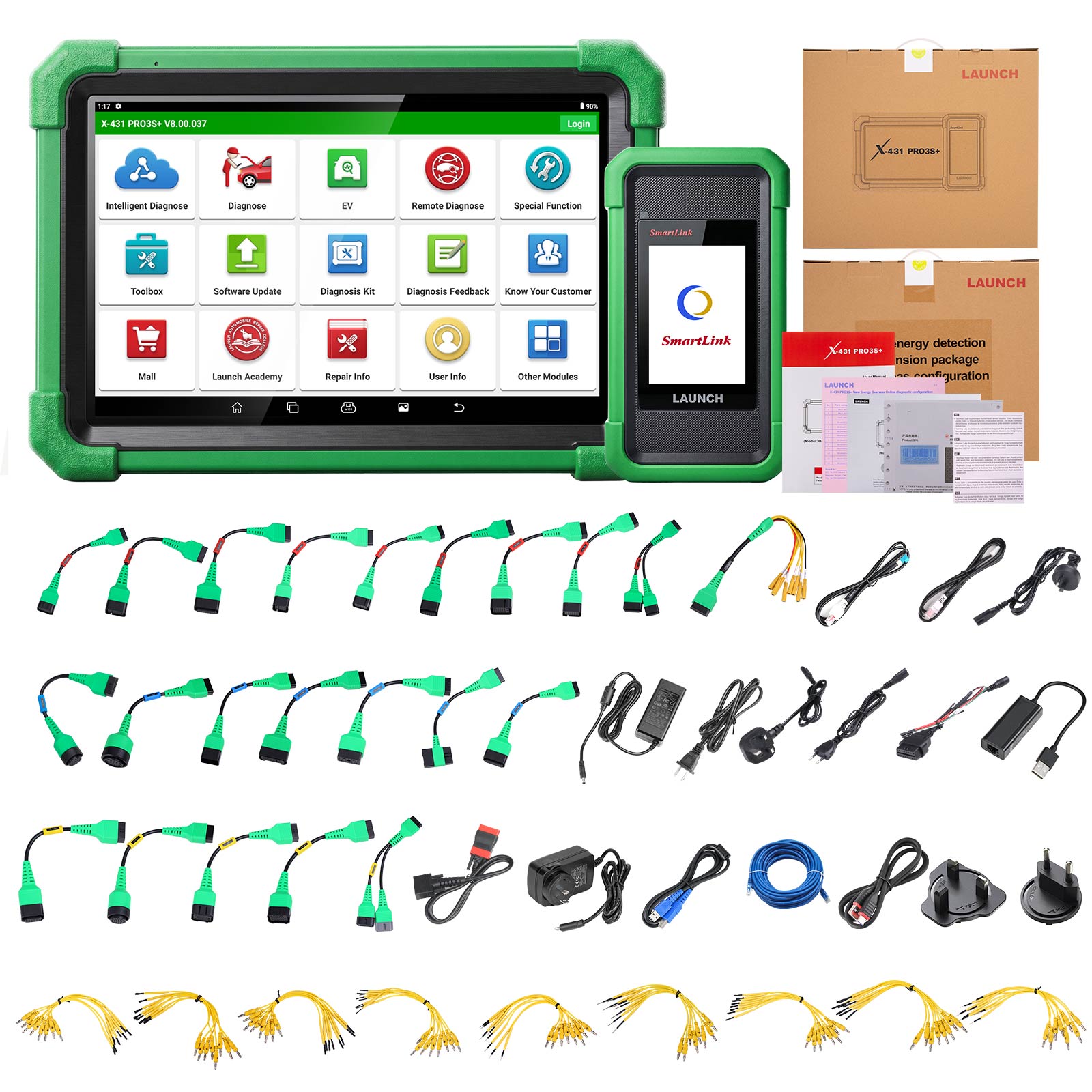

Package includes:
1pc x LAUNCH X-431 PRO3S+ Tablet
1pc x SmartLink C V2 Connector
1pc x remote diagnosis box V2.0 (New Energy)
1pc x DB15F to HD15F test mainline
1pc x Smartlink dedicated RJ45 to RJ45 connection cable
1pc x British standard conversion head
1pc x European gauge conversion head
1pc x Power Adapter(5V 5A)
1pc x Type A to type C USB data cable
1pc x  USB A-type to B-type data cable

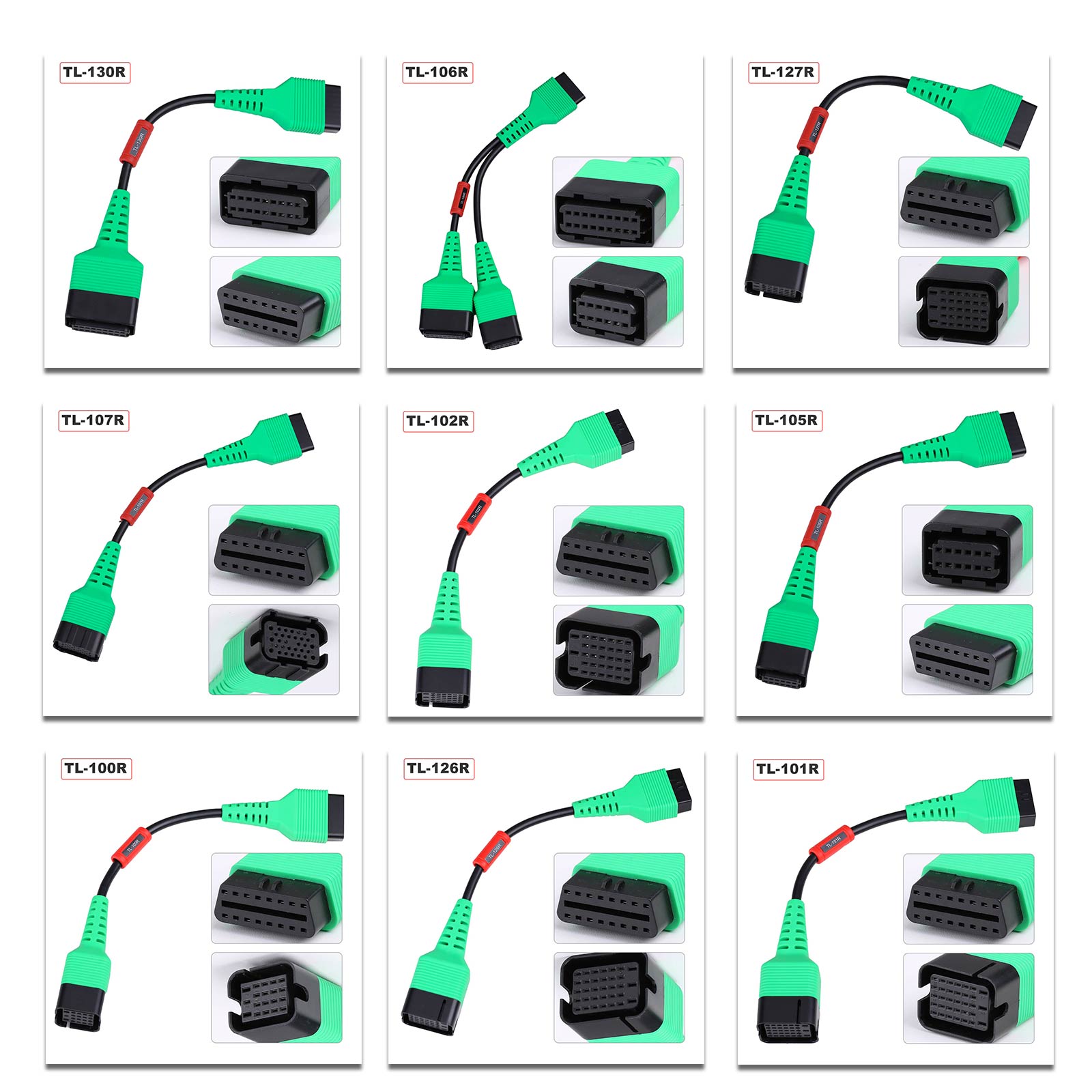

1pc x TL-130R cable
1pc x TL-106R cable
1pc x TL-127R cable
1pc x TL-107R cable
1pc x TL-102R cable
1pc x TL-105R cable
1pc x TL-100R cable
1pc x TL-126R cable
1pc x TL-101R cable

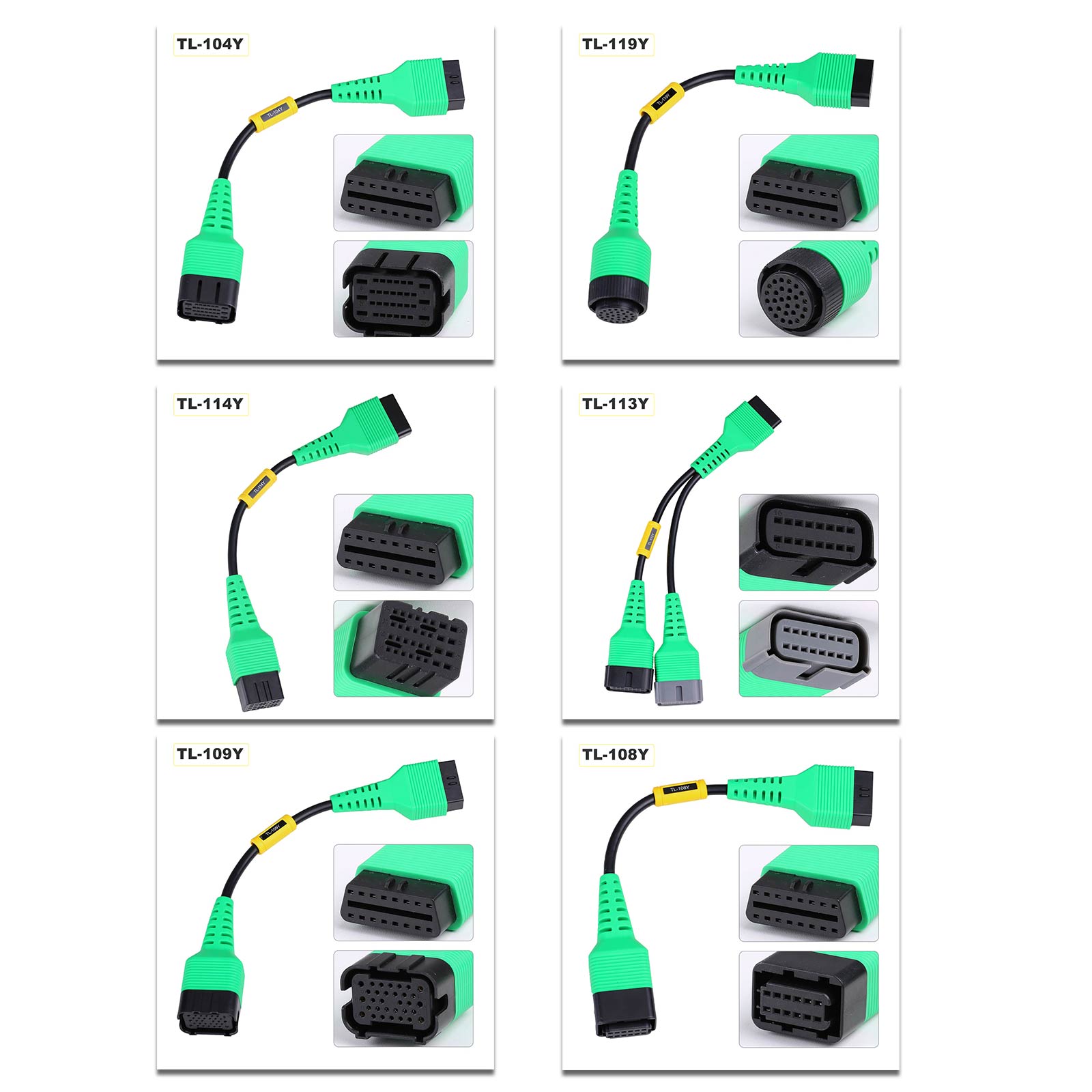

1pc x TL-104Y cable
1pc x TL-119Y cable
1pc x TL-114Y cable
1pc x TL-113Y cable
1pc x TL-109Y cable
1pc x TL-108Y cable

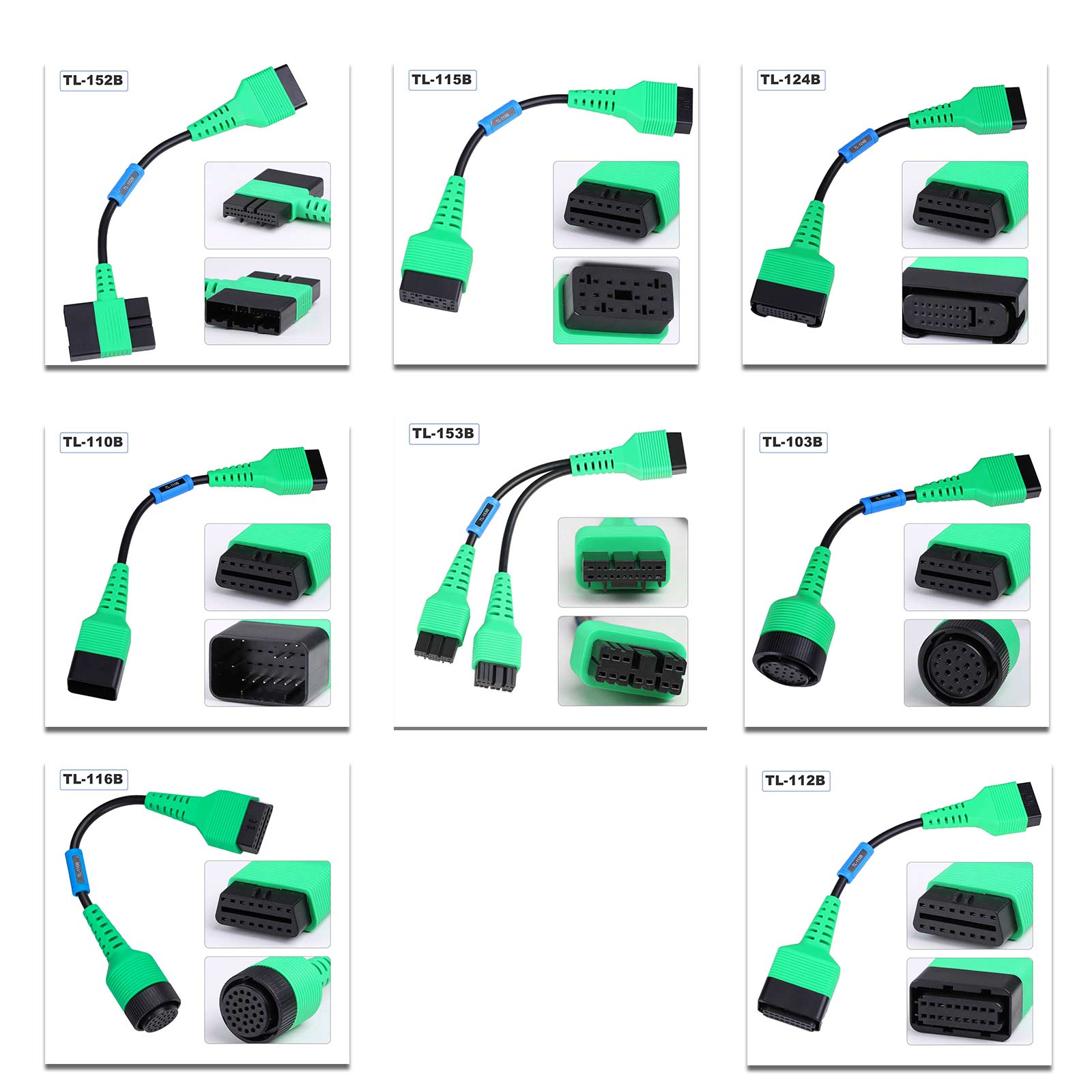

1pc x TL-152B cable
1pc x TL-115B cable
1pc x TL-124B cable
1pc x TL-110B cable
1pc x TL-153B cable
1pc x TL-103B cable
1pc x TL-116B cable
1pc x TL-112B cable
