Automotive Video Inspection Scope ADD2100
Description:

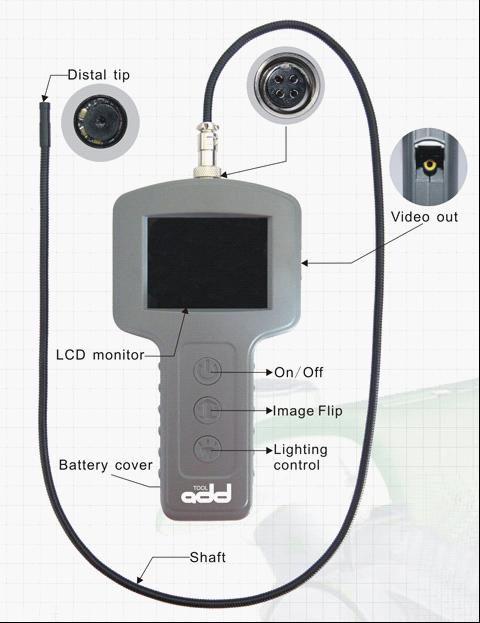

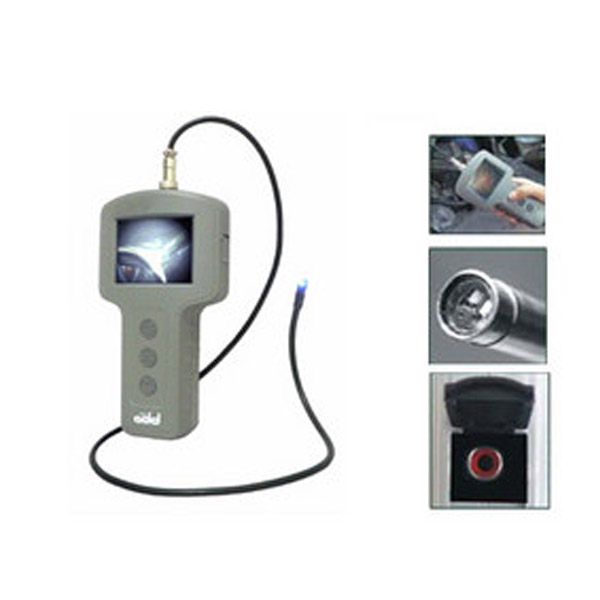

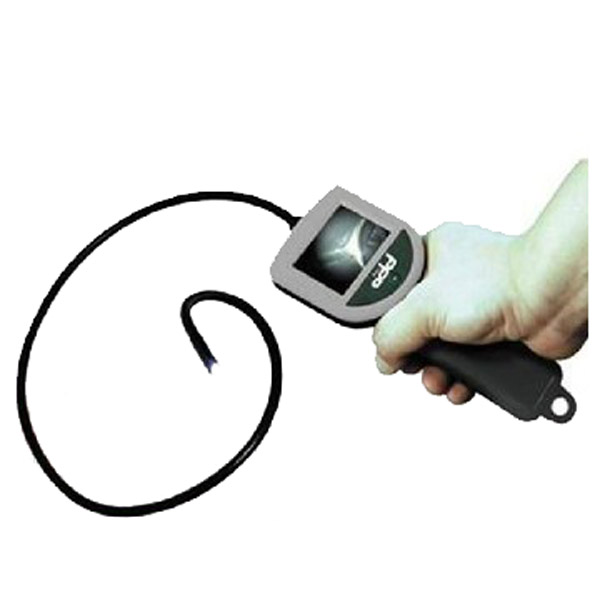

The Video inspection scope is for remote inspection of areas generally inaccessible to the naked eye. It comes with
a distal video camera at the end of a 36" shaft for internal inspection of engines A/C system and any space such as
walls or old tree trunks. Imaging and illumination is provided by a full colour image sensor and dual solid state LEDs
which are controlled by an on/off rocker switch. The 2.5" full colour LCD screen allows you to observe live video from

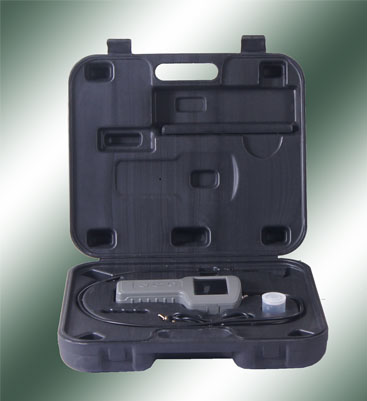

the distal camera. The unit is powered by 4 x AA batteries and comes in a protective case for storage and transportation.
The accessory mirror allows you to see 90 degrees to the axis of the shaft.
Specifications:
Cable length and diameter: 80 x 5.2mm( 6.2mm or 8mm)
Cable type: Obedient
Distal tip diameter: 0.42" max
Diameter with accessories: 0.46" maxi
Viewing angle: 55 °
Viewing distance: 0.4" to infinity
Resolution: 320 x 240 pixels
Viewing monitor: Colour 3" LCD
Video out port: RCA - NTSC signal
Shaft radius: 2.5" minimum
Power: 4 x AA alkaline batteries
Battery life: 4 hours
Storage temperature: -20°C to +70°C
Operating temperature: 0°C to +45°C
Applications:
Package:
