Automotive Sensor Simulator & Tester ADD71

Description

Measure the signals of automotive sensors

•The most complete hand held diagnostic tester for sensors,wiring,connectors
and on-board computers
•DC voltage,lambda,frequency and pulse signals can be measured
•Digital display shows actual output of signals
•Measures any voltage AC or DC,resistance or frequency output

Allows Simulation of most Sensor and computer managemeng omponents
•Simulating temperature sensors,throttle potentiometers,switches,airflow meters and lambda/oxygen sensors
•Features AC voltage output to simulate vehicle speed sensors(vss),CAM,CRANK,and ignition reluctors
•Simulates actual working condition of any sensor without having to remove itfrom the vehicleA.B.S.,Crank,Can,Coolant,Oxygen,MAP,MAF,MAT,VSS,etc

Cheeks basic ECU operation
•Controlling the signals being produced allows you to check ECU response andoperation.This prevents mis-diagnosis where the fault may lie in the ECU itselfor in the wiring between the component and the ECU.Works independently or withany scan tool ever made
Can be used on any domestic or import vehicle
Eliminates unnecessary replacement of non-defective sensors
Can drive computer into"open or closed loop
Size:36cm*29*cm*8.2cm
Weight:2.1kg

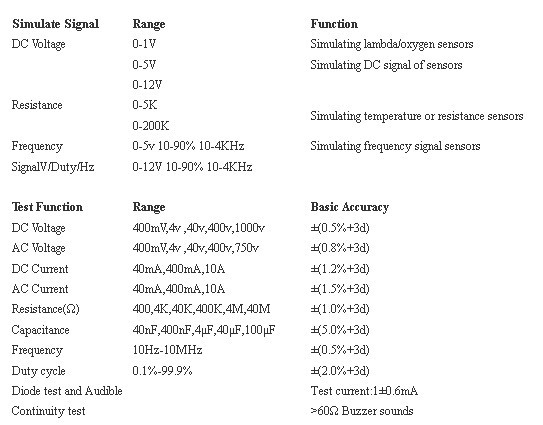

 Specifications:
