> Auto Scanner Tools > Auto Testing Tools > ADD7703 Brake Fluids Quickly Checker
Brake Fluids Quickly Checker ADD7703
Description

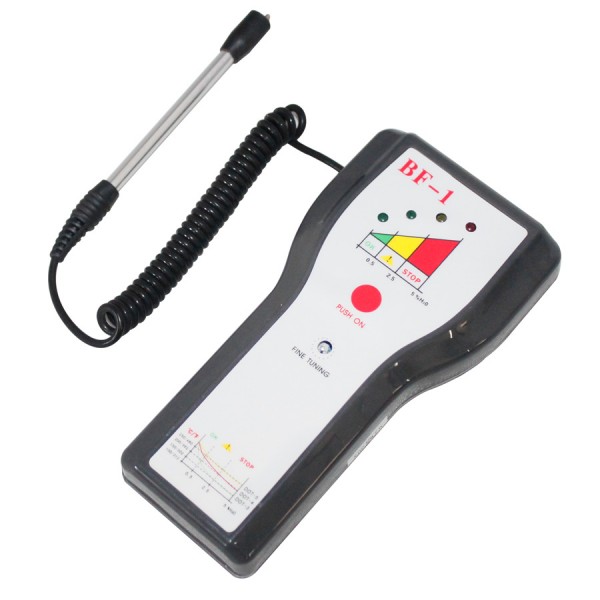

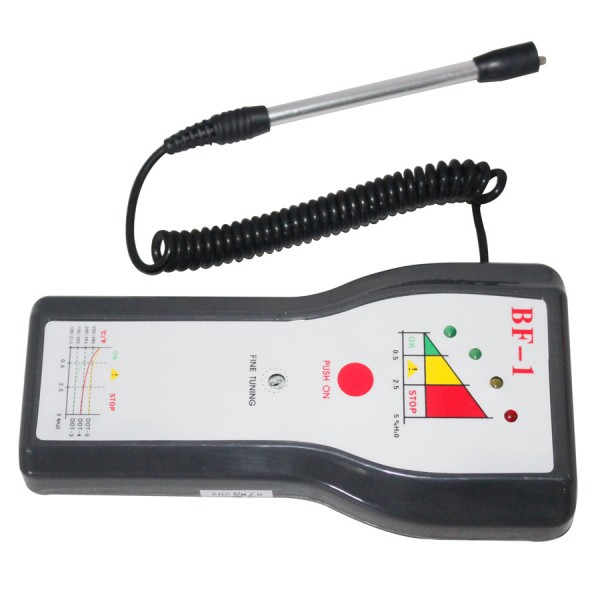

Panel Illustration:
1.Indicator
2.Water content
3.Work button(PUSH ON button)
4.Fine tuning
5. temperature-resisting curve
6. DC input socket
7. Probe
8.Size:21cm*16.5cm*4.6cm
9.Weight:0.5kg
Applications

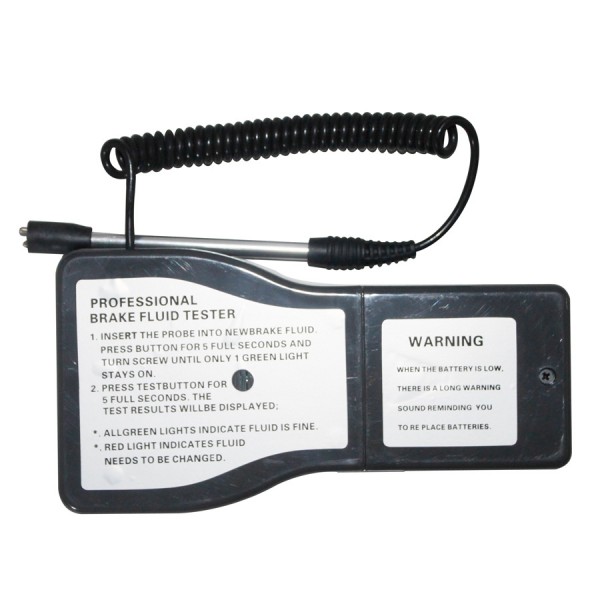

How To Use
1. After cleaning the probe, put it in dry air or immerse it into new brake fluid.
2.Press down the work button for 3-5 seconds continously, and then turn the fine tuning clockwise until the second green indicator lights on, and then turn the fine tuning counter-clockwisely until the green indicator put out. Now it can be used to test brake fluid.
3.Immerse the probe into the brake fluid, and press down the work button for a few seconds, then you can judge the brake fluid state by indicator light.
＊All the green light indicate the brake fluid is fine, the water content is below 0.5%
＊Yellow light indicates the fluid is not so good, the water content is above 0.5%, you can choose to change brake fluid.
＊Red light with buzzer sound indicates the brake fluid is very bad, wate content above 2.5%, the brake force decline seriously, and brake fluid should be changed!
4.Please clean the probe and reset the instrument after testing.
Warning:
The four indicators twinkle simultaneously with buzzer sound, it means the battery power is low, and the battery need to be changed.(voltage:9v). Or powered by the automotive battery(12v) through DC input socket(12v)
