    Best Quality New FGTech Galletto 2-Master V52 with BDM Function

    • Item No.  H116-4
    • History: 93  sold
    • Quantity
      Total
      Shipping:
      Express Shipping Service    Estimated delivery time: 5-7 days »
      Affected by the epidemic, there will be delays in transit time.
      continue
    • Quantity:  289
    • Weight:  800.0gram
    • Rank:  comment rank 5 () Write a Review
    • Member Benefits  Shipping  Return Policy

    Related Products

    Description

    Attribute

    Review

    Technical Support

    Video

    Download & Technical Support

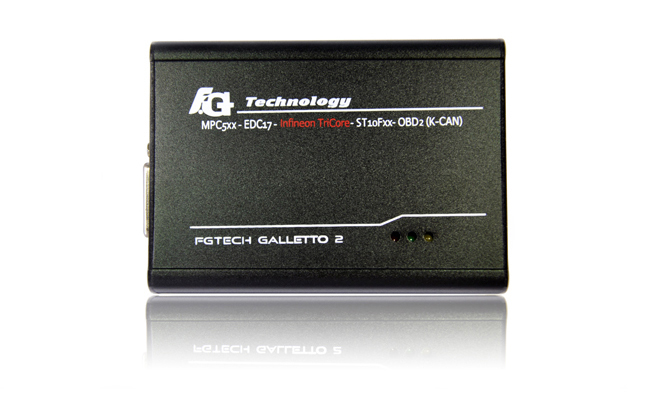

    FGTECH GALLETTO 2  MASTER ( BDM-TriCore-OBD ) with BDM Function


    (MPC5xx - EDC17 - Infineon TriCore - ST10Fxx - OBD2 (K-CAN)
    FGTech Galletto 2-Master this new system developed with high-speed USB2 technology is the fastest and most secure product on the market, it is easy to install and use by anyone. Our system comes furnished complete with all Car, Truck, Motorbyke, Marine, BDM MPCxx , BDM Boot Mode Tricore, checksum.


    Boot Mode System TriCore
    Infineon Tricore Sak TC1766
    Infineon Tricore Sak TC1767
    Infineon Tricore Sak TC1792
    Infineon Tricore Sak TC1796
    Infineon Tricore Sak TC1797

    NEW JTAG - BDM - MOTOROLA - FREESCALE - INFINEON
    Freescale MPC 5553/5554/5565/5566 NEXSUS PORT New IAW MJD 8F2 - Mair 8GMF
    New Delphy DCM3.5xx DCM3.7xx TRW
    Motorola Freescale MPC 555/556/561/562/563/564/565
    Motorola MC 68332 - MC YQQCU - MC 68377 Trionic 5/7/8 GM-OPEL-SAAB
    Motorola MC 68376 Campi 01 Lamborghini - Lotus
    Motorola MC 68336 MEMS D5 ROVER
    Motorola ZC 439615 - ZC 439507 IAW FIAT - VAG
    New Line OBD protocols VPM GM - Hummer-Corvette-Munstang-Blazer-Cadilac
    New Line OBD protocols Tx-Rx - Subaru - Mitsubischi - Hitachi - Denso ecu
    All EDC17 MED17 is good always modify with Boot Mode tricore.

    Automatic Checksum
    All old protocols included from Bosch MExx / EDCxx / Marelli / Siemens / Delpy / Lucas / Denso
    Boot Mode C167x / ST10, Boot Mode Infineon Tricore With password Bosch , Siemens
    Motorola MC68332 - MCYQQCU - MC68377 , MC68376 , MC68336, ZC439615 ,ZC439507
    Motorola Freescale MPC 555/556/561/562/563/564/565
    Freescale MPC 5553/5554/5565/5566
    BDM Tricore.


    5-30V Car / Industrial Vehicles, L line / K line KWP, CAN

    Can Bus V2.0 50Kb > 1000Kb
    J1850 VPW PWM GM -FORD
    Rx Tx RS232,
    RS 485,
    Automatic setup Pull up K-L line 250, 500, 1000 ohm,
    Automatic setup termination Can bus 0, 60,120 ohm,

    Master Version
    Recovery Mode Completa
    Funzione scan tool per eliminare i DTC
    Function scan tool for erase the DTC
    Controllo tensione di batteria auto in tempo reale
    Check tension of battery car in real time

    The interface works with this Operating System:
    Windows 2000
    Windows XP - 32 bit / 64 bit
    Windows Vista 32 bit / 64 bit
    Windows 7-  32 bit / 64 bit
    Software: 2012 version
    Software Language: Italiano, English, Deutsch, Francais, Espanol, Portugues, Czech, Turkish

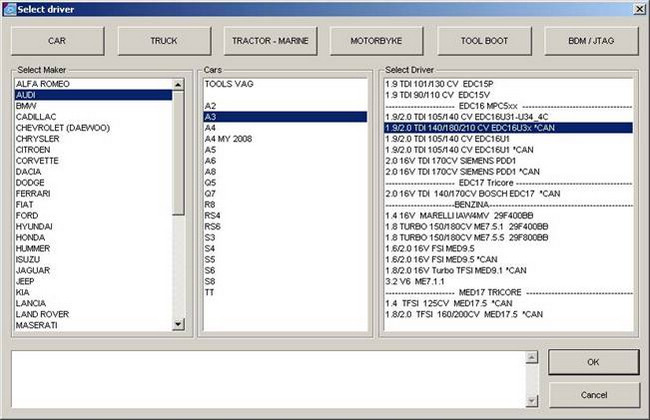

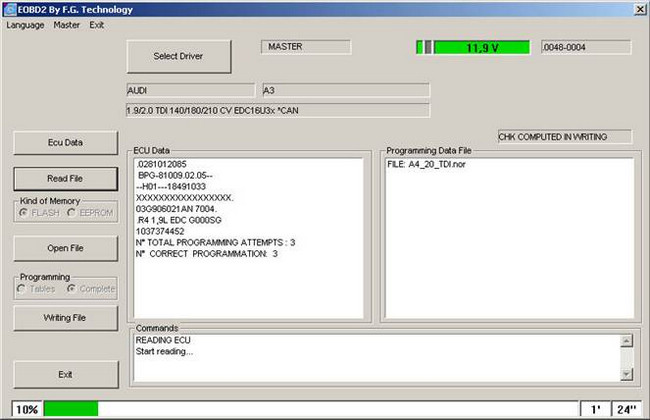

    Screen Shot:

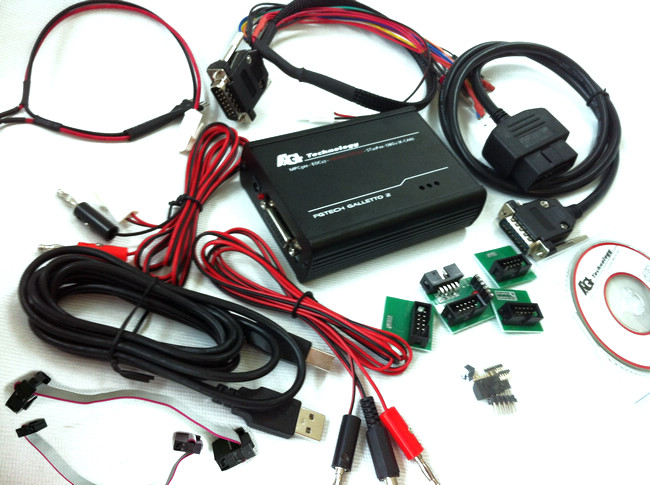

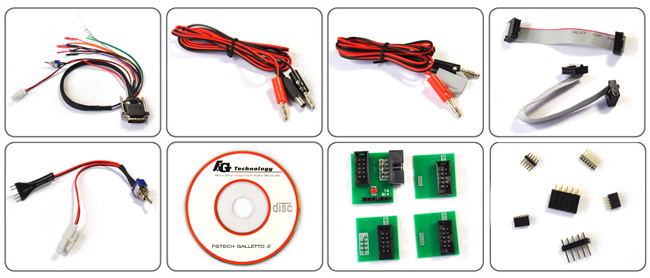

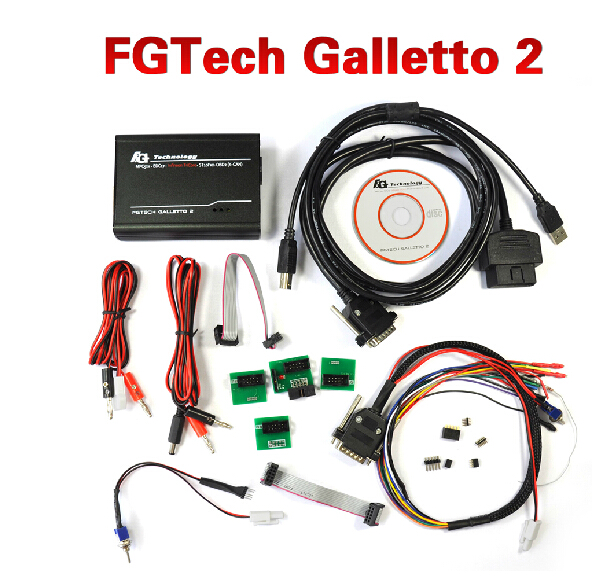

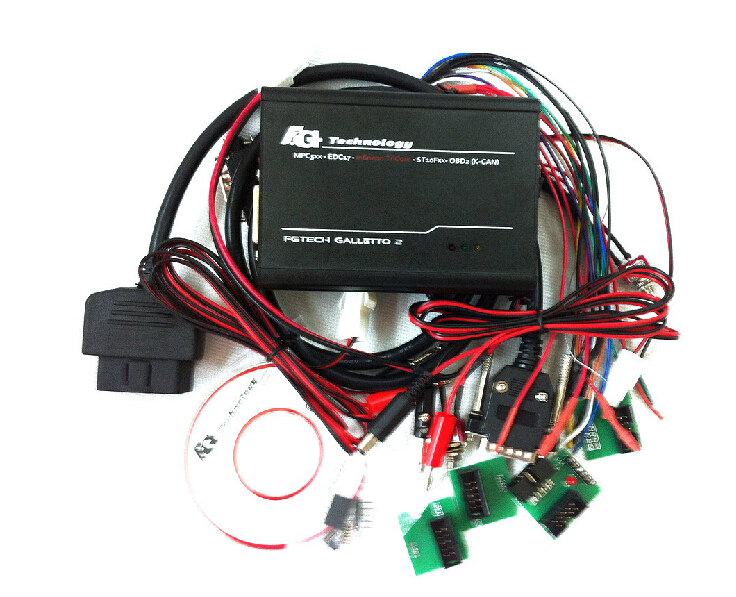

    Packing:

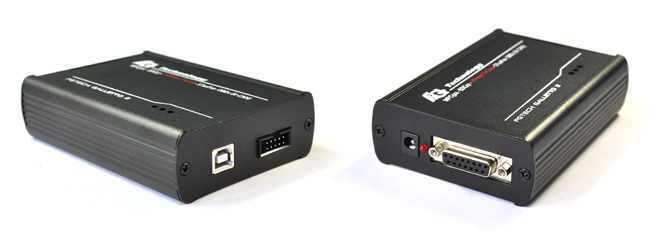

    * New version main interface
    * ECU cable for TriCore boot
    * Adapter for BDM to CMD with bdm cables
    * BDM adapters  (3 pcs )
    * BDM connectors ( 6 pcs )
    * Power cable ( 2 pcs )

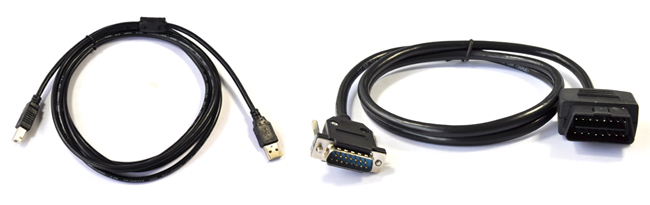

    * OBD2 cable
    * USB cable (1.5meter)
    * CD (2012 version SW -MASTER, documents pdf, pictures, etc.)
