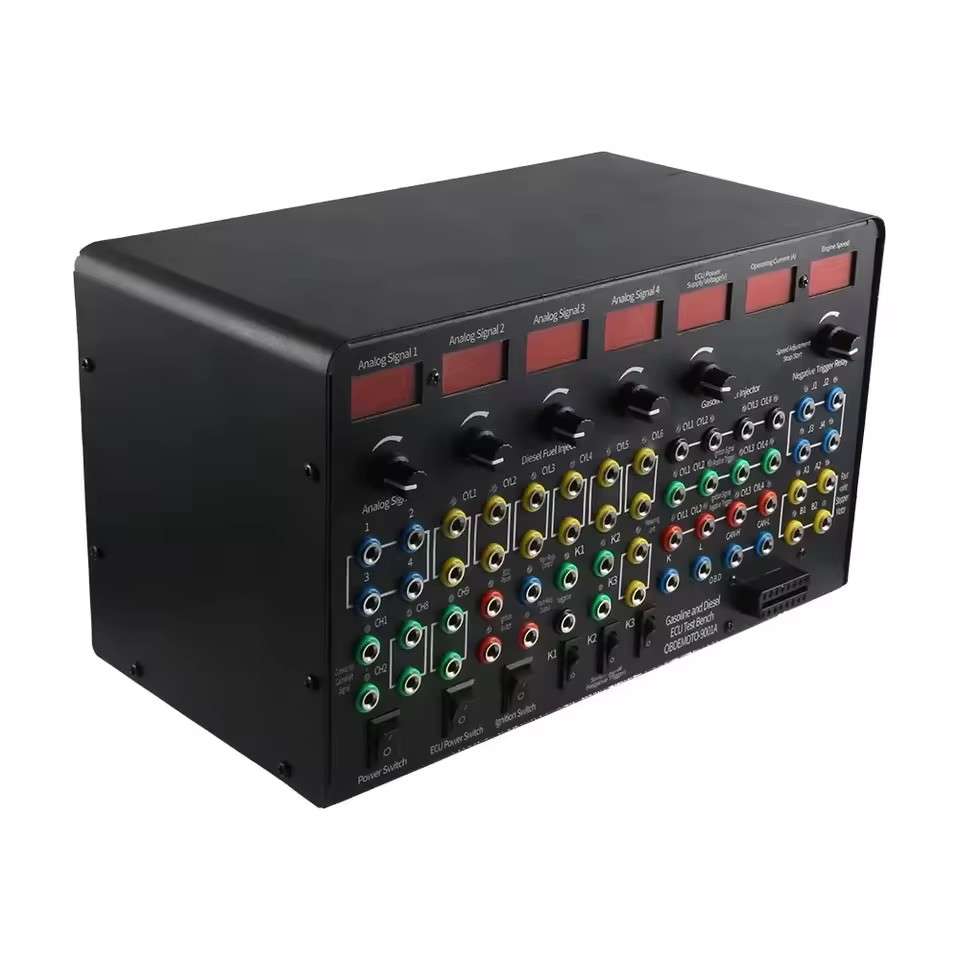

Master MST-9001A Diesel and Gasoline Engine ECU Test Bench Car Sensor Signal Simulator

1.Provide the crankshaft signal simulation of the whole vehicle series (Hall type, magnetoelectric type), six channels can set arbitrary waveform output, can produce the crankshaft and camshaft signals of all models.   The waveform data is stored by the computer for a long time.
2.Support OBD diagnostic port, equipped with professional diagnostic software
3.The magnetoelectric crankshaft signals are all isolated by the transformer to ensure that there is no mutual interference between the signals.   Fuel injector, ignition coil, ignition module, stepper motor drive (four wires).
4.Actuator simulation expert of all vehicle series: ignition coil, injector, idle stepper motor and other actuator simulation.

With simple and concise appearance, reasonable design and easy-to-upgrade software, the Diesel PHS computer test bench is the right-hand to electronic fuel system teaching and training, decoder demonstration, testing and maintaining computer board.

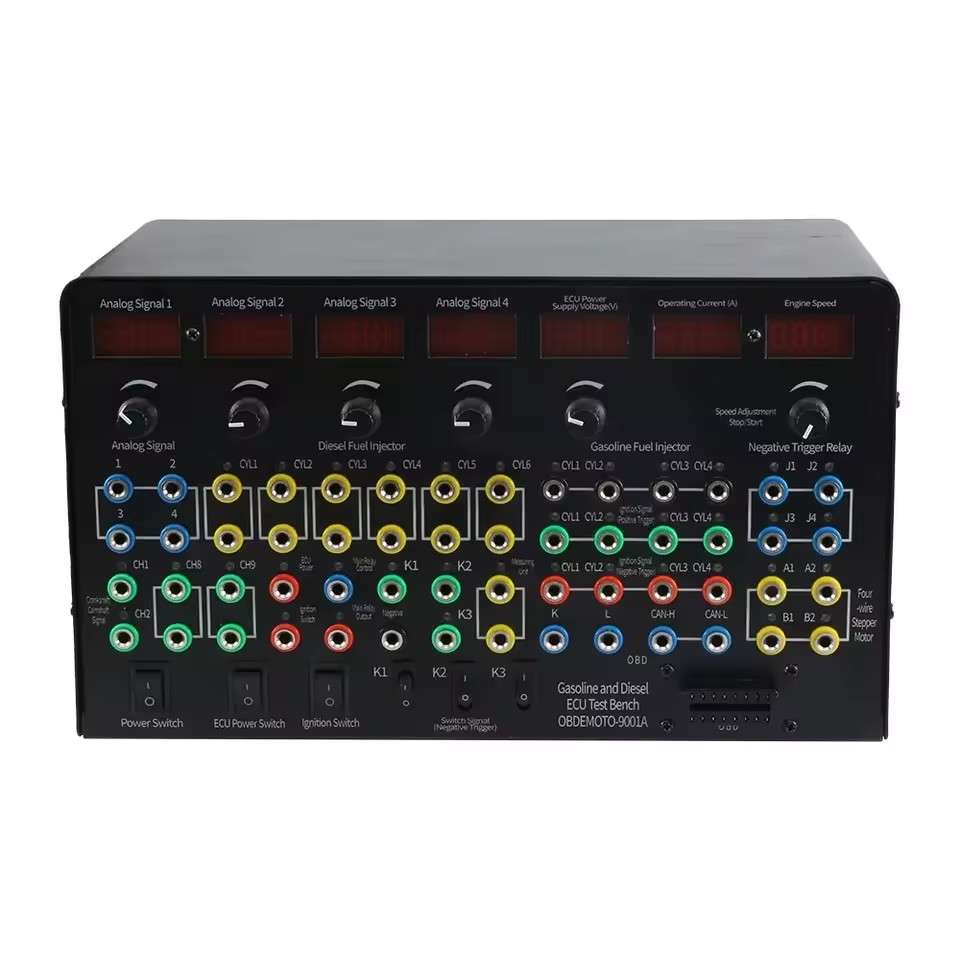

MST-9001A Diesel & Gasoline Engine ECU Test Bench Parameters:
1. Equipped with 4 analog signals with digital voltmeter to precisely display the voltage of analog signals
2. Equipped with 4 waveform output channels through which you can edit crankshaft and camshaft signals of various auto models.  It is Convenient and accurate
3. Accurately simulate the working condition of diesel injector
4. Equipped with 3 analog switches, you can set the of high-low level output as you please.
5. For the convenience of use, the new model can be stored at computer as the form of terminal data and waveform edited by computer.  When needed, you can download the data and waveform to the test bed

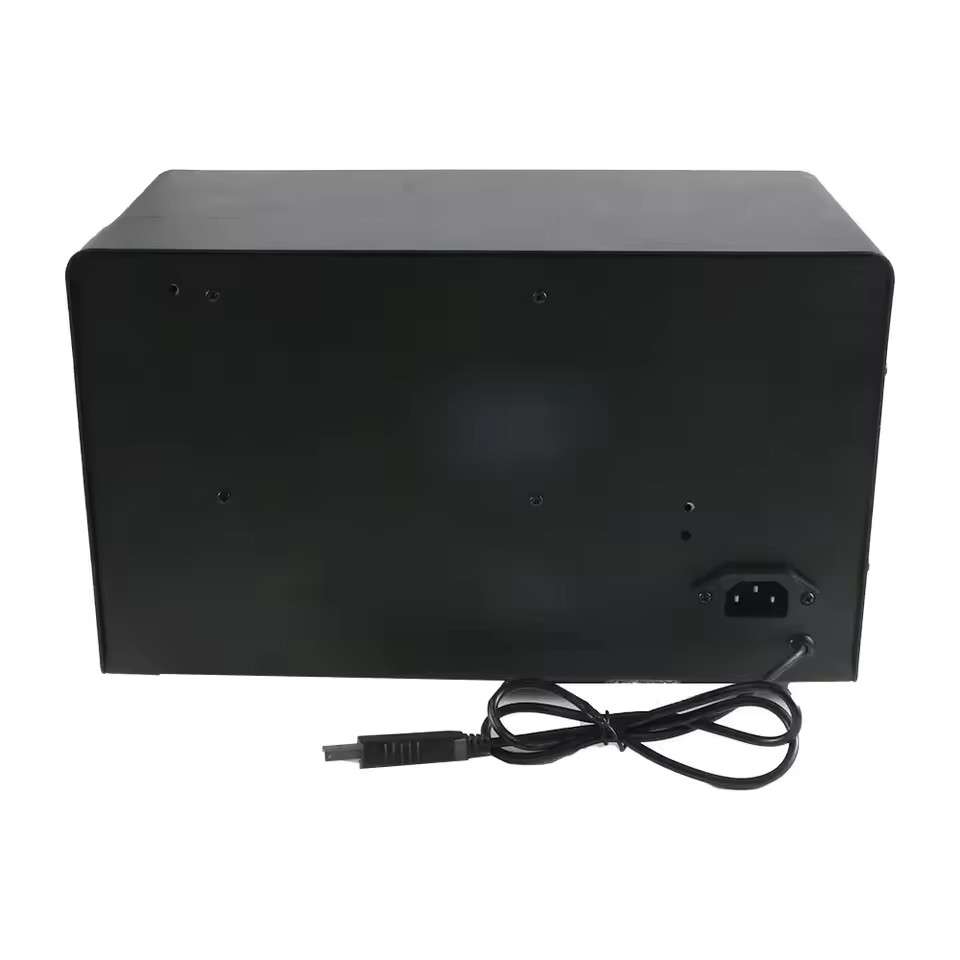

6. The machine adopts high-powered switching power supply with the function of short-circuit protection.
7. For the convenience of users to do computer diagnosis, it adopts the  computer diagnosis propriety plug to test computer board.

Fuel injector
Analog signal
Switch signal
Actuator signal
The signal of the crankshaft
diagnostic interface

Usage of Software:
1. Put the "diesel PHS" folder in the C disk director
2. Open the software and find out "the USB driver files"
3. Double-click the "CH341SER drive"
4. Click"INSTALL"
Automatic installation interface
Driver installed
5. Send "diesel PHS" to the desktop thus create a shortcut
6. Software interface
7. Check the instrument port number in the device manager.
8. If the port number is greater than the COM9, please click the right mouse button and select properties
9. Select advanced in the port Settings
10. Set the port within COM9
11. Select a serial port Setting to do port Settings

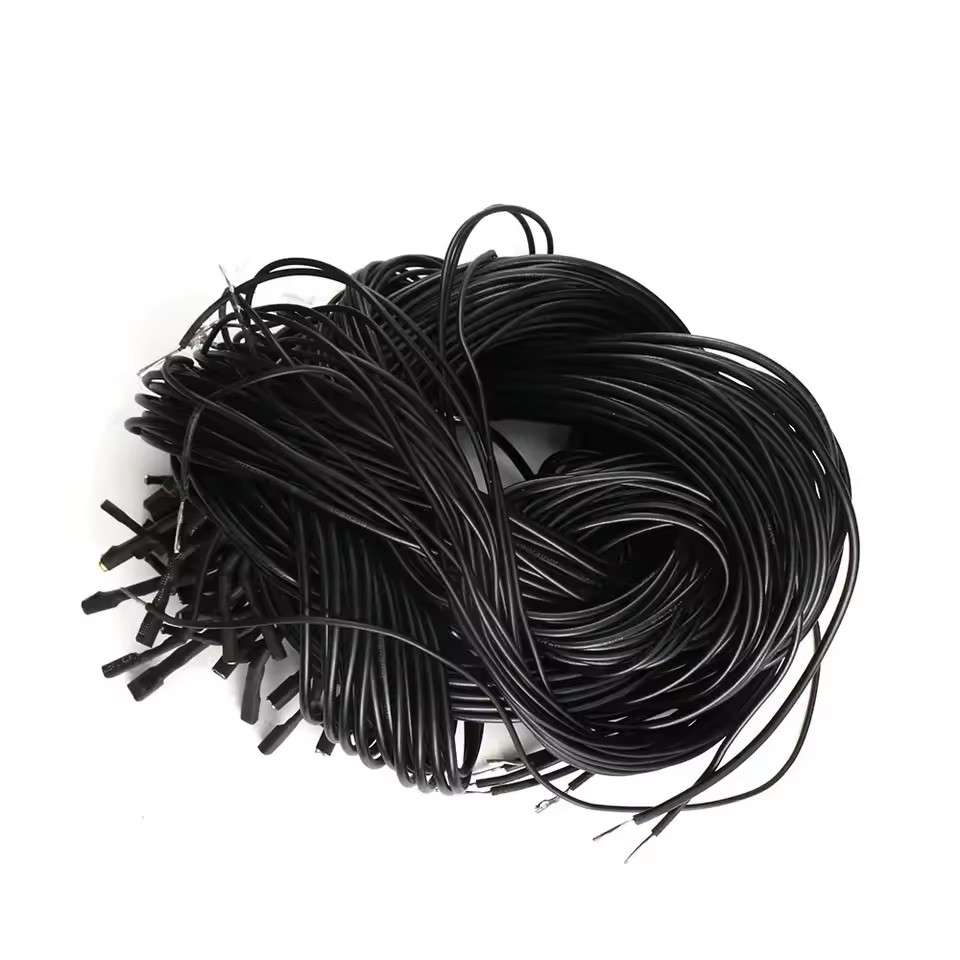

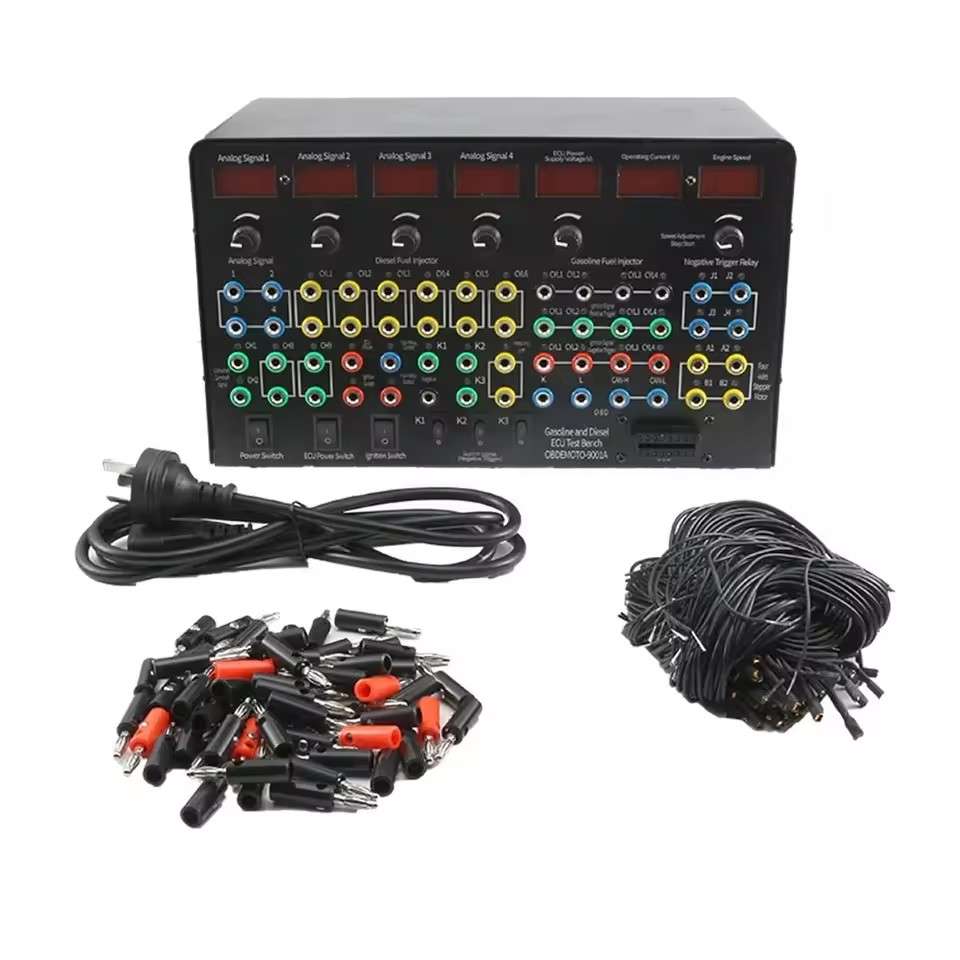

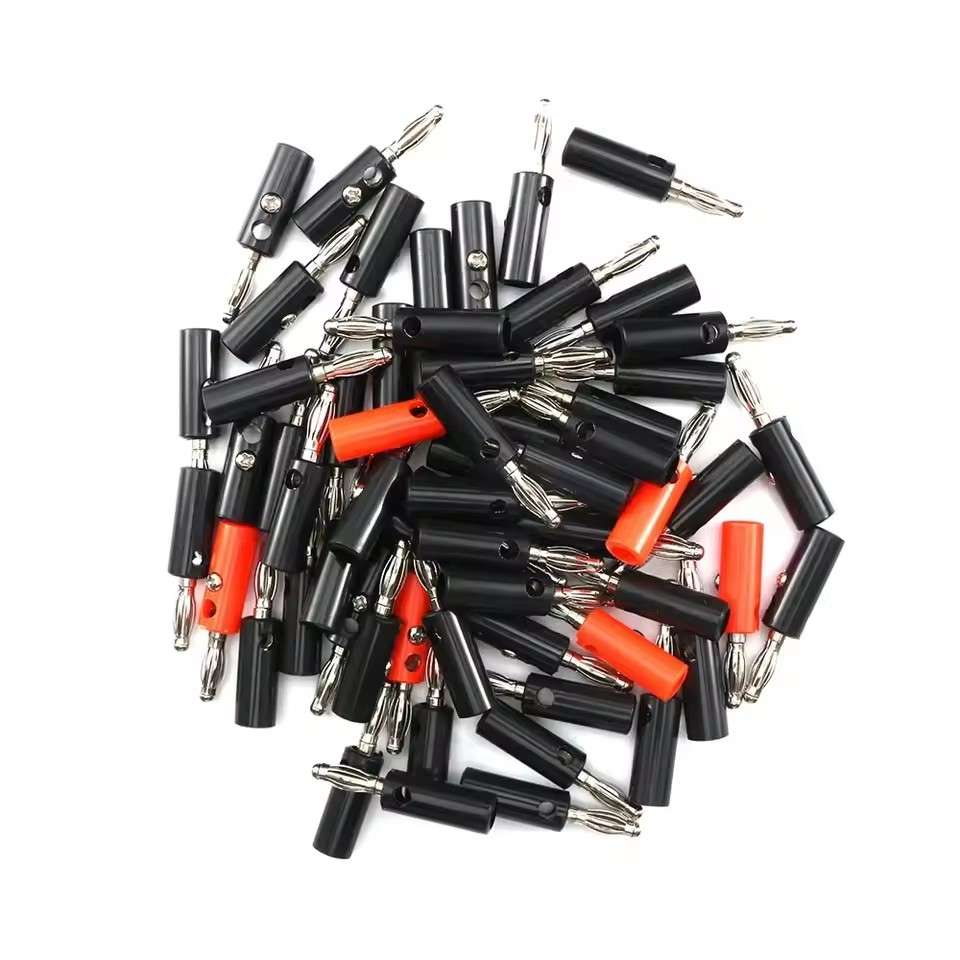

Packing list:
1set x MST-9001A Diesel & Gasoline Engine ECU Test Bench
