YD409 TPMS Sensor Trigger Tool for Activate and Decode TPMS Sensor

Item No. S136
History: 2 sold
Quantity:
Total:

Shipping:

Express Shipping Service Estimated delivery time: 5-7 days »
Affected by the epidemic, there will be delays in transit time.

Quantity: 300
Weight: 1.5KG
Rank: () Write a Review
Rated 5/5 based on 1 customer reviews

Member Benefits Shipping Return Policy

Description

Attribute

Review

Technical Support

Video

Download & Technical Support

yd409-user-manual.pdf

YD409-Car-List-V_TPMS_V5.0_20141125_EN.pdf

YD409 TPMS Sensor Trigger Tool

YD409 TPMS Sensor Trigger Tool Features:

1) Triggers all currently known TPMS sensors, activates ALL magnetic, frequency and tire deflation triggered sensors on all vehicles sold worldwide. Including 2014 Models on selected vehicles

* Make-Model-Year selection ensures correct activation and avoids crosstalk.

* Receives both 315MHz and 433MHz signals.

* Reads sensor ID, tire pressure , temperature, battery condition, OE part number, relearn information. Prints health report through computer.

* Provides visual and audible responses to confirm sensors are working properly. Warns of a wrong sensor installed, missing or faulty sensor, duplicate ID, and incorrect sensor mode.

2) Checks RF Remote Keyless Entry (key FOB)

* Provide navigation and step-by-step instruction on the screen, Even the newest recruited technician can use the YD409.

* Built-in rechargeable Li-polymer battery. Automatic power-off. Two options to charge the tool, wall plug or by connecting to the compute.

* Proper LF signal to prevent being fooled by other RF signals.

* Saves up to 10 TPMS records for future data review.

3) Support multi- language--- English, French, Spanish and more

4) 1 year free online update

YD409 TPMS Sensor Trigger Tool Specification:

Display: Backlit, 128*64 pixel display with contrast adjustment  

Operating Temperature: 0 to 60°C (32 to 140°F) 

Storage Temperature: -20 to 70°C (-4 to 158°F) 

Power: 3.7V Li-polymer battery  

Radio reception: 315 MHz and 433.92 MHz

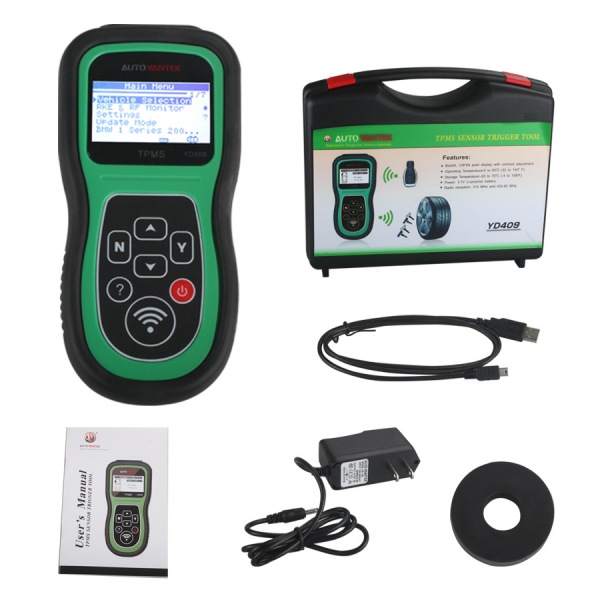

Packing list:

1pc x YD409 TPMS Trigger Tool

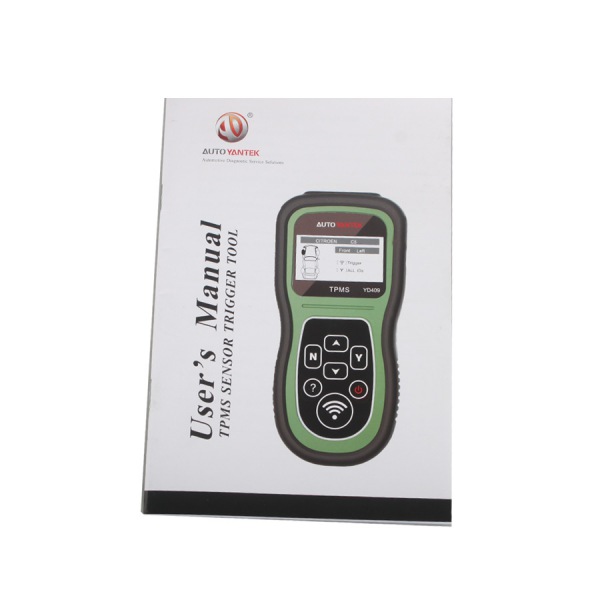

1pc x User’s guide

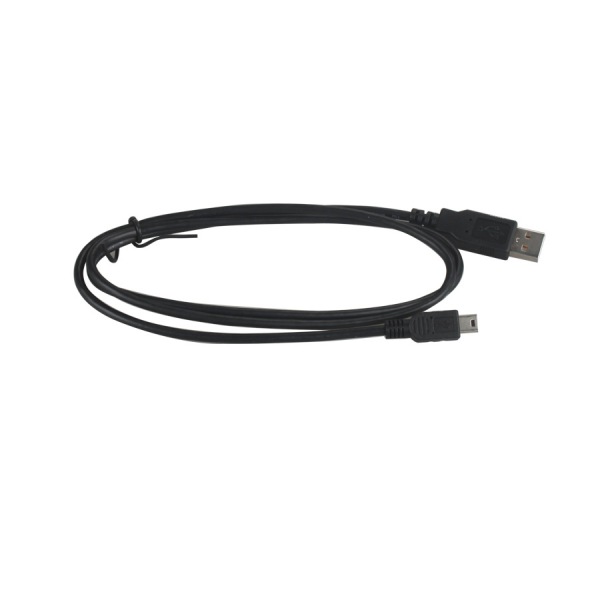

1pc x USB cable

1pc x Software CD

1pc x Magnet

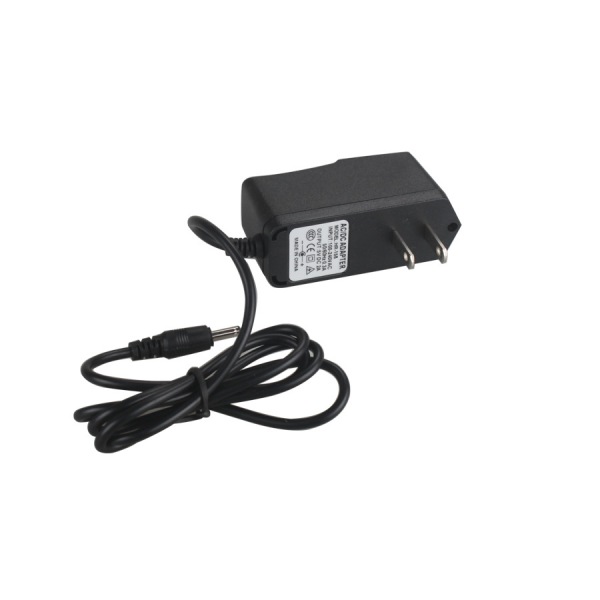

1pc x Battery Charger

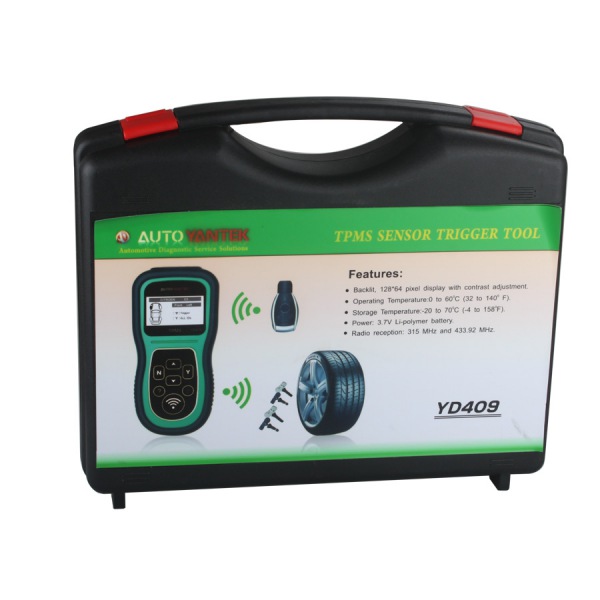

1pc x Blow molding case
