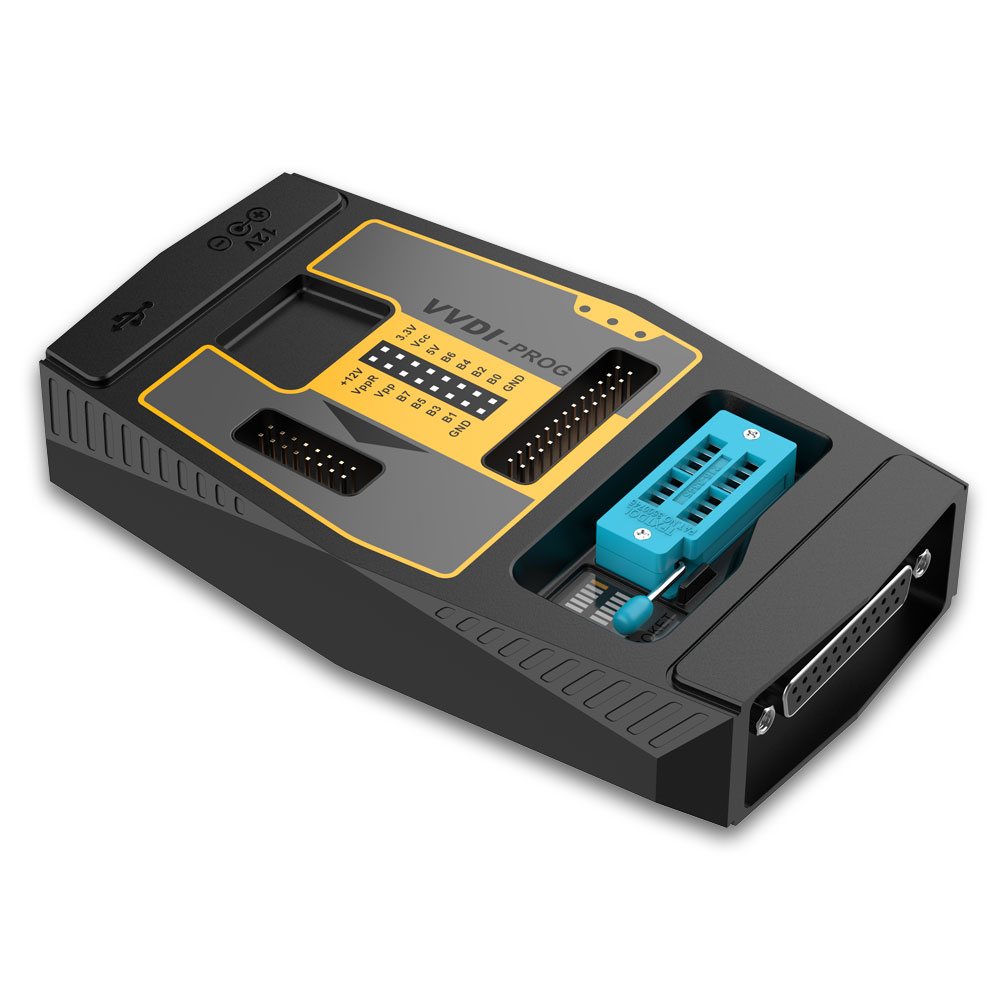

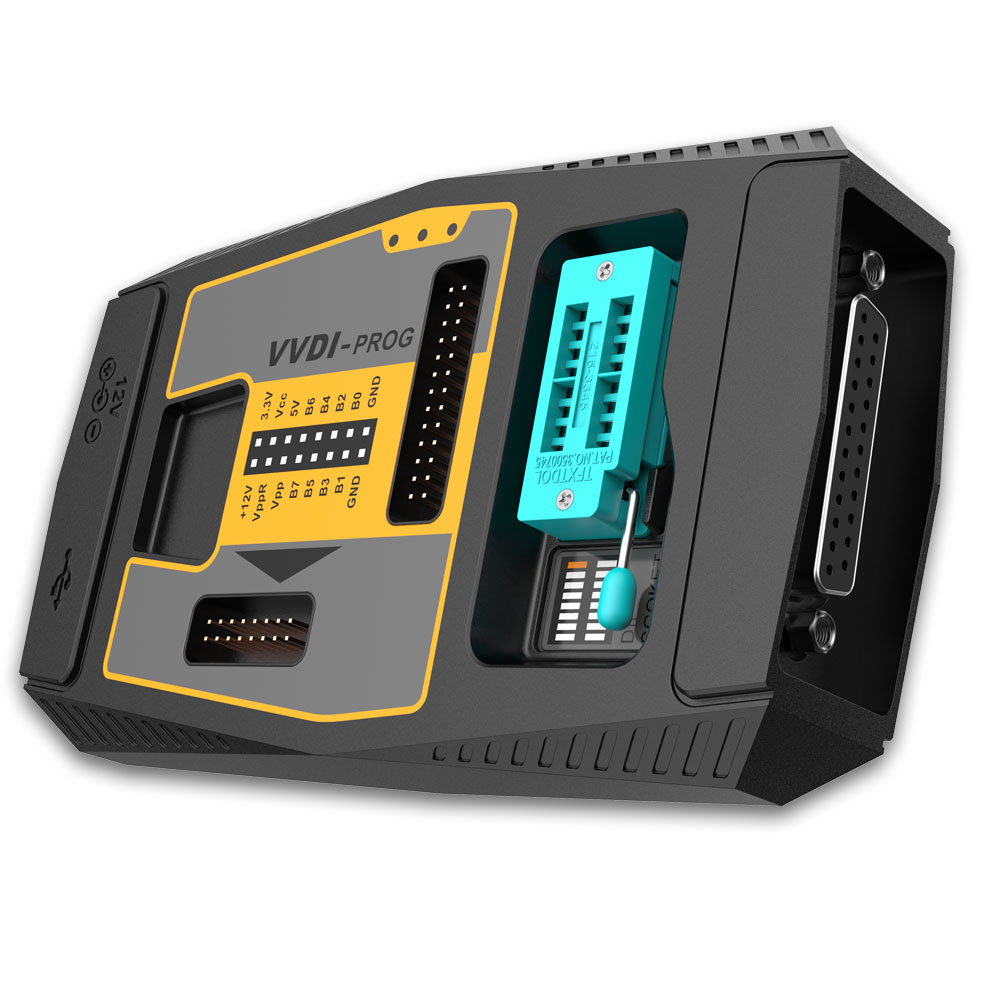

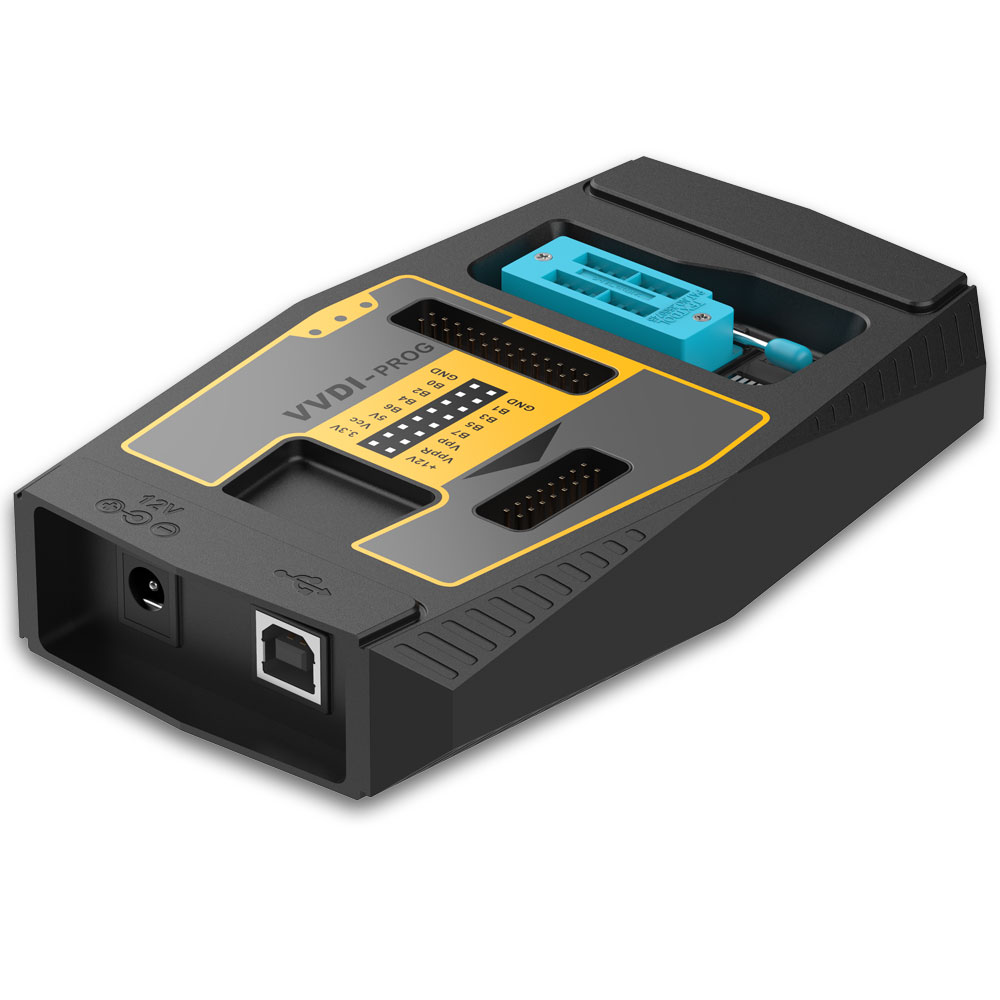

    Original Xhorse VVDI PROG Programmer V4.8.9

    • Item No.  T245
    • History: 60  sold
    • Please choose the configuration you need:




    • Quantity
      Total
      Shipping:
      Free Shipping
      continue
    • Quantity:  298
    • Weight:  1.5KG
    • Rank:  comment rank 5 () Write a Review
    • This goods is Free shipping!
    • Member Benefits  Shipping  Return Policy

    Related Products

    Description

    Attribute

    Review

    Technical Support

    Video

    Download & Technical Support

    V5.29 Original Xhorse VVDI PROG Programmer


    VVDI Prog Highlights:
    1. Support R&W lots of chips, include MC9S08 series, MC68HC(9)12 series,MC9S12 series, V850 series, H8X series, R8C series, PCF79XX series and most eeprom chips
    2. Support chip data verify, check blank function
    3. Support data file compare function
    4. Support R&W BMW N20, N55 ECU (show ISN directly)
    5. Stable R&W MC9S12XE series chips (5M48H/1N35H/2M53J/3M25J etc.)
    6. Support renew PCF79XX remote, currently support BMW E/F series
    7. Lots of connection diagram
    8. VVDI Prog Read BMW ISN. Read ECU data and show the ISN automatically
    9. Multi-language: English, Arabic, Czech, French, Italian, Polish, Portuguese, Russian, Spanish, Turkish & Chinese Simplified
    10. Buy VVDI-Prog programmer, get free BMW ISN read function and NEC, MPC, Infineon etc chip continously update service.


    Notice:
    1. Do Not click firmware upgrade in VVDI Prog software, or it will give communication server error. The firmware is fixed at 2.0 version, no need to update.
    2. Please do wiring 100% same like the connection diagram in VVDI Prog software, DO NOT lengthen the connection lines with other parts. Or will fail to read.
    3. Voltage require: 12V/3-5A

    VVDI Prog Features:
    1. Built-in update software: Make VVDI Prog update timely.
    2. High-speed USB communication interface: Make software automatically connect.
    3. Smart operation mode: possible causes of error will be listed
    4. Reserve ports: For future update.
    5. Self-test function: Check if the machine works well or not.
    6. Power supply: Through USB cable, software will automatically prompt if the external USB power supply is needed



    Xhorse VVDI Programmer Information Contents:

    VVDI Prog Latest Update Information:
    VVDI Prog V5.2.9 (2023-07-04)
    VVDI Prog V5.2.9 Software Free Download Password:123456
    * This version DON't need update firmware
    * Modify GL8 BCM(2017--)-READ,
    GL8 BCM(2017--)-WRITE,
    options in
    ->:
    Optimize the process
    * Modify HOWO A7,
    HOWO SITRAK 2083,
    HOWO T5,
    HOWO T5H,
    HOWO T7H,
    HOWO TX,
    Sino Trunk2083,
    SITRAK 6011,
    SITRAK 6021,
    SITRAK C5H SQUARE REMOTE,
    SITRAK C7H,
    SITRAK C7H B5,
    SITRAK RHOMBUS REMOTE,
    SITRAK T7H
    options in
    ->:
    Optimize the process
    + Add XINGMA 315
    option in
    ->
    + Add QILIN VH
    option in
    ->
    + Add SITRAK C7H 540
    option in
    ->

    VVDI Prog V5.2.8 (2023-05-31)
    This version DON't need update firmware
    Modify MQB-LOCK(D70F35xx)-WRITE, VW-4th-NEC35XX-WRITE, options in->:
    Optimize the process
    + Add GL8 BCM(2017--)-READ,
    GL8 BCM(2017--)-WRITE
    options in
    ->
    + Add Rover 2017 BCM(MPC5746G),
    Rover 2017 BCM(MPC5748G)
    options in
    ->
    + Add SPECIAL CV(R5F2138A)(2018)
    option in
    ->
    + Add EXCELLE SRS(XC2336A-72)(2015)
    option in->
    + Add BENZ W207 REAR MODULE
    option in
    ->
    + Add ROVER-SHIFT-GEAR-MODULE,
    RANGE-ROVER-SEAT-MODULE2
    options in
    ->
    + Add ROEWE-I6-ESL(SPC5602D)(2018)
    option in
    ->
    + Add BLADE KEY(2018-2021),
    SMART KEY MOUDLE(2018-2021)
    options in
    ->
    + Add Creta/Alcazar SMART KEY MOUDLE,
    I10/I20 SMART KEY MOUDLE
    options in
    ->

    VVDI Prog V5.2.7 (2023-04-18)
    This version DON't need update firmware
    Add MB91F53BC option in->
    Add XC2361E-136 option in->
    Add SPC5602D option in->
    Add MQB-LOCK(D70F35xx)-READ, MQB-LOCK(D70F35xx)-WRITE, VW-4th-NEC35XX-READ, VW-4th-NEC35XX-WRITE, options in 5-DASHBOARD>->

    VVDI PROG V5.2.6
    This version don't need update firmware
    1. The software added the function of saving read data to temporary file if read data fails.
    2. Modify MQB-LOCK(D70F35xx)
    option in->:
    Optimize the process and Wiring diagram update.

    VVDI Prog v5.2.4 (2023-02-01)
    * This version DON't need update firmware
    + Add YingJie 500 315, ZhuHong 500 315 options in->
    + Add ROEWE EPS(D70F3506) option in->
    + Add Telsa battery(MM9Z1J638) option in->
    + Add HOWO A7, HOWO SITRAK 2083, HOWO T5, HOWO T5H,
    HOWO T7H, HOWO TX, Sino Trunk2083, SITRAK 6011,
    SITRAK 6021, SITRAK C5H SQUARE REMOTE, SITRAK C7H, SITRAK C7H B5,
    SITRAK RHOMBUS REMOTE, SITRAK T7H options in->

    VVDI Prog V5.2.2 (2022-11-28)
    * This version DON't need update firmware
    + Add R5F212K2,
    R5F212K4,
    R5F21344,
    R5F21345,
    R5F21346,
    R5F21364,
    R5F21365,
    R5F21366,
    R5F21367,
    R5F21368,
    R5F2136A,
    R5F2136C,
    options in
    ->

    VVDI Prog V5.2.1 (2022-10-31)
    * This version DON't need update
    firmware
    * Modify M95080
    option in <1-EEPROM&FLASH>->
    * Modify CAMRY AC COMPUTER
    option in->
    + Add MB90F952
    option in
    ->
    + Add D78F0441,
    D78F0442,
    D78F0443,
    D78F0444,
    D78F0445,
    D78F0451,
    D78F0452,
    D78F0453,
    D78F0454,
    D78F0455,
    D78F0461,
    D78F0462,
    D78F0463,
    D78F0464,
    D78F0465,
    D78F0471,
    D78F0472,
    D78F0473,
    D78F0474,
    D78F0475,
    D78F0481,
    D78F0482,
    D78F0483,
    D78F0484,
    D78F0485,
    D78F0491,
    D78F0492,
    D78F0493,
    D78F0494,
    D78F0495
    options in
    ->
    + Add 39106-26810(ST10F275)
    option in->
    + Add FORTHING T5
    option in
    ->
    + Add ACCORD AIRBAG(SPC560P50L3)
    option in->
    + Add ACCORD EPS(2022)
    option in->
    + Add SONY1 BLUETOOTH
    option in->

    VVDI Prog Programmer Supported Type List:
    EEPROM&Flash:
    ADESTO, AKM, ALTERA, AMD, ATMEL, CATALYST, EON, EXEL, FAIRCHILD, FUJITSU, INTEL, MICROCHIP, MXIC, RAMTRON, ROHM, SEIKO, TOSHIBA, WINBOND, ⅪCoR, YMC.etc

    MCU:
    RENESAS V850, RENESAS H8X, RENESAS R8C, MOTOROLA MC68HC(9)08, MOTOROLA MC68HC(9)12, MOTOROLA MC9S08, MOTOROLA MC9S12, NXP PCF79XX, ST ST10F, INFINEON XC2XXX, ATMEL, ATMEGA XXXX, INFINEON XC164CS, MICROCHIP PIC18F

    Support Model List:
    ECU List:
    For BENZ, BMW E Series, BMW F Series, BOMBARDIER, BOSH, CHANGAN, DELPHI, MAGNETI, MARELLI, RENAULT
    For Ford, Hyundai, KIA, PEUGEOT,SIEMENS, for VOLKSWAGEN, OTHER

    IMMOBILIZER List:
    For AUDI, BACIMOTOR, BENZ, BMW, BUCIK, CHANGAN, CHEVROLET, FAW, CHRYSLER, FIAT, FORD, GEELY, GREATWALL, HYUNDAI, INFINITI, LANDROVER, JAGUAR, NISSAN, OPEL, PORSCHE, RENAULT, SAICMOTOR, SSANGYONG, STEC, TUNGTHIH, VOLKSWAGEN, VOLVO, YEMA, ZHONGHUA, ZOYTE .

    DASHBOARD List:
    For BACIMOTOR, BORGWARD, BUICK, CHANGAN, CHERY, CHEVROLET, DAYUN, DONGFENG, FAW, FORD, GEELY, FOTON, GACMOTOR, GEELY GREATWALL, HAFEI, TOYOTA, HANTENG, HAIMA, HONDA, JAC, JAGUAR, JINBEI, JMC, LUXGEN, NISSAN, SGMW, SUZUKI, TOYOTA, VOLOVO, ZHONGHUA, ZOTYE

    REMOTE List:
    For BMW E Series, BMW F Series

    AIRBAG List:
    For BENZ, BOSH, BUICK, CHANGAN, Chery, CHEVROLET, Citroen, FAW, Fiat, Ford, GEELY, GM, Halma, HAWTAI, HONDA, Hyundai, JMC, Land Rover, LUXGEN, LYNKCO, Opel, OTHERS, PEUGEOT, Renault, SAICMOTOR, Suzuki, TOYOTA, VOLKSWAGEN, VOLVO, ZOOT

    BOSH-ECU-ADATPER List:
    For ABARTH, Alfa Romeo, ASTON-MARTIN, AUDI, BENZ, BMW, BUGATTT-VEYRON, CHRYSLER, Citroen, DACIA-LOGAN, Fiat, Ford, GM, HONDA, Hyundai, Infinity, Isuzu, Jaguar, JEEP, KIA, Landrover, MASERATI, ACLAREN, PEUGEOT, SKODA, Suzuki, TOYOTA, VOLKSWAGEN, VOLVO

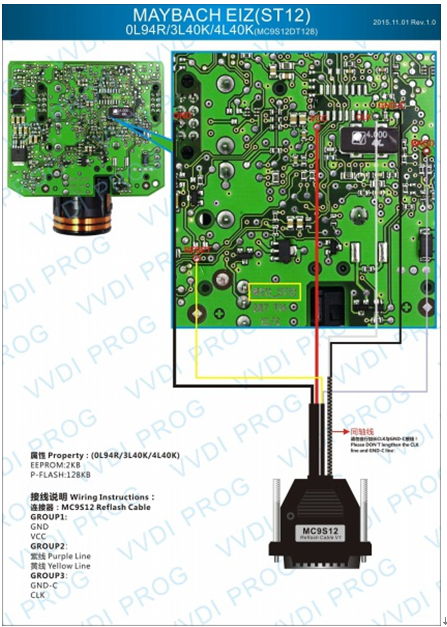

    VVDI PROG Connection for Maybach:


    VVDI Prog Connection for Sprinter:

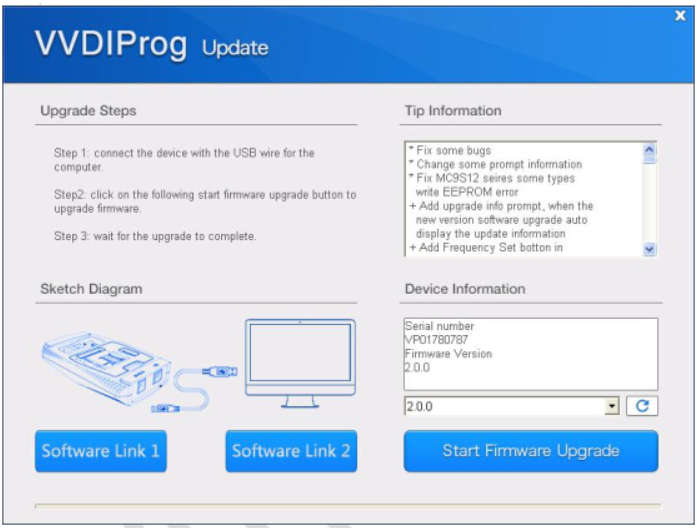

    How To Update VVDI Prog Programmer Online?
    This function require internet support
    Click the "Upgrade" button enter the upgrade interface, show as following picture


    Enter update interface, if software show "communication with server failed", please close your Anti-virus and computer firewall and retry. If software show "unable to find equipment", please reconnect device.
    Tip information show the latest software version and upgrade information
    Device information show the device SN, device firmware version and the latest firmware version

    Firmware Upgrade Steps:
    1. Select the firmware version
    2. Click“Start Firmware Upgrade”button
    3. Don't close or pull out USB cable before upgrade finished

    Software Upgrade Steps:
    1. Click“Software Link 1" or "Software Link 2" button, download software from the web
    2. Extract the file

    VVDI Prog Programmer Unit Description:

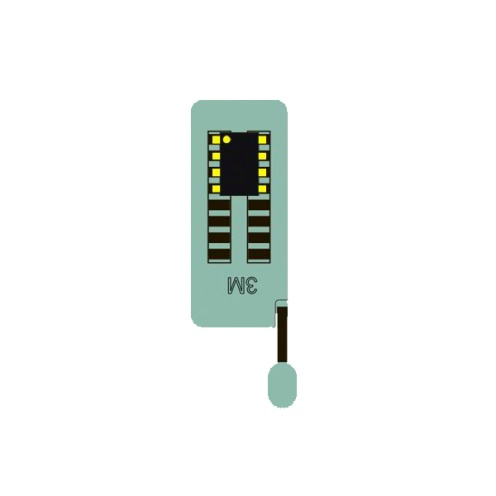

    1.16 Pin DIP socket Function:
    Read EEPROM chips Use method: Follow the image direction when insert the DIP chip (PIN1 as yellow point show as the picture);
    SOP chip need soldering on 16Pin adaptor first, then insert the chip follow the image direction

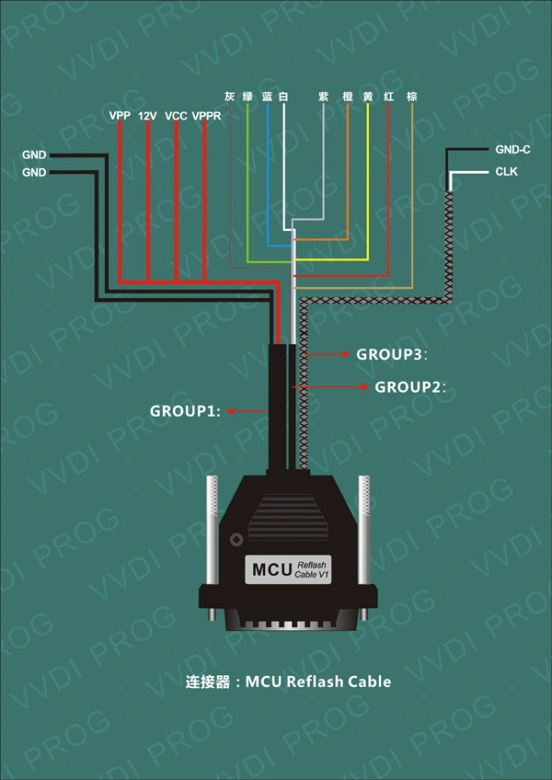

    2. MCU Reflash Cable
    Function: Read & Write MC68HC(9)12, V850, H8X, R5C series chips,current version is V2
    Use method: Soldering the line on pin of chip before read & write
    Notes: (1) Please check all connection lines,ensure correct and reliable connection(2) Please Don’t lengthen CLK and GND-C line, maybe cause read data failed.

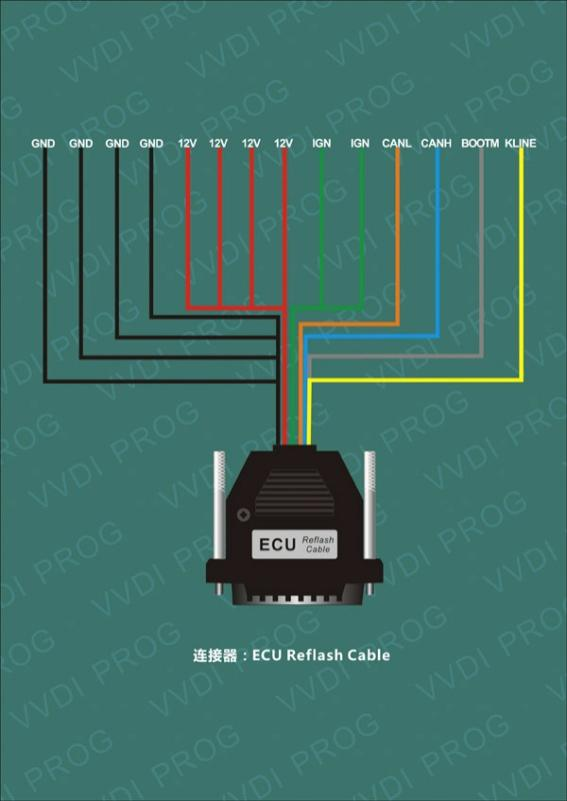

    3. ECU Reflash Cable
    Function: Read & Write engine ECU
    Use method: Connect the ECU and R&W
    Notes: Please check all connection lines, ensure correct and reliable connection

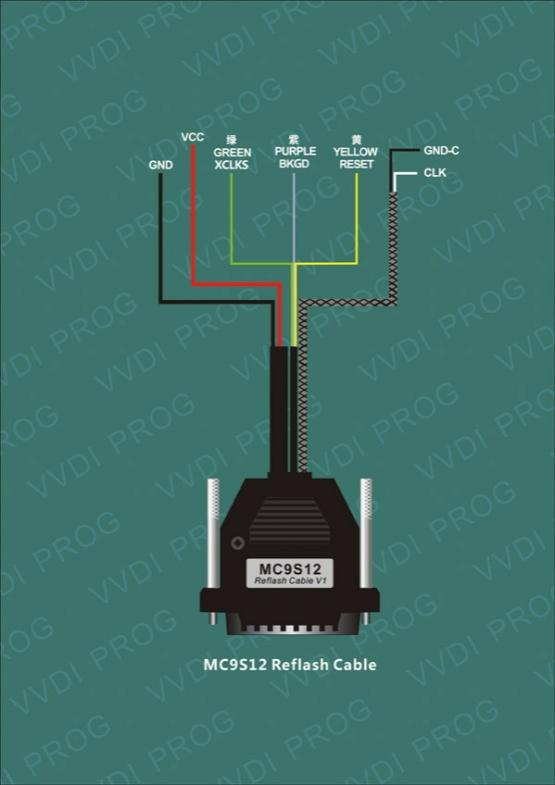

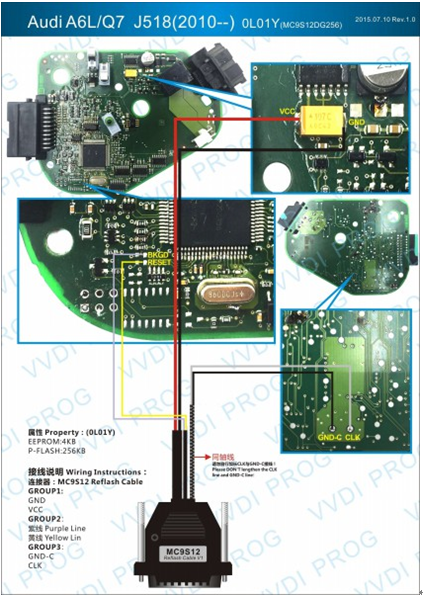

    4.MC9S12 Reflash Cable
    Function: Read & Write MC9S08, MC9S12 series chips, current version is V1
    Use method: Soldering the line on pin of chip before read & write
    Notes: (1) Please check all connection lines,ensure correct and reliable connection.(2) Please Don’t lengthen CLK and GND-C line, maybe cause read data failed.


    VVDI Prog Programmer Feedback:
    did a few tests today and this is what I found out.
    It seems that VVDI prog reading speed is dependent on the processor speed of the computer.
    CAS3 0L15Y flash read times
    Centrino processor @ 1.6ghz Windows XP = 12mins
    Core2 Duo processort @ 2.5ghz Windows 7 32 bit = 5 mins
    i7 @ 4.4ghz Windows 7 64 bit = 2mins 30 seconds.
    Other programmers do not seem to be affected by processor speed at all.
    I also would of thought this was a fairly easy question to answer without me doing all the testing
    Tested by me: cas 2, cas 3, cas 3+, Cas4 5m48h, volvo cem v40 all ok.
    Is a very good tool and for bmw cas4 .
    I tested today D80 and a m35080v6, and they work perfect.
    Mine erased D160 (BMW F01 dash) with no problem.
    Tried to renew bmw e series 868 key. Vvdi programmer claimed operation success but in tango key is now recognized as transponder type A. locked
    I did renew 2 keys! Both worked and now are programmed to cars!
    Only thing you need to disconnect from PCB is battery while writing the renew file. (Remove the batteries)
    Renew BMW series E 868 key – 100% OK z vvdi-prog v4.5.7
    FRM3 works perfectly
    More EDC17 under ECU section would be great!
    Especially BMW EDC16 and EDC17 for ISN purposes.
    BMW F series FEM module reading but for that i can only dream about…
    BMW BMSX bike ECU would be great…
    Renew pcf7946 and 29f family
    Renew E series remote with pcf7942 / pcf7944 would be fine
    Unlock and download the 9S12G128 secure without erasing it first would be nice .
    erasing all 35080s and d80 with soic clip would be super nice too!
    I read the CAS3+ MCU with VVDI Prog and that worked perfect.
    BMW FRM3 series Exx – READ and WRITE – OK
    BMW KEY series Exx – OK
    BMW DashBoard 6WB 160DQWT – READ , ERASE , WRITE – OK

    VVDI Prog Reviews:
    2004 Suzuki Jimny:
    The first job i did with this kit was actually a 2004 Suzuki Jimny, literally within around 30 – 45 minutes of the parcel being delivered. The software was quick and easy to install (No cd provided, need to download from dealer website and update to latest version).

    Anyway, for the Suzuki i used the VVDI-prog with the EEPROM clip adapter to read the immobox 24c01 in-circuit. Then using the VVDI2 immobiliser data tool, i was able to create a dealer key with an Xhorse 4d/4c chip. Write the new dump back to the immobox with VVDI-prog, put it all back together and worked first time thankfully after previous failed attempts with other devices.
     Anyway end goal complete and happy with the new purchase

    BMW EWS3:
    I did some testing on the bench with a BMW EWS3 using VVDI2 with the CAS adapter cable (Needs external 12Vdc supply). It reads the EWS ok, but can’t write a file back to EWS.
     I will try reading the EWS3+ that is in my car and produce a dealer key for it.

    The file change km’ seems to read from dump ok, and will allow you to modify file with new km (untested on car though). If i get some time later on will try read/write with VVDIprog.

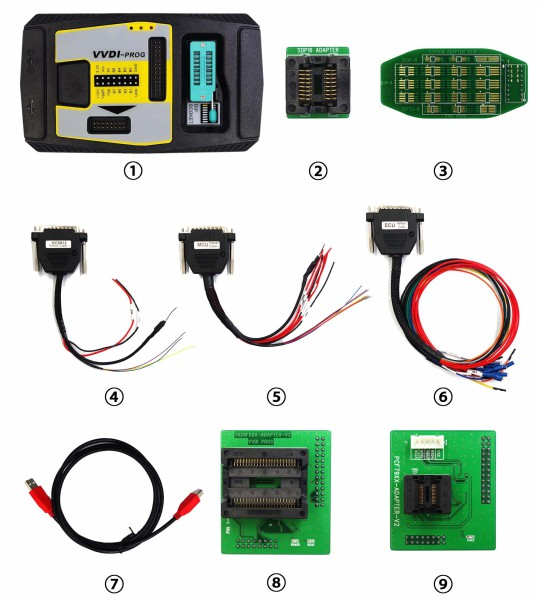

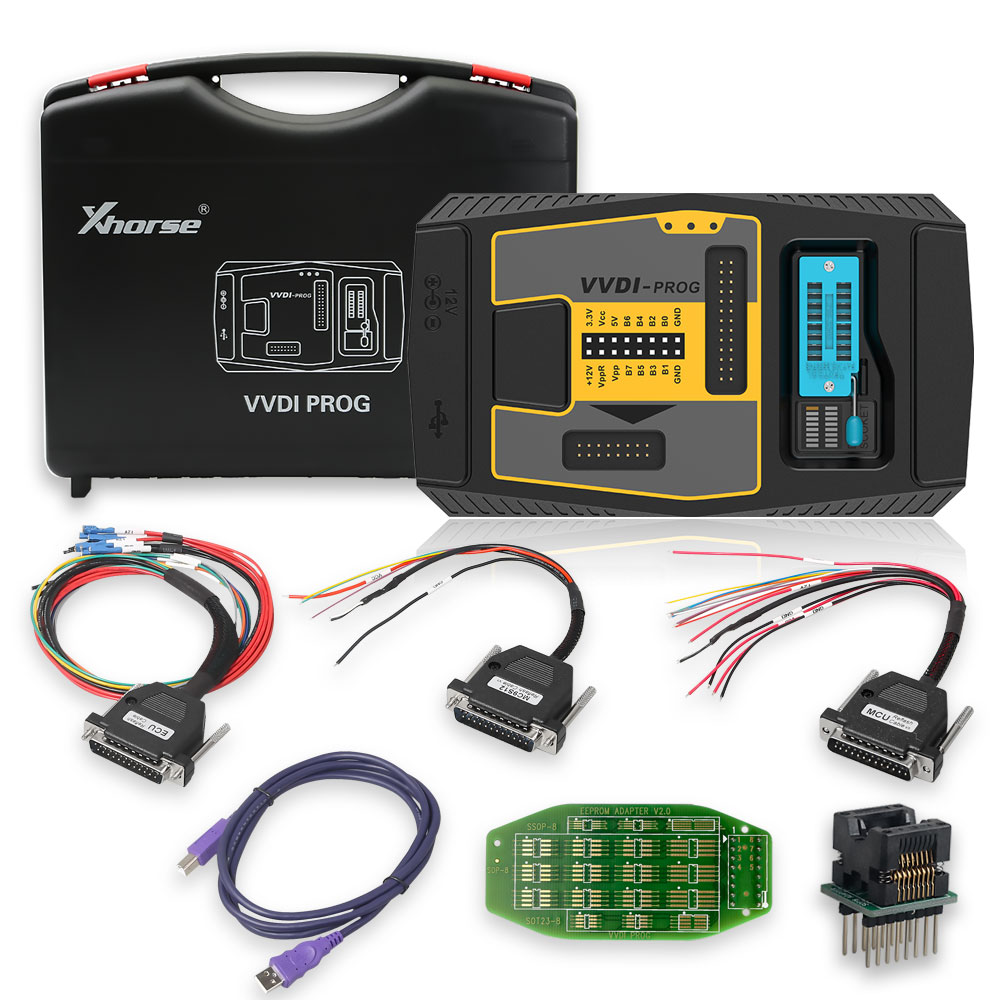

    VVDI Prog Programmer Package List:



    1. VVDI Prog device
    2. EEPROM Socket

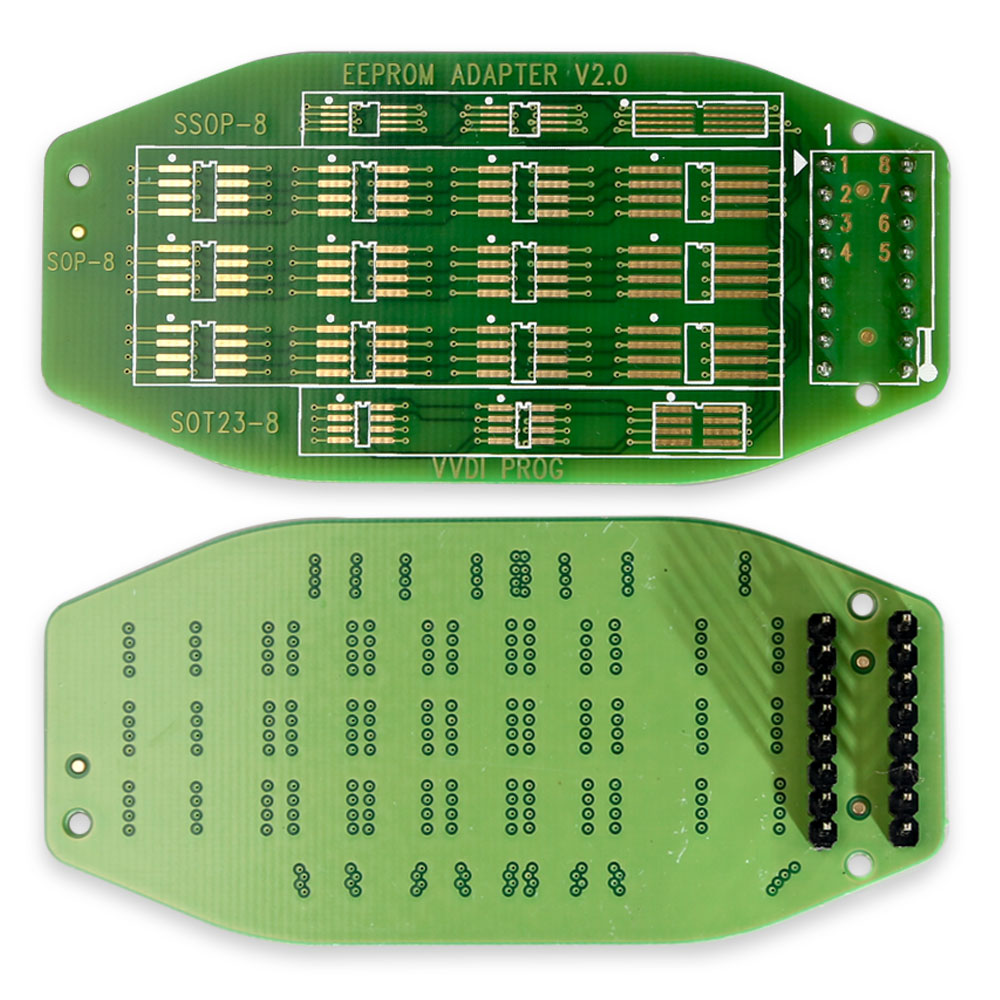

    3. EEPROM Adapter
    4. MC9S12 Reflash Cable V1
    5. MCU Reflash Cable
    6. ECU Reflash Cable
    7. USB B-Tyte Cable
    8. TB28FXXX Adapter (Optional)
    9. PCF79XX Adapter (Optional)

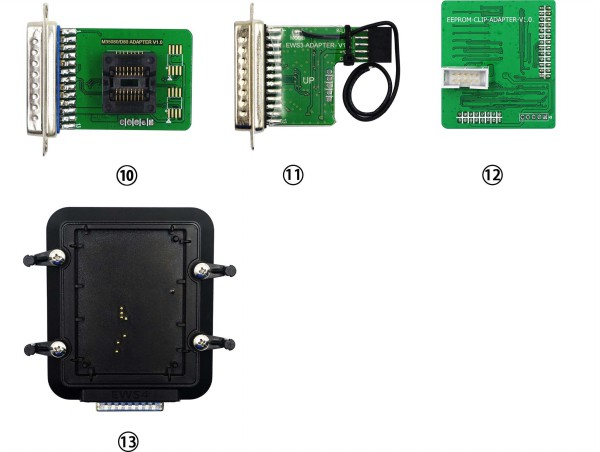

    10. New M35080/D80 Adapter (Optional)
    11. New EWS3 Adapter (Optional)
    12. New EEPROM CLIP Adapter (Optional)
    13. New EWS4 Adapter (Optional)

    User Comment(Total 0 User Comment Num)

    • No comment
    Total 0 records, divided into1 pages. First Prev Next Last
    Rank:
    Your first & Lat Name:
    Your E-mail Address:
    Review detail:
    Verification code: captcha
    Download & Technical Support
    Please feel free to contact us ,If you have any question:
    Email: Sales@obd2tool.com
    Whatsapp: +8618437976115
    skype:chryssan2006



    Shipping Terms:
    a) Items will be sent to all the countries over the world. This package will be sent by DHL, Post, Fedex, EMS or UPS .
    b) Items will be checked carefully before sent out.
    c) We will use air bubbles to wrap the items carefully.

    Shipping Time:
    a) Ships within 48 hours on working days after received the payment.
    b) The shipping time is about 5-7 days via DHL, UPS, 5-10 days Via Fedex, 7-10 days via EMS, 7-30 days via Post to Worldwide
    Note: We hope it arrive on time but since this is an international delivery, shipping time will be highly depended on the courier company and local customs/duties. Thank you for your understanding.

    Return Policies:
    Returns will be allowed only with prior authorization, and must be made within 30 days after package delivery.
    Item conditions that allow returns Brand new Item, returns must include all accessories, Items must include original packaging
    Other cases are as follows:
    (1) When the item is defective, the item was sent in error, damaged in transit, or otherwise defective,It can not work once you receive it. In this case we allow returns. We bear the shipping cost.
    (2) When you buy the wrong item, the item doesn't fit, or you don't want the item, the item you return need to be brand new. you need bear shipping costs.

    Contact Us:
    Our Email sales@obd2tool.com 24 hours 7 days
    And if nobody answer you online in time sometimes,do not worry.leave us a message or write down your desires,we will contact you as soon as possible.

    Attention: PLZ leave your telephone number and address in detail when you take order in our website, it is very important to ship your order. (Customers from Brazil PLZ leave your Cutsom ID also, thanks!)

    Email Subscribe


    Join our community Contact us
    Email us: sales@obd2tool.com
    Phone: +86 18437976115
    +86 18003909206
    Skype: chryssan2006
    Location:
    Building B016, Haihao Huating, Xixiang Avenue, Xixiang Street, Baoan District,Shenzhen, 518000 China
