    Original Xhorse VVDI MB BGA TooL Benz Key Programmer Including BGA Calculator Function For Customer Bought Xhorse Condor

    • Item No.  T247-3
    • History: 35  sold
    • Quantity
      Total
      Shipping:
      Express Shipping Service    Estimated delivery time: 5-7 days »
      Affected by the epidemic, there will be delays in transit time.
      continue
    • Quantity:  300
    • Weight:  1.0KG
    • Rank:  comment rank 4 () Write a Review
      Rated 4/5 based on 1 customer reviews
    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video

    Download & Technical Support


    Original Xhorse VVDI MB BGA TooL Benz Key Programmer Including BGA Calculator Function For Customer Bought Xhorse Condor Plus EIS/ELV Test Line



    Latest Software Version: V4.1.0

    Xhorse VVDI MB BGA TOOL Function Introduction:
    1. Support BE key, read password and prepare new key via IR.
    2. NEC V051,V057 support on board get password
    3. All NEC keys support on board write and erase
    4. Password calculate:support BGA keys,NEC keys(include 51,57version)etc.,work fast.
    5. Support renew EIS and ELV
    6. Support write EIS and ELV
    7. Support online generate key file
    8. Unlock ELV function will be released soon.
    9. Renew other control modules function will support soon


    Notice:

    BGA Calculator Password is free to get once a day. For second time, price is 35USD. It takes 4 minutes to collect data, and 2 minutes to calculate


    VVDI MB BGA Tool V4.1.0 Update Information 2018-07-13
    ************************************************************************
    Require firmware V4.0.0
    =====    BENZ V4.1.0            =====
    1. This update no need update the firmware
    2. Password calculation: Support calculate password for W202/W208/W210(KLine) EIS
    a. No more need MCU's de/soldering, very safe and quickly
    b. Support add key and lost all key for password calculation
    c. The procedure require about 25-30 minutes
    d. The procedure need MB Power Adapter support
    e. The procedure should work on the bench, not on car
    3. Bugfix for load motorola EEPROM dump file in EIS window
    4. Bugfix for activate BE key
    5. Bugfix for read EIS W209
    6. Bugfix


    VVDI MB TOOL latest software version V4.0.0 update
    ************************************************* *********************
    *** 2018-03-14
    *** Require firmware V4.0.0
    ************************************************* *********************
    ===== BENZ V4.0.0 =====
    1. Bugfix for prepare BE key
    2. Bugfix for autodetect som w211 EIS
    3. Support personalize/activate W906/W639 ESL: EIS Tools->W906->Personalize/Activate W906/639 ESL
    4. Support activate ECU, ISM
    5. Bugfix for personalize ECU, Gearbox, ISM
    6. Bugfix

    VVDI MB TOOL latest software version V3.8.0 Update:
    ************************************************* *********************
    *** 2018-02-26
    *** Require firmware V3.6.0
    ************************************************* *********************
    ===== BENZ V3.8.0 =====
    1. Support spanish language
    2. Support load Motorola EEPROM dump in EIS window and display key information
    3. Bugfix for read KM in some W207 EIS
    4. Bugfix for old motorola keys show incorrect key password
    5. Support read VIN and EIS part number for Kline EIS(OBD communication require short connect PIN7 and PIN1)
    6. Bugfix
    This version No need to update firmware,download link:  https://mega.nz/#!iwoWmILA!JYgYsMSPg3cQjhxTn7wdEuwPRPwpxxkjIcnkFZjVgzE     password:123456

    VVDI MB TOOL latest software version V3.7.0 update 2018-1-11
    ************************************************ ********************
    *** 2018-01-10
    *** Require firmware V3.6.0
    ************************************************ ********************
    ===== BENZ V3.7.0 =====
    1. Bugfix for some countries can't synchronize with server
    2. Bugfix for old motorola keys show incorrect key password
    3. Bugfix

    VVDI MB TOOL latest software version V3.6.0 update 2017-12-23
    *** Require firmware V3.6.0
    ************************************************* *********************
    ===== BENZ V3.6.0 =====
    1. Attention: All user update device to firmware v3.6.0, software v3.6.0, the lower version don't support password calculation
    2. Add Upgrade Kit, use upgrade kit to update the firmware. Menu->Update Online->Upgrade Kit
    3. Improve the success rate of BAG key password, erase password and enable key password
    1) The server have 99% success rate for key password now (You can get key password for only 1 time calculation)
    2) Reduce the key password calculate time, we only need about 20 seconds for 1 time calculation
    3) The server have 99% success rate for erase password and enable key password now
    4) Add some old version NEC key for password calculation
    5) We will continue update our server to achieve good result for BAG key password, erase password and enable key password
    4. Support activate EIS from OBDII. Menu->Other Function->Customer request->Activate EIS
    5. Support activate W906(NEC) ELV from OBDII
    6. Bugfix

    VVDI MB Tool Update to V2.13

    ***    2016-09-06
    ***    Require firmware V2.1.2

    ************************************************************************
    =====    BENZ V2.1.3            =====
    1. Attention: All user update device to firmware v2.1.2, software v2.1.3
    2. Fix bug for time out when get erase password or key file


    VVDI MB Tool Update to V2.1.2

    ************************************************************************
    ***    2016-09-02
    ***    Require firmware V2.1.2

    ************************************************************************
    =====    BENZ V2.1.2            =====
    1. Attention: All user update device to firmware v2.1.2, software v2.1.2
    2. User manual v1.6 released, overview v1.6 released
    3. Support Repair KM: Menu->Special Function->KM Repair, support w204, w207, w212, w211, w166, w246, w231, w205
    4. Support read/write gateway: Menu->Special Function->Read/Write CGW(ZGW)
    5. Support Read/Activate blank BGA key(0CF4): Read Write Key->Read blank BGA(0CF4) EIS data
    6. Support read current HASH in key(Repair key): Read Write Key->Key current HASH (Repair key)
    7. Support unlock key track: EIS Tools->IR->Enable Key
    8. Support another type (Continental)ISM read/write/erase
    9. Bugfix

    ************************************************************************
    ***    2016-06-28
    ***    Require firmware V2.1.1

    ************************************************************************
    =====    BENZ V2.1.1            =====
    1. Attention: All user update device to firmware v2.1.1, software v2.1.1
    2. Add connection diagram for new NEC key adaptor
    3. Support repair W204 ESL fatal error and repair old motorola ELV. you need buy an extra adaptor for ESL
    4. Bugfix

    ************************************************************************
    ***    2016-05-31
    ***    Require firmware V2.0.9

    ************************************************************************
    =====    BENZ V2.1.0            =====
    1. Fixbug for write original NEC key via IR
    2. Fixbug for show finish error information in IR read password

    ************************************************************************
    ***    2016-05-29
    ***    Require firmware V2.0.9

    ************************************************************************
    =====    BENZ V2.0.9            =====
    1. Attention: All user update device to firmware v2.0.9, software v2.0.9
    2. User manual v1.5 released, overview v1.5 released
    3. Support new sprinter W906 motorola EEPROM dump prepare key file
    4. Support read password via IR for old motorola EIS (HC05, HC08, K-Line)
    5. Support W204 ESL Emulator: only support VVDI W204 emulator, you must renew it before use
    6. Support OBD read W164, W211, W209, W169 EIS without gateway, you need buy an extra adaptor
    7. Fixbug for make only 1 key file in motorola EEPROM dump
    8. Fixbug for read v51 version password from key
    9. After read password from v51, v57 key, will fix the key automatically
    10. Bugfix

    ************************************************************************
    ***    2016-04-06
    ***    Require firmware V2.0.8

    ************************************************************************
    =====    BENZ V2.0.8            =====
    1. Attention: All user update device to firmware v2.0.8, software v2.0.8
    2. User manual v1.3 released, overview v1.4 released
    3. Add support renew/write NEC keys, keyless keys on board. Attention: New NEC adaptor is option component, Purchase from dealer
    4. Fix bug in prepare key file for some B200 (W169) make key file
    5. Fix bug in passwod calculation for some W216
    6. Add support write renewed NEC keys, blank BGA keys etc
    7. Bugfix





    VVDI MB TOOL Latest Version V2.0.7 Update(2016-02-26)

    Require firmware V2.0.7
    ===== BENZ V2.0.7   =====
    1. Attention: All user update device to firmware v2.0.7, software v2.0.7, the lower version dont support password calculation
    2. User manual v1.2 released, overview v1.3 released
    3. Add support for renew ECU/Gearbox/ISM etc
    4. Fix diable key in K-Line protocol
    5. Fix clear TP in K-Line protocol
    6. Fix read key bug in password calculation
    7. Bugfix

    VVDI MB TOOL Latest Version V2.0.6 Update(2016-01-16)
     Require firmware V2.0.6
    ===== BENZ V2.0.6 =====
    1. Attention: All user update device to firmware v2.0.6, software v2.0.6, the lower version dont support password calculation
    2. User manual v1.1 released, overview v1.2 released
    3. Add support for disable key
    4. Fix bug for test W164, W221 EIS status
    5. Fix bug for write EIS data
    6. Bugfix

     SK185 VVDI - MB TOOL V2.0.5
    1. Attention: All user update device to firmware v2.0.5, software v2.0.5, the lower version dont support password calculation
    2. Add password calculation for lost all key. Support W166, W246, W212, W212(old). After success find password, it will need pay 2 calculation times
    3. Password calculation with working key support: add working key test before data acquisition
    4. Add EIS status test, working key test function
    5. Fix bug for OBD read W203, W639, W463(K) EIS
    6. Autodetect W212 EIS with ELV
    7. Fix bug for read v51 key password via NEC adaptor
    8. Add IR repair key function
    9. Bugfix

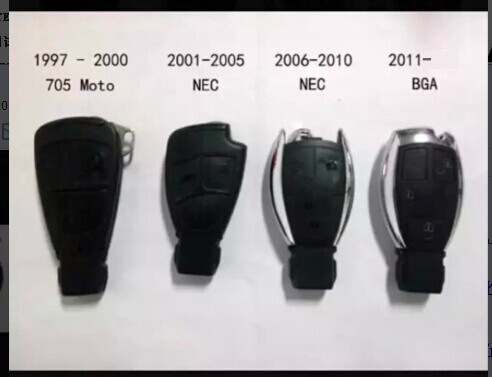

    Support Key Types Display:
    Support Key Types Display



    Latest Technical Details:
    VVDI MB BGA tool update goes well, the following workable models are for reference only.

    Model Support IR/OBD:
    W164, W164 2009+
    A166, W197,W212, W218, A246
    A169, W209, W211
    W172, W204, A207
    W203
    W204, W207, W212 only by dump
    W209 only by dump
    W210
    W215, W220
    W230
    W216
    W221
    W906

    Keys Version Supported:
    v03, v06, v08
    v05, v07, v09
    v59,v61

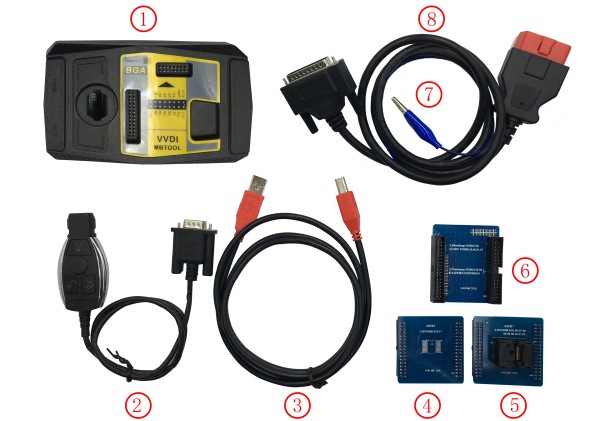

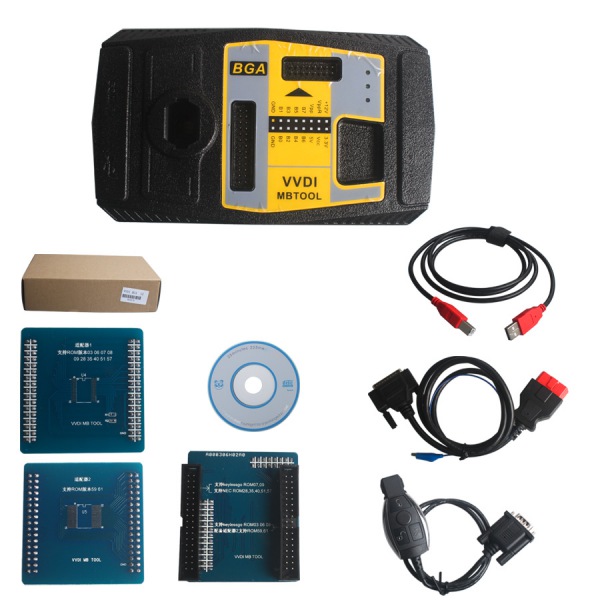

    Package List:

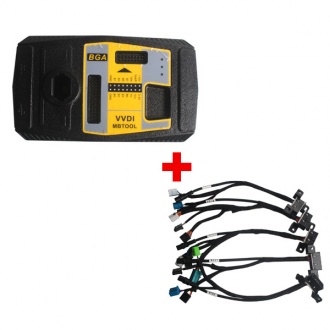

    1. VVDI-MB TOOL device

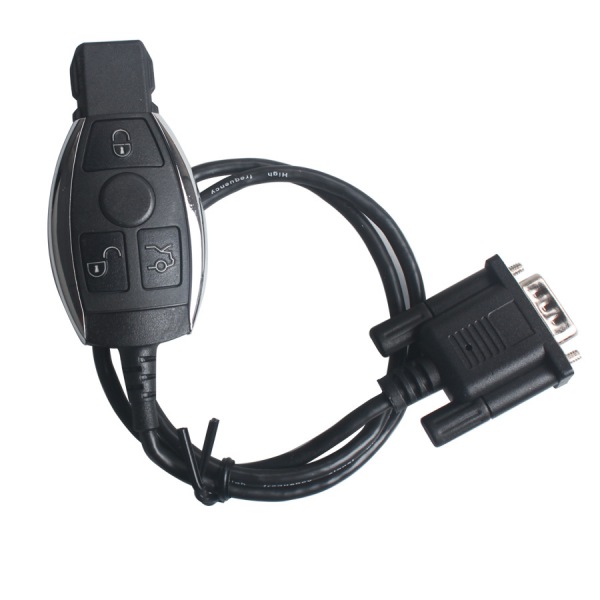

    2. IR adaptor
    3. USB cable

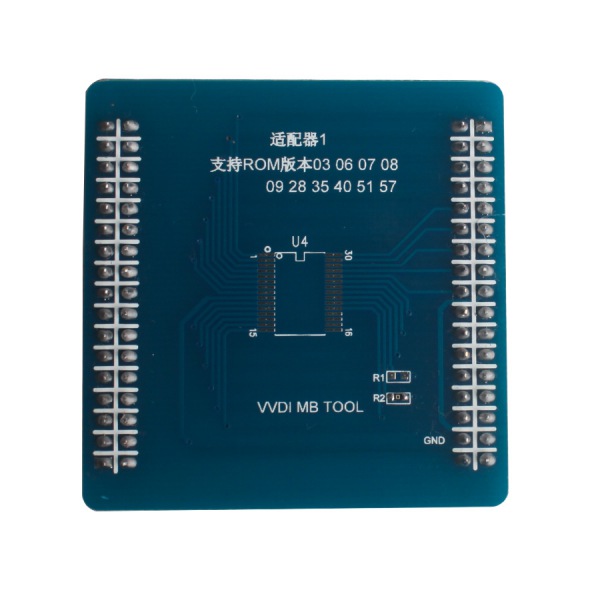

    4. NEC adaptor 1
    5. NEC adaptor 2

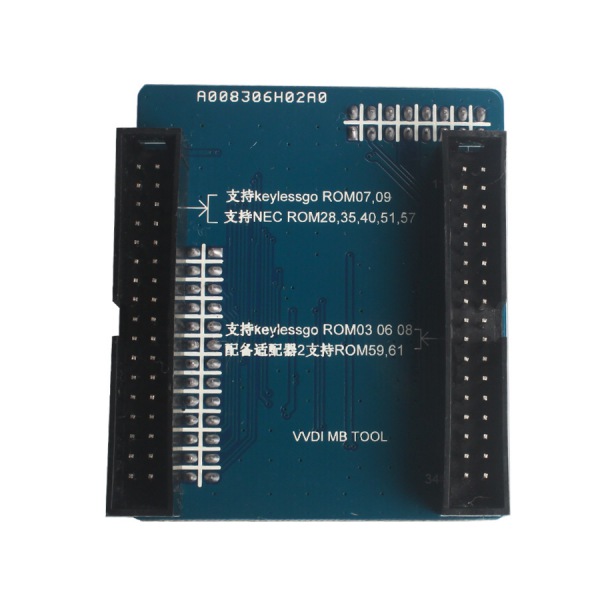

    6. NEC adaptor base PCB
    7. K Line in OBD line
    8. OBD line
    9. Mercedes Locks OBD Test line

    Package List Diisplay:

    Package List Diisplay

    Connection Display:

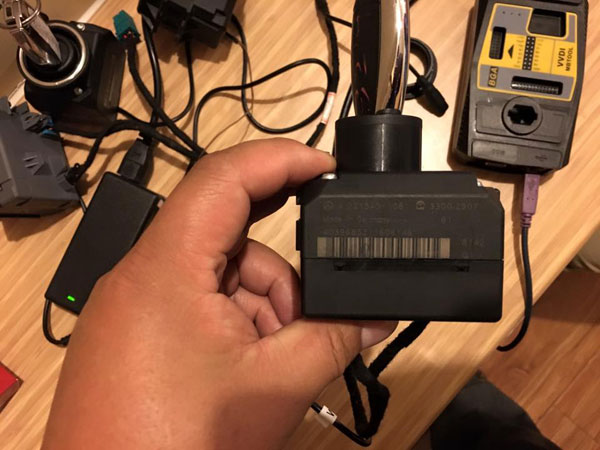

    VVDI MB Tool Bag Connection Picture 1

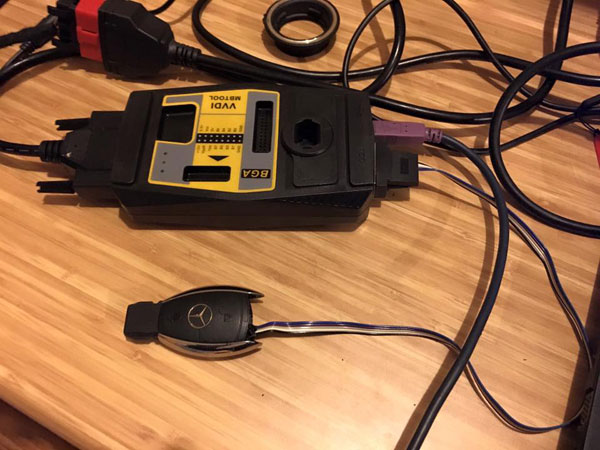

    VVDI MB Tool Bag Connection Picture 2

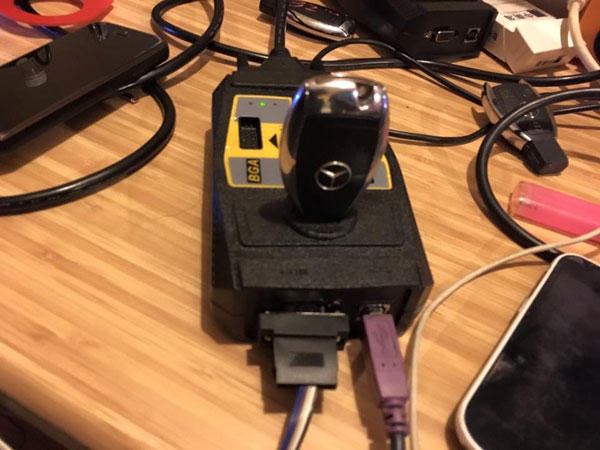

    VVDI MB Tool Bag Connection Picture 3

    FAQ:
    Q1:
    I test read data with obd2 210 k line working and 204 car read with obd 2 ,but 211 not read with obd2 cable connect
    16 12v
    4+5 GND
    14 CAN_L
    6 CAN_H
    pin 1 : ESL 1
    pin 2 : GND
    pin 3 : +12V (30)
    pin 5 : CAN L (White)
    pin 6 : CAN H (Green)
    pin 7 : CAN L
    pin 8 : CAN H
    Can any one test?
    A1:Read eis via obd for W164, W169, W211, W209, require gateway connected

    User Comment(Total 1 User Comment Num)

    • by imron zain,Jul 29,2018

      Hi, can you tell me how can i get the password from bga key?

      Reply #1 by Vivian Jul 29,2018
      Hello,You can get the password from collecting the data of the keys and lock end

      Vivian
