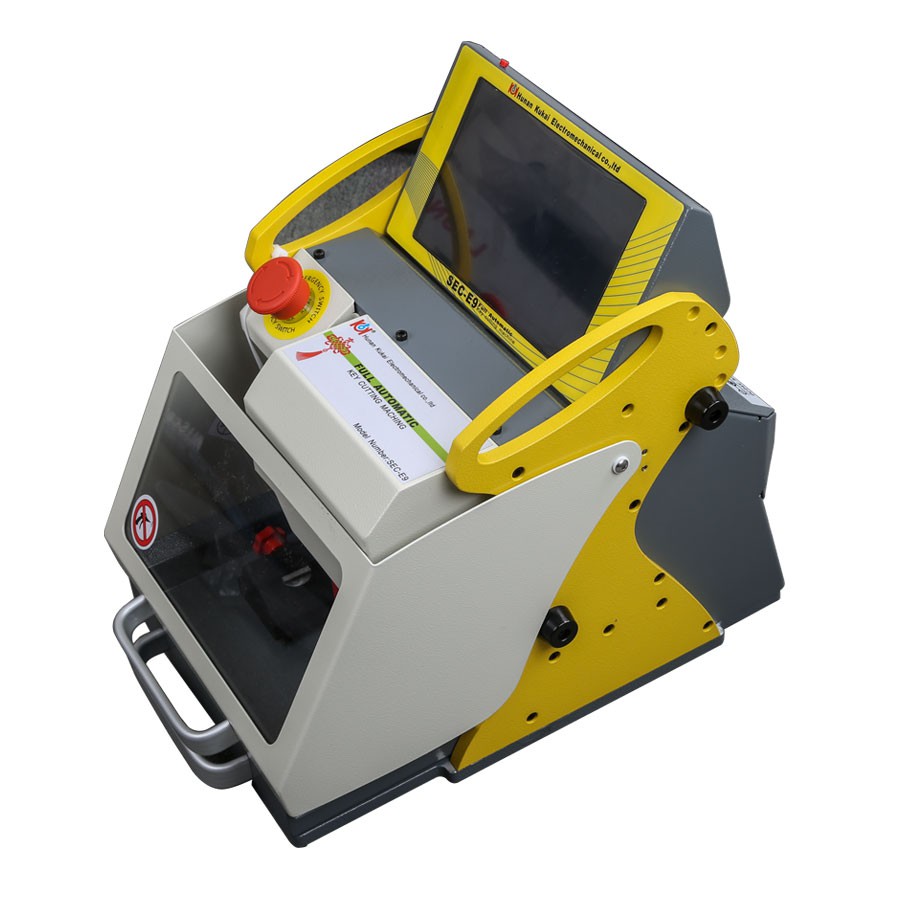

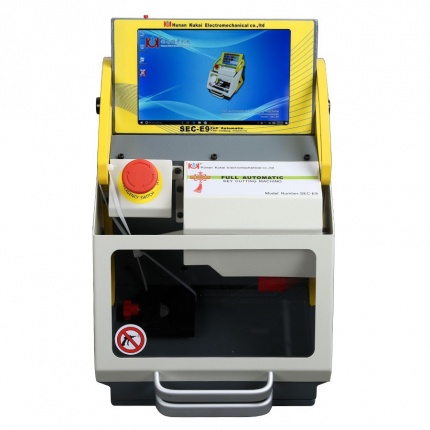

    SEC-E9 CNC Automated Key Cutting Machine Multi-Language Upgradable Work on Car, Truck, Motorcycle, House Key

    • Item No.  T257
    • History: 38  sold
    • Quantity
      Total
      Shipping:
      Free Shipping
      continue
    • Quantity:  155
    • Weight:  25.0KG
    • Rank:  comment rank 4 () Write a Review
      Rated 4/5 based on 2 customer reviews
    • Following the purchase of goods to reach the number that you can enjoy a range of preferential price:
      QTY Unit Price
      6 US$2,300.00
    • This goods is Free shipping!
    • Member Benefits  Shipping  Return Policy

    Related Products

    Description

    Attribute

    Review

    Technical Support

    Video


    SEC-E9 CNC Automated Key Cutting Machine Multi-Language Upgradable Work on Car, Truck, Motorcycle, House Key


    Note: The United States, South Africa, Israel, and Spain cannot be sold, and there is an exclusive agent.


    Description:

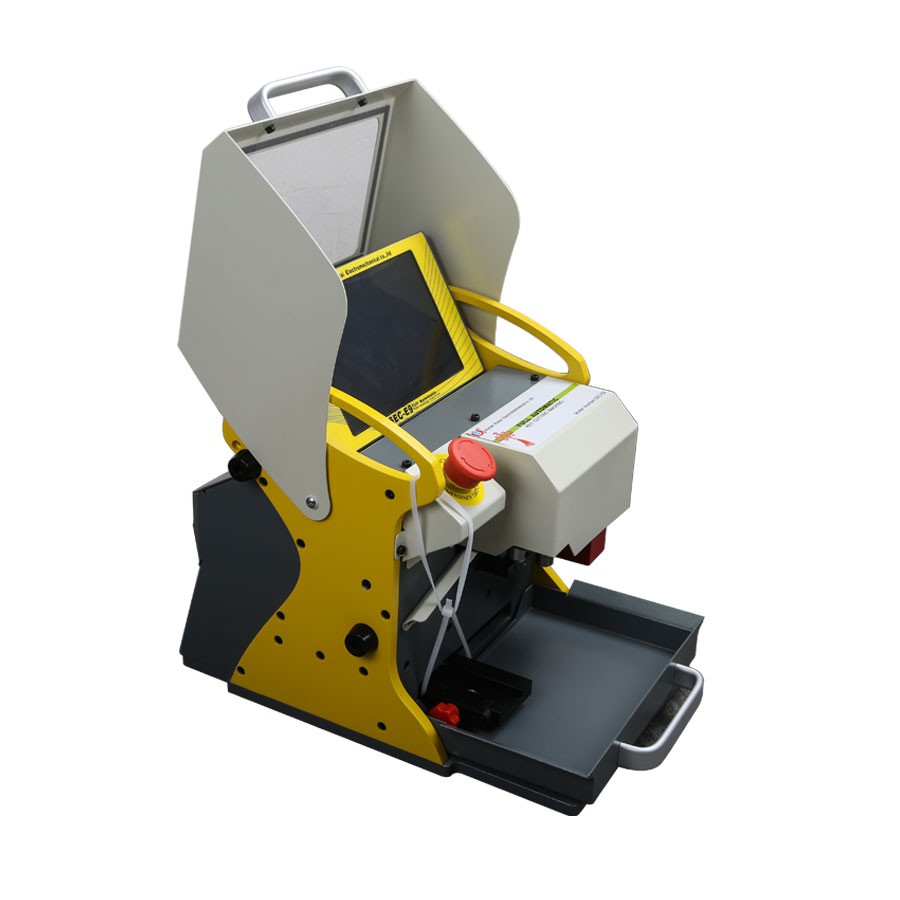

    SEC-E9 portable metal desktop air cooling fully automatic smart key cutting machine is able to cut standard keys and high security keys, such as BMW, VW, HONDA, OPEL,etc, SEC-E9 also supports to cut house keys, including dimple keys, tubular keys, single standard keys and motorcycle keys. Ford Tibbe keys and LDV keys are available to cut. SEC-E9 is a good choice for locksmith since you do not need to buy other small key cutting machines for house keys, just need to buy the corresponding clamps for different key types. Moreover, SEC-E9 can cut a new key without original key. It is the main difference from the traditional manual key cutting machine.

    SEC-E9 is all-in-one key cutting machine which can be easily operated by users steadily thanks to the state-of-art technique. It combines the mechanical and electronic precision to guarantee unique key cutting performances and quality.


    SEC-E9 CNC Automated Key Cutting Machine:
    1. Latest Version: V16.0.0.4 Newly added key data includs: Scion, Toyota, Lexus, Renauit, Nissan, Acura, Subaru, Chrysler
    2. Can directly search key bitting number by key code for some keys. No need to search from Instacode
    3. Support all key lost, can cut a new key by bitting number

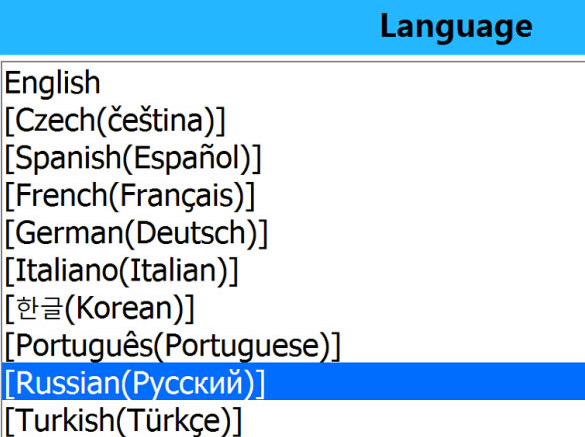

    4. Multi-Language: English, Spanish, French, German, Italian, Korean, Portuguese, Russian, Turkish, Czech.
    5. Can cut veritcal milling, flat milling, internal milling and external milling.
    6. Work on Car, Truck, Motorcycle, House Key, Dimple & Tubular Keys, cut automobile keys,motorcycle keys ,dimple keys, tubular keys, and single-sided standard keys.
    7. Can cut Tibbe keys and LDV keys
    8. Auxiliary Clamp is available
    9. CE Approved
    10. Free Update Online
    11. Support network remote upgrade, no need to return to factory


    SEC-E9 CNC Automated Key Cutting Machine Features:
    Built-in database, support key missing teeth inquiry;
    Light weight, small size, easy to work out;
    Equipped with two spindle belts, decoder and cutter;
    Interpretation and cutting can be completed at one time;
    Support plain milling key, face milling key, Allen key(F021), Stiletto key andCylinders key;
    Repair the wear keys to recover the original precision.

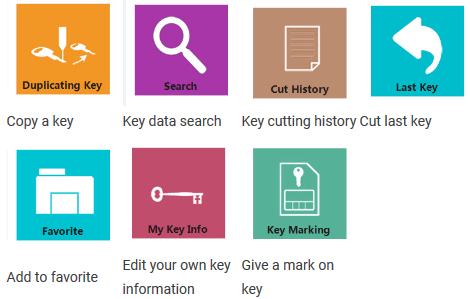

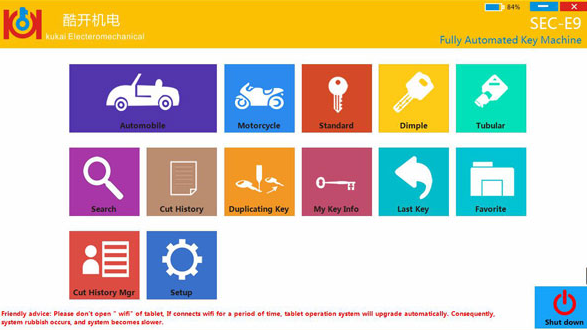

    Quick Function:




    Quick Function of SEC E9:
    Key data search
    Key cutting history
    Frequently used key data registration
    Last key

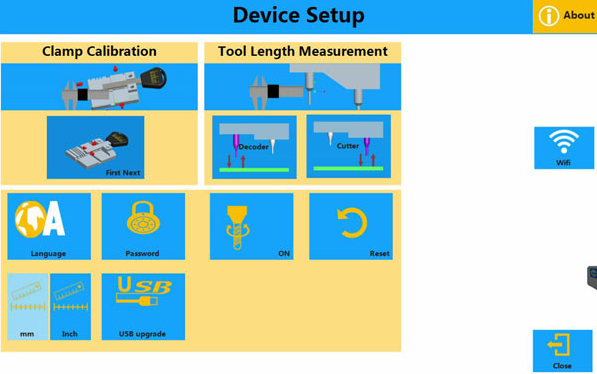

    Clamp calibration
    Tool length calibration
    Automatic setting of clamp origin
    Checking calibration value



    SEC-E9 Automated Key Cutting Machine Specification:
    ·  No.: SEC E9

    ·  Power: 120W

    ·  Dimension: 255(W)×360(H)×340(D)mm

    ·  Weight: 19.5KG

    ·  Resolution: XY axis: 0.005mm, Z axis: 0.0015mm

    ·  Spindle Revolution: 16000+rpm

    ·  Temperature: 0-40°

    ·  Humidity: 10-90%



    SEC-E9 Key Cutting Machine Newly Update(2018-12-10)
    Software version is 16.0.0.3, Database version is 15.16.

    Newly added key data includes:
    1. YM23 8-cut(IC card 1896)key
    2. FIAT 500L key and key code
    3. ONDA motorcycle CB150 key
    4. Oldsmobile, Mahindra, maruti key and key code

    Improved key data includes:
    1. Improved Hyundai,Kia,Toyota menu: add new choices of manufacture year in and after 2015.
    2. Hyundai,Kia,Toyota key and key code
    3. HONDA(IC card 982)key code
    4. Mitsubishi,Maserati,Chevrolet key code

    Two ways to enter key data:
    1. Search car manufacturer, model and manufacture year
    2. Search key blank or IC card

    Three ways to get key cuts:
    1. decode original keys
    2. Input key cuts
    3. Search key code



    SEC-E9 Key Cutting Machine Car List:
    Acura /Alfa Romeo /Aston Martin /Auti /BMW /Bentley /Buick /Cadillac /Carryboy /Chevrolet /Chrysler / Citroen /Dacia /Daewoo /Daihatsu / Dodage /Eagle / Ferrari /Fiat / Ford(Australia) /Ford(Europe,USA) /Fuso Trucks /GMC /Hino Truck /Holden /Honda /Hummer /Hyundai /Infiniti /Isuzu / Iveco /Jaguar /Jeep / Kia /LDV /Lamborghini /Lancia /Land Rover /Lexus /Lincoln /MAN Trucks /Mack  Trucks /Maserati /Mazda /Mercedes / Mercury /Mini /Mitubishi /Neiman / Nissan /Opel /Peugeot /Plymouth /Pontiac /Porsche /Range Rover /Renault /Rolls Royce /Rover /Saab /Saturn /Scania / Scion /Seat /Skoda /Smart / Ssangyong /Subaru /Suzuki /Tata /Toyota /Triumph /Volkswagen /Volvo /Volvo Trucks


    SEC-E9 Key Cutting Machine Household Key List:
    AGA /ASSA /ATP /AXA /Abloy /Absa /Abus(SD) /Ace /Alpha /American Padlock /Anchor /Anker /Ankerslot /Atal(SD) /Atala /BAB /BKS /BMB / BTV /Basta /Batu /Bauer / Bellville /Beram /Best /Beta /Brabantia /Briggs&Stratton /Brisant /Burg /CES(SD) /CIB /CL /Caver / Chicago(SD) /Chubb /Cisa(SD) / City /Clausor /Colomenca /Corbin(SD) /CorbinRusswin /Corni /Cyber Lock /Dad /Detex /Diebold /Difi /Diplomat /Doblina /Dom(SD) /Dorma /Dubois /E-Z-SET /ERA /Elgin /Emhart /Emka /Etna /Eurolocks /Eurospec /Evva /FAB /FB /FFFacchinetti /FPB /FTH /Falcon /Fama /Feb /Flambo /Fort(SD) /Fral / GEGE / GHE /GSA /Gete /Goa /GuLi /Guard /GuervilleRiquier /Hafele /Henkna /Hobes /Hon /Hudson /Hurd /Huwil /IFAM /Ideal /Ikea /Iseo(SD) / JCB /JPM / JinDianYuanZi /Jore /Junkunc /Padlock /Kaba(SD) /Kale /Kasp /Keiper /Kiferm /Kwikset /LaFonte /Lane /Las /Legge /Lips(SD) /Lista / Litto /Lockwood / Lowe&Fletcher(SD) /MCM /MEFA /MLM /Marco /Marks /Master /Mauer /Maxus /Merit /Meroni(SD) /MetalRousseau / Mippart /Miwa /National / Neiman / Nemef /Nobo /Norwalk /ODA /Omec /PYCM /Papaiz /Penn /Pfaffenhain /Prefer /Presta /Protec /QLP / Riople /Ronis(SD) /Royal /Ruko /Runo / Russwin  /SOS /STA(SD) /Sama /Santos /Sargent /Sargent&Greenleaf /Schlage /Securemme / Securicraf /ShangHaiQiuJing /Showa / Siam /Sofi /Sperrkolb /Squire / Strafor /Strattec /Sul /Talon /Technal /Teka /Technal /Teka /Teknion / Terca /TesaThomee /Touch /Trelock /TriMark /TrioVing /UAP /Unifor /Union /VIP / Vachette /Vario /Veronelli /Vinco /Viro /Weiser /Weslock /Whitco /Wigro /Wilka(SD) /Wilmont Breeden /Winkhaus(SD) /Yale(SD) / YueMa / Yvel /Zadi(SD) / Zwiss-Ikon


    SEC-E9 Punch Key List
    AGA /AGB /Abloy /Abus /Alpha /Atal /Atra /Avocet /Azbe /Baton /Bricard /CES /CVL /Cadman /Cays /Chubb /Cisa /Corbin /DOSSIV /DOM /Domus /
    Esety /Ezcurra /FAC /FAG /GTV /Gerda /Goal /IFAM /Iseo /Kada /Kaken /Kale /Keso /Lince /Lips /Lock Focus /Lockman /M&C /M-loy /MCM /MLS /Magnum / Master /Mauer /Miwa /Mottura /Mul-T-Lock /Omec /Pfaffenhain /Potent /Royal /Guardian /STS /Securemme /Showa /Space /Squire /Tecon /Tesa /UCEM / Viro /WanJia /West /Wika /Winkhaus /Yale /Yardeni /Zadi


    SEC-E9 Motorcycle Key List:
    Aprilia /BMW Cycles /Ducati /Harley /Davidson /Honda Cycles /KTM /Kawasaki /Kymco Cycles /Moto Guzzi /Peugeot Cycles /Suzuki Cycles /Victory / Yamaha


    SEC-E9 Tubular Key List:
    AGA /Beaver /Bilma /Bumil /Chicago /Dynaconsult /Fort /LYF /Lowe&Fletcher /Meroni /R.O.C /Ronis /SAG /Sentry

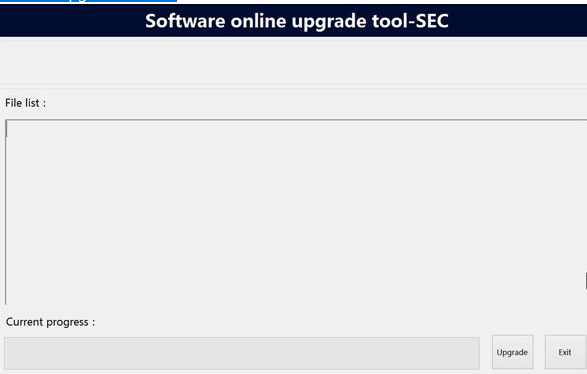

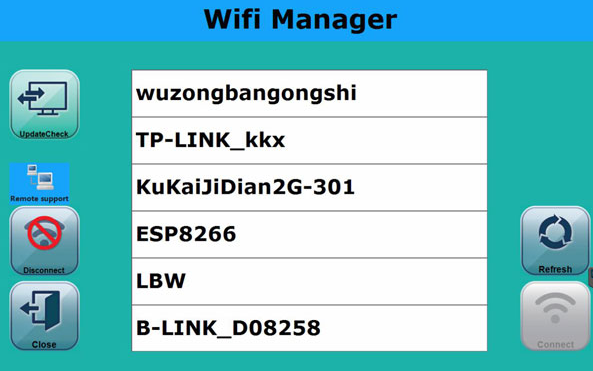

    SEC-E9 Key Cutting Machine Update Gudie:
    1. Click ”Setup”



    2. Click”Wifi”


    3. Connect Wifi
    4. Press ”UpdateCheck” after the wifi is connected successfully.
    ( Please notice that you just need to click the ”UpdateCheck” once, no need to click it repeatedly)


    5. Click ”Upgrade” button


    6. After upgrading successfully, the tablet PC will automatically jump to the main page.


    Notice:
    1. Please keep the Wifi conncted when upgrade
    2. Please keep the network smooth
    3. Please do not turn off tablet PC when upgrading
    4. Please do not operate the tablet PC when downloading the upgrade files.
    5. Please disconnect Wifi after upgrade is done. ( otherwise the system will generate garbage when tablet PC updates automatically . Also cause the the system to run slowly.)

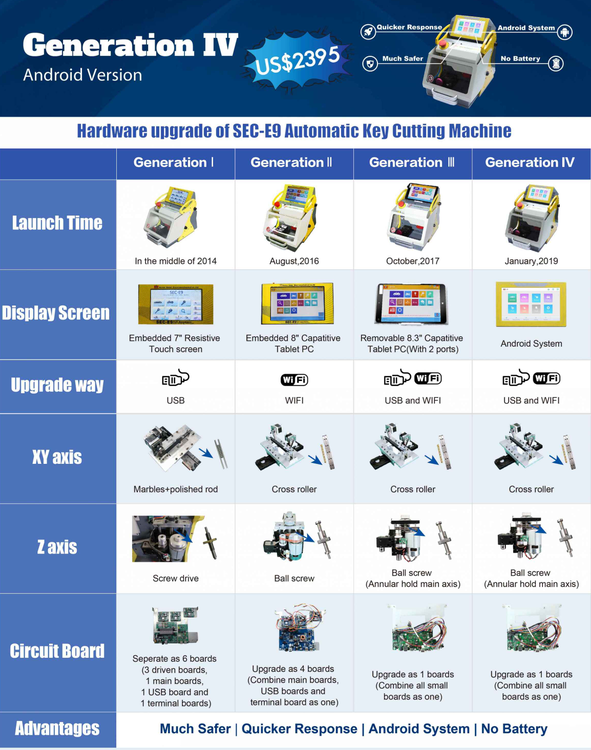

    Comparison Chart for E9Ⅰ vs  E9Ⅱ vs  E9Ⅲ vs E9IV

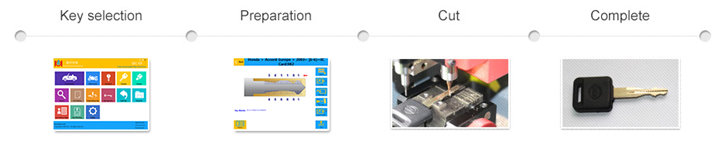

    HOW TO USE  SEC-E9 CNC:

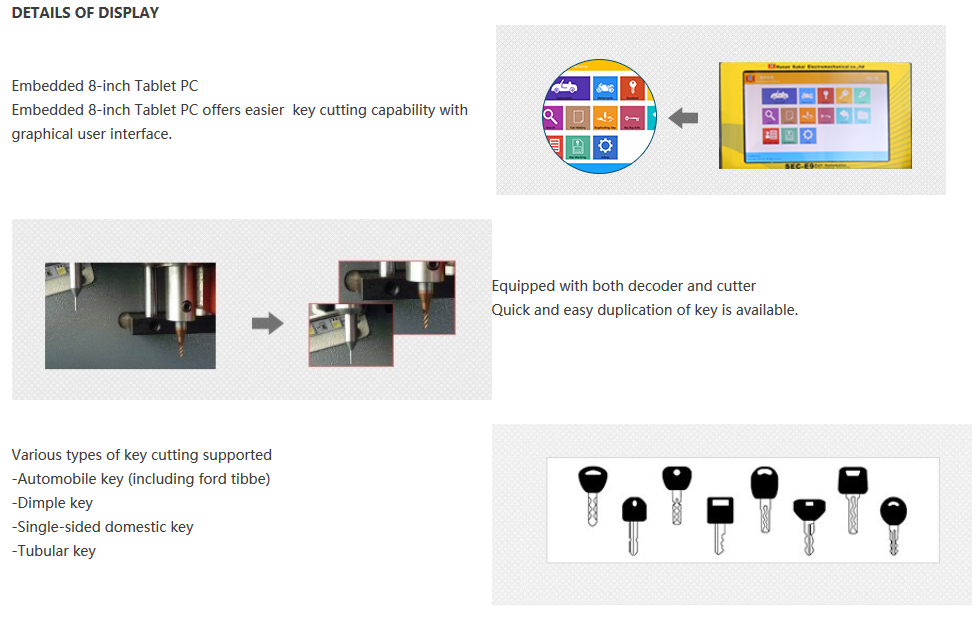

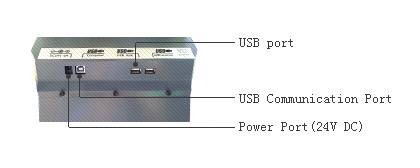

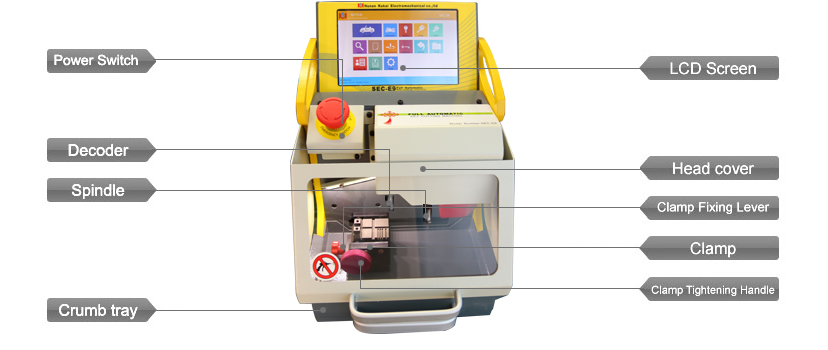

    DETAILS PARAMETER

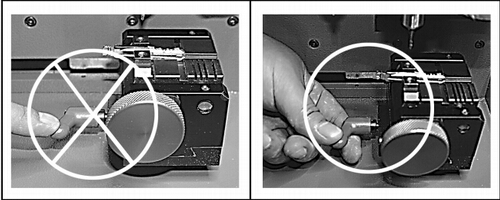

    SEC-E9 Clamp Replacement Cautions:
    When you fix the clamp by pressing the lever,the clamp origin may be changed or the clamp may get shaken.Make sure to turn the lever to fix the clamp.



    Never fix the clamp by pressing.Make sure to fix the clamp by turning


    SEC-E9 Key Fixation
    SEC-E9 is a key cutting machine to cut the vehicle key,as well as various kinds of keys.It provides the clamp and stopper to fix various kinds of keys easily and quickly.The key fixing method is as follows.

    Top and Botton Clamp:
    The key can be held on top or botton of clamp depending on the type of key.Edge or double sided non laser keys are always held on top clamp.Laser key can be held on either,but using bottom clamp is recommended.

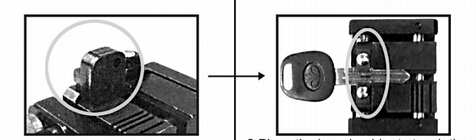

    Fixing a Key on Top Clamp:(Mostly Edge or Double-Sided Non Laser Keys)




    Fixing a Key on Bottm Clamp:(Mostly Laster Keys)

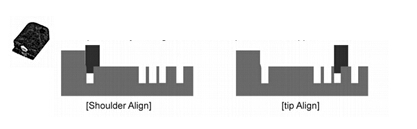

    SEC-E9 Key Cutting  Machine  Stopper:
    Stopper shown in the left figure is used to align key correctly.Insert the stopper into proper groove.
    The place a key making its shoulder or tip touch this stopper.

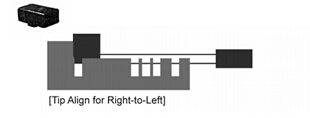

    Use Right-to-Left Stopper Block to hold laser key with short length.



    Standard Key:(Single & Double-Sided Key)



    1.Put the stopper in the stip of Shoulder Align Stop.
    2.Place the key shoulder to touch the stopper and fasten the clamp tighten handle to fix the key.

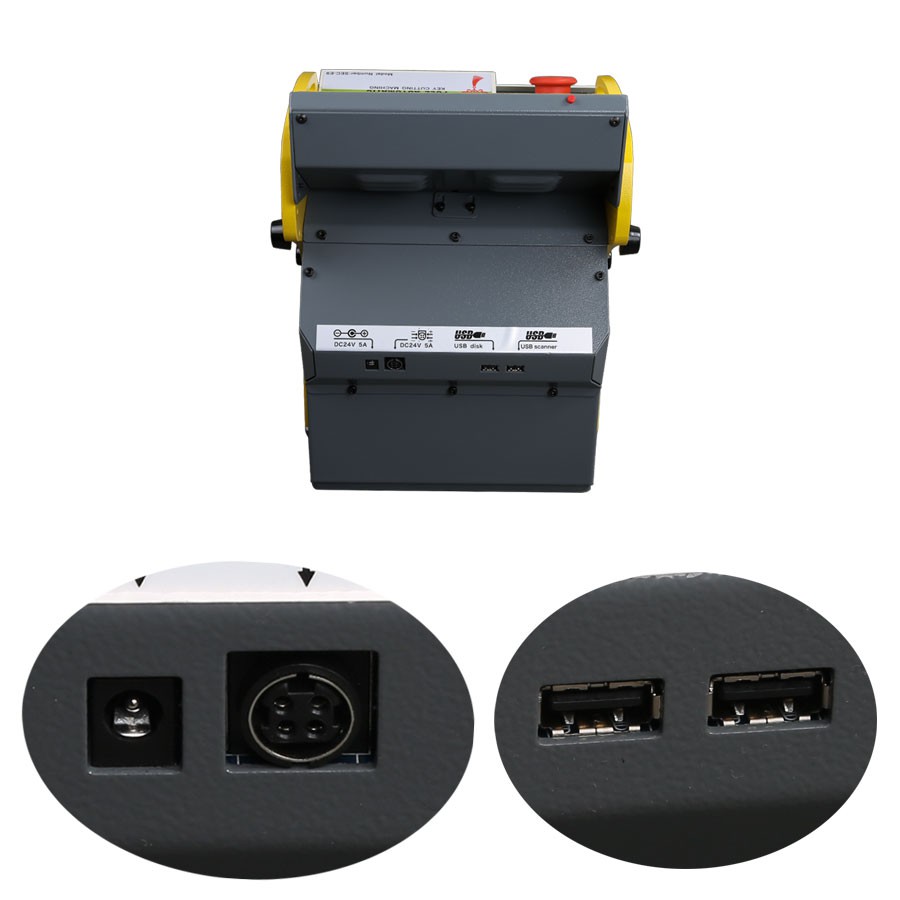

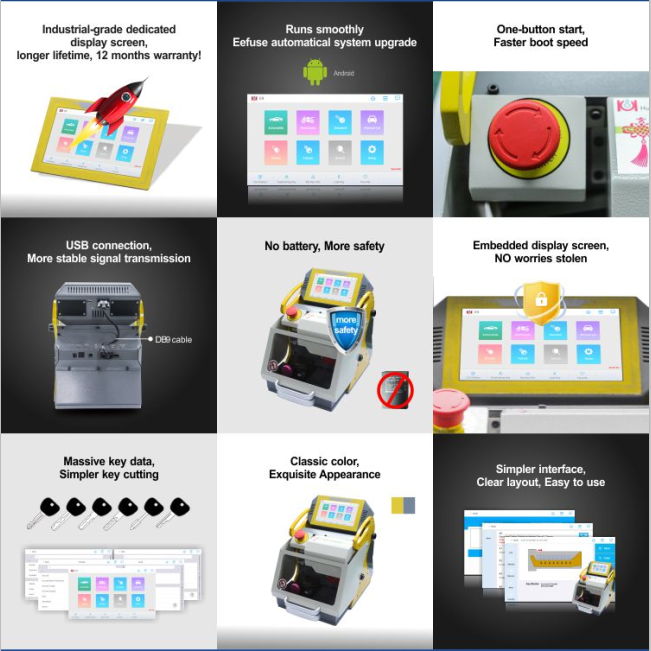

    About SEC-E9:
    - X/Y Axis with cross roller guide
    stable and accurate
    -Z Axis with ball screw to drive
    Powerful and high precision
    - Equipped with both decoder and cutter
    Duplicating and cutting keys easily

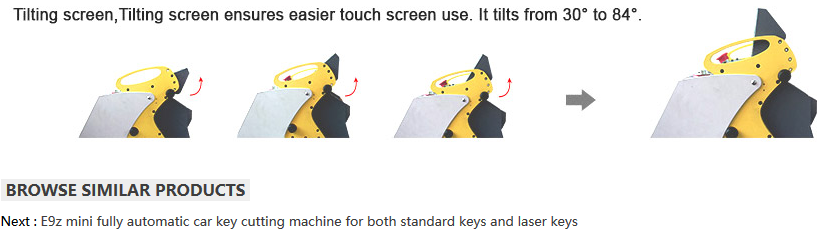

    -8 inch tablet PC tilting screen
    Tilting from 30° to 84°,large storage capacity

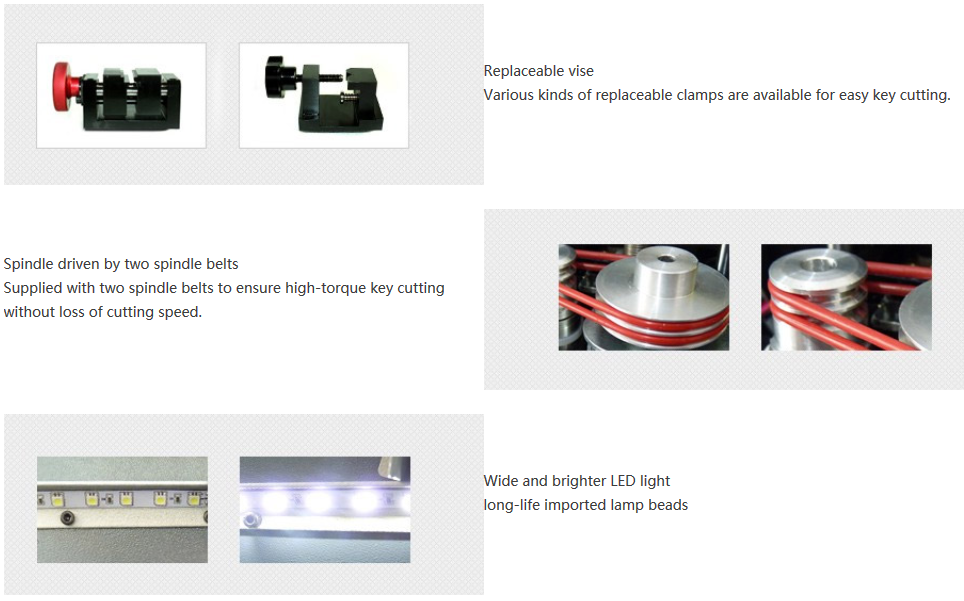

    - Various types of key cutting supported With Replaceable clamp
    Changed according to the cut keys
    - Automatic key measurement
    Key thickness, key tip position and center position could be measured
    - Wide and brighter LED light
    easily operating at night
    - Equipped with two spindle belts&27W DC motor with 24VDC
    Faster cut speed
    -Upgrade
    Autogrades
    - Portable
    easily operating outdoors

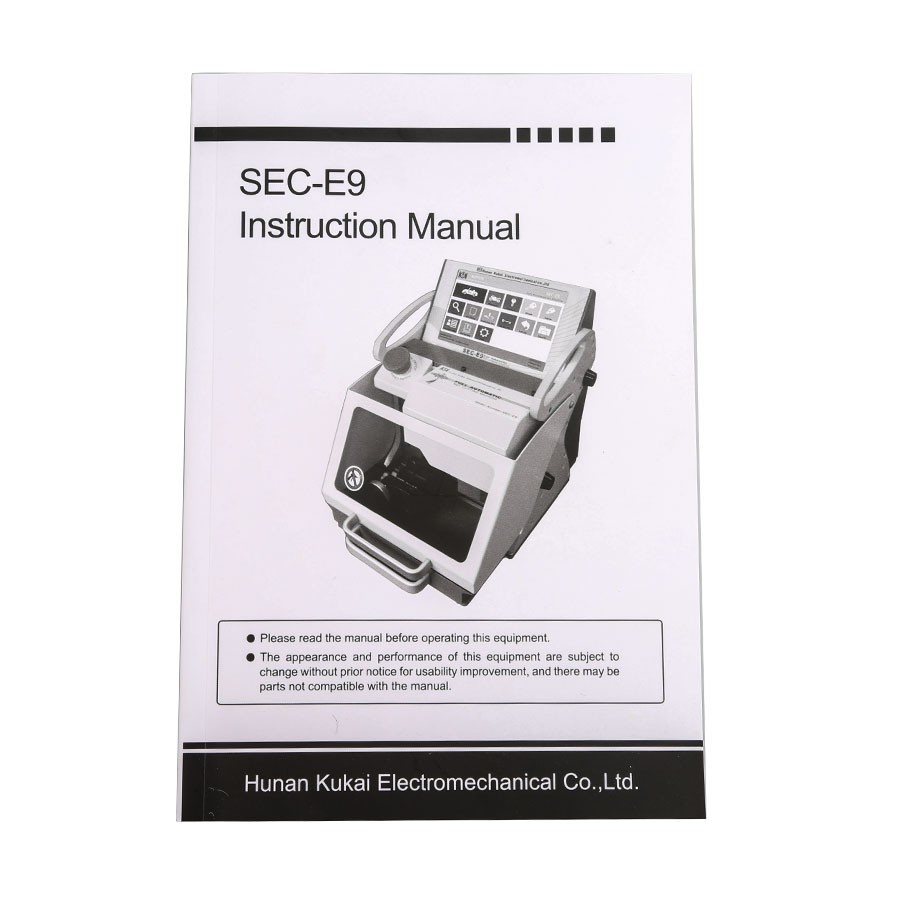

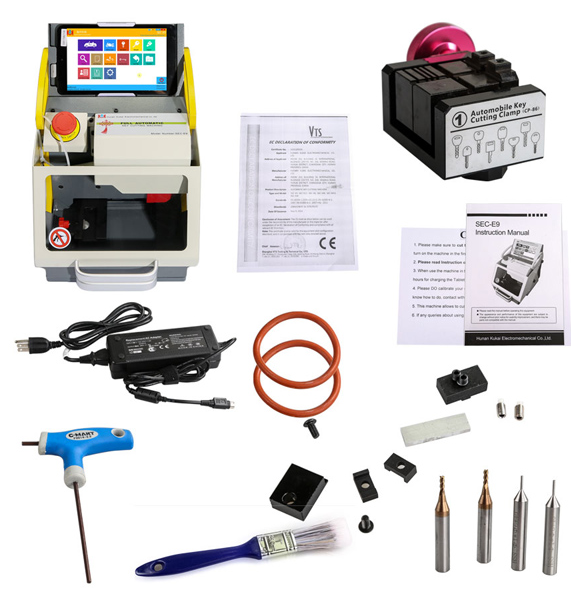

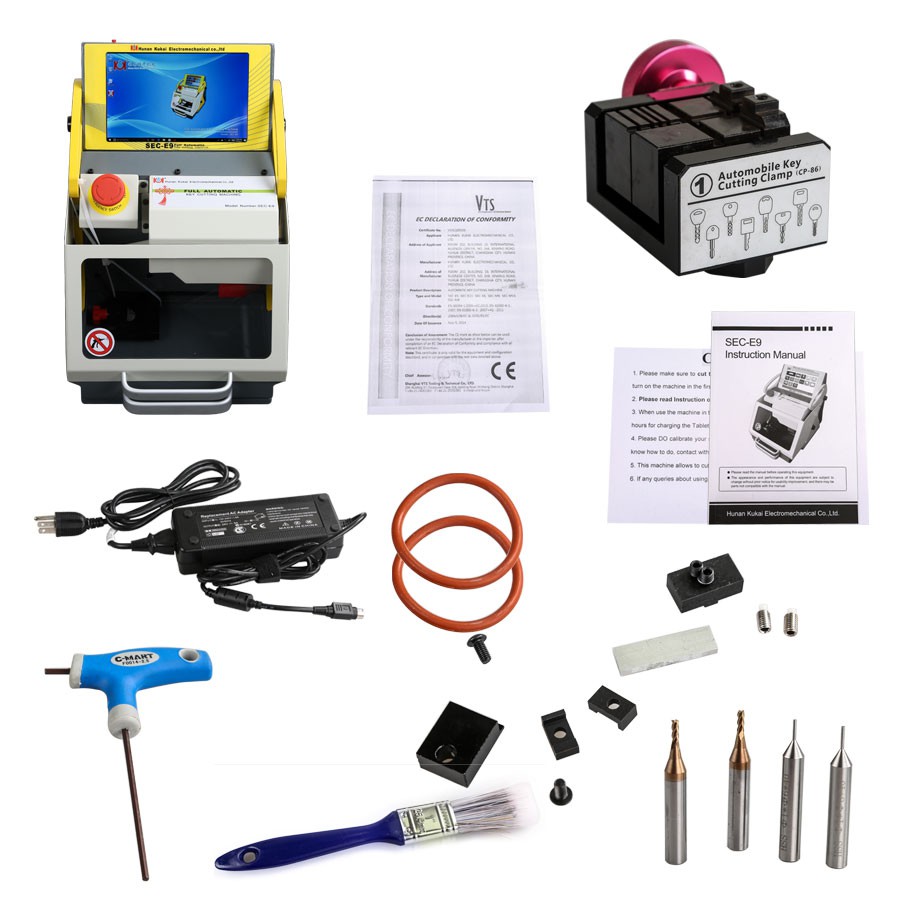

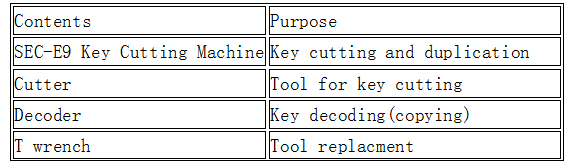

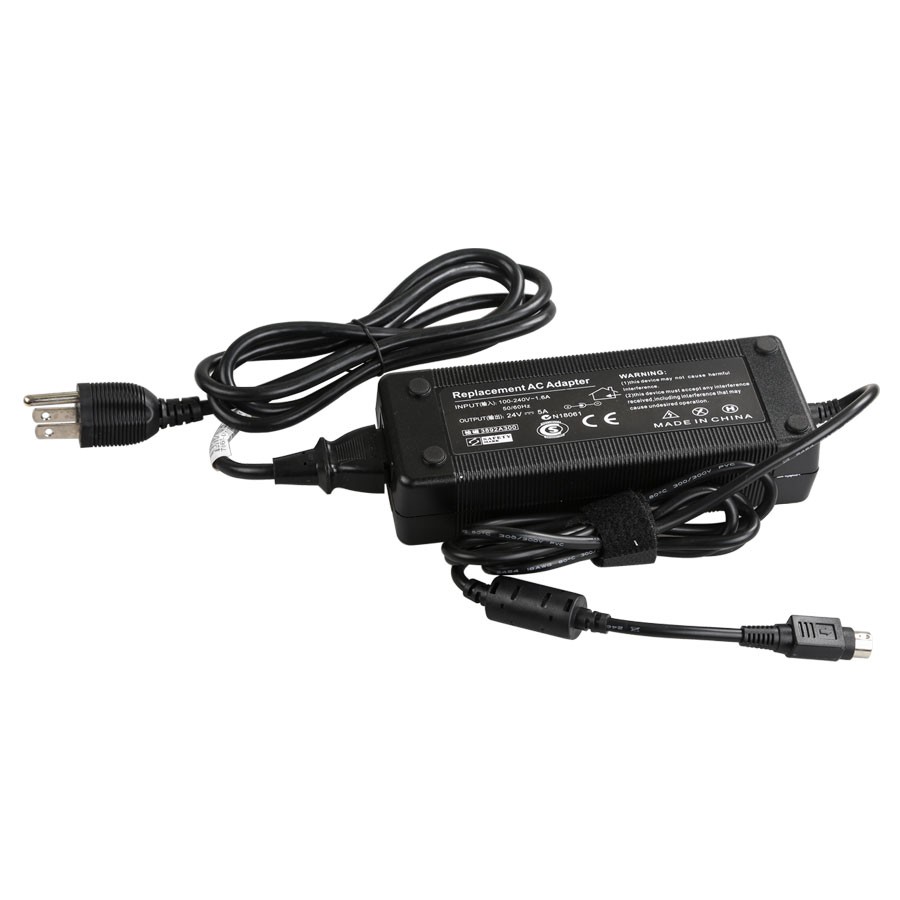

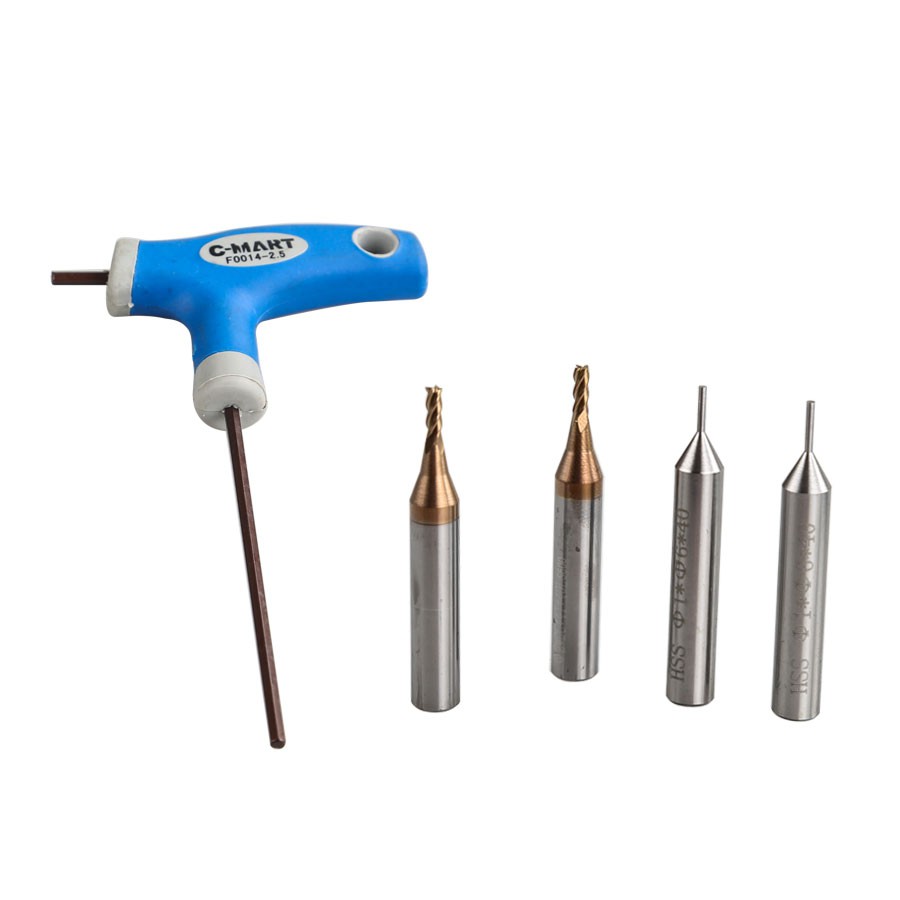

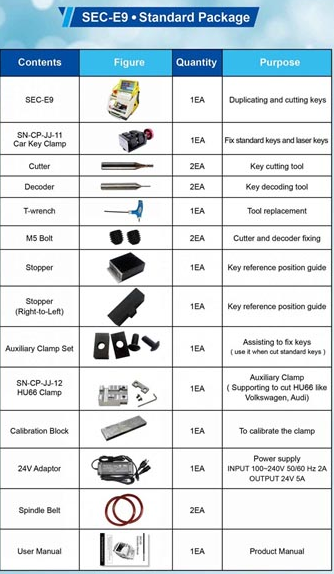

    SEC-E9 Key Cutting Machine Standard Package





    Package:

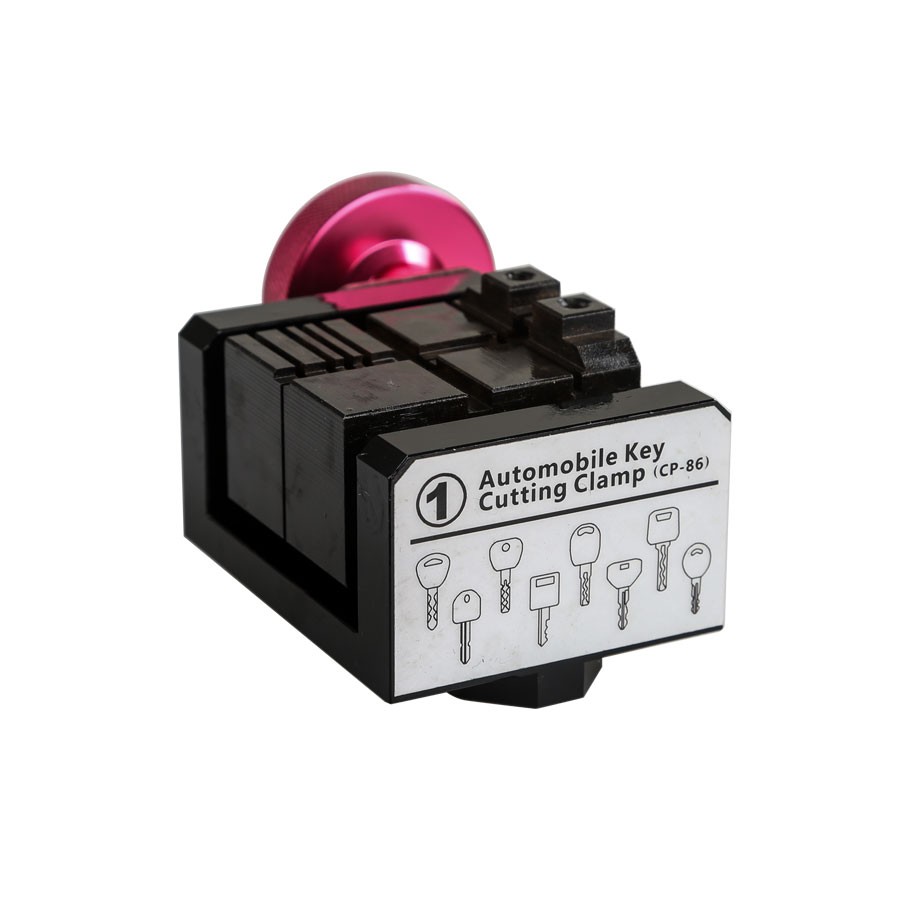

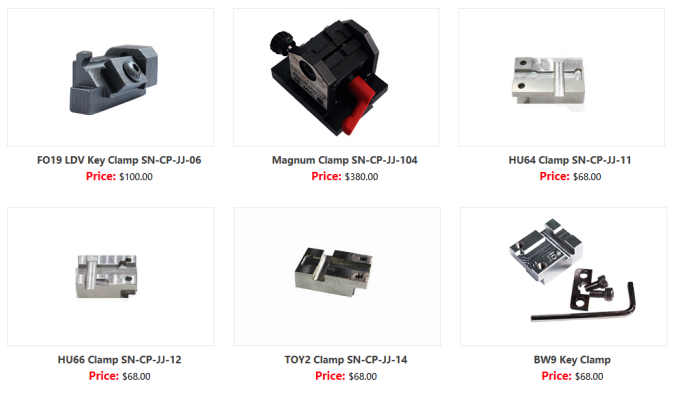

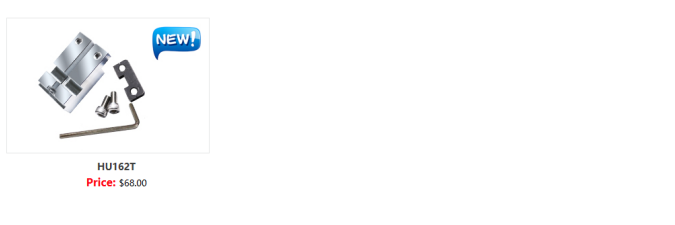

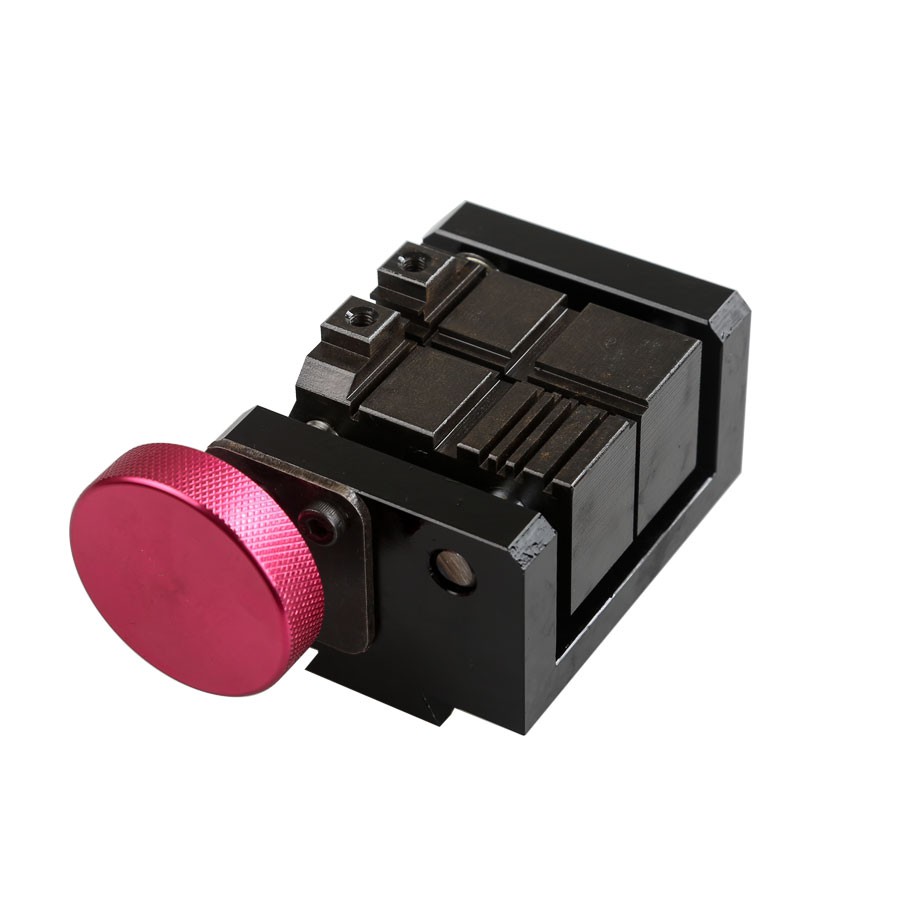

    Clamp for Machine:
    Different kinds of key clamps for SEC-E9 Key cutting machine optional. You just need to install the corresponding clamps for different key types, no software is needed when replacing the clamps. Automabile key clamp is included in the standard specification

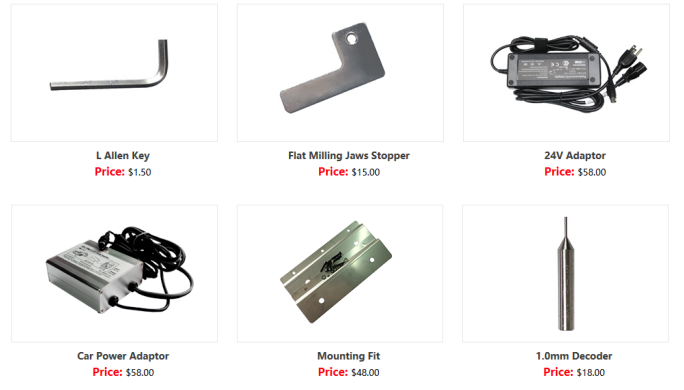

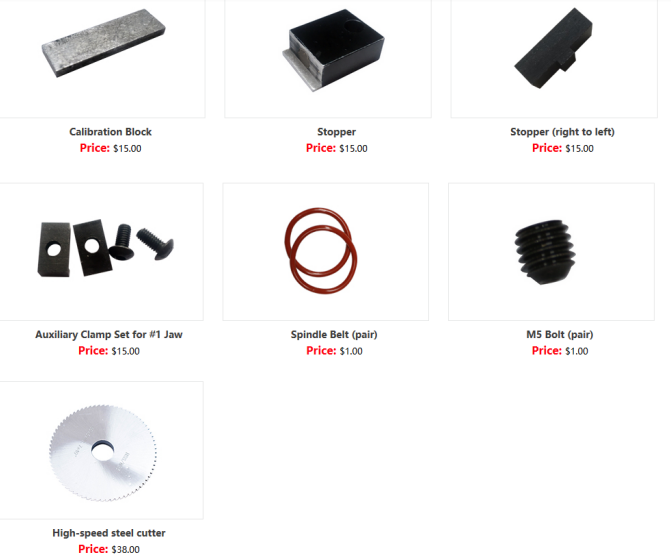

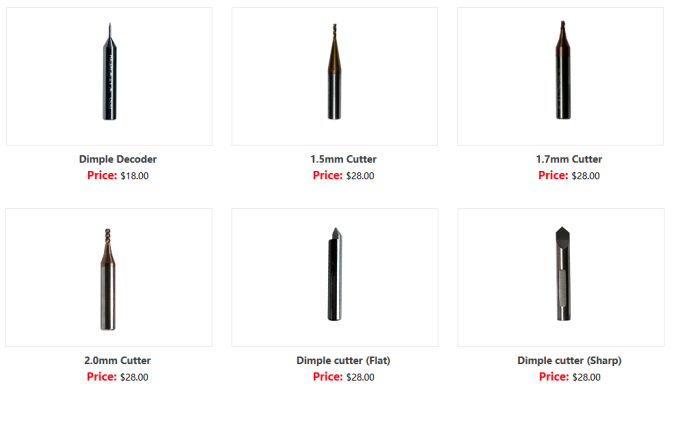

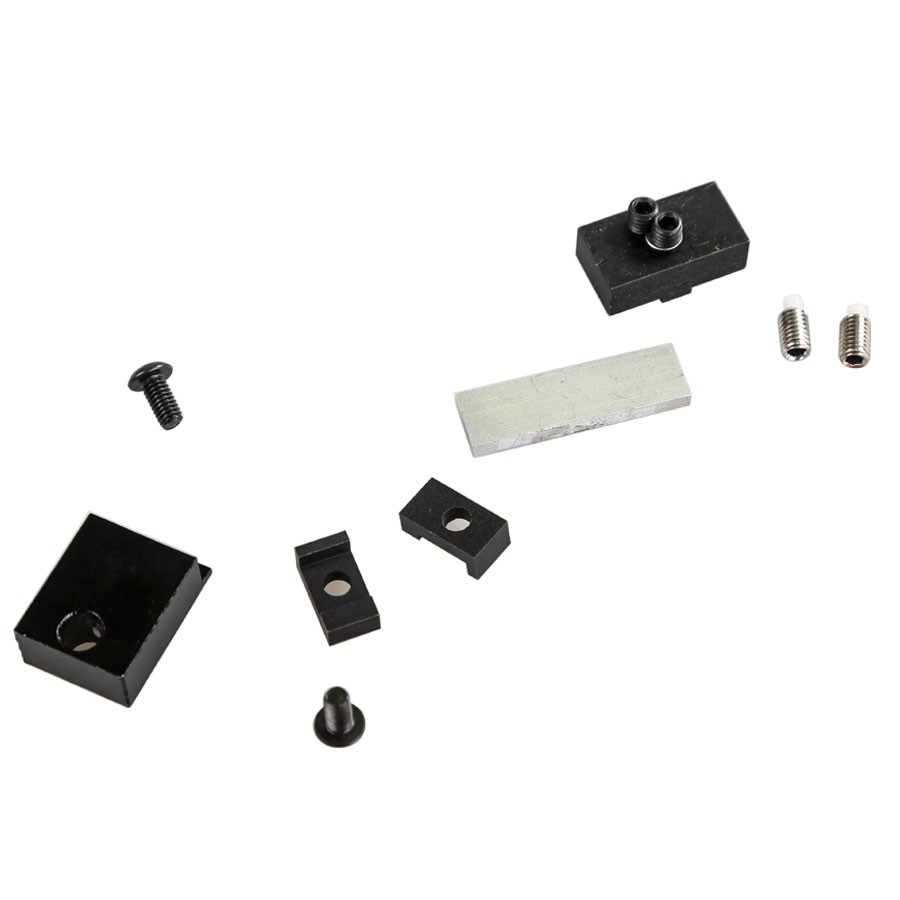

    Products Parts:







    SEC-E9 Key Cutting Machine FAQs:
    Q: Can the SEC-E9 machine cut household keys?
    A: definitely yes!


    Q: Condor mini cannot support the moto key; SEC-E9 support that?
    A: Yes,SEC-E9 can cut motorbike keys without issues.


    Q: What’s the different between Condor key cutting machine and SEC-E9?
    A: SEC-E9 can cut motorcycle keys and household keys that Condor cannot support.
