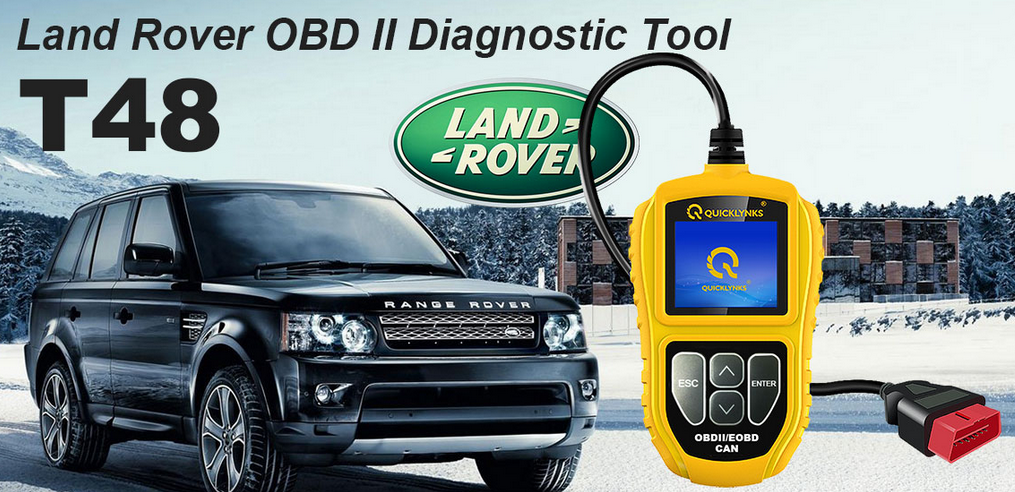

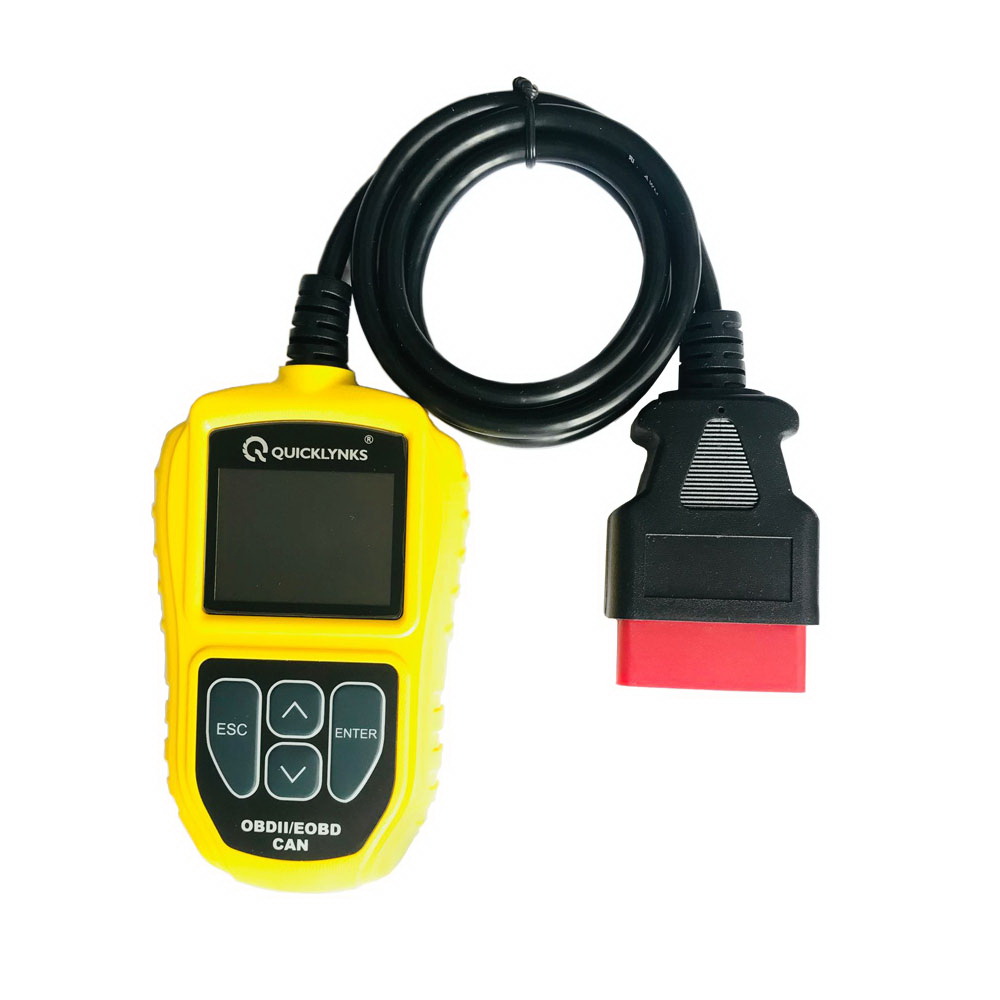

    LAND ROVER OBD2 DIAGNOSTIC SCANNER TOOL Checks Land Rover sold worldwide since 2000 support 59 systems

    • Item No.  F294
    • History: 35  sold
    • Quantity
      Total
      Shipping:
      Express Shipping Service    Estimated delivery time: 5-7 days »
      Affected by the epidemic, there will be delays in transit time.
      continue
    • Quantity:  359
    • Weight:  500.0gram
    • Rank:  comment rank 5 () Write a Review
    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video


    LAND ROVER OBD2 DIAGNOSTIC SCANNER TOOL  Checks Land Rover sold worldwide since 2000 support 59 systems






    Description
    1. Checks Land Rover sold worldwide since 2000, support 59 systems Including Engine, A/T, ABS, Airbag, ENG, Body Control module, Chassis control module, Packing brake control, Steering angle sensor module, Speed control module, etc
    2. Checks the Engine of all vehicle OBDII compliant after 2000.

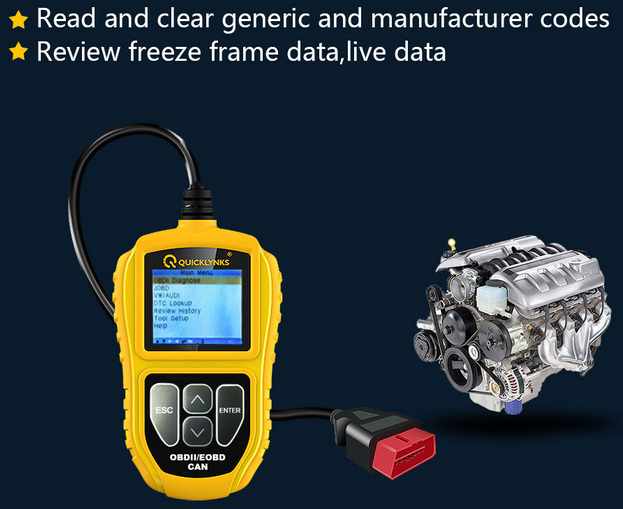

    3. Reads and erases the trouble codes

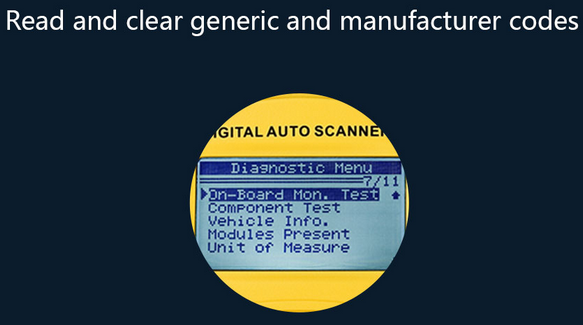

    4. Defines the trouble codes on the screen.
    5. English interface
    6. Free upgrade on internet.


    Product Features
    1. Works on all 2000 and newer cars & light trucks that are OBD II compliant . Available Functions:
    1). Reads and clears generic and manufacturer specific Diagnostic Trouble Codes (DTCs).
    2). Determines the malfunction indicator lamp(MIL) status
    3). Identifies and displays pending codes.
    4). Retrieves VIN(Vehicle Identification No.) on 2002 and newer vehicles that support Mode 9
    5). Wider vehicles coverage with CAN protocol support;
    6). Displays total # of codes retrieved
    7). Code definitions displayed on unit screen

    8). Displays I/M readiness status

    2. Works with Land Rover sold worldwide since 2000, support 59 systems Including Engine, A/T, ABS, Airbag, ENG, Body Control module, Chassis control module, Packing brake control, Steering angle sensor module, Speed control module, etc Available functions:
    1). Reads and clears generic trouble codes of cars using ISO 9141-2 (CARB), ISO 14230 (KWP-2000) and ISO-15765(CAN) protocols.
    2). Displays total # of codes retrieved;
    3). Code definitions displayed on unit screen;
    4). Turns off MIL lights of engine, airbags, ABS, A/T and most other systems
    5). Views the ECU information.
    6). Reset service for all brands of Land Rover oil reset EPB reset Brake bleeding SLS reset Battery reset.

    Vehicle Coverage

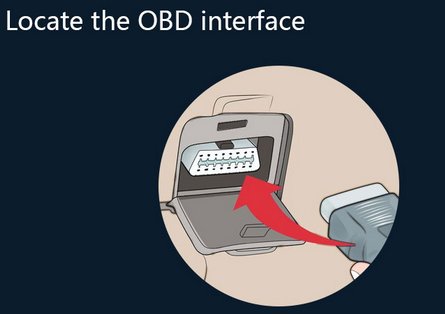

    All OBD2 & EOBD compliant vehicles with a 16-pin Interface(include all cars, light trucks and SUVs sold after 2000 and newer sold in the Europe, Japan and Asian Area) CAN,VPW,PWM,ISO9141,KW2000 protocols compliant vehicles Besides, also available for Land Rover after 2000, including Freelander: 1997 and later, Discovery 1995 and later, Range Rover: 1995 and later, Range Rover Sport: 2005 and later, Range Rover Evoque: 2012 and later, Defender: 1997 and later.

    Specifications

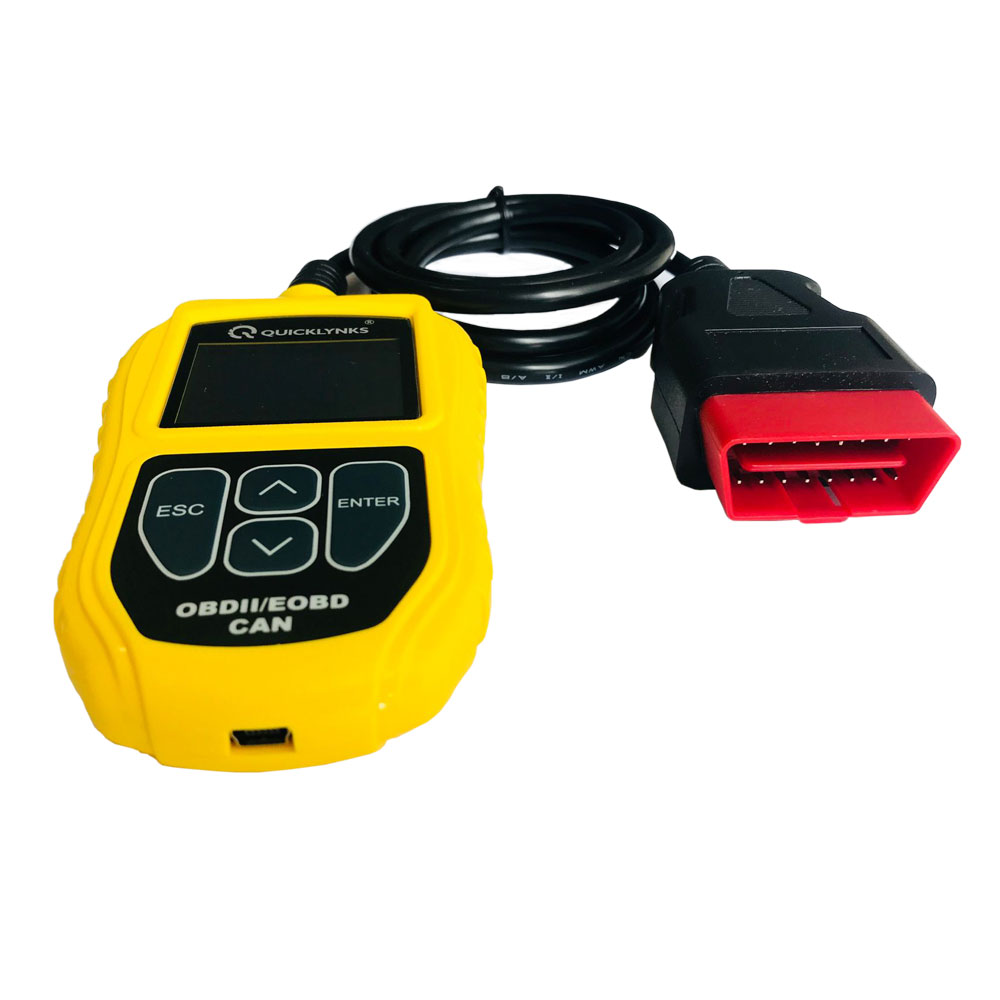

    Display: 2.0” TFT color screen
    Operating Temperature: 0 to 50C (32 to 122 F)
    Storage Temperature: -20 to 70C (-4 to 158 F)
    Power: 8 to 16 Volts provided via vehicle battery
    Dimensions: 120(L)*72(W)*15 (H)mm
    NW: 0.2kg , GW: 0.4kg

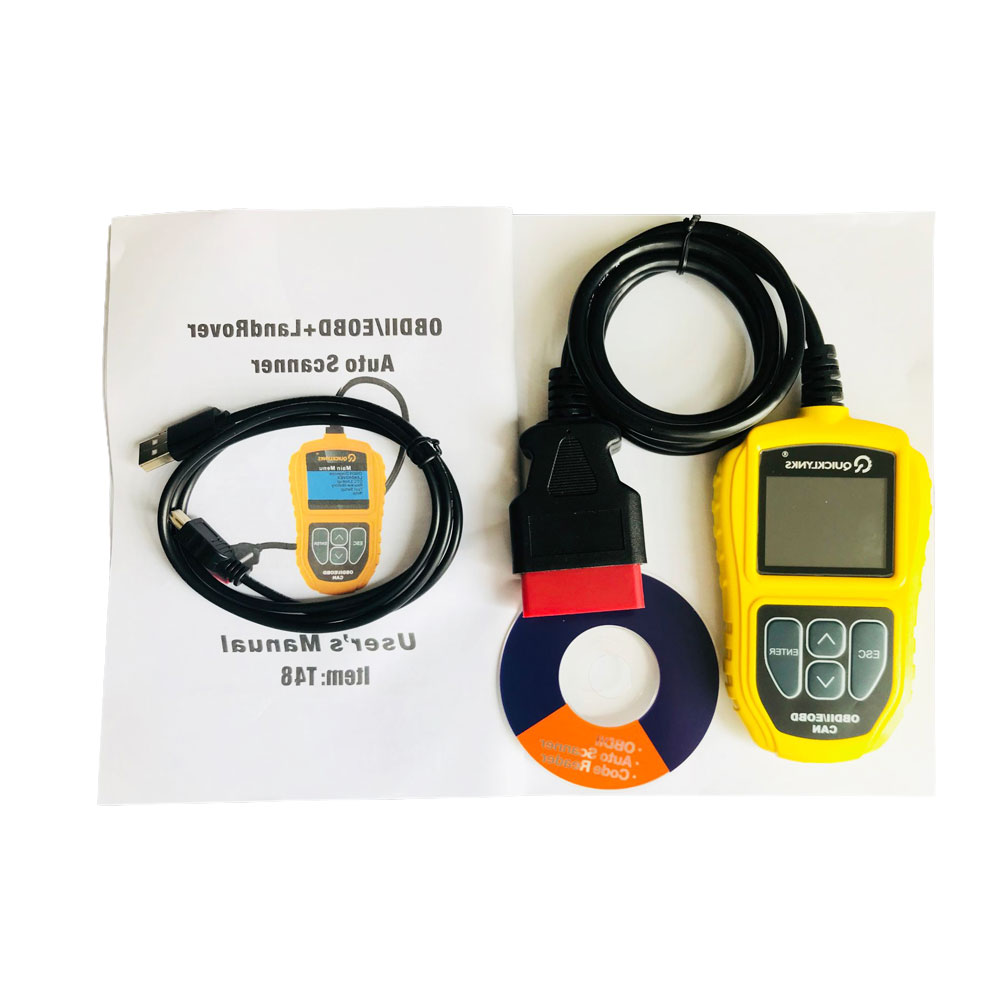

    Accessories Included

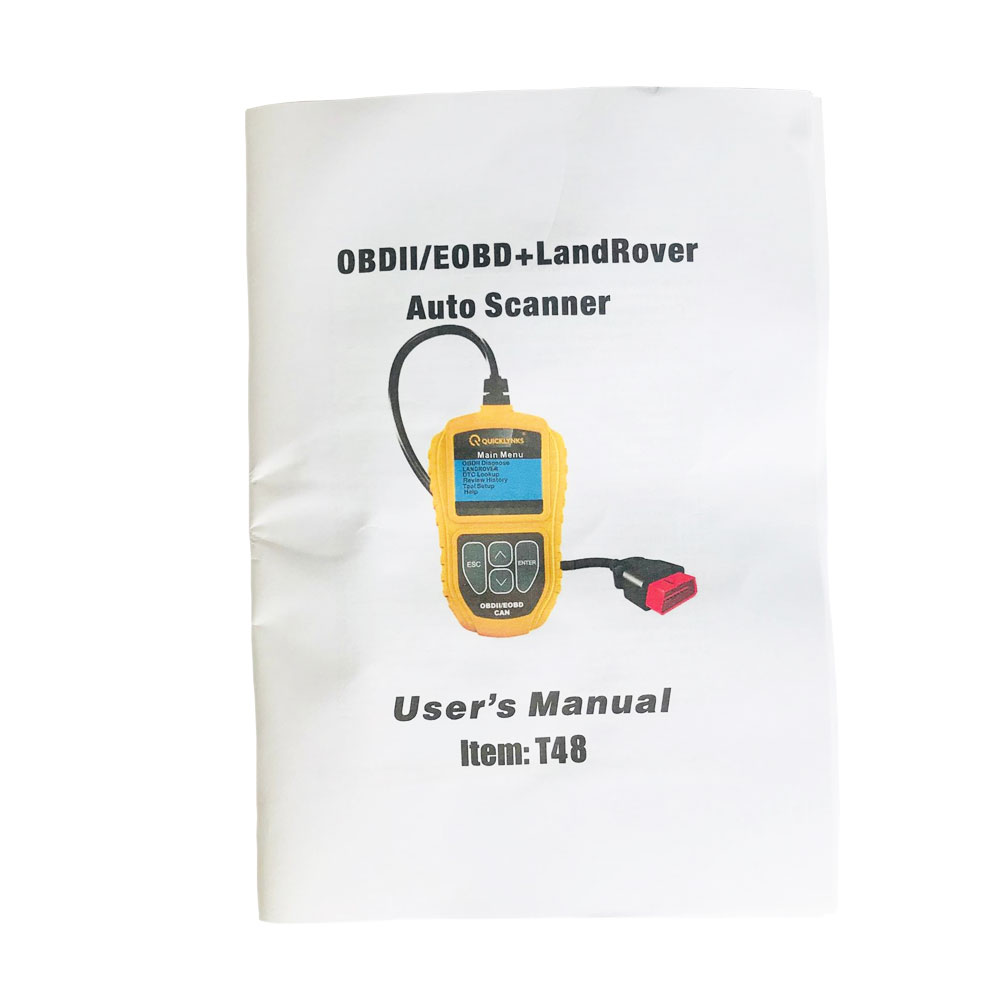

    1.User's Manual (Instructions on tool operations)
    2.CDs (Includes user's manual, DTCs lookup library, etc.)

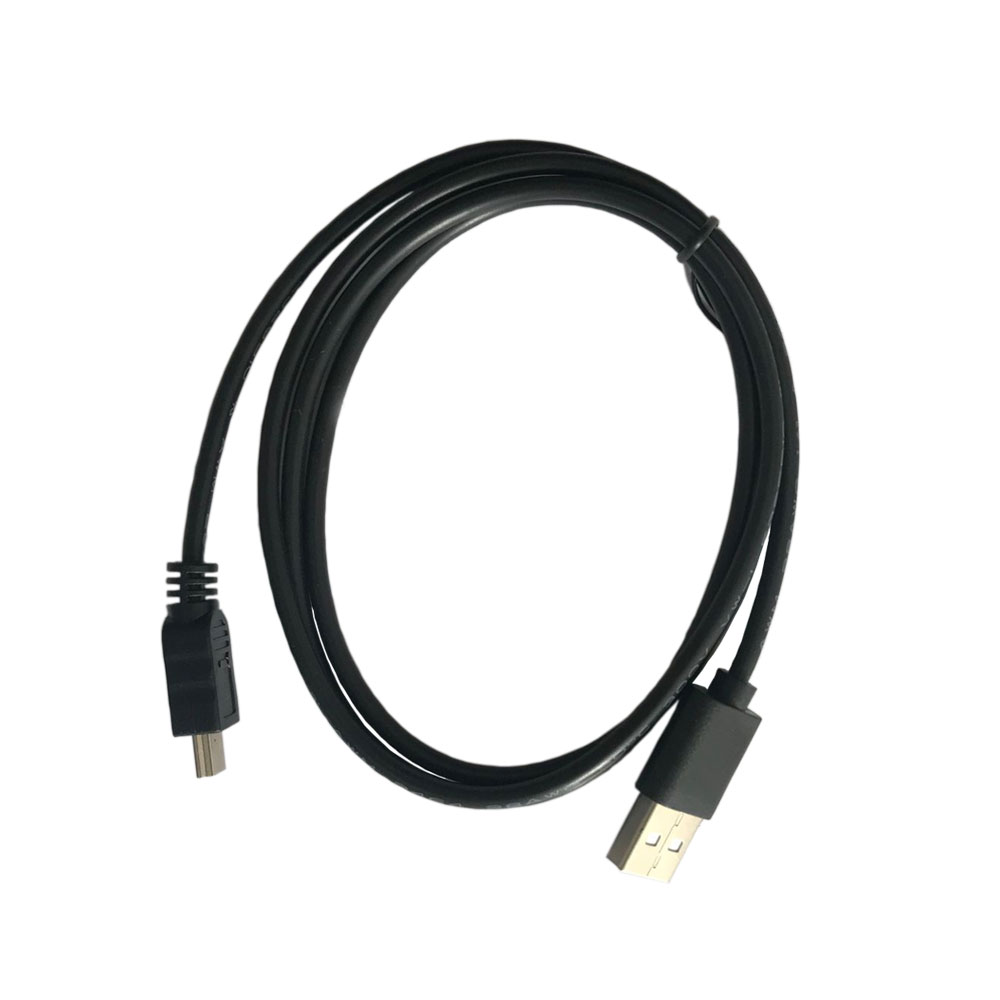

    3.USB Cable (Used to update the scan tool)
